Family Aluminium - Electronic enclosures - Metal

Description

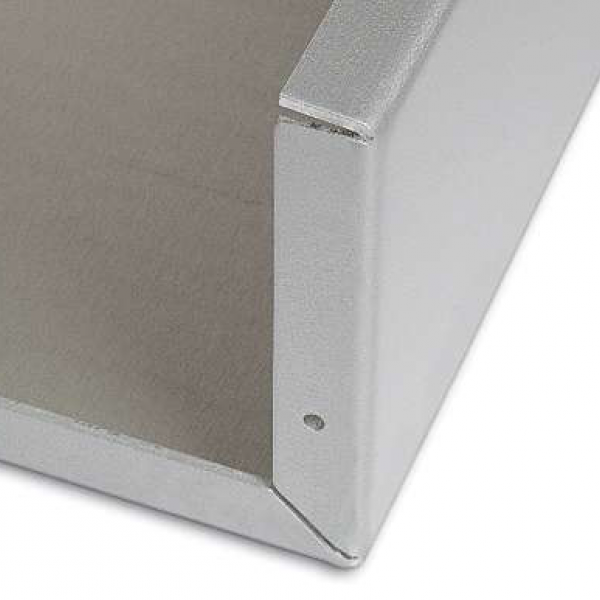

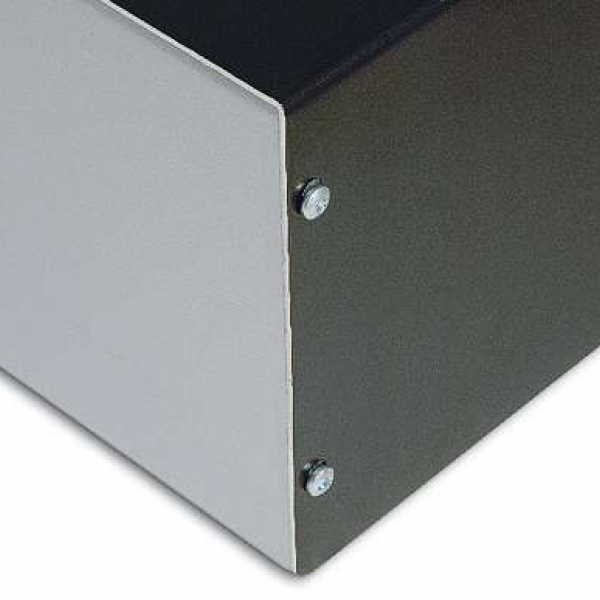

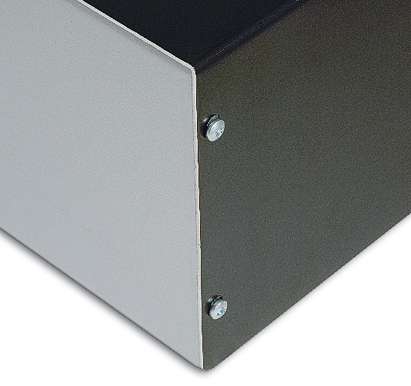

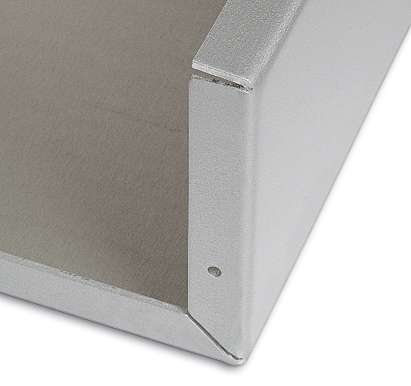

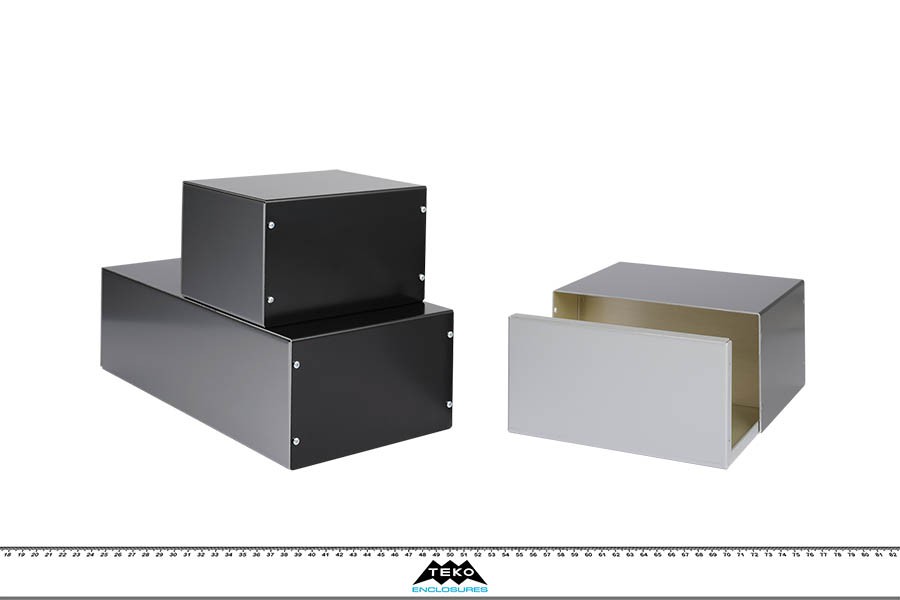

Aluminium enclosures with silver metalised base and black cover. Simple and speedy to assemble, with four screws to put in place.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

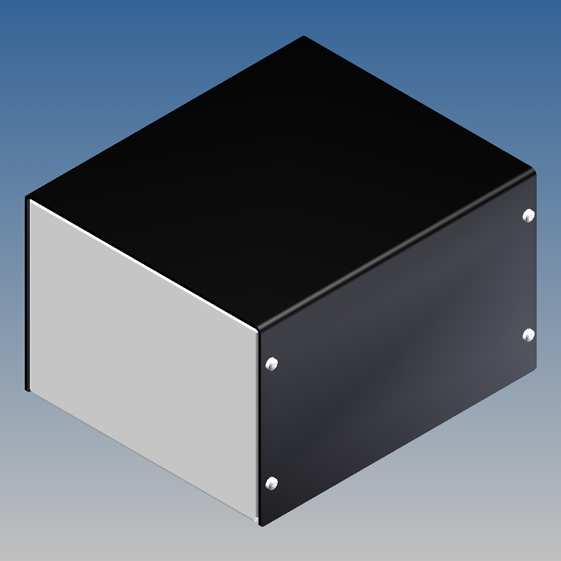

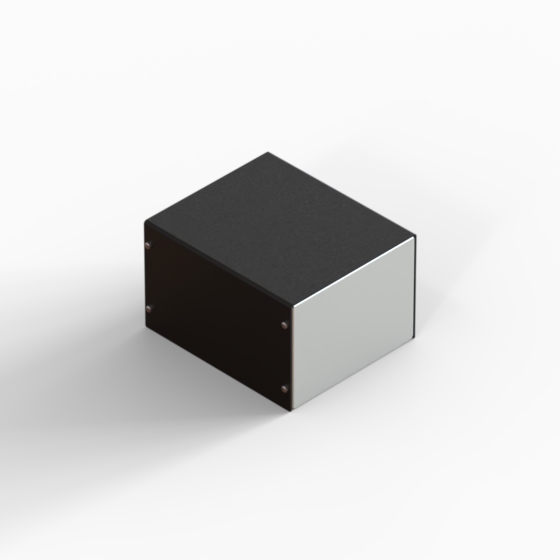

422.18 137 160 100 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 8 - PDF
DWG
View
423.18 187 160 100 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 8 - PDF
DWG
View

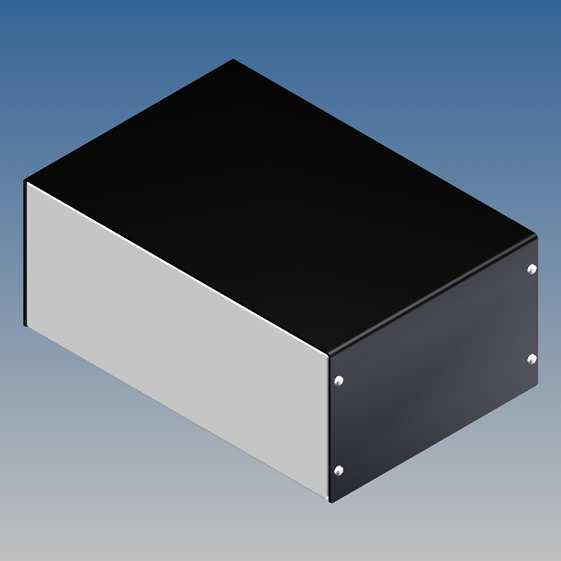

424.18 237 160 100 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 8 - PDF
DWG
View
425.18 287 160 100 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 8 - PDF
DWG
View
426.18 337 160 100 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 8 - PDF
DWG
View

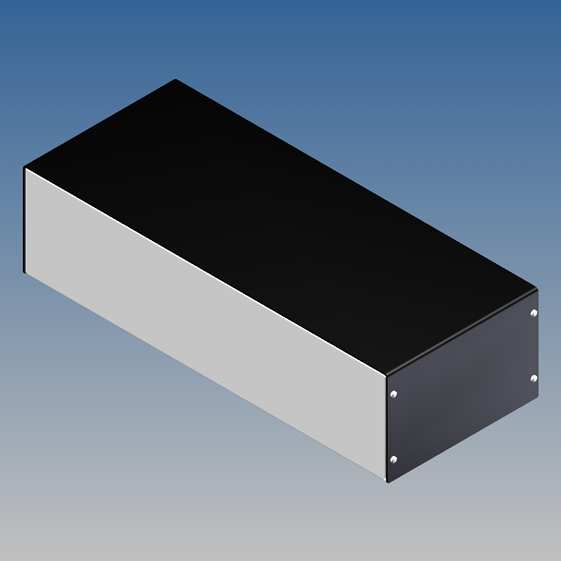

427.18 387 160 100 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 8 - PDF
DWG
View
