AL BOX

Family Aluminium - Electronic enclosures - Metal

Description

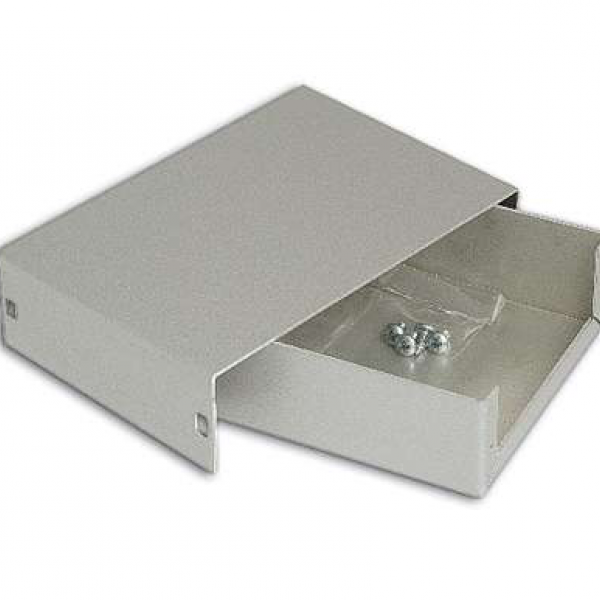

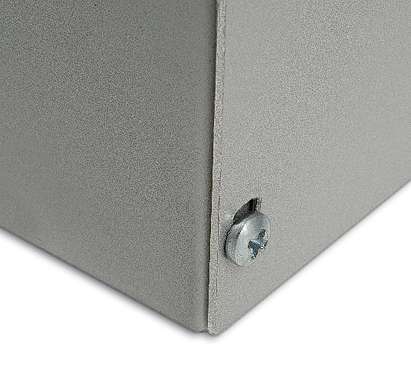

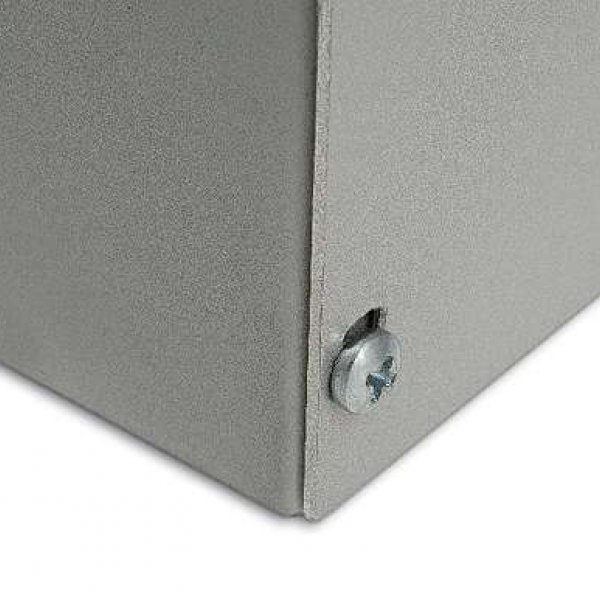

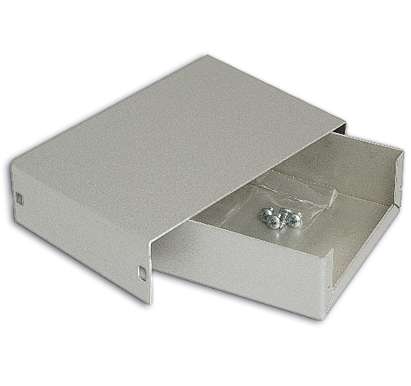

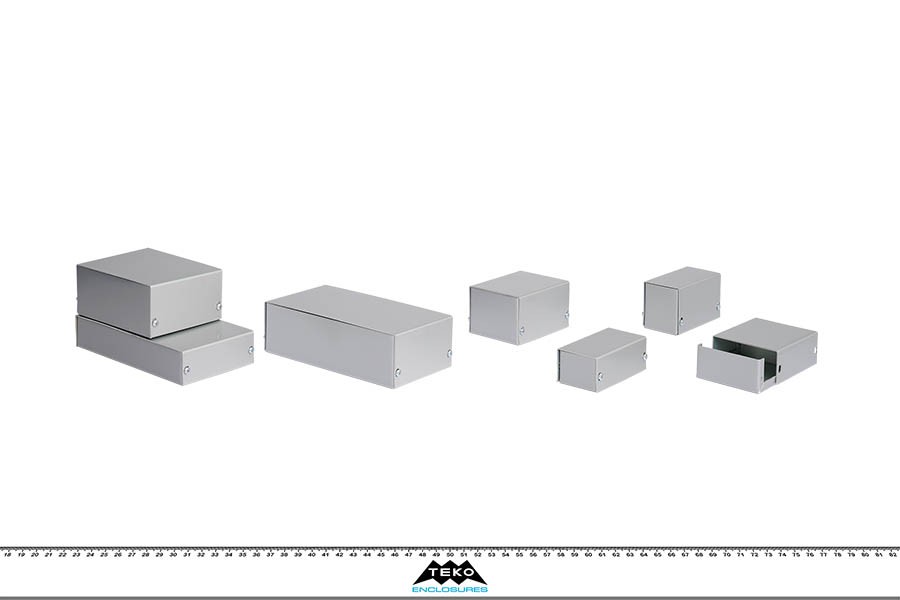

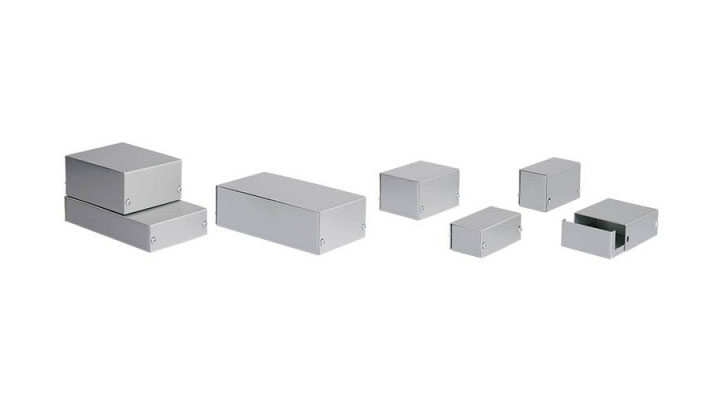

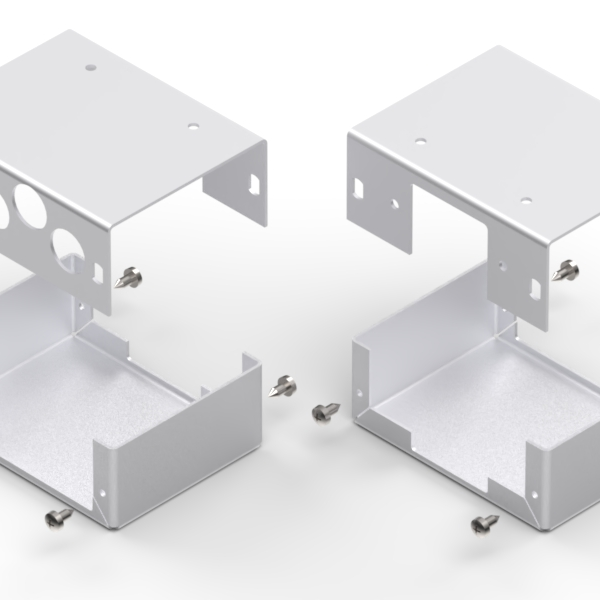

Aluminium enclosures with silver metalised base and cover. Simple and speedy to assemble, with four screws to put in place.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

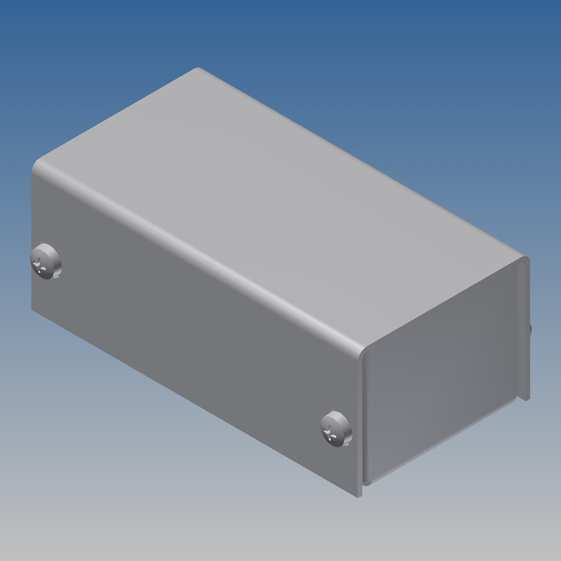

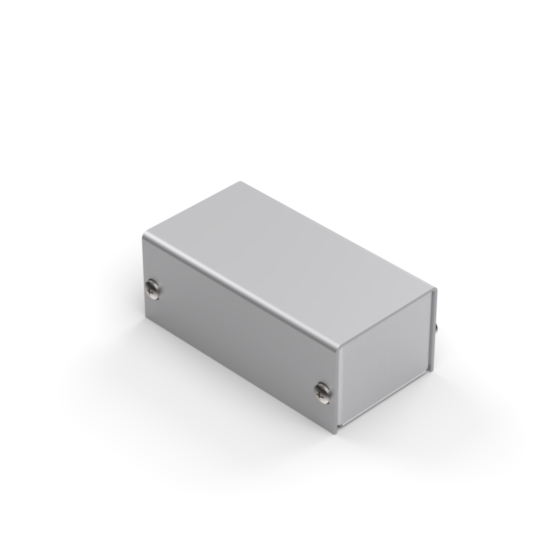

1/A.1 38 72 28 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

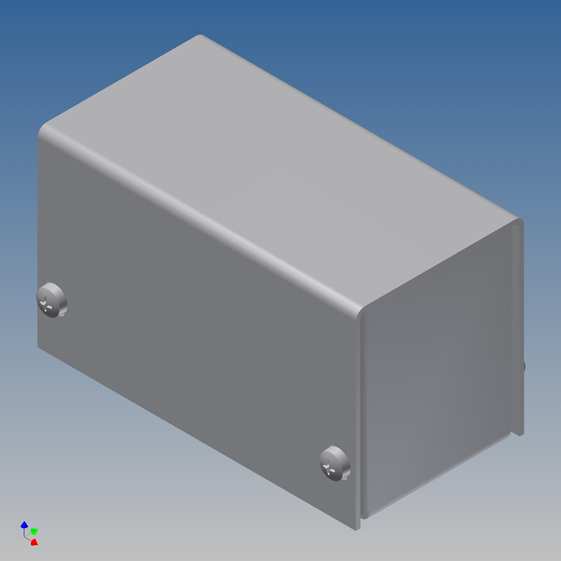

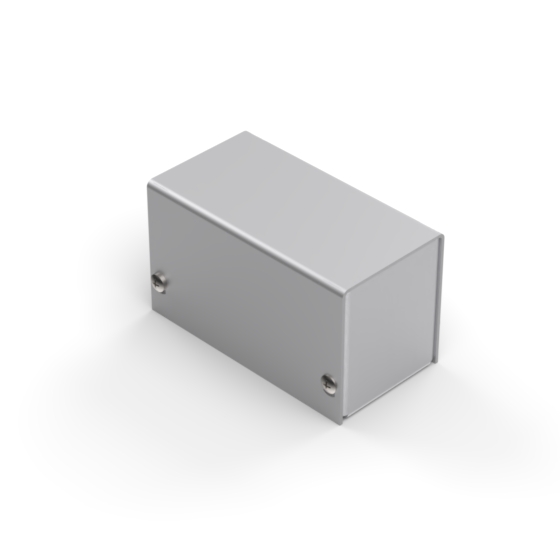

1/B.1 38 72 43 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

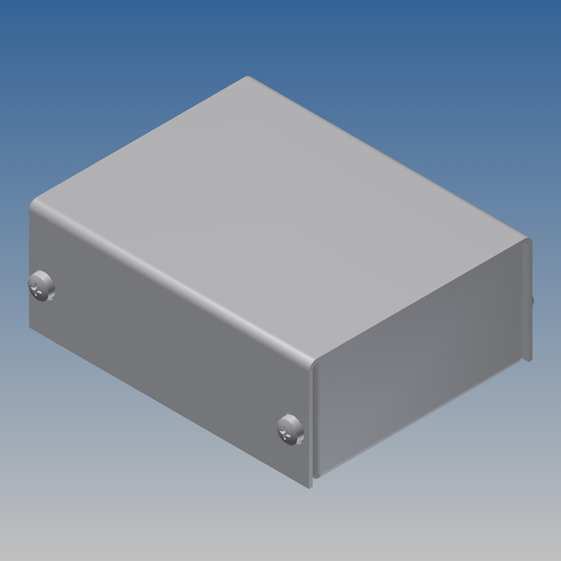

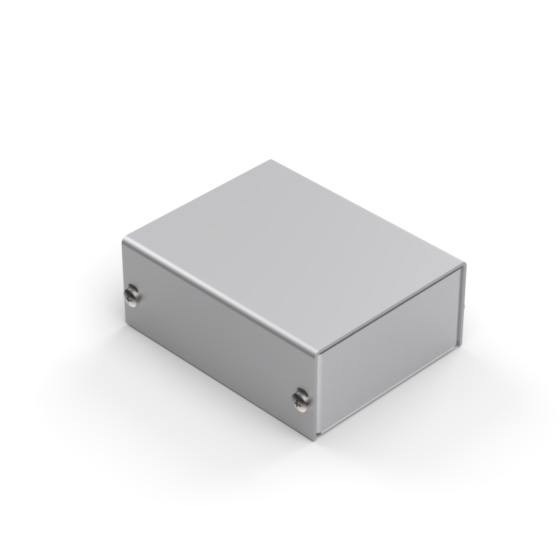

2/A.1 57,5 72 28 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

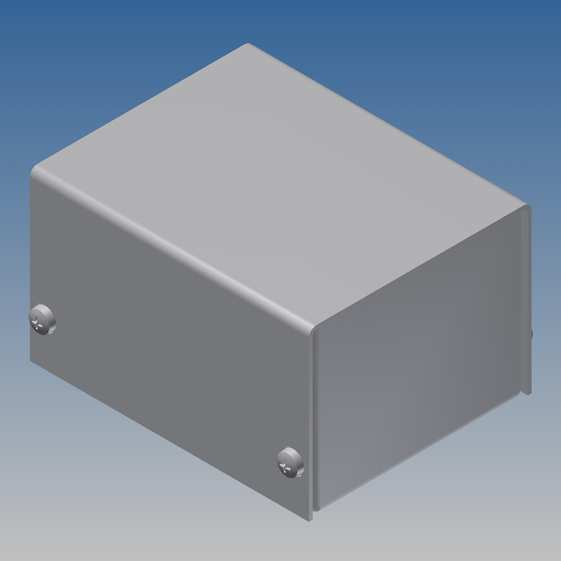

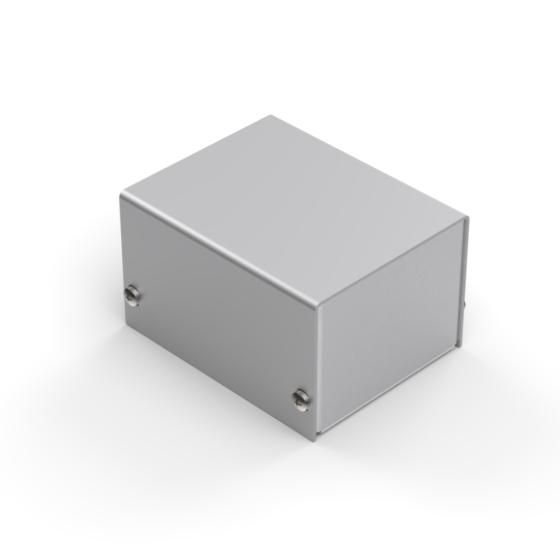

2/B.1 57,5 72 43 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

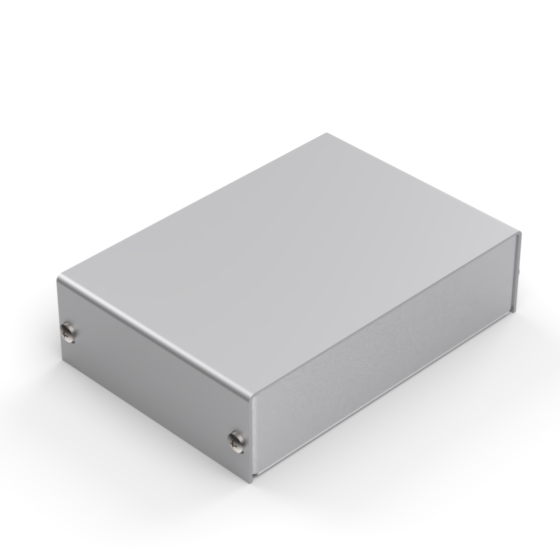

3/A.1 103 72 28 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

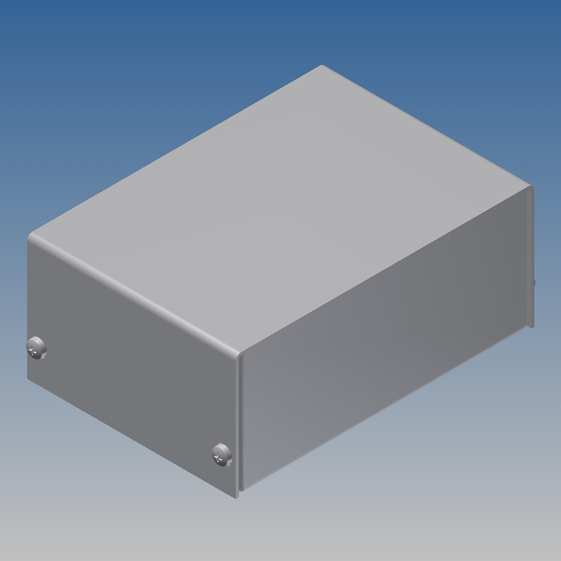

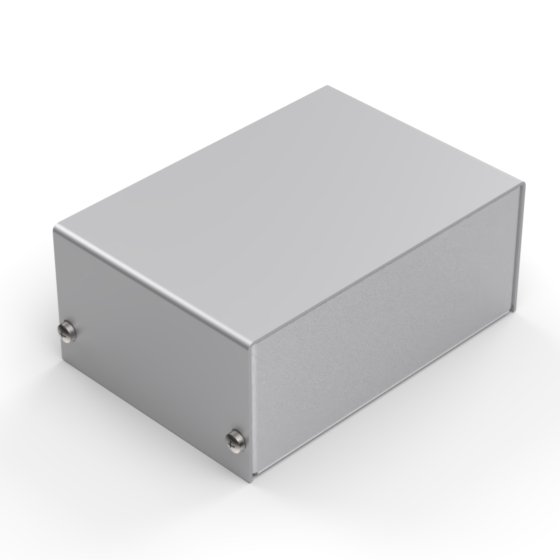

3/B.1 103 72 43 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

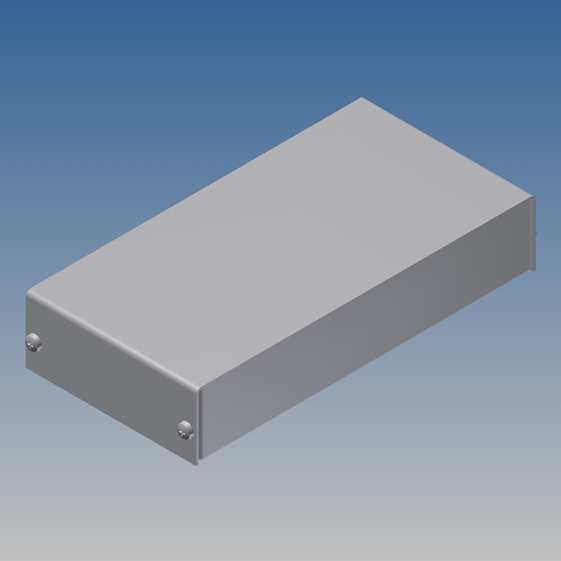

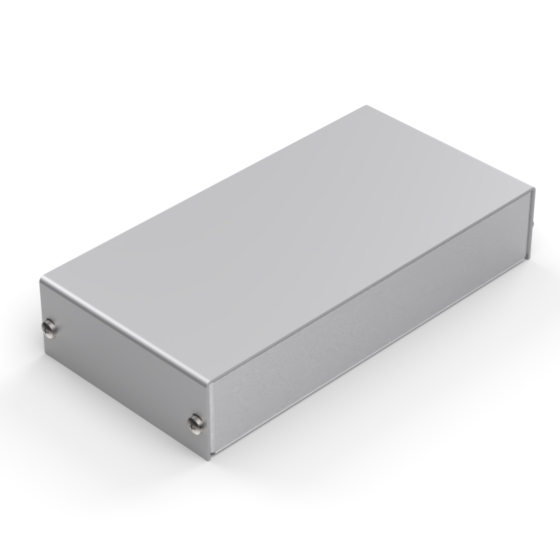

4/A.1 143 72 28 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

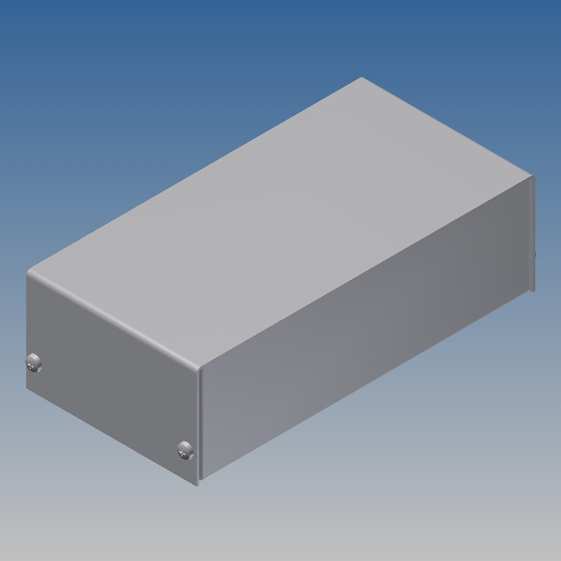

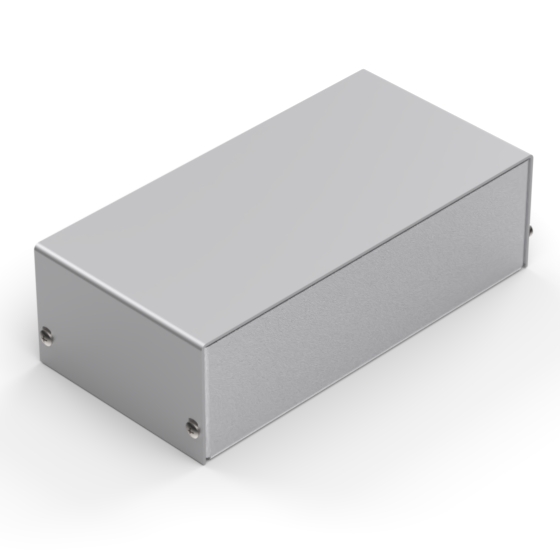

4/B.1 143 72 43 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View
12 product families, 144 series. You can't find what you're looking for? Contact us
