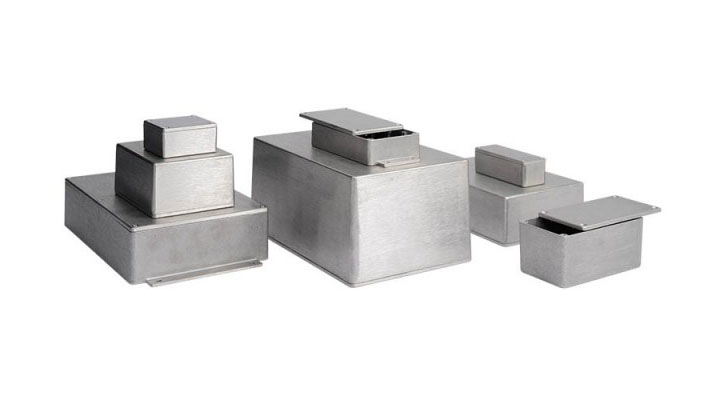

ALUTEK

Family Aluminium - Electronic enclosures - Metal

Description

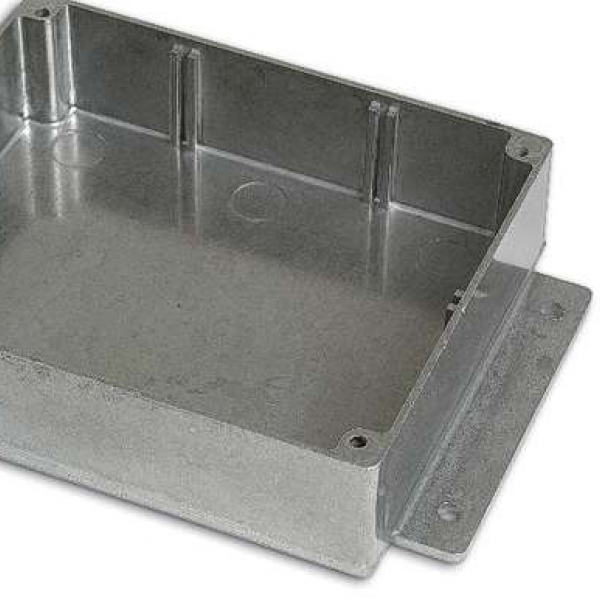

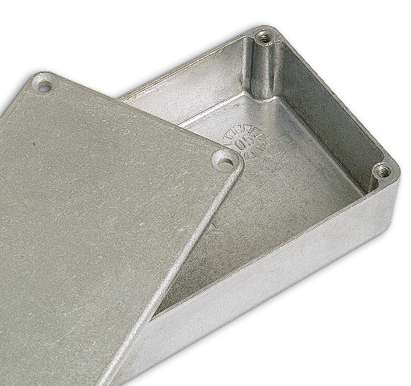

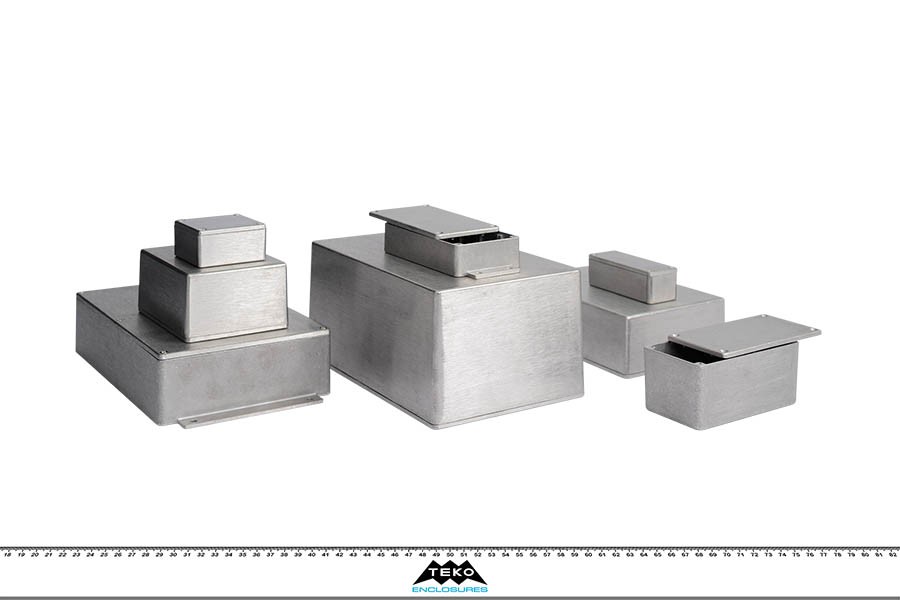

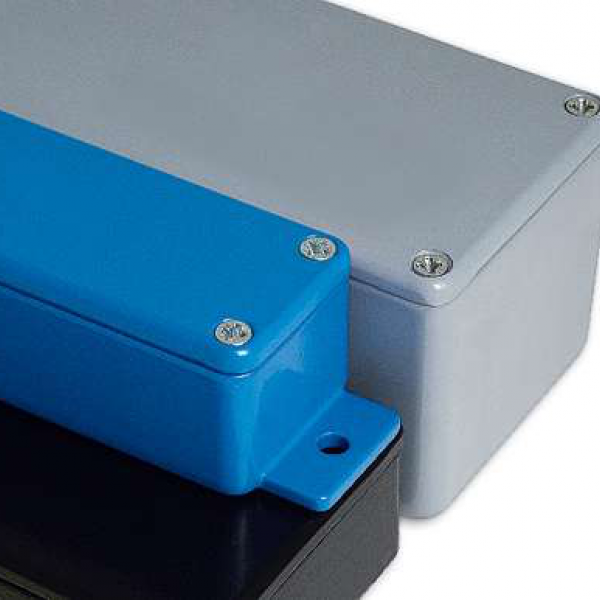

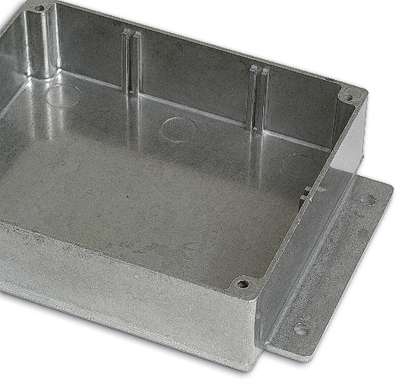

These aluminium die-cast enclosures provide excellent screening against EMI-RFI. Integral PCB guides are incorporated in some of the styles (X). The series from “AL16x” to “AL25x” have pre-drilled external mounting flanges, for quick and easy mounting. Part of the range has self-adhesive rubber seals which provide IP66 rating when attached to the box lids (SK-not available for the models AL1 and AL2). Upon request these enclosures can be supplied Nylon coated or stove enameled. Simple and speedy to assemble, with four or six stainless steel screws to put in place.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

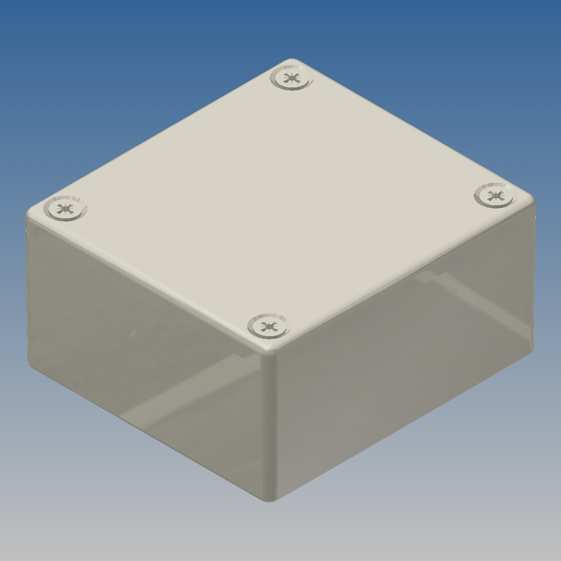

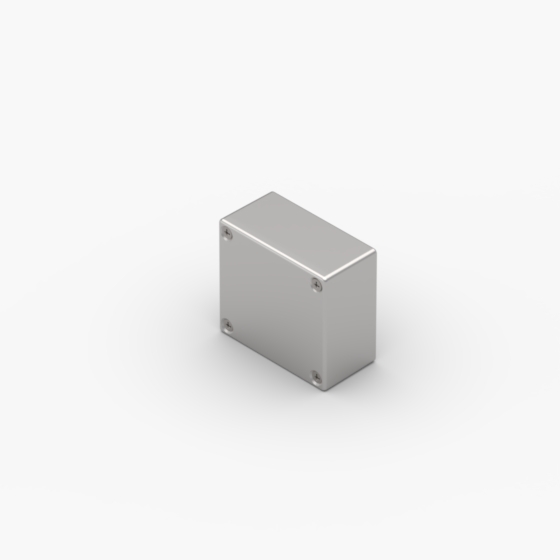

AL-1.0 60 55 30  -
LM 24 55,8 20 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 55,8
  • MAX PCB W (mm): 20
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

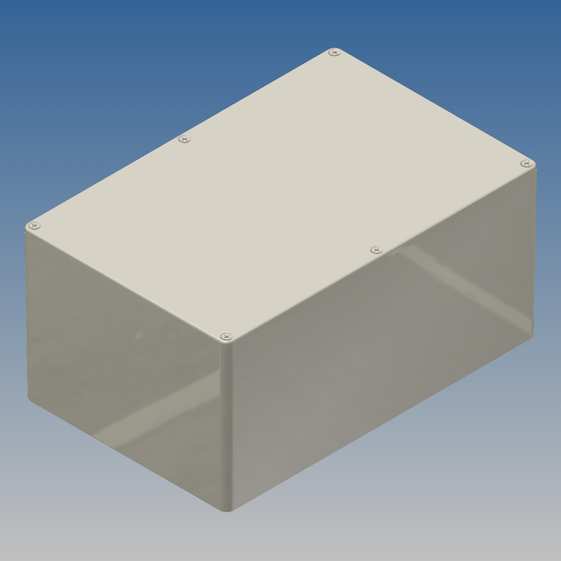

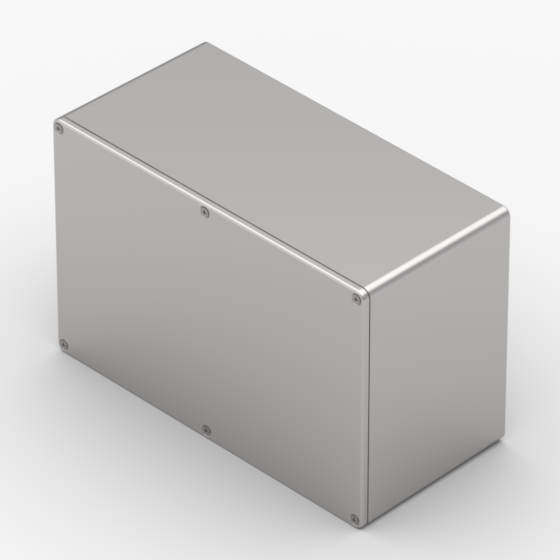

AL-10.0 222,3 146 105  -
LM 24 218,3 142 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 218,3
  • MAX PCB W (mm): 142
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

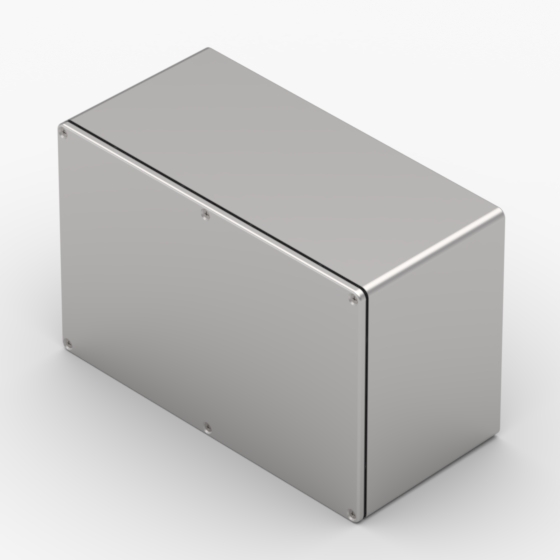

AL-10SK.0 222,3 146 105  -
LM 24 218,3 142 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 218,3
  • MAX PCB W (mm): 142
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

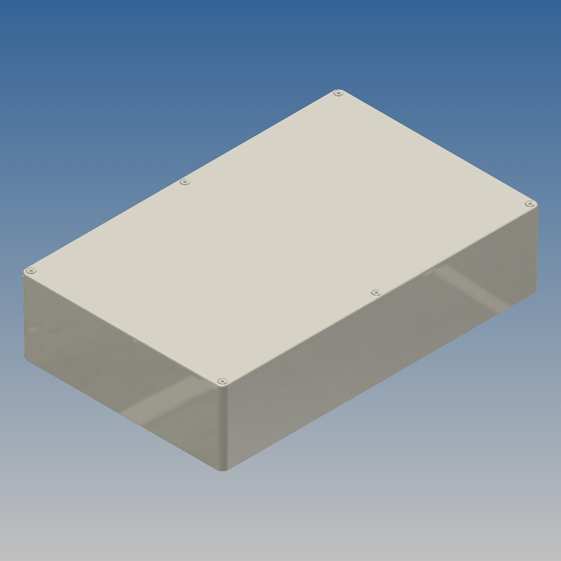

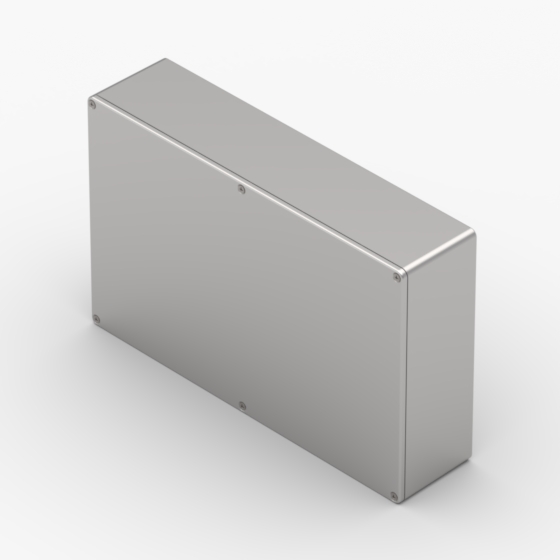

AL-11X.0 275 175 65  -
LM 24 270,5 55,5 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 270,5
  • MAX PCB W (mm): 55,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

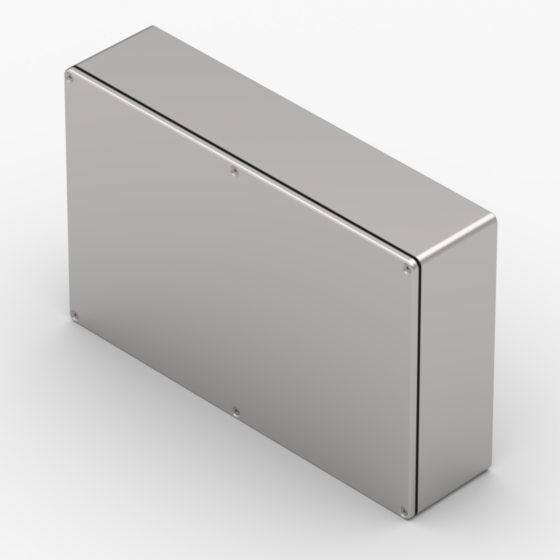

AL-11XSK.0 275 175 65  -
LM 24 270,5 55,5 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 270,5
  • MAX PCB W (mm): 55,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

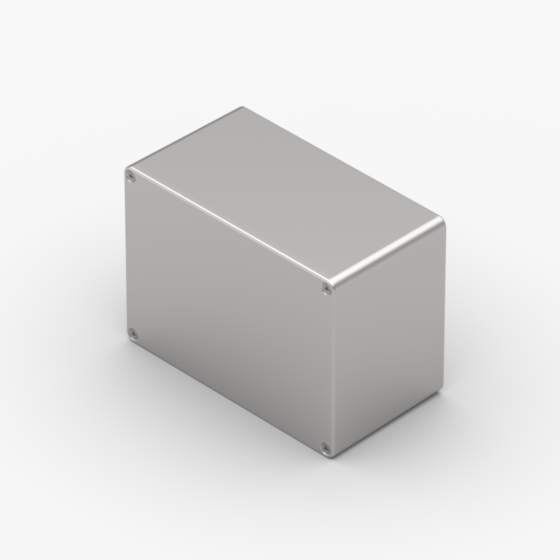

AL-12X.0 139,7 101,6 76  -
LM 24 135,2 66,5 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 135,2
  • MAX PCB W (mm): 66,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

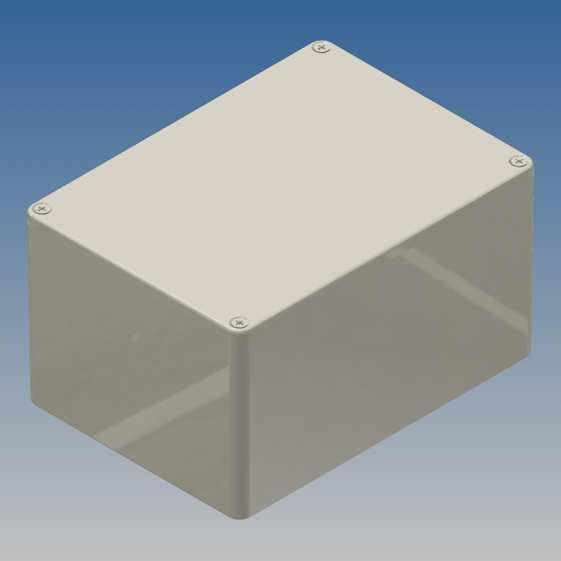

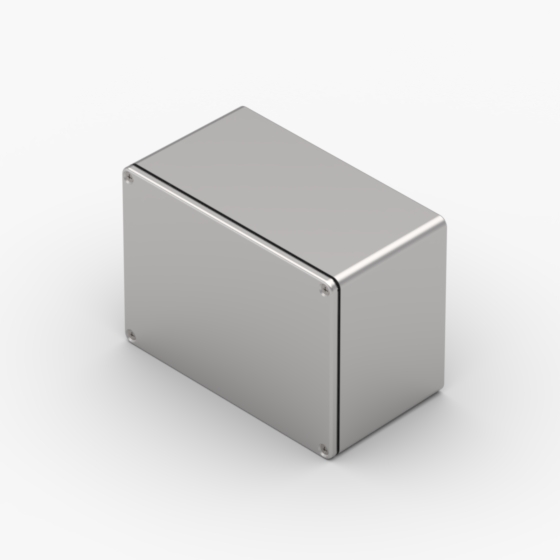

AL-12XSK.0 139,7 101,6 76  -
LM 24 135,2 66,5 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 135,2
  • MAX PCB W (mm): 66,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

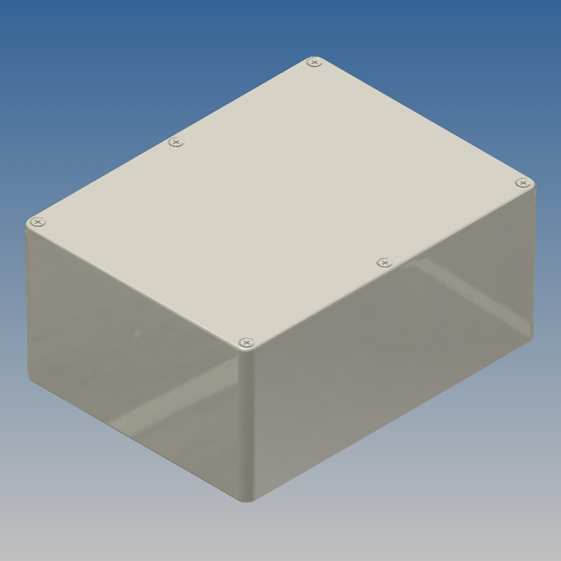

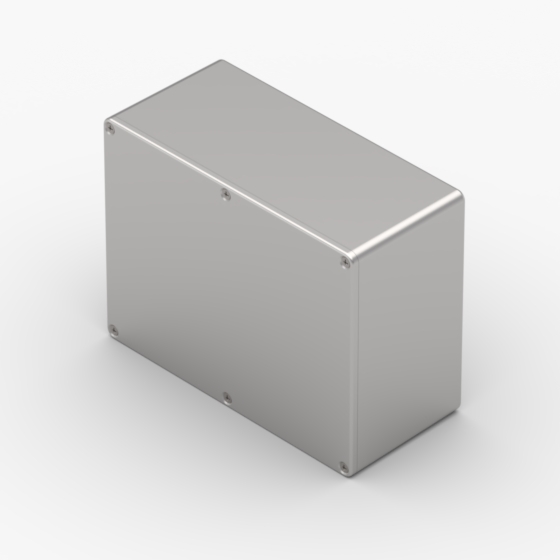

AL-13X.0 165 127 76  -
LM 24 161,5 66,5 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 161,5
  • MAX PCB W (mm): 66,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

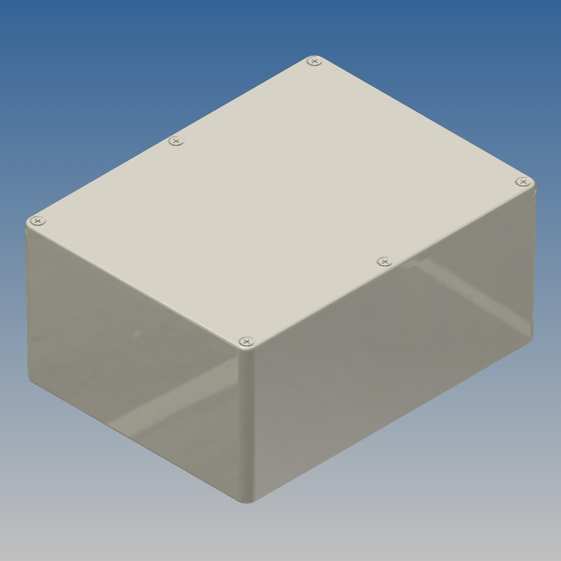

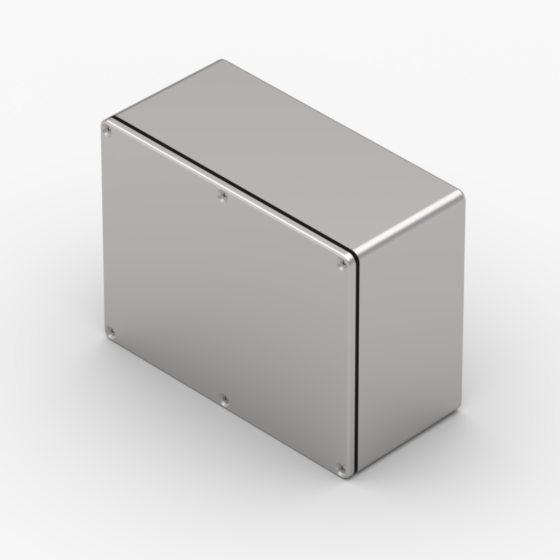

AL-13XSK.0 165 127 76  -
LM 24 161,5 66,5 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 161,5
  • MAX PCB W (mm): 66,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

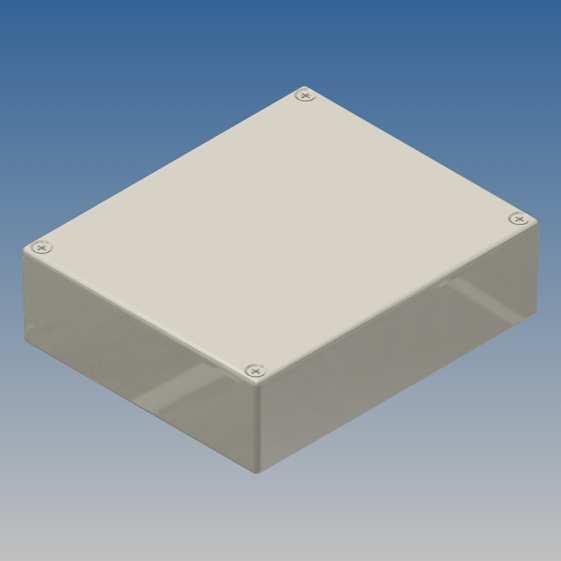

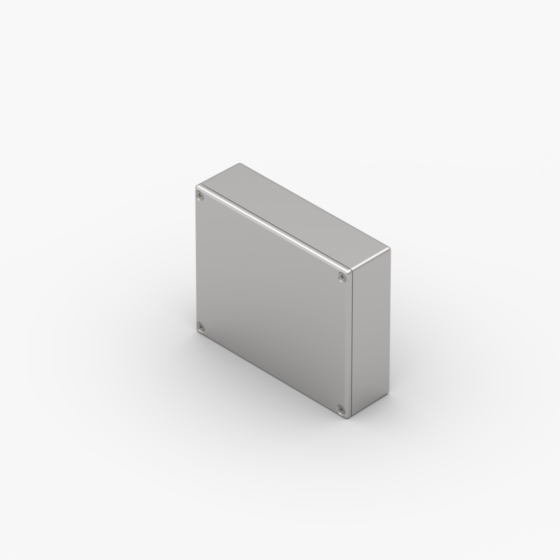

AL-14X.0 120 100 35  -
LM 24 116,5 25,5 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 116,5
  • MAX PCB W (mm): 25,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

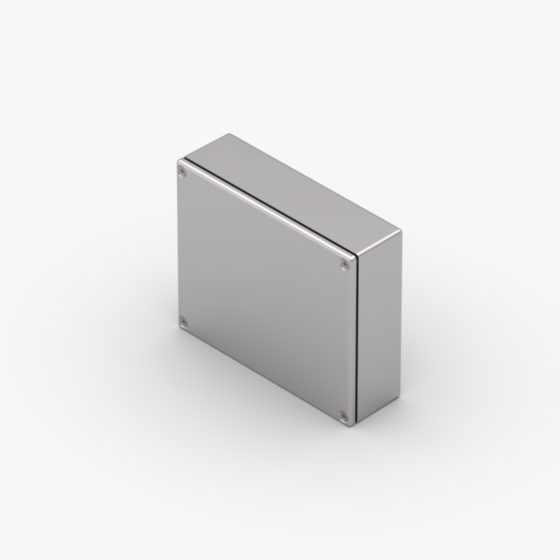

AL-14XSK.0 120 100 35  -
LM 24 116,5 25,5 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 116,5
  • MAX PCB W (mm): 25,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

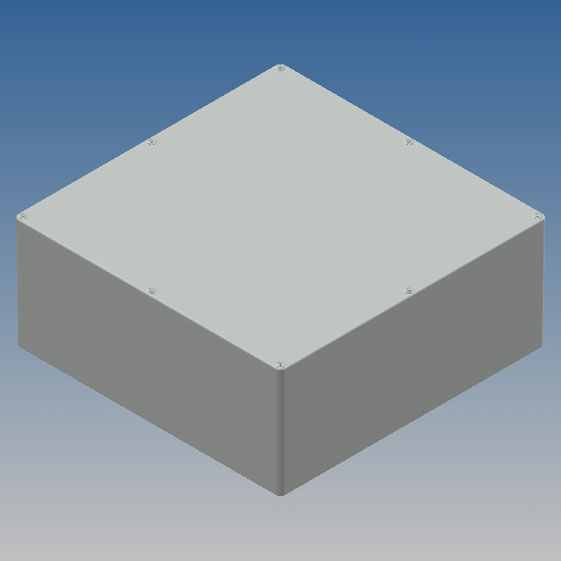

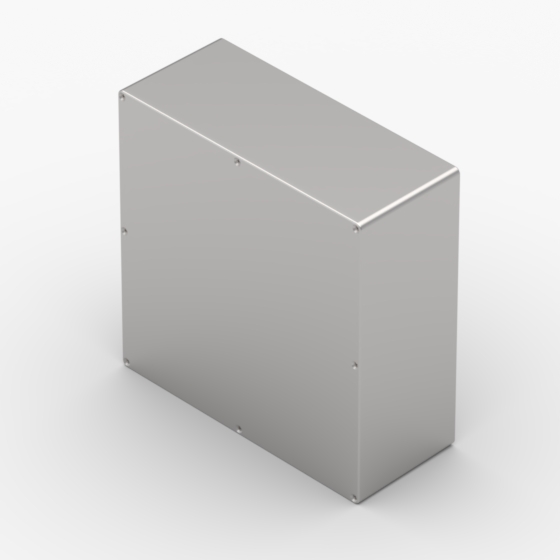

AL-15X.0 250 250 100  -
LM 24 246 246 8 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 246
  • MAX PCB W (mm): 246
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

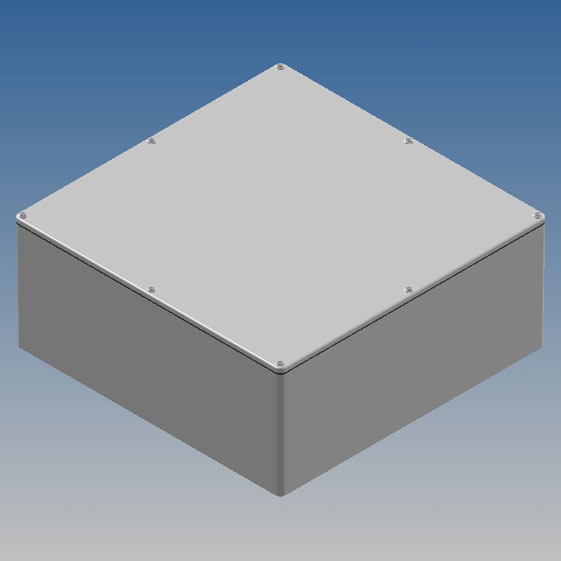

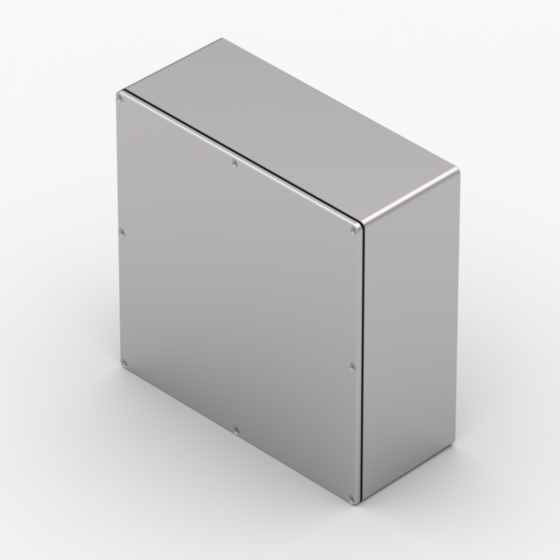

AL-15XSK.0 250 250 100  -
LM 24 246 246 8 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 246
  • MAX PCB W (mm): 246
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

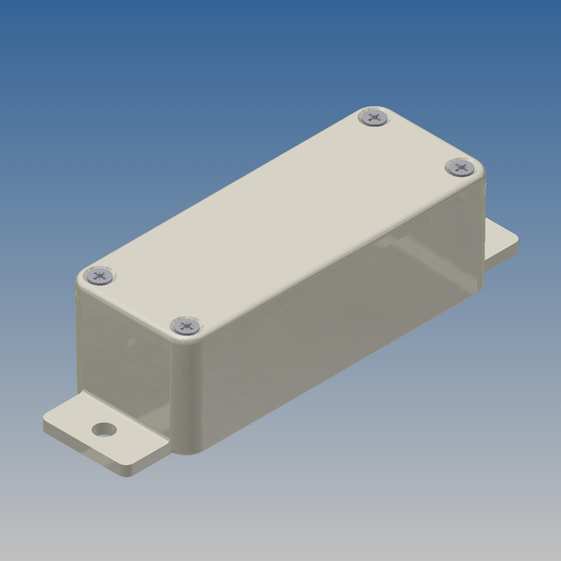

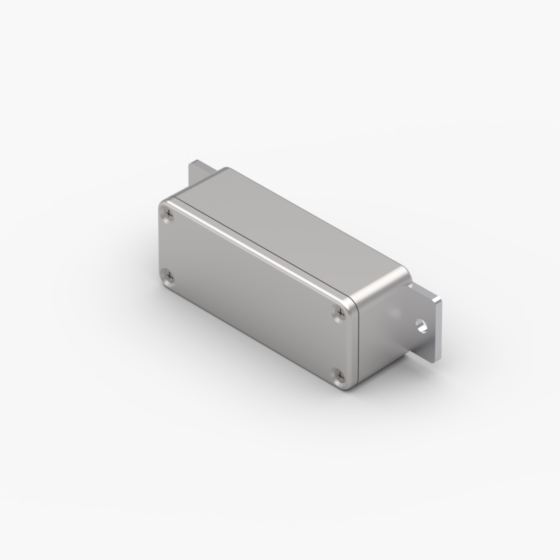

AL-16X.0 114 35,1 29,5  -
LM 24 31,3 20 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 31,3
  • MAX PCB W (mm): 20
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

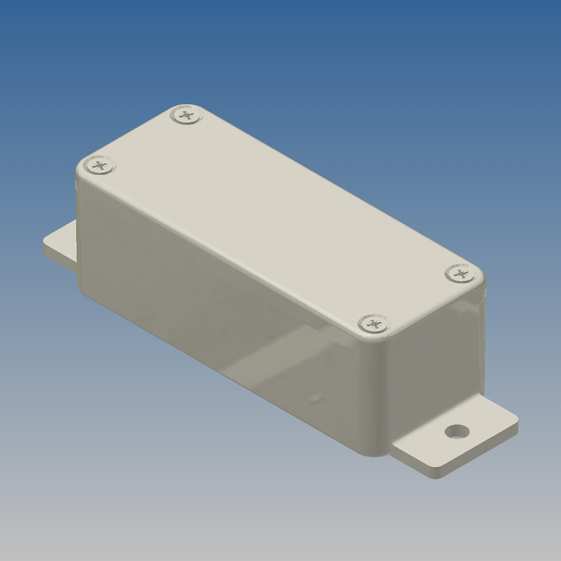

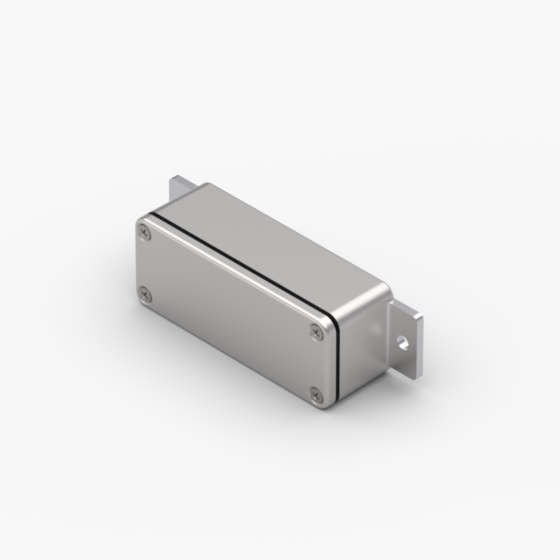

AL-16XSK.0 114 35,1 29,5  -
LM 24 31,3 20 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 31,3
  • MAX PCB W (mm): 20
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

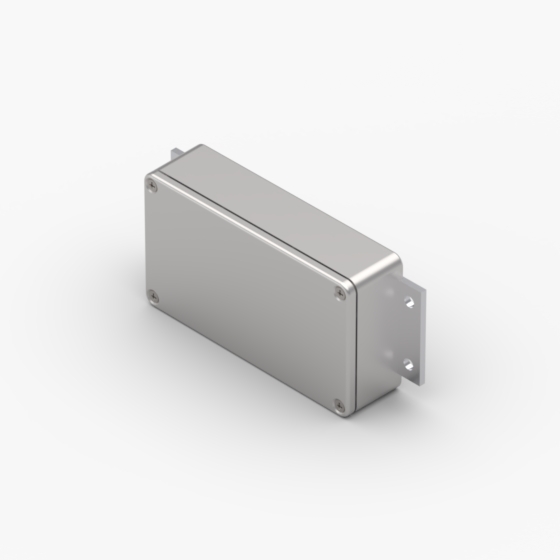

AL-17X.0 139,7 63,6 29,5  -
LM 24 110,8 20,1 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,8
  • MAX PCB W (mm): 20,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

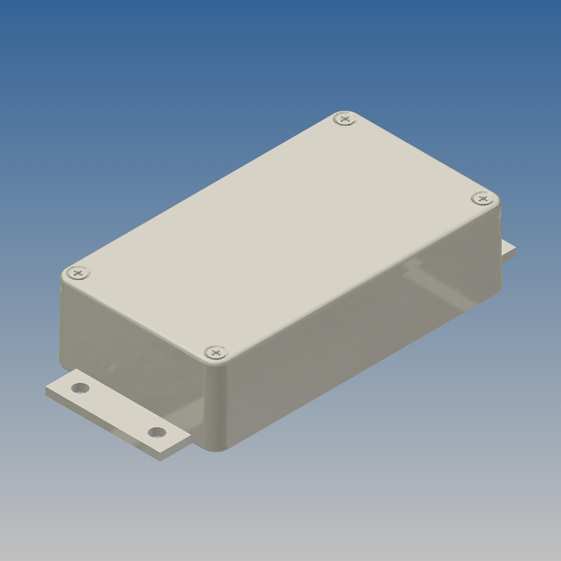

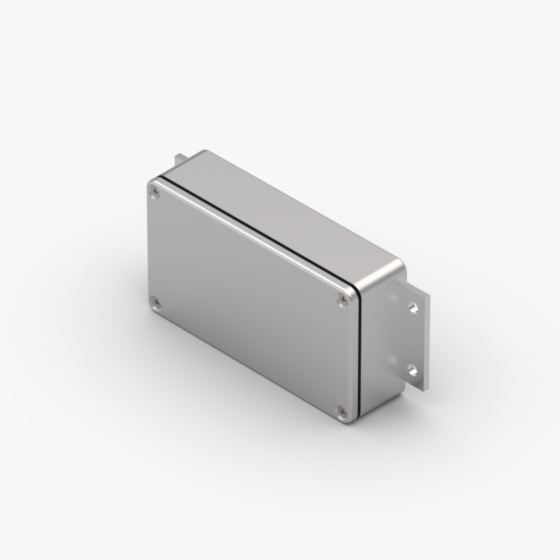

AL-17XSK.0 139,7 63,6 29,5  -
LM 24 110,8 20,1 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,8
  • MAX PCB W (mm): 20,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

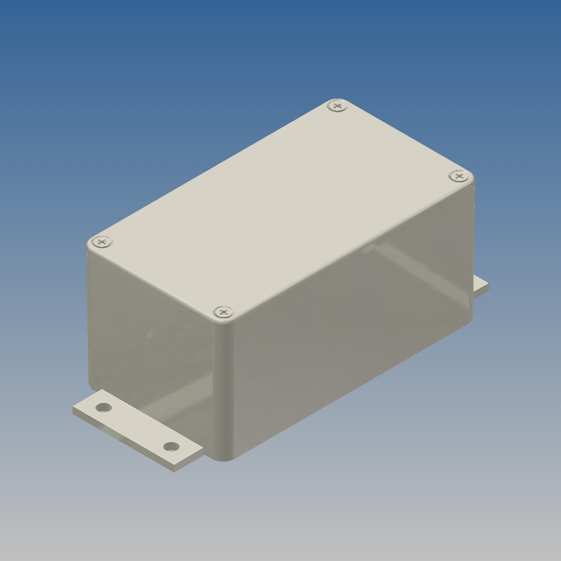

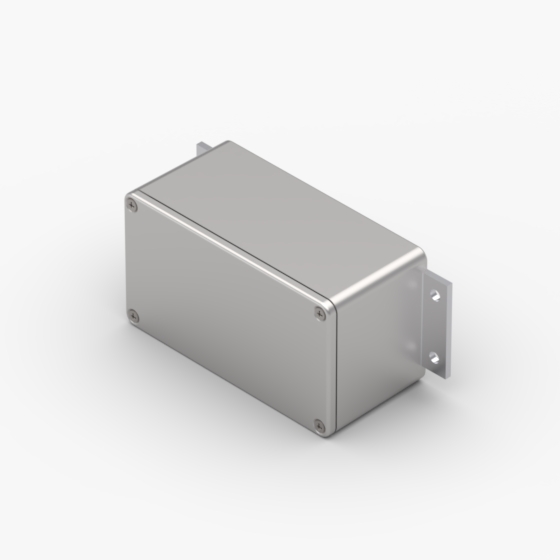

AL-18X.0 139,7 63,7 54,9  -
LM 24 110,8 45,6 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,8
  • MAX PCB W (mm): 45,6
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

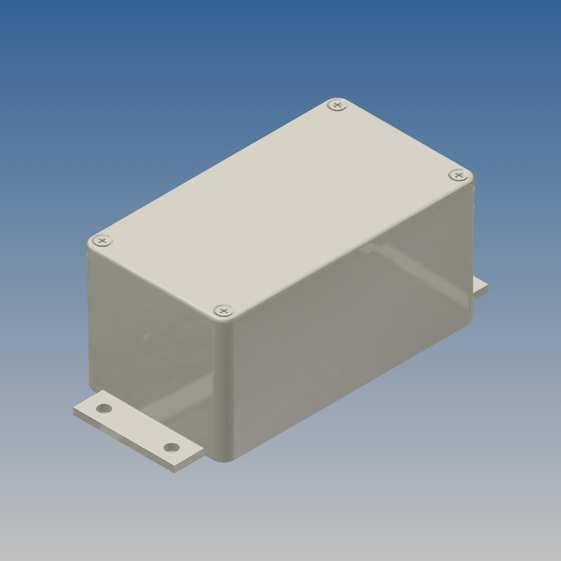

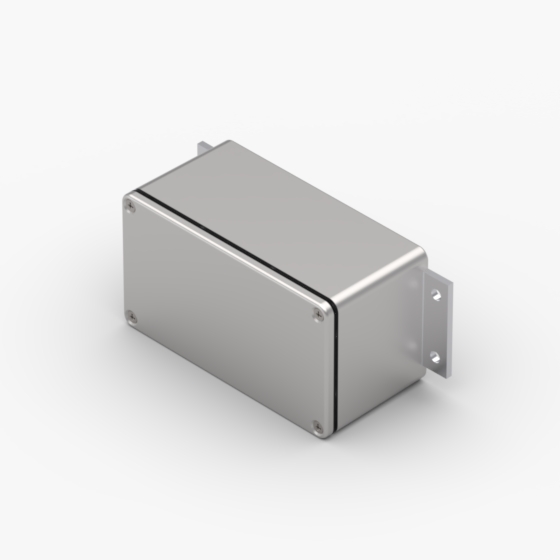

AL-18XSK.0 139,7 63,7 54,9  -
LM 24 110,8 45,6 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,8
  • MAX PCB W (mm): 45,6
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

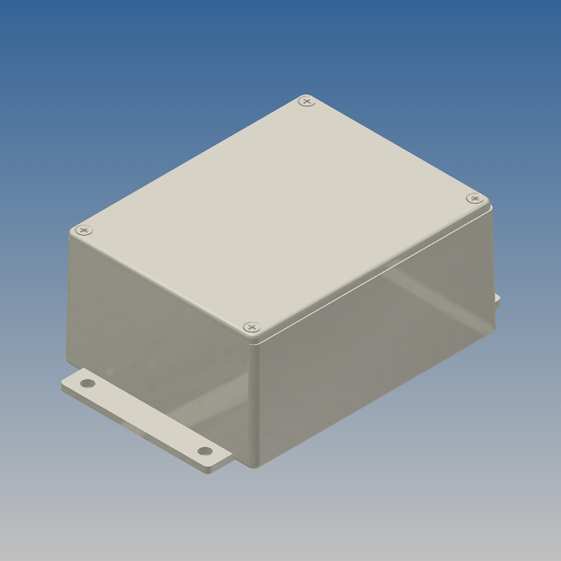

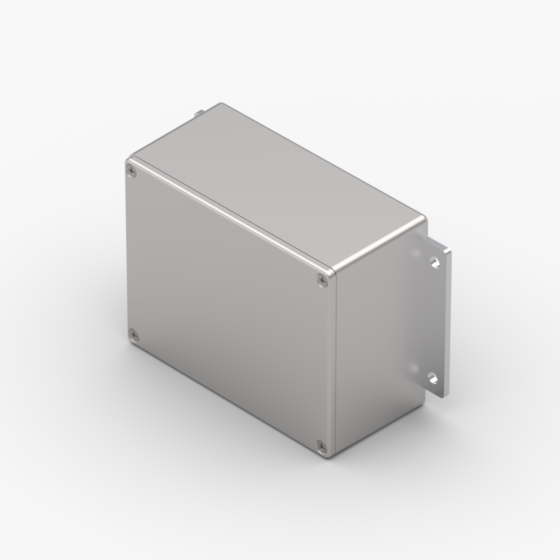

AL-19X.0 139,7 89,1 54,9  -
LM 24 110,5 46,3 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,5
  • MAX PCB W (mm): 46,3
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

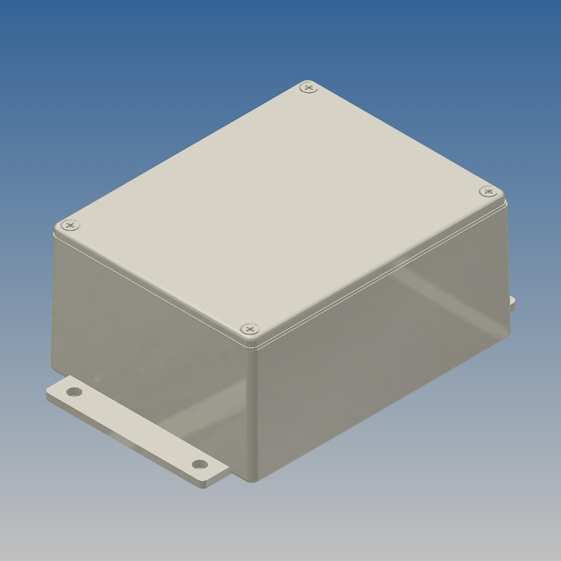

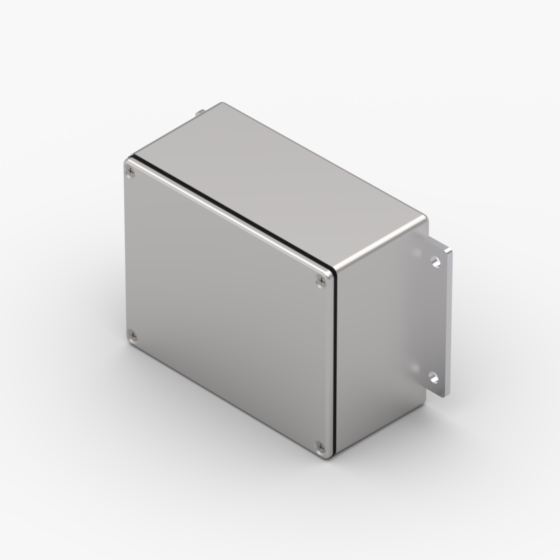

AL-19XSK.0 139,7 89,1 54,9  -
LM 24 110,5 46,3 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,5
  • MAX PCB W (mm): 46,3
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

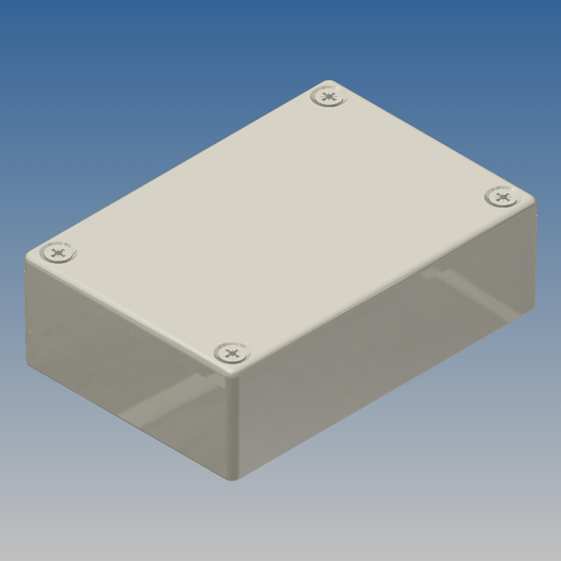

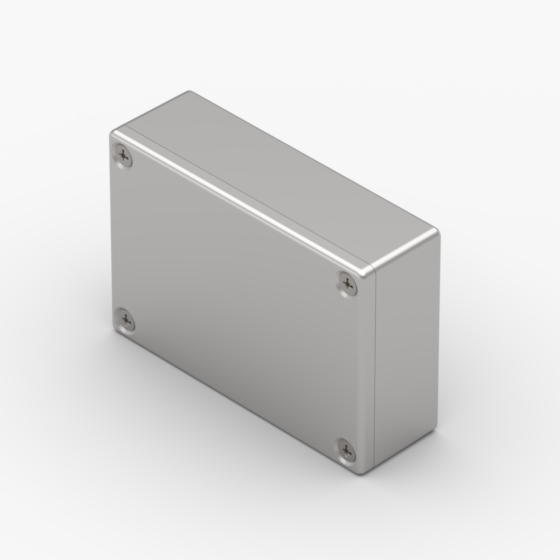

AL-2.0 80 55 25  -
LM 24 75,8 15 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 75,8
  • MAX PCB W (mm): 15
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

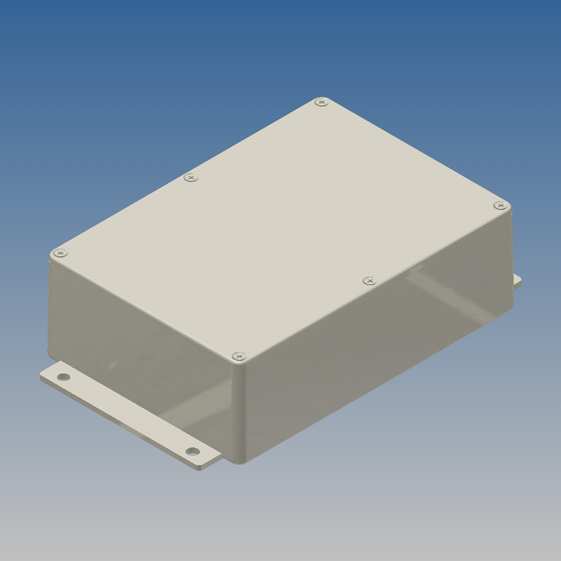

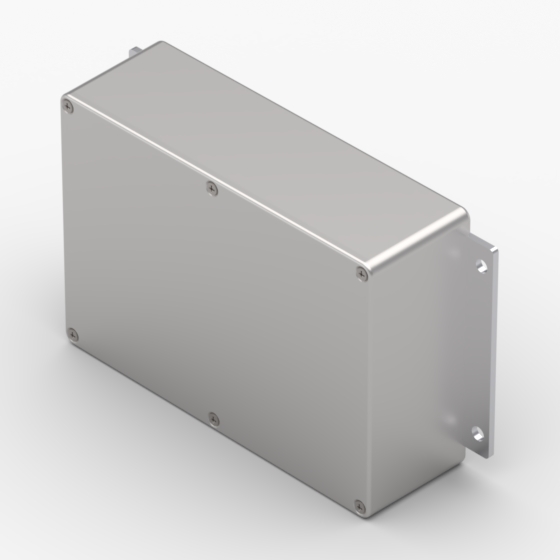

AL-20X.0 202 120,8 54,9  -
LM 24 168 45,6 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 168
  • MAX PCB W (mm): 45,6
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

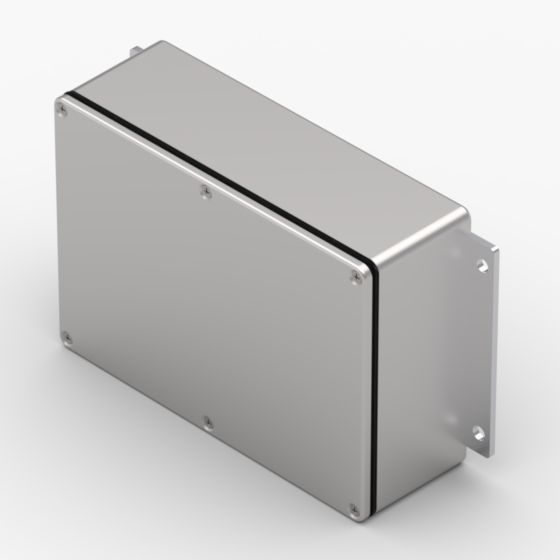

AL-20XSK.0 202 120,8 54,9  -
LM 24 168 45,6 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 168
  • MAX PCB W (mm): 45,6
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

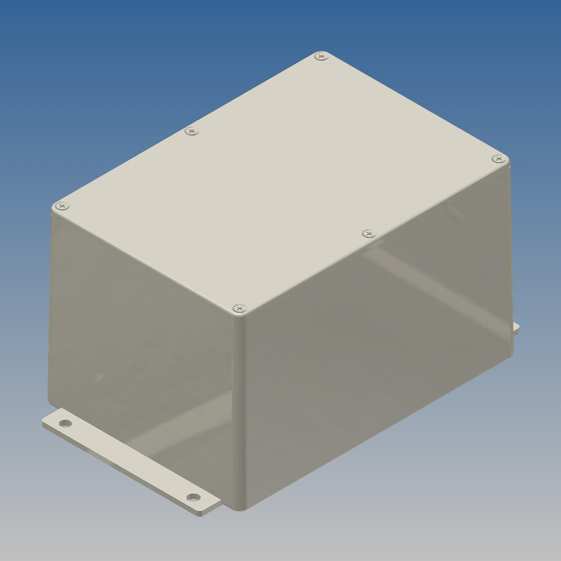

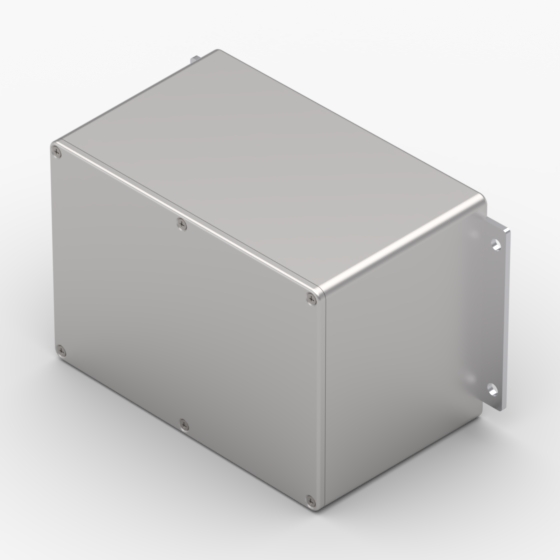

AL-21X.0 202 120,8 105,7  -
LM 24 168 96,6 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 168
  • MAX PCB W (mm): 96,6
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
AL-21XSK.0 202 120,8 105,7  -
LM 24 168 96,6 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 168
  • MAX PCB W (mm): 96,6
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

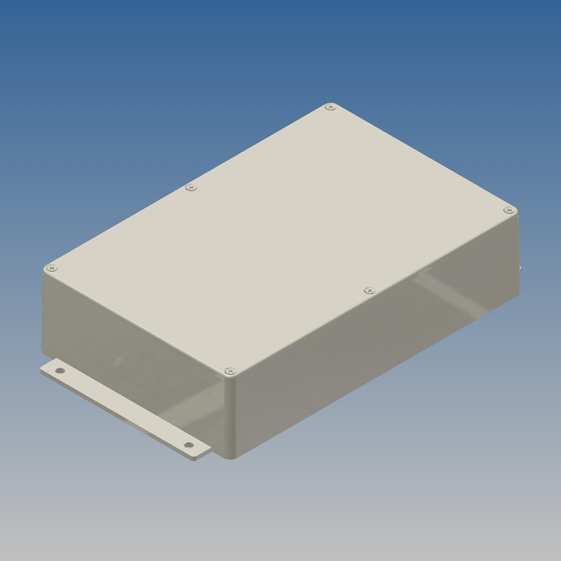

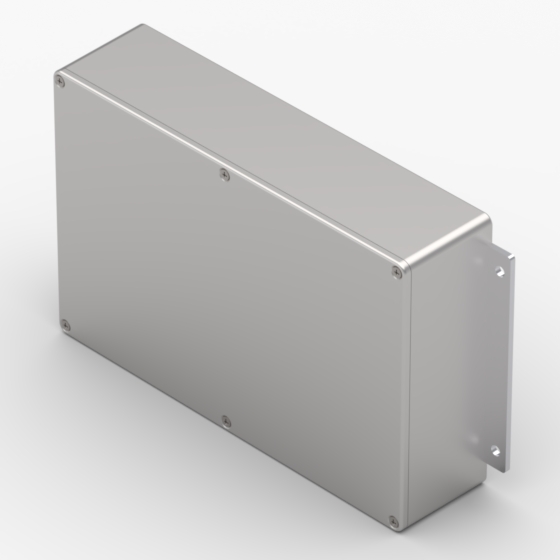

AL-22X.0 252 146 54,9  -
LM 24 217,8 45,6 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 217,8
  • MAX PCB W (mm): 45,6
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

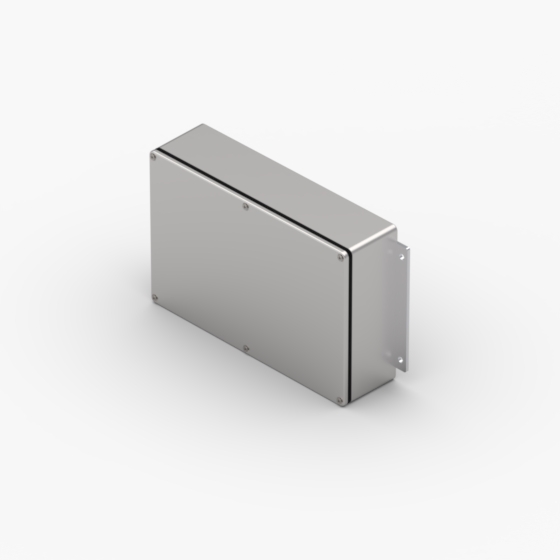

AL-22XSK.0 252 146 54,9  -
LM 24 217,8 45,6 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 217,8
  • MAX PCB W (mm): 45,6
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

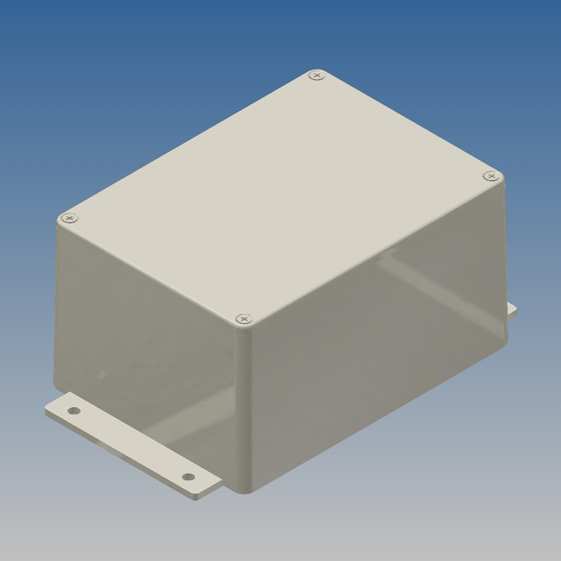

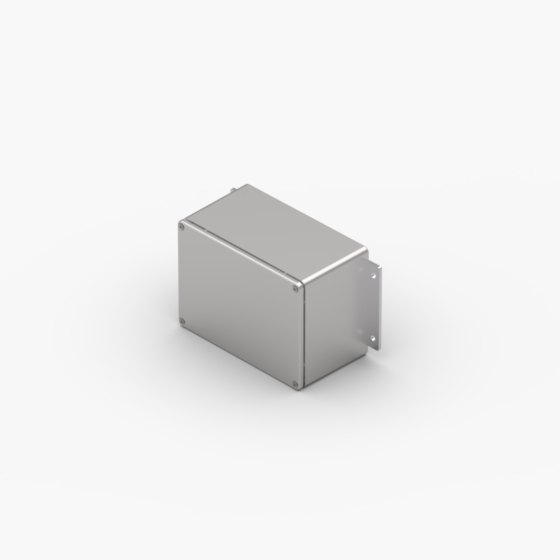

AL-23X.0 170 101,6 76  -
LM 24 135,2 66,5 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 135,2
  • MAX PCB W (mm): 66,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

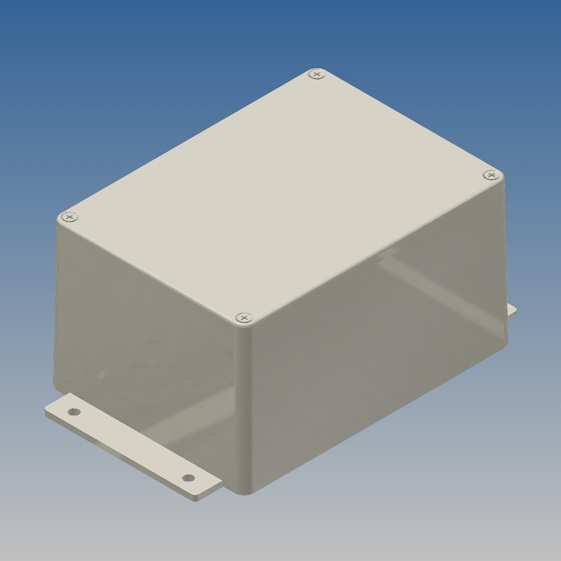

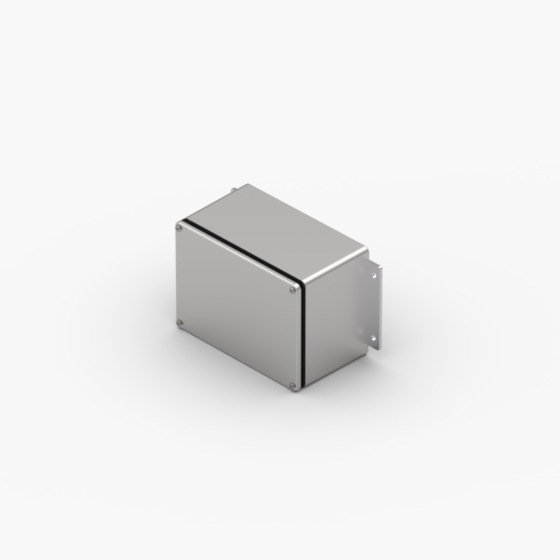

AL-23XSK.0 170 101,6 76  -
LM 24 135,2 66,5 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 135,2
  • MAX PCB W (mm): 66,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

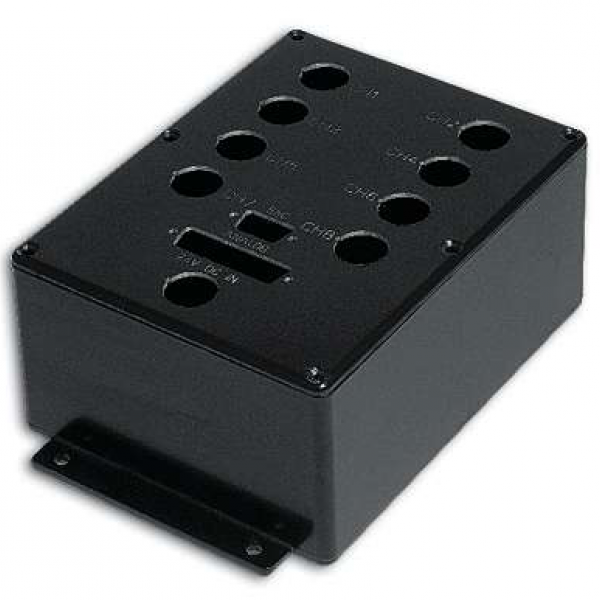

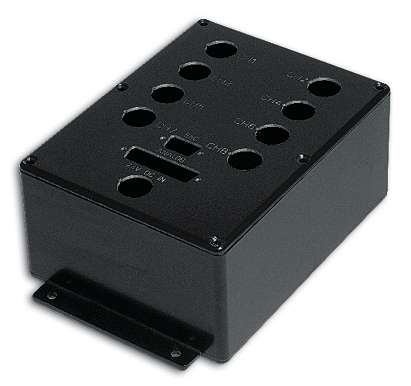

AL-24X.0 195 126,9 76  -
LM 24 161,5 66,5 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 161,5
  • MAX PCB W (mm): 66,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
AL-24XSK.0 195 126,9 76  -
LM 24 161,5 66,5 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 161,5
  • MAX PCB W (mm): 66,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

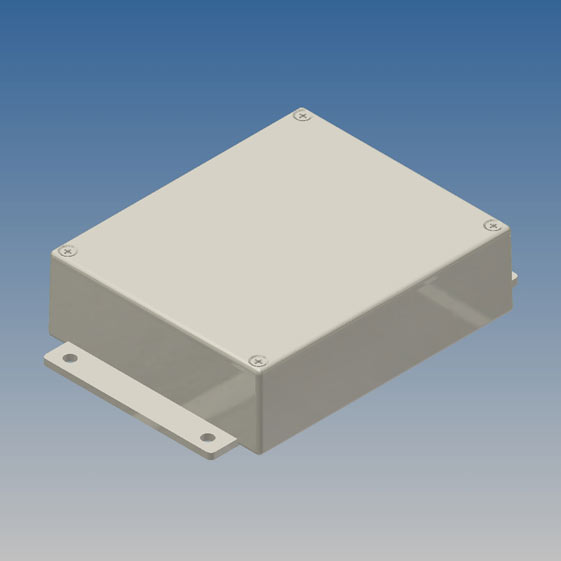

AL-25X.0 150 100 35  -
LM 24 116,5 25,5 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 116,5
  • MAX PCB W (mm): 25,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

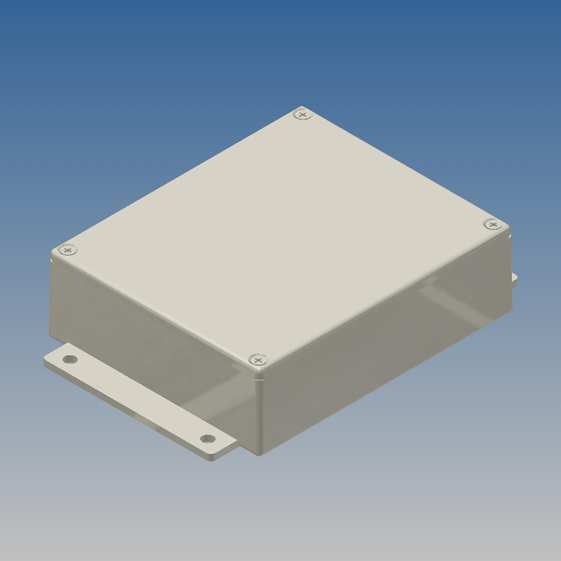

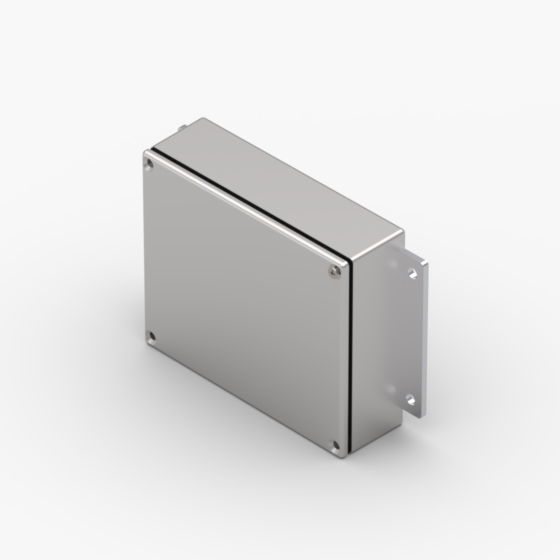

AL-25XSK.0 150 100 35  -
LM 24 116,5 25,5 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 116,5
  • MAX PCB W (mm): 25,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

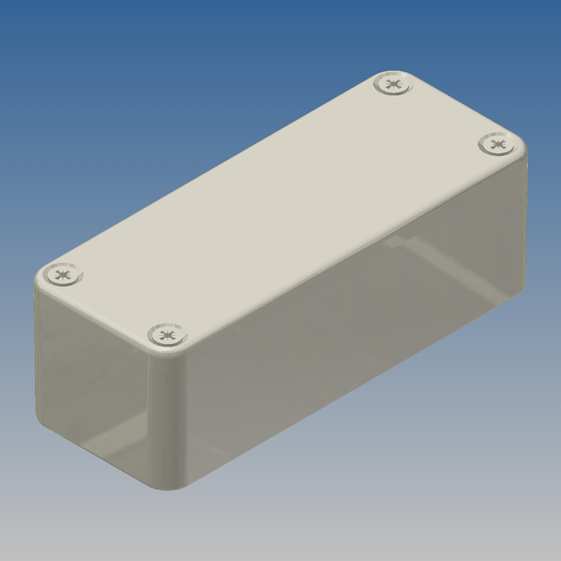

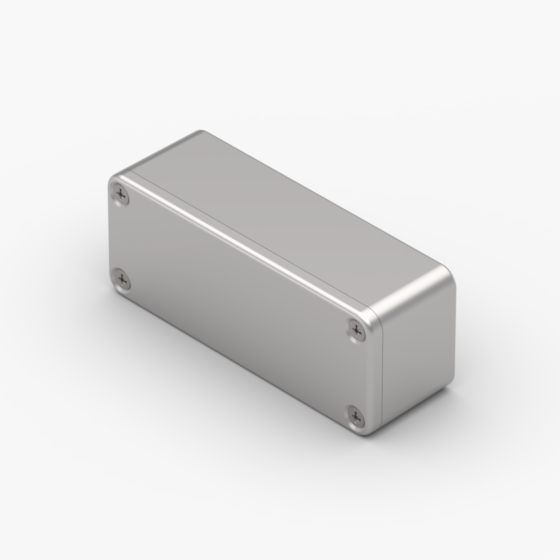

AL-3.0 88,9 34,9 29,5  -
LM 24 30,5 20 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 30,5
  • MAX PCB W (mm): 20
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
AL-3SK.0 88,9 34,9 29,5  -
LM 24 30,5 20 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 30,5
  • MAX PCB W (mm): 20
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

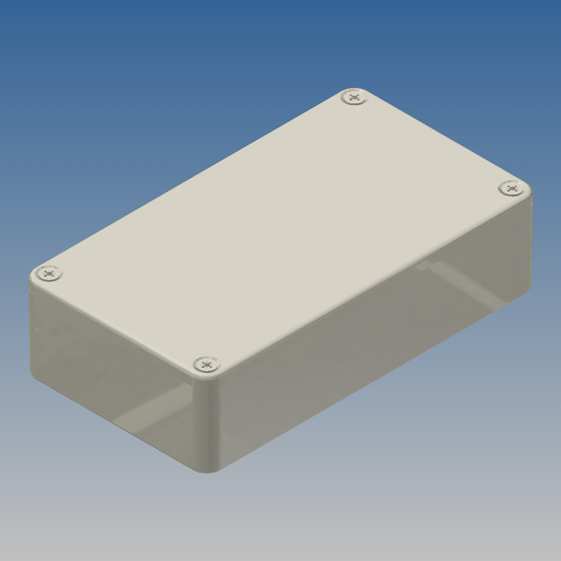

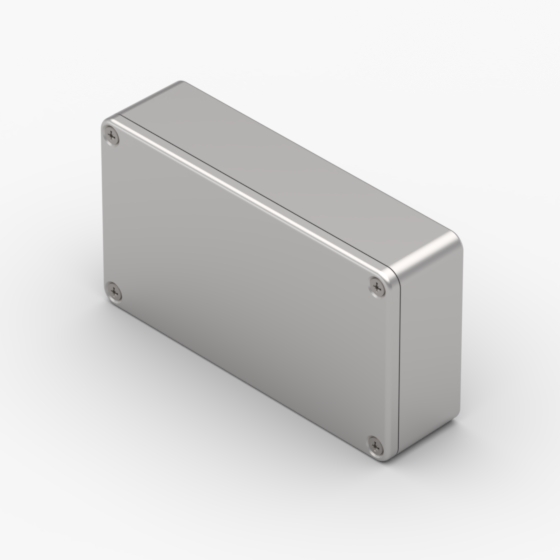

AL-4.0 114,3 63,5 29,5  -
LM 24 110,5 60 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,5
  • MAX PCB W (mm): 60
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

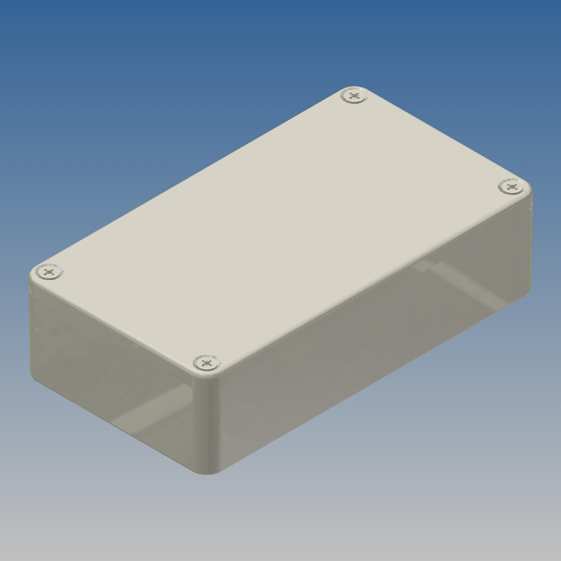

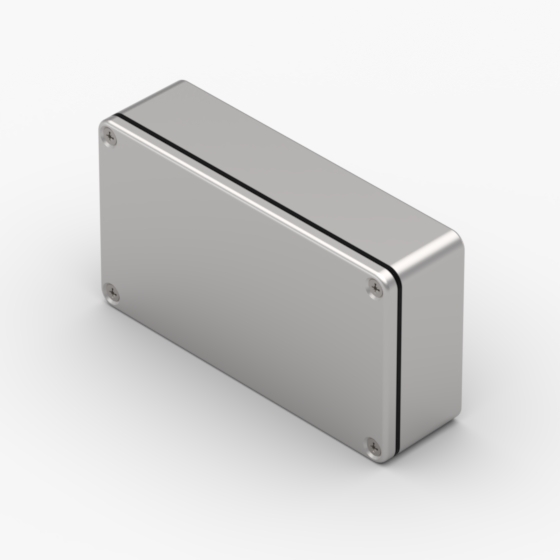

AL-4SK.0 114,3 63,5 29,5  -
LM 24 110,5 60 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,5
  • MAX PCB W (mm): 60
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

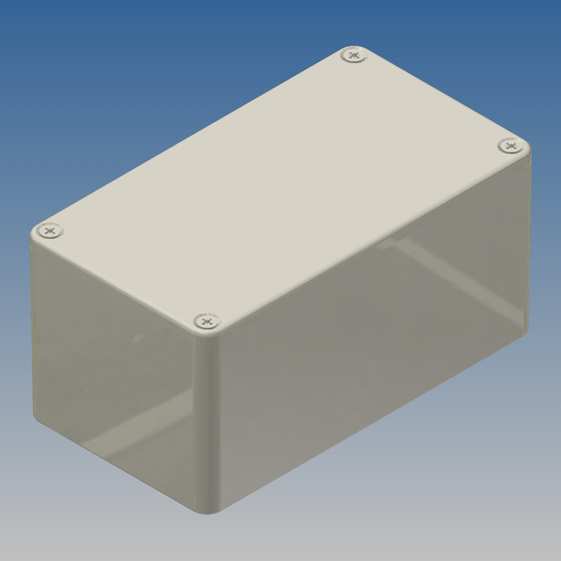

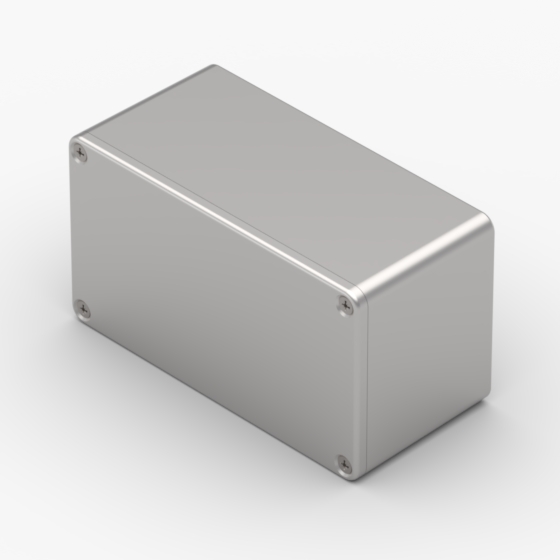

AL-5.0 114,3 63,5 54,9  -
LM 24 110,5 60 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,5
  • MAX PCB W (mm): 60
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

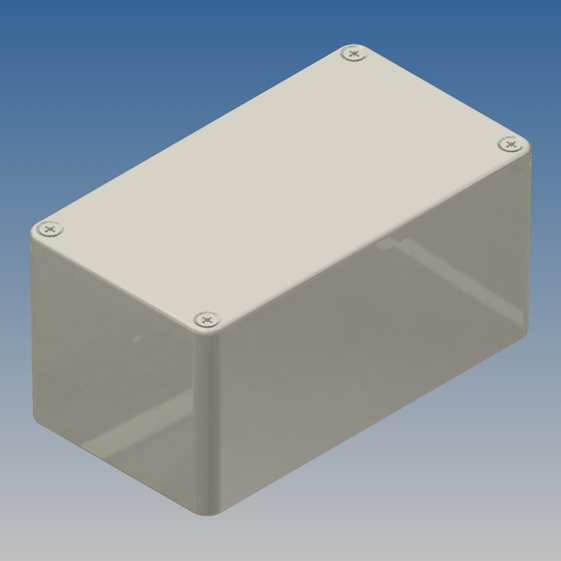

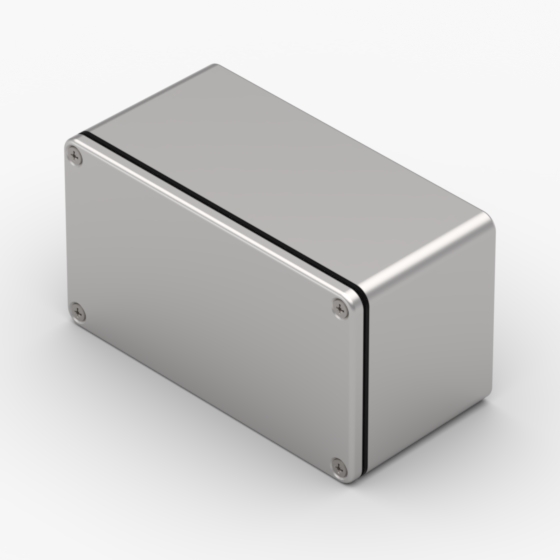

AL-5SK.0 114,3 63,5 54,9  -
LM 24 110,5 60 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,5
  • MAX PCB W (mm): 60
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

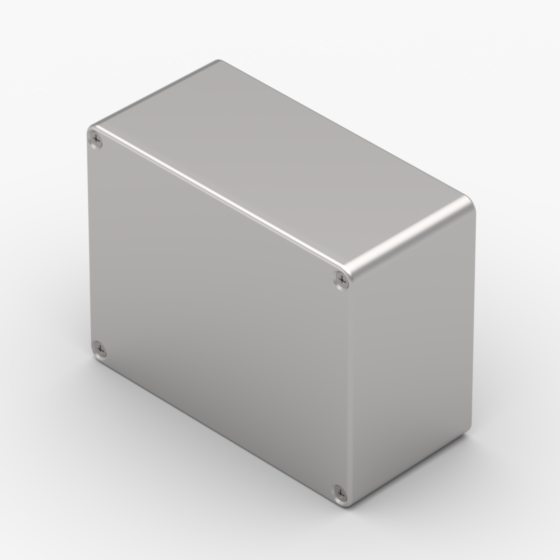

AL-6.0 114,3 88,9 54,9  -
LM 24 111 85,7 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 111
  • MAX PCB W (mm): 85,7
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

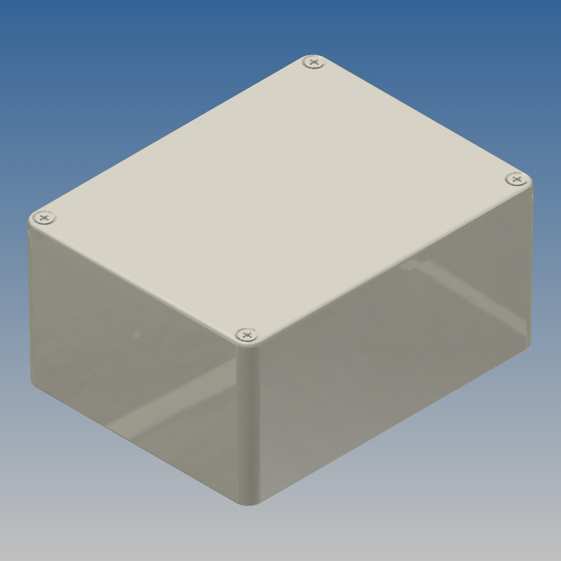

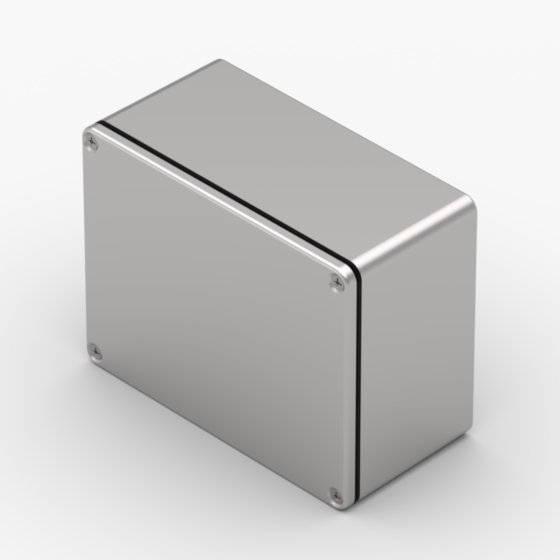

AL-6SK.0 114,3 88,9 54,9  -
LM 24 111 85,7 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 111
  • MAX PCB W (mm): 85,7
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

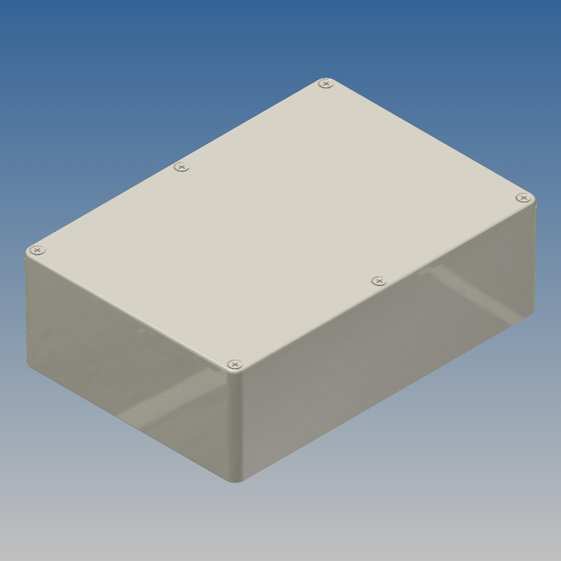

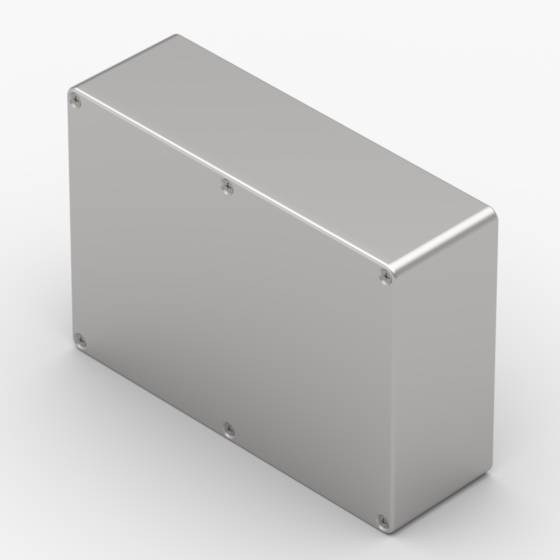

AL-7.0 171,5 120,6 54,9  -
LM 24 167,5 116,5 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 167,5
  • MAX PCB W (mm): 116,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

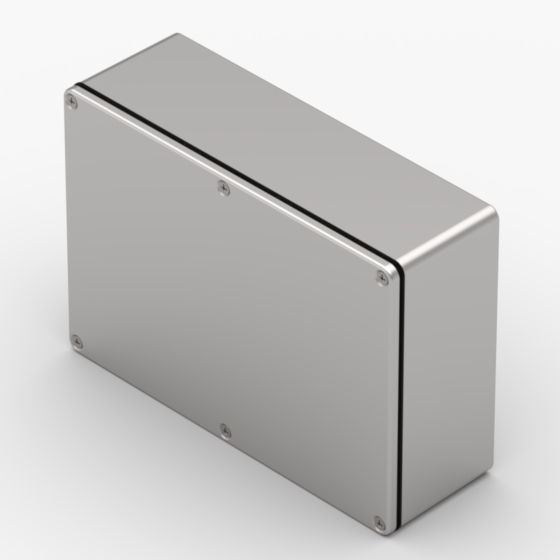

AL-7SK.0 171,5 120,6 54,9  -
LM 24 167,5 116,5 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 167,5
  • MAX PCB W (mm): 116,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

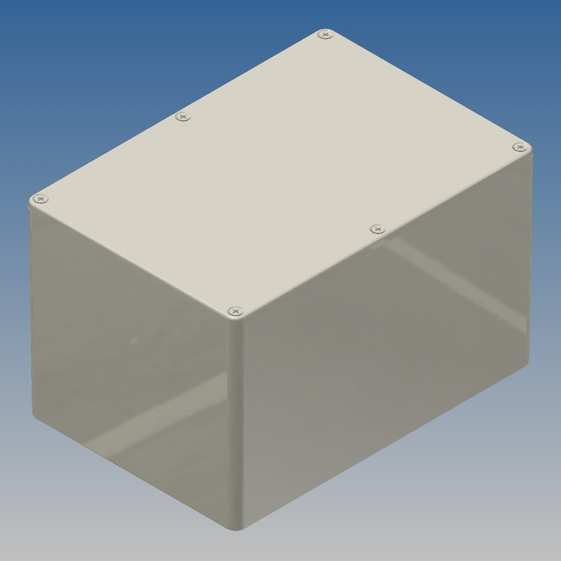

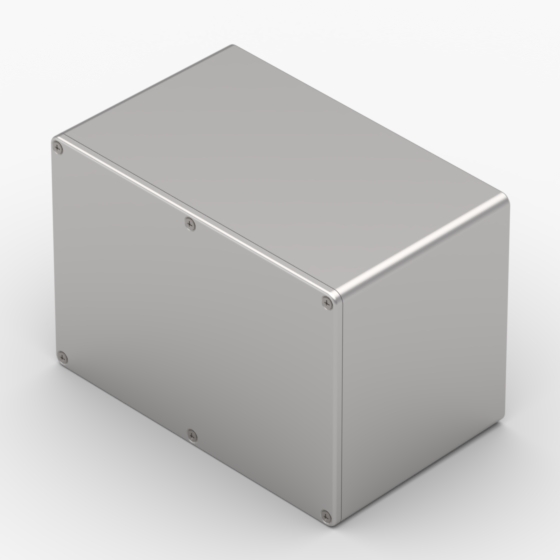

AL-8.0 171,5 120,6 105,7  -
LM 24 167,5 116,5 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 167,5
  • MAX PCB W (mm): 116,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

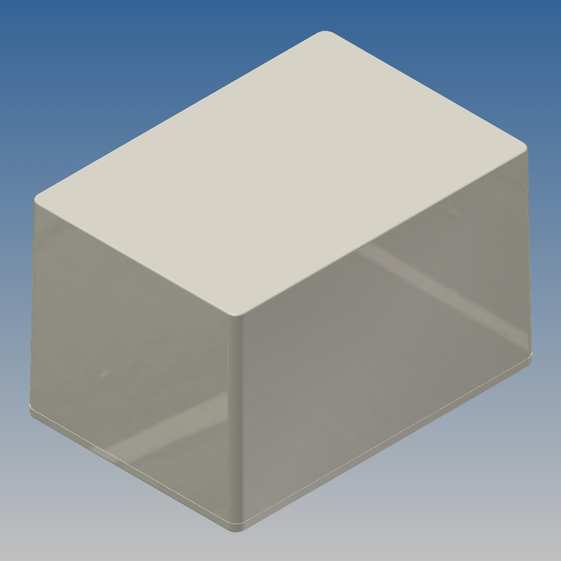

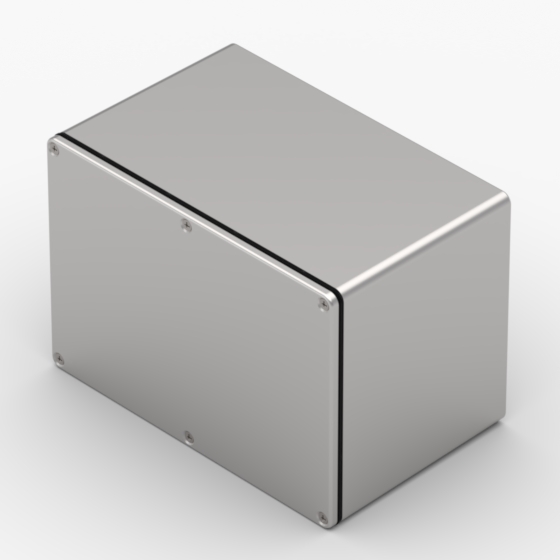

AL-8SK.0 171,5 120,6 105,7  -
LM 24 167,5 116,5 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 167,5
  • MAX PCB W (mm): 116,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

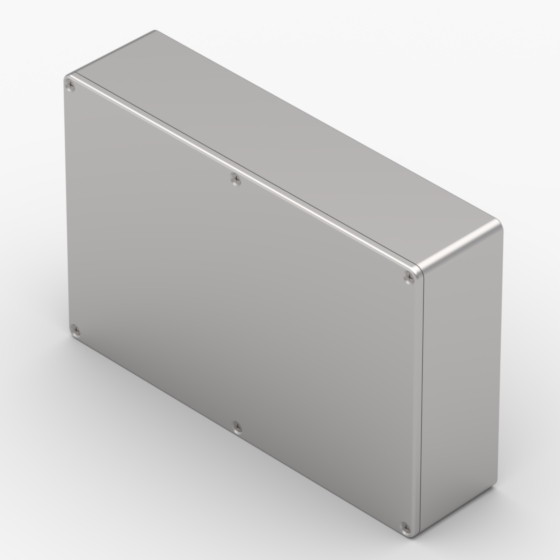

AL-9.0 222,3 146 55  -
LM 24 218,3 142 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 218,3
  • MAX PCB W (mm): 142
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

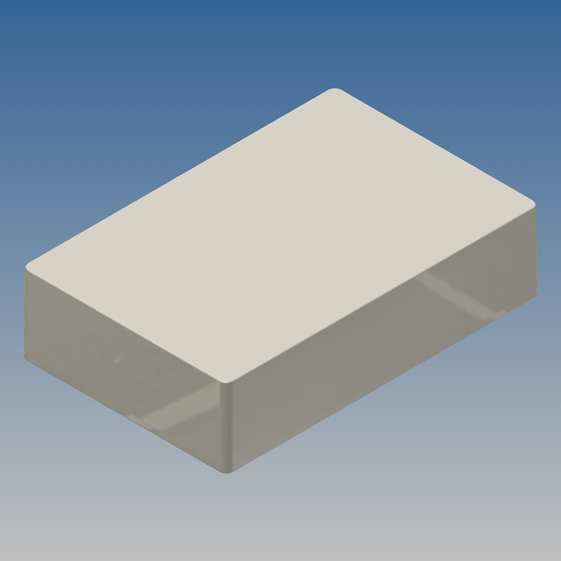

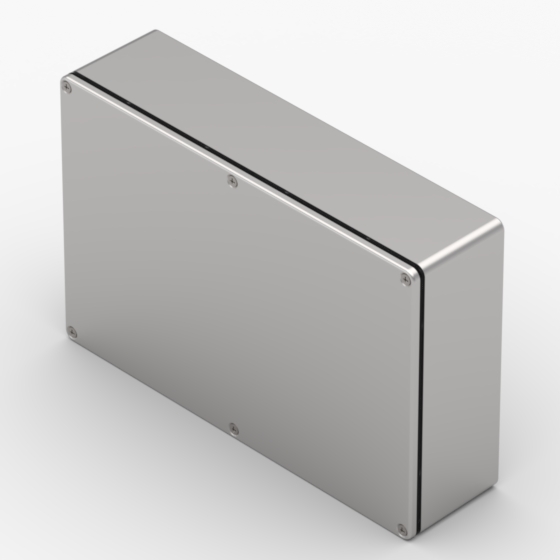

AL-9SK.0 222,3 146 55  -
LM 24 218,3 142 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 218,3
  • MAX PCB W (mm): 142
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
12 product families, 144 series. You can't find what you're looking for? Contact us
