TEKAL T

Family Aluminium - Electronic enclosures - Metal

Description

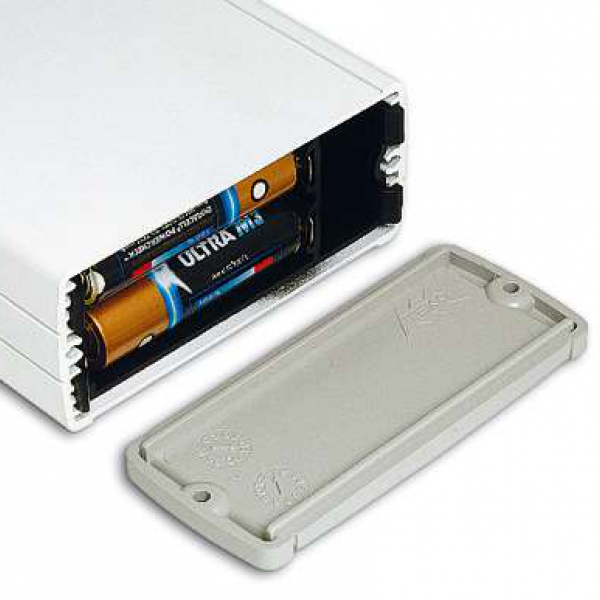

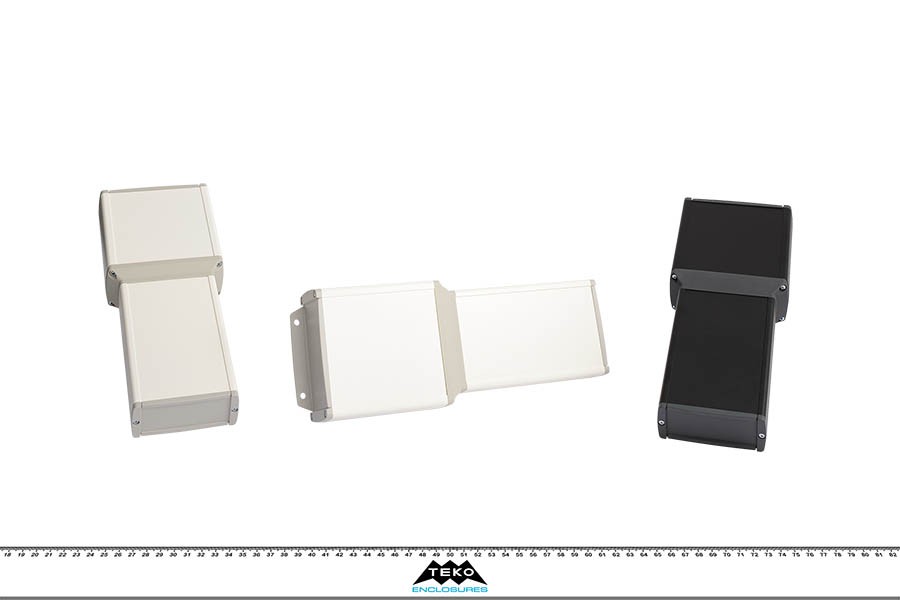

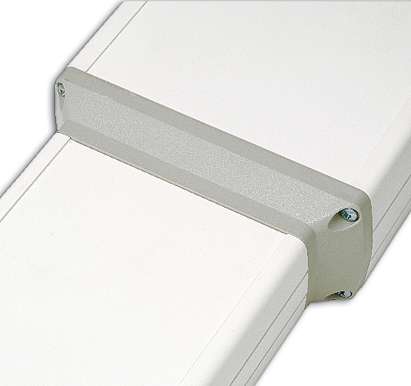

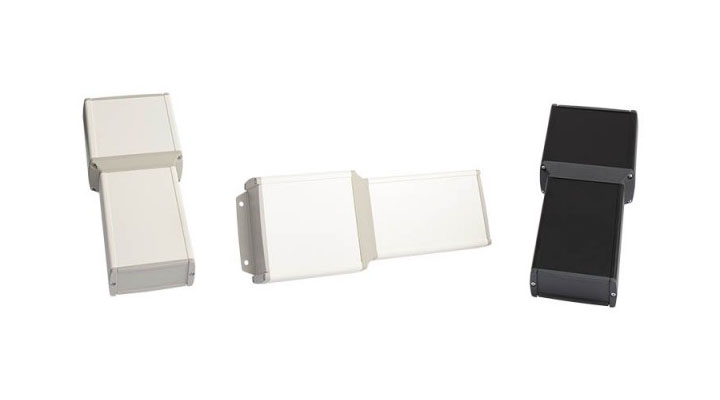

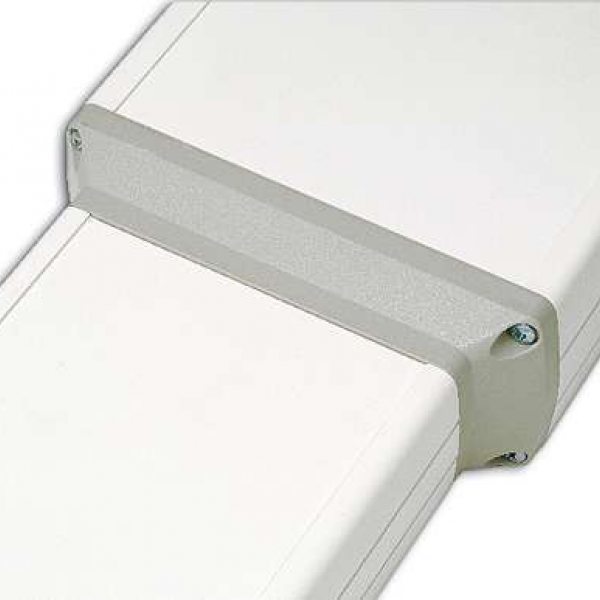

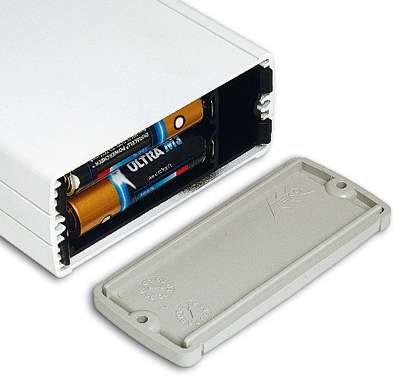

Extruded aluminium cases with high quality finishing, ergonomically designed for a comfortable fit into the user’s hand. Perfect for instrument or mobile data enclosures requiring a keypad and display. Internal PCB guides. The model with “-B” has a battery compartment for two 1,5V mignon-cells (AA) or one 9V battery (PP3). Closing by twelve screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

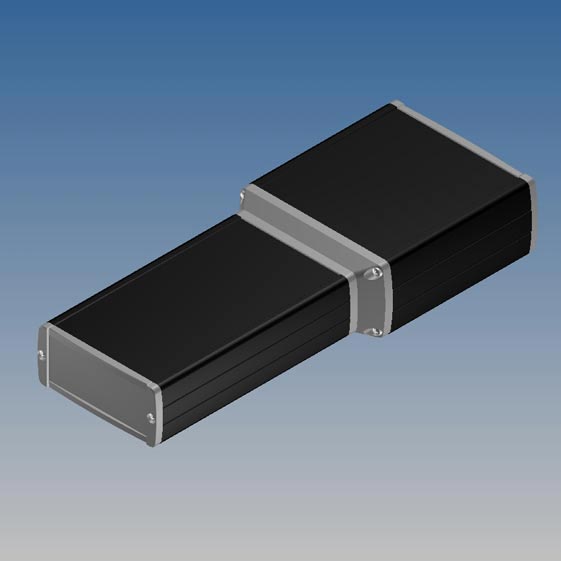

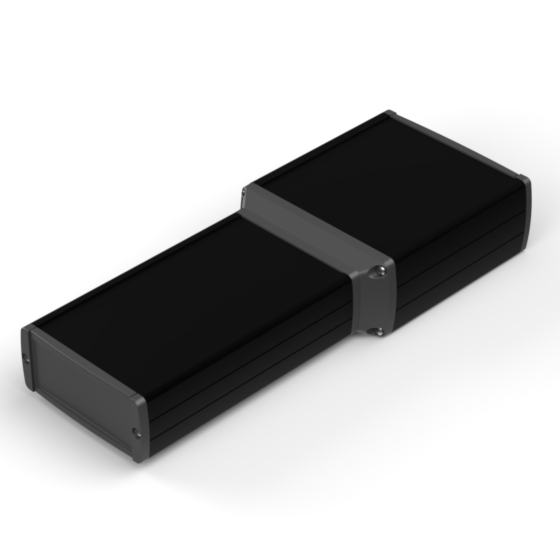

TEKAL-T1.29 265,5 105,9 45,8 9004 7012
ALLOY 6060  -  1640 AS 100/135 80,5/100,5 12 - ALP-2
ALP-3
PDF
DWG
View

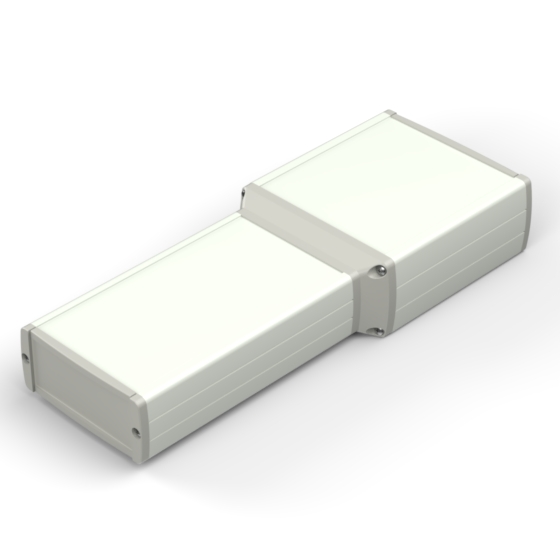

TEKAL-T1.30 265,5 105,9 45,8 9002 9018
ALLOY 6060  -  1640 AS 100/135 80,5/100,5 12 - ALP-2
ALP-3
PDF
DWG
View

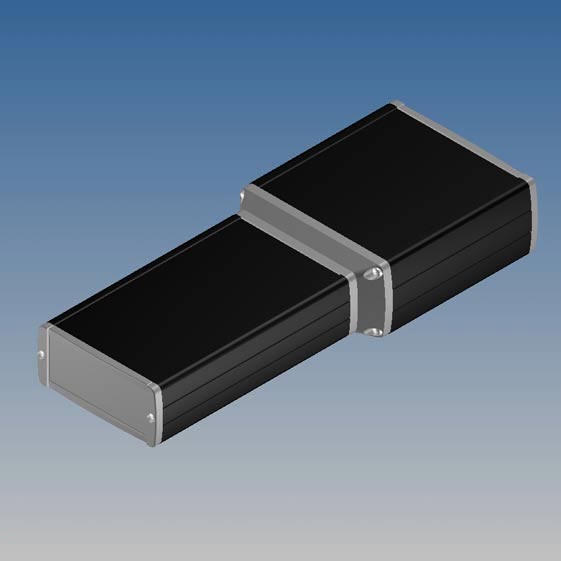

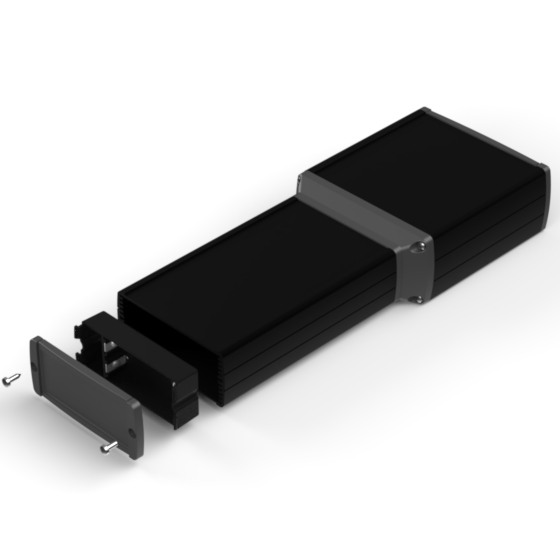

TEKAL-T1B.29 265,5 105,9 45,8 9004 7012
ALLOY 6060  -  1640 AS 100/117 80,5/100,5 12 2 x AA / 1 x 9V ALP-3
PDF
DWG
View

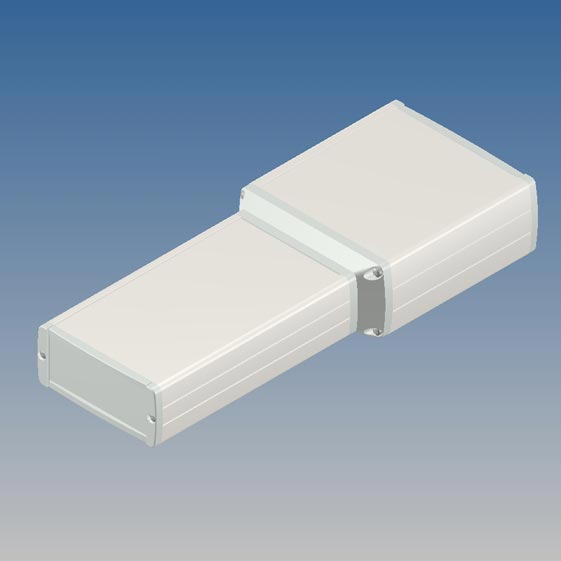

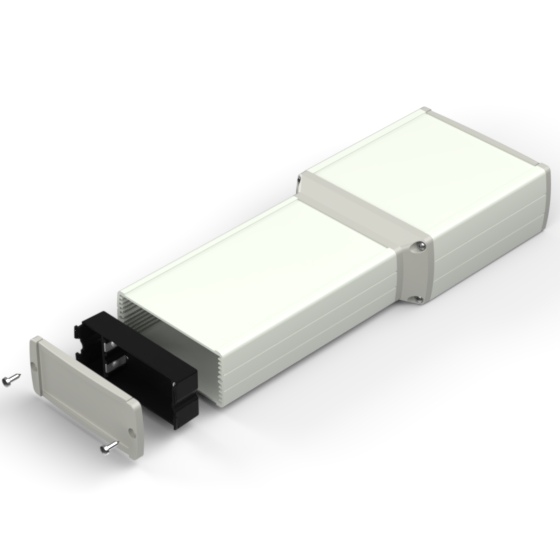

TEKAL-T1B.30 265,5 105,9 45,8 9002 9018
ALLOY 6060  -  1640 AS 100/117 80,5/100,5 12 2 x AA / 1 x 9V ALP-3
PDF
DWG
View

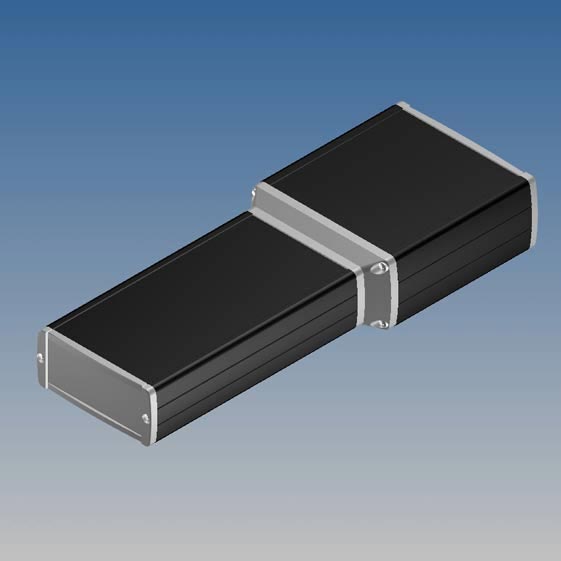

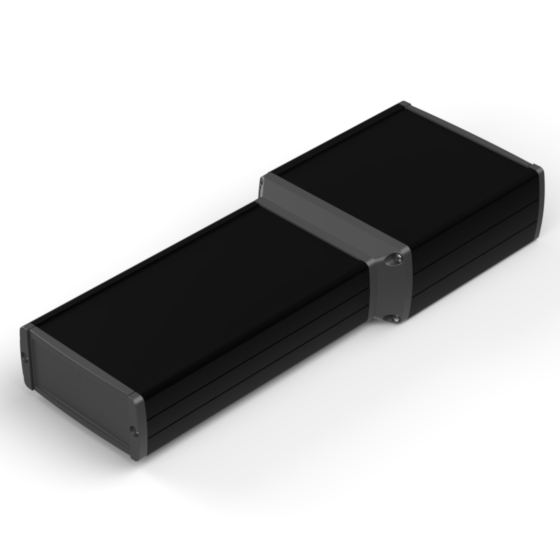

TEKAL-T2.29 280,5 105,9 45,8 9004 7012
ALLOY 6060  -  1640 AS 100/150 80,5/100,5 12 - ALP-2
ALP-3
PDF
DWG
View

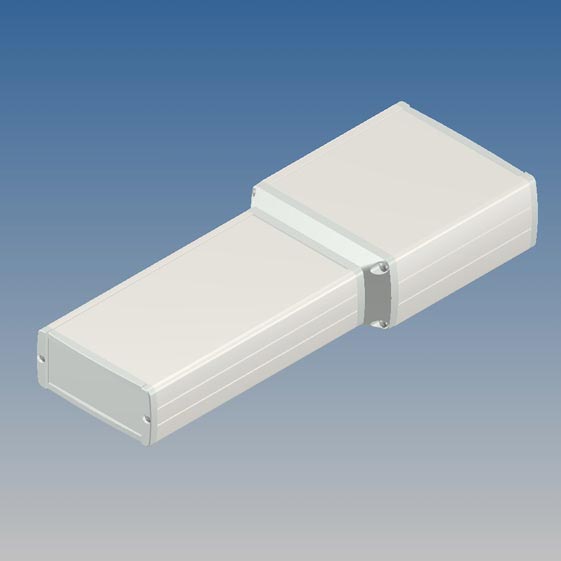

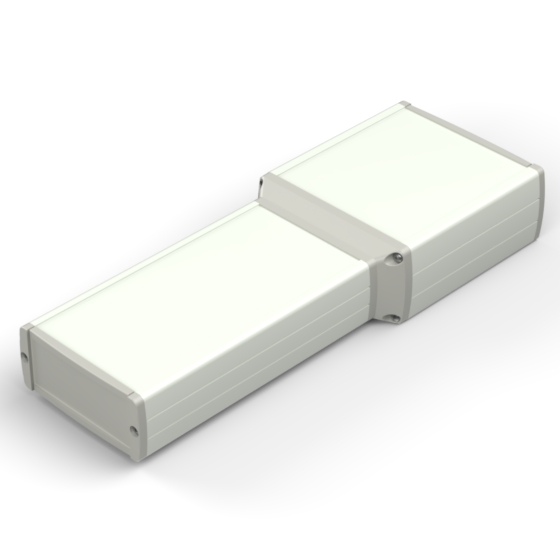

TEKAL-T2.30 280,5 105,9 45,8 9002 9018
ALLOY 6060  -  1640 AS 100/150 80,5/100,5 12 - ALP-2
ALP-3
PDF
DWG
View

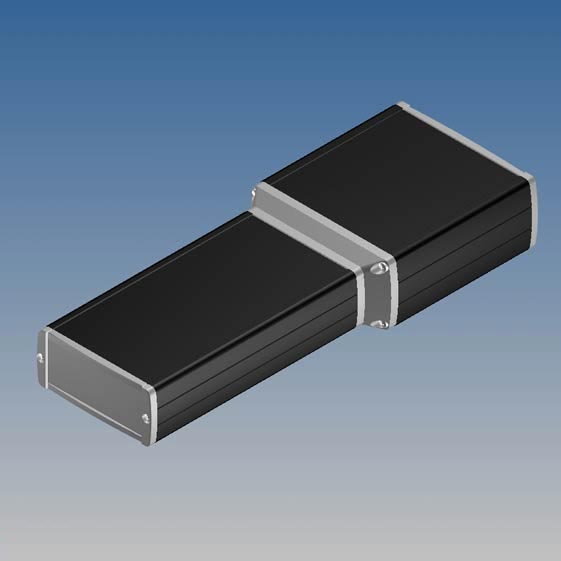

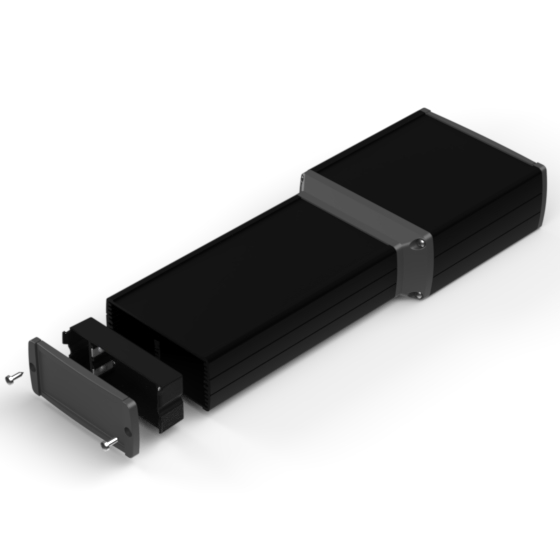

TEKAL-T2B.29 280,5 105,9 45,8 9004 7012
ALLOY 6060  -  1640 AS 100/132 80,5/100,5 12 2 x AA / 1 x 9V ALP-3
PDF
DWG
View

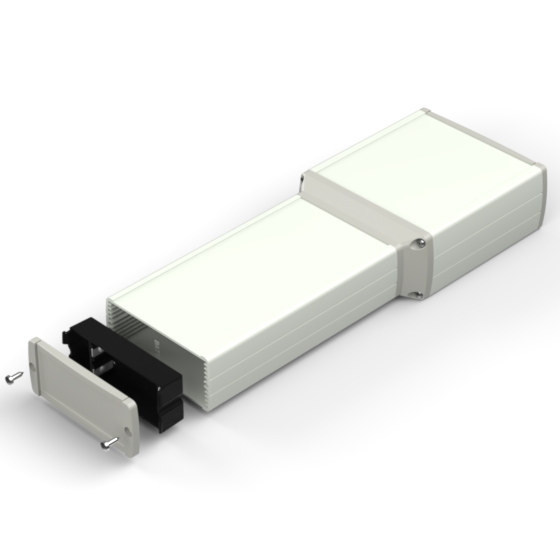

TEKAL-T2B.30 280,5 105,9 45,8 9002 9018
ALLOY 6060  -  1640 AS 100/132 80,5/100,5 12 2 x AA / 1 x 9V ALP-3
PDF
DWG
View
