TEKAM

Family Aluminium - Electronic enclosures - Metal

Description

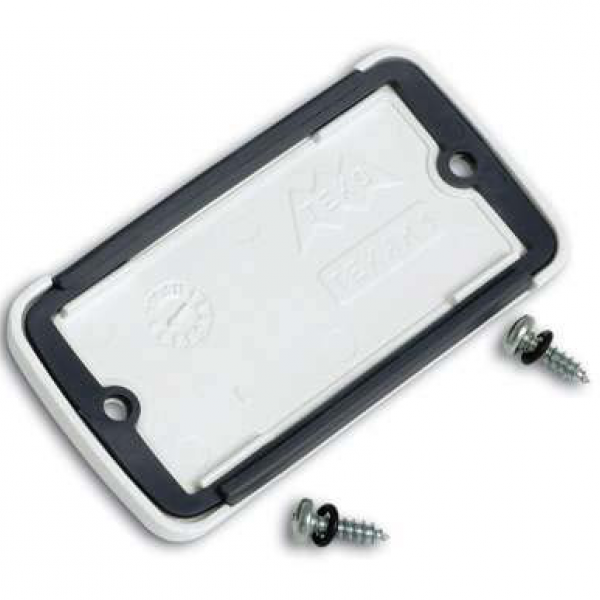

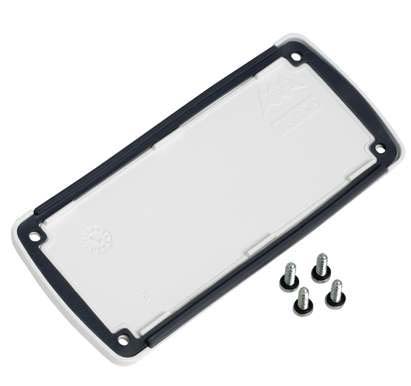

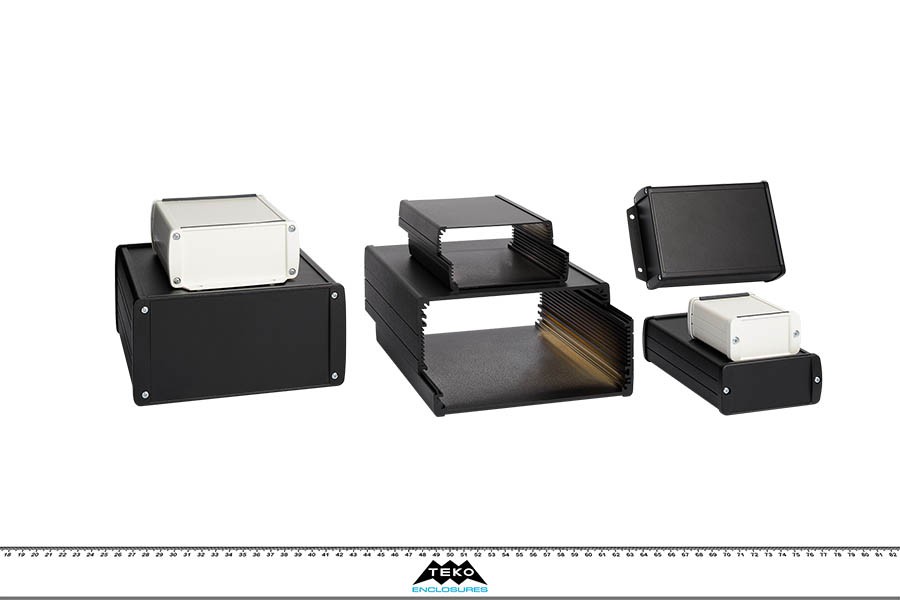

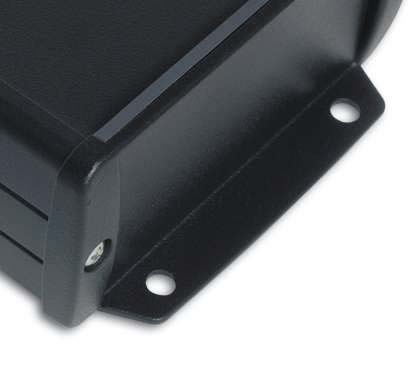

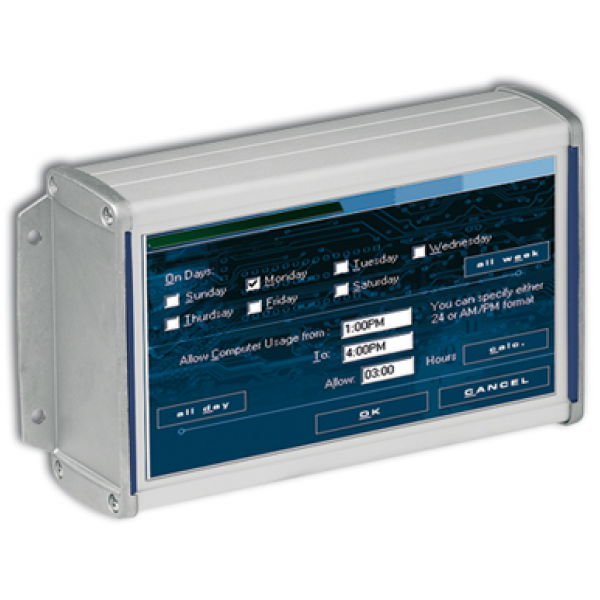

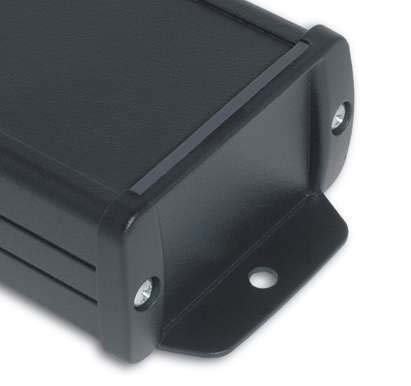

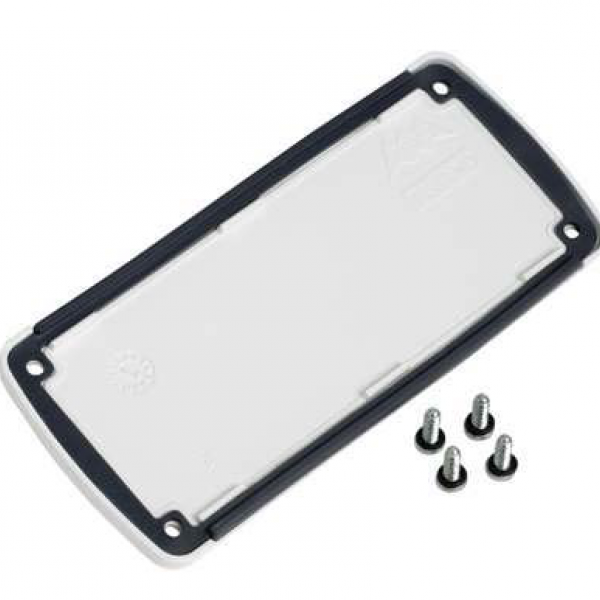

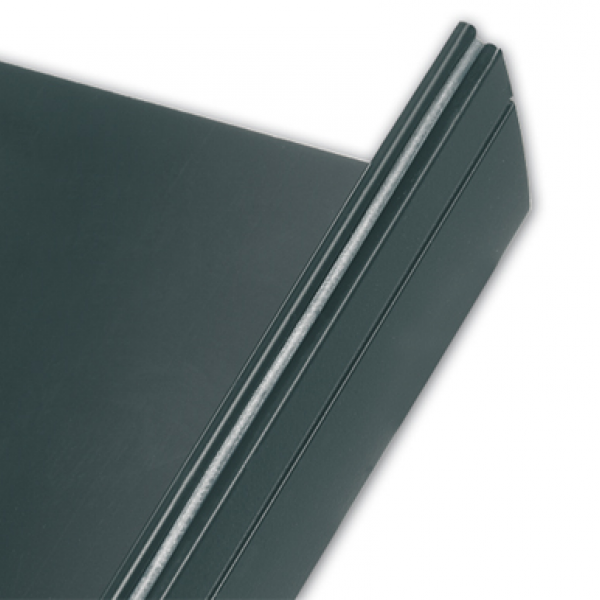

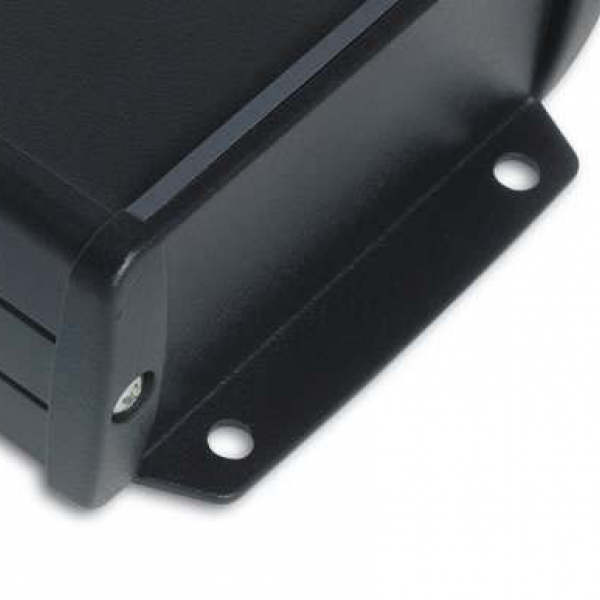

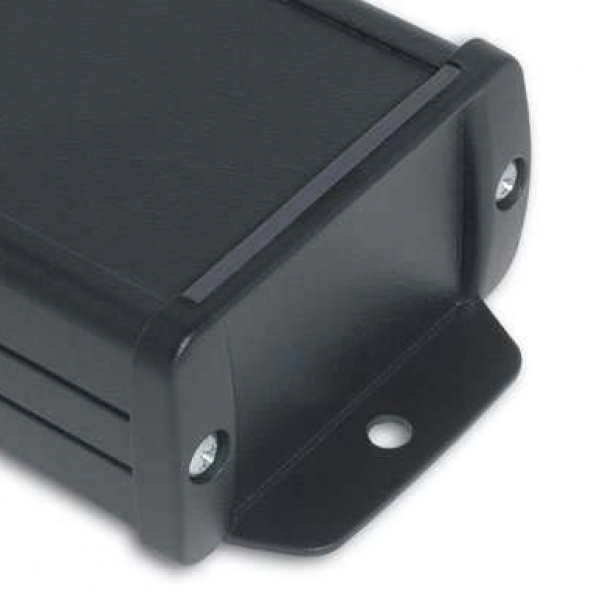

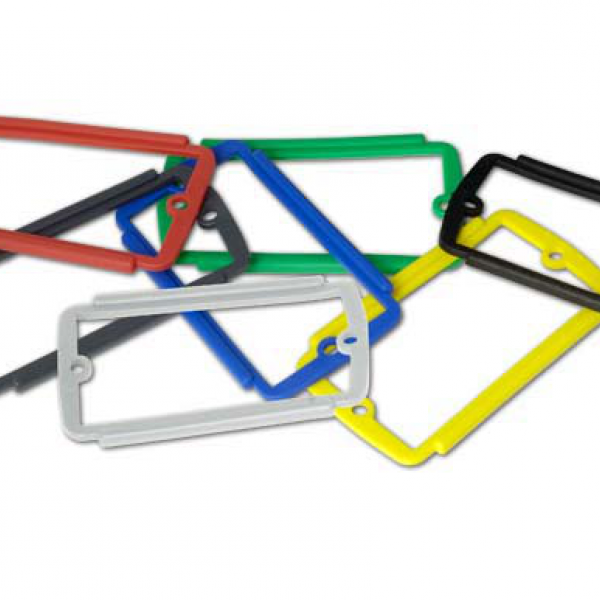

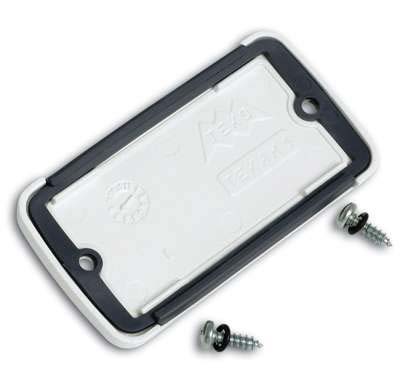

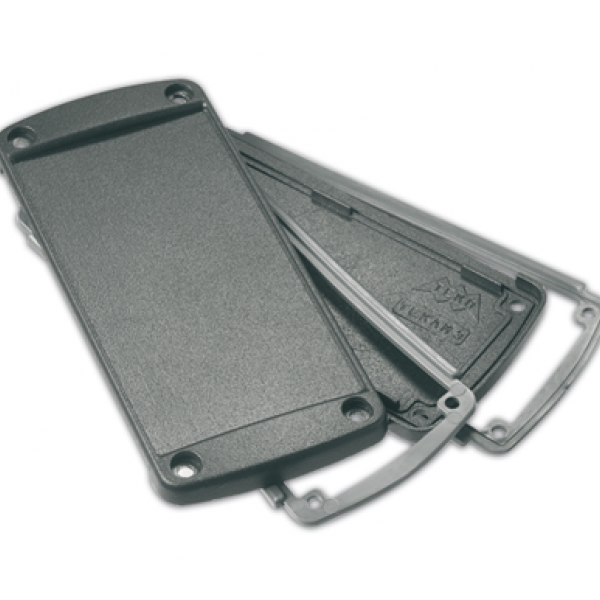

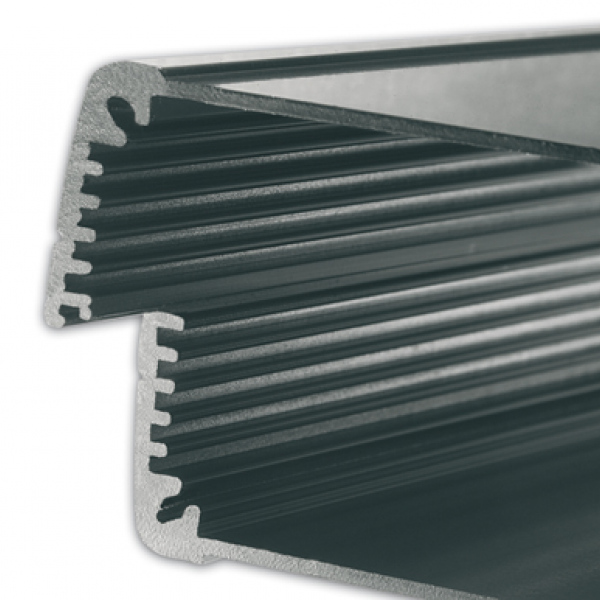

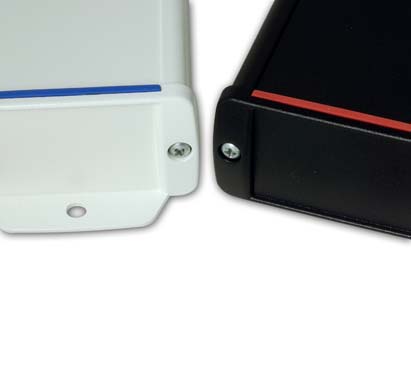

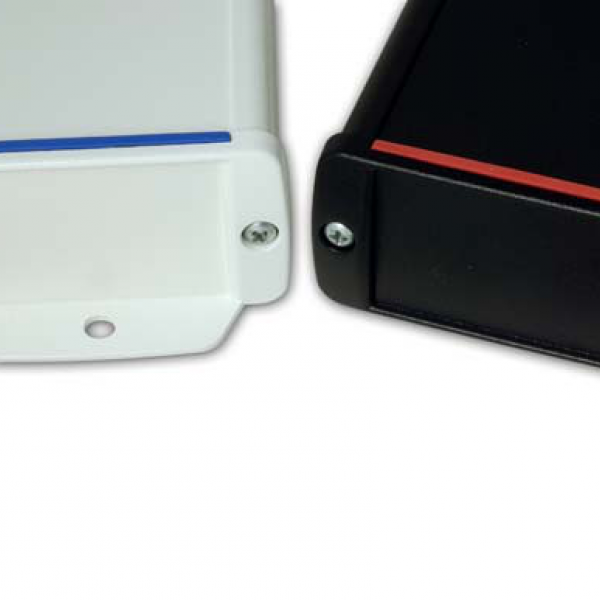

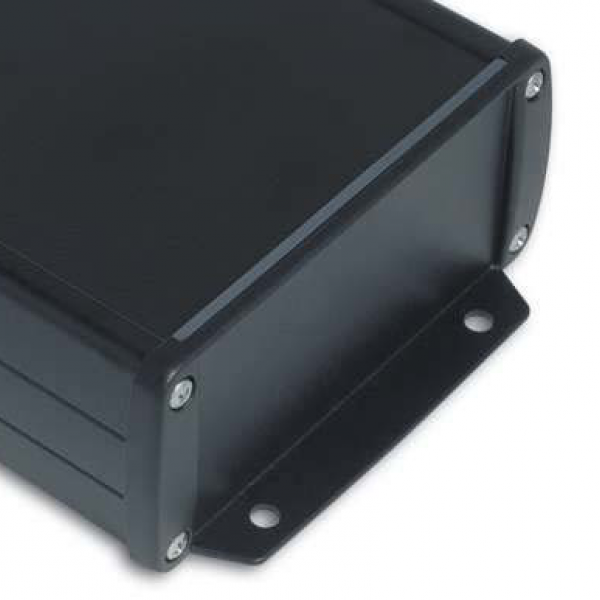

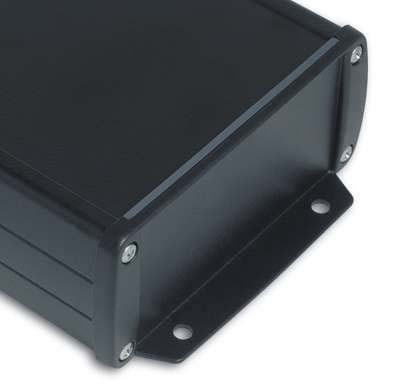

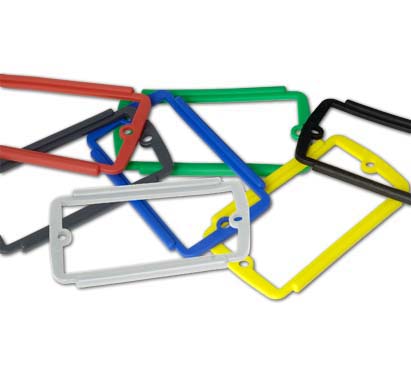

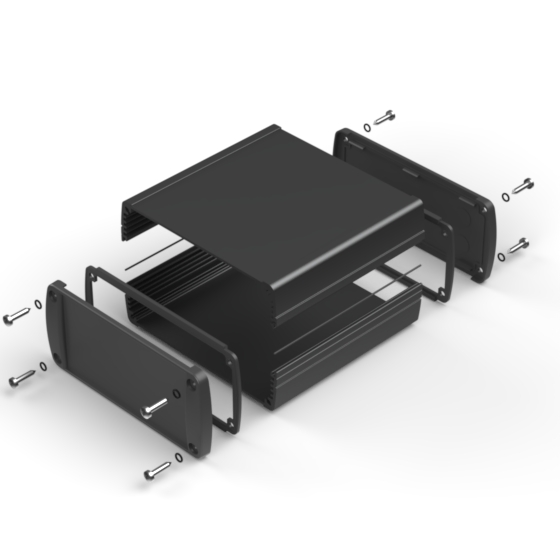

Extruded aluminium case with powder coating and two rubber sealing kits to protect against water and from dust (IP65) available in six different colours. Two metal front panels, internal slots for PCB’s and a recessed area for a keypad membrane. The models with “E” have mounting wall metal panels. Closing by four or eight screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

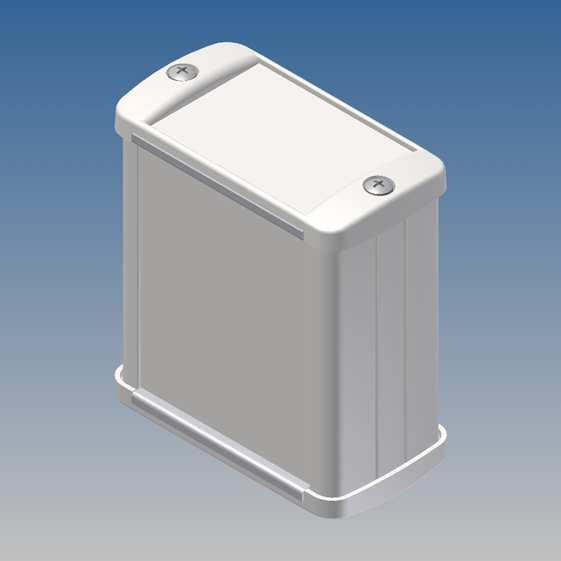

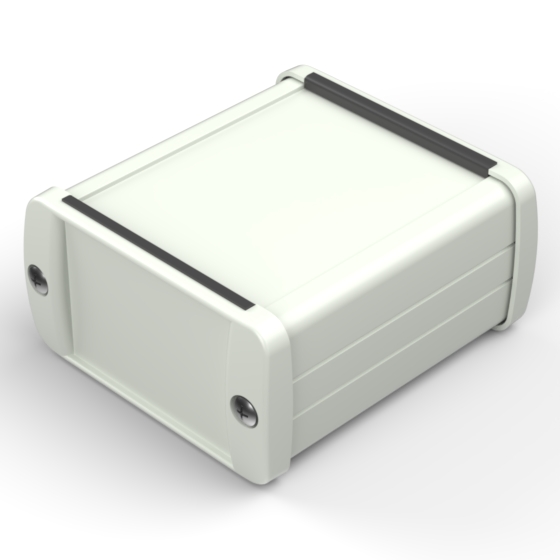

TEKAM-11.7 70 59,9 30,9 9002
ALLOY 6060  -  ZA4C1 60 55,5 4 - ALP-1
TKAMSK1
PDF
DWG
View

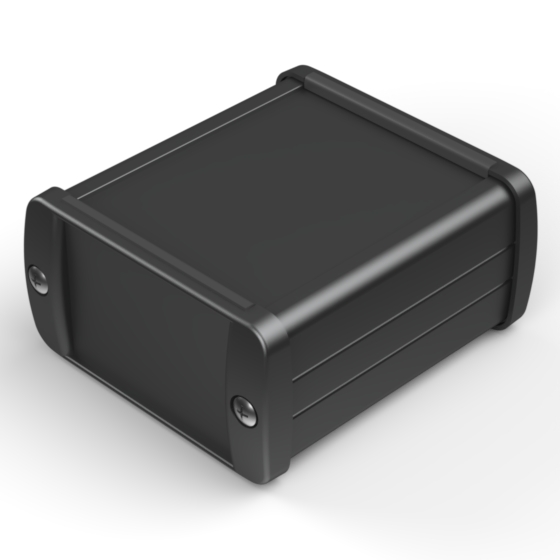

TEKAM-11.9 70 59,9 30,9 9004
ALLOY 6060  -  ZA4C1 60 55,5 4 - ALP-1
TKAMSK1
PDF
DWG
View

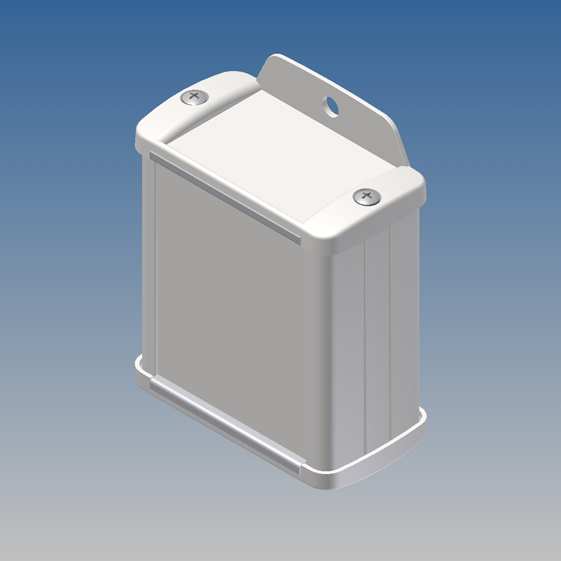

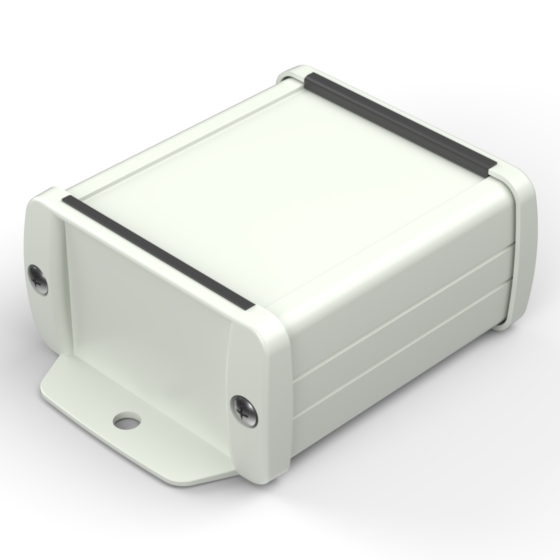

TEKAM-11/E.7 70 59,9 30,9 9002
ALLOY 6060  -  ZA4C1 60 55,5 4 - TKAMSK1
PDF
DWG
View

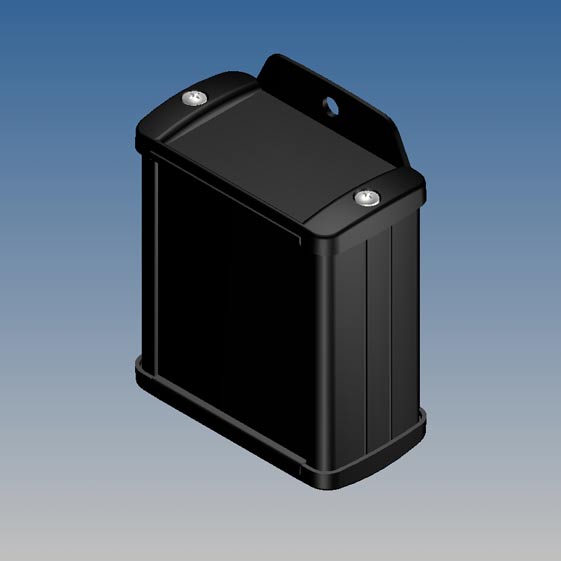

TEKAM-11/E.9 70 59,9 30,9 9004
ALLOY 6060  -  ZA4C1 60 55,5 4 - TKAMSK1
PDF
DWG
View

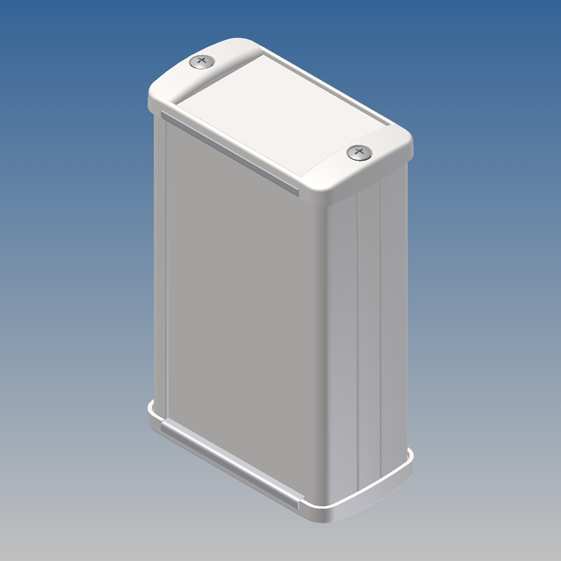

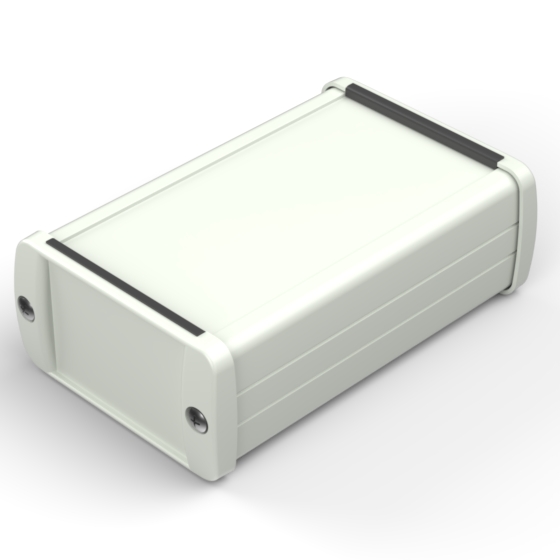

TEKAM-12.7 100 59,9 30,9 9002
ALLOY 6060  -  ZA4C1 90 55,5 4 - ALP-1
TKAMSK1
PDF
DWG
View

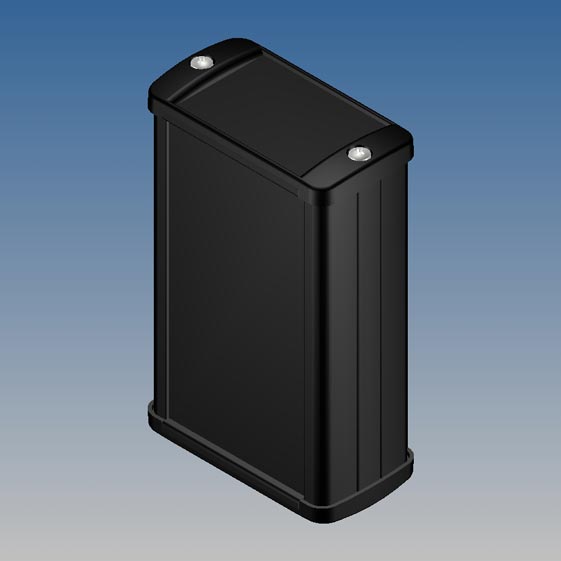

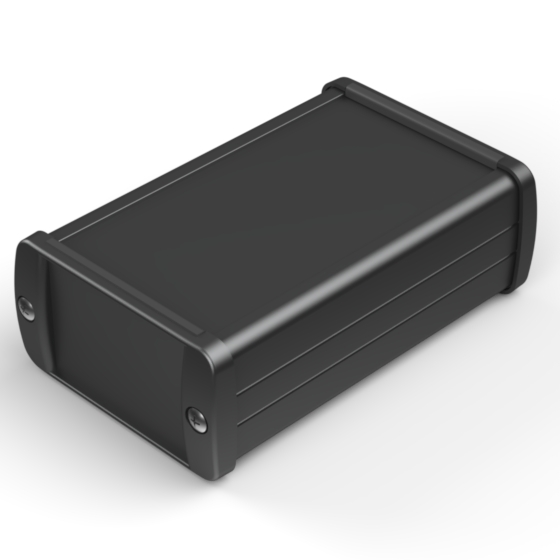

TEKAM-12.9 100 59,9 30,9 9004
ALLOY 6060  -  ZA4C1 90 55,5 4 - ALP-1
TKAMSK1
PDF
DWG
View

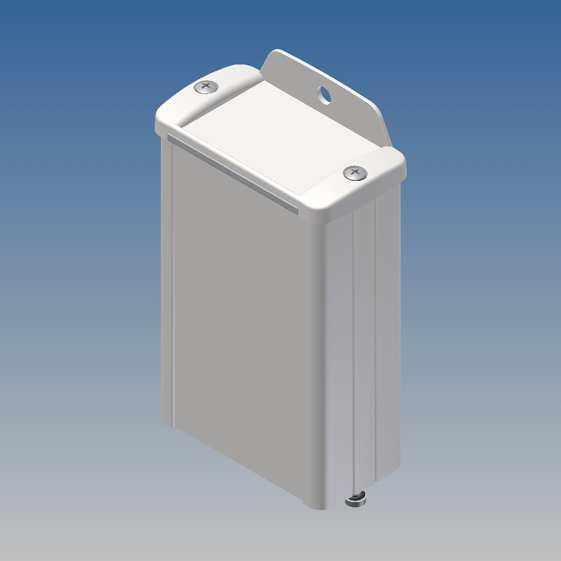

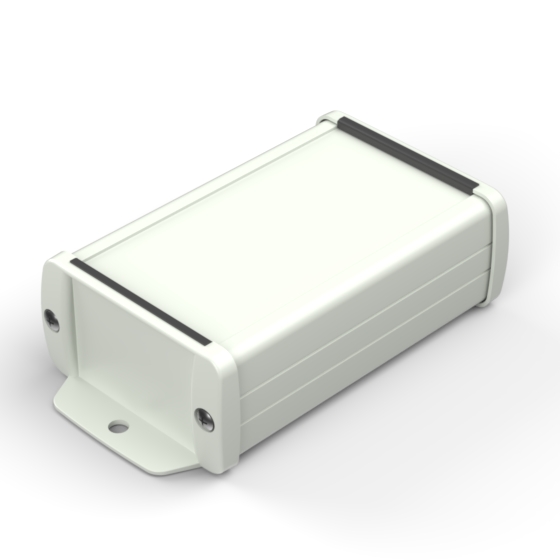

TEKAM-12/E.7 100 59,9 30,9 9002
ALLOY 6060  -  ZA4C1 90 55,5 4 - TKAMSK1
PDF
DWG
View

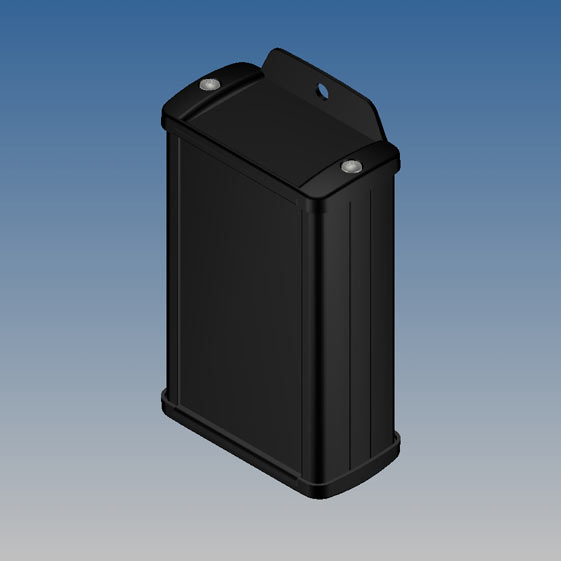

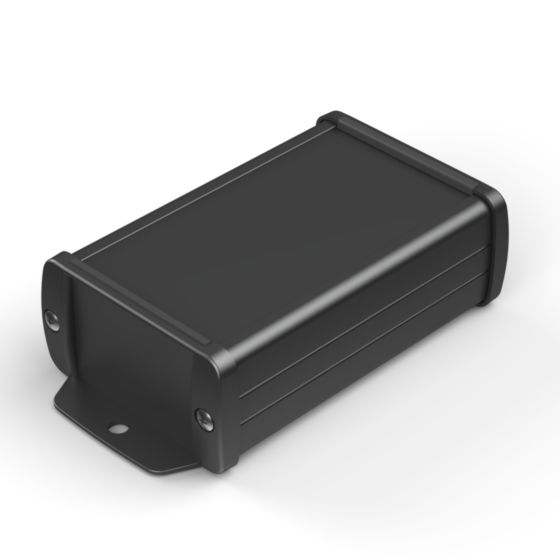

TEKAM-12/E.9 100 59,9 30,9 9004
ALLOY 6060  -  ZA4C1 90 55,5 4 - TKAMSK1
PDF
DWG
View

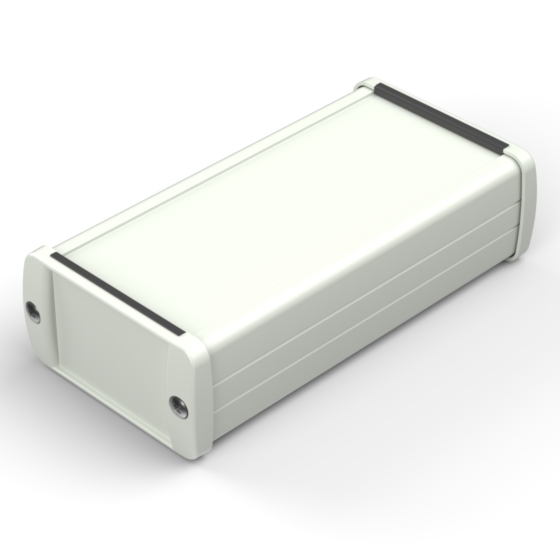

TEKAM-13.7 125 59,9 30,9 9002
ALLOY 6060  -  ZA4C1 115 55,5 4 - ALP-1
TKAMSK1
PDF
DWG
View

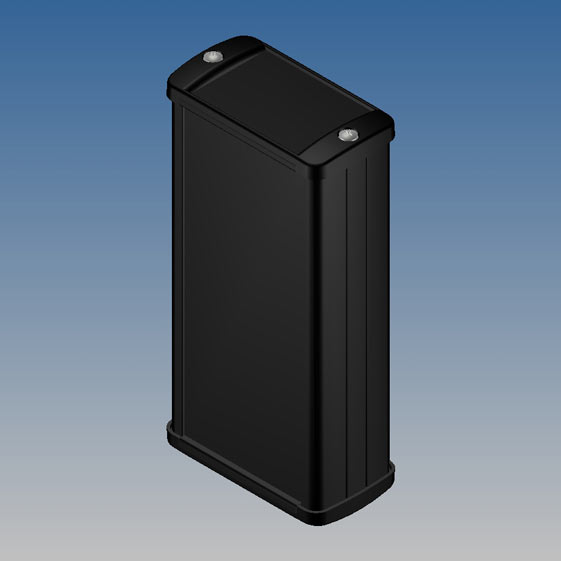

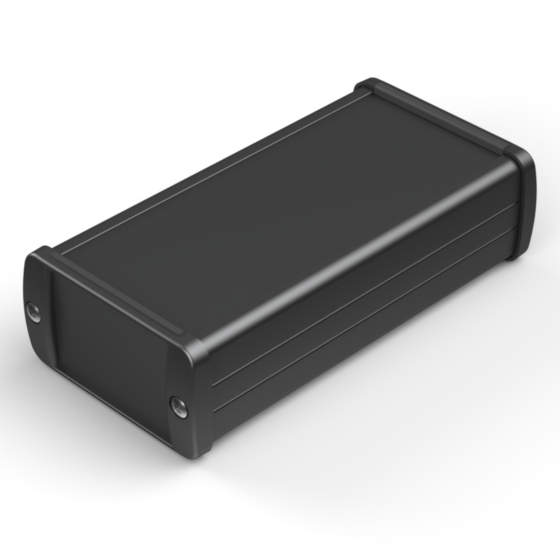

TEKAM-13.9 125 59,9 30,9 9004
ALLOY 6060  -  ZA4C1 115 55,5 4 - ALP-1
TKAMSK1
PDF
DWG
View

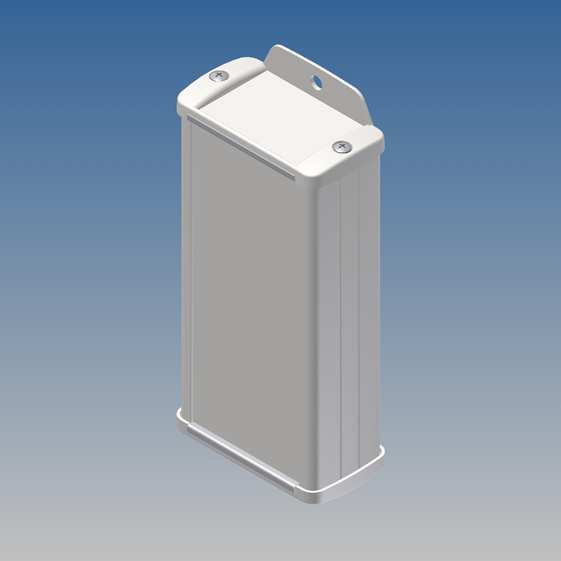

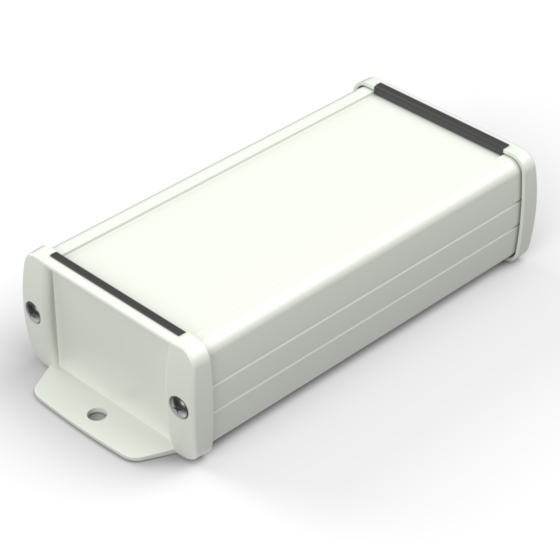

TEKAM-13/E.7 125 59,9 30,9 9002
ALLOY 6060  -  ZA4C1 115 55,5 4 - TKAMSK1
PDF
DWG
View

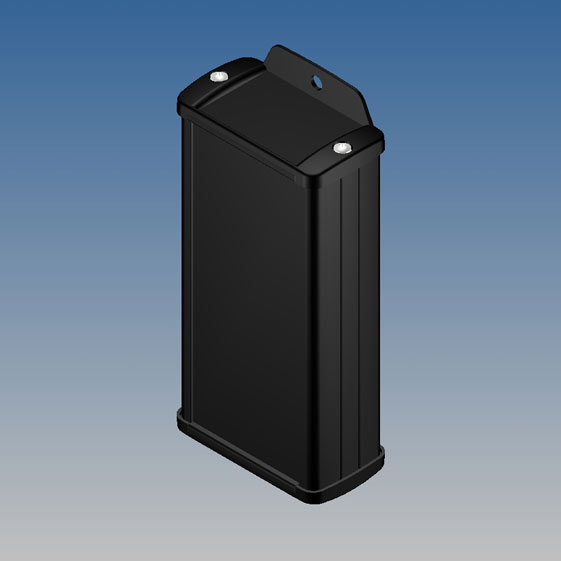

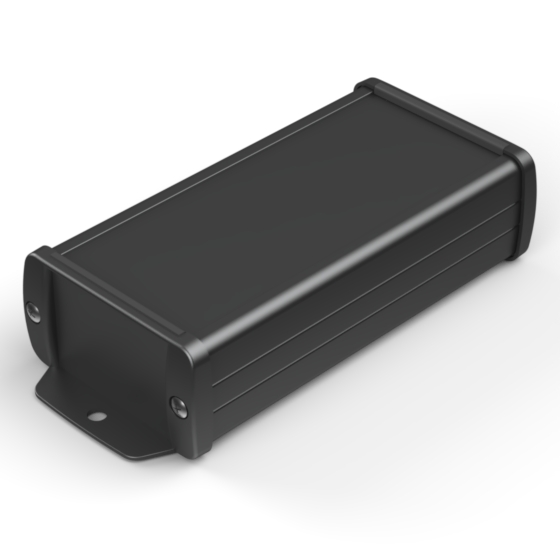

TEKAM-13/E.9 125 59,9 30,9 9004
ALLOY 6060  -  ZA4C1 115 55,5 4 - TKAMSK1
PDF
DWG
View

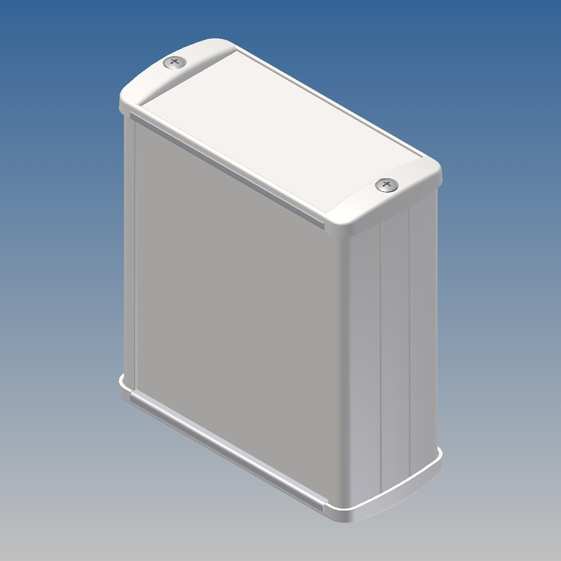

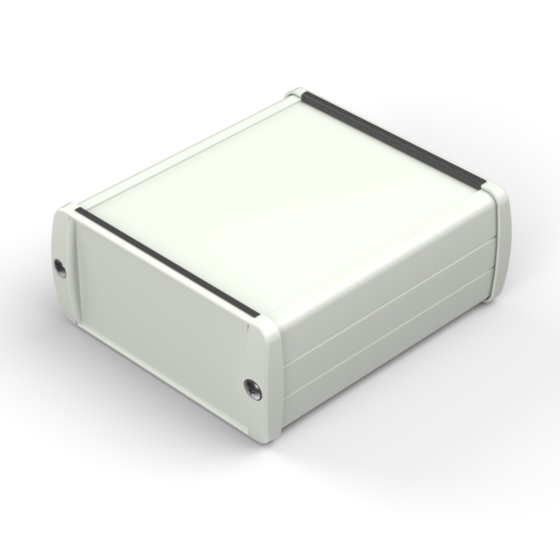

TEKAM-21.7 100 85,8 36,9 9002
ALLOY 6060  -  ZA4C1 90 80,5 4 - ALP-2
TKAMSK2
PDF
DWG
View

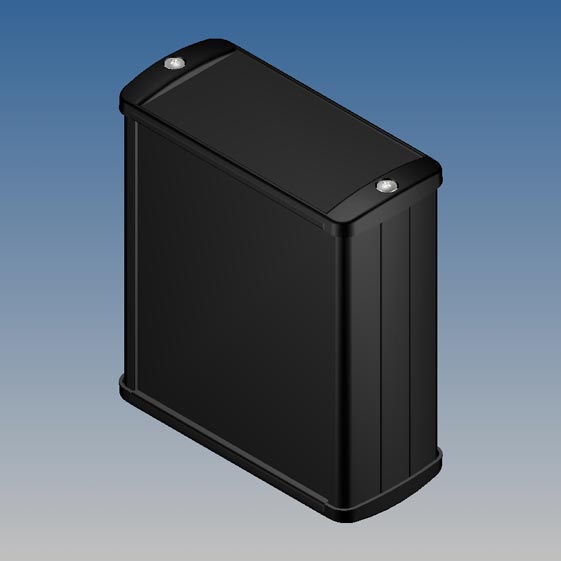

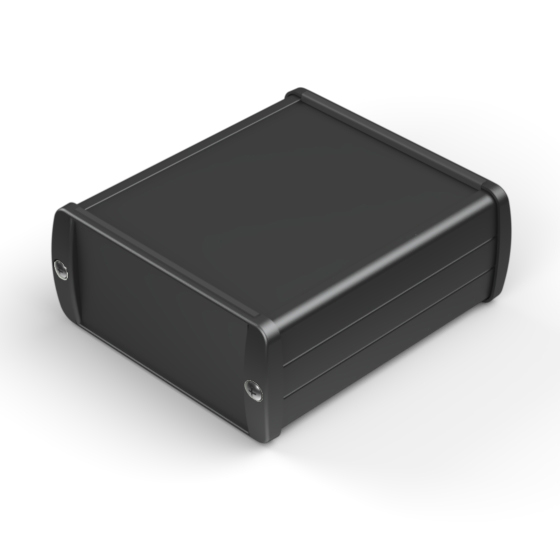

TEKAM-21.9 100 85,8 36,9 9004
ALLOY 6060  -  ZA4C1 90 80,5 4 - ALP-2
TKAMSK2
PDF
DWG
View

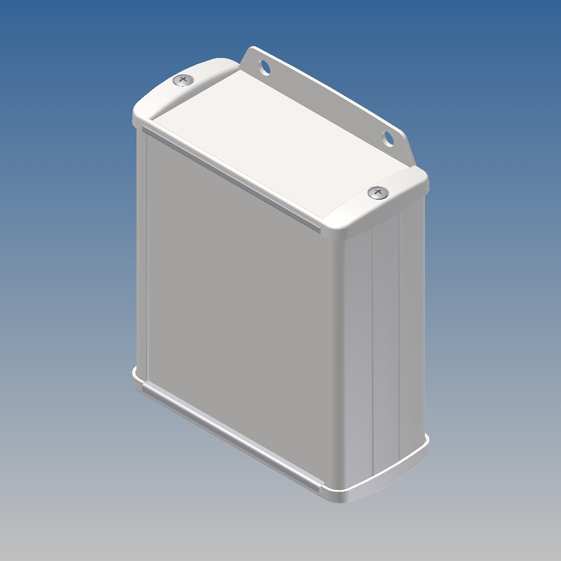

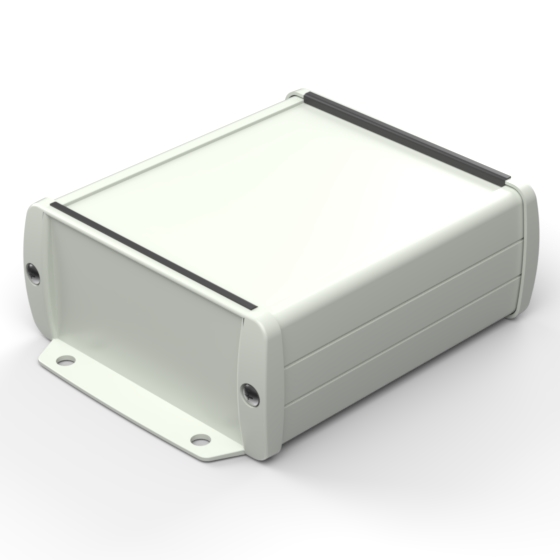

TEKAM-21/E.7 100 85,8 36,9 9002
ALLOY 6060  -  ZA4C1 90 80,5 4 - TKAMSK2
PDF
DWG
View

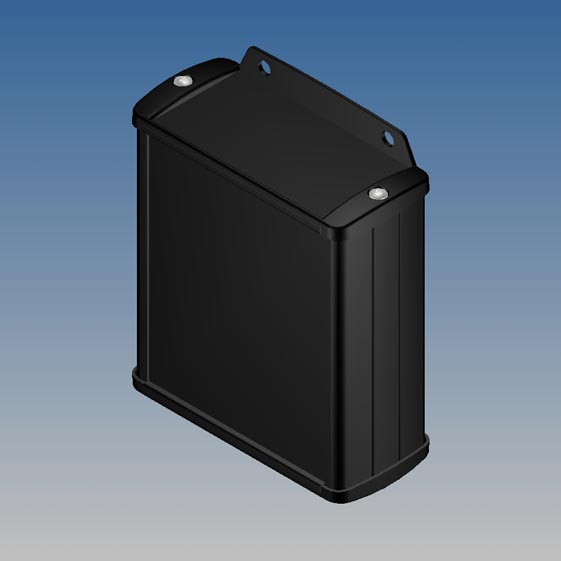

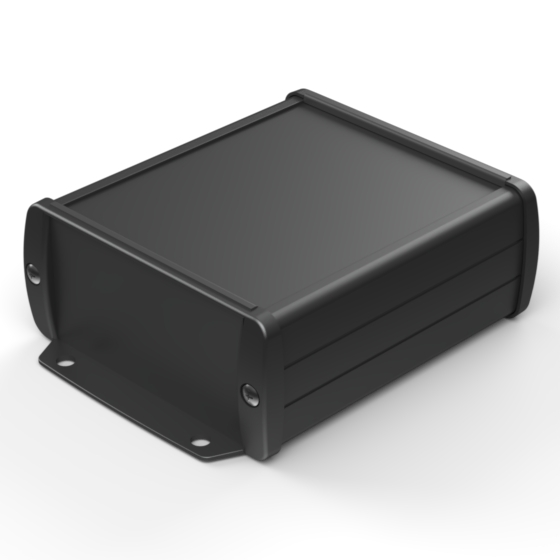

TEKAM-21/E.9 100 85,8 36,9 9004
ALLOY 6060  -  ZA4C1 90 80,5 4 - TKAMSK2
PDF
DWG
View

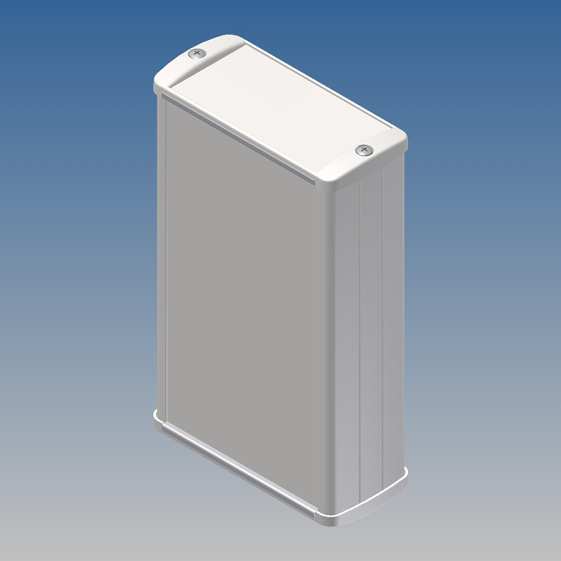

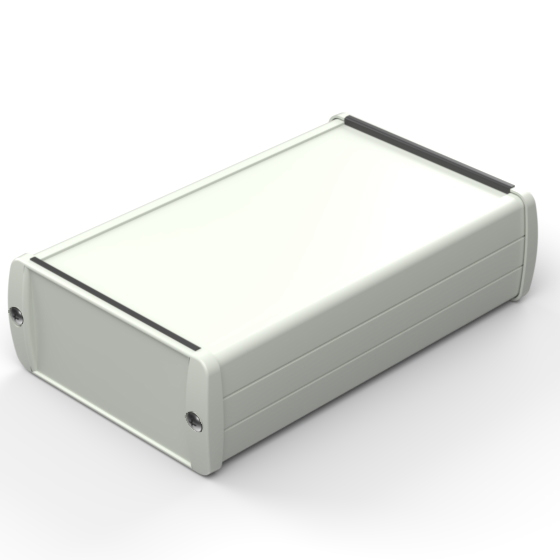

TEKAM-22.7 145 85,8 36,9 9002
ALLOY 6060  -  ZA4C1 135 80,5 4 - ALP-2
M
M58
M59
MW
TKAMSK2
PDF
DWG
View

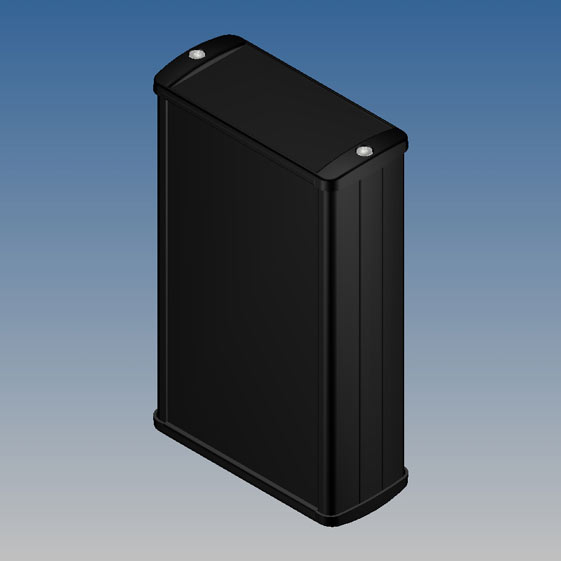

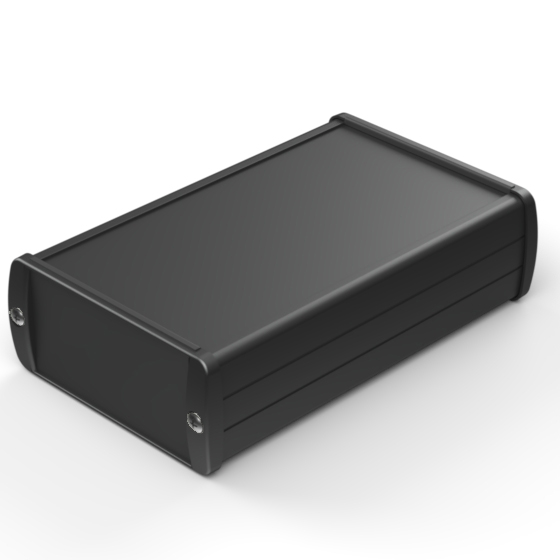

TEKAM-22.9 145 85,8 36,9 9004
ALLOY 6060  -  ZA4C1 135 80,5 4 - ALP-2
M
M58
M59
MW
TKAMSK2
PDF
DWG
View

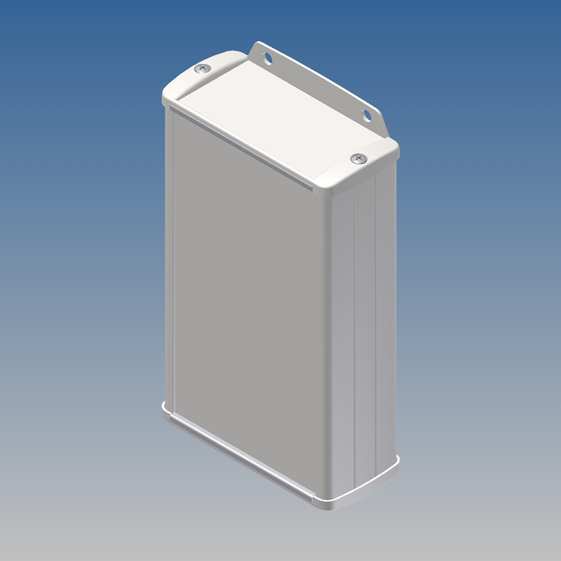

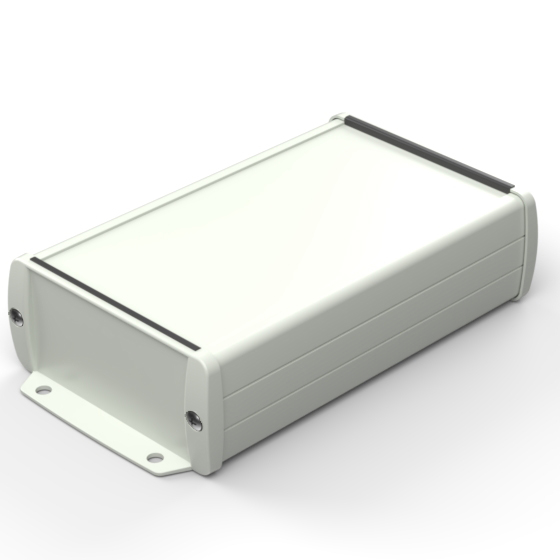

TEKAM-22/E.7 145 85,8 36,9 9002
ALLOY 6060  -  ZA4C1 135 80,5 4 - M
M58
M59
MW
TKAMSK2
PDF
DWG
View

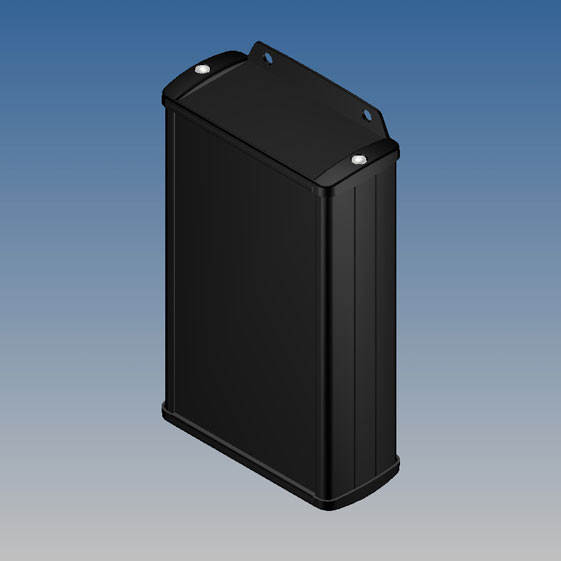

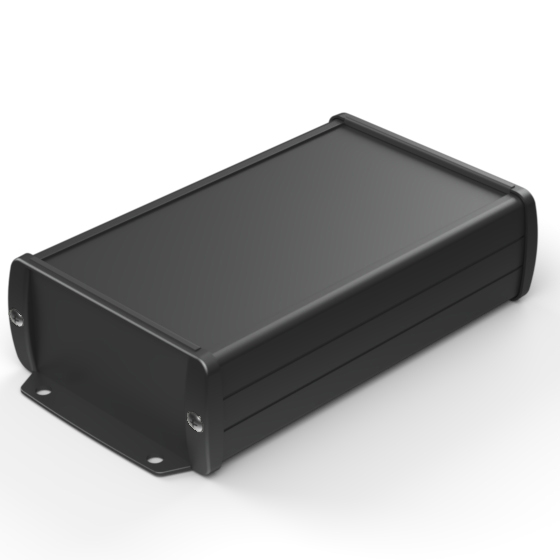

TEKAM-22/E.9 145 85,8 36,9 9004
ALLOY 6060  -  ZA4C1 135 80,5 4 - M
M58
M59
MW
TKAMSK2
PDF
DWG
View

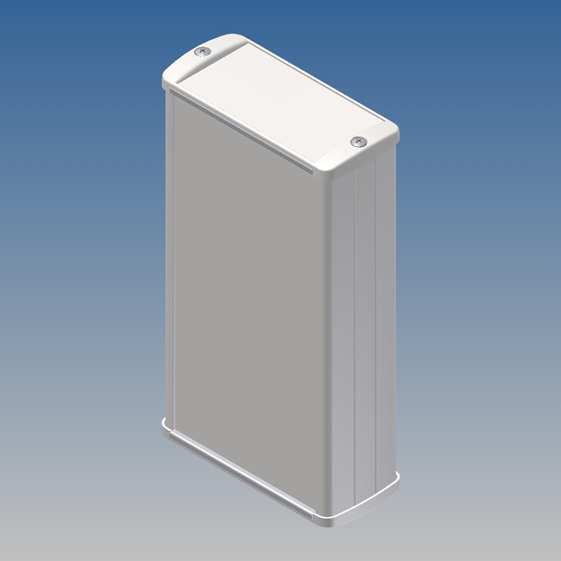

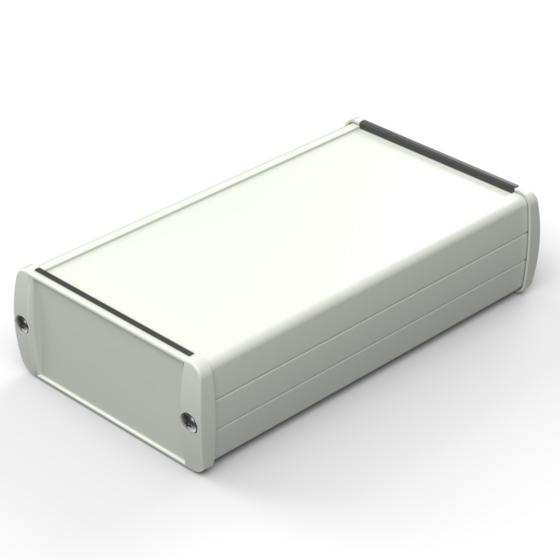

TEKAM-23.7 160 85,8 36,9 9002
ALLOY 6060  -  ZA4C1 150 80,5 4 - ALP-2
TKAMSK2
PDF
DWG
View

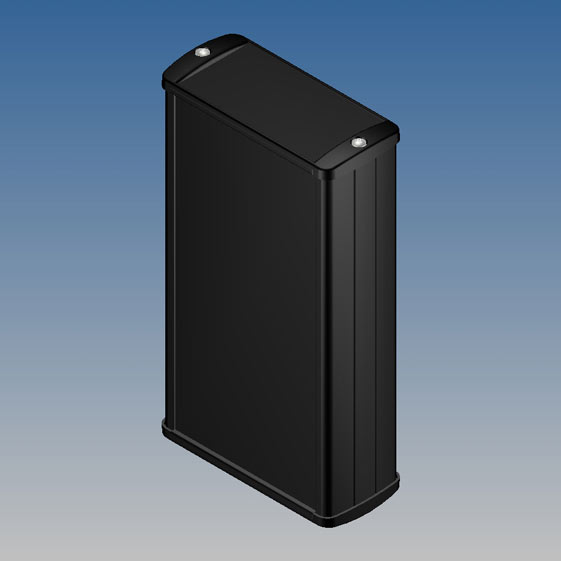

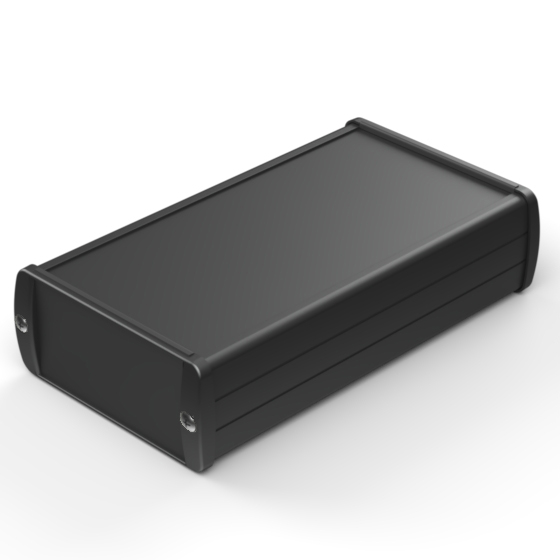

TEKAM-23.9 160 85,8 36,9 9004
ALLOY 6060  -  ZA4C1 150 80,5 4 - ALP-2
TKAMSK2
PDF
DWG
View

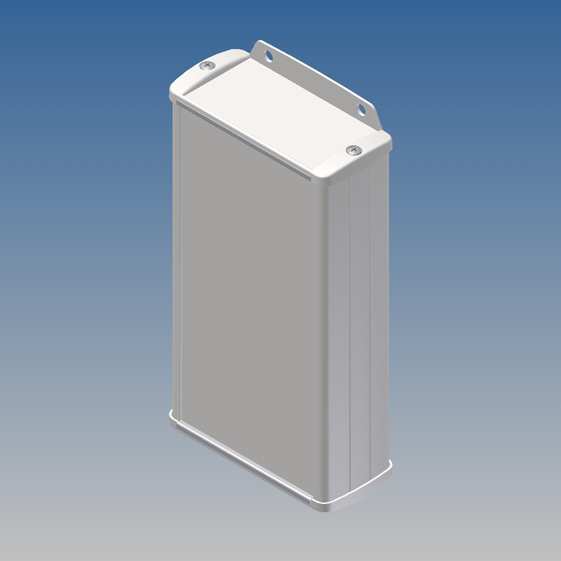

TEKAM-23/E.7 160 85,8 36,9 9002
ALLOY 6060  -  ZA4C1 150 80,5 4 - TKAMSK2
PDF
DWG
View

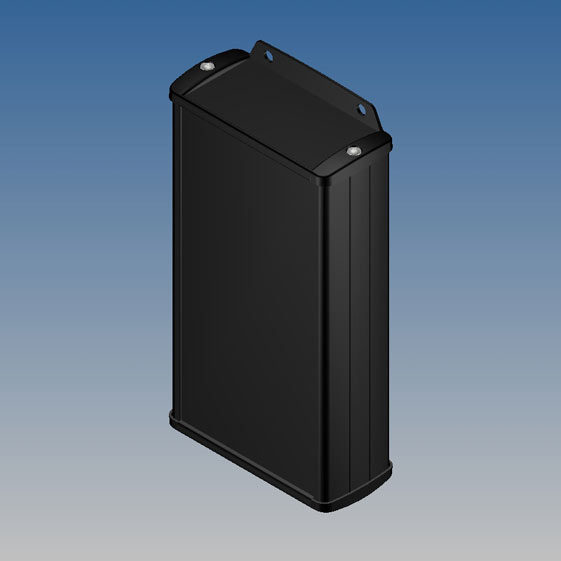

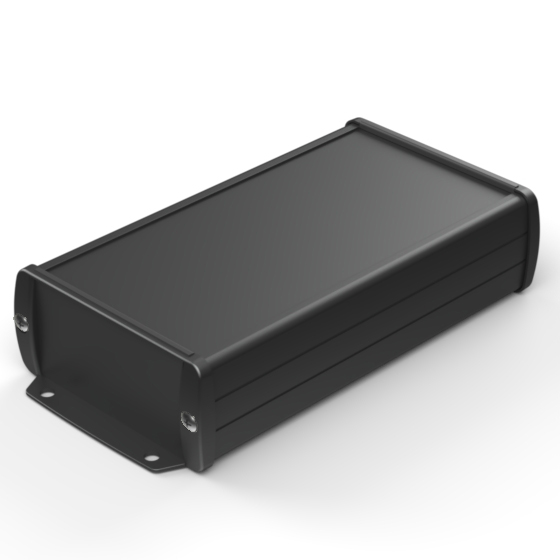

TEKAM-23/E.9 160 85,8 36,9 9004
ALLOY 6060  -  ZA4C1 150 80,5 4 - TKAMSK2
PDF
DWG
View

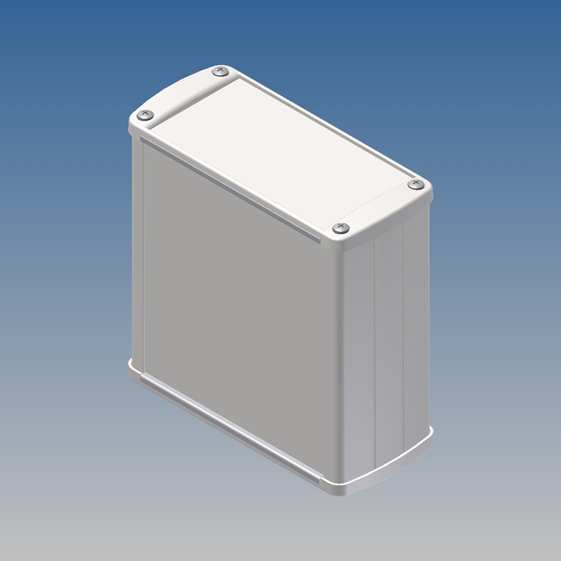

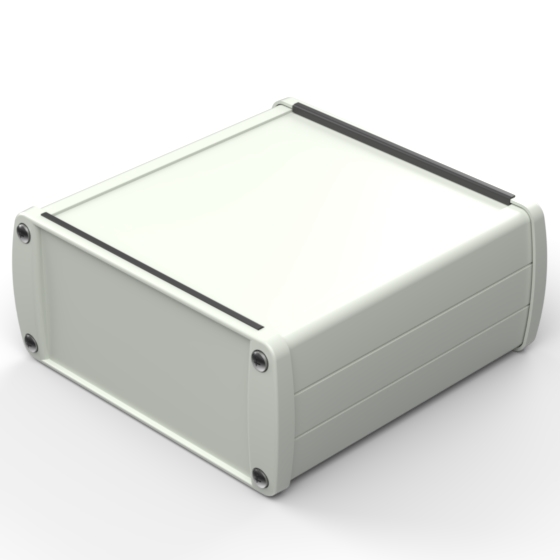

TEKAM-31.7 110 105,9 45,8 9002
ALLOY 6060  -  ZA4C1 100 100,5 8 - ALP-3
TKAMSK3
VS1
PDF
DWG
View
TEKAM-31.9 110 105,9 45,8 9004
ALLOY 6060  -  ZA4C1 100 100,5 8 - ALP-3
TKAMSK3
VS1
PDF
DWG
View

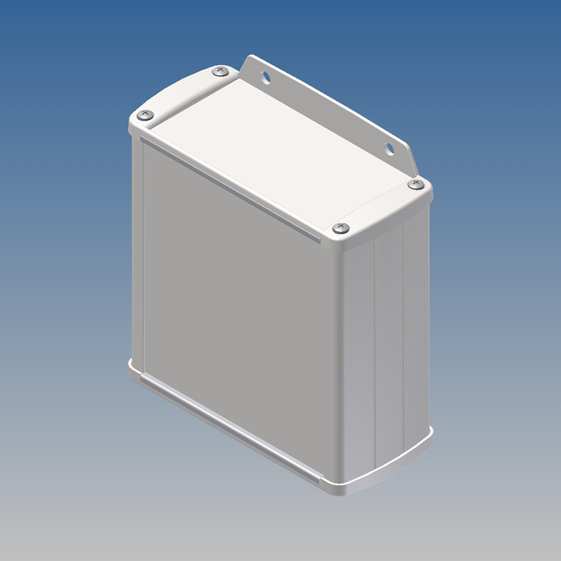

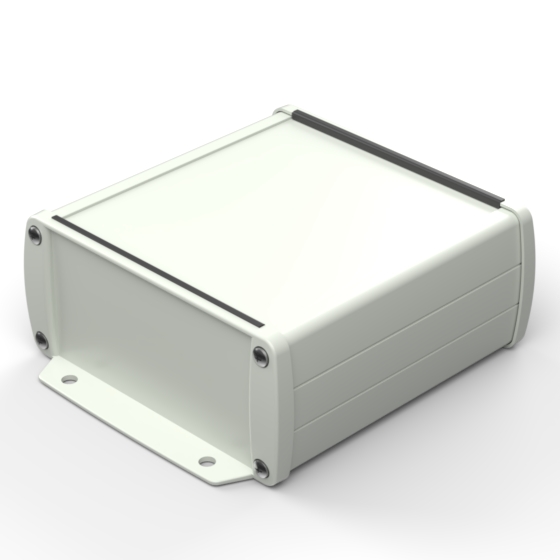

TEKAM-31/E.7 110 105,9 45,8 9002
ALLOY 6060  -  ZA4C1 100 100,5 8 - TKAMSK3
PDF
DWG
View
TEKAM-31/E.9 110 105,9 45,8 9004
ALLOY 6060  -  ZA4C1 100 100,5 8 - TKAMSK3
PDF
DWG
View

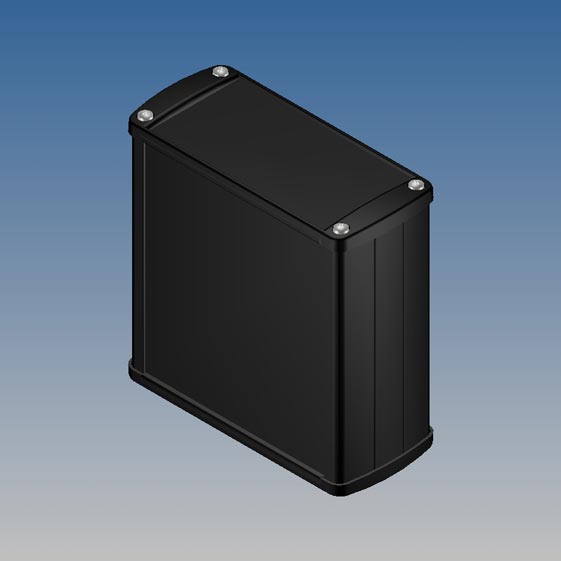

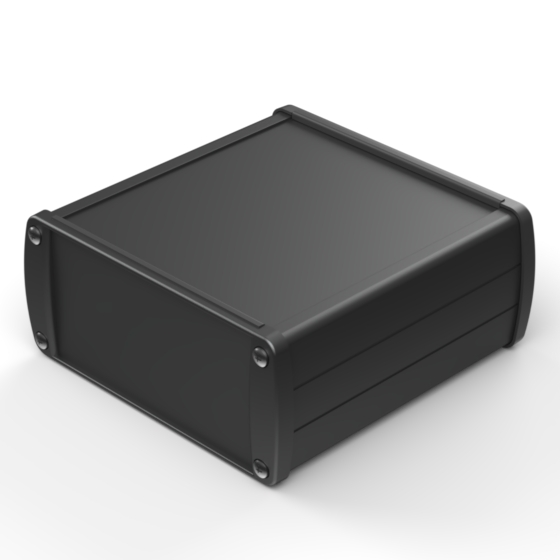

TEKAM-31L.9 110,0 105,9 45,8 9004
ALLOY 6060  -  ZA4C1 100 100,5 8   ALP-3
TKAMSK3
VS1
PDF
DWG
View

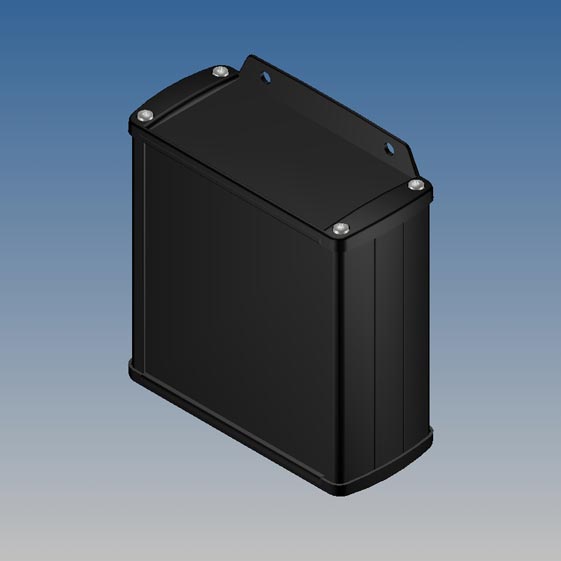

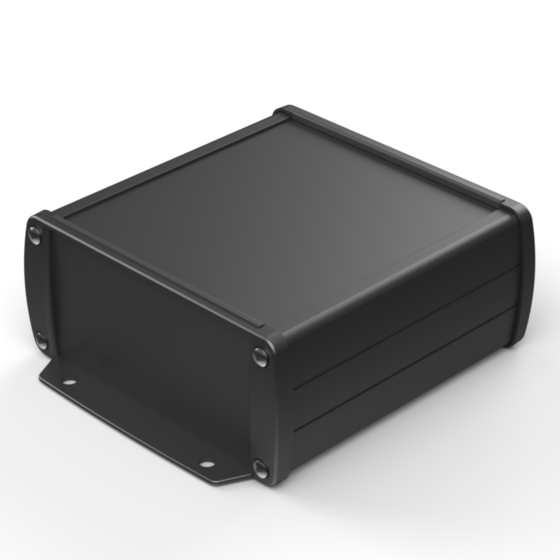

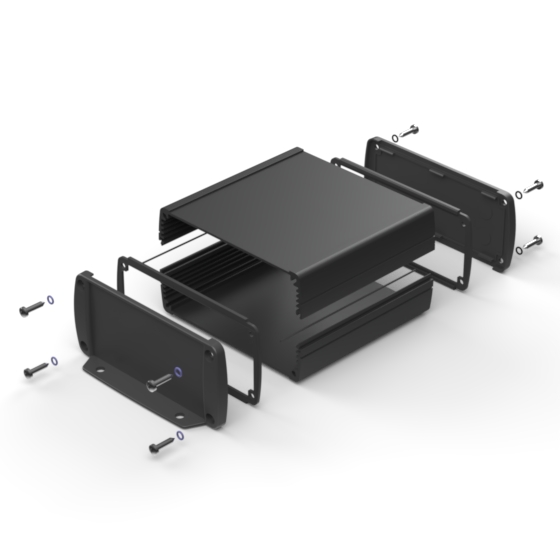

TEKAM-31L/E.9 110 105,9 45,8 9004
ALLOY 6060  -  ZA4C1 100 100,5 8   TKAMSK3
PDF
DWG
View

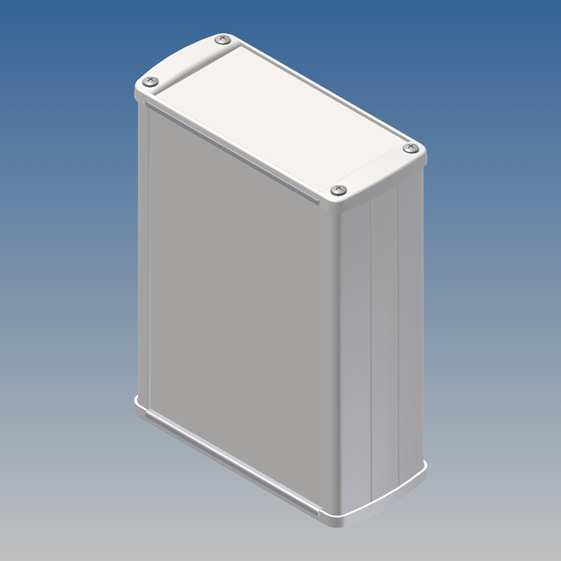

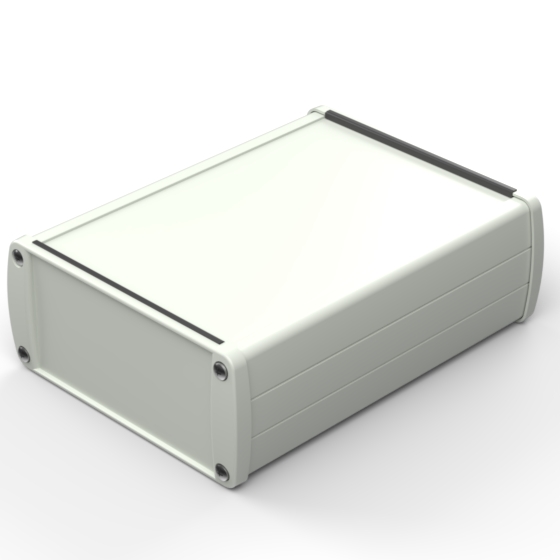

TEKAM-32.7 145 105,9 45,8 9002
ALLOY 6060  -  ZA4C1 135 100,5 8 - ALP-3
TKAMSK3
VS2
PDF
DWG
View

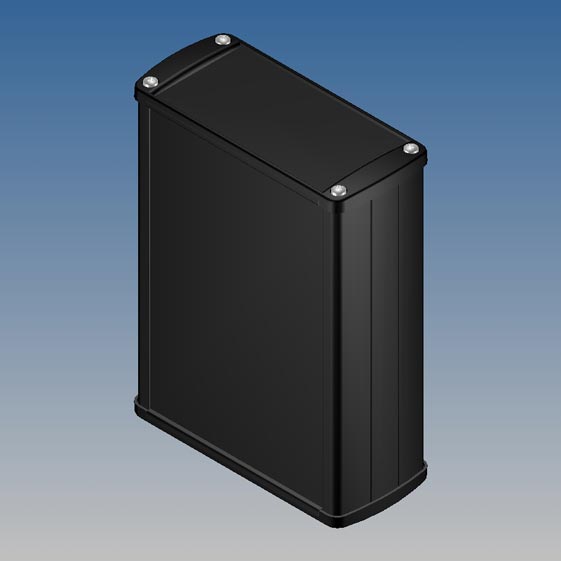

TEKAM-32.9 145 105,9 45,8 9004
ALLOY 6060  -  ZA4C1 135 100,5 8 - ALP-3
TKAMSK3
VS2
PDF
DWG
View

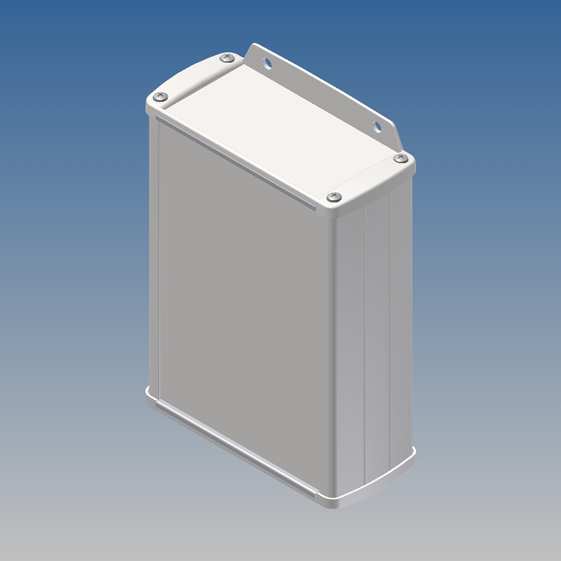

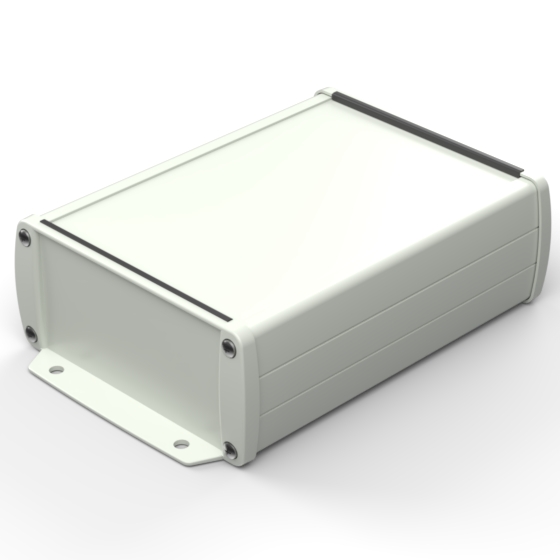

TEKAM-32/E.7 145 105,9 45,8 9002
ALLOY 6060  -  ZA4C1 135 100,5 8 - TKAMSK3
PDF
DWG
View
TEKAM-32/E.9 145 105,9 45,8 9004
ALLOY 6060  -  ZA4C1 135 100,5 8 - TKAMSK3
PDF
DWG
View

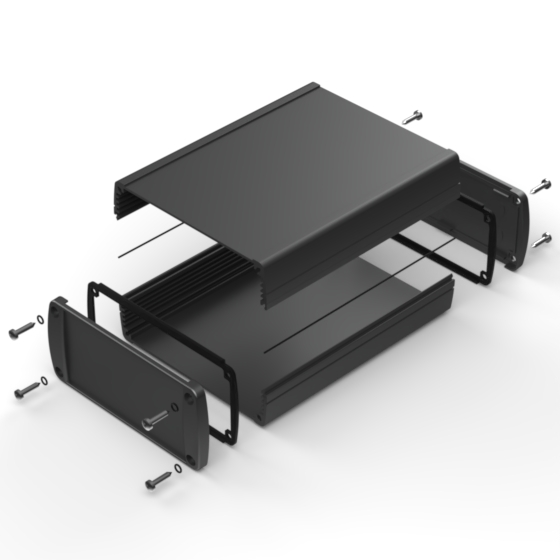

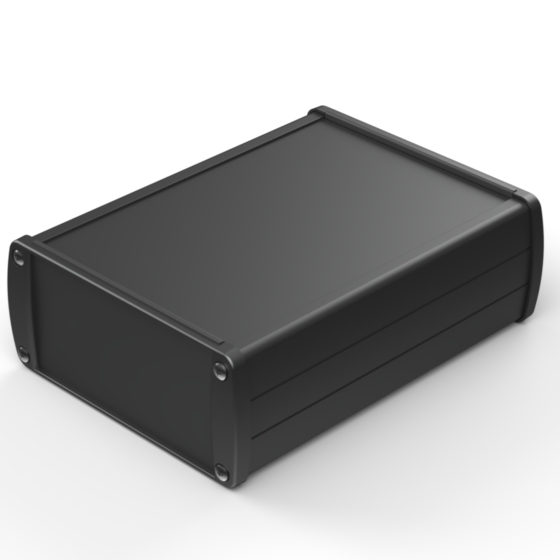

TEKAM-32L.9 145 105,9 45,8 9004
ALLOY 6060  -  ZA4C1 135 100,5 8   ALP-3
TKAMSK3
VS2
PDF
DWG
View

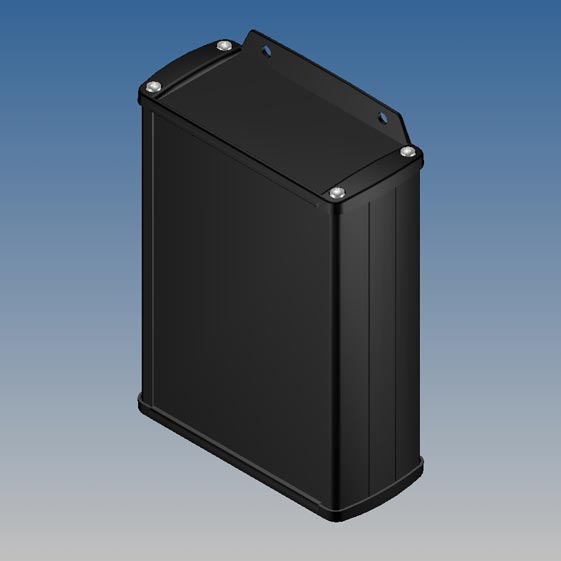

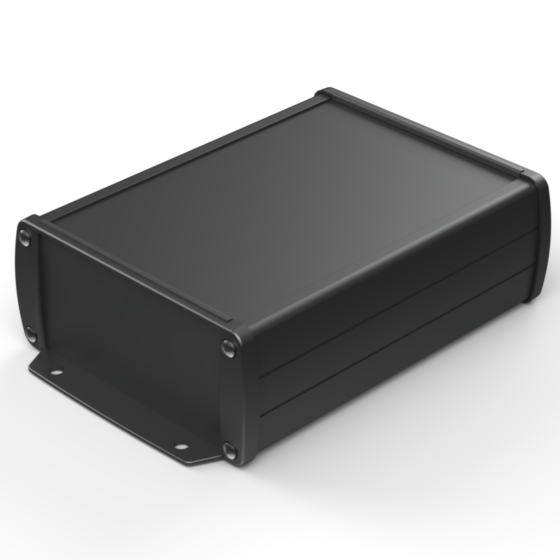

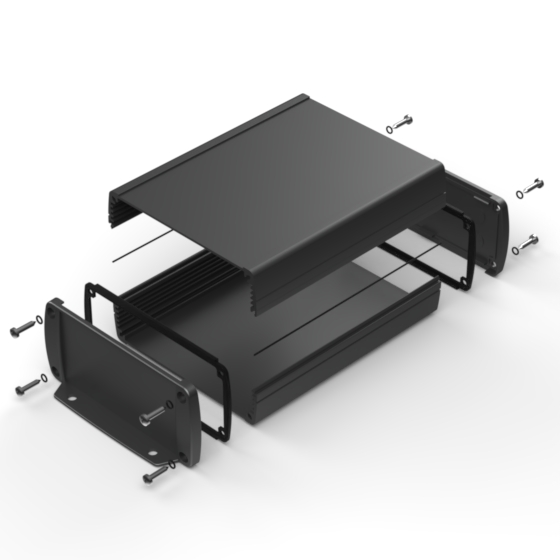

TEKAM-32L/E.9 145 105,9 45,8 9004
ALLOY 6060  -  ZA4C1 135 100,5 8   TKAMSK3
PDF
DWG
View

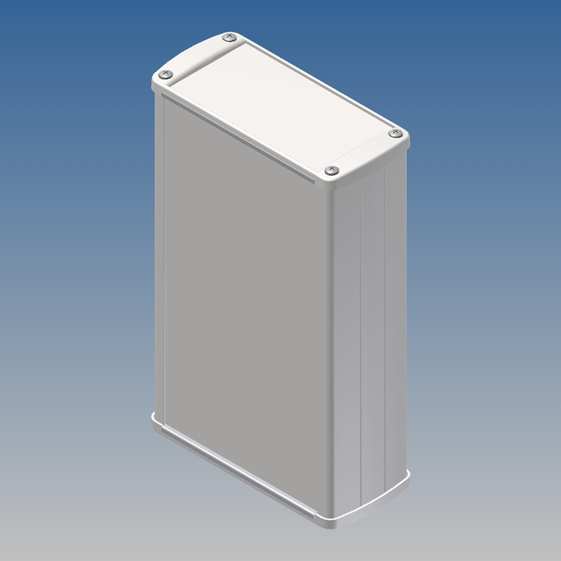

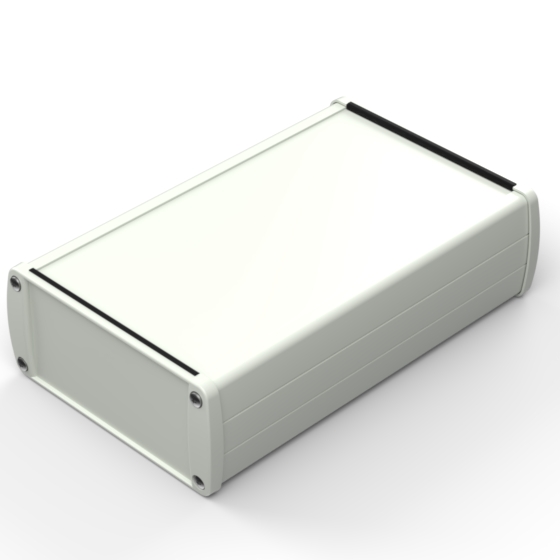

TEKAM-33.7 175 105,9 45,8 9002
ALLOY 6060  -  ZA4C1 165 100,5 8 - ALP-3
TKAMSK3
VS3
PDF
DWG
View
TEKAM-33.9 175 105,9 45,8 9004
ALLOY 6060  -  ZA4C1 165 100,5 8 - ALP-3
TKAMSK3
VS3
PDF
DWG
View

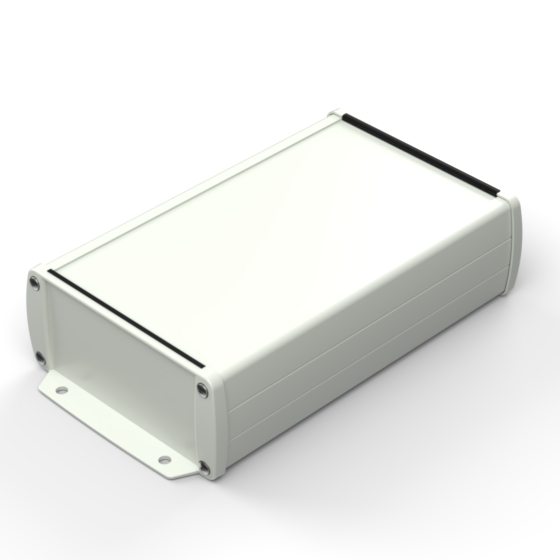

TEKAM-33/E.7 175 105,9 45,8 9002
ALLOY 6060  -  ZA4C1 165 100,5 8 - TKAMSK3
PDF
DWG
View

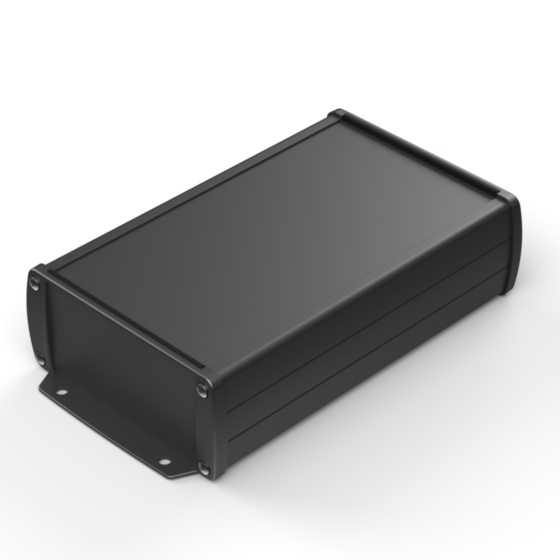

TEKAM-33/E.9 175 105,9 45,8 9004
ALLOY 6060  -  ZA4C1 165 100,5 8 - TKAMSK3
PDF
DWG
View

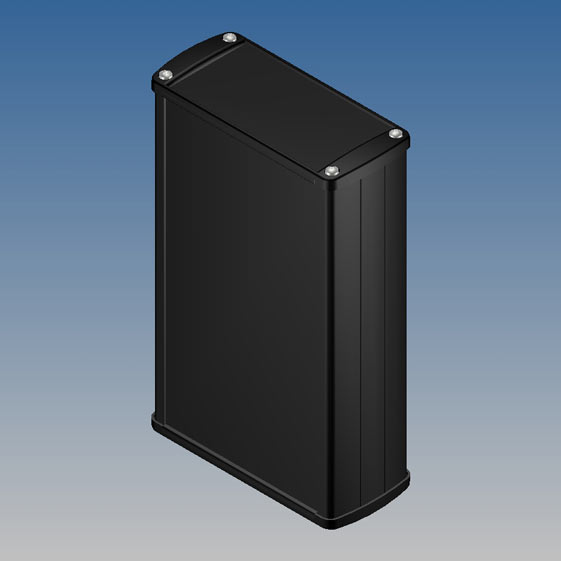

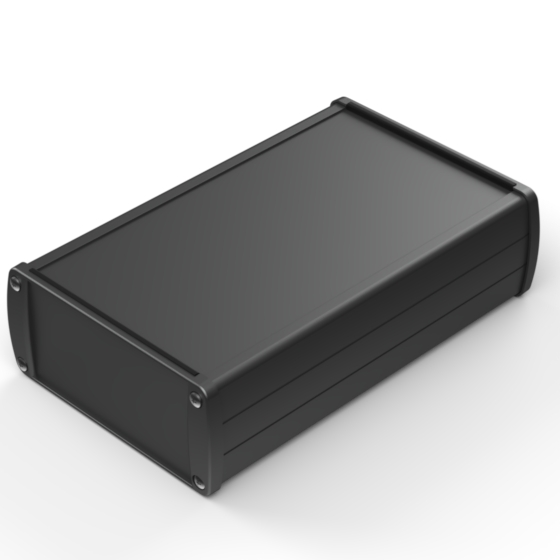

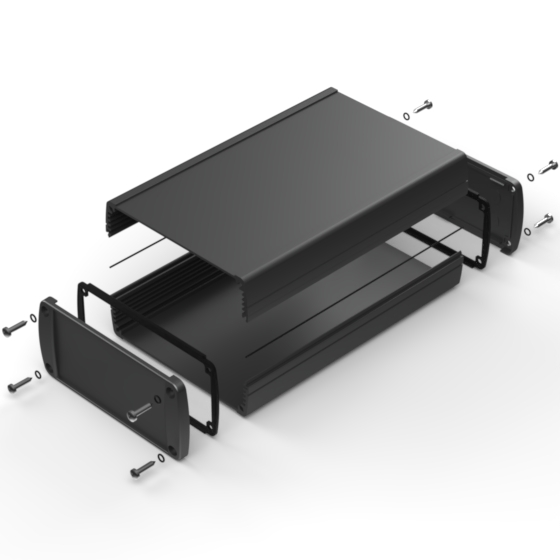

TEKAM-33L.9 175 105,9 45,8 9004
ALLOY 6060  -  ZA4C1 165 100,5 8   ALP-3
TKAMSK3
VS3
PDF
DWG
View

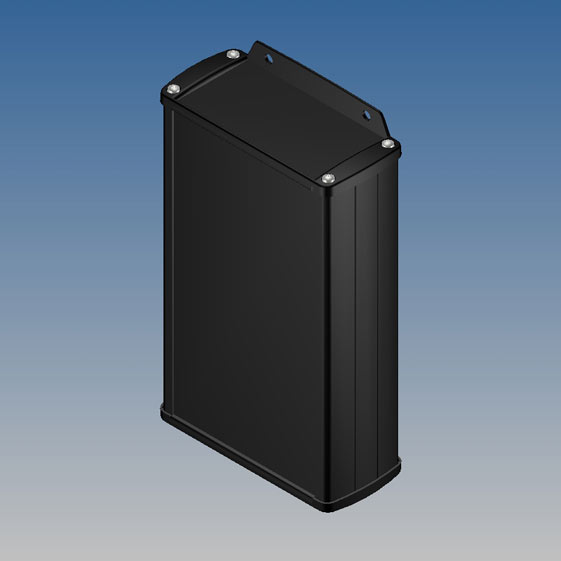

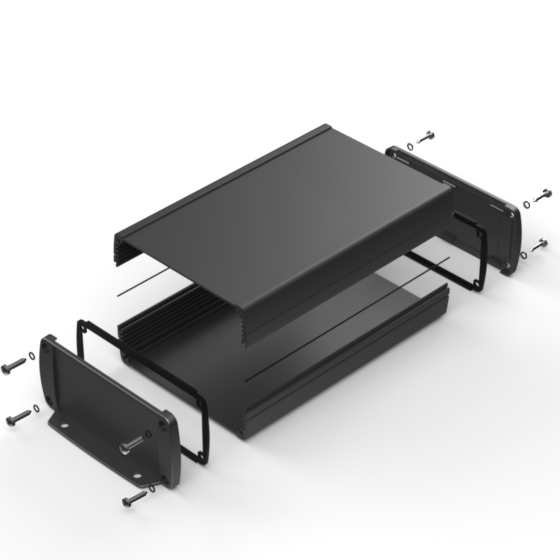

TEKAM-33L/E.9 175 105,9 45,8 9004
ALLOY 6060  -  ZA4C1 165 100,5 8   TKAMSK3
PDF
DWG
View
