TEKMAG

Family Aluminium - Electronic enclosures - Metal

Description

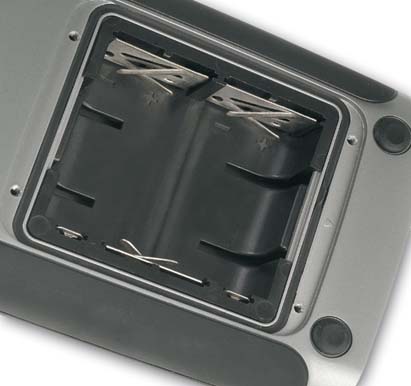

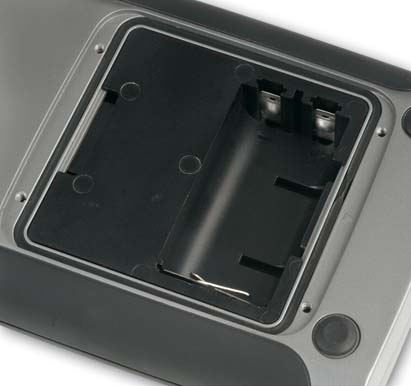

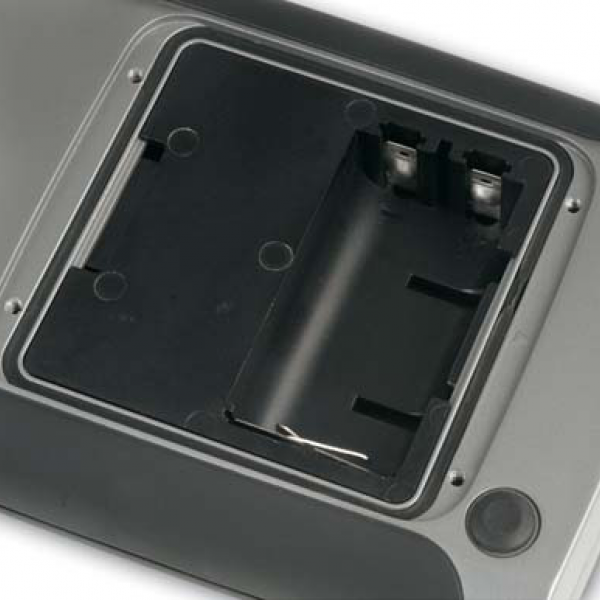

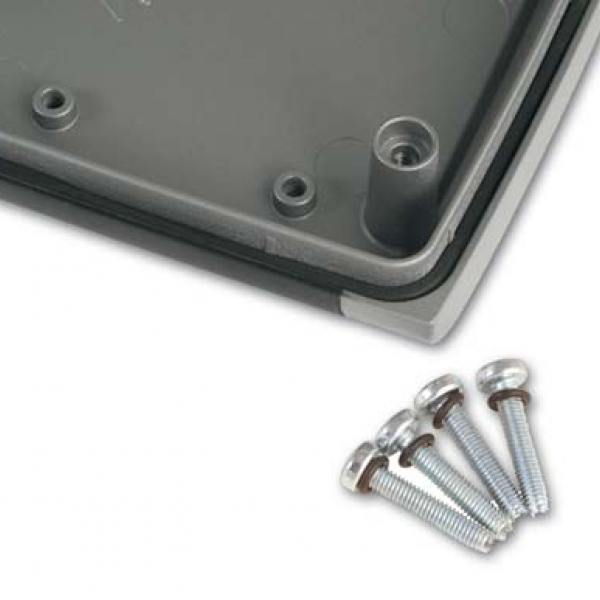

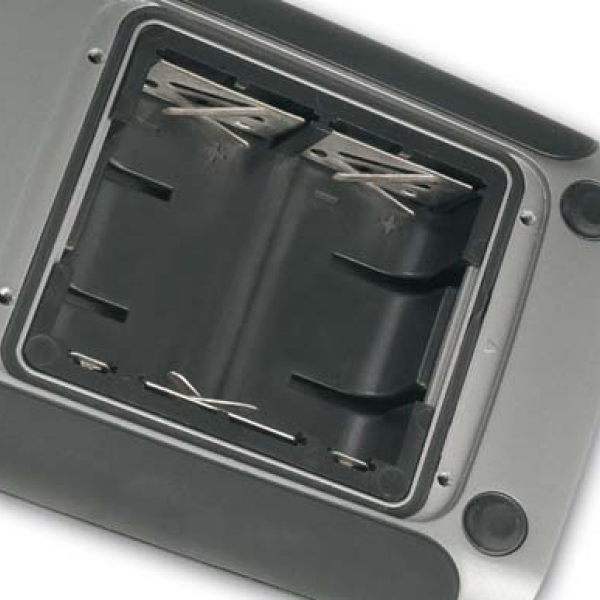

Teko is pleased to introduce an innovative range of enclosures that represent a real revolution in the field of enclosures for electronic applications. Through the standard products, our Company always offers high performance cases. Now, we are presenting on the market for the first, the new TEKMAG range of cases, moulded in TEKNIUM®, a special magnesium alloy, that will convince You thanks to the ultra-light weight, the absolute strength, and the shielding properties of the three models available. Due to the unique design, TEKMAG cases are mostly suitable for hand-held devices in the industrial automation, avionics, marine and automotive fields. Never before, a metallic hand held enclosure has been optimized to be used in such high-tech applications. No compromises no longer with TEKMAG models! New perspectives are now available to wear Your projects. All models are equipped with IP67 sealing kits, to protect your electronics against water and powder. Versions with battery compartment for 2x AA / 1x 9V batteries or 4x AA / 2x 9V batteries suitable for self-powered devices are available. The recessed area 132 x 72 mm on the covers can accept a keypad membrane or a LCD display.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

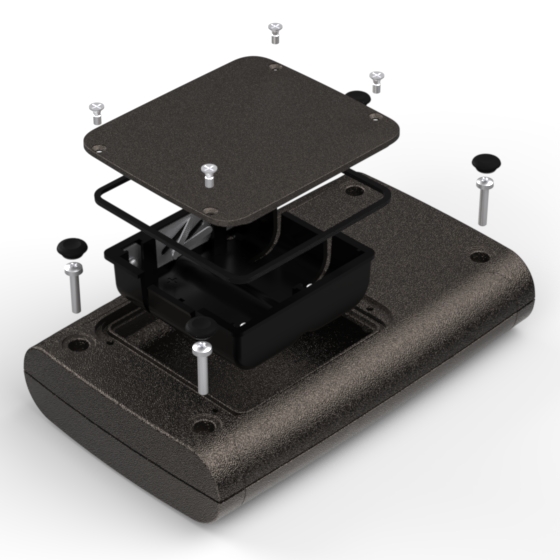

TG22-B2K.34 157 98,8 31,4 9004
AZ91D 146 85 4 4 x AA / 2 x 9V M
M58
M59
MW
PDF
DWG
View
  • Color (Ral): 9004
  • Material: AZ91D
  • MAX PCB L (mm): 146
  • MAX PCB W (mm): 85
  • Screws: 4
  • Battery: 4 x AA / 2 x 9V
  • Accessories: M M58 M59 MW
  • Drawings:  PDF  DWG

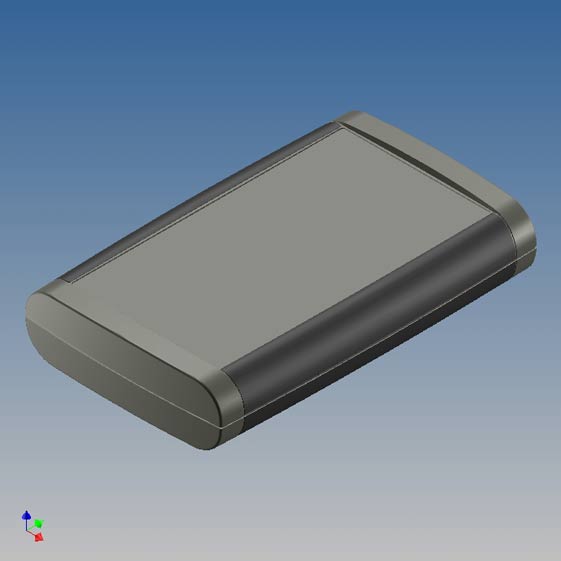

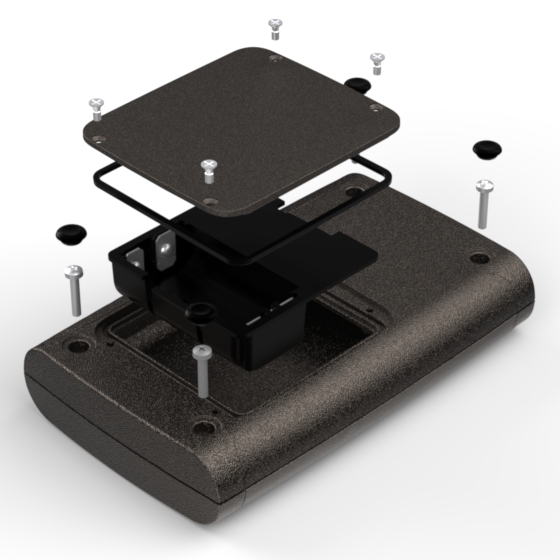

TG22-BK.34 157 98,8 31,4 9004
AZ91D 146 85 4 2 x AA / 1 x 9V M
M58
M59
MW
PDF
DWG
View
  • Color (Ral): 9004
  • Material: AZ91D
  • MAX PCB L (mm): 146
  • MAX PCB W (mm): 85
  • Screws: 4
  • Battery: 2 x AA / 1 x 9V
  • Accessories: M M58 M59 MW
  • Drawings:  PDF  DWG

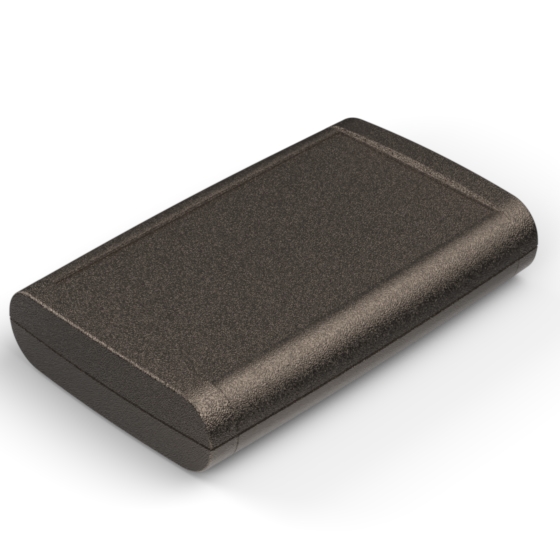

TG22K.34 157 98,8 31,4 9004
AZ91D 146 85 4 - M
M58
M59
MW
PDF
DWG
View
