CAB PULPIT

Family Front Panel - Electronic enclosures - Plastic

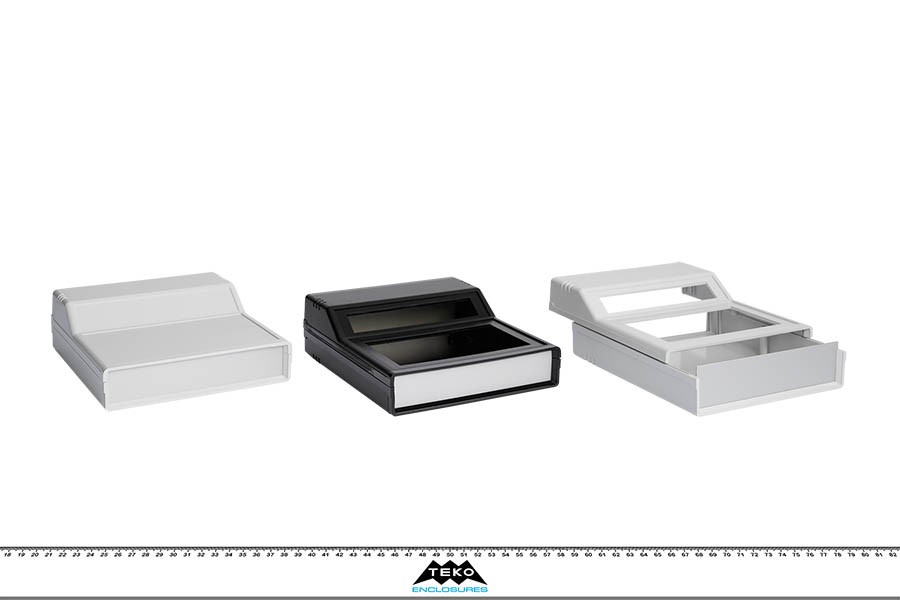

Description

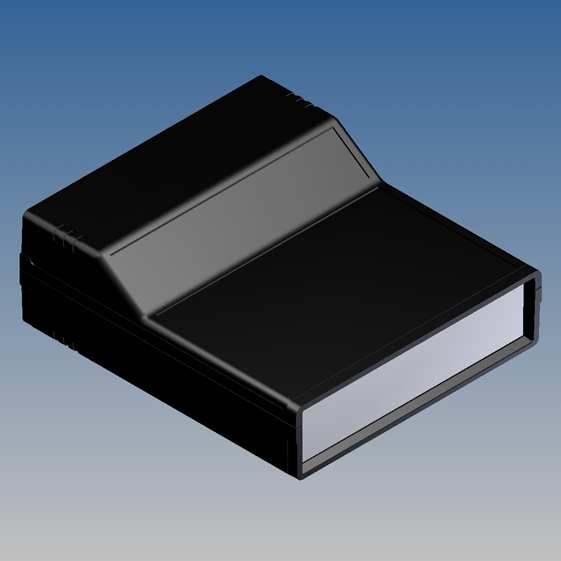

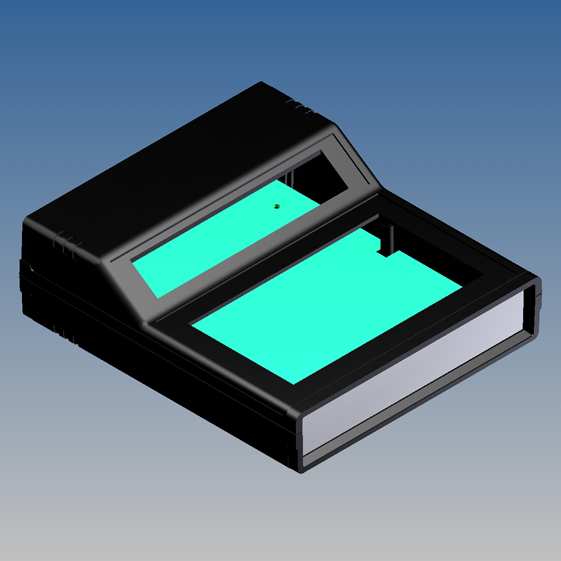

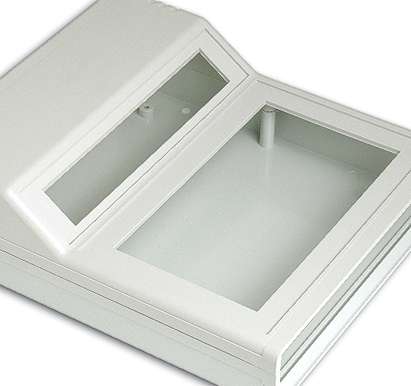

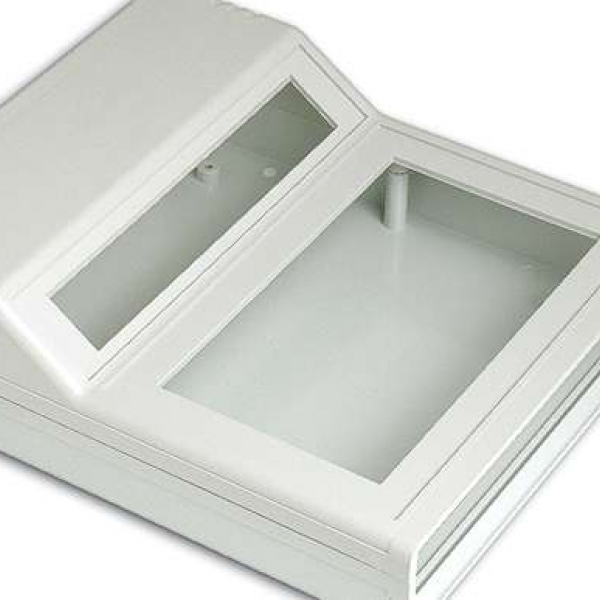

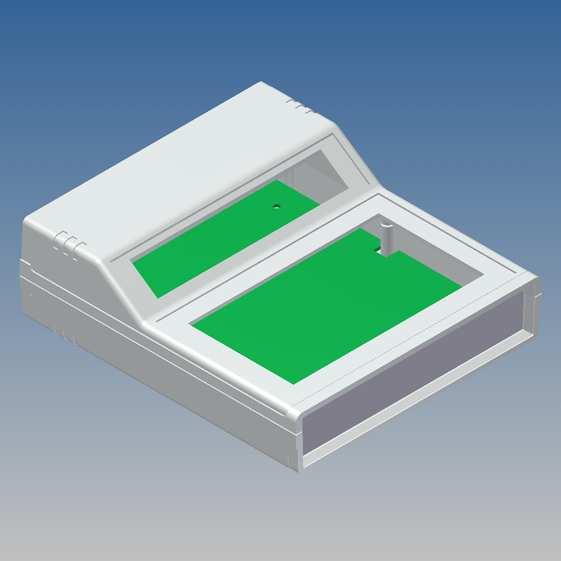

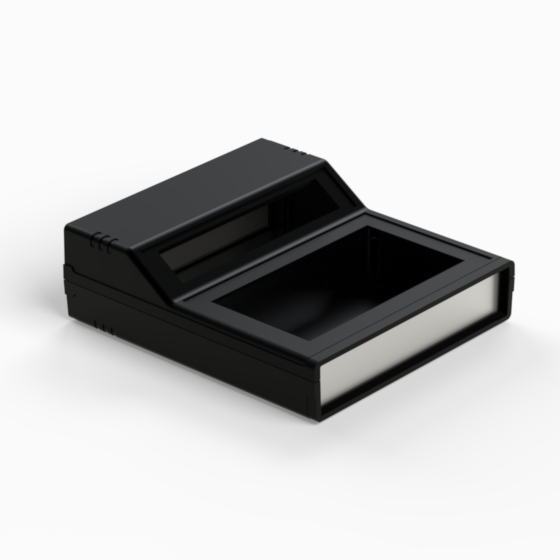

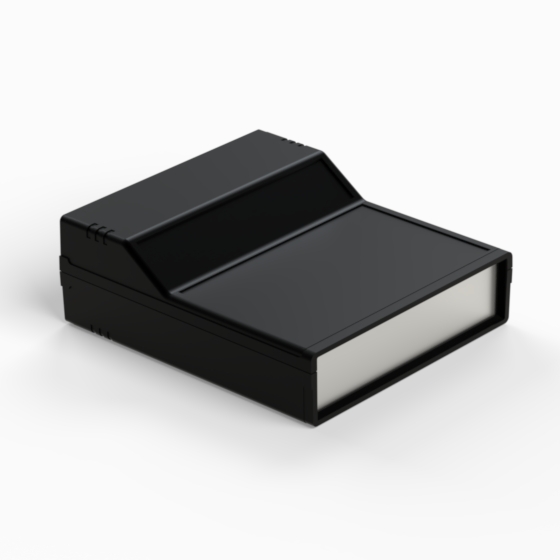

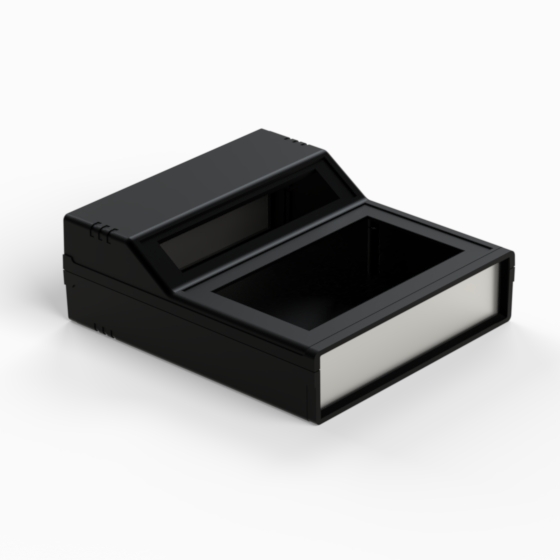

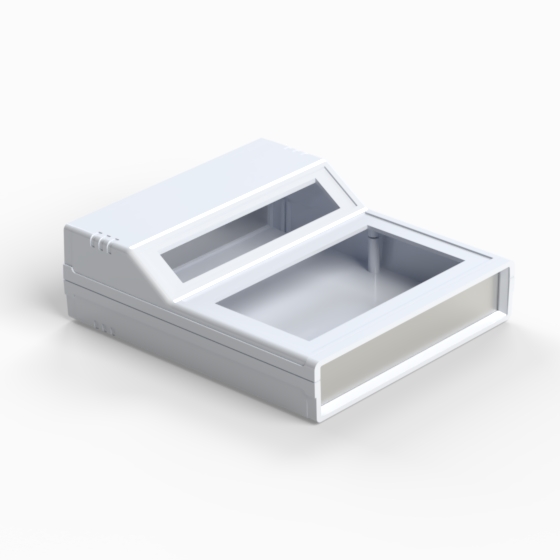

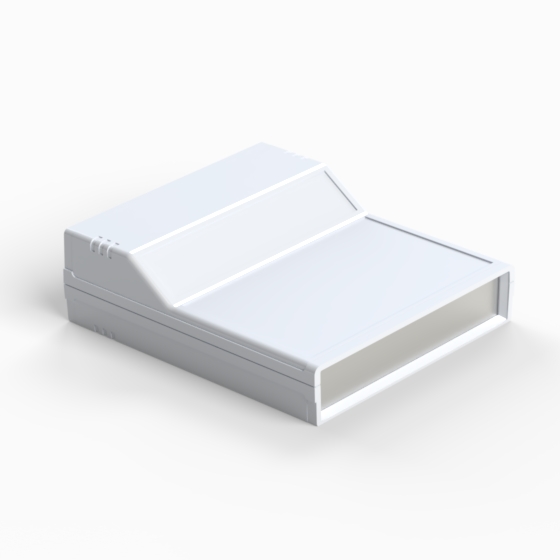

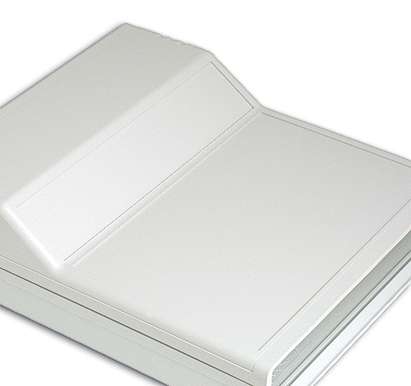

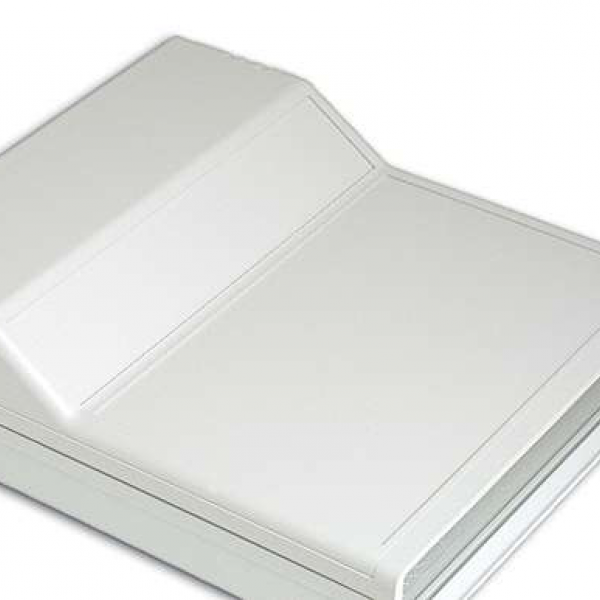

ABS enclosures with two 1 mm aluminium panels. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. The models “242” and “243” have a 45° inclined display area. The models “242/O” and “243/O” have two cutouts in the recessed areas. Closing by only two screws. Upon request dark gray ABS panels (Mod. PP11, PP12, PP22, PP222, PP223, PP233). Dual miniature clip for 9V battery (AB9).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

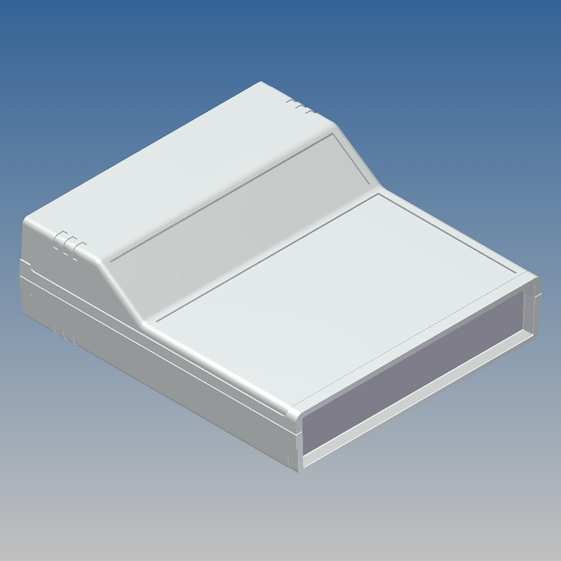

242.5 173 154 54 9018
AG-ATY 154 140 2 - PP223
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP223
  • Drawings:  PDF  DWG
242.9 173 154 54 9004
P2H-AT 154 140 2 - PP223
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP223
  • Drawings:  PDF  DWG

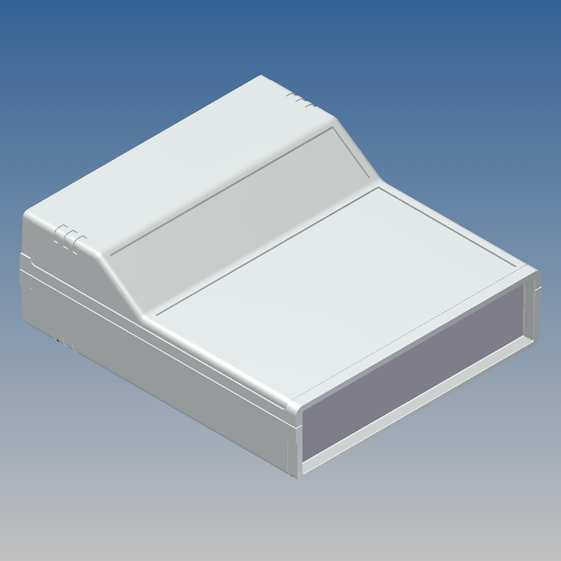

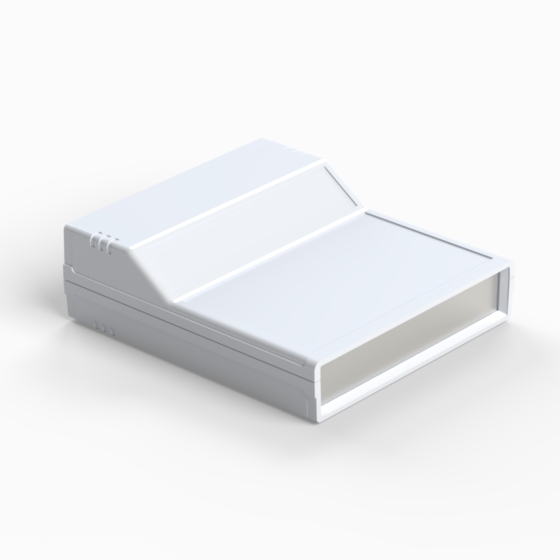

242-B.5 173 154 54 9018
AG-ATY 154 140 2 1 x 9V AB9
PP223
PDF
DWG
View

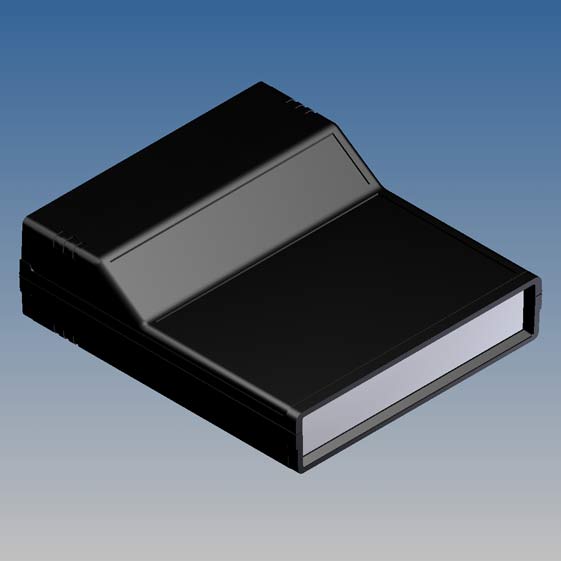

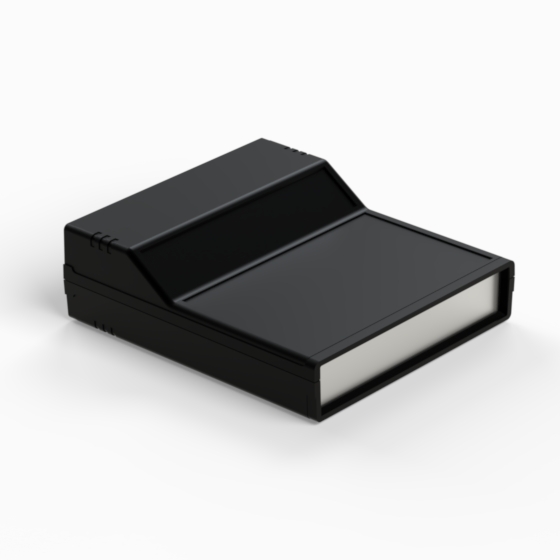

242-B.9 173 154 54 9004
P2H-AT 154 140 2 1 x 9V AB9
PP223
PDF
DWG
View
242/O.5 173 154 54 9018
AG-ATY 154 140 2 - PP223
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP223
  • Drawings:  PDF  DWG
242/O.9 173 154 54 9004
P2H-AT 154 140 2 - PP223
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP223
  • Drawings:  PDF  DWG
243.5 173 154 61 9018
AG-ATY 154 140 2 - PP233
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP233
  • Drawings:  PDF  DWG

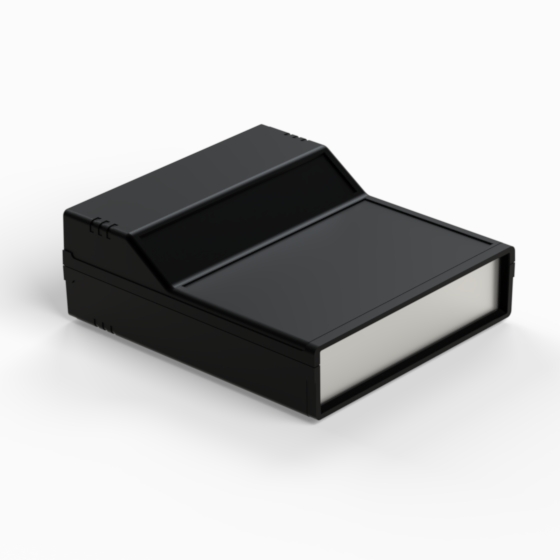

243.9 173 154 61 9004
P2H-AT 154 140 2 - PP233
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP233
  • Drawings:  PDF  DWG
243-B.5 173 154 61 9018
AG-ATY 154 140 2 1 x 9V AB9
PP233
PDF
DWG
View
243-B.9 173 154 61 9004
P2H-AT 154 140 2 1 x 9V AB9
PP233
PDF
DWG
View

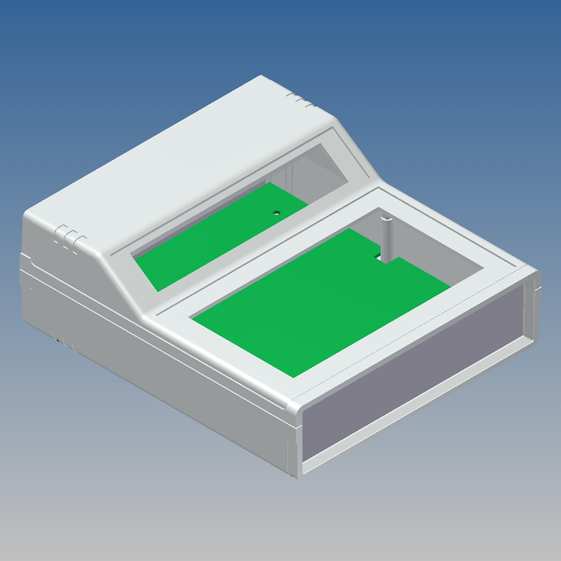

243/O.5 173 154 61 9018
AG-ATY 154 140 2 - PP233
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP233
  • Drawings:  PDF  DWG

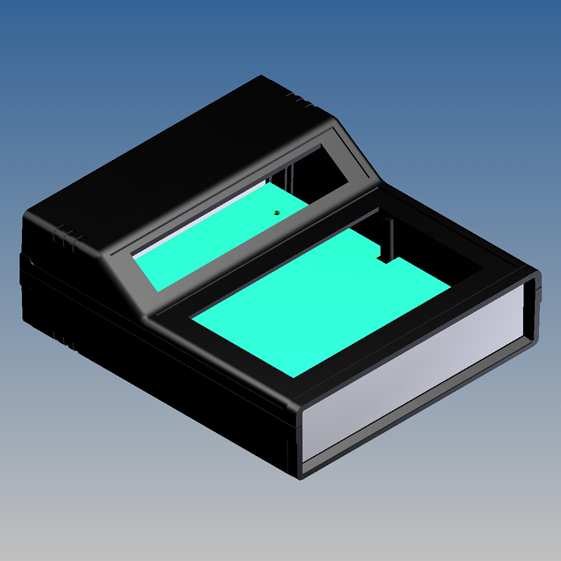

243/O.9 173 154 61 9004
P2H-AT 154 140 2 - PP233
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP233
  • Drawings:  PDF  DWG
12 product families, 144 series. You can't find what you're looking for? Contact us
