KL

Family Front Panel - Electronic enclosures - Plastic

Description

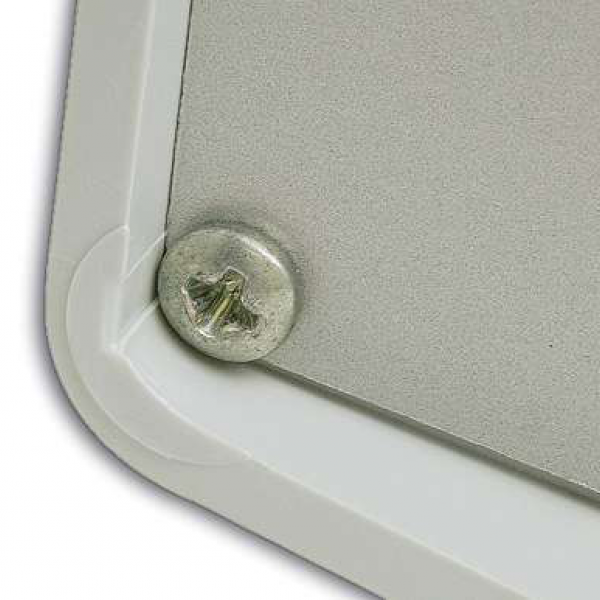

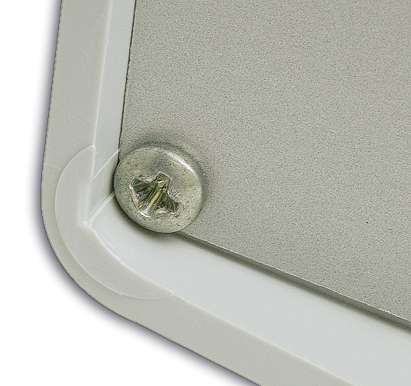

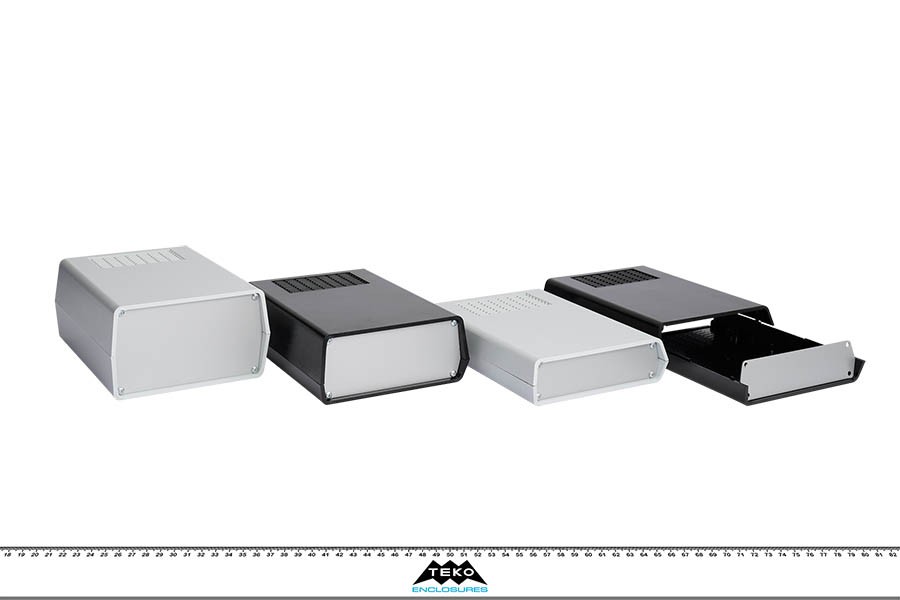

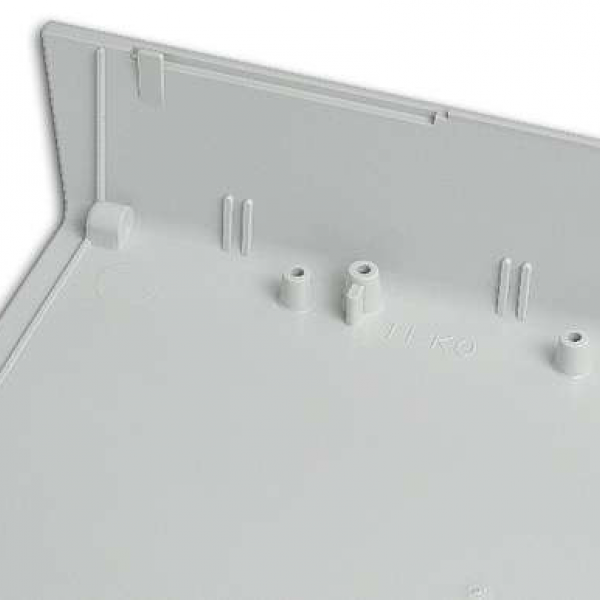

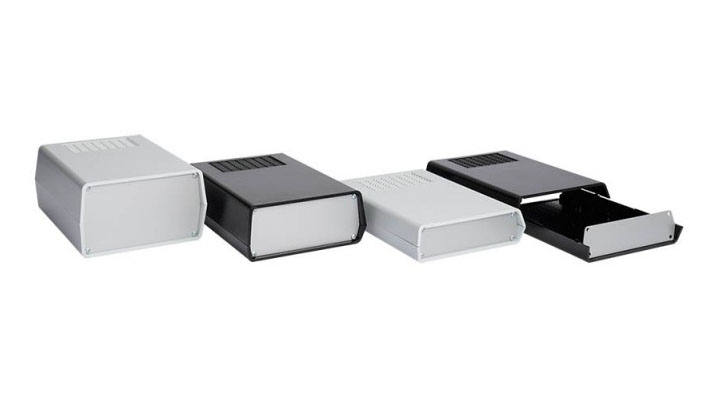

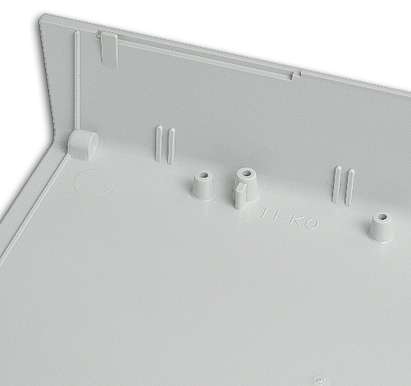

ABS enclosures with a vented cover and base for aeration. Front and rear 1 mm aluminium panels. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by eight screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

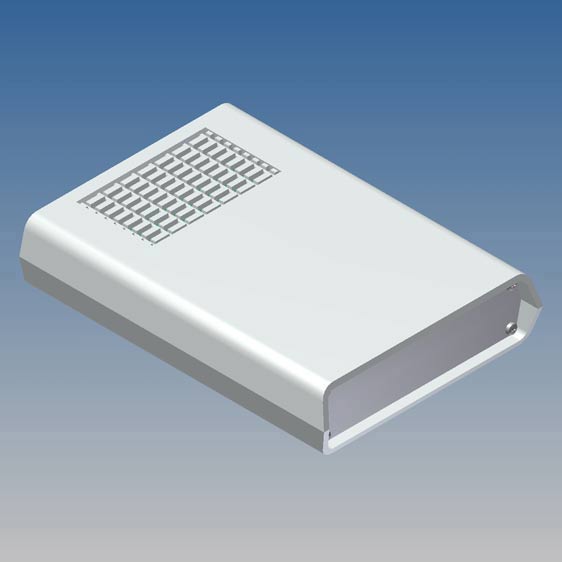

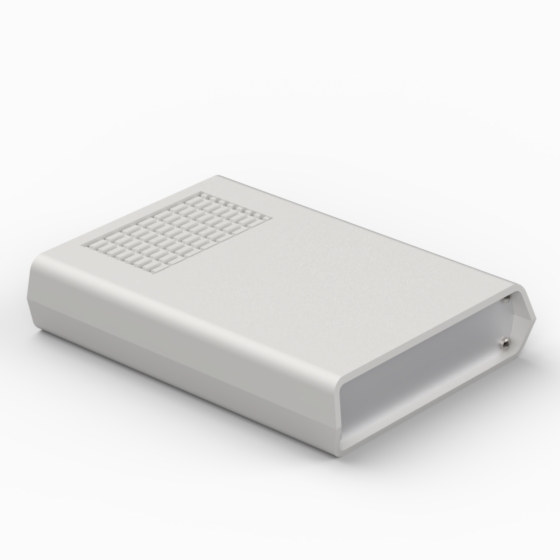

KL-11.5 178 128 36 9018
AG-ATY 150 115 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 150
  • MAX PCB W (mm): 115
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

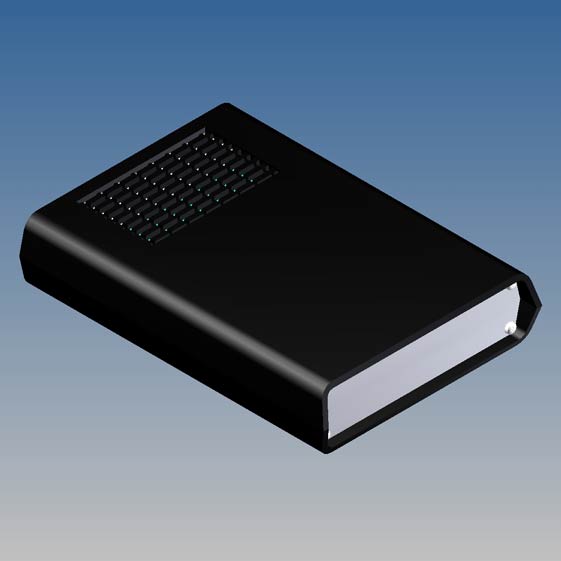

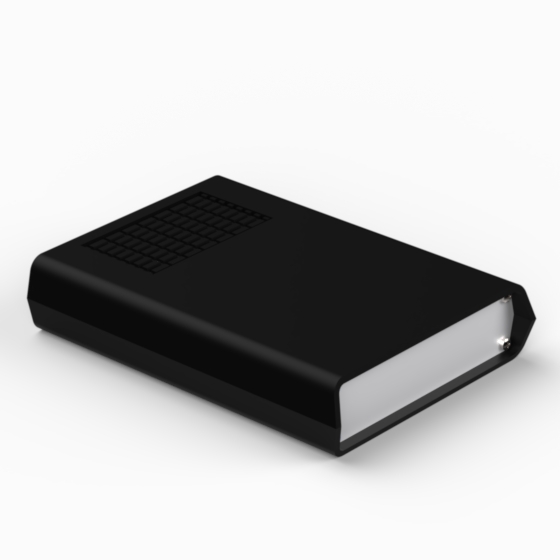

KL-11.9 178 128 36 9004
P2H-AT 150 115 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 150
  • MAX PCB W (mm): 115
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

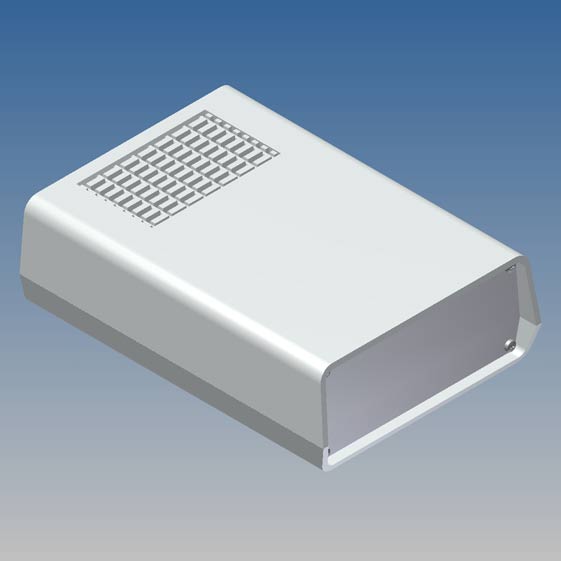

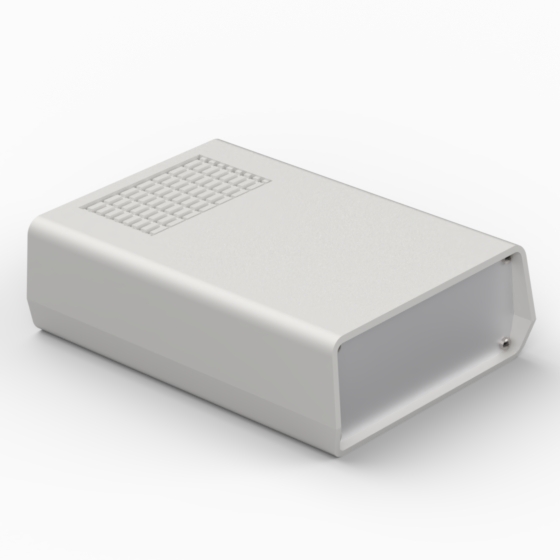

KL-12.5 178 128 54 9018
AG-ATY 150 115 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 150
  • MAX PCB W (mm): 115
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

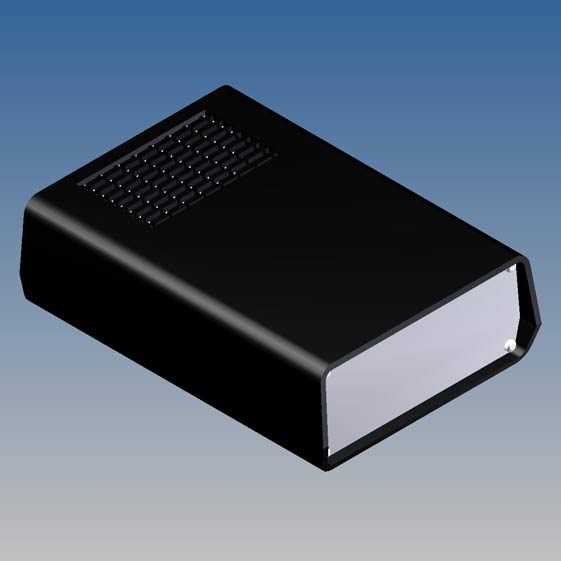

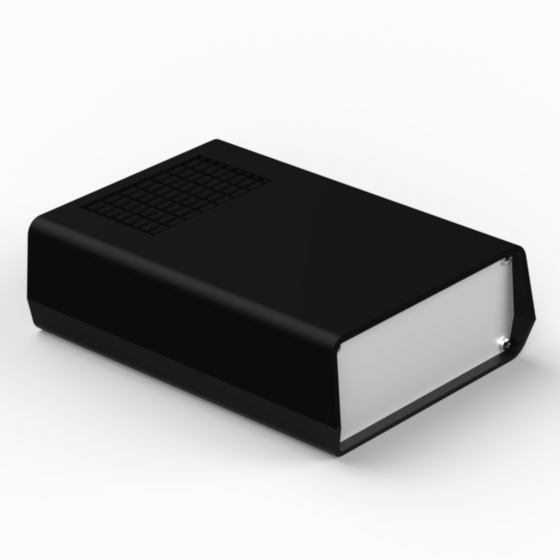

KL-12.9 178 128 54 9004
P2H-AT 150 115 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 150
  • MAX PCB W (mm): 115
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

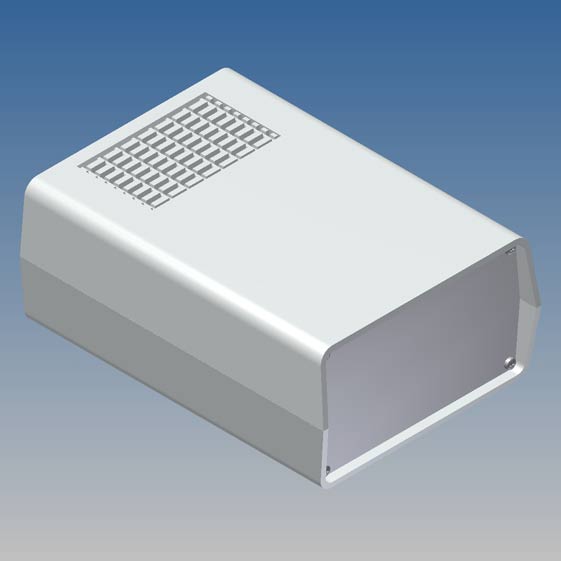

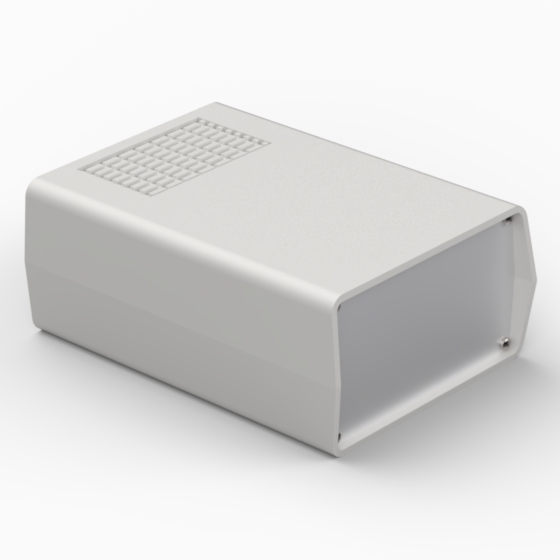

KL-22.5 178 128 72 9018
AG-ATY 150 115 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 150
  • MAX PCB W (mm): 115
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

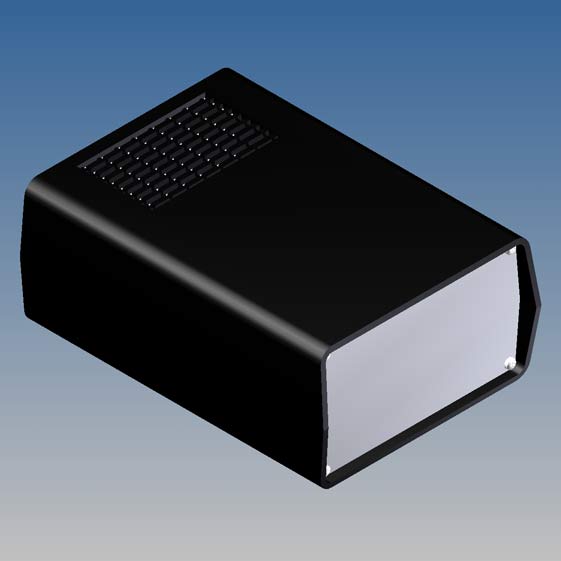

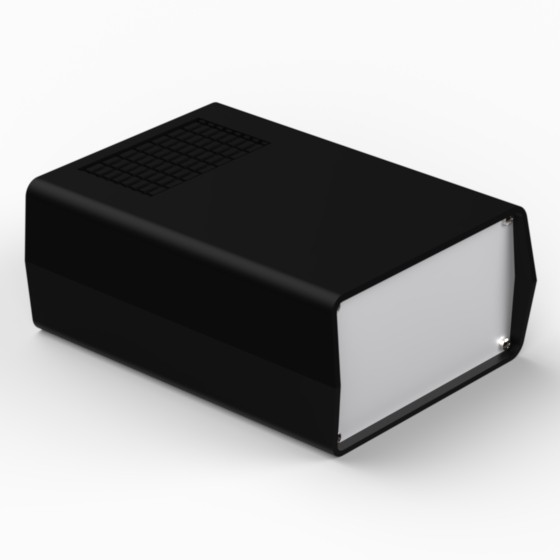

KL-22.9 178 128 72 9004
P2H-AT 150 115 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 150
  • MAX PCB W (mm): 115
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
