DOMOTEK

Family Handheld - Electronic enclosures - Plastic

Description

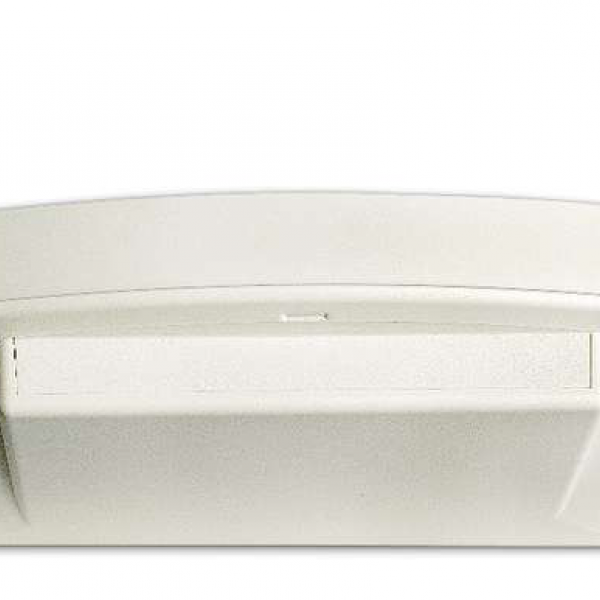

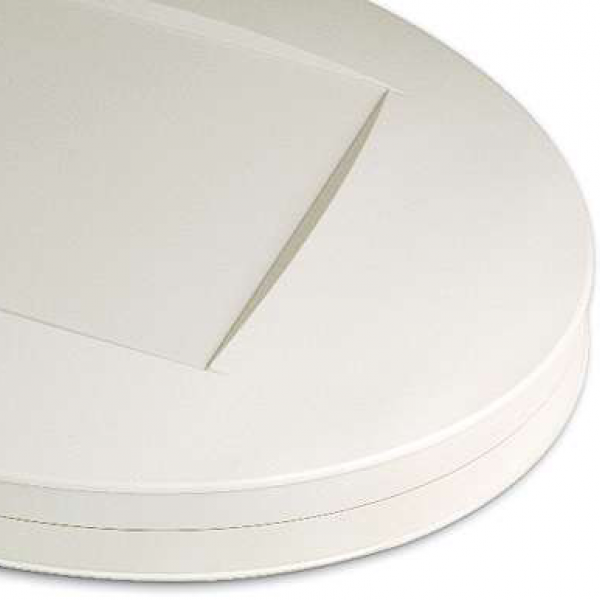

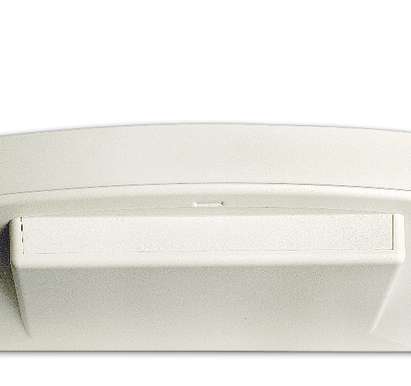

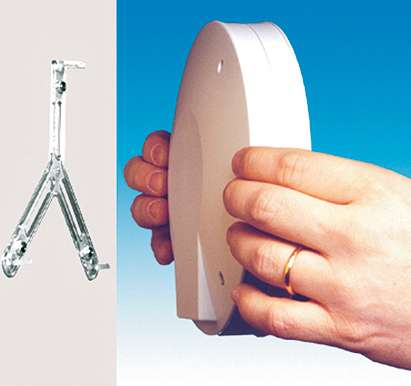

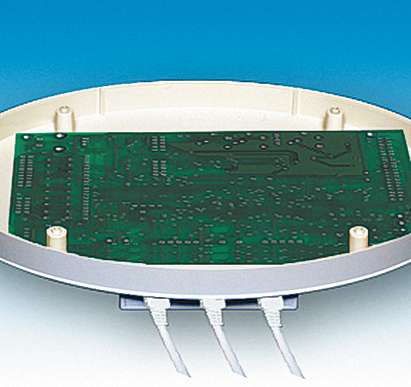

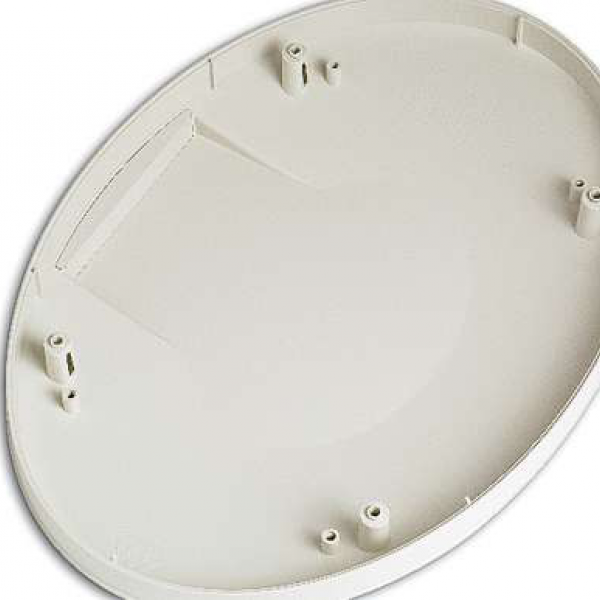

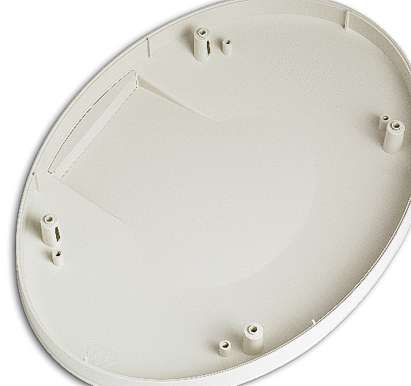

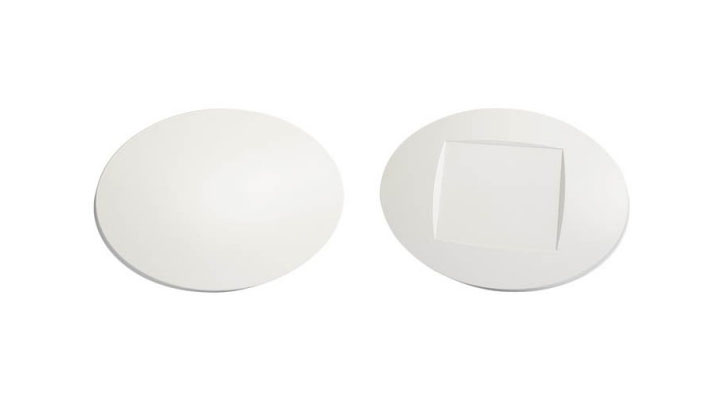

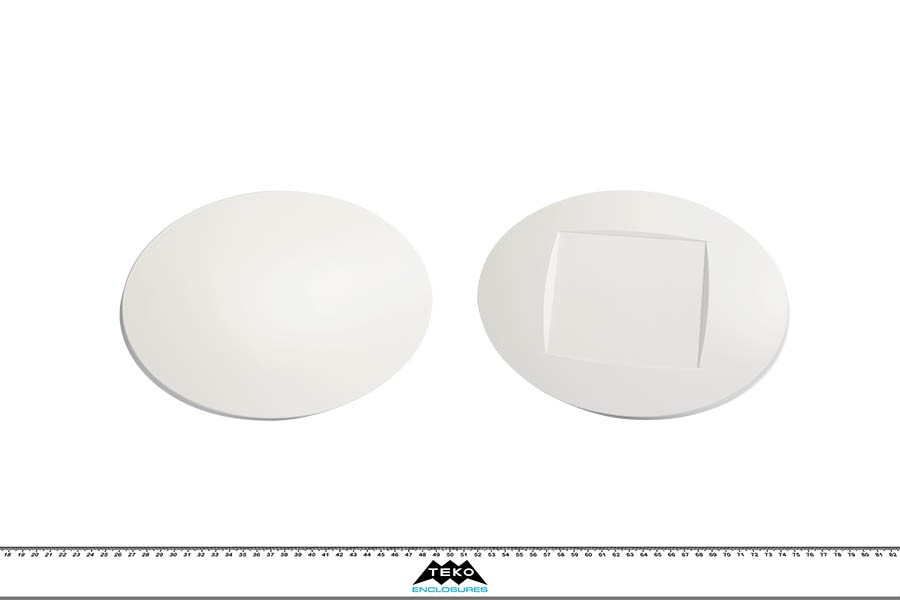

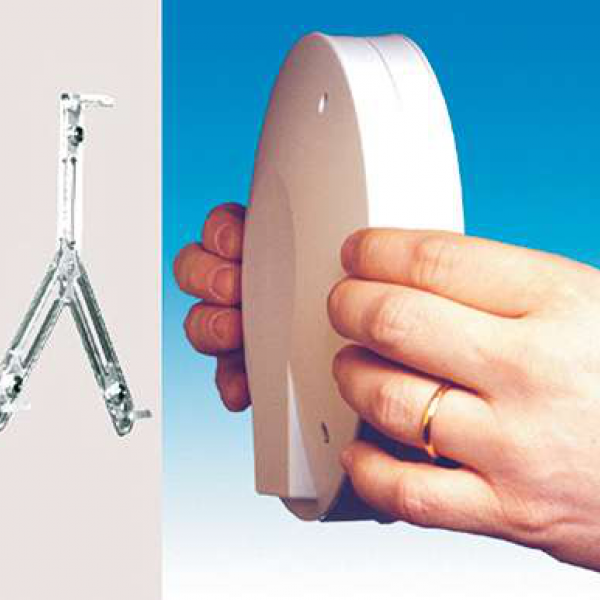

Ergonomically shaped ABS enclosures, ideal for desktop and wall mounting applications. The model “DOMO2” has on the cover a recessed area suitable for a keypad membrane or 5,4” TFT display. Base and cover have integral PCB mounting studs. Rear plastic panel for easy cables and connectors access. Matt surface finish. Closing by four screws. Upon request wall-suspension element “MT4.0”.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

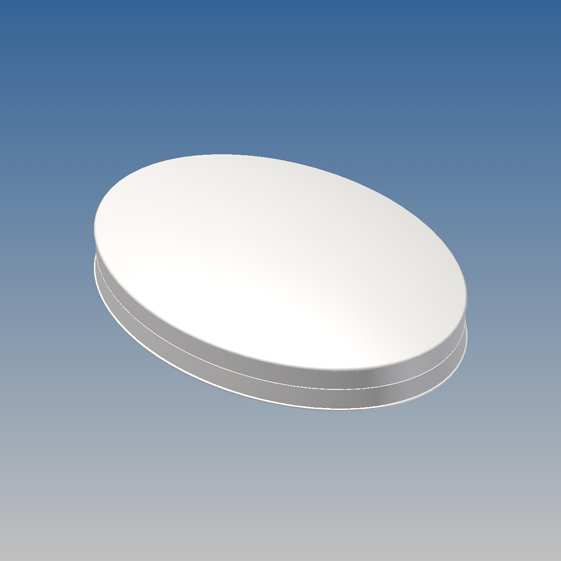

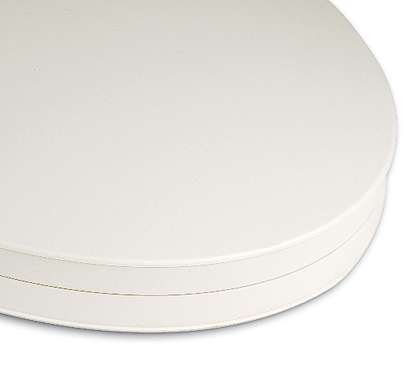

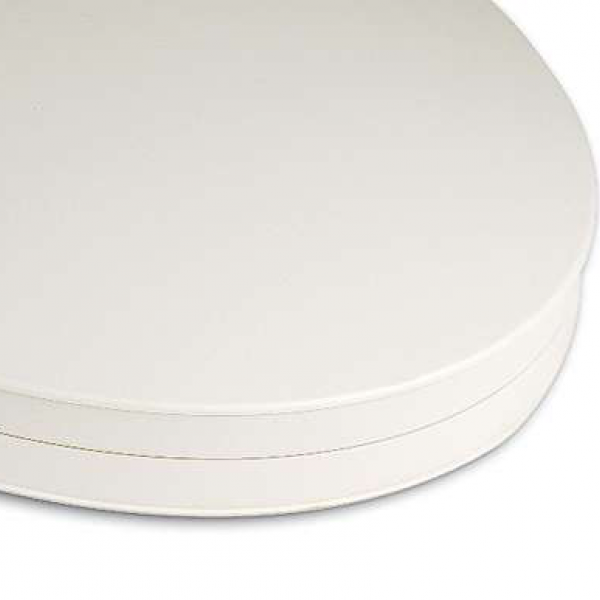

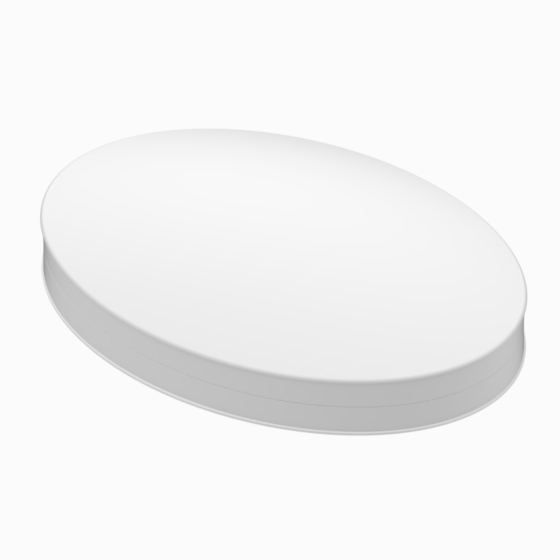

DOMO1.7 250 180 57,5 9002
UG UV 0120 156/194 130/102 4 - MT4
PDF
DWG
View
  • Color (Ral): 9002
  • Material: UG UV 0120
  • MAX PCB L (mm): 156/194
  • MAX PCB W (mm): 130/102
  • Screws: 4
  • Battery: -
  • Accessories: MT4
  • Drawings:  PDF  DWG

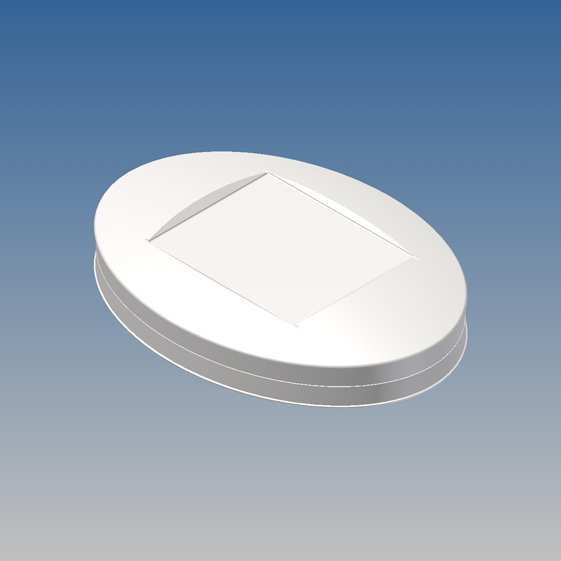

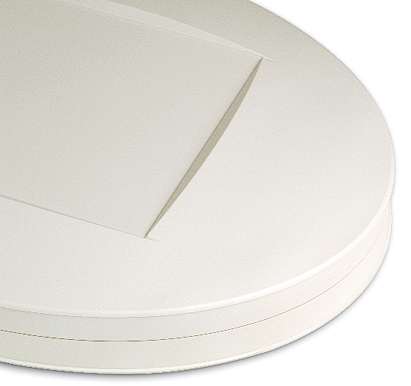

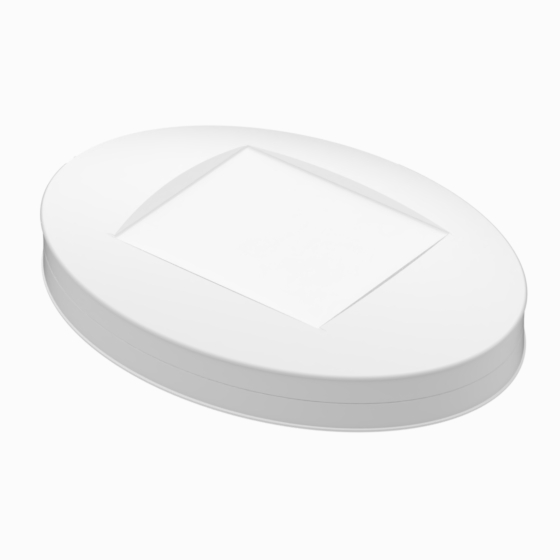

DOMO2.7 250 180 53,5 9002
UG UV 0120 156/194 130/102 4 - MT4
PDF
DWG
View
  • Color (Ral): 9002
  • Material: UG UV 0120
  • MAX PCB L (mm): 156/194
  • MAX PCB W (mm): 130/102
  • Screws: 4
  • Battery: -
  • Accessories: MT4
  • Drawings:  PDF  DWG
12 product families, 146 series. You can't find what you're looking for? Contact us
