Family Handheld - Electronic enclosures - Plastic

Description

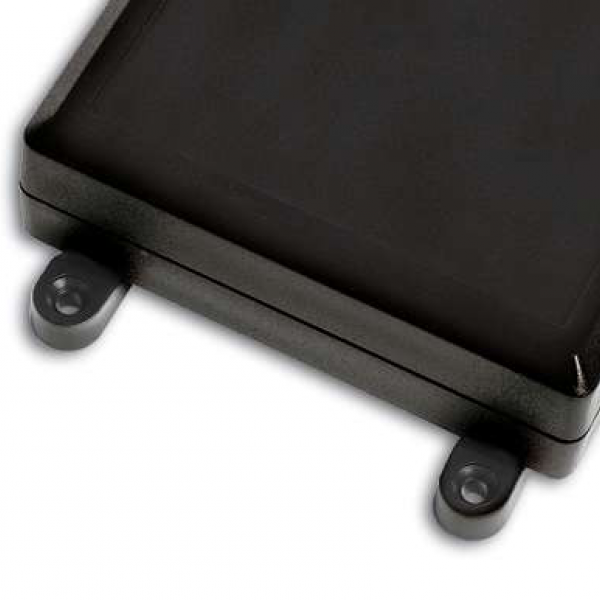

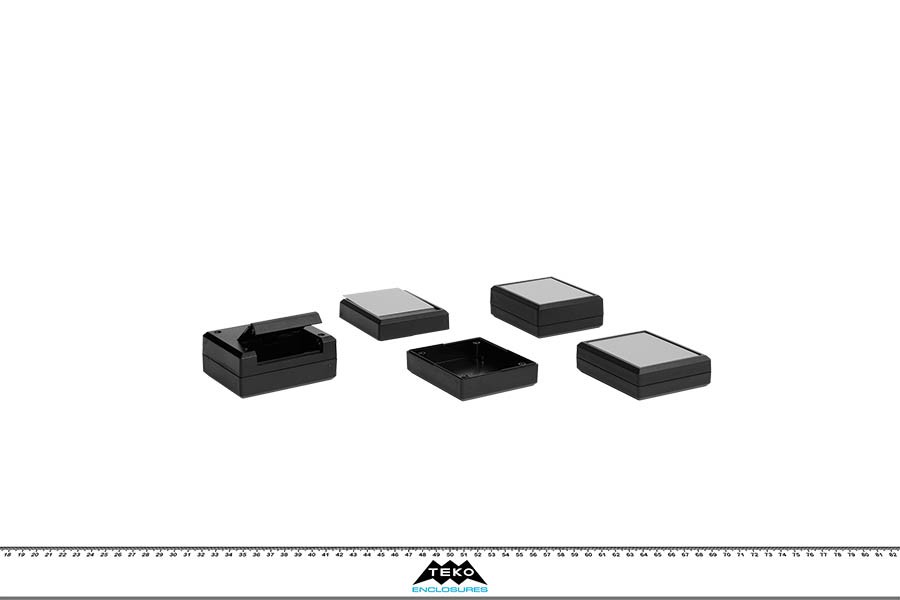

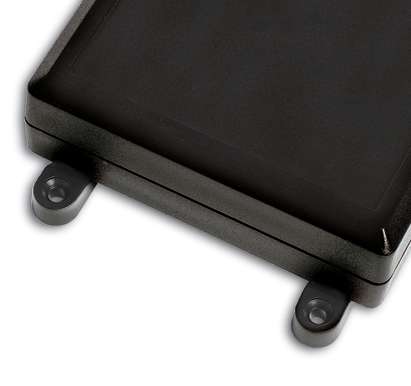

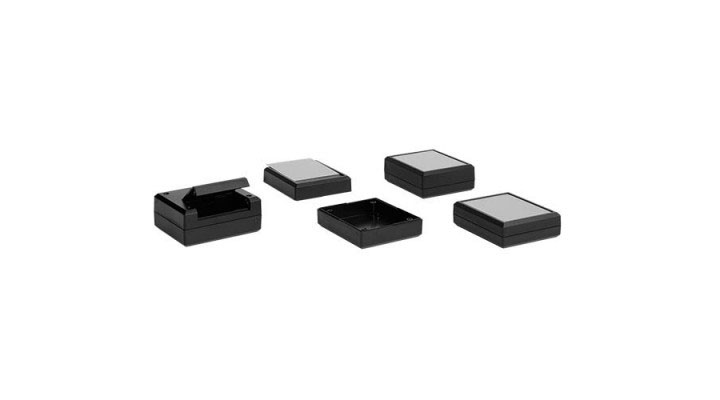

ABS enclosures with a recessed area to allow a 0.5 mm anodised aluminium panel. Base and cover have integral PCB mounting studs. The models with “-B” have 9V battery compartment with snap-on cover. Matt surface finish. Closing by four screws. Upon request ABS mounting tabs (Mod. MT1).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

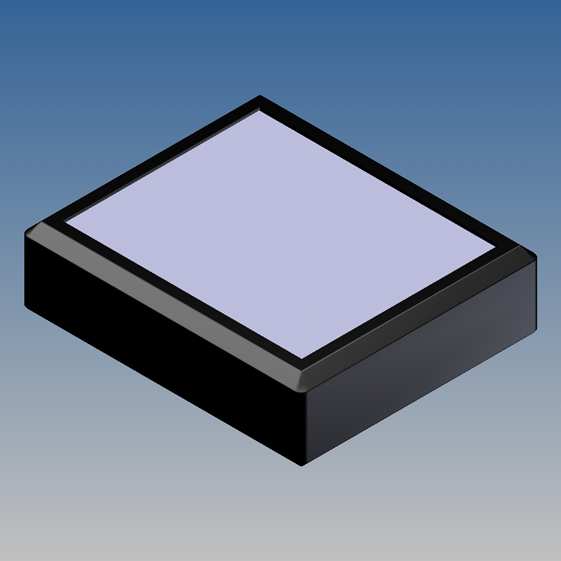

1111.9 85 72,5 25 9004
P2H-AT 76 62,5 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 62,5
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG

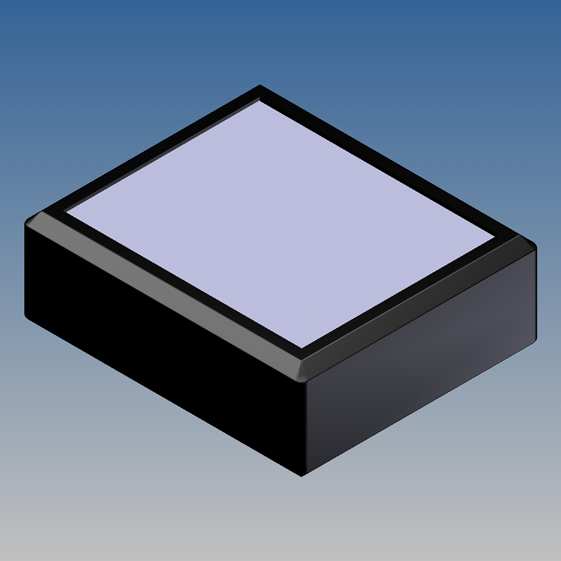

1122.9 85 72,5 30,5 9004
P2H-AT 76 62,5 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 62,5
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG
2211.9 85 72,5 30,5 9004
P2H-AT 76 62,5 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 62,5
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG
2211-B.9 85 72,5 30,5 9004
P2H-AT 76 30 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 30
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG
2222.9 85 72,5 36 9004
P2H-AT 76 62,5 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 62,5
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG

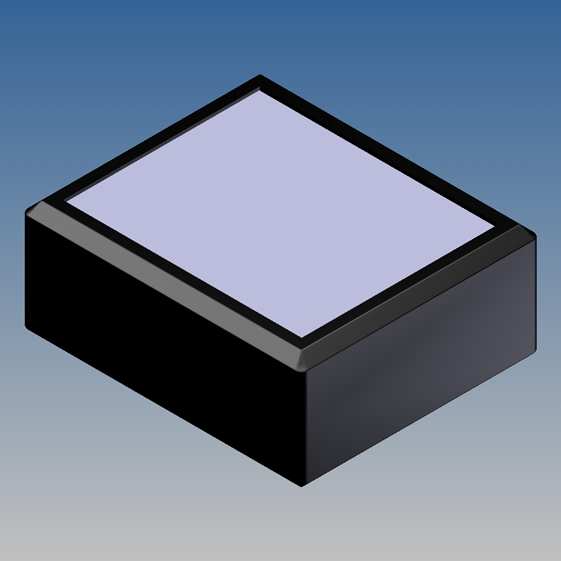

2222-B.9 85 72,5 36 9004
P2H-AT 76 30 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 30
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG
12 product families, 144 series. You can't find what you're looking for? Contact us
