HANDY

Family Handheld - Electronic enclosures - Plastic

Description

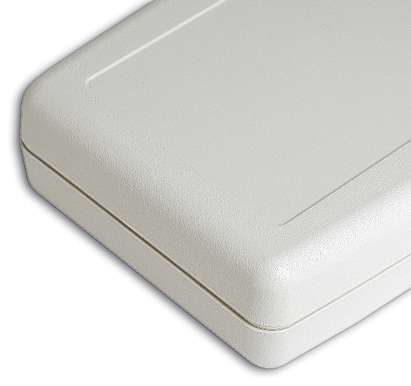

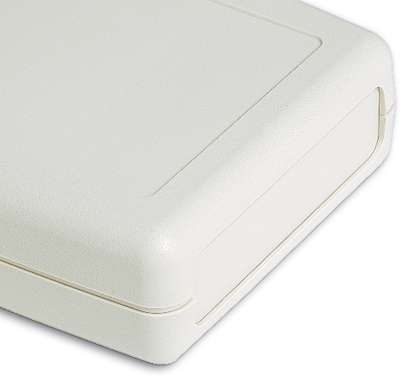

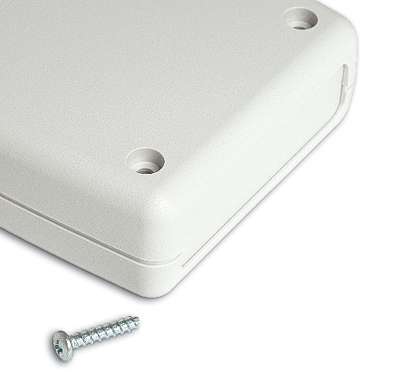

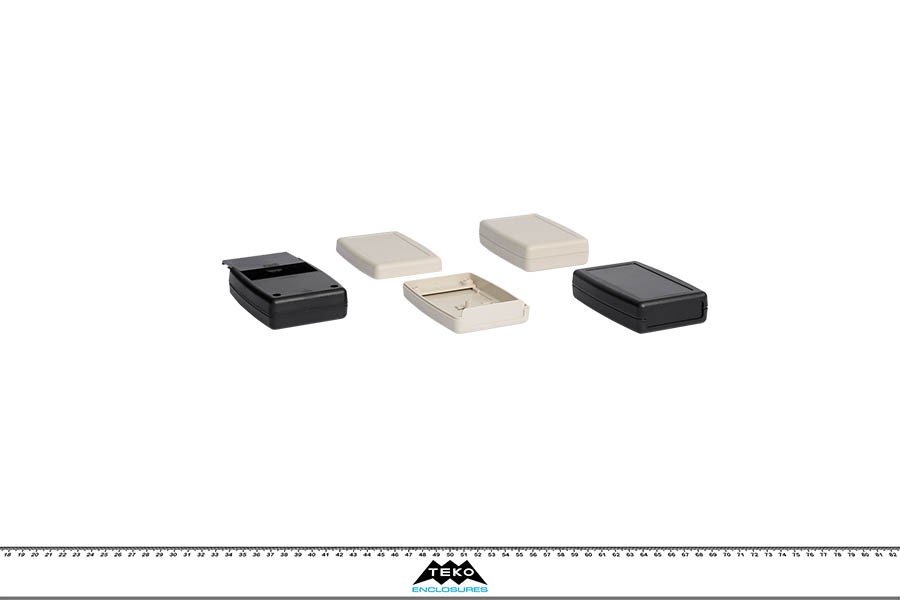

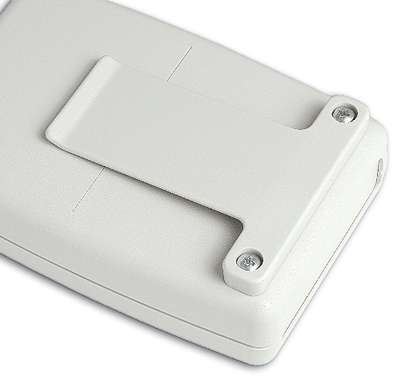

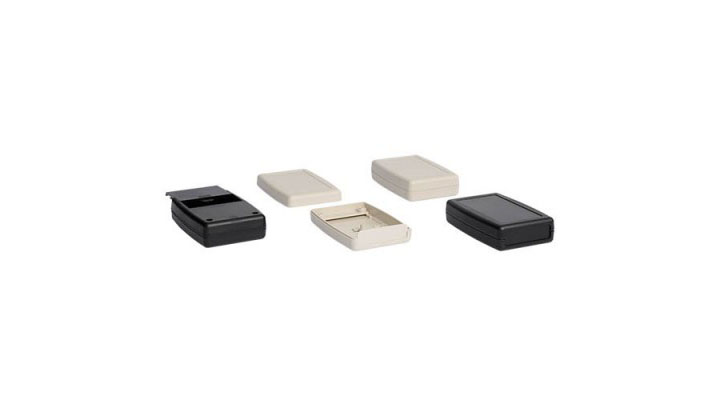

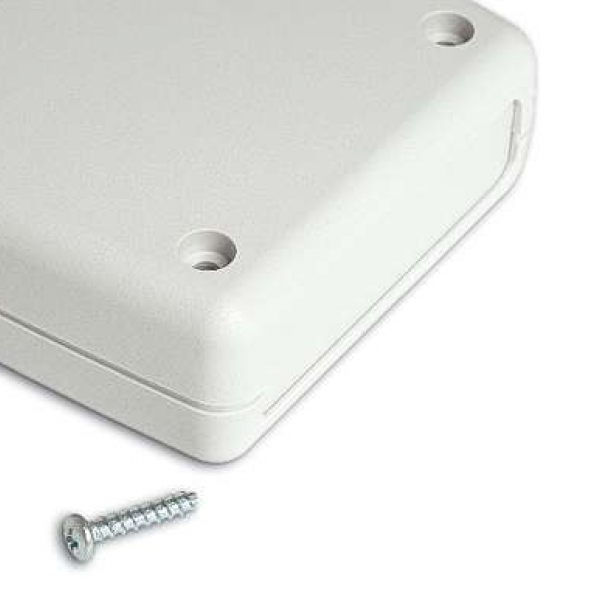

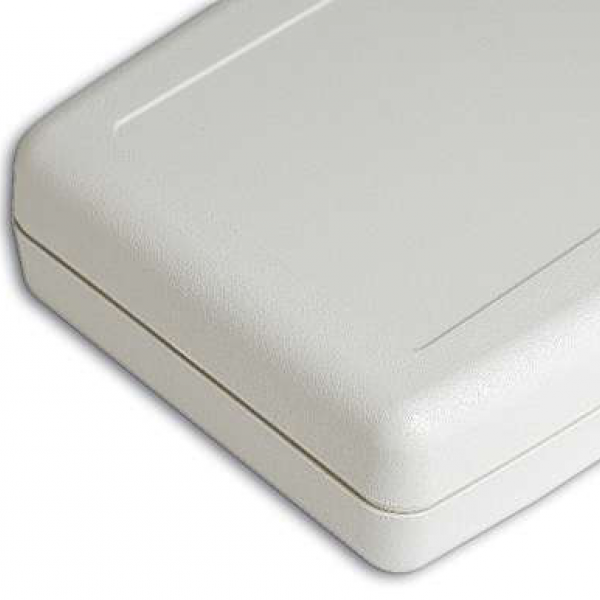

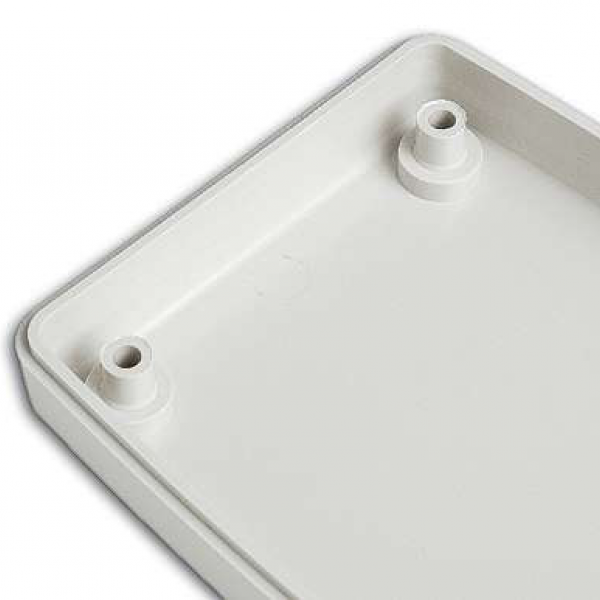

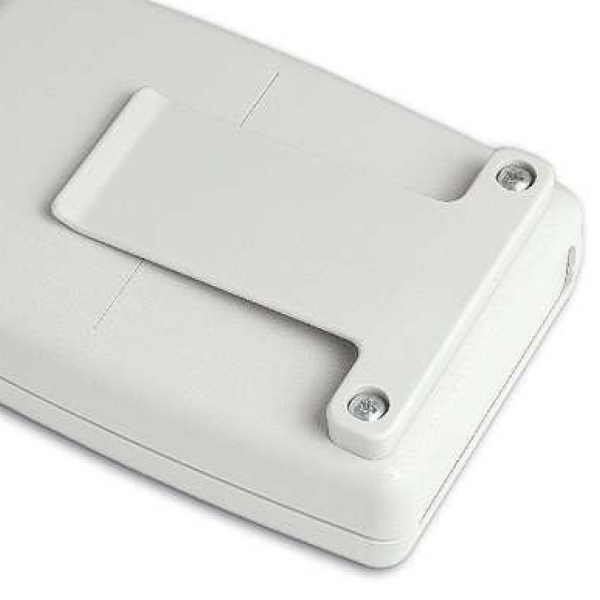

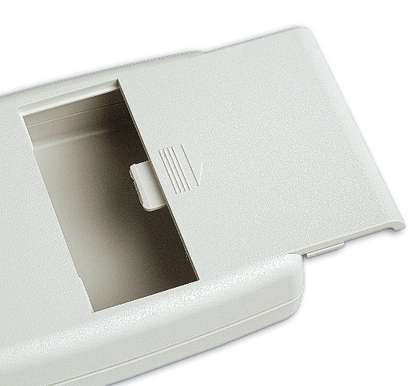

Ergonomic pocket ABS enclosures with a recessed area suitable for a membrane keypad. Four models available. The base has integral PCB mounting studs. The models with “-B” have a battery compartment with a sliding lid. The “P” version has an ABS front panel. Matt surface finish. Closing by four screws. Upon request plastic belt clip (Mod. CLY).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
HY.7 104 71,8 25,4 9002
PA-756 94 58 4 - CLY
PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG
HY.9 104 71,8 25,4 9004
GP-22 94 58 4 - CLY
PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG

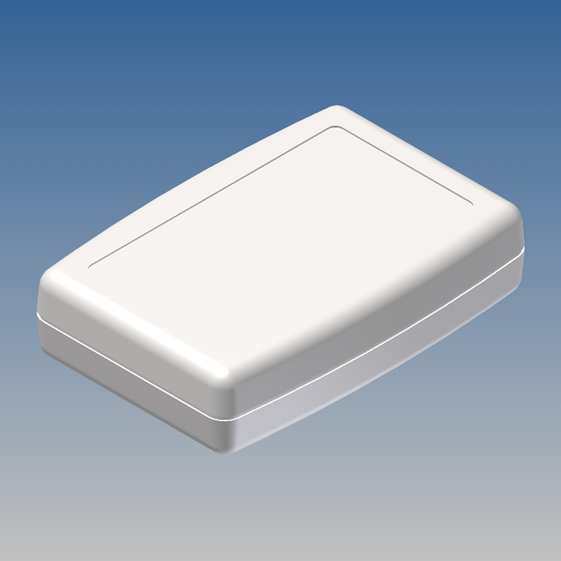

HY-B.7 104 71,8 25,4 9002
PA-756 94 58 4 - CLY
PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG

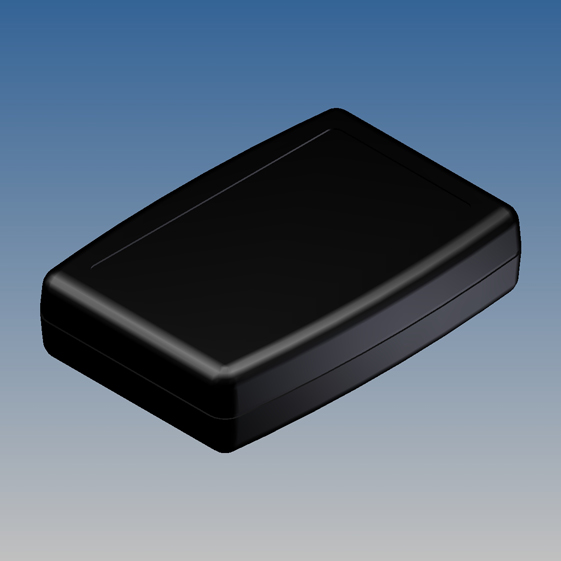

HY-B.9 104 71,8 25,4 9004
GP-22 94 58 4 - CLY
PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG

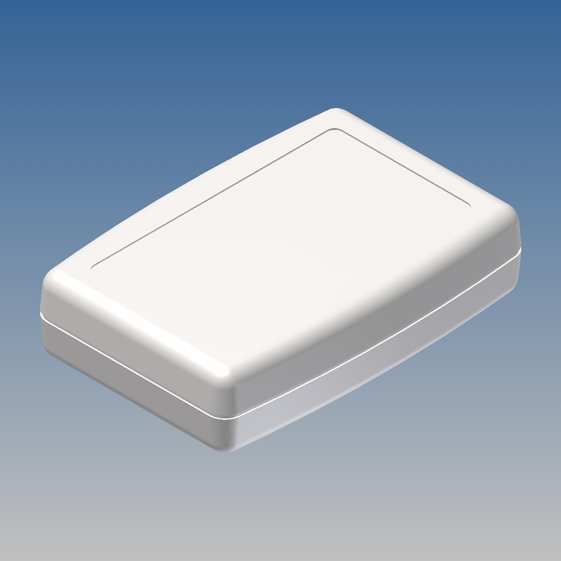

HYP.7 104 71,8 25,4 9002
PA-756 94 58 4 - CLY
PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG
HYP.9 104 71,8 25,4 9004
GP-22 94 58 4 - CLY
PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG

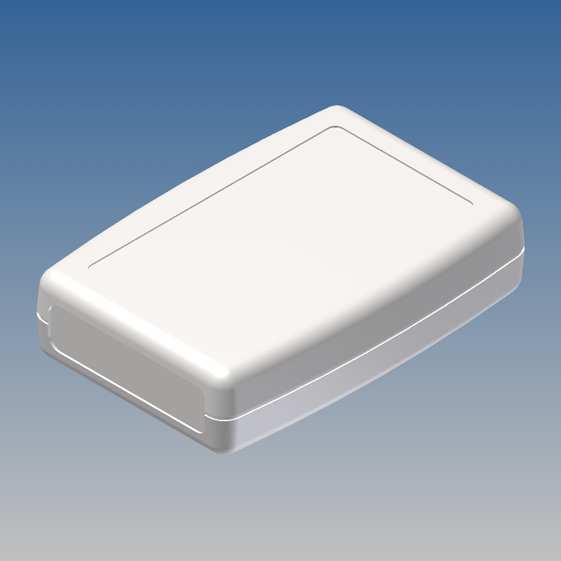

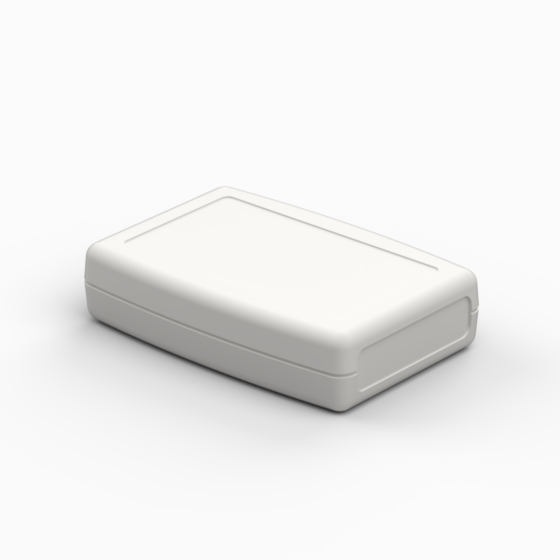

HYP-B.7 104 71,8 25,4 9002
PA-756 94 58 4 - CLY
PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG

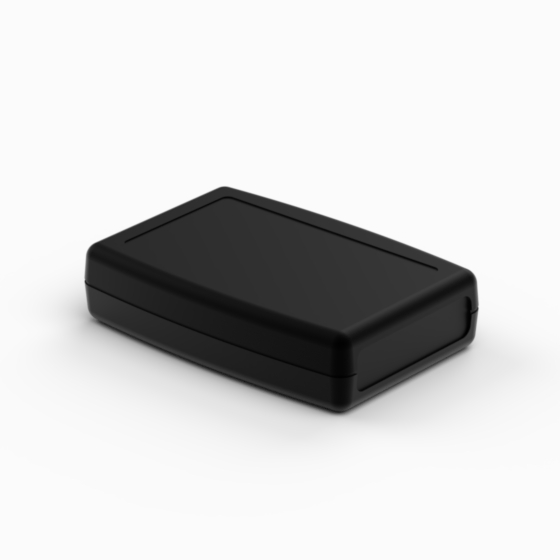

HYP-B.9 104 71,8 25,4 9004
GP-22 94 58 4 - CLY
PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG

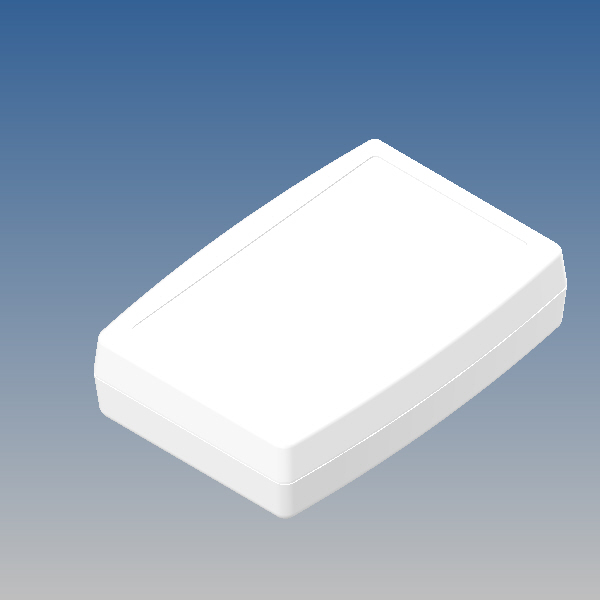

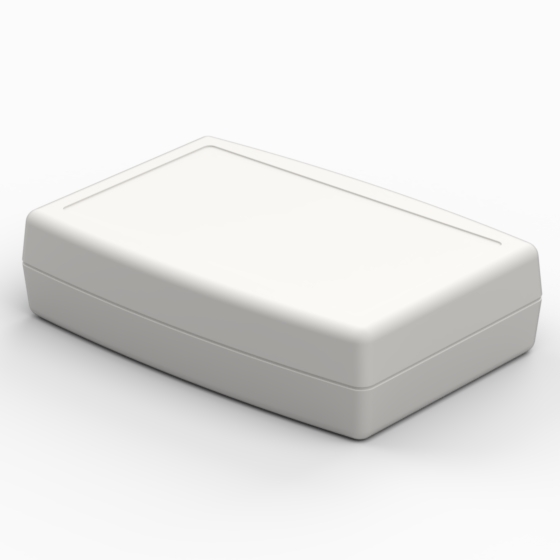

HYXL.7
NEW
136 93,1 35,3 9002
PA-756 117,3 66,6 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

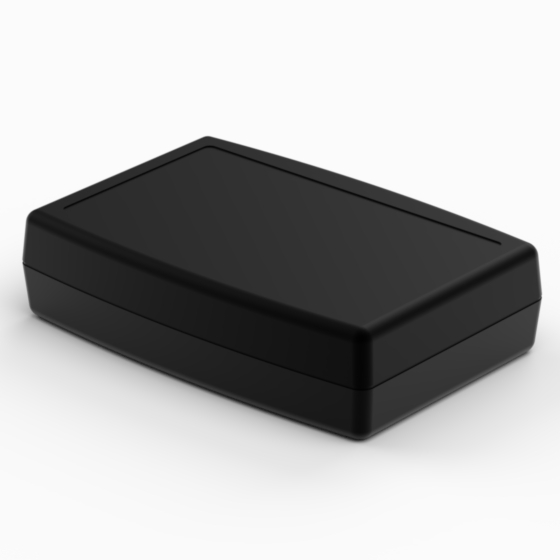

HYXL.9
NEW
136 93,1 35,3 9004
GP-22 117,3 66,6 4   PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG
HYXL-B.7
NEW
136 93,1 35,3 9002
PA-756 117,3 66,6 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

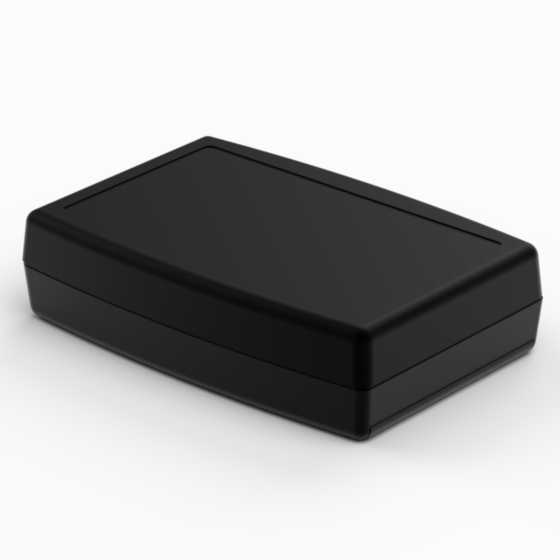

HYXL-B.9
NEW
136 93,1 35,3 9004
GP-22 117,3 66,6 4   PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG
HYXL-P.7
NEW
136 93,1 35,3 9002
PA-756 117,3 66,6 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

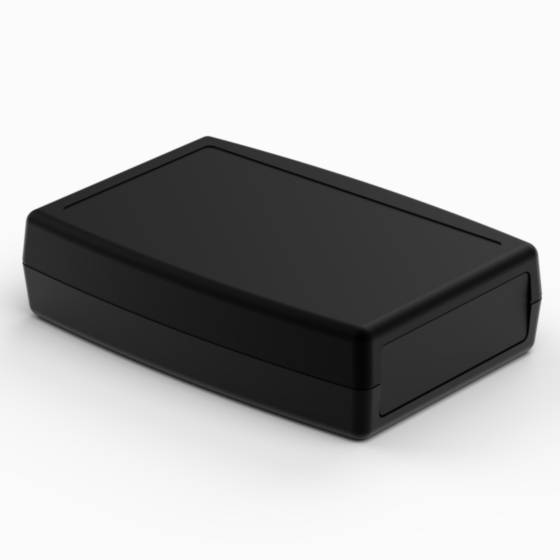

HYXL-P.9
NEW
136 93,1 35,3 9004
GP-22 117,3 66,6 4   PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

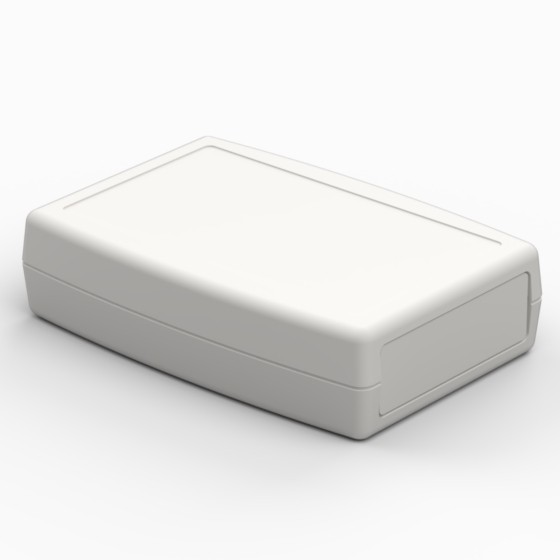

HYXLP-B.7
NEW
136 93,1 35,3 9002
PA-756 117,3 66,6 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

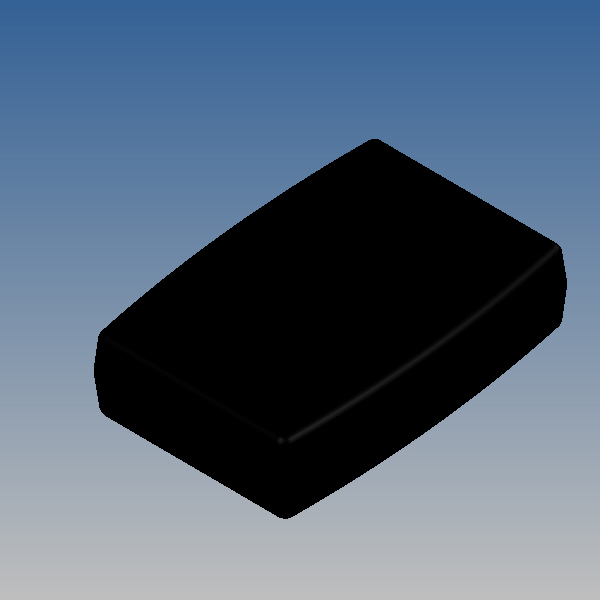

HYXLP-B.9
NEW
136 93,1 35,3 9004
GP-22 117,3 66,6 4   PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG
