MINI TEKNET

Family Handheld - Electronic enclosures - Plastic

Description

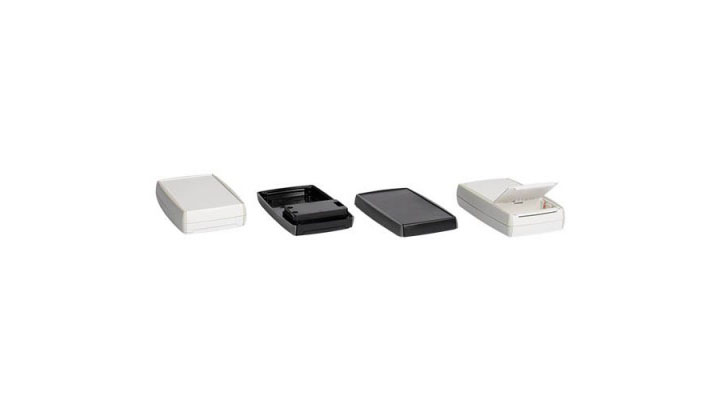

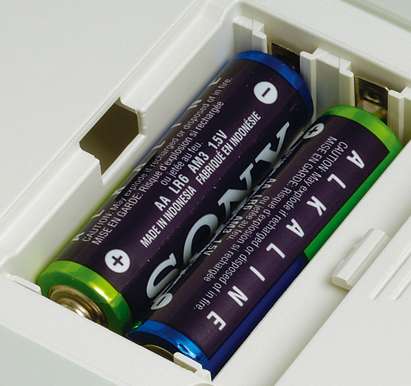

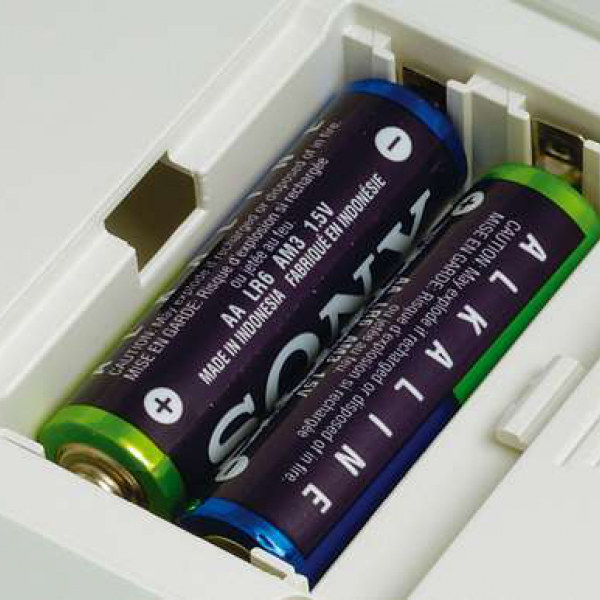

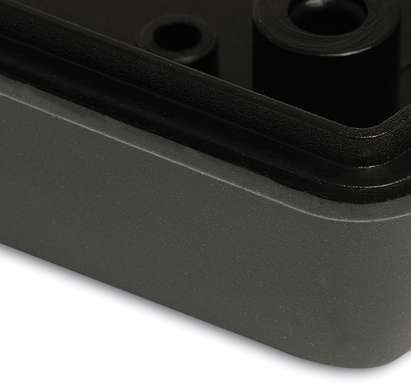

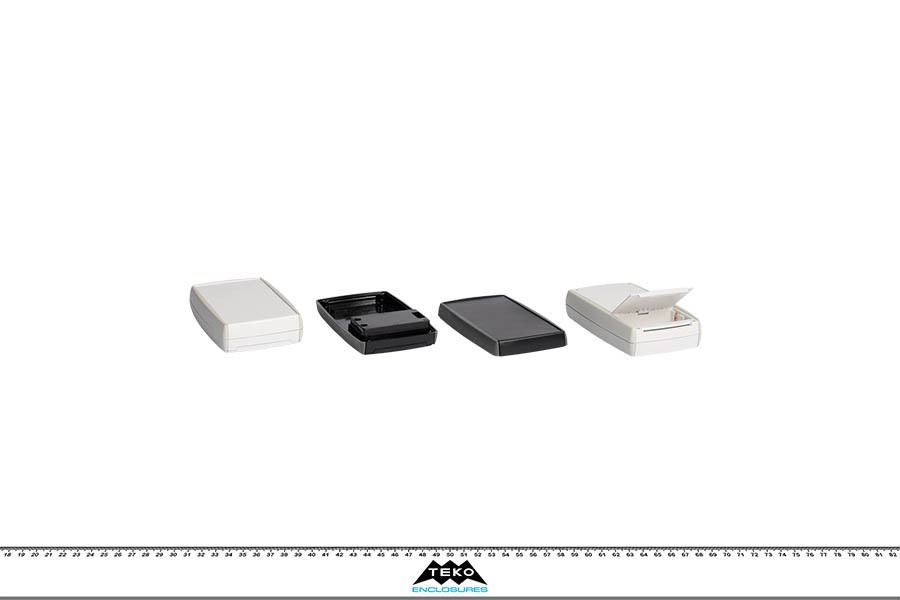

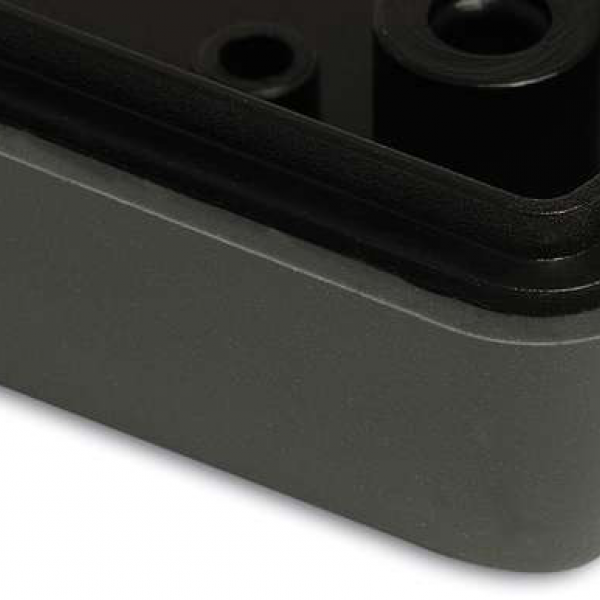

ABS enclosure with new soft-touch contoured shape. By utilising multi-shot moulding technology, the MINITEKNET features an ergonomic design of elastomer grips (TPU) on the side of the case. Battery compartment for two 1,5V (AA) mignon cells or one 9V flat battery (PP3). Base and cover have integral PCB mounting studs. Matt surface finish. Closing by four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

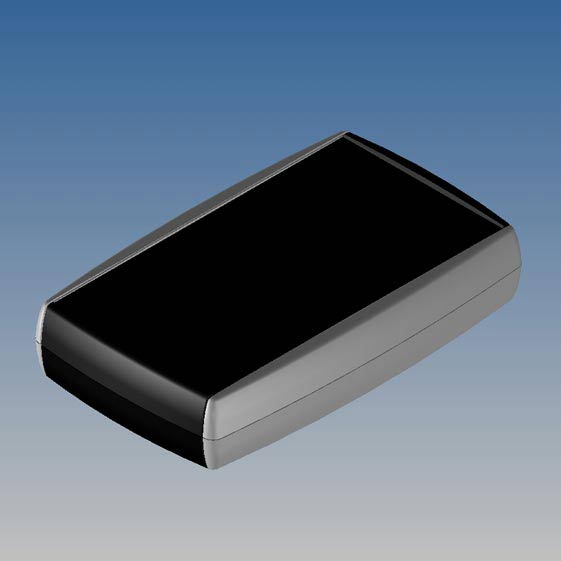

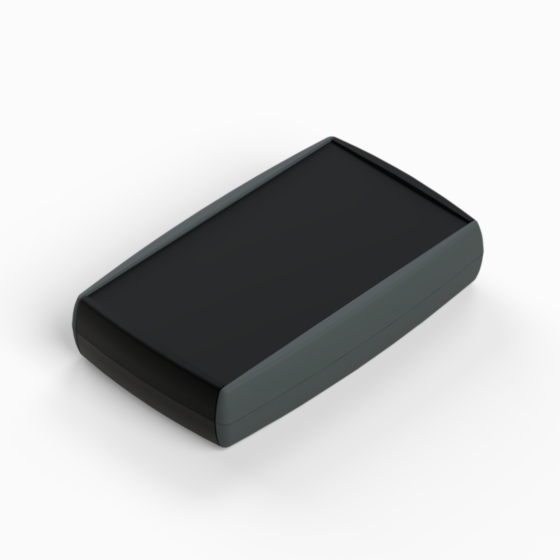

MTN01-B.29 115 70 24 9004 7012
P2H-AT  -  8020 60 48 4 2 x AA / 1 x 9V M56
MW57
PDF
DWG
View

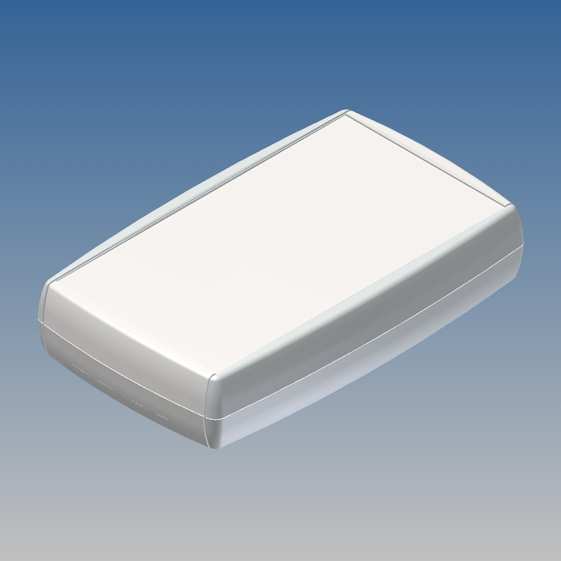

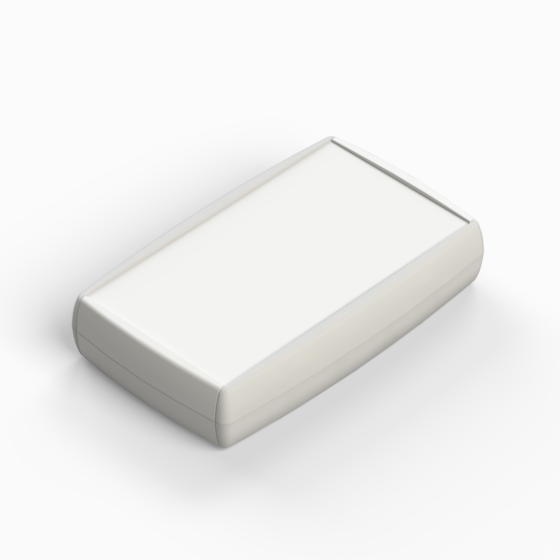

MTN01-B.30 115 70 24 9002 9018
P2H-AT  -  8020 60 48 4 2 x AA / 1 x 9V M56
MW57
PDF
DWG
View
