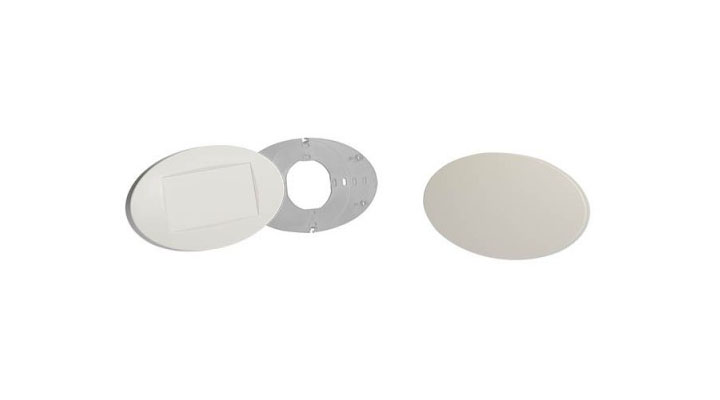

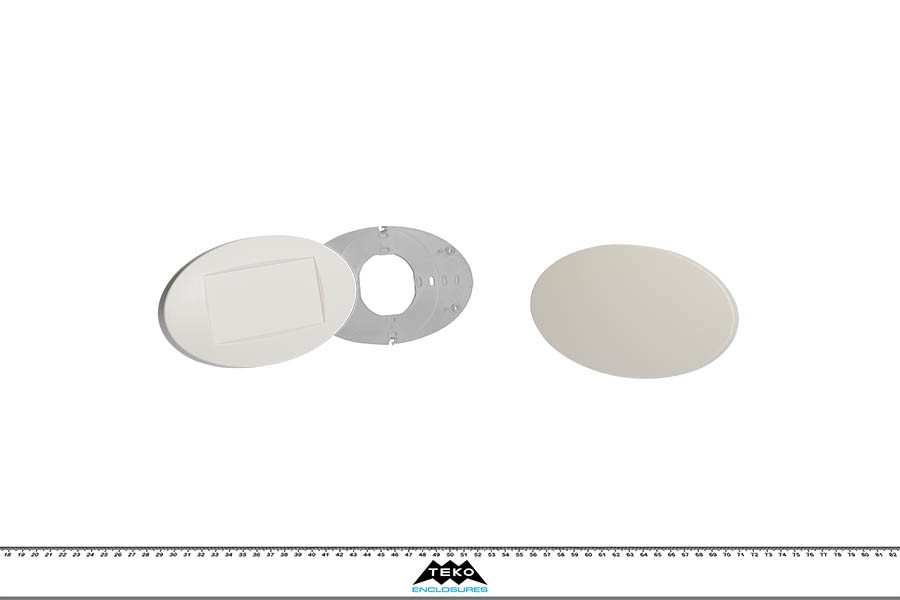

OVOTEK WALL

Family Handheld - Electronic enclosures - Plastic

Description

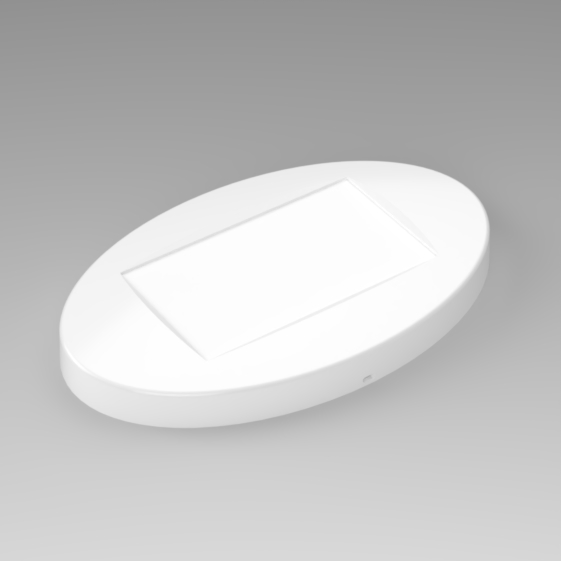

ABS enclosure with matt surface finish. Model MOK1 has a recessed area for keypad membrane or display. Base and cover have integral mounting studs for PCB. The bottom is manufactured by transparent Bayblend® and it is suitable for fixing on a 2 / 6-module standard box 503. Snap-on closing.

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

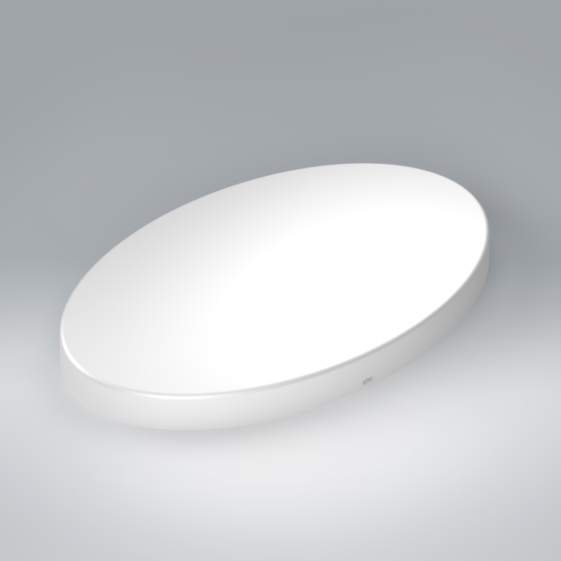

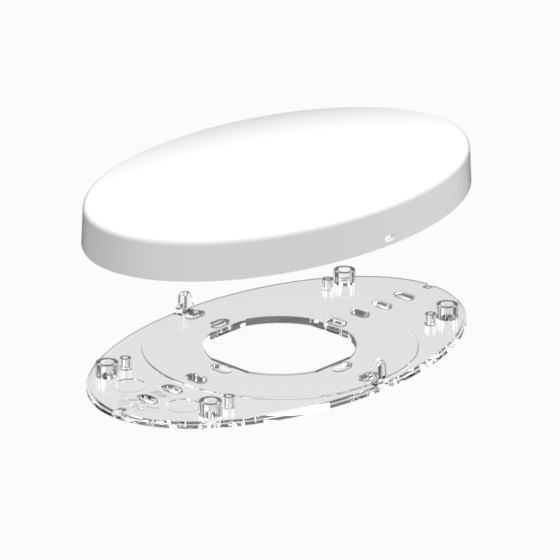

MOK1.7 165,3 103,2 20,3 9002
UG UV 0120 112 95   - PDF
DWG
View
  • Color (Ral): 9002
  • Material: UG UV 0120
  • MAX PCB L (mm): 112
  • MAX PCB W (mm): 95
  • Screws:
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

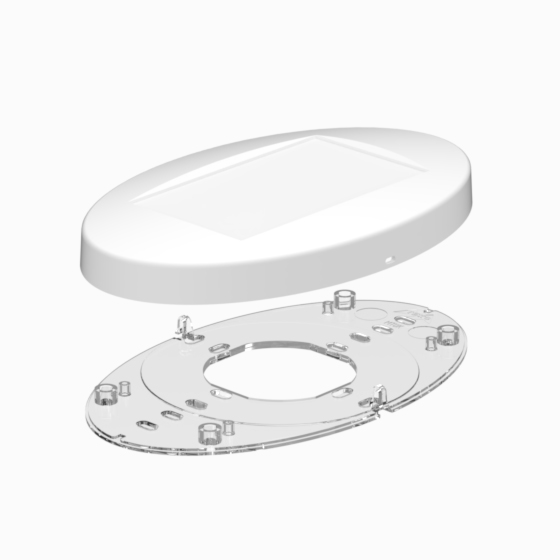

MOK2.7 165,3 103,2 18,2 9002
UG UV 0120 112 95   - PDF
DWG
View
  • Color (Ral): 9002
  • Material: UG UV 0120
  • MAX PCB L (mm): 112
  • MAX PCB W (mm): 95
  • Screws:
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
