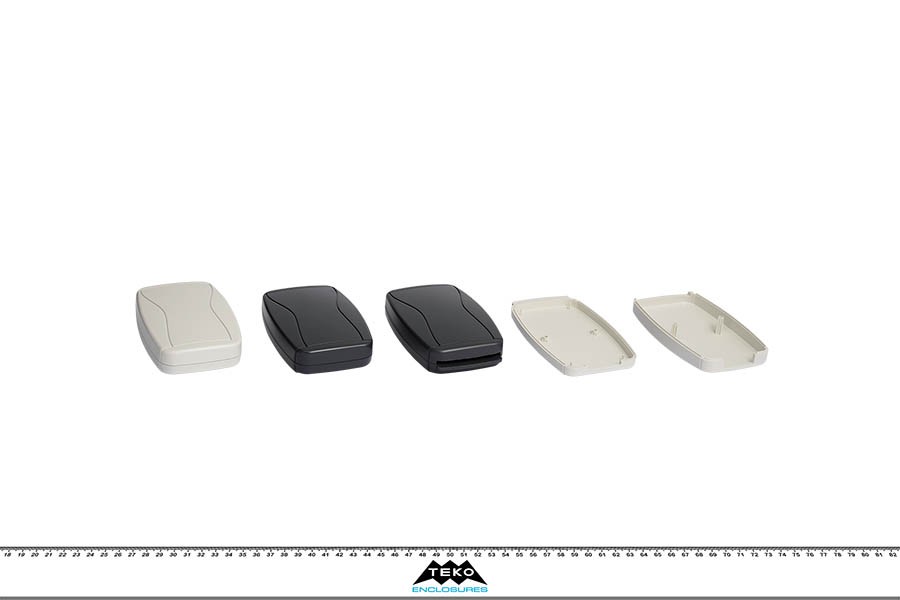

SPRINT

Family Handheld - Electronic enclosures - Plastic

Description

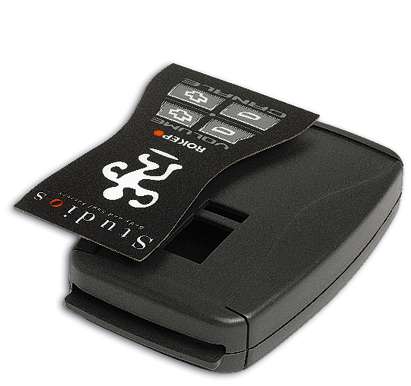

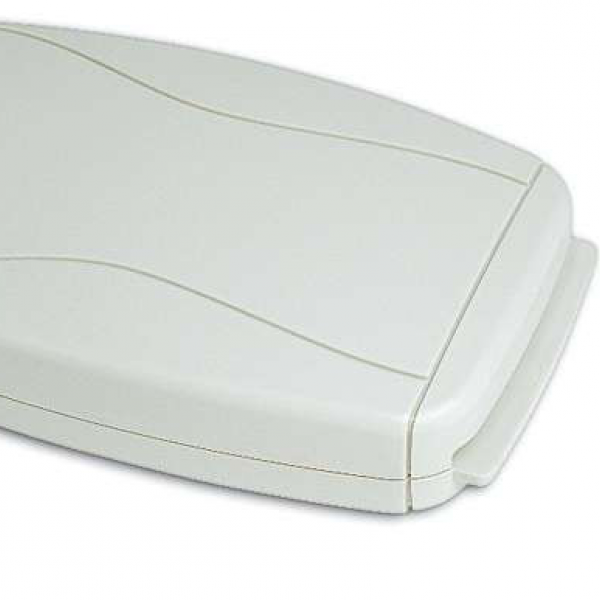

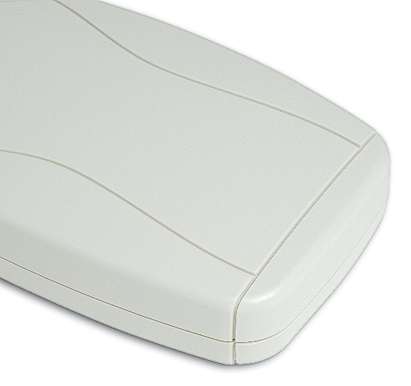

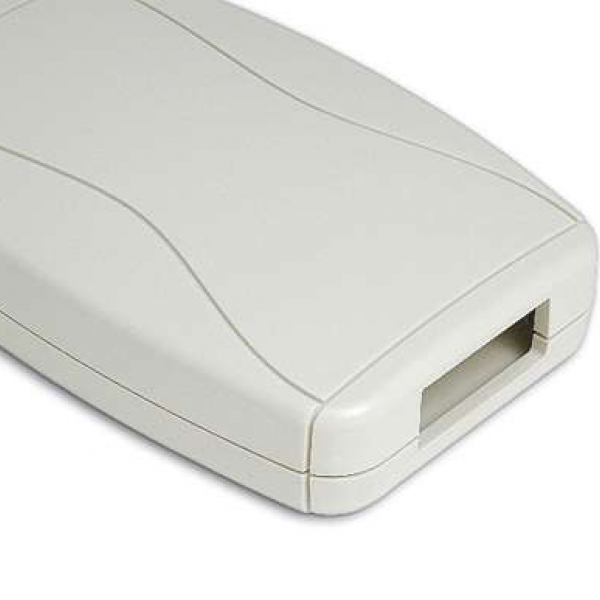

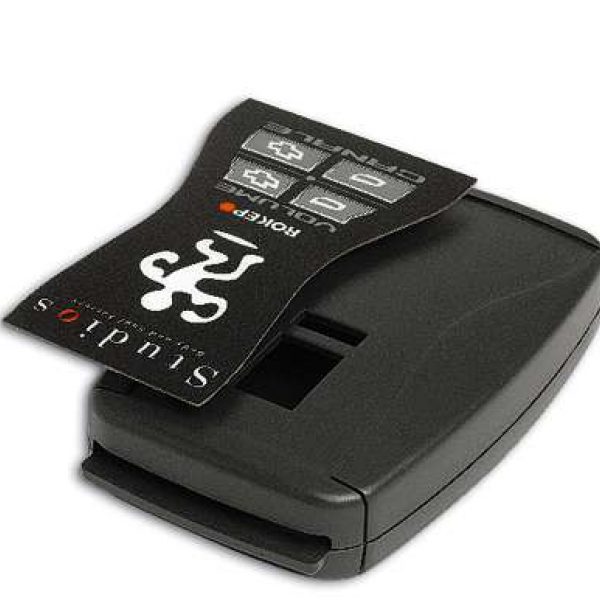

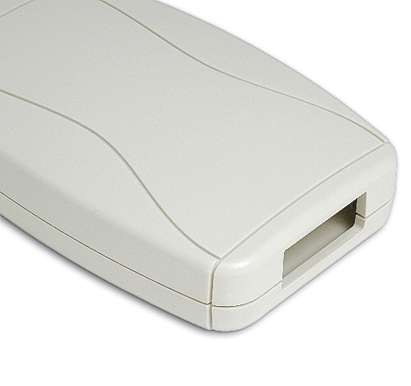

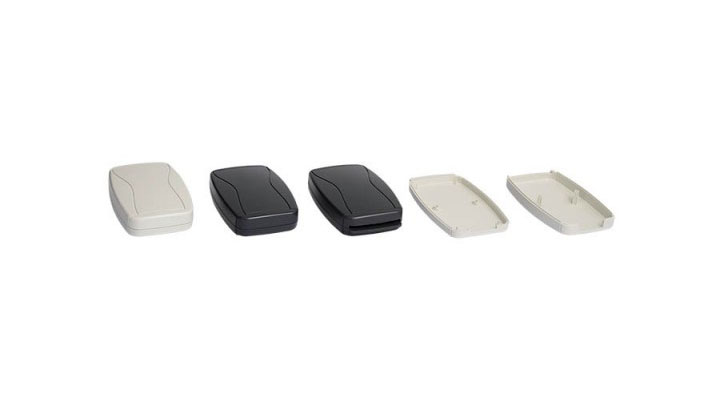

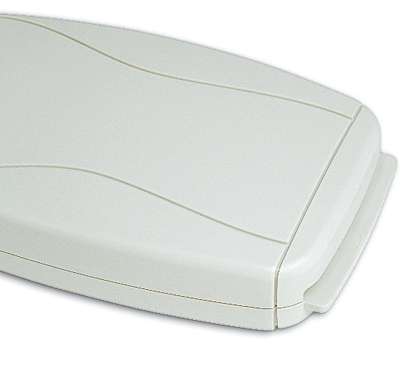

Ergonomic designed ABS enclosures. Pillars prepared for mounting PCBs in the base. Two models available. The model “ST1-C2” is specially designed for Smart Card readers with rear cutout (30mm X 11mm) for DB9 connector. Matt surface finish. Fixed by two screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

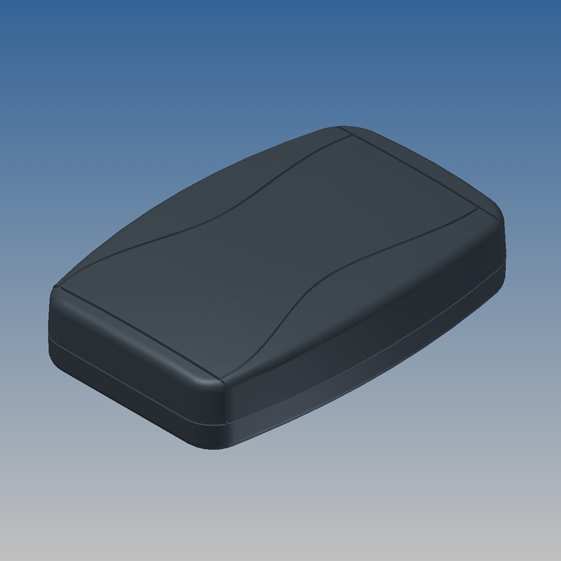

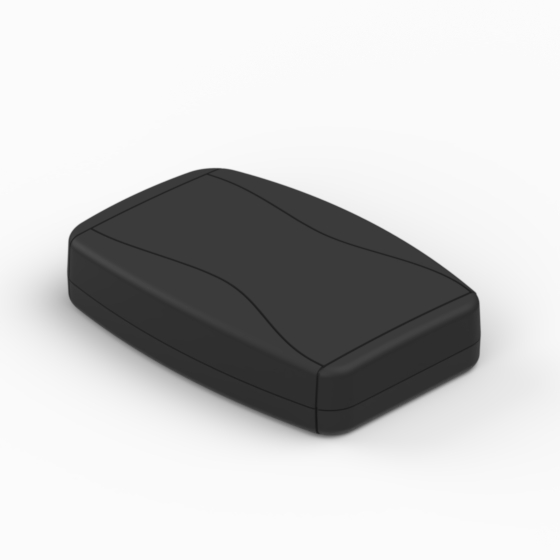

ST1.4 114 74 24,7 7016
GP40 100,5 53,5 2 - PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): 100,5
  • MAX PCB W (mm): 53,5
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

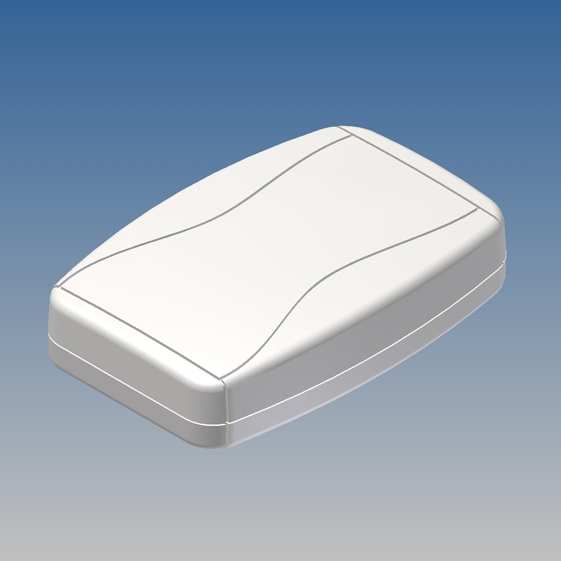

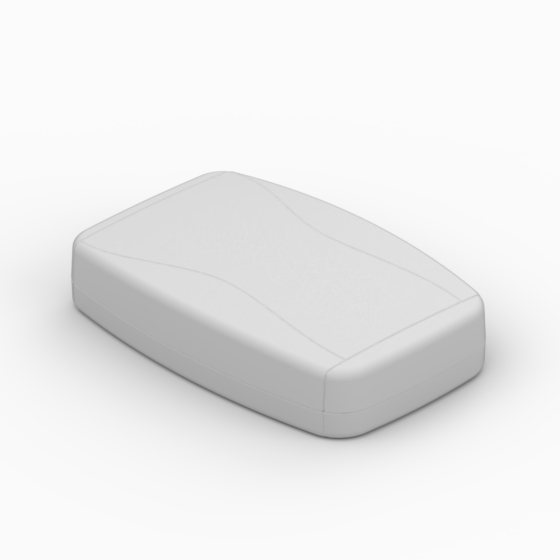

ST1.7 114 74 24,7 9002
TR-UV 100,5 53,5 2 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: TR-UV
  • MAX PCB L (mm): 100,5
  • MAX PCB W (mm): 53,5
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

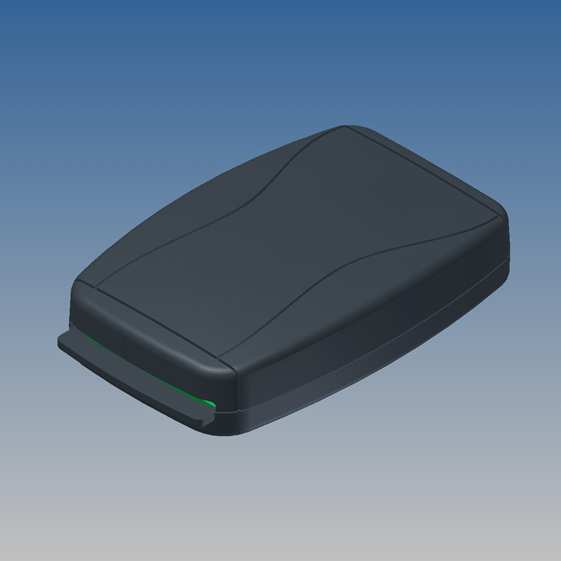

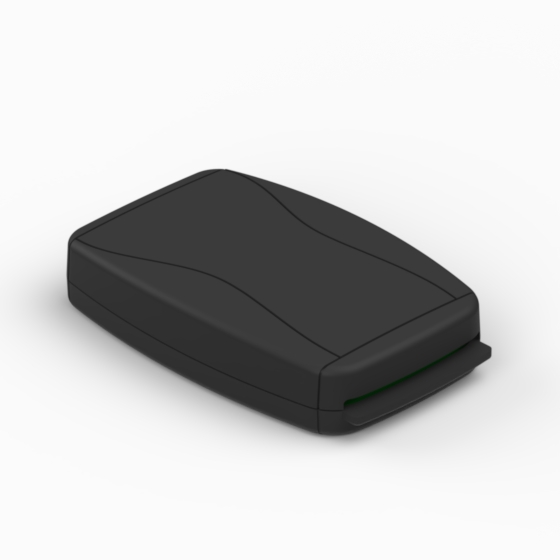

ST1-C2.4 114 74 24,7 7016
GP40 100,5 53,5 2 - PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): 100,5
  • MAX PCB W (mm): 53,5
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

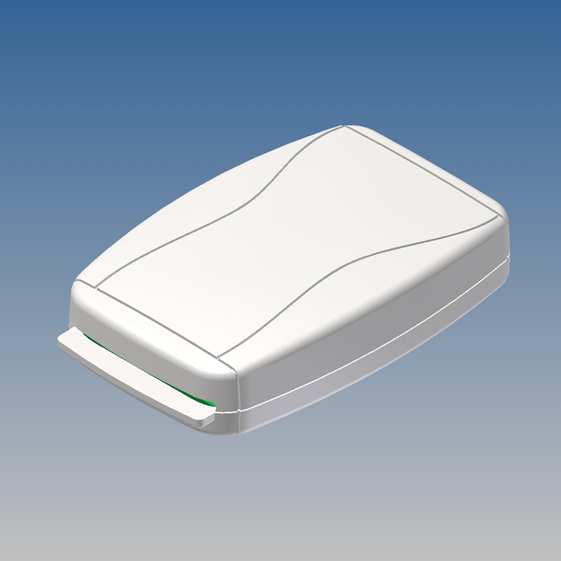

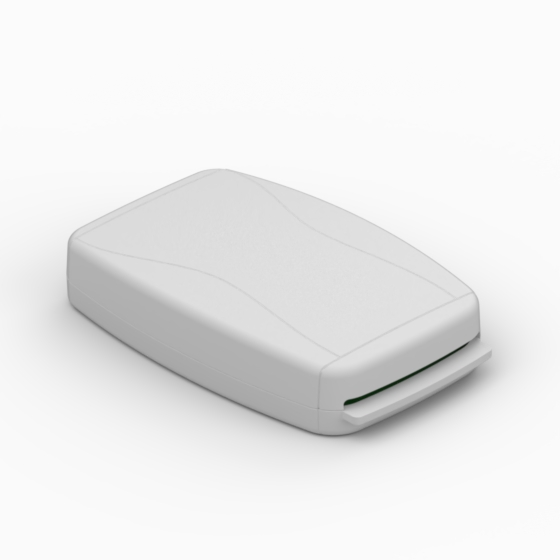

ST1-C2.7 114 74 24,7 9002
TR-UV 100,5 53,5 2 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: TR-UV
  • MAX PCB L (mm): 100,5
  • MAX PCB W (mm): 53,5
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
