TBL

Family Handheld - Electronic enclosures - Plastic

Description

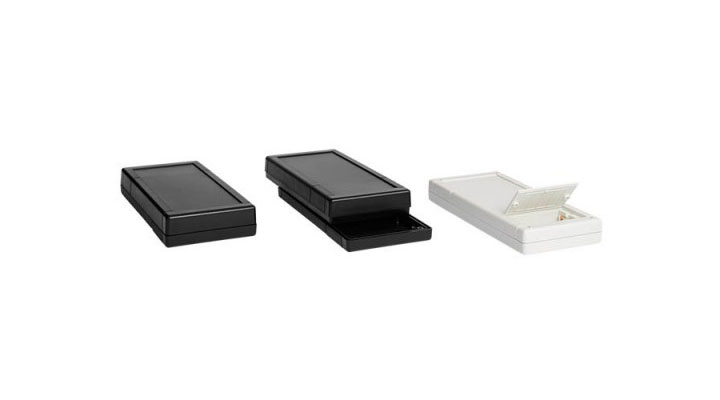

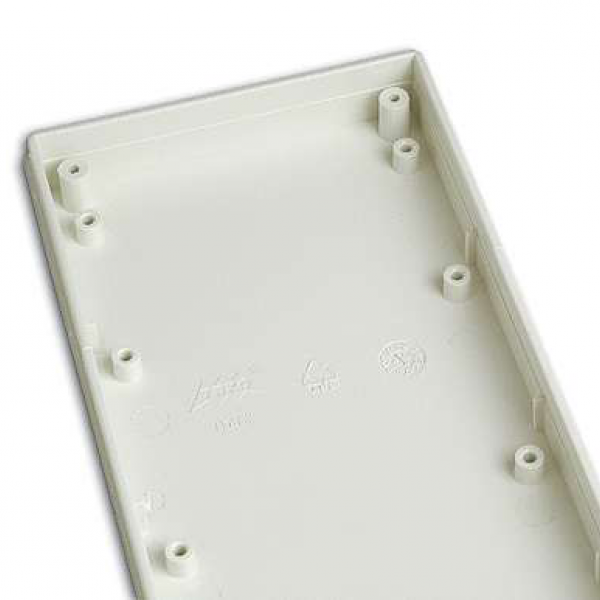

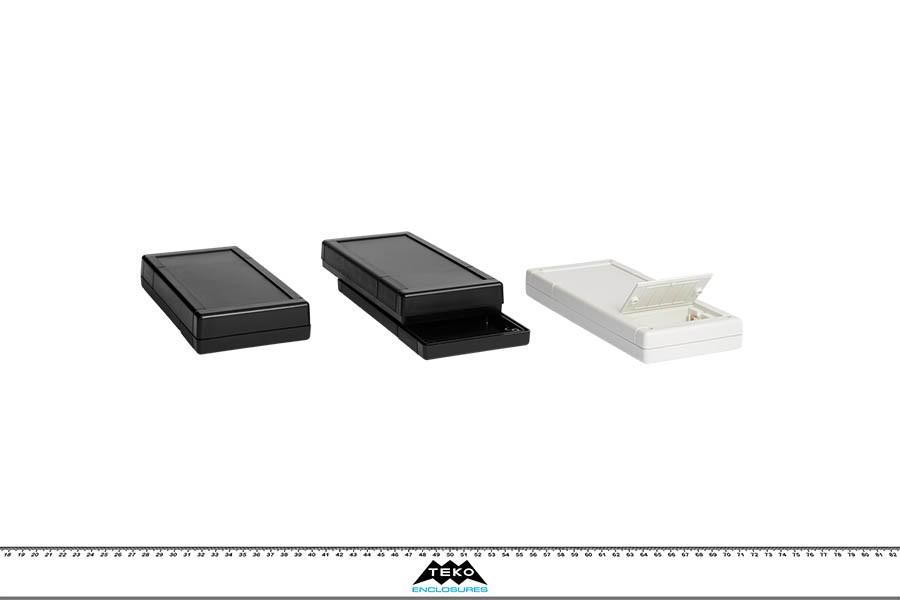

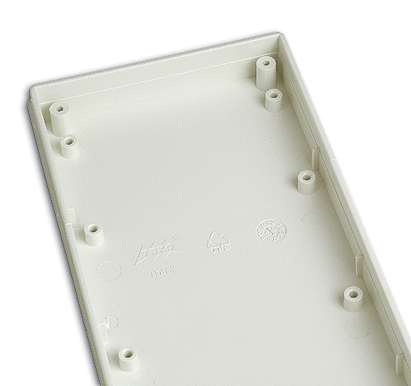

ABS enclosures with a recessed operating area for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. The models with “-B” have a battery compartment for two mignon-cells 1.5V or one flat battery 9V. The models with “K” are able to accept the IP65 sealing kit. Closing by four screws. Upon request ABS wall mounting tabs “MT1”, aluminium panels “APTB”, Keypad membrane “M” and “MW” (with transparent display area).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
TBL-1.7 200 94 25 9002
L320 190 83 4 - M
M58
M59
MT1
MW
MW61
PDF
DWG
View
TBL-1.9 200 94 25 9004
P2H-AT 190 83 4 - M
M58
M59
MT1
MW
MW61
PDF
DWG
View

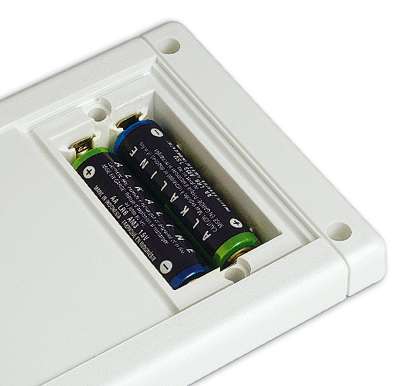

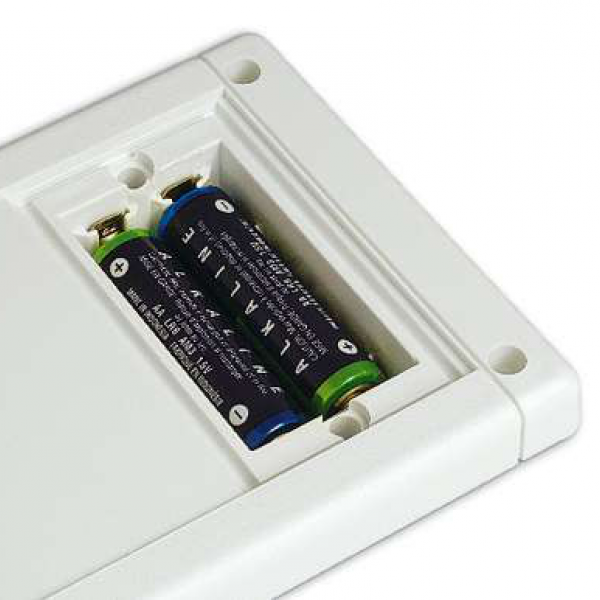

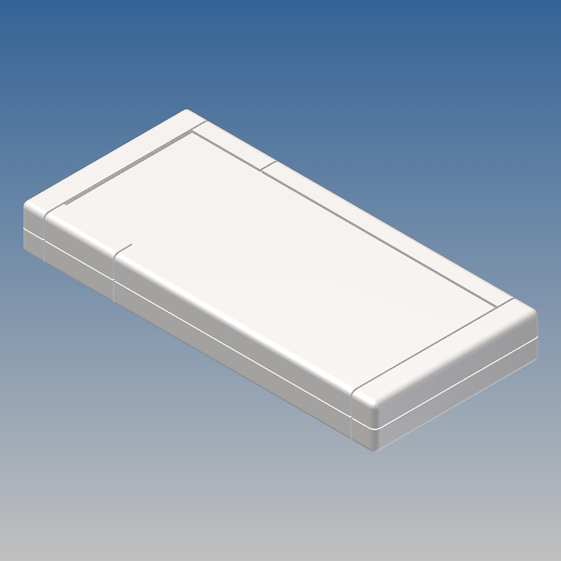

TBL-1B.7 200 94 25 9002
L320 140 80 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW61
PDF
DWG
View
TBL-1B.9 200 94 25 9004
P2H-AT 140 80 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW61
PDF
DWG
View
TBL-1BK.7 200 94 25 9002
L320 140 80 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW61
PDF
DWG
View

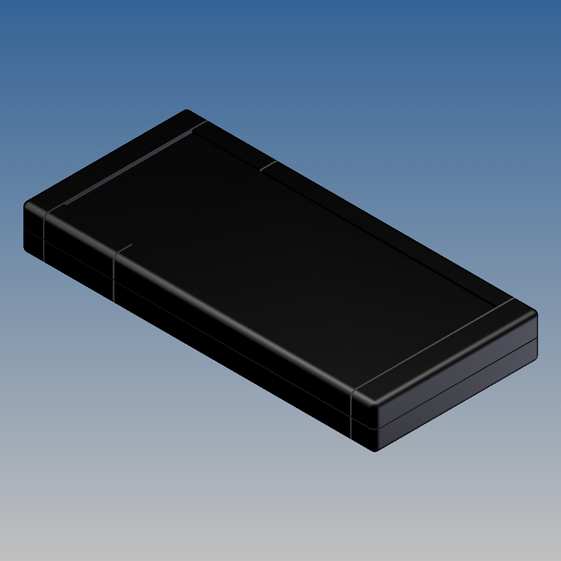

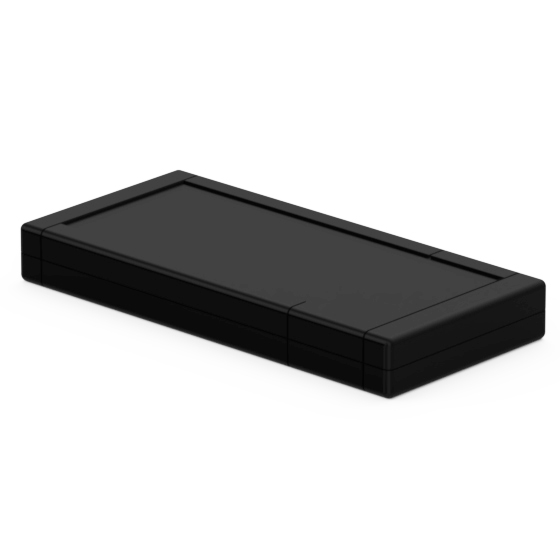

TBL-1BK.9 200 94 25 9004
P2H-AT 140 80 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW61
PDF
DWG
View

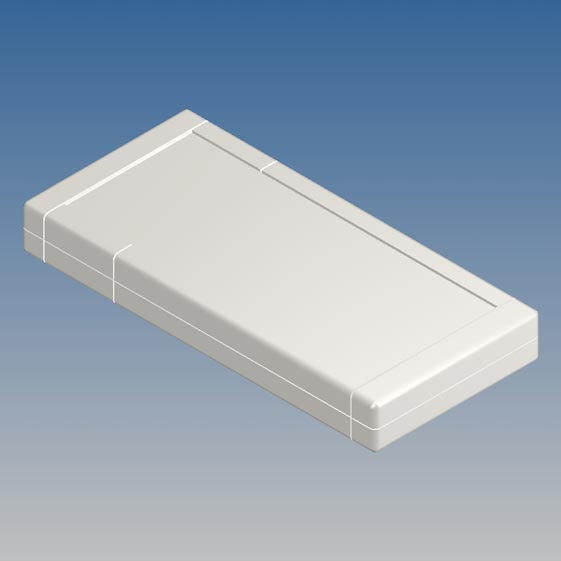

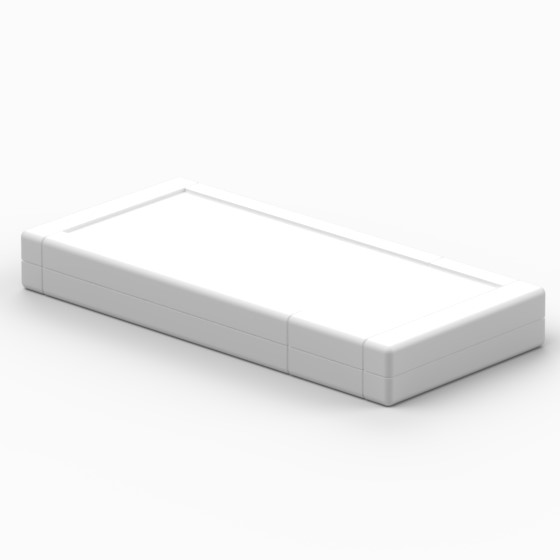

TBL-1K.7 200 94 25 9002
L320 190 83 4 - M
M58
M59
MT1
MW
MW61
PDF
DWG
View
TBL-1K.9 200 94 25 9004
P2H-AT 190 83 4 - M
M58
M59
MT1
MW
MW61
PDF
DWG
View
TBL-2.7 200 94 31,5 9002
L320 190 83 4 - M
M58
M59
MT1
MW
MW61
PDF
DWG
View
TBL-2.9 200 94 31,5 9004
P2H-AT 190 83 4 - M
M58
M59
MT1
MW
MW61
PDF
DWG
View

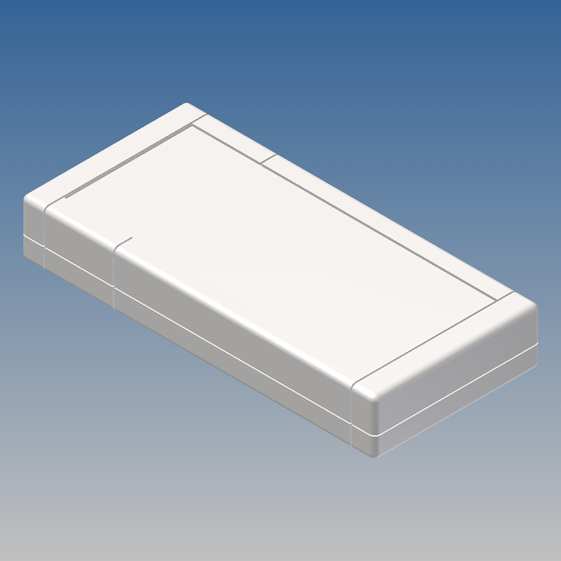

TBL-2B.7 200 94 31,5 9002
L320 140 80 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW61
PDF
DWG
View
TBL-2B.9 200 94 31,5 9004
P2H-AT 140 80 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW61
PDF
DWG
View

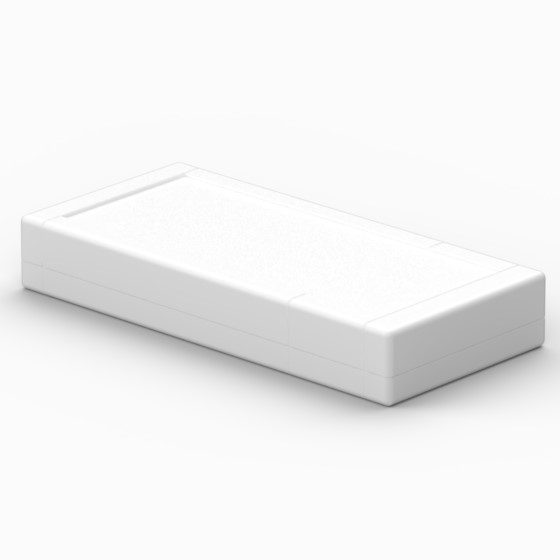

TBL-2BK.7 200 94 31,5 9002
L320 140 80 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW61
PDF
DWG
View

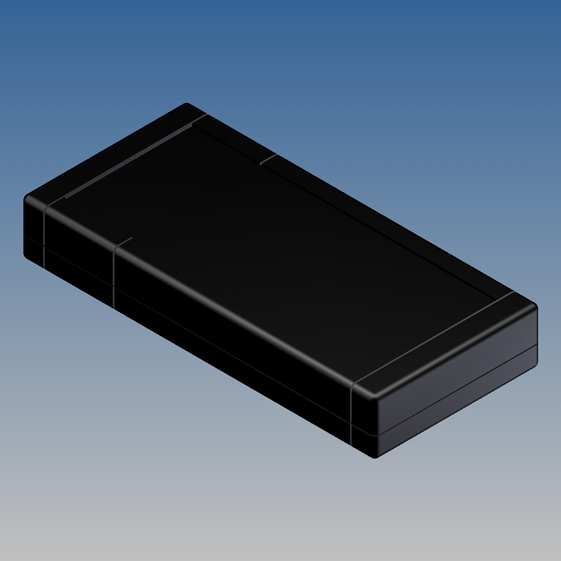

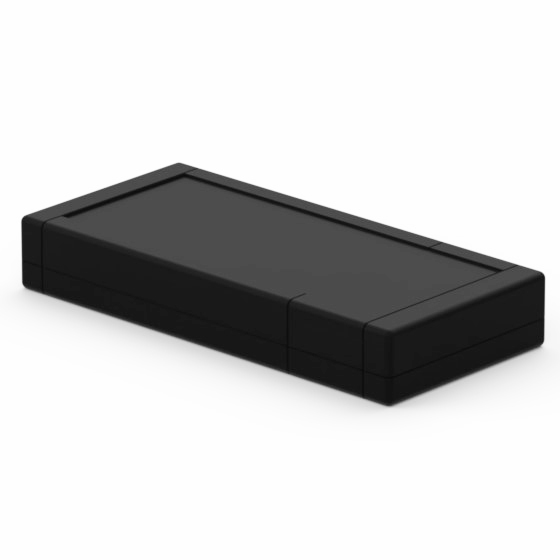

TBL-2BK.9 200 94 31,5 9004
P2H-AT 140 80 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW61
PDF
DWG
View

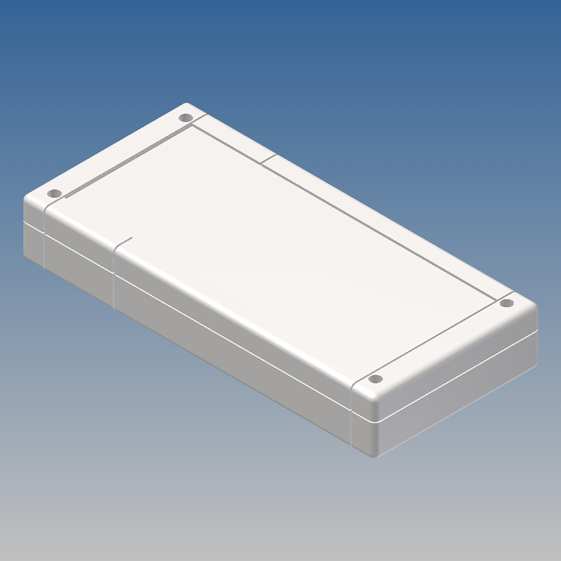

TBL-2K.7 200 94 31,5 9002
L320 190 83 4 - M
M58
M59
MT1
MW
MW61
PDF
DWG
View
TBL-2K.9 200 94 31,5 9004
P2H-AT 190 83 4 - M
M58
M59
MT1
MW
MW61
PDF
DWG
View
