TBT

Family Handheld - Electronic enclosures - Plastic

Description

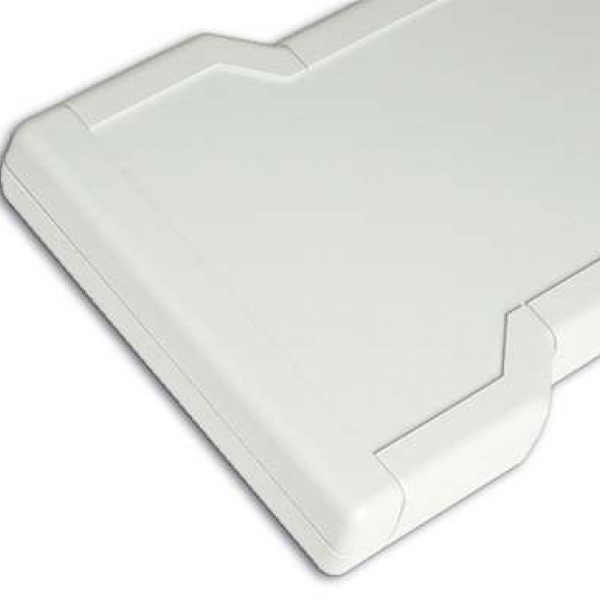

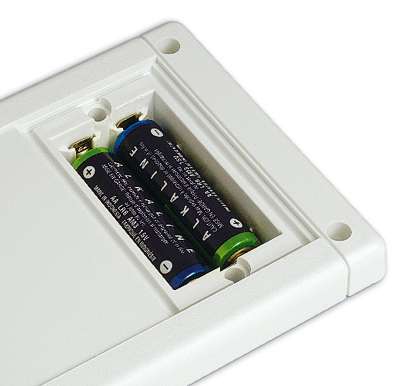

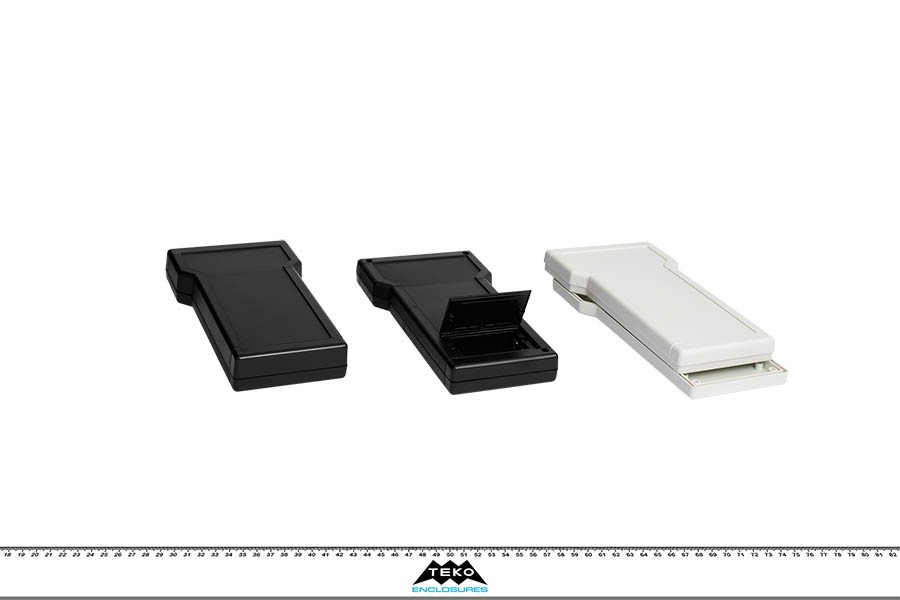

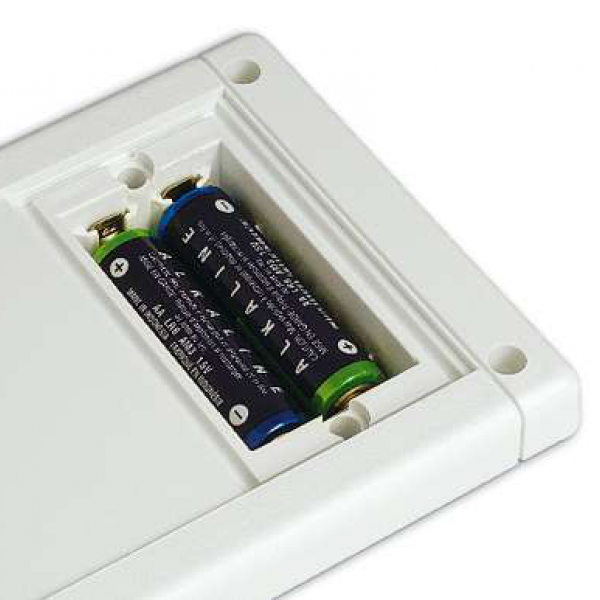

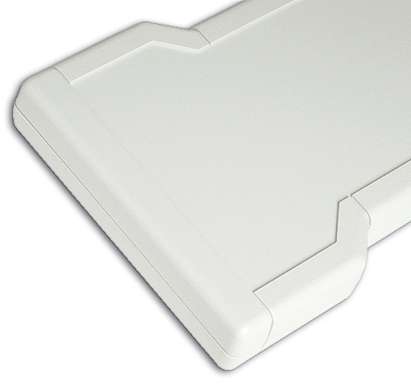

ABS enclosures with a recessed operating area for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. The models with “B” have a battery compartment for two mignon-cells 1.5V or one flat battery 9V. The models with “K” are able to accept the IP65 sealing kit. Closing by four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

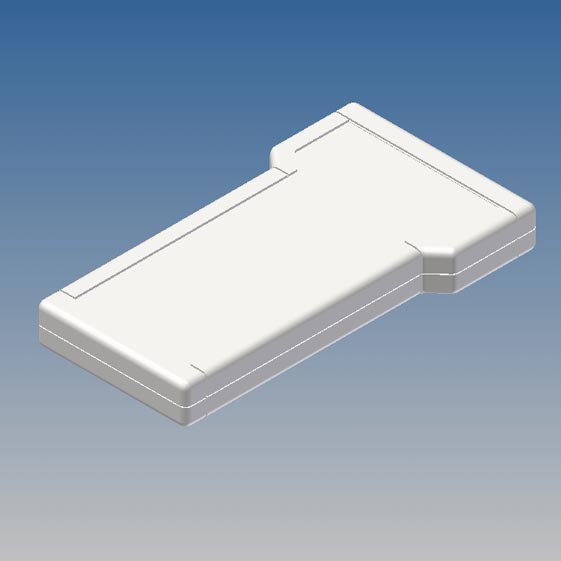

TBT-1.7 210 116 25 9002
L320 196 80/102 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-1.9 210 116 25 9004
P2H-AT 196 80/102 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-1B.7 210 116 25 9002
L320 148,2 80/102 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View

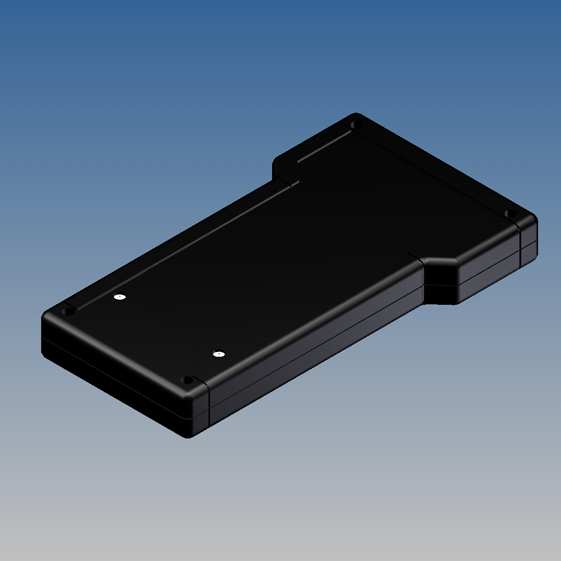

TBT-1B.9 210 116 25 9004
P2H-AT 148,2 80/102 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View

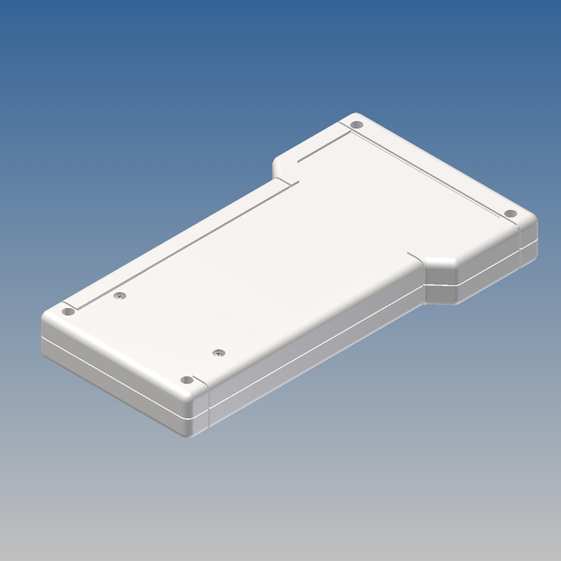

TBT-1BK.7 210 116 25 9002
L320 148,2 80/102 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-1BK.9 210 116 25 9004
P2H-AT 148,2 80/102 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-1K.7 210 116 25 9002
L320 196 80/102 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View

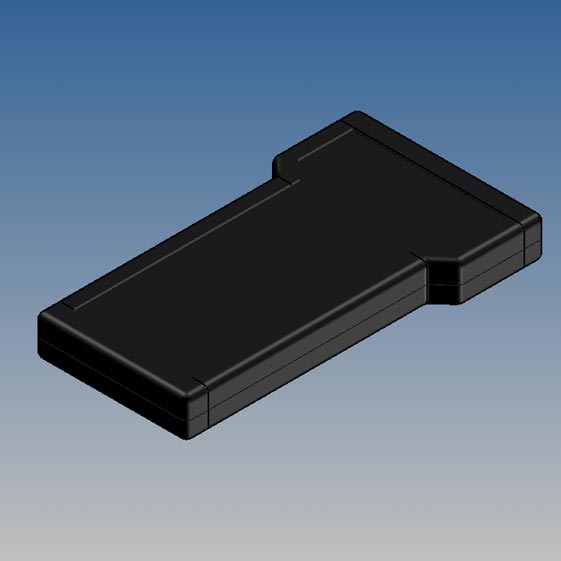

TBT-1K.9 210 116 25 9004
P2H-AT 196 80/102 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-2.7 210 116 31,5 9002
L320 196 80/102 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-2.9 210 116 31,5 9004
P2H-AT 196 80/102 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View

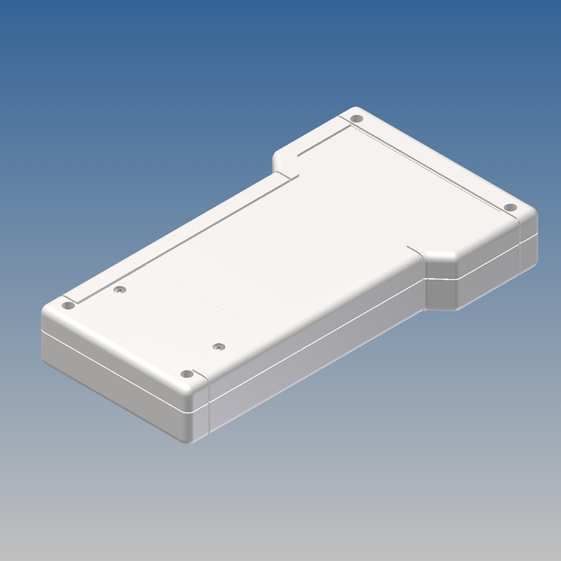

TBT-2B.7 210 116 31,5 9002
L320 148,2 80/102 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View

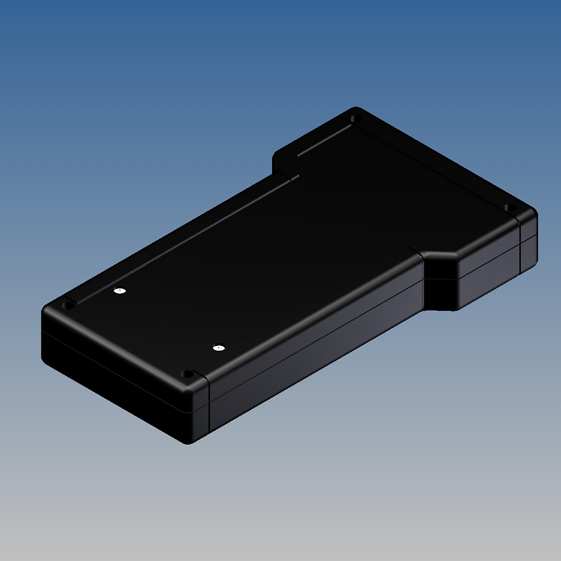

TBT-2B.9 210 116 31,5 9004
P2H-AT 148,2 80/102 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-2BK.7 210 116 31,5 9002
L320 148,2 80/102 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-2BK.9 210 116 31,5 9004
P2H-AT 148,2 80/102 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View

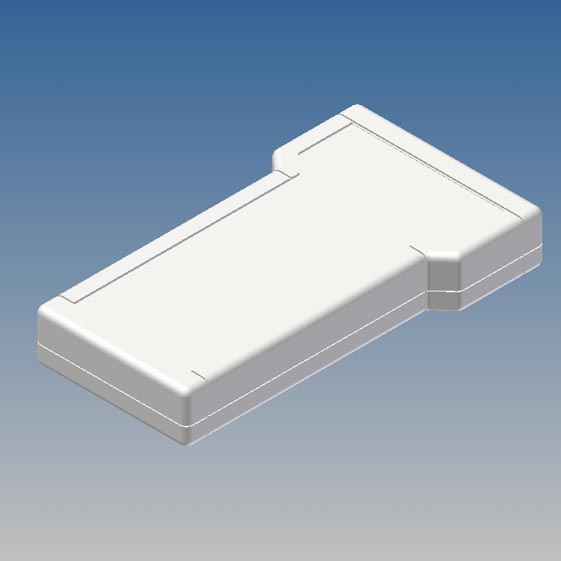

TBT-2K.7 210 116 31,5 9002
L320 196 80/102 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View

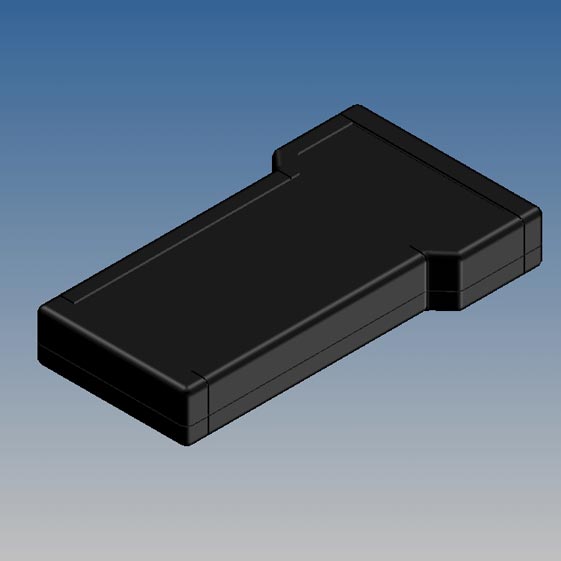

TBT-2K.9 210 116 31,5 9004
P2H-AT 196 80/102 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View
