TEKNET

Family Handheld - Electronic enclosures - Plastic

Description

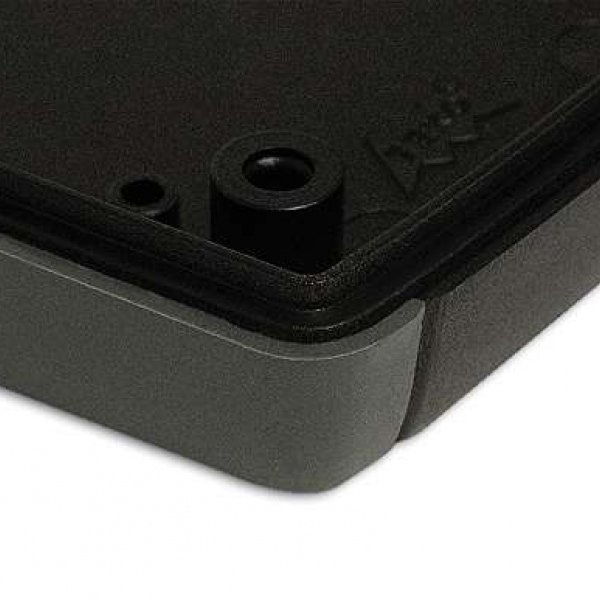

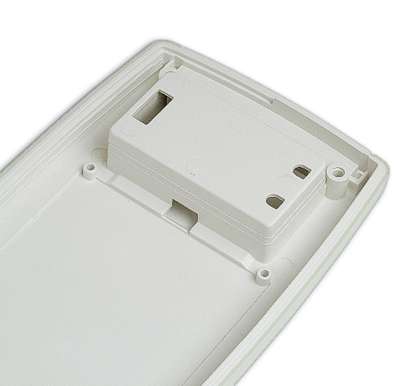

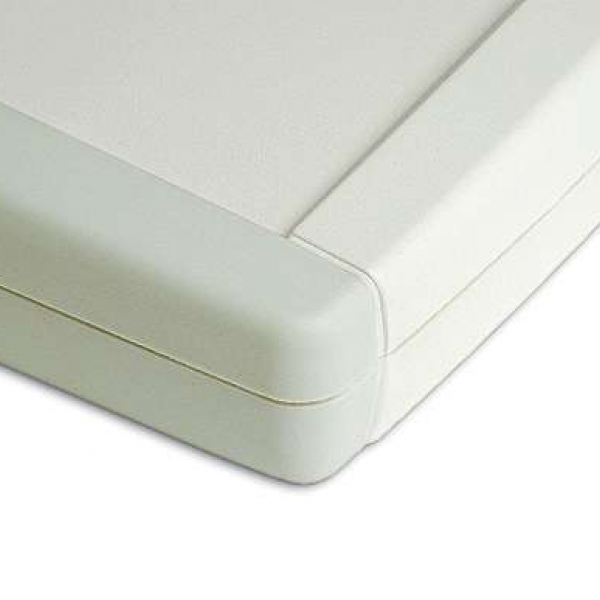

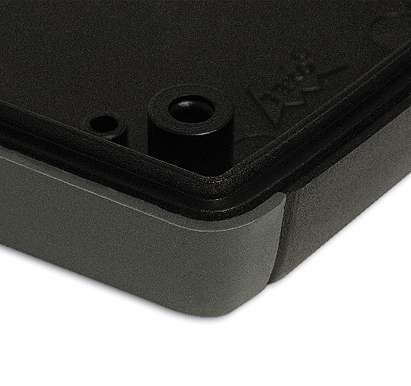

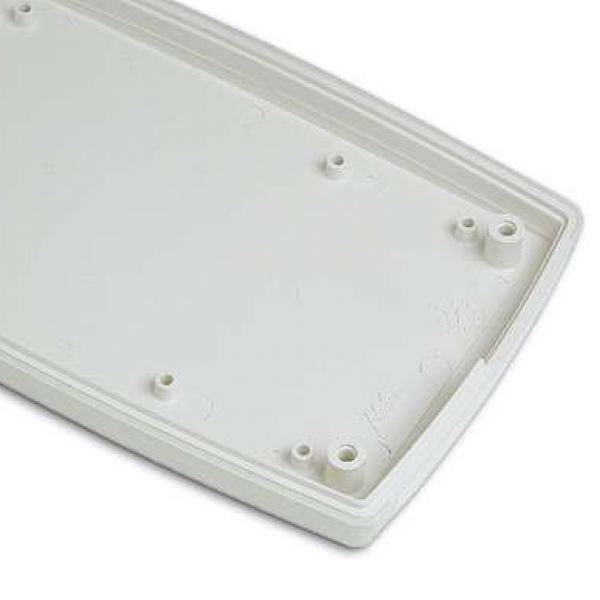

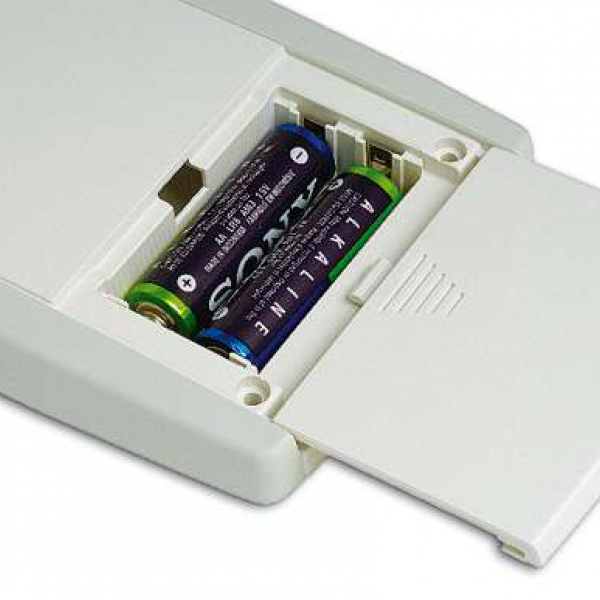

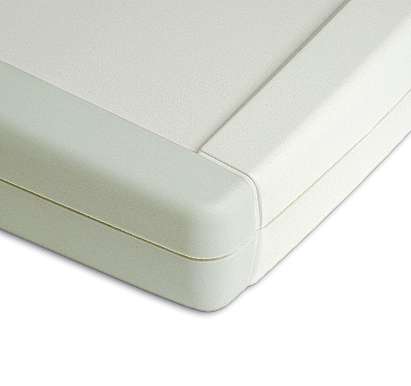

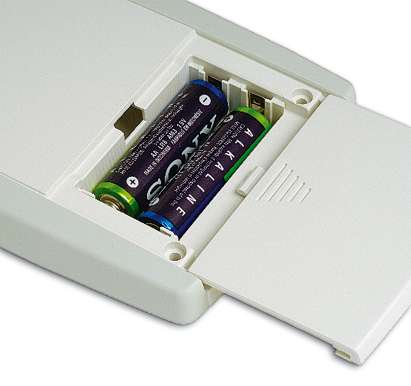

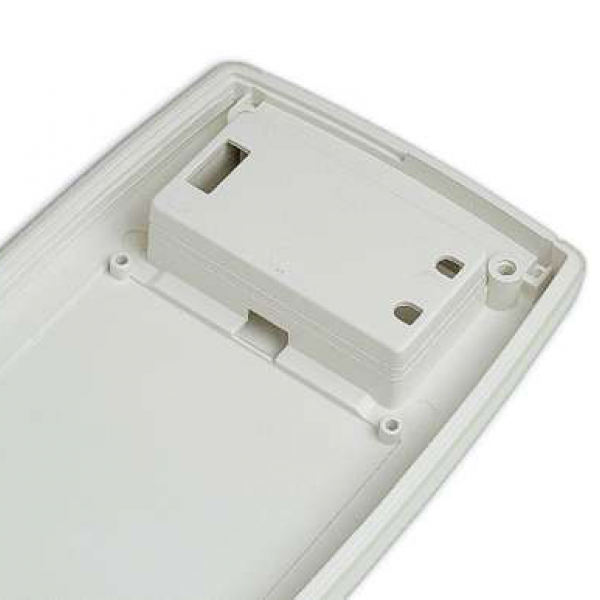

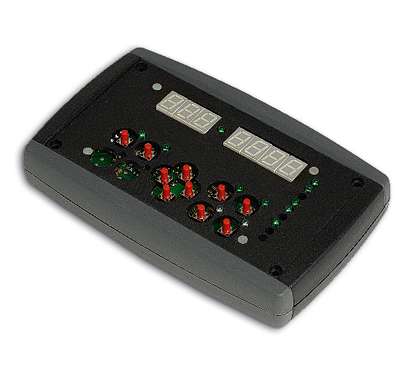

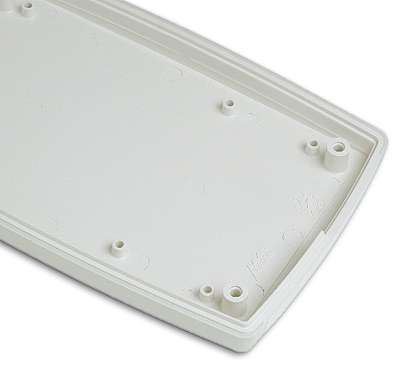

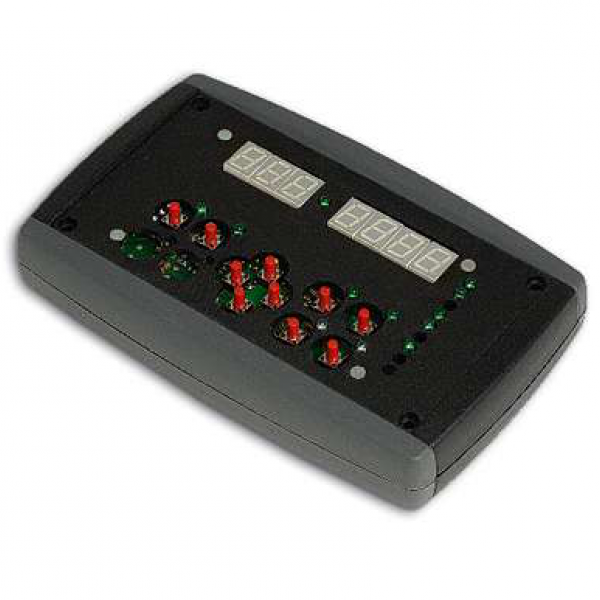

ABS enclosures with new soft-touch contoured shape. By utilising multi-shot moulding technique, Teknet features an ergonomic design of elastomer grips (TPU) on the side of the case. The models with “-B” have a battery compartment for two 1.5V mignon-cells (AA) or one 9V flat battery (PP3). The models with “-B2” have a battery compartment for four mignon cells 1,5V (AA) or two flat batteries 9V (PP3). Matt surface finish. Closing by four screws. Upon request aluminium panel “APTB”, Keypad membrane “M” or “MW” (with transparent display area).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

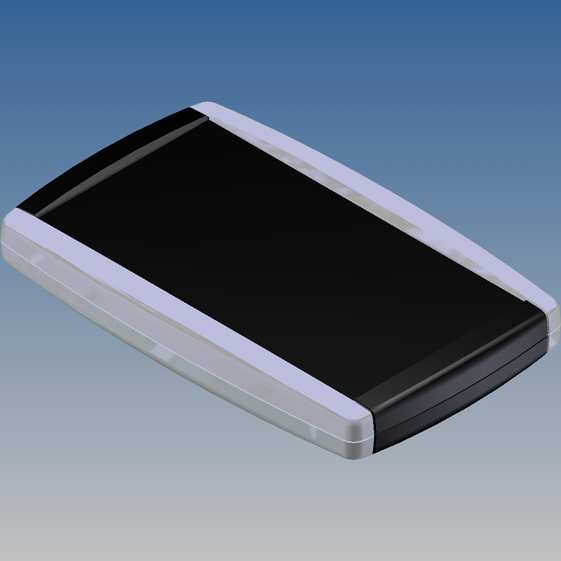

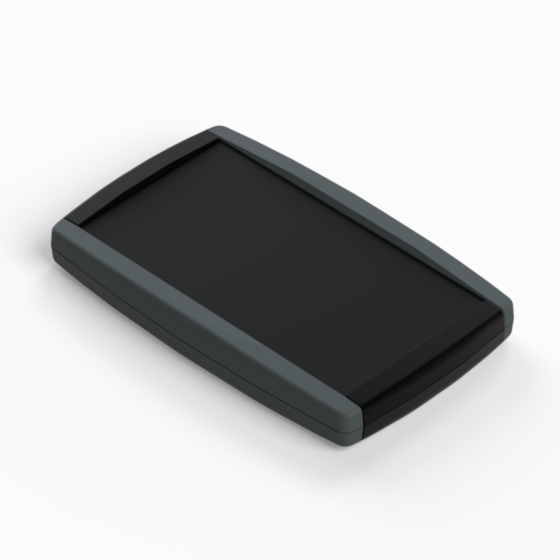

TN11.29 155 96 20,2 9004 7012
P2H-AT  -  8020 138 77 4 - M
M58
M59
MW
PDF
DWG
View

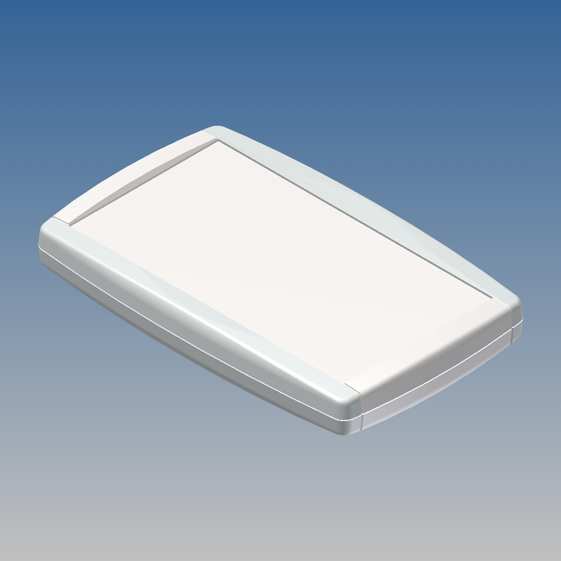

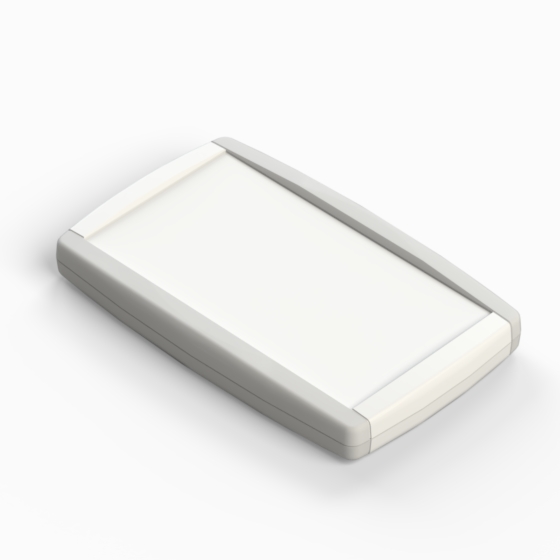

TN11.30 155 96 20,2 9002 9018
P2H-AT  -  8020 138 77 4 - M
M58
M59
MW
PDF
DWG
View

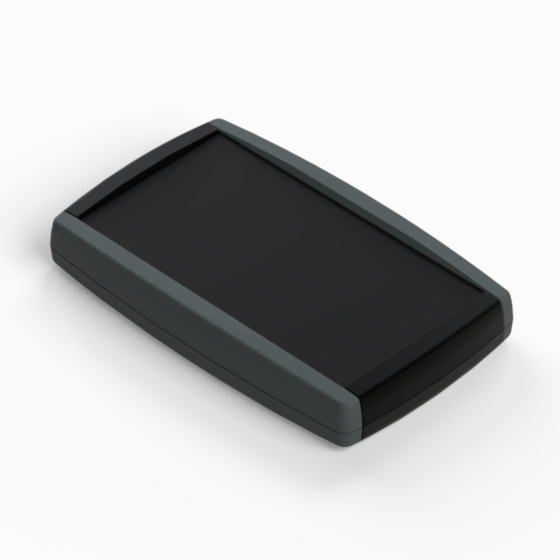

TN12.29 155 96 24,2 9004 7012
P2H-AT  -  8020 138 77 4 - M
M58
M59
MW
PDF
DWG
View

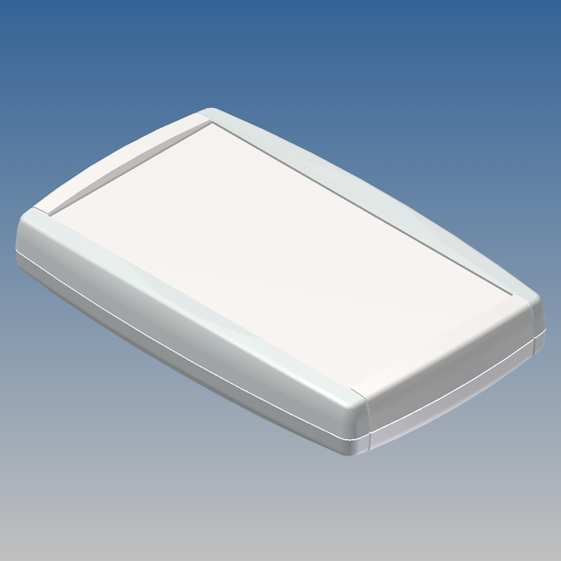

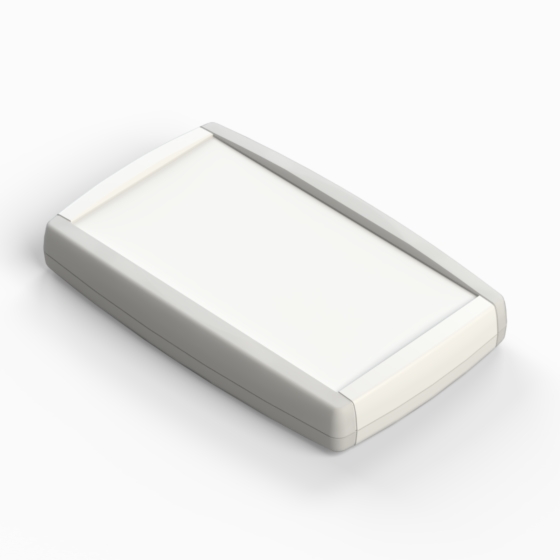

TN12.30 155 96 24,2 9002 9018
P2H-AT  -  8020 138 77 4 - M
M58
M59
MW
PDF
DWG
View

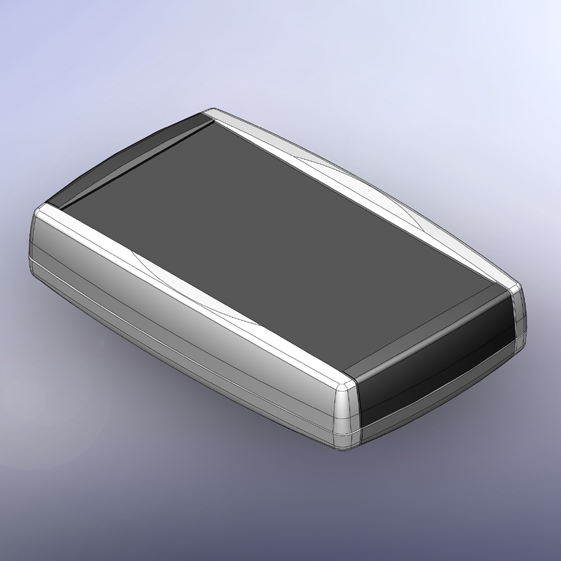

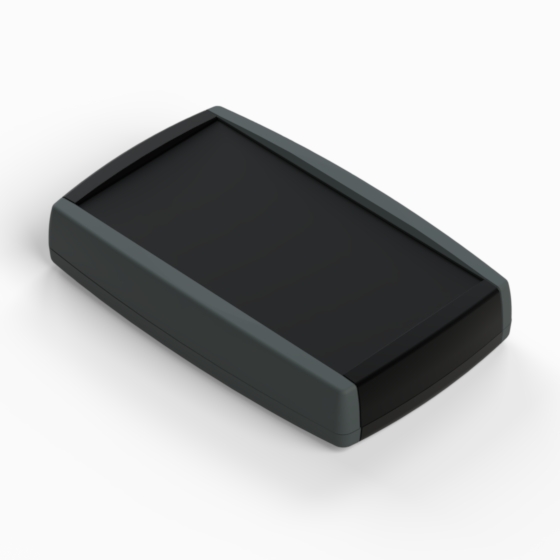

TN13.29 155 96 30,6 9004 7012
P2H-AT  -  8020 138 77 4 - M
M58
M59
MW
PDF
DWG
View

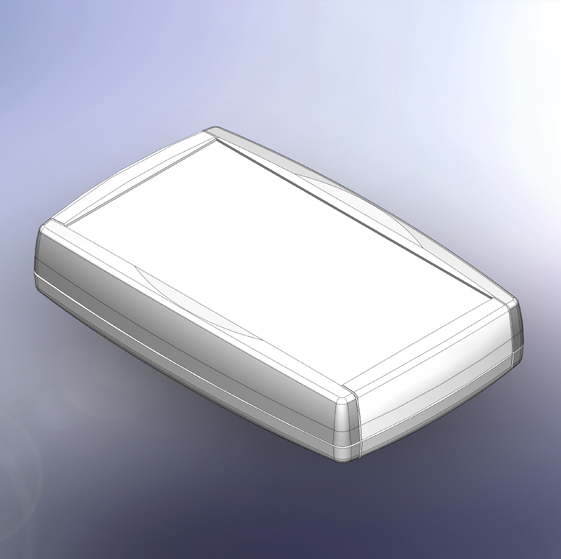

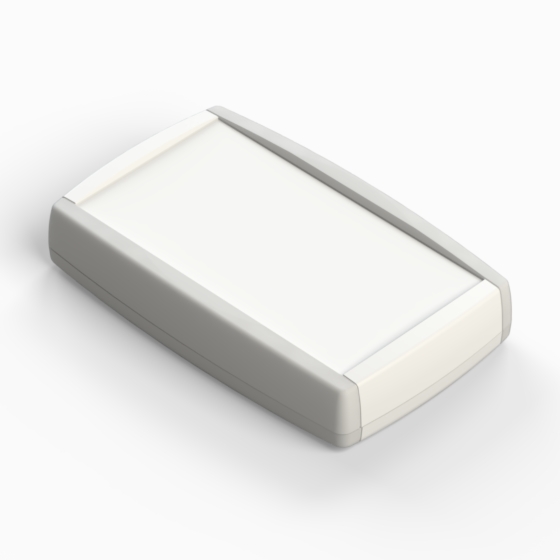

TN13.30 155 96 30,6 9002 9018
P2H-AT  -  8020 138 77 4 - M
M58
M59
MW
PDF
DWG
View

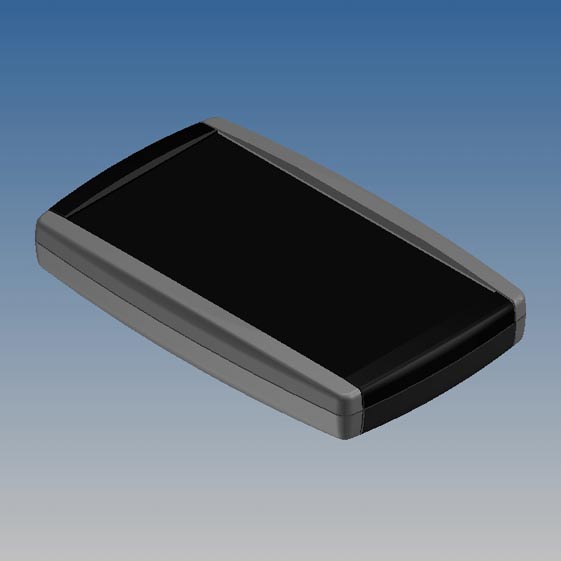

TN21-B.29 155 96 24,2 9004 7012
P2H-AT  -  8020 95 77 4 2 x AA / 1 x 9V AB9
M
M58
M59
MW
PDF
DWG
View

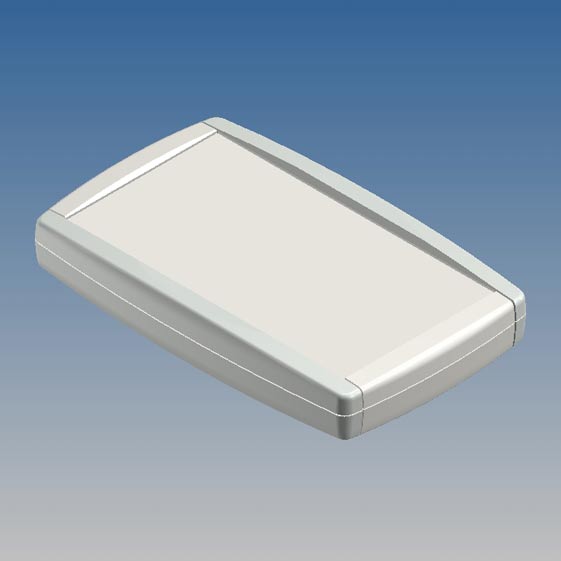

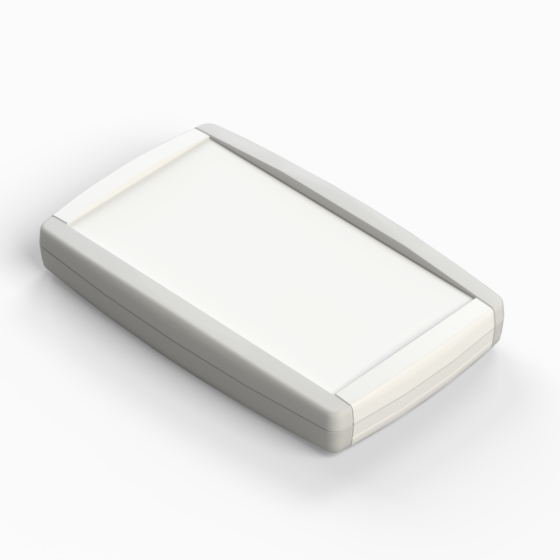

TN21-B.30 155 96 24,2 9002 9018
P2H-AT  -  8020 95 77 4 2 x AA / 1 x 9V AB9
M
M58
M59
MW
PDF
DWG
View

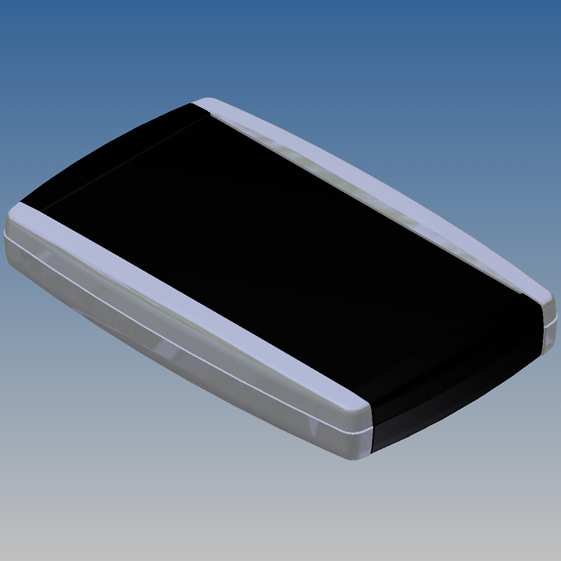

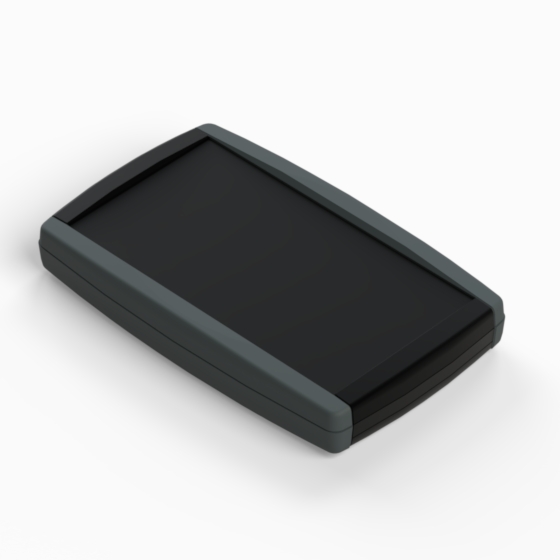

TN21-B2.29 155 96 24,2 9004 7012
P2H-AT  -  8020 81 59 4 4 x AA / 2 x 9V AB9
M
M58
M59
MW
PDF
DWG
View

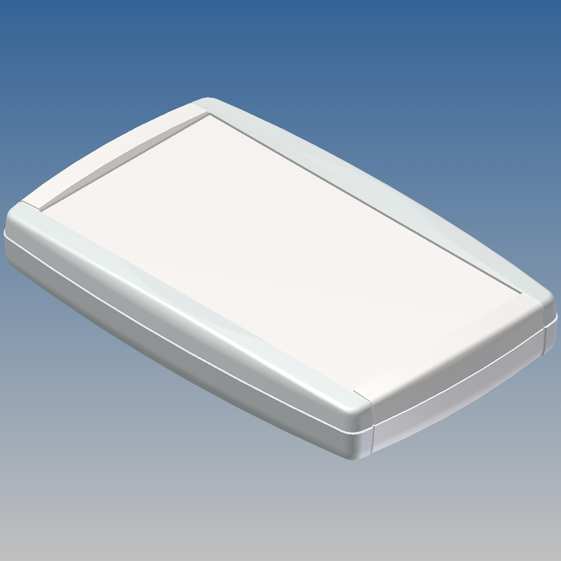

TN21-B2.30 155 96 24,2 9002 9018
P2H-AT  -  8020 81 59 4 4 x AA / 2 x 9V AB9
M
M58
M59
MW
PDF
DWG
View

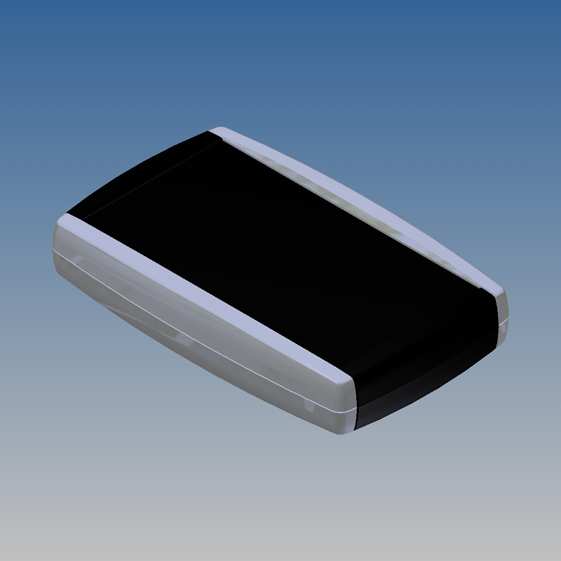

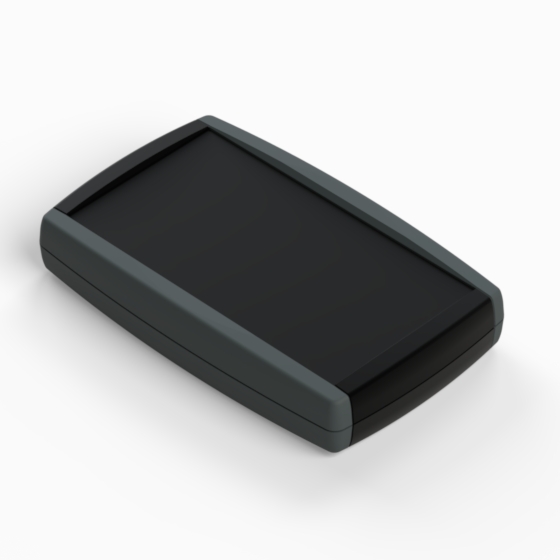

TN22.29 155 96 28,2 9004 7012
P2H-AT  -  8020 138 77 4 - M
M58
M59
MW
PDF
DWG
View

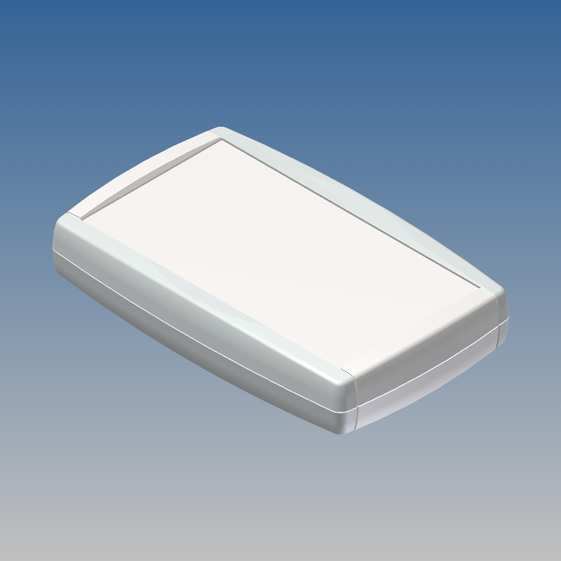

TN22.30 155 96 28,2 9002 9018
P2H-AT  -  8020 138 77 4 - M
M58
M59
MW
PDF
DWG
View

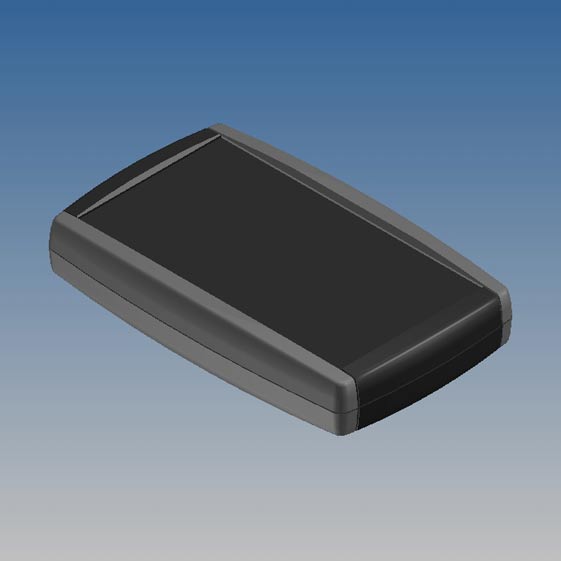

TN22-B.29 155 96 28,2 9004 7012
P2H-AT  -  8020 95 77 4 2 x AA / 1 x 9V AB9
M
M58
M59
MW
PDF
DWG
View

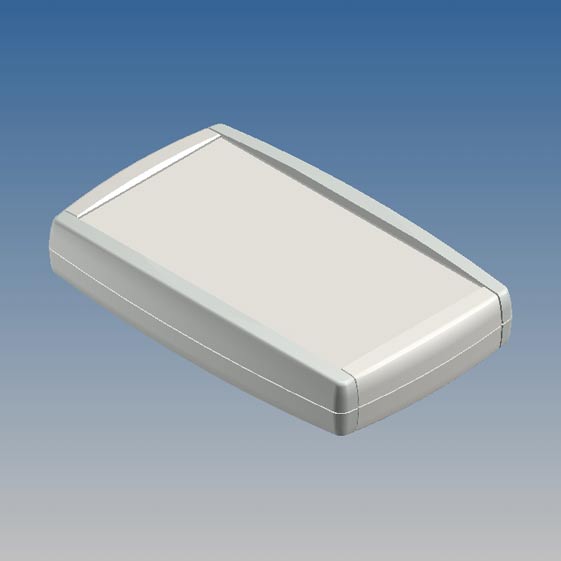

TN22-B.30 155 96 28,2 9002 9018
P2H-AT  -  8020 95 77 4 2 x AA / 1 x 9V AB9
M
M58
M59
MW
PDF
DWG
View

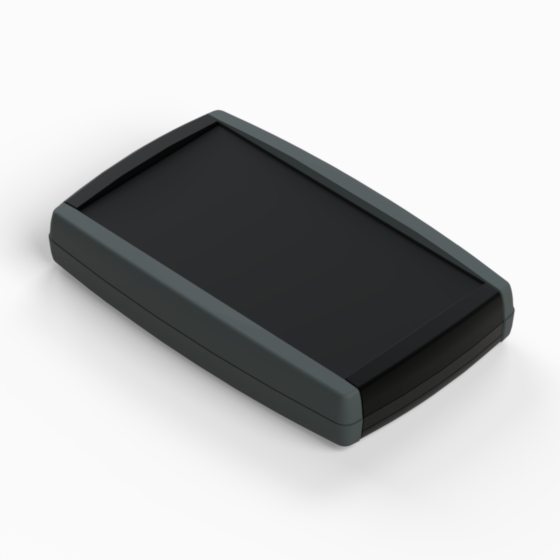

TN22-B2.29 155 96 28,2 9004 7012
P2H-AT  -  8020 81 59 4 4 x AA / 2 x 9V AB9
M
M58
M59
MW
PDF
DWG
View

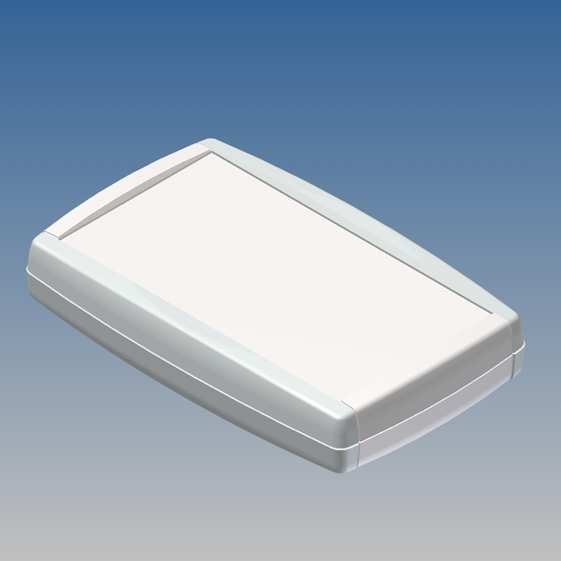

TN22-B2.30 155 96 28,2 9002 9018
P2H-AT  -  8020 81 59 4 4 x AA / 2 x 9V AB9
M
M58
M59
MW
PDF
DWG
View

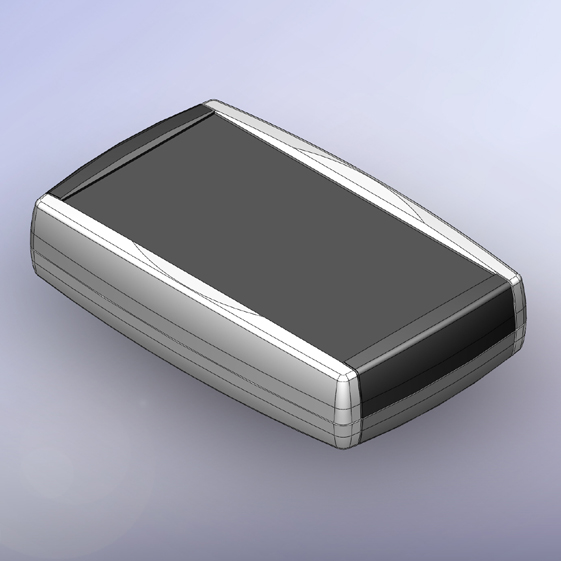

TN23.29 155 96 35 9004 7012
P2H-AT  -  8020 138 77 4   M
M58
M59
MW
PDF
DWG
View

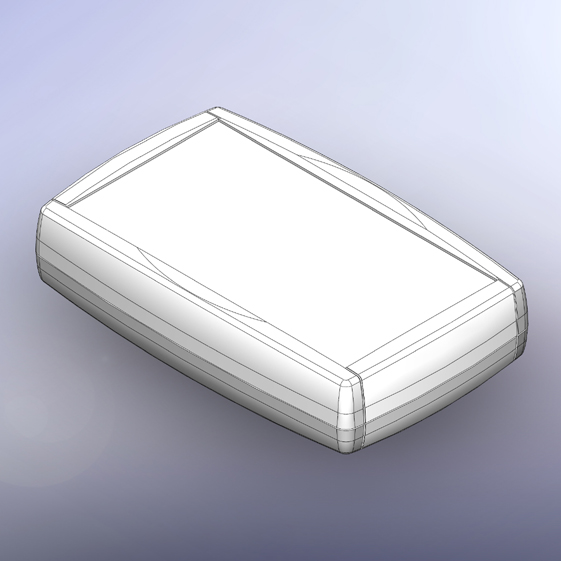

TN23.30 155 96 35 9002 9018
P2H-AT  -  8020 138 77 4   M
M58
M59
MW
PDF
DWG
View

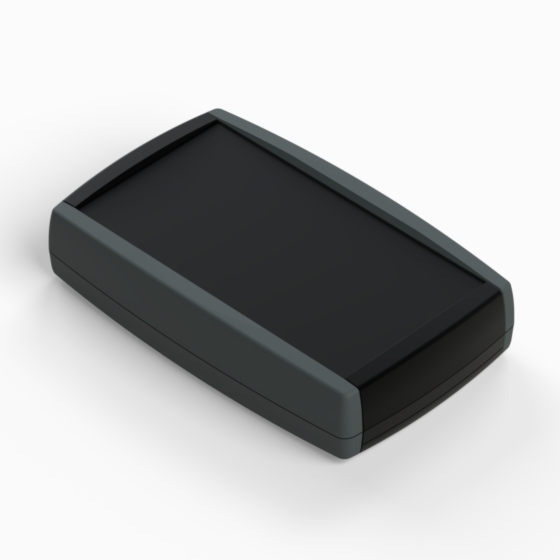

TN23-B.29 155 96 35 9004 7012
P2H-AT  -  8020 95 77 4 2 x AA / 1 x 9V M
M58
M59
MW
PDF
DWG
View
TN23-B.30 155 96 35 9002 9018
P2H-AT  -  8020 95 77 4 2 x AA / 1 x 9V M
M58
M59
MW
PDF
DWG
View

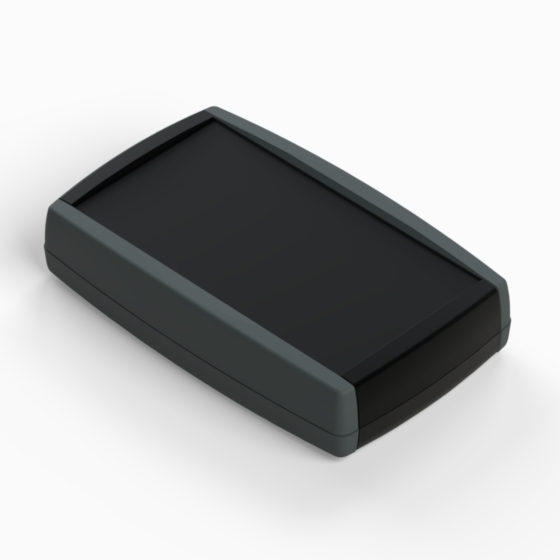

TN23-B2.29 155 96 35 9004 7012
P2H-AT  -  8020 81 59 4 4 x AA / 2 x 9V M
M58
M59
MW
PDF
DWG
View

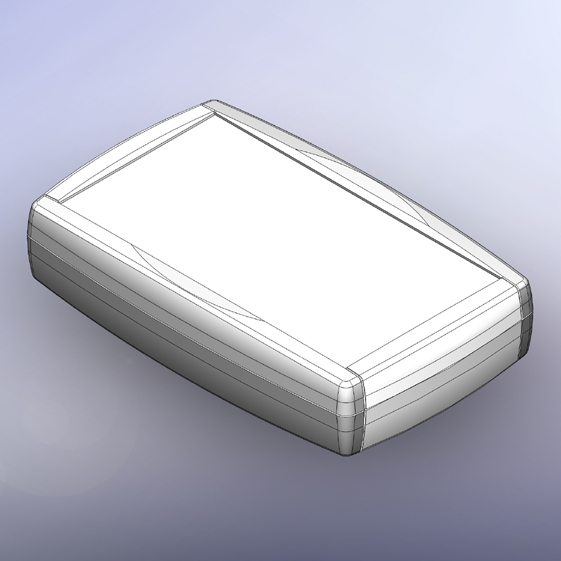

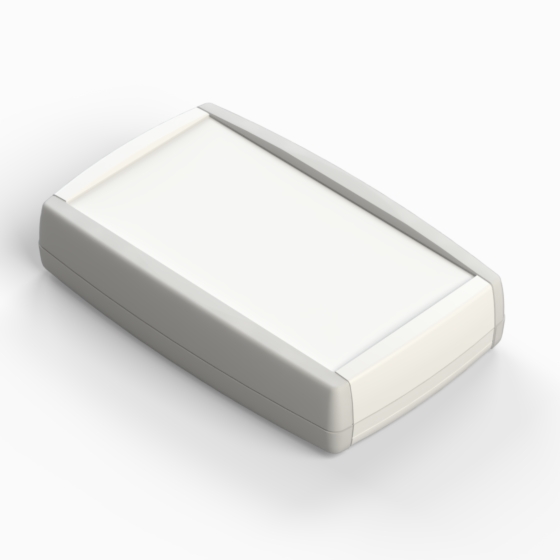

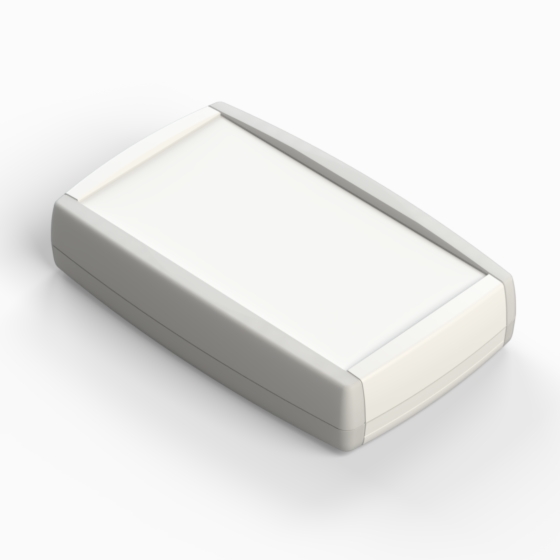

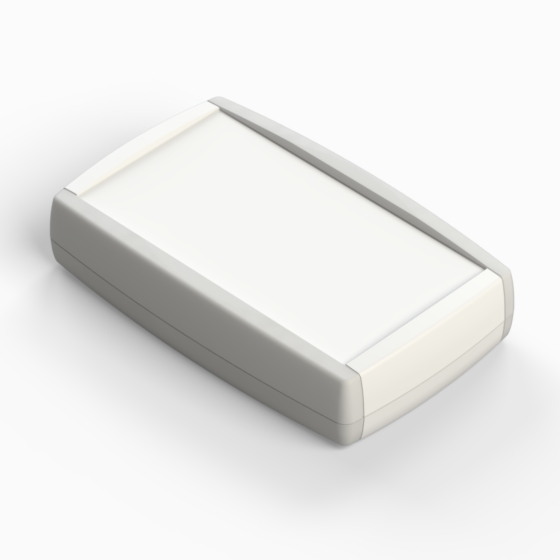

TN23-B2.30 155 96 35 9002 9018
P2H-AT  -  8020 81 59 4 4 x AA / 2 x 9V M
M58
M59
MW
PDF
DWG
View

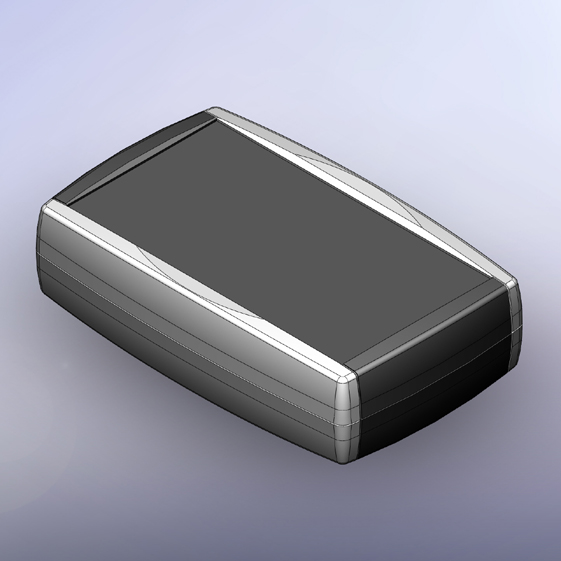

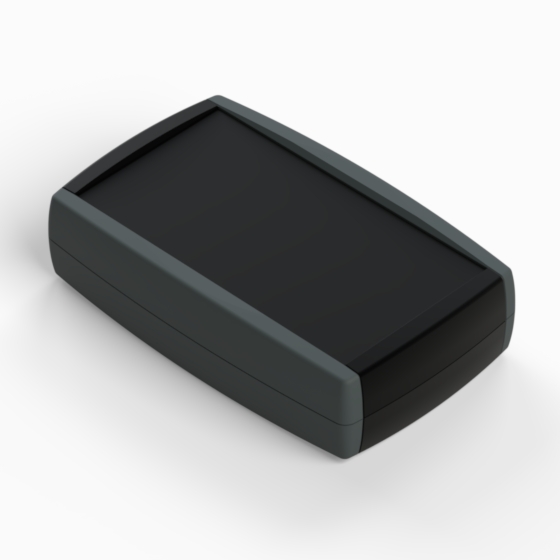

TN33.29 155 96 40,6 9004 7012
P2H-AT 138 77 4   M
M58
M59
MW
PDF
DWG
View

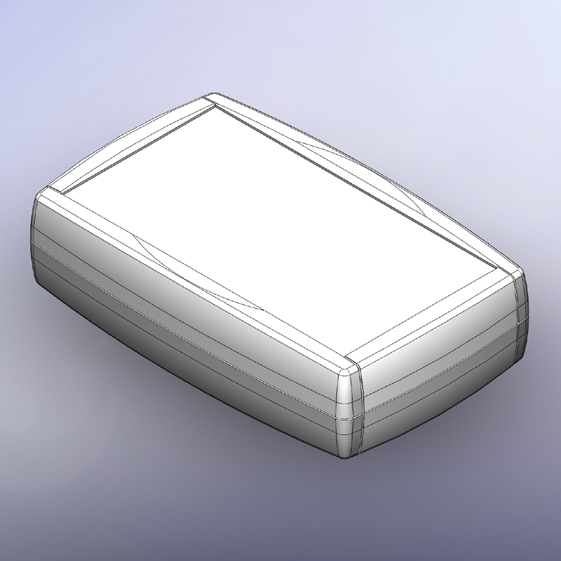

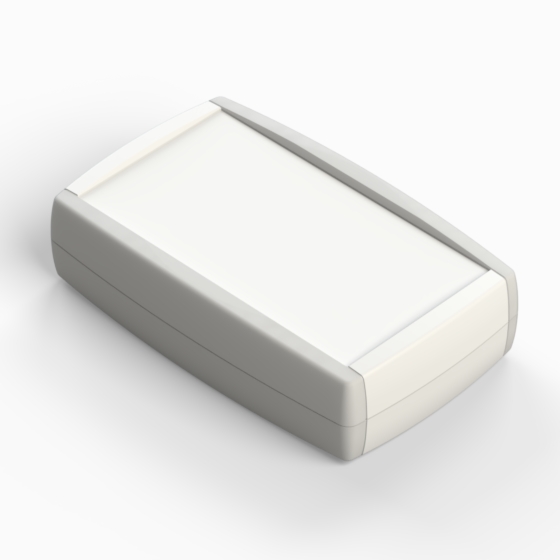

TN33.30 155 96 40,6 9002 9018
P2H-AT  -  8020 138 77 4   M
M58
M59
MW
PDF
DWG
View
