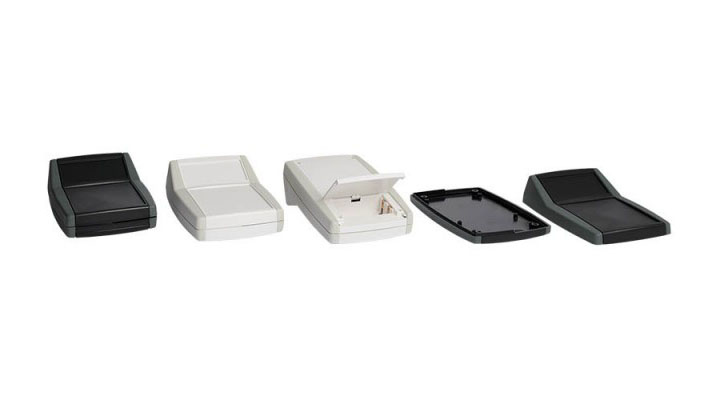

TEKNET PULPIT

Family Handheld - Electronic enclosures - Plastic

Description

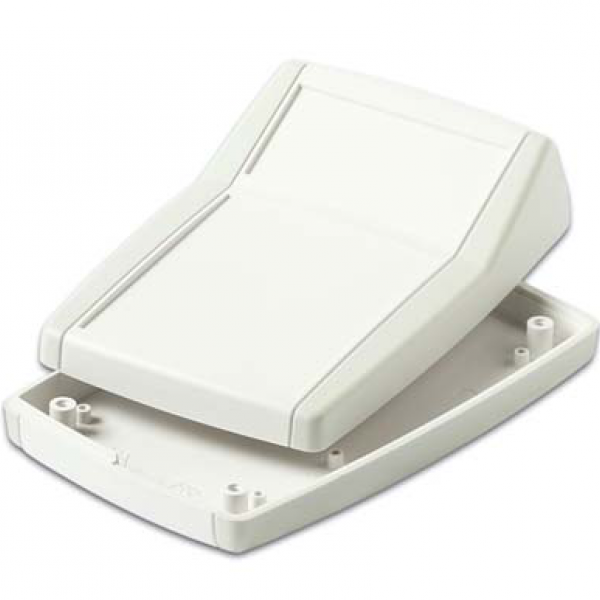

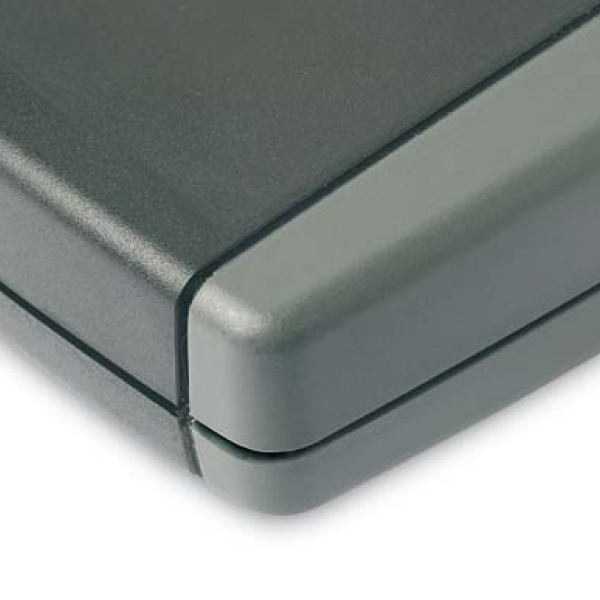

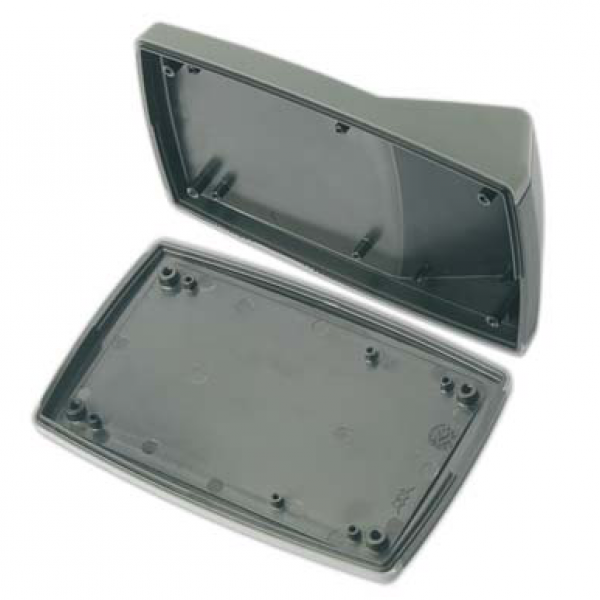

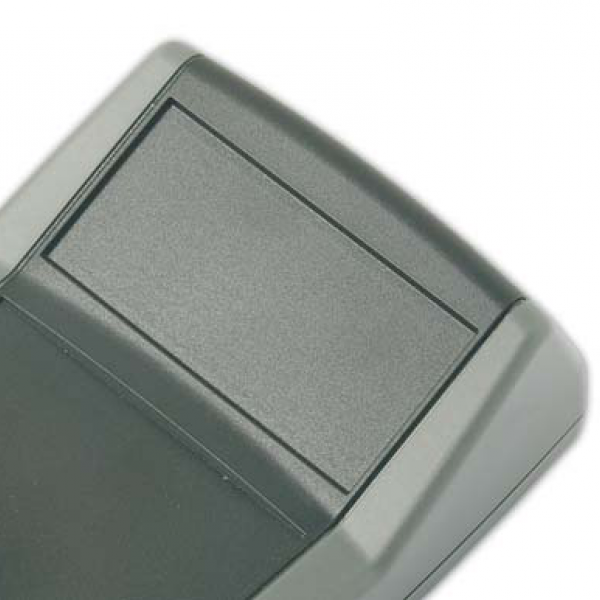

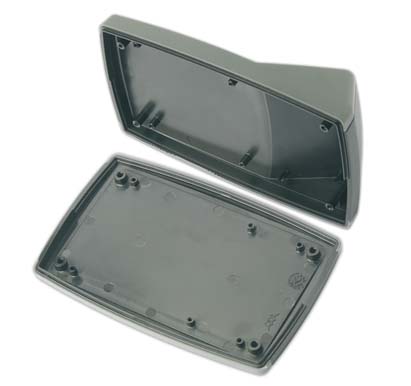

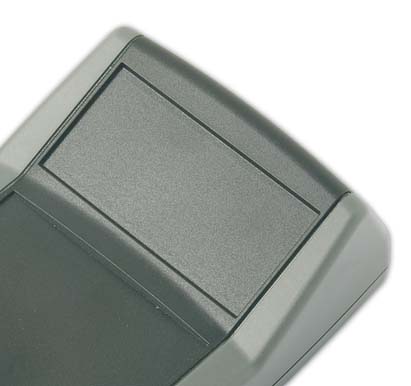

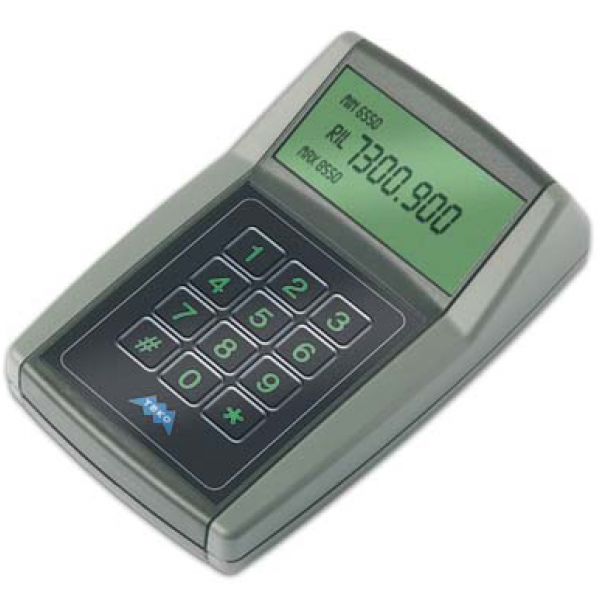

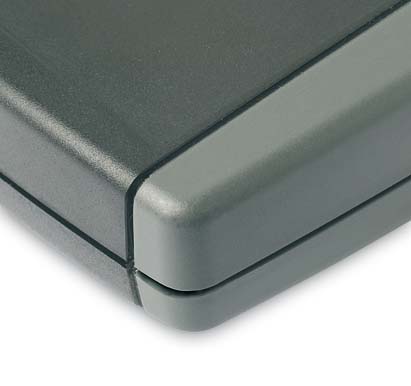

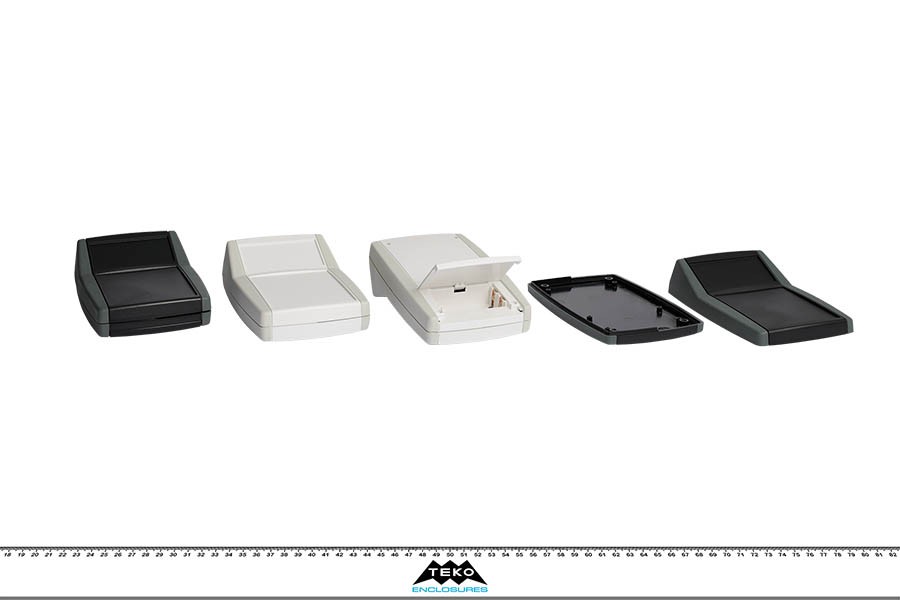

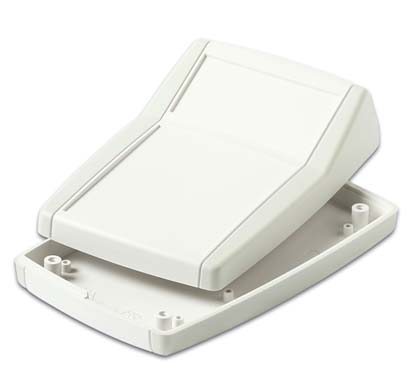

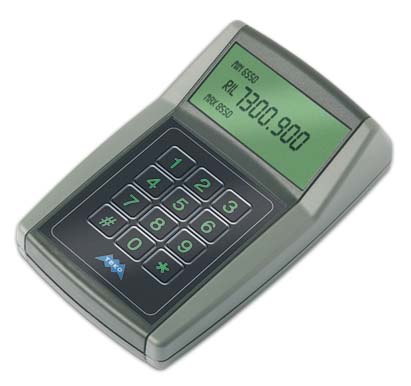

ABS Hand-Held enclosure with soft-touch elastomer grips (TPU) on the side. Matt surface, recessed area for membrane keyboard or displays. The models with “B” have a battery compartment for two 1,5V mignon cells (AA) or one 9V battery (PP3). The models with “B2” have a battery compartment for four 1,5V mignon cells (AA) or two 9V batteries. Closing by four screws. Two combinations of colours: Black RAL 9004/Dark grey RAL 7012 - White RAL 9002/Light grey RAL 9018.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

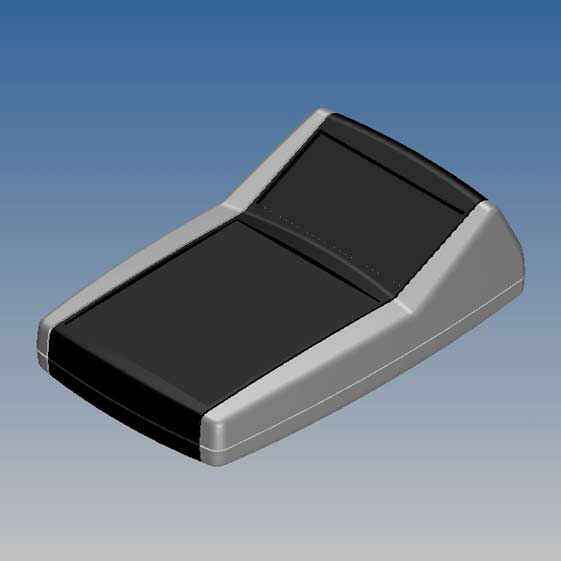

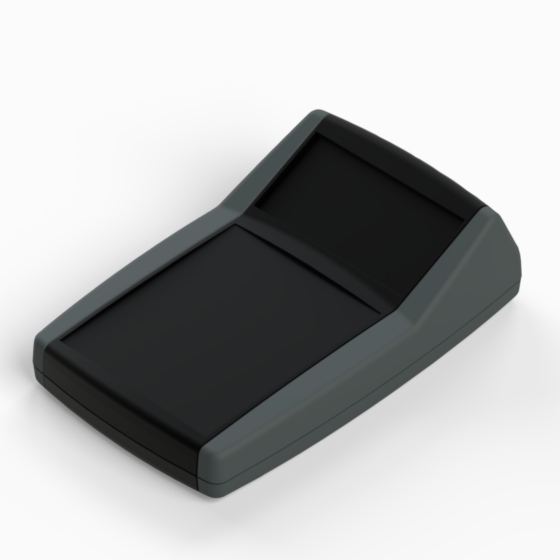

TNP21.29 150 96 46 9004 7012
P2H-AT  -  8020 138 77 4 - PDF
DWG
View

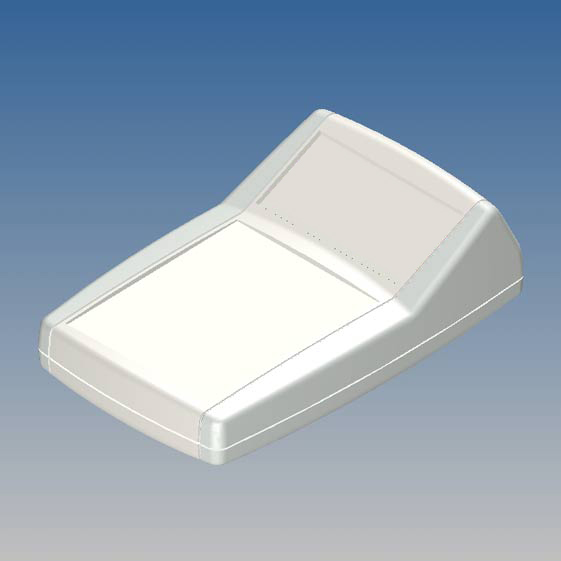

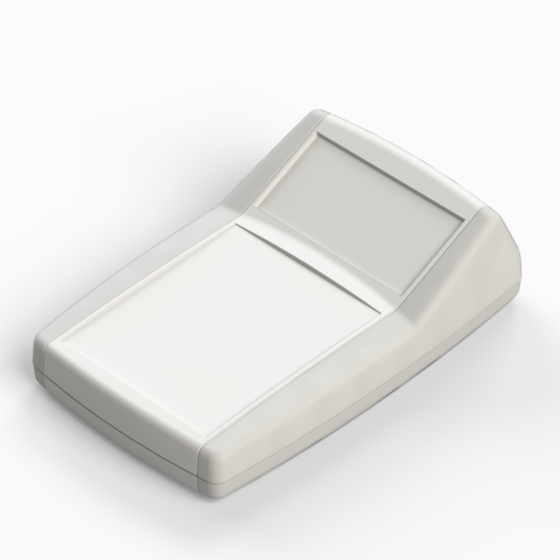

TNP21.30 150 96 46 9002 9018
P2H-AT  -  8020 138 77 4 - PDF
DWG
View

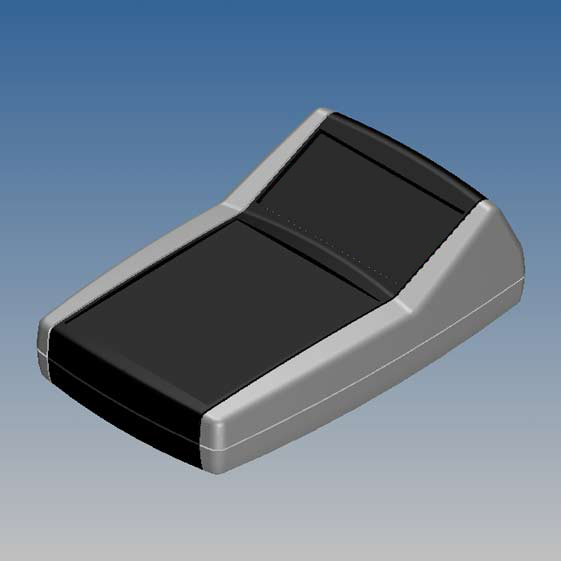

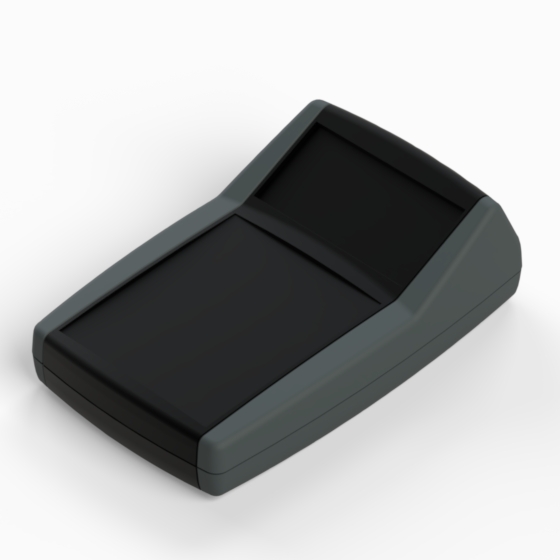

TNP22.29 150 96 50 9004 7012
P2H-AT  -  8020 138 77 4 - PDF
DWG
View
TNP22.30 150 96 50 9002 9018
P2H-AT  -  8020 138 77 4 - PDF
DWG
View

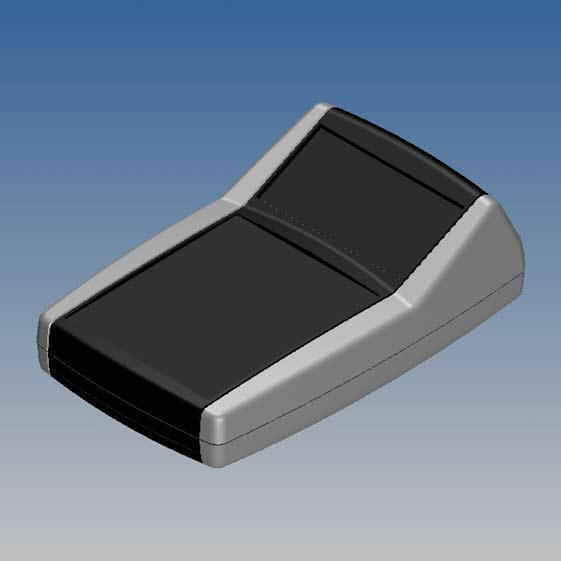

TNP22-B.29 150 96 50 9004 7012
P2H-AT  -  8020 98 77 4 2 x AA / 1 x 9V AB9
PDF
DWG
View

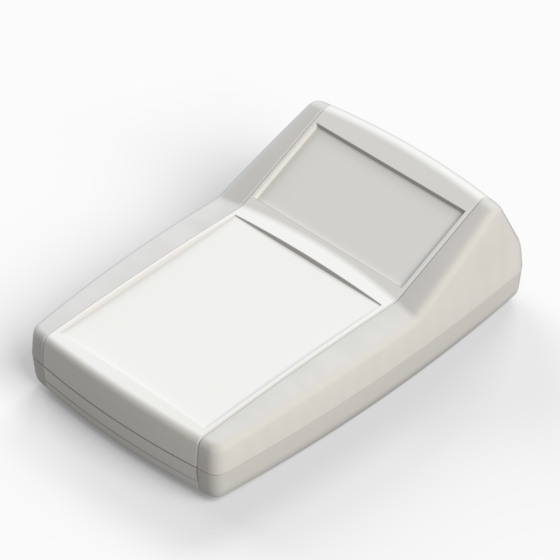

TNP22-B.30 150 96 50 9002 9018
P2H-AT  -  8020 98 77 4 2 x AA / 1 x 9V AB9
PDF
DWG
View
TNP22-B2.29 150 96 50 9004 7012
P2H-AT  -  8020 81 59 4 4 x AA / 2 x 9V AB9
PDF
DWG
View

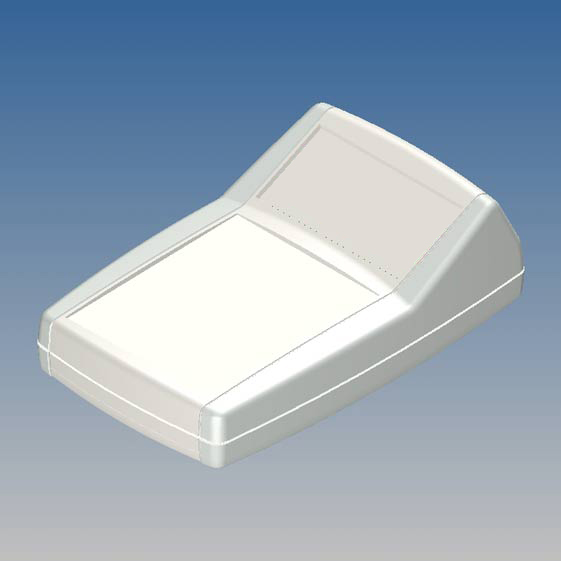

TNP22-B2.30 150 96 50 9002 9018
P2H-AT  -  8020 81 59 4 4 x AA / 2 x 9V AB9
PDF
DWG
View

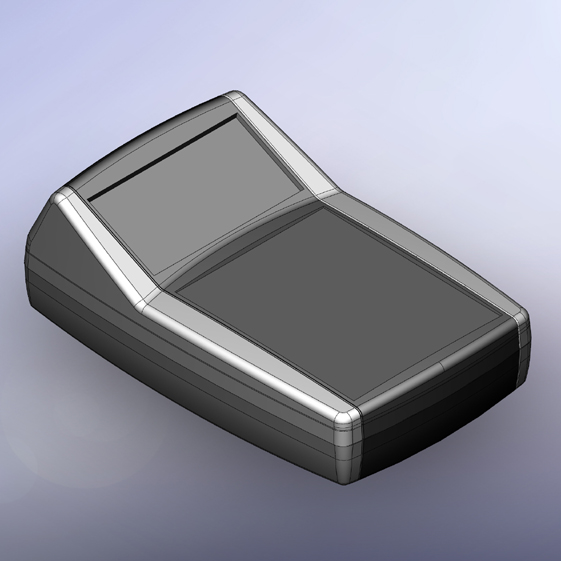

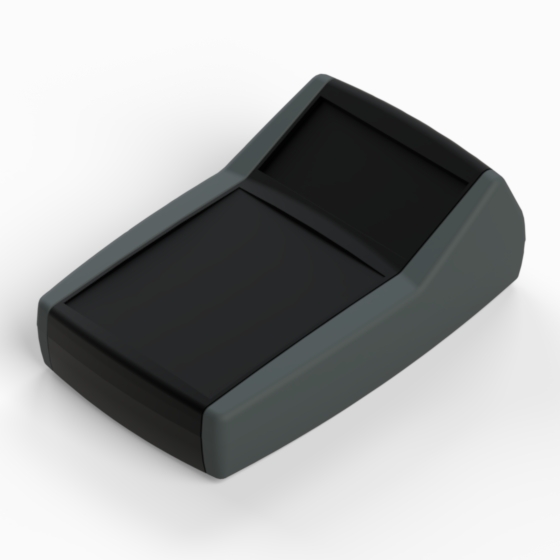

TNP23.29 155 95 55 9004 7012
P2H-AT  -  8020 138 77 4   PDF
DWG
View

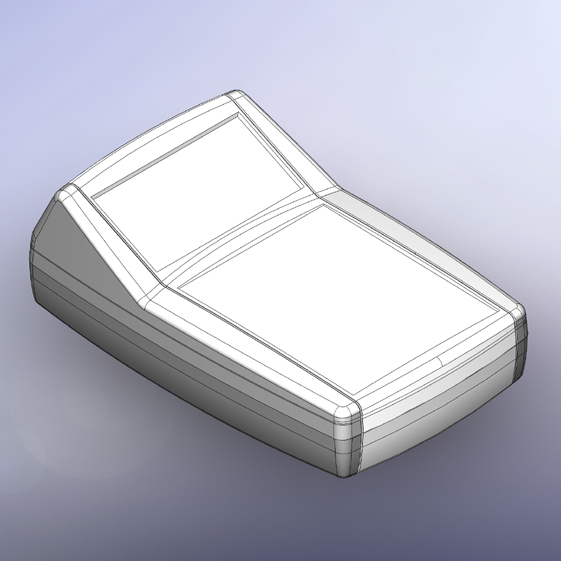

TNP23.30 155 95 55 9002 9018
P2H-AT  -  8020 138 77 4   PDF
DWG
View
