TENCLOS PULPIT

Family Handheld - Electronic enclosures - Plastic

Description

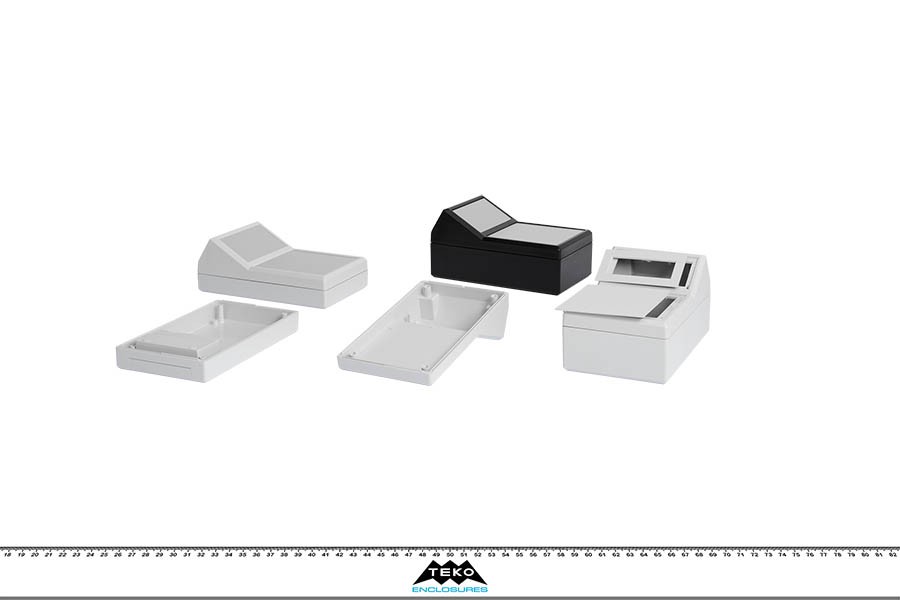

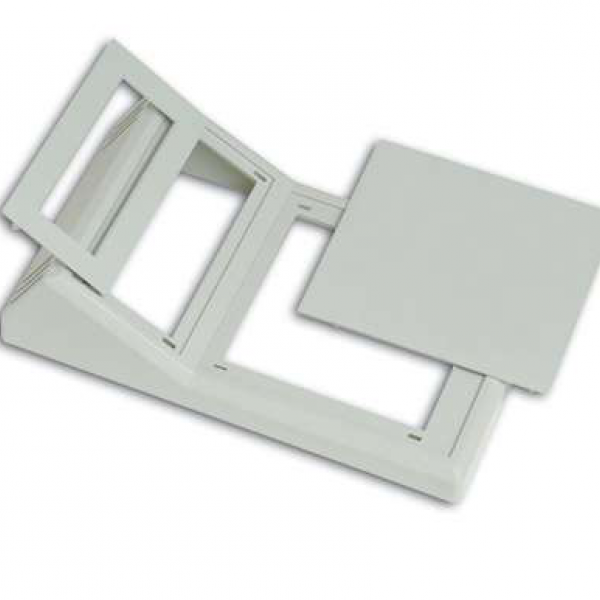

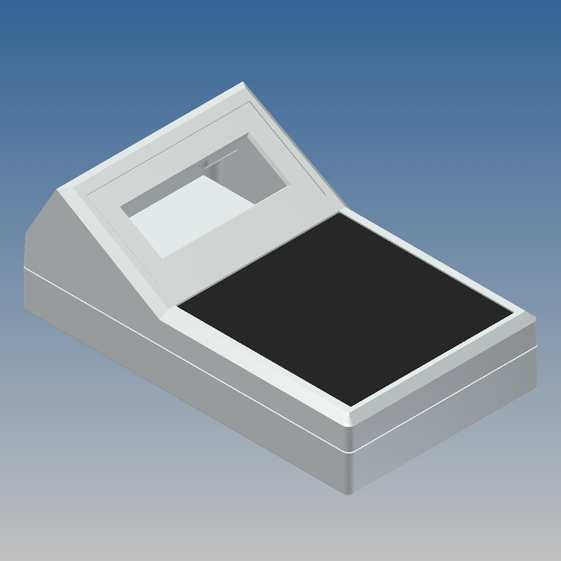

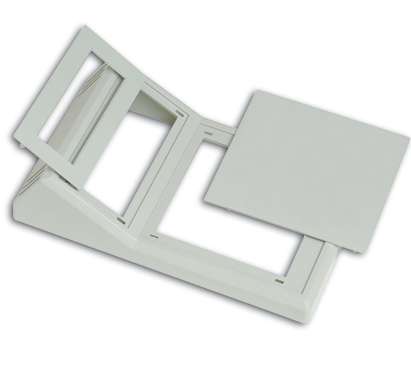

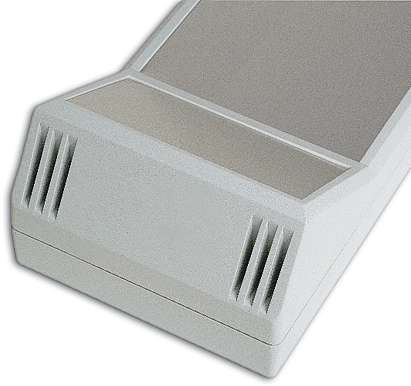

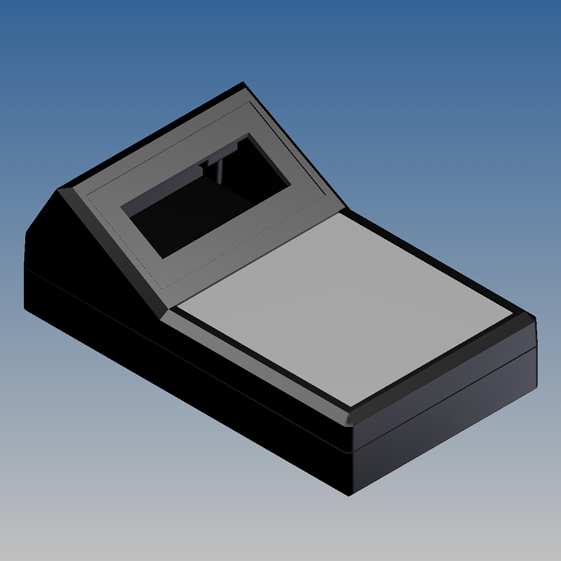

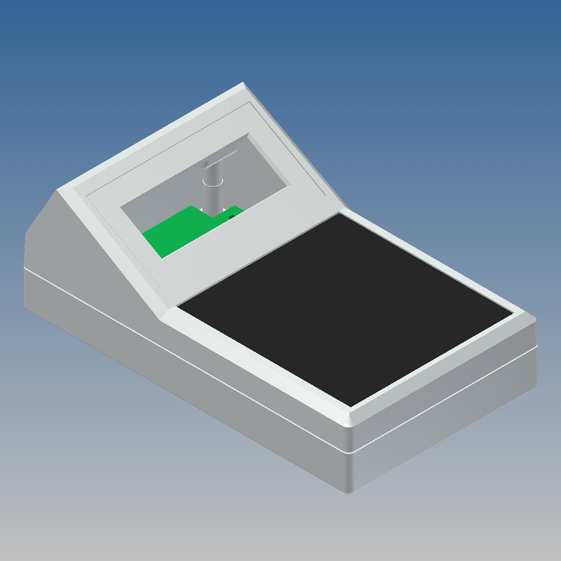

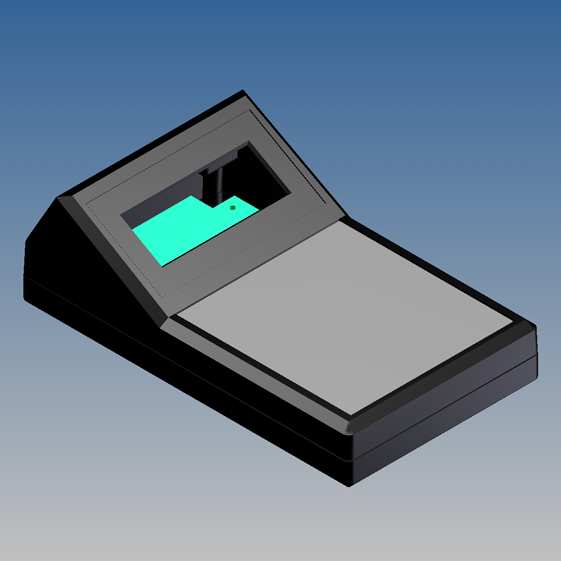

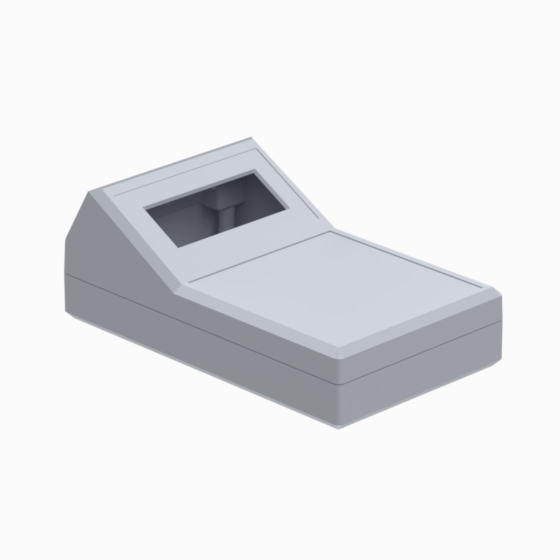

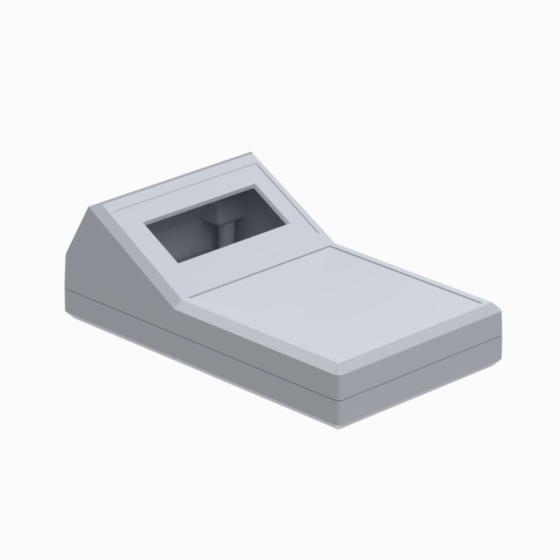

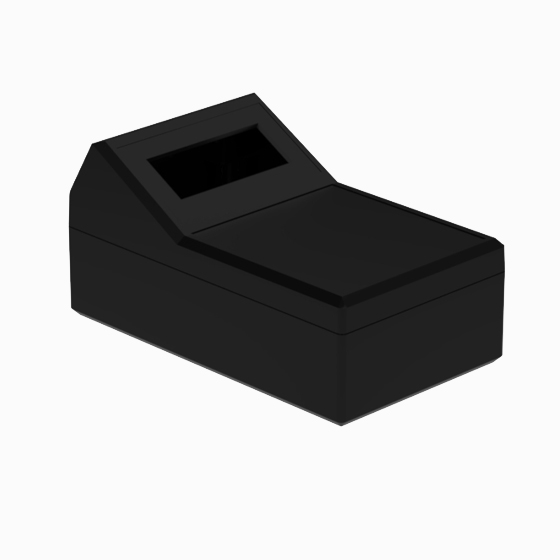

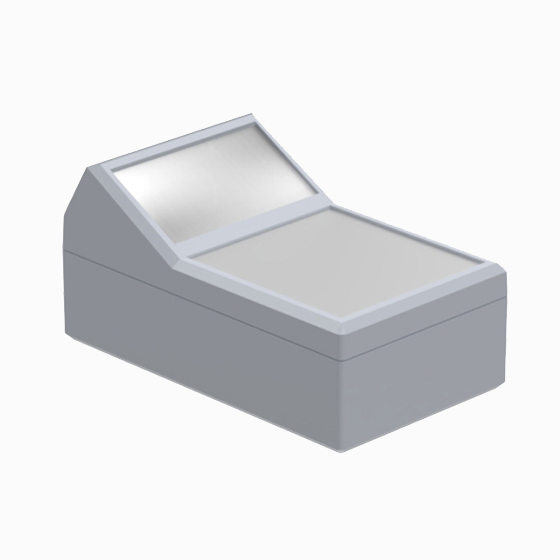

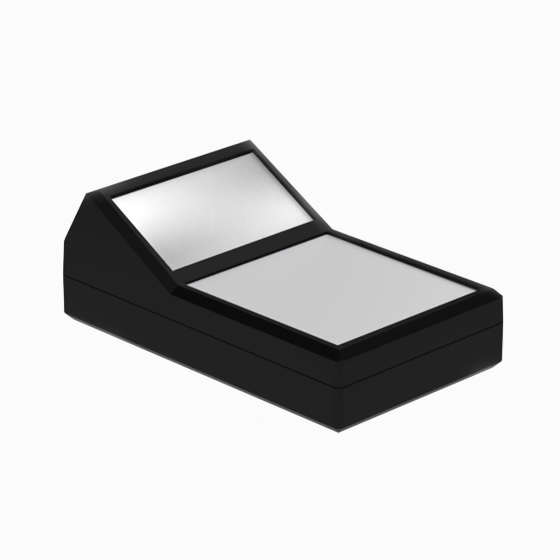

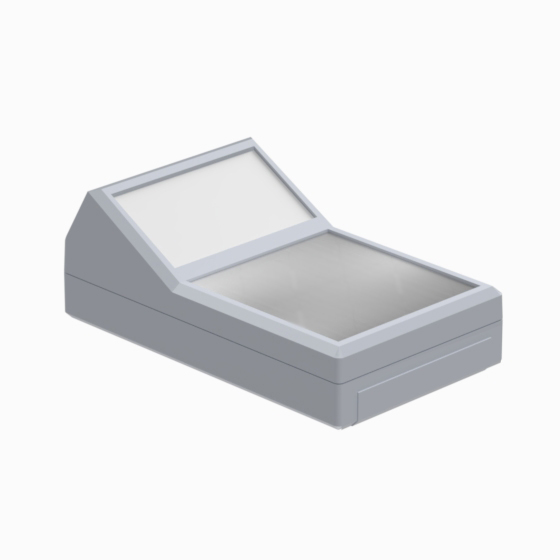

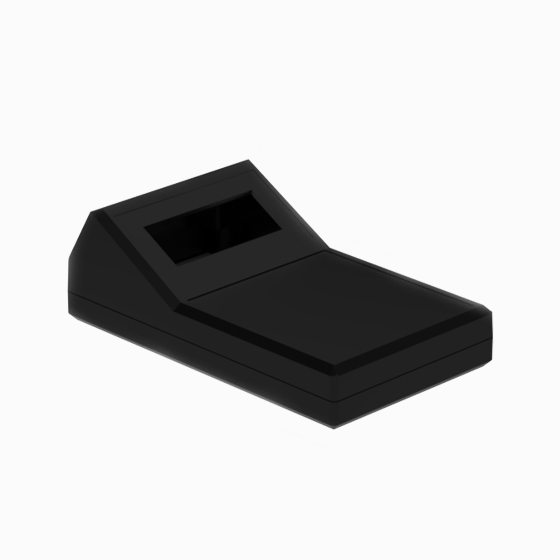

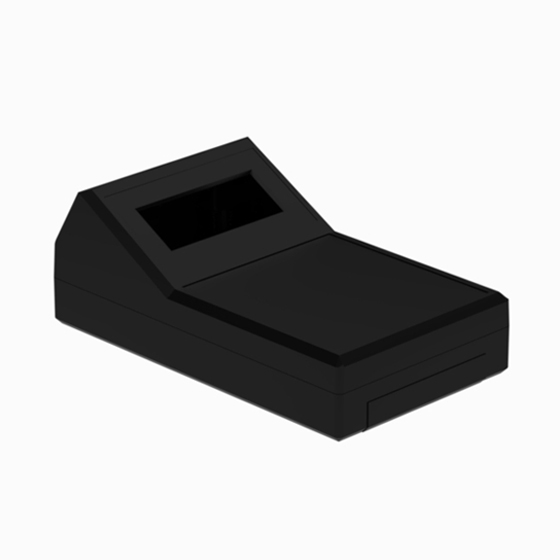

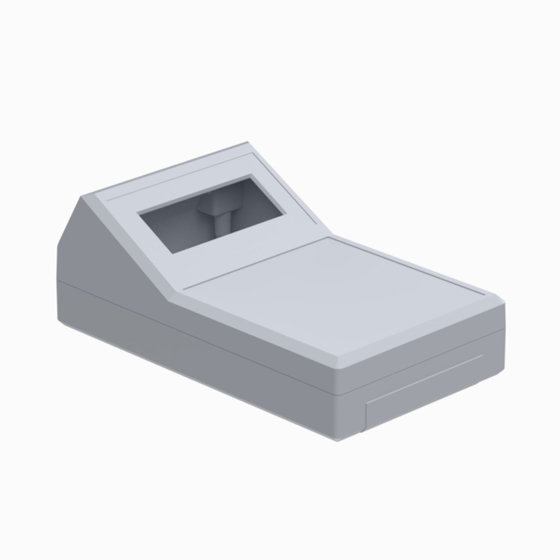

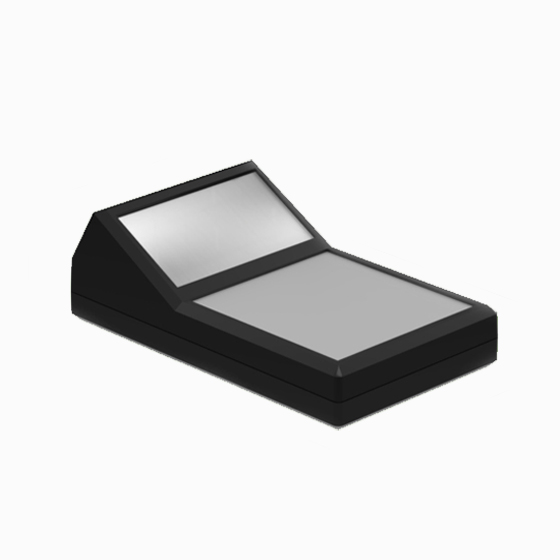

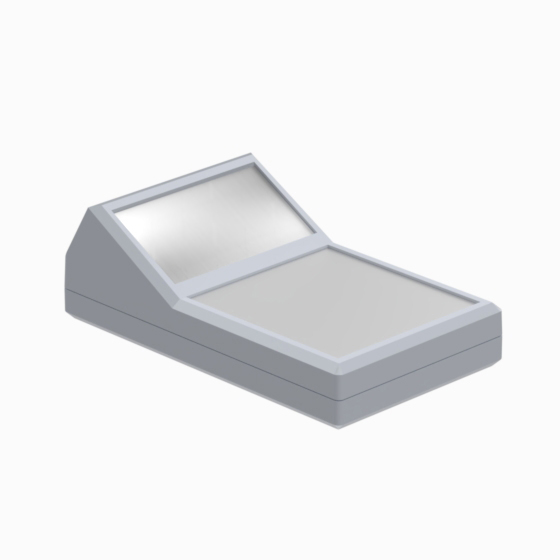

ABS enclosures with inclined cover. Matt surfaces finish. The base has integral PCB mounting studs. The models with “-B” have a 9V battery compartment with snap-on cover. The models with “D” have plastic punch-out lids for display (55 x 20 mm). Closing by four screws. Upon request ABS mounting tabs (Mod. MT1).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

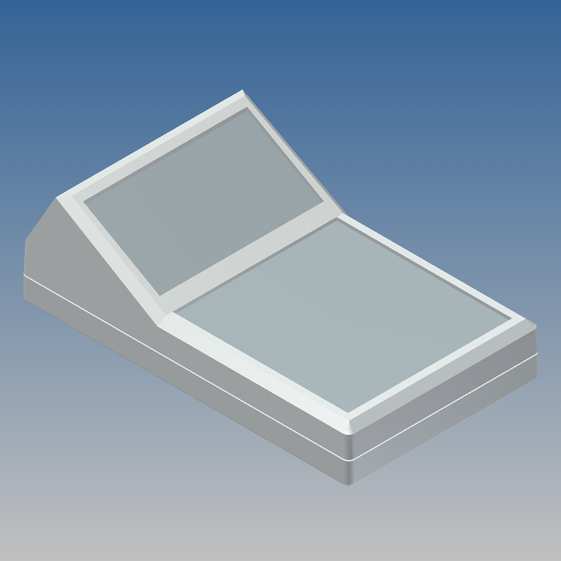

590.5 145 85 49 9018
AG-ATY 97,6 75,2 4 - MT1
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG

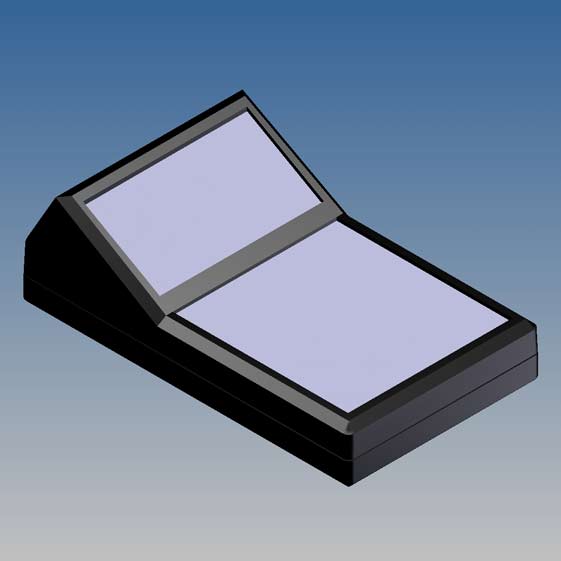

590.9 145 85 49 9004
P2H-AT 97,6 75,2 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG

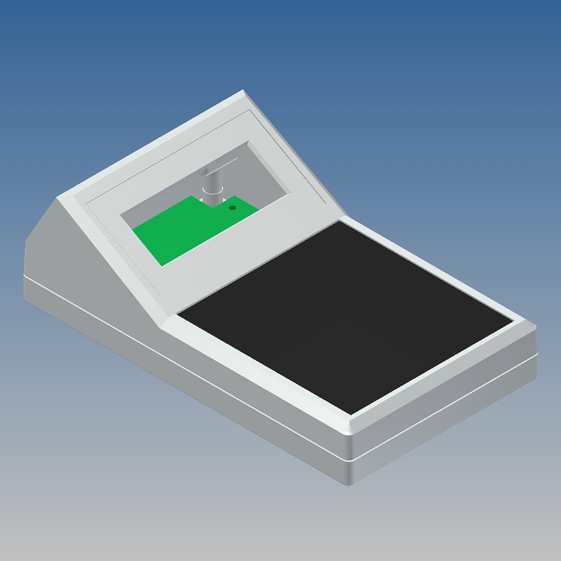

590/D.5 145 85 49 9018
AG-ATY 97,6 75,2 4 - MT1
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG
590/D.9 145 85 49 9004
P2H-AT 97,6 75,2 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG
680-B.5 145 85 55 9018
AG-ATY 97,6 75,2 4 1 x 9V AB9
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: 1 x 9V
  • Accessories: AB9
  • Drawings:  PDF  DWG
680-B.9 145 85 55 9004
P2H-AT 97,6 75,2 4 1 x 9V AB9
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: 1 x 9V
  • Accessories: AB9
  • Drawings:  PDF  DWG
680D-B.5 145 85 55 9018
AG-ATY 97,6 75,2 4 1 x 9V AB9
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: 1 x 9V
  • Accessories: AB9
  • Drawings:  PDF  DWG
680D-B.9 145 85 55 9004
P2H-AT 97,6 75,2 4 1 x 9V AB9
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: 1 x 9V
  • Accessories: AB9
  • Drawings:  PDF  DWG
690.5 145 85 55 9018
AG-ATY 97,6 75,2 4 - MT1
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG
690.9 145 85 55 9004
P2H-AT 97,6 75,2 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG

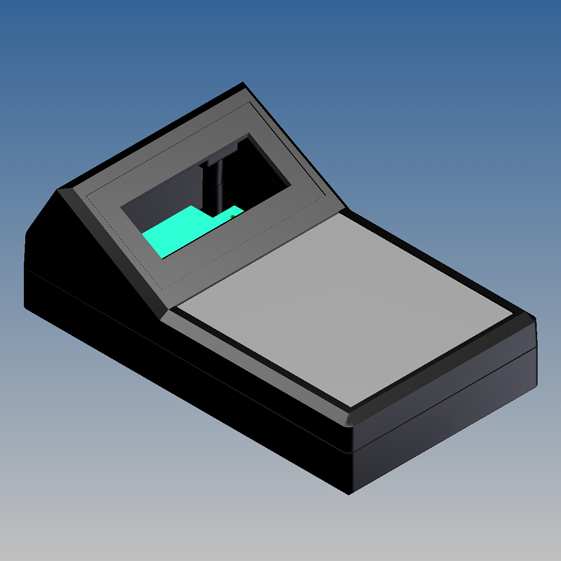

690/D.5 145 85 55 9018
AG-ATY 97,6 75,2 4 - MT1
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG
690/D.9 145 85 55 9004
P2H-AT 97,6 75,2 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG
790.5 145 85 73 9018
AG-ATY 97,6 75,2 4 - MT1
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG

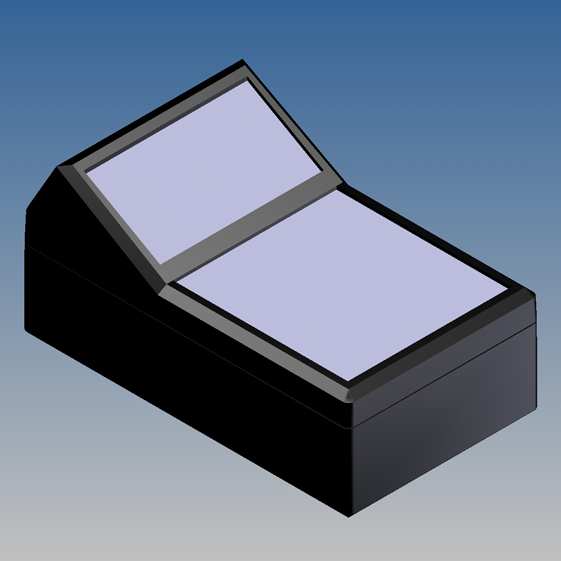

790.9 145 85 73 9004
P2H-AT 97,6 75,2 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG

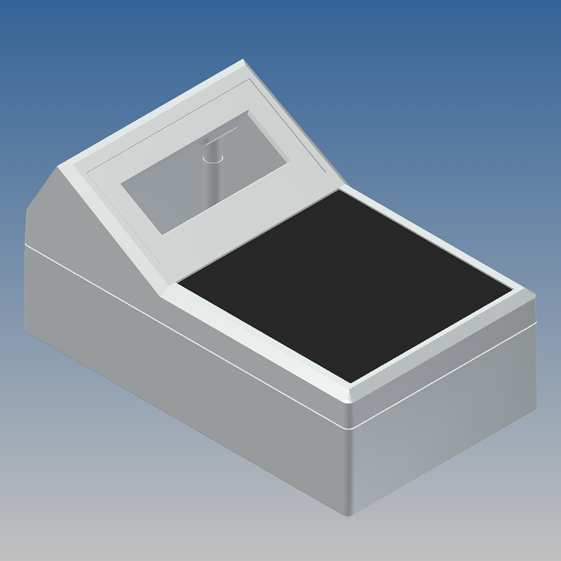

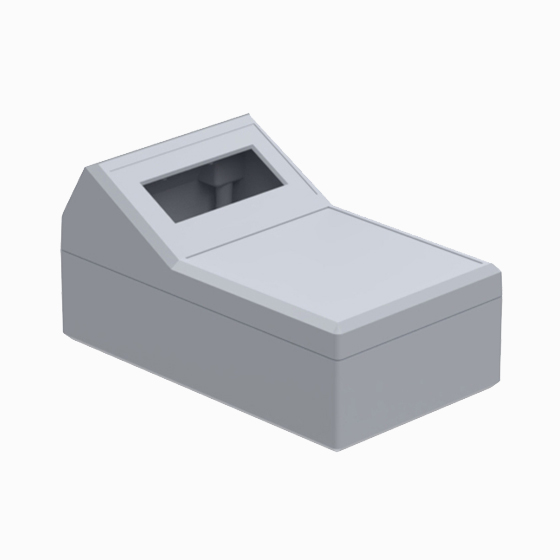

790/D.5 145 85 73 9018
