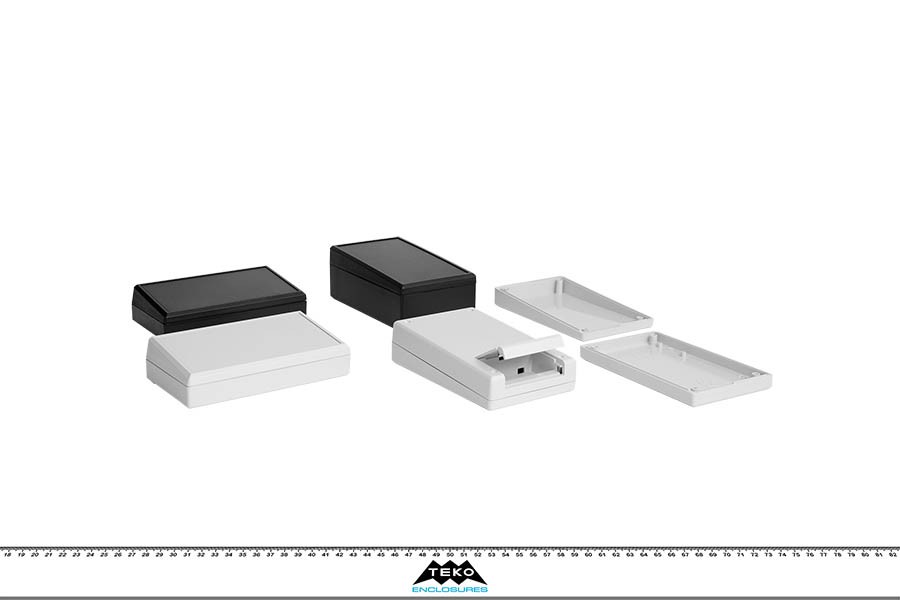

TENCLOS SLANT SLOPE

Family Handheld - Electronic enclosures - Plastic

Description

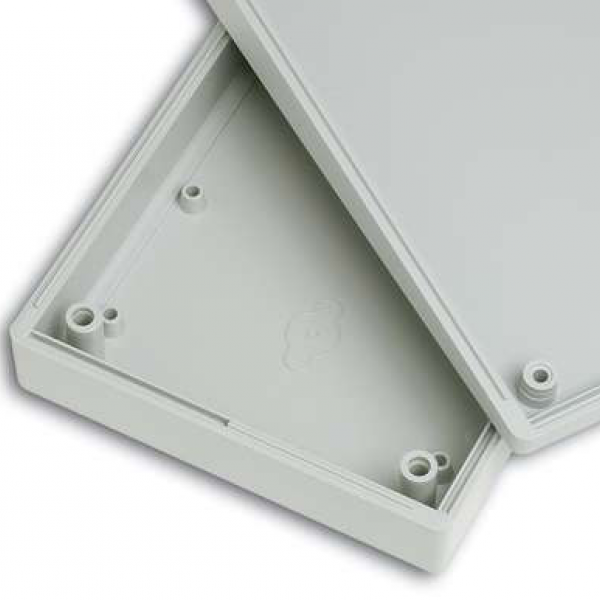

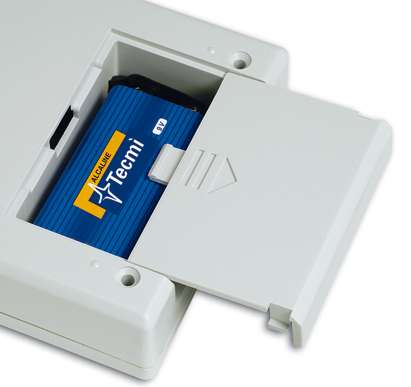

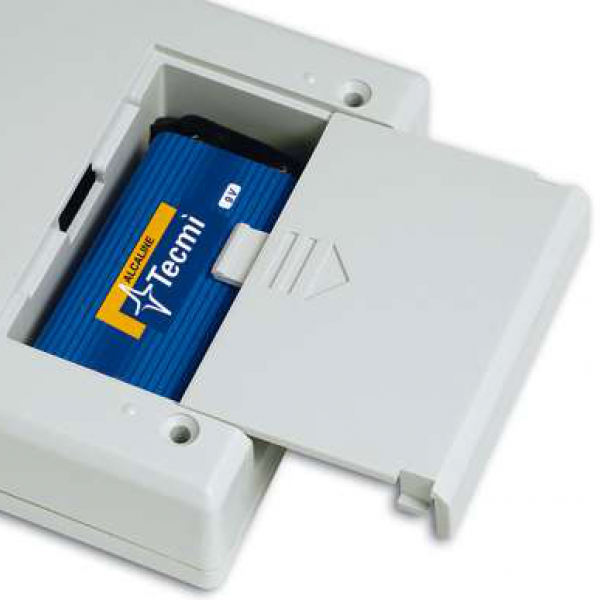

ABS enclosures with inclined cover. Matt surfaces finish. The base has integral PCB mounting studs. The models with “-B” have a 9V battery compartment with snap-on cover. Closing by four screws. Upon request ABS mounting tabs (Mod. MT1), Anodised aluminium panel (Mod. APTB).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

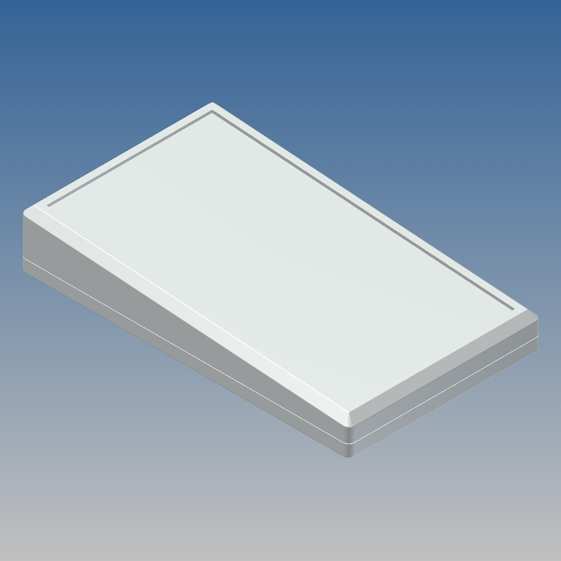

450S.5 145 85 27,5 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

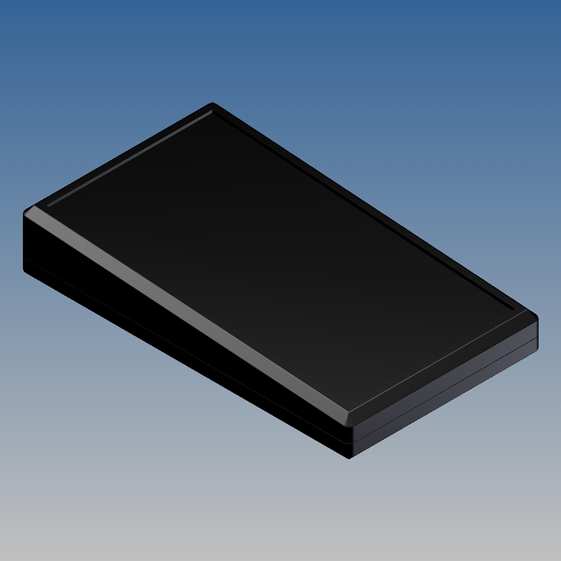

450S.9 145 85 27,5 9004
P2H-AT 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View
450SP.5 145 85 27,5 9018
AG-ATY - - - - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
450SP.9 145 85 27,5 9004
P2H-AT - - - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

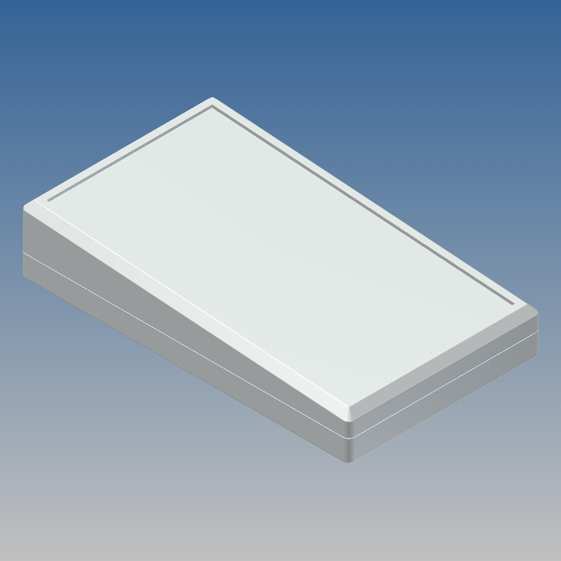

550S.5 145 85 31,5 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View
550S.9 145 85 31,5 9004
P2H-AT 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

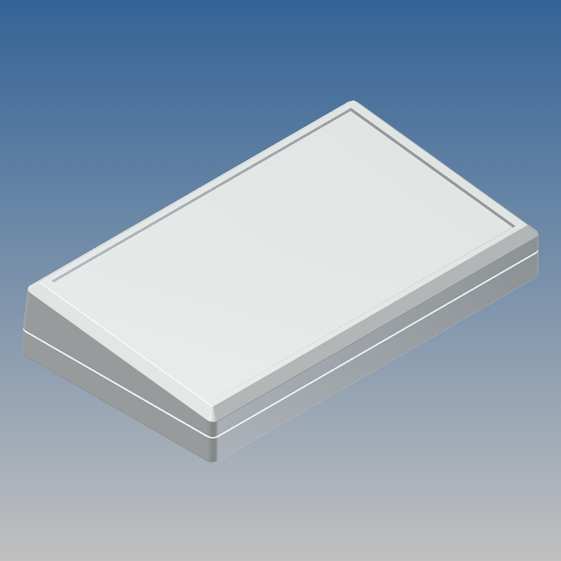

550SP.5 145 85 31,5 9018
AG-ATY 135,2 75,2 4 - APTB
MT1
PDF
DWG
View

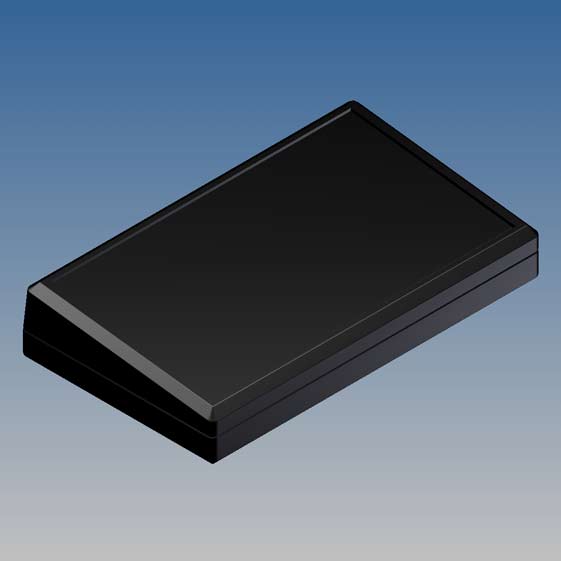

550SP.9 145 85 31,5 9004
P2H-AT 135,2 75,2 4 - APTB
MT1
PDF
DWG
View
660S.5 145 85 37,5 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

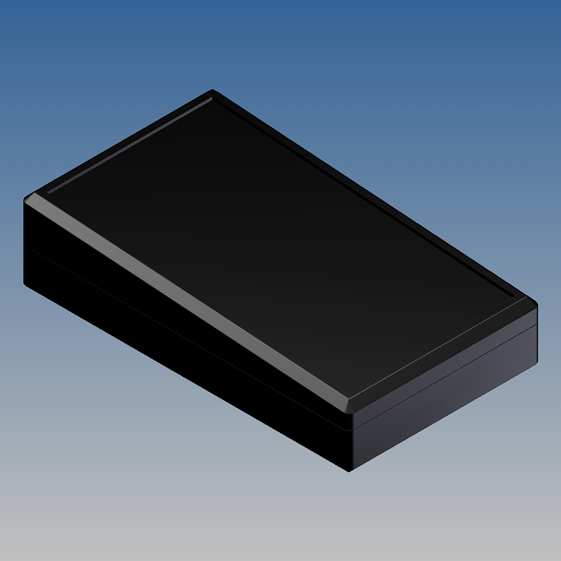

660S.9 145 85 37,5 9004
P2H-AT 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

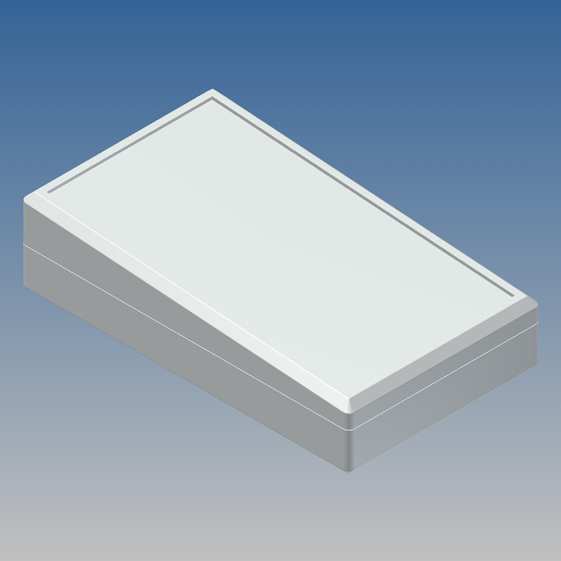

660S-B.5 145 85 37,5 9018
AG-ATY 135,2 75,2 4 1 x 9V AB9
APTB
M
M58
M59
MW
PDF
DWG
View
660S-B.9 145 85 37,5 9004
P2H-AT 135,2 75,2 4 1 x 9V AB9
APTB
M
M58
M59
MW
PDF
DWG
View

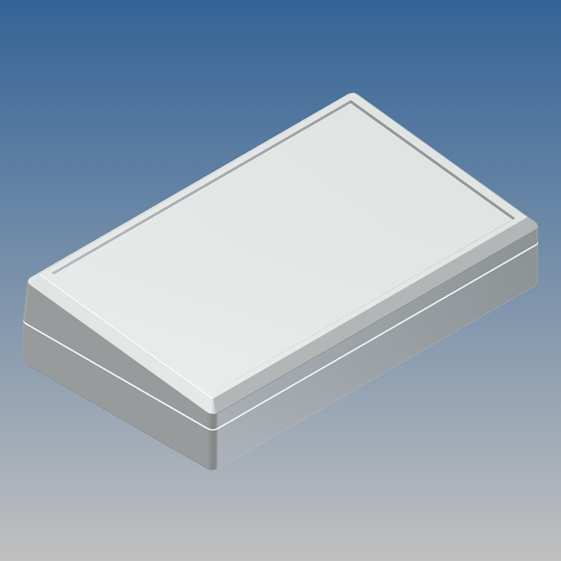

660SP.5 145 85 37,5 9018
AG-ATY 97,6 75,2 4 - APTB
MT1
PDF
DWG
View
660SP.9 145 85 37,5 9004
P2H-AT 97,6 75,2 4 - APTB
MT1
PDF
DWG
View
660SP-B.5 145 85 37,5 9018
AG-ATY 97,6 75,2 4 1 x 9V AB9
APTB
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: 1 x 9V
  • Accessories: AB9 APTB
  • Drawings:  PDF  DWG

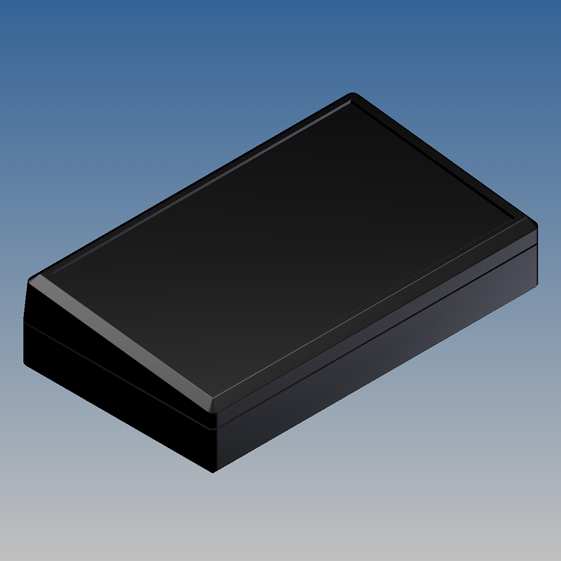

660SP-B.9 145 85 37,5 9004
P2H-AT 97,6 75,2 4 1 x 9V AB9
APTB
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 97,6
  • MAX PCB W (mm): 75,2
  • Screws: 4
  • Battery: 1 x 9V
  • Accessories: AB9 APTB
  • Drawings:  PDF  DWG

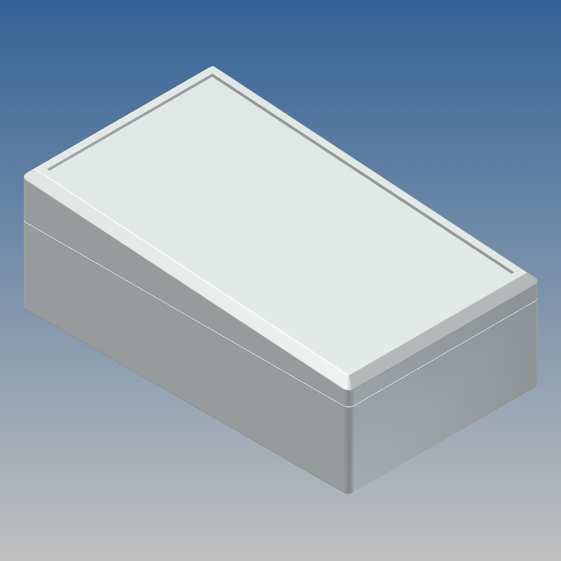

770S.5 145 85 55,5 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

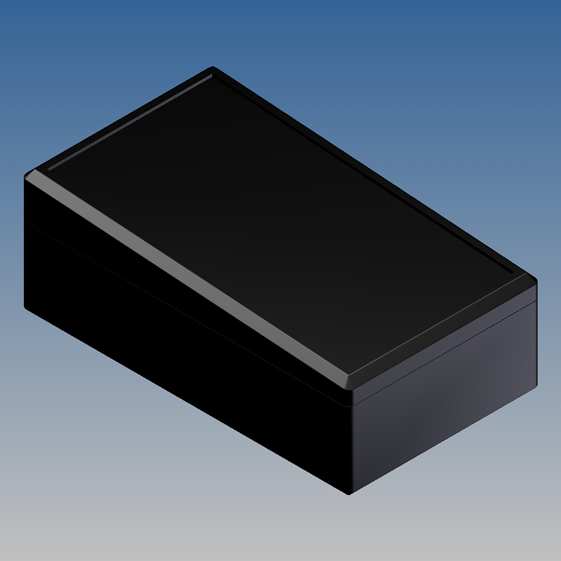

770S.9 145 85 55,5 9004
P2H-AT 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

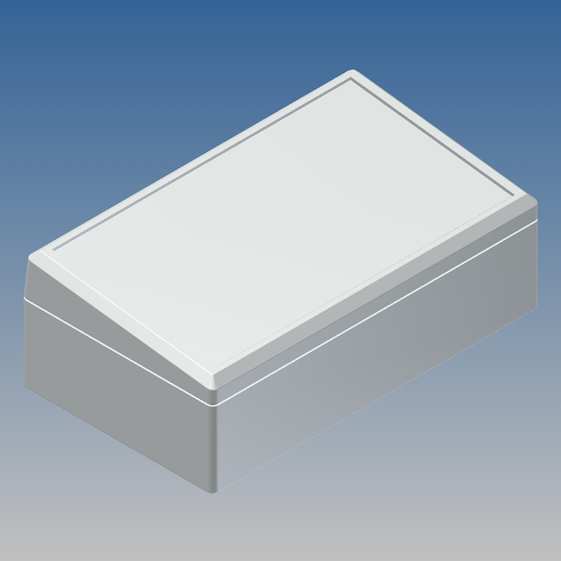

770SP.5 145 85 55,5 9018
AG-ATY 97,6 75,2 4 - APTB
MT1
PDF
DWG
View

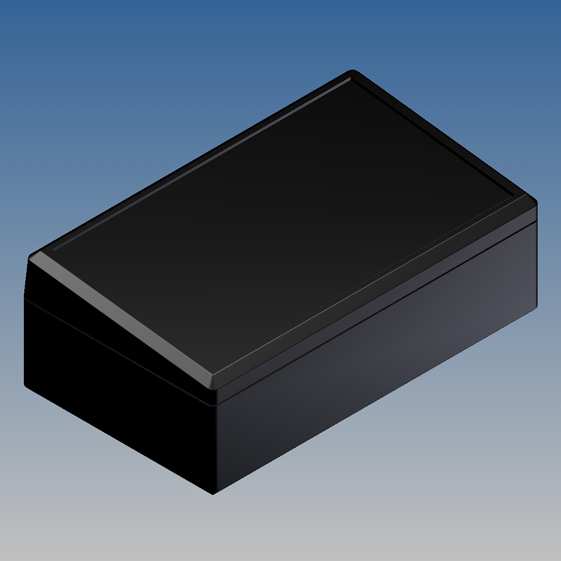

770SP.9 145 85 55,5 9004
P2H-AT 97,6 75,2 4 - APTB
MT1
PDF
DWG
View
