TK S

Family Handheld - Electronic enclosures - Plastic

Description

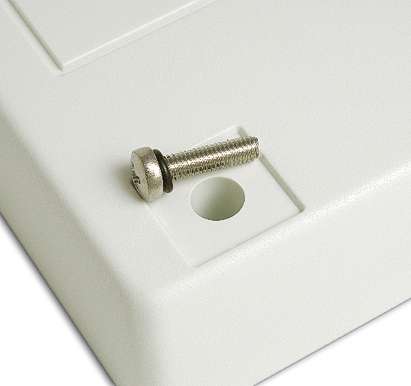

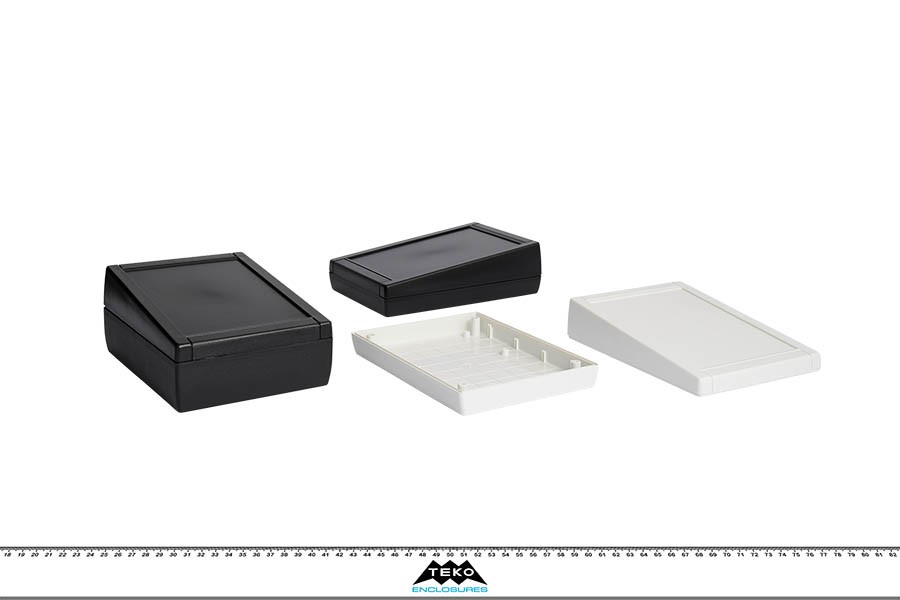

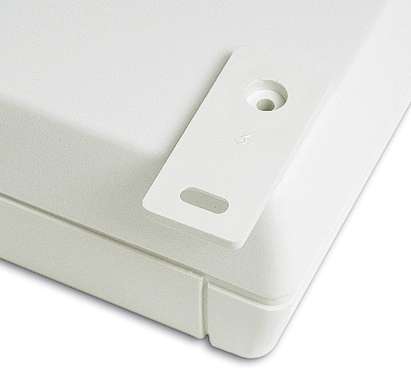

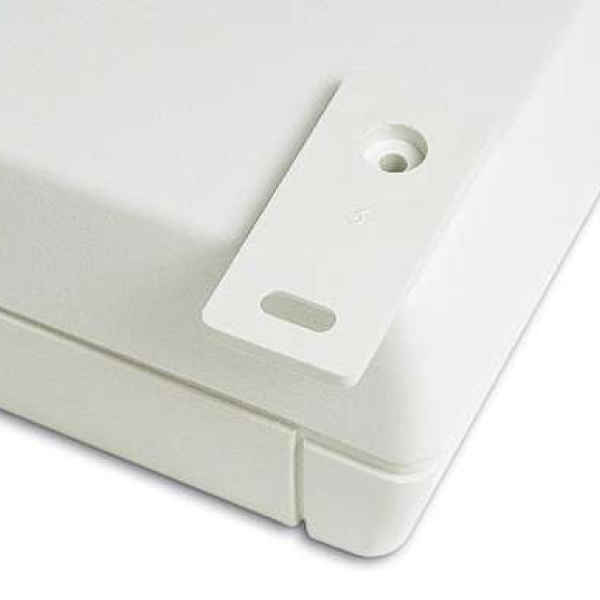

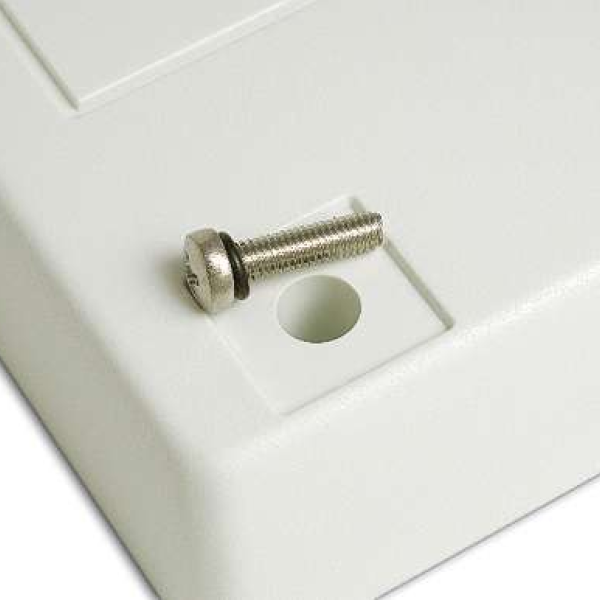

ABS enclosures with a 1.8 mm recessed area suitable for a keypad membrane or an aluminium panel. Base and cover have integral PCB guides (Eurocard 100 x 160 mm) and mounting studs. Matt surface finish. The models with “KK” have an IP65 sealing kit. Closing by four screws. Upon request aluminium panel (Mod. APTK), ABS wall mounting tabs (Mod. MT2).

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

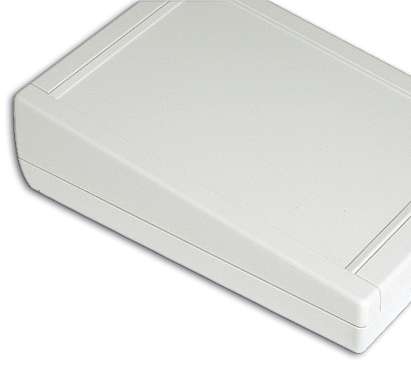

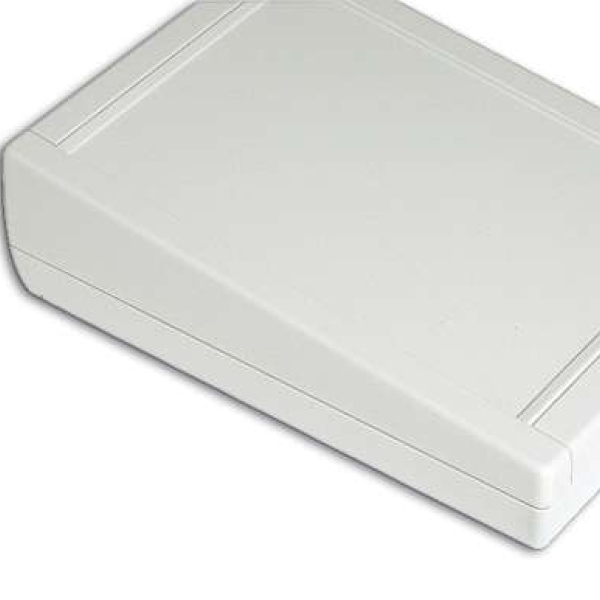

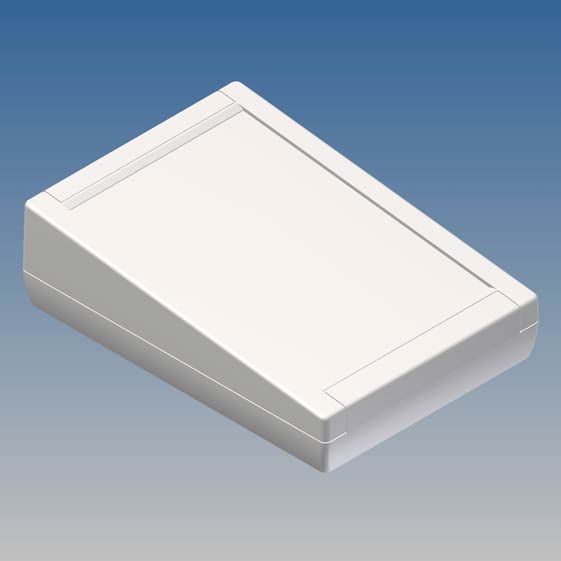

TK11S.7 188,5 133,5 56,5 9002
L320 176 119 4 - APTK
MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: APTK MT2
  • Drawings:  PDF  DWG

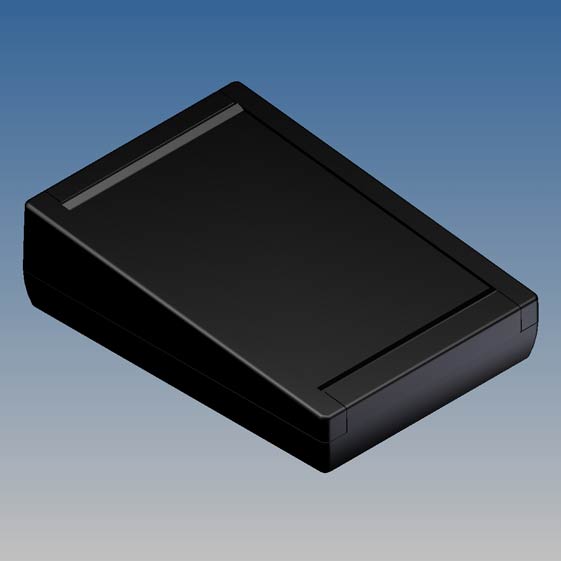

TK11S.9 188,5 133,5 56,5 9004
P2H-AT 176 119 4 - APTK
MT2
PDF
DWG
View

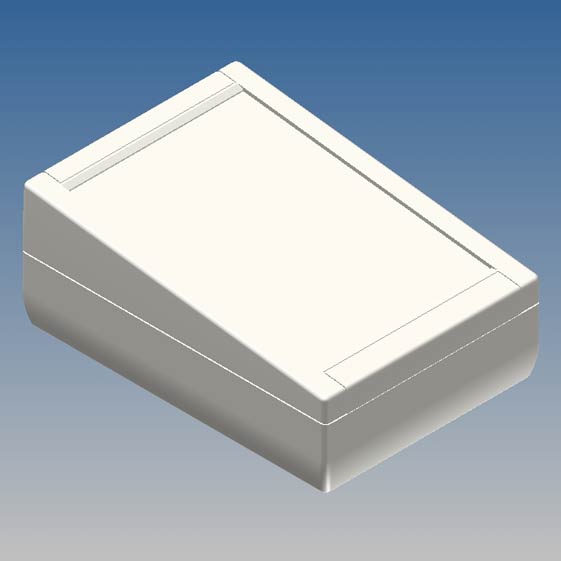

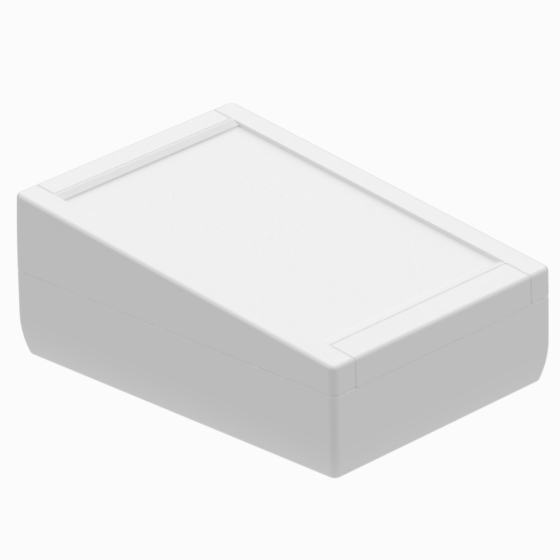

TK33S.7 188,5 133,5 75,8 9002
L320 176 119 4 - MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG

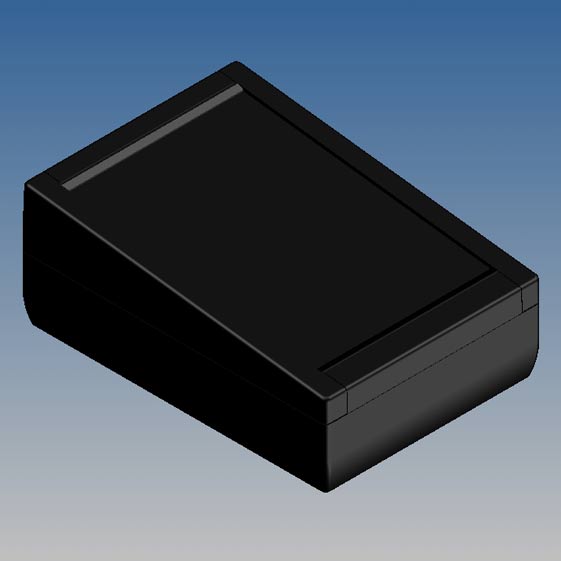

TK33S.9 188,5 133,5 75,8 9004
P2H-AT 176 119 4 - MT2
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG

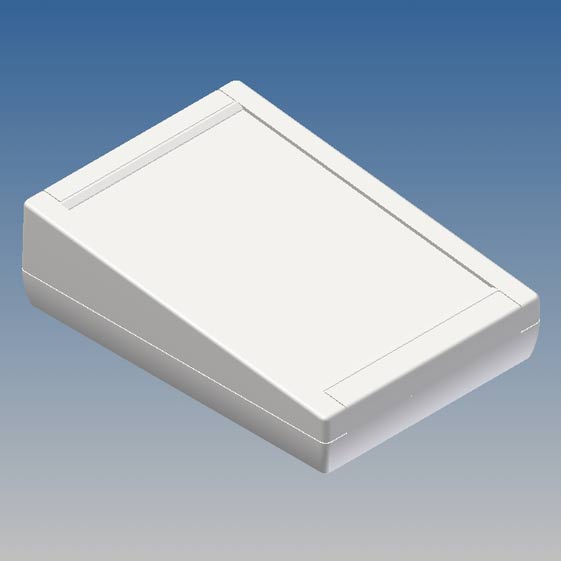

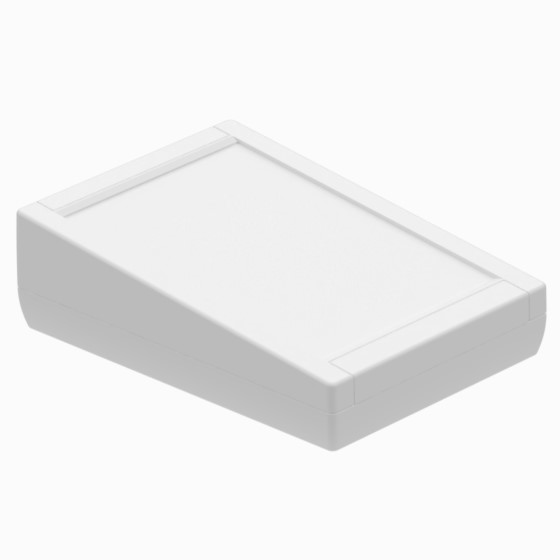

TKK11S.7 188,5 133,5 56,5 9002
L320 176 119 4 - APTK
MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: APTK MT2
  • Drawings:  PDF  DWG

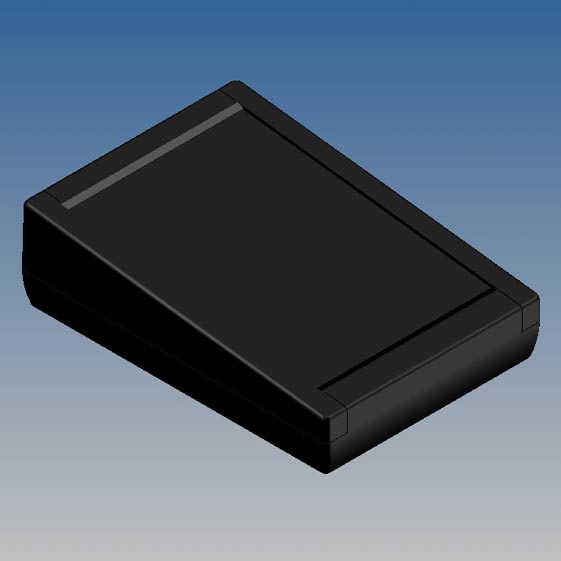

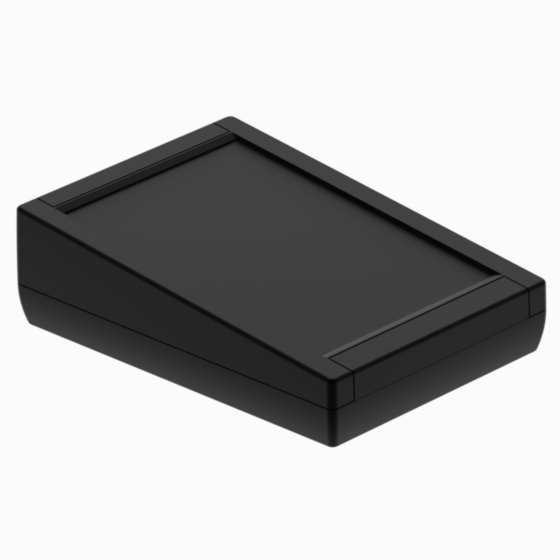

TKK11S.9 188,5 133,5 56,5 9004
P2H-AT 176 119 4 - APTK
MT2
PDF
DWG
View
TKK33S.7 188,5 133,5 75,8 9002
L320 176 119 4 - MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG

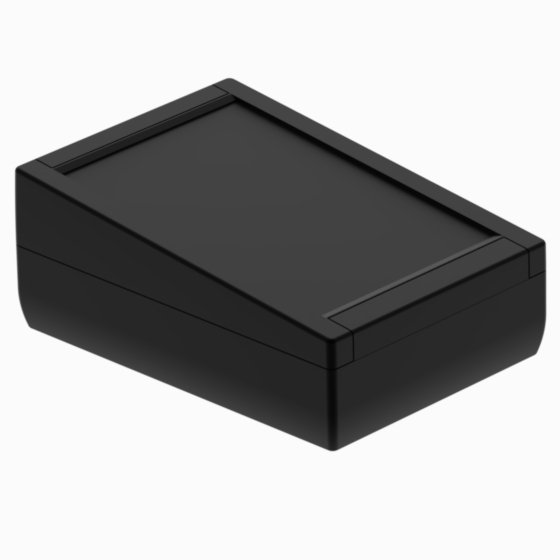

TKK33S.9 188,5 133,5 75,8 9004
P2H-AT 176 119 4 - MT2
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG
