PROCESSOR 11

Family Keyboard - Electronic enclosures - Plastic

Description

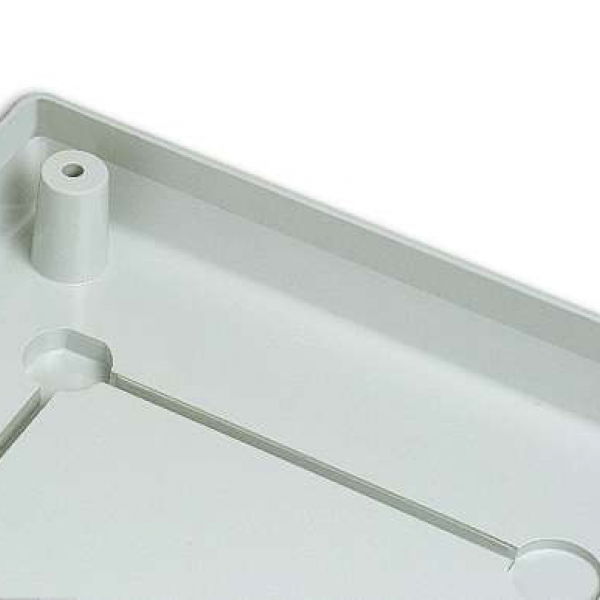

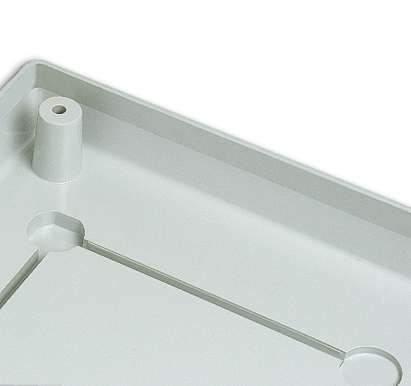

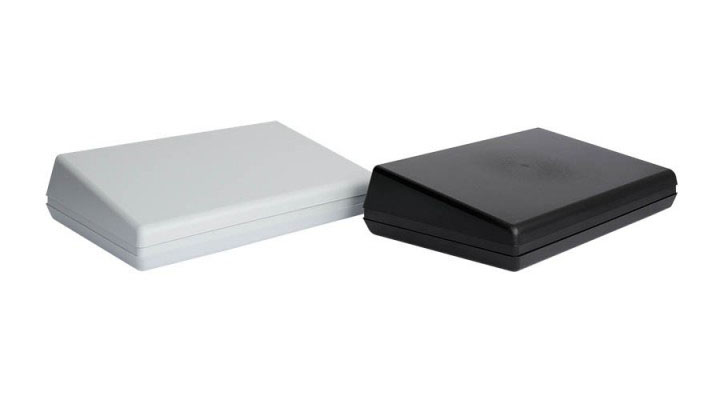

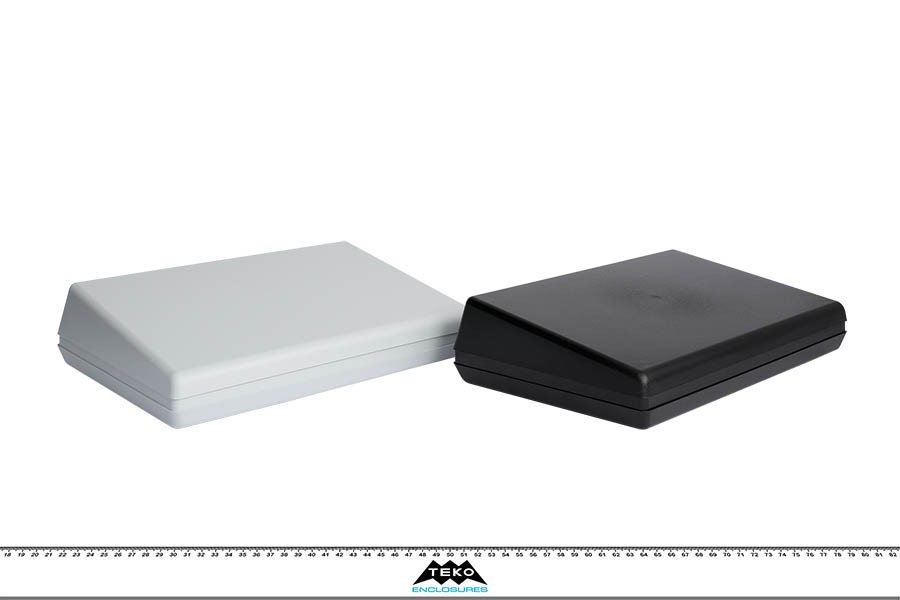

ABS case with inclined cover. The base and the cover have integral PCB mounting studs. Matt surface finish. Closing by four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

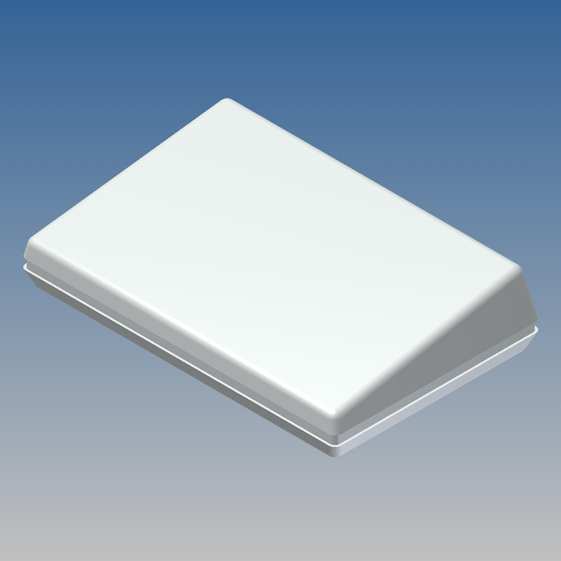

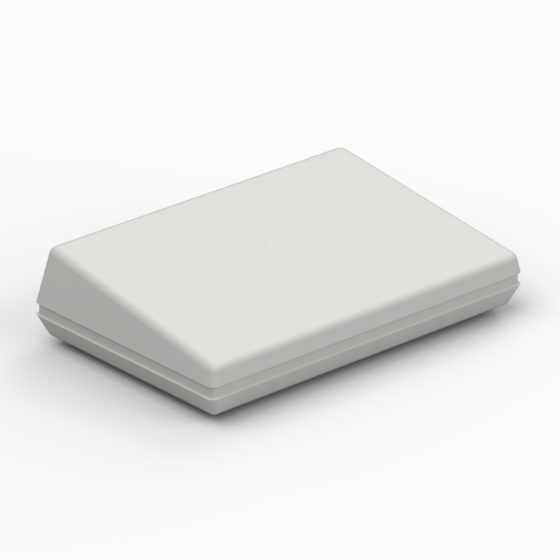

PRO11.5 320 210 81,9 9018
AG-ATY - - 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

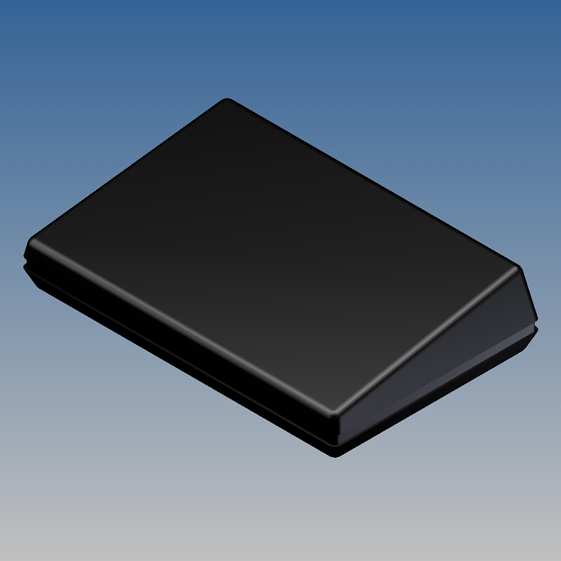

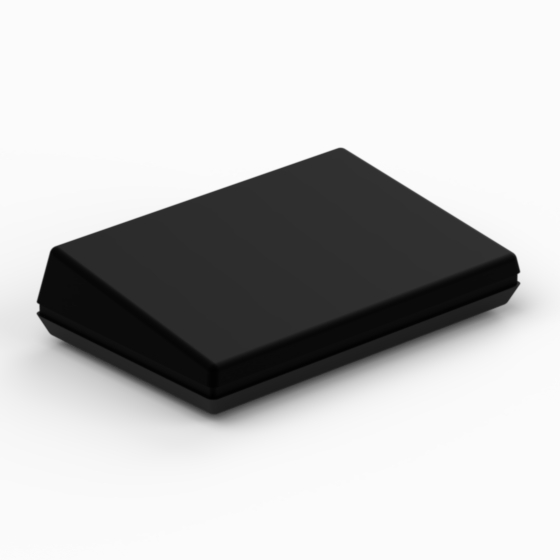

PRO11.9 320 210 81,9 9004
P2H-AT - - 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
12 product families, 144 series. You can't find what you're looking for? Contact us
