10016

Family Pocket - Electronic enclosures - Plastic

Description

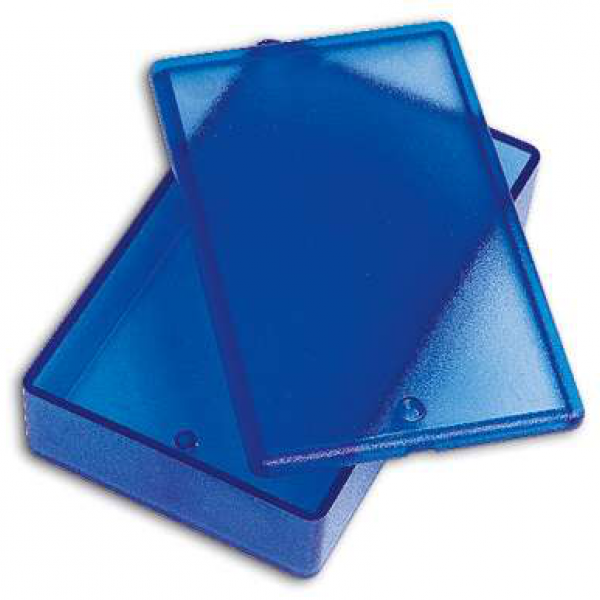

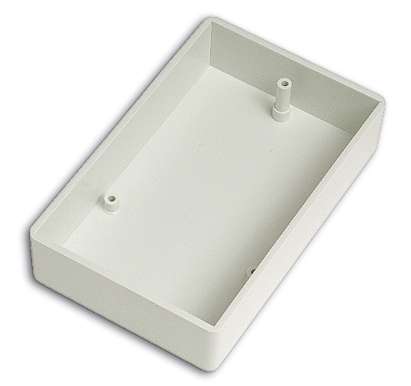

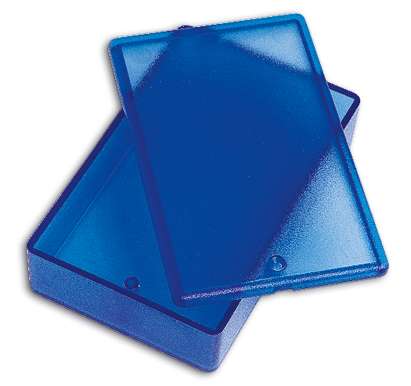

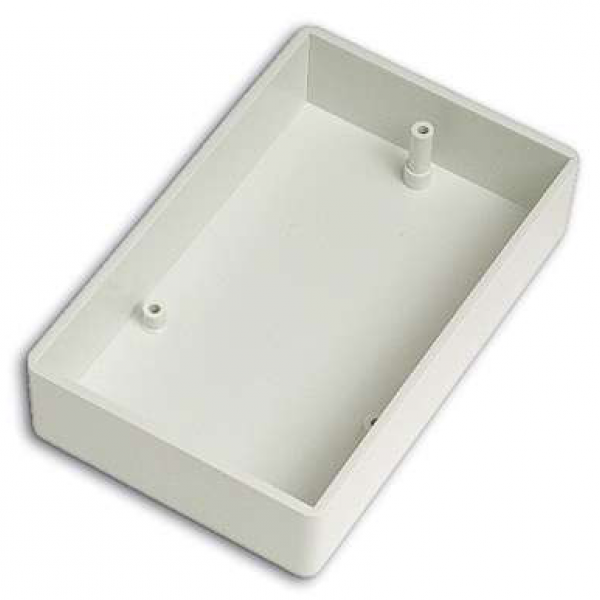

ABS enclosure with rounded corners. Base and cover have integral PCB mounting studs. They are moulded in white and transparent blue. Matt surface finish. Closing by one screw.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
10016.33 90,6 57,2 23,8  -
ZYLAR-631 76 49,7 1 - PDF
DWG
View
  • Color (Ral):  -
  • Material: ZYLAR-631
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 49,7
  • Screws: 1
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

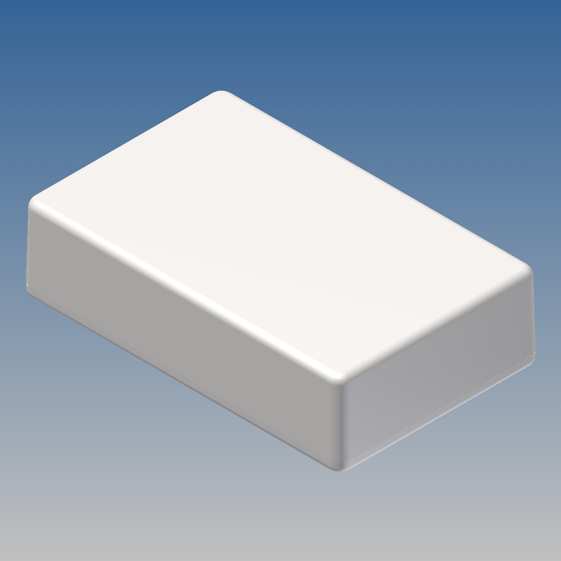

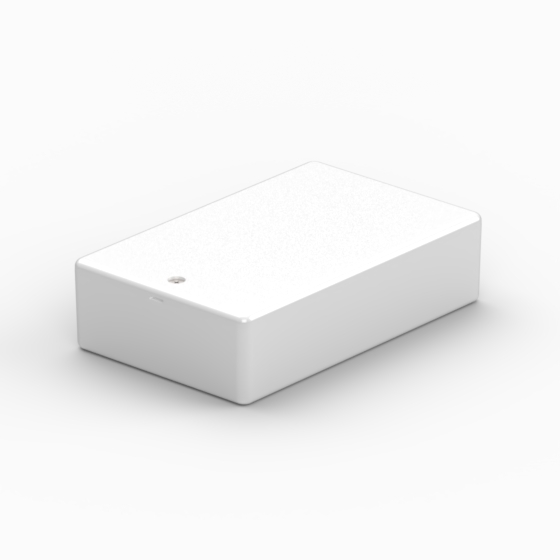

10016.7 90,6 57,2 23,8 9002
L320 76 49,7 1 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 49,7
  • Screws: 1
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
12 product families, 146 series. You can't find what you're looking for? Contact us
