OV-IP

Family Pocket - Electronic enclosures - Plastic

Description

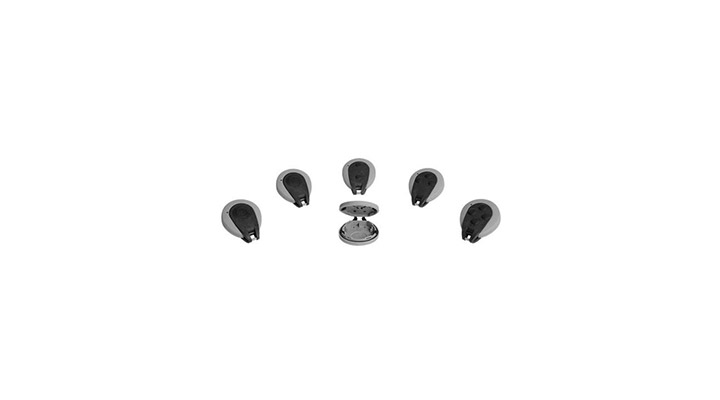

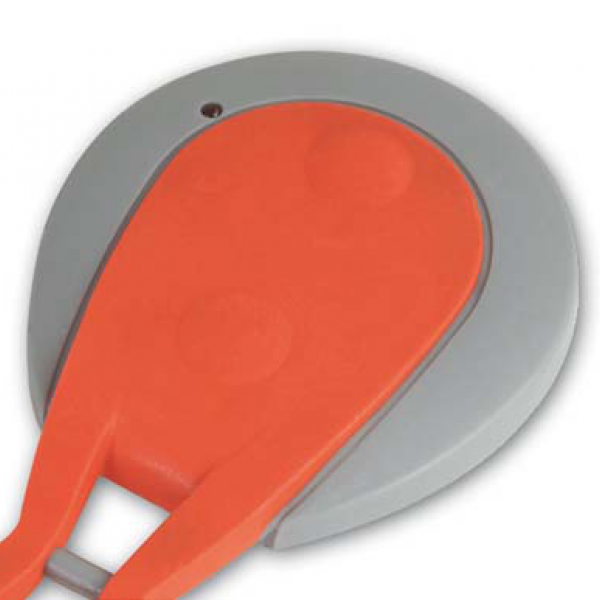

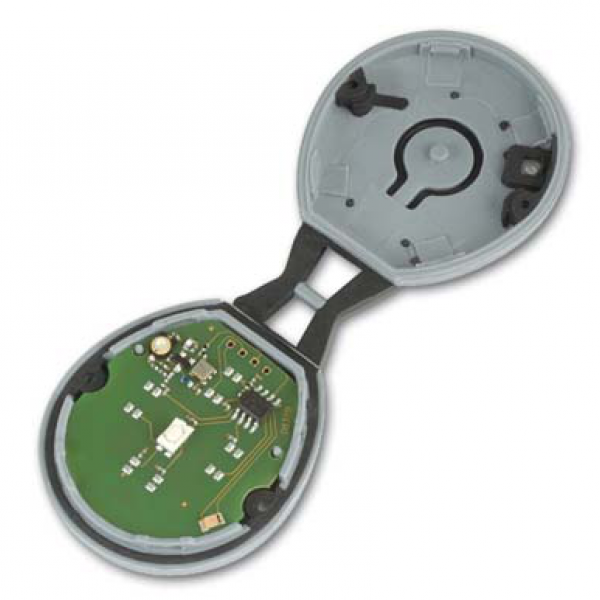

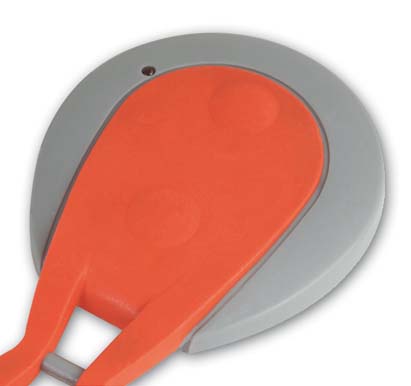

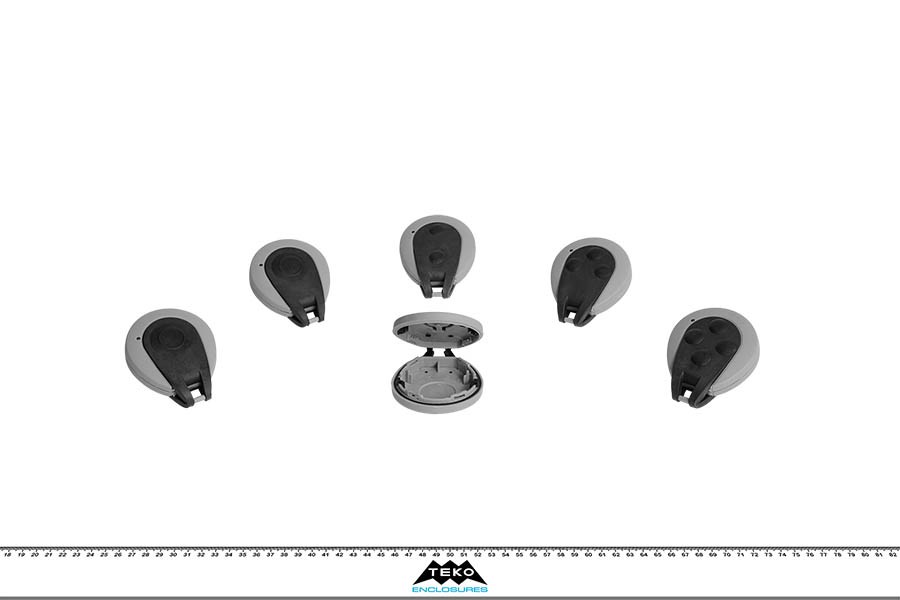

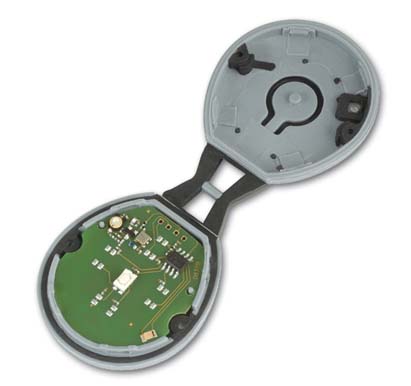

Small enclosure with ergonomic design, moulded in two materials, using multi-shot injection.Four models available, from one to four push buttons figuration. Protection class up to IP 65. Base with integral PCB mounting studs. Closing by two screws. Two-colours combination: Grey RAL 7046/ Black RAL 9004 . Applications: transmitters, personal security, home automation.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

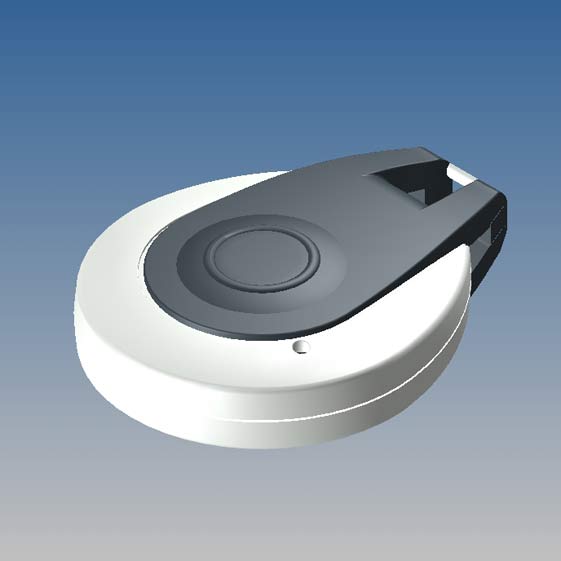

OV-IP/1.36 56,8 44 14,5 7046 9004
6512_ENC1  -  TC4PAN 38 36 2 CR2032 AB2032
PDF
DWG
View
OV-IP/2.36 56,8 44 14,5 7046 9004
6512_ENC1  -  TC4PAN 38 36 2 CR2032 AB2032
PDF
DWG
View

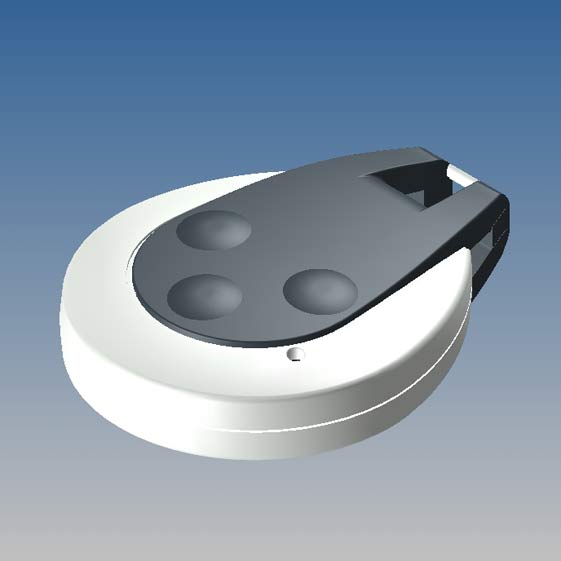

OV-IP/3.36 56,8 44 14,5 7046 9004
6512_ENC1  -  TC4PAN 38 36 2 CR2032 AB2032
PDF
DWG
View

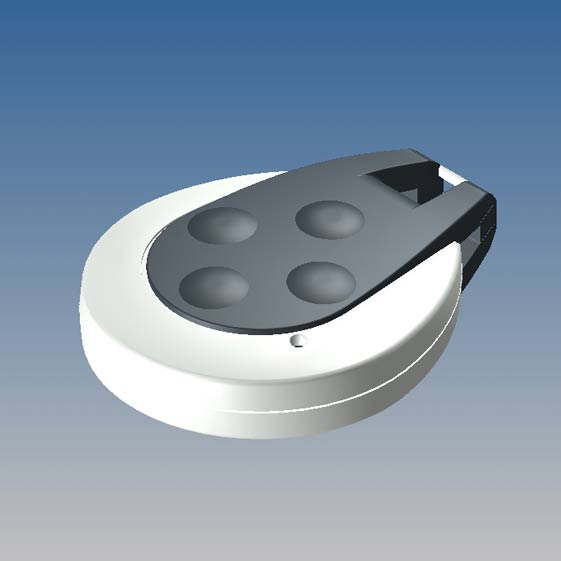

OV-IP/4.36 56,8 44 14,5 7046 9004
6512_ENC1  -  TC4PAN 38 36 2 CR2032 AB2032
PDF
DWG
View
