OVO-2

Family Pocket - Electronic enclosures - Plastic

Description

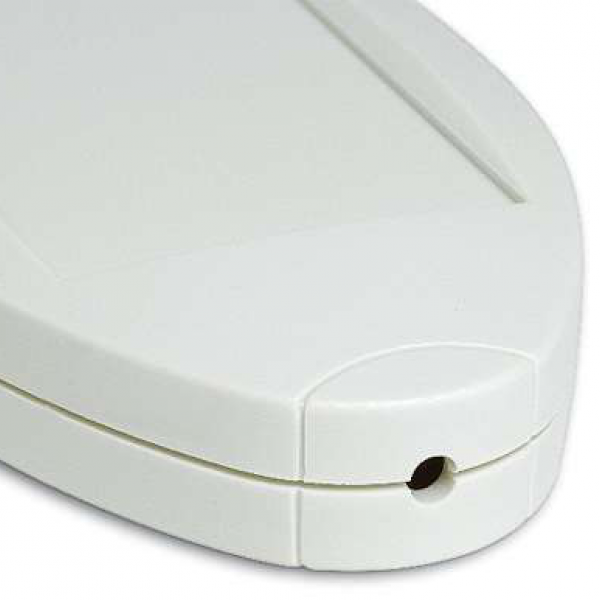

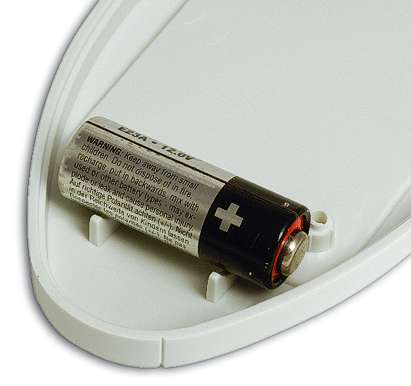

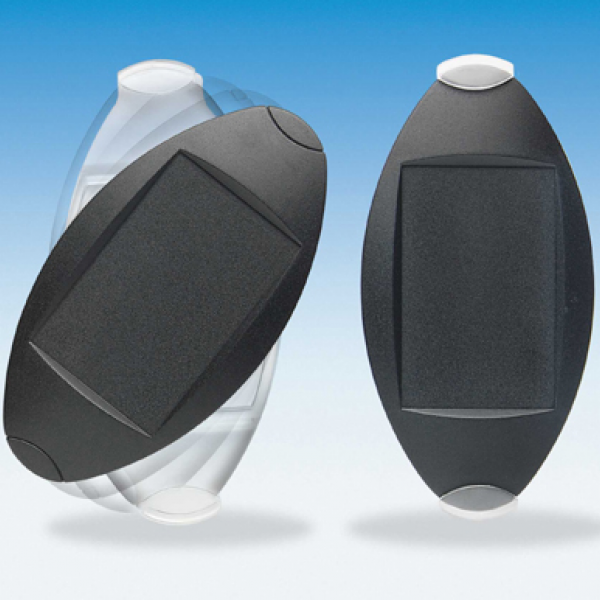

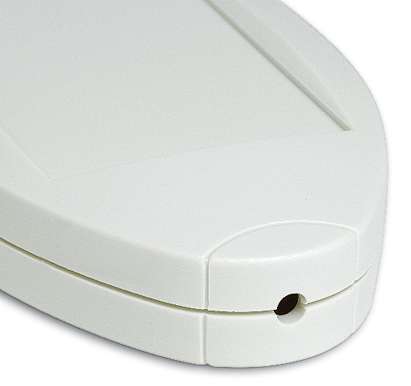

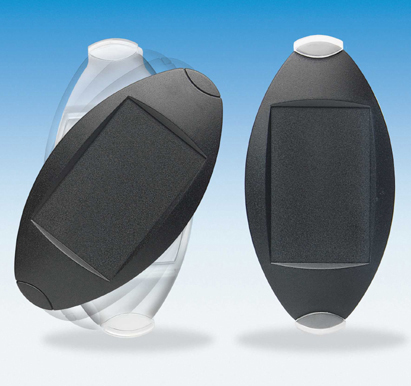

Ergonomic designed ABS enclosures with a recessed operating area for membrane keyboard. Matt surface finish. Space for a 12V battery or small 3V round cells. The model “OVO-2IR” has a front opening for a LED. Closing by two screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

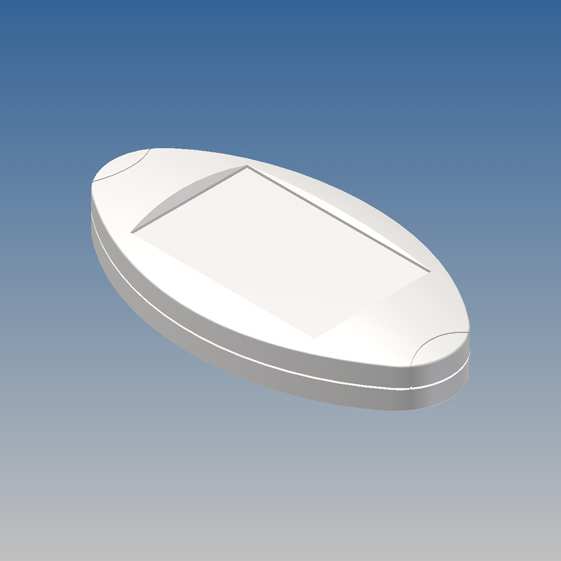

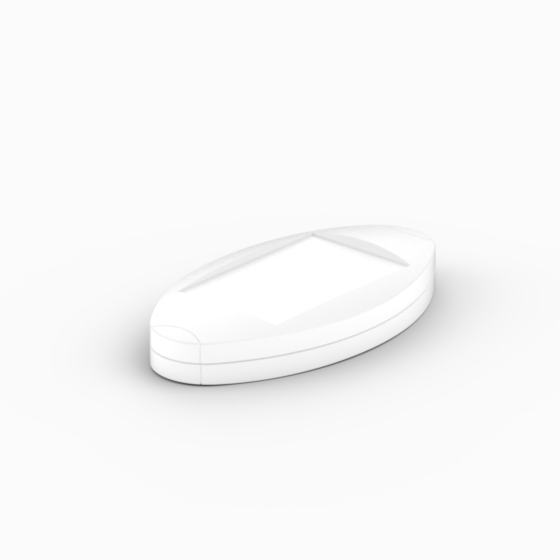

OVO-2.7 95,5 51 17,3 9002
L320 - - 2 1x12V / 1x3V M50
M51
M52
MT5
PDF
DWG
View

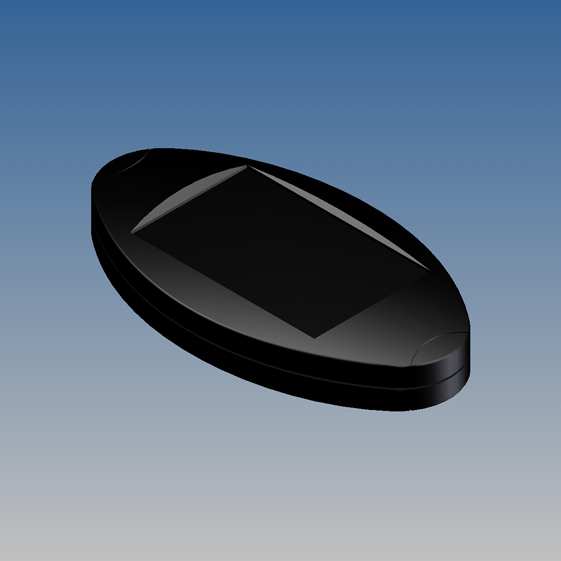

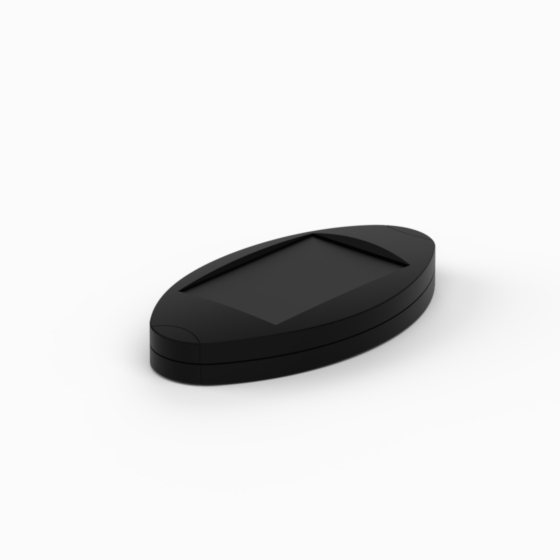

OVO-2.9 95,5 51 17,3 9004
P2H-AT - - 2 1x12V / 1x3V M50
M51
M52
MT5
PDF
DWG
View

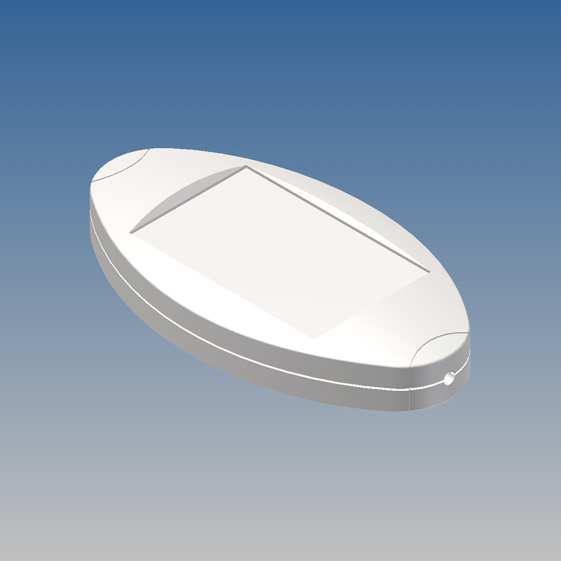

OVO-2IR.7 95,5 51 17,3 9002
L320 - - 2 1x12V / 1x3V M50
M51
M52
MT5
PDF
DWG
View

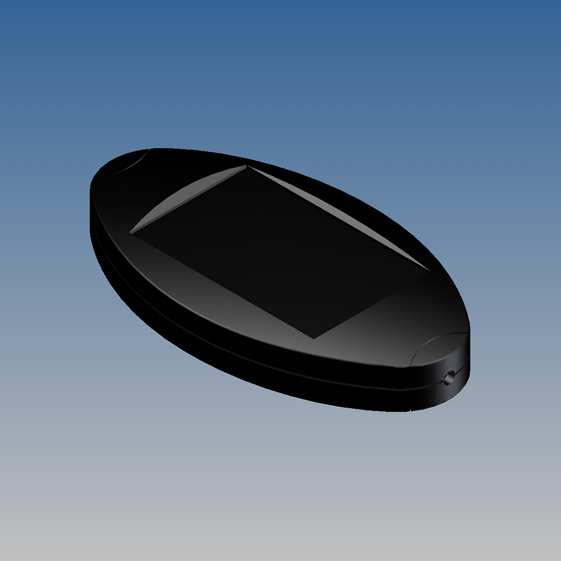

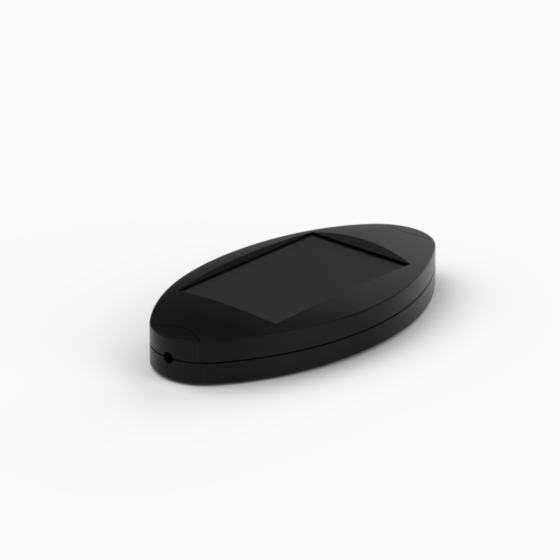

OVO-2IR.9 95,5 51 17,3 9004
P2H-AT - - 2 1x12V / 1x3V M50
M51
M52
MT5
PDF
DWG
View
