PULT-36

Family Pult - Electronic enclosures - Plastic

Description

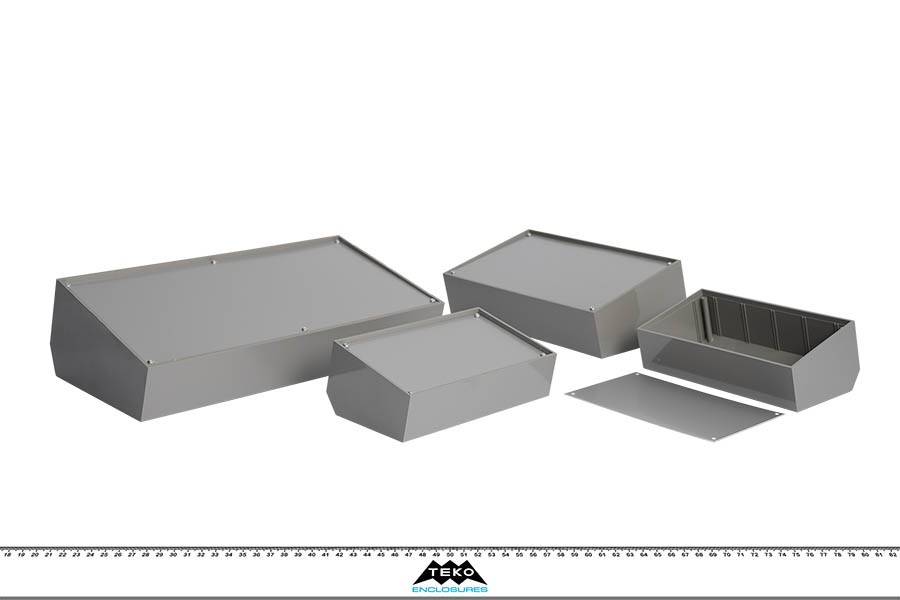

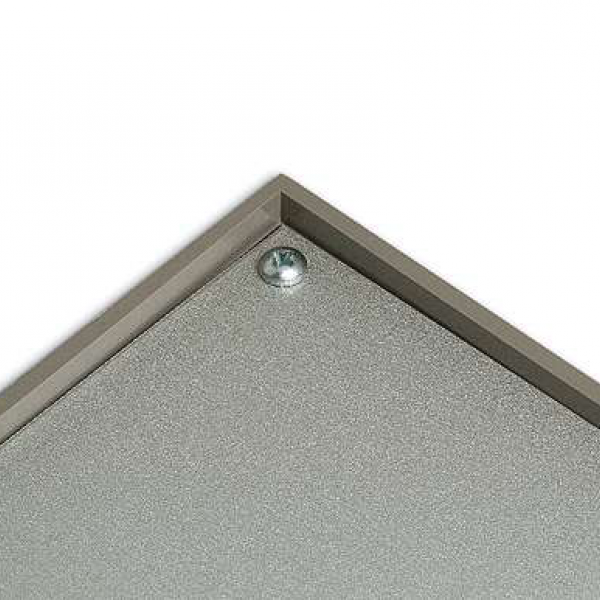

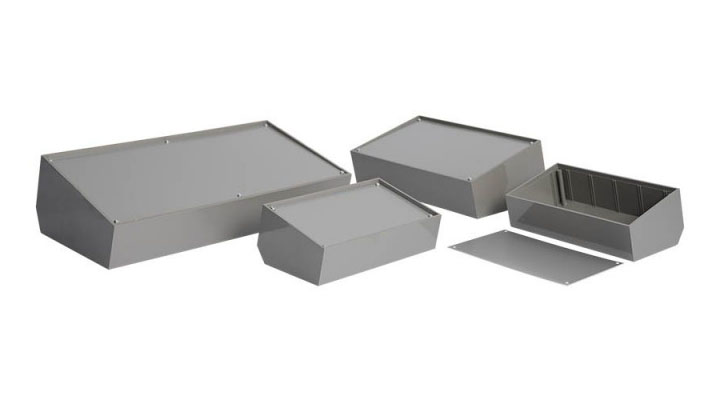

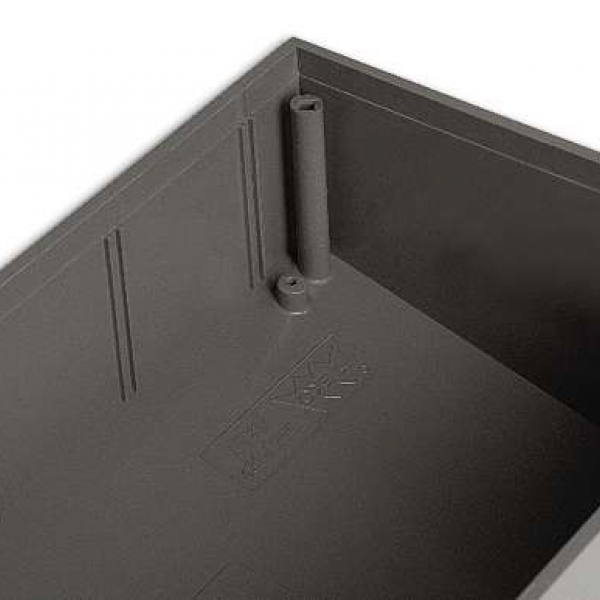

ABS enclosure with a 15° inclined 1mm aluminium panel. The base walls have integral PCB guides and mounting studs. Glossy surface finish. Closing by four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

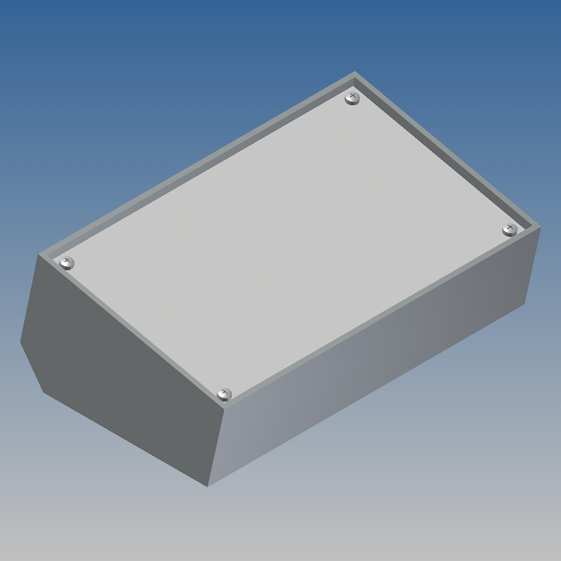

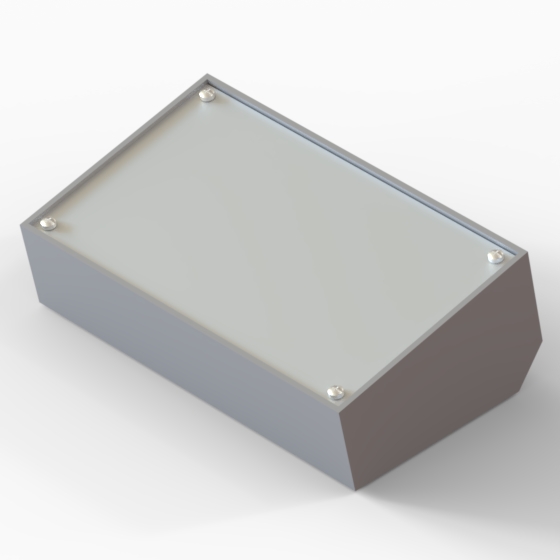

362.8 161 97 61,1 7037
N-UT 153 82 4 - PDF
DWG
View
  • Color (Ral): 7037
  • Material: N-UT
  • MAX PCB L (mm): 153
  • MAX PCB W (mm): 82
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

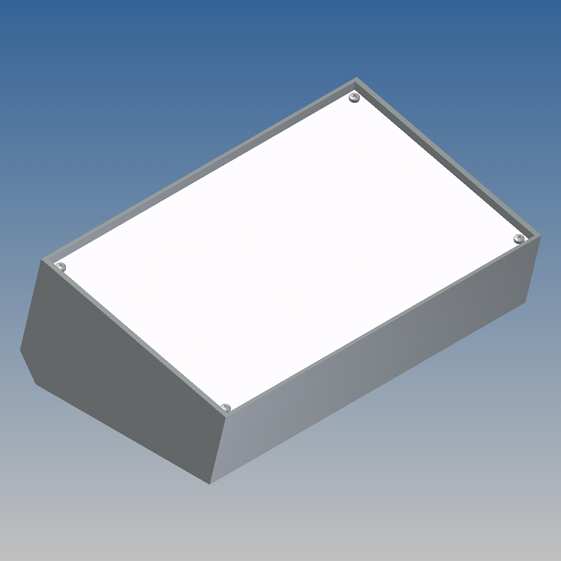

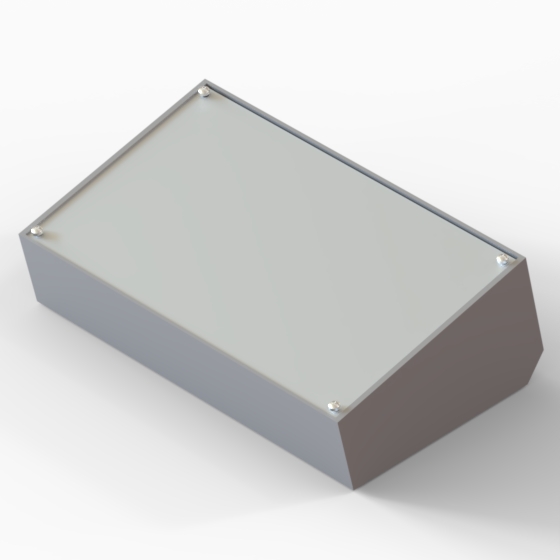

363.8 216 130 77,7 7037
N-UT 207 118 4 - PDF
DWG
View
  • Color (Ral): 7037
  • Material: N-UT
  • MAX PCB L (mm): 207
  • MAX PCB W (mm): 118
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

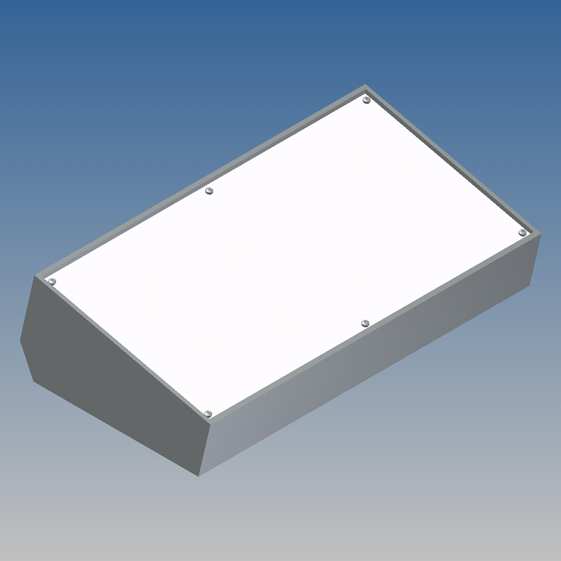

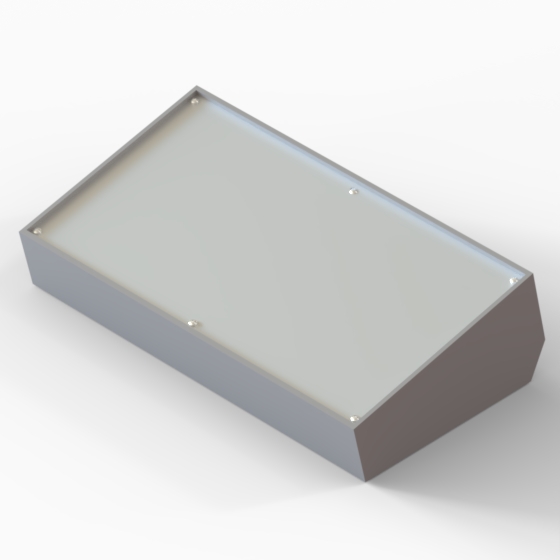

364.8 311 170 89 7037
N-UT 302 150 6 - PDF
DWG
View
  • Color (Ral): 7037
  • Material: N-UT
  • MAX PCB L (mm): 302
  • MAX PCB W (mm): 150
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
