MICRO

Family Rf - Electronic enclosures - Metal

Description

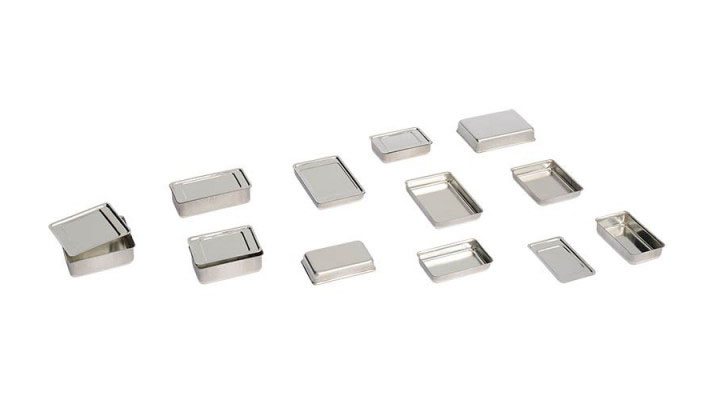

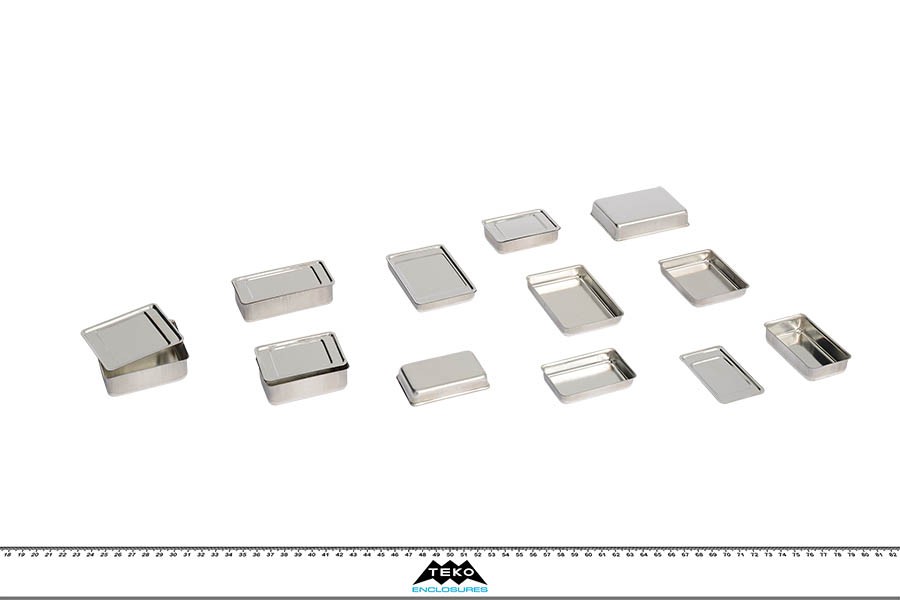

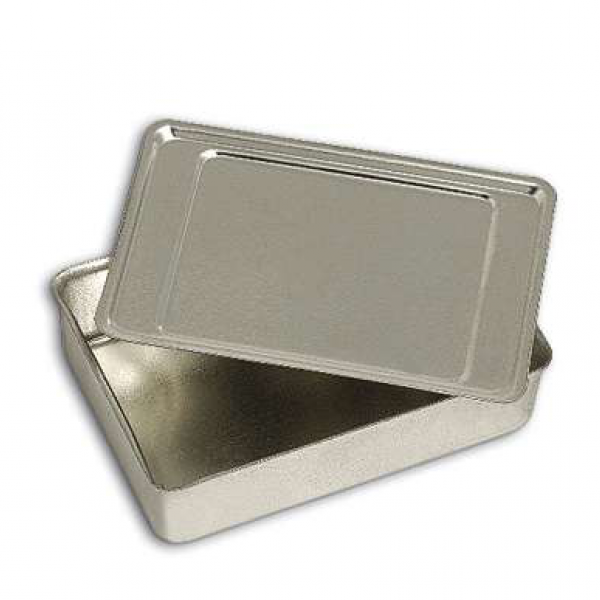

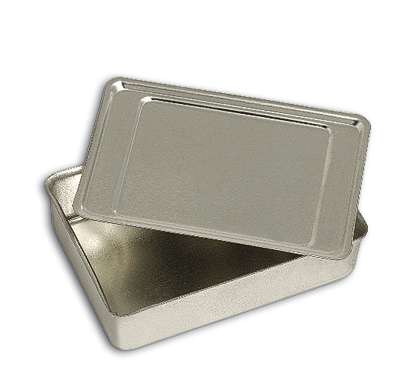

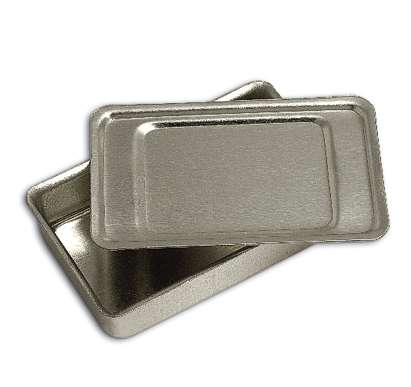

Electrolythic tin-plated steel enclosures for High/Frequency electronic components assembly with a cover that can be soldered on for hermetic sealing. Volume of casing is suitable for easy assembly of professional and High-Technology circuits.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

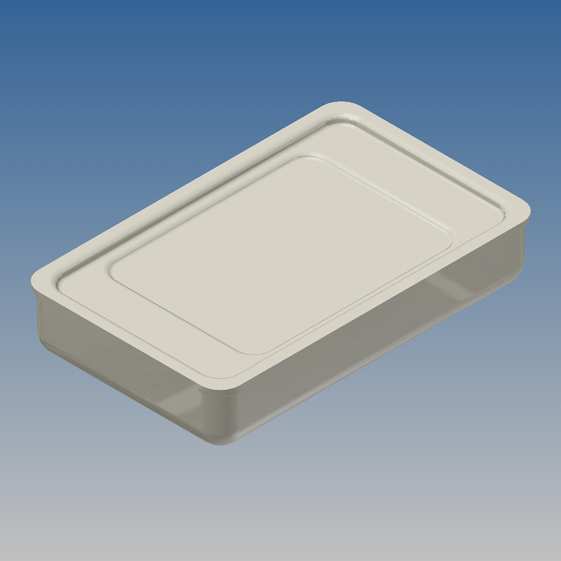

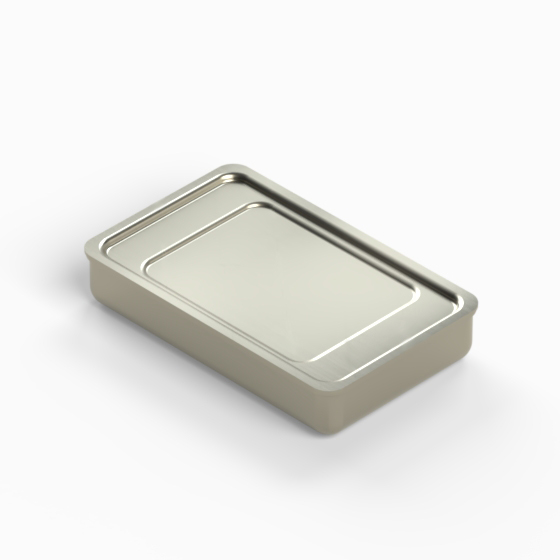

433.15 50,5 31,5 9,5  -
B.S.E. T.55 - - - - PDF
DWG
View

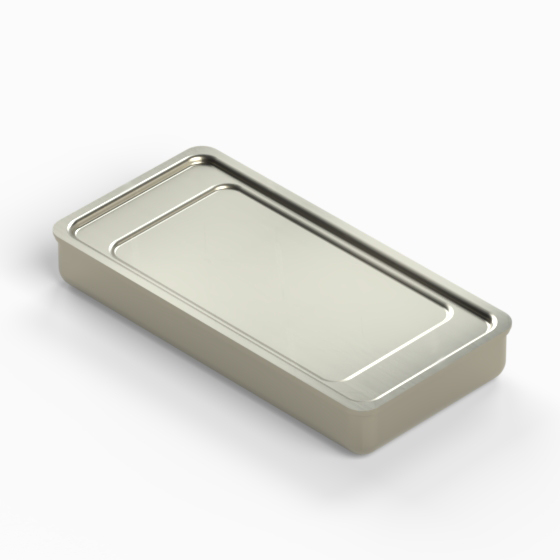

434.15 63,5 31,5 9,5  -
B.S.E. T.55 - - - - PDF
DWG
View

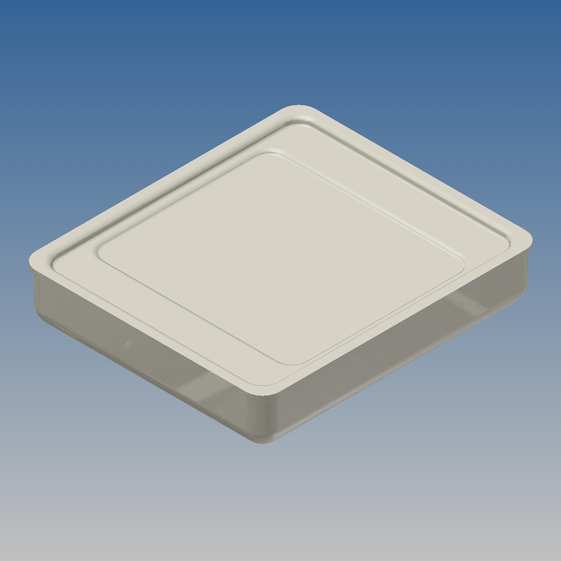

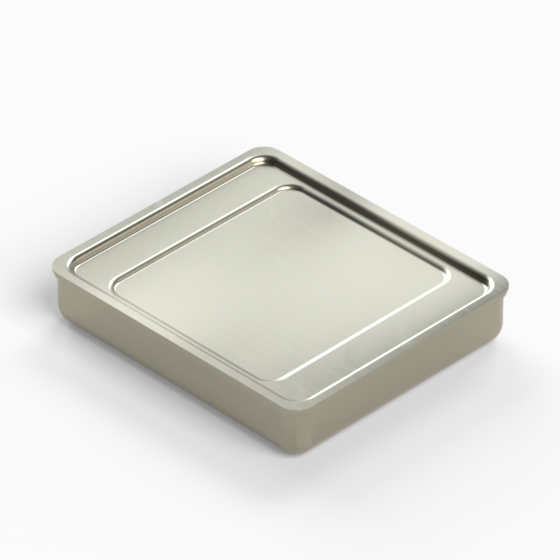

435.15 50,5 44 9,5  -
B.S.E. T.55 - - - - PDF
DWG
View

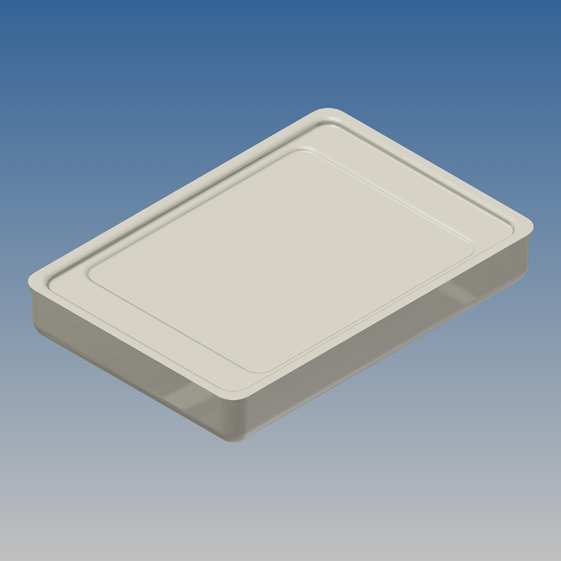

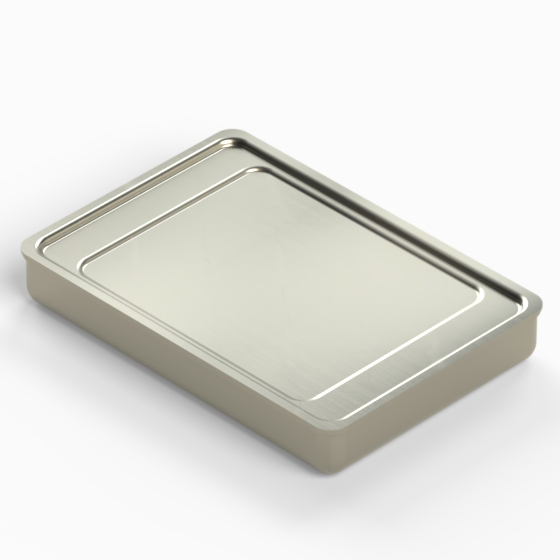

436.15 63,5 44 9,5  -
B.S.E. T.55 - - - - PDF
DWG
View

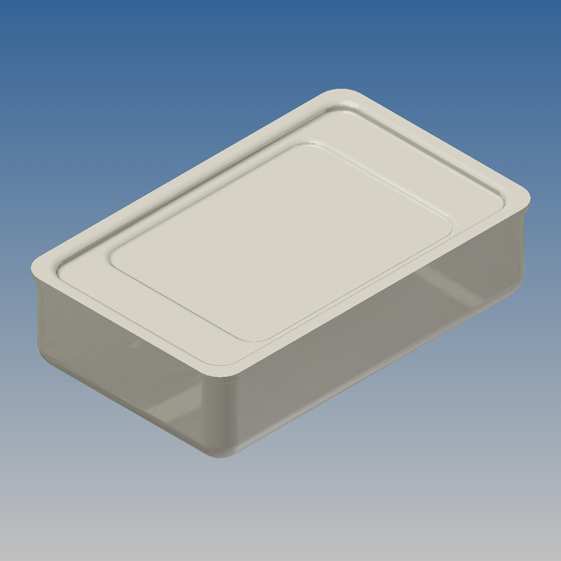

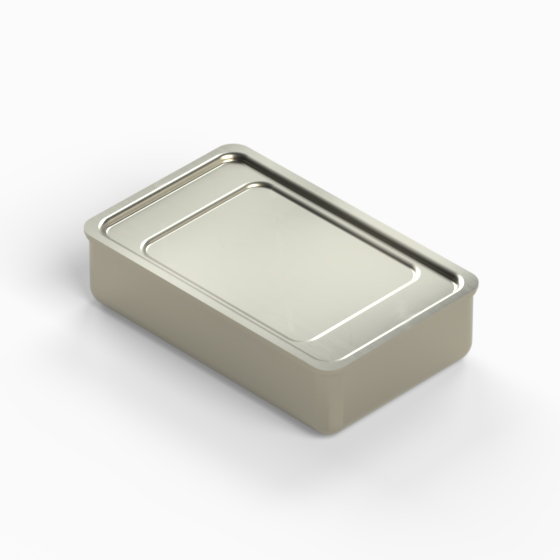

443.15 50,5 31,5 13  -
B.S.E. T.55 - - - - PDF
DWG
View

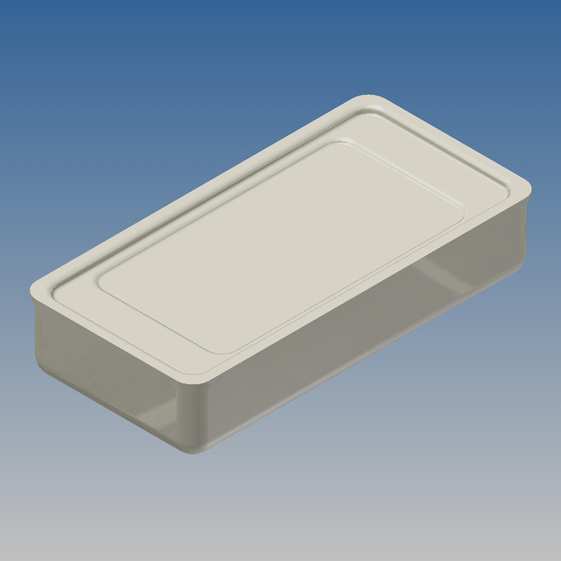

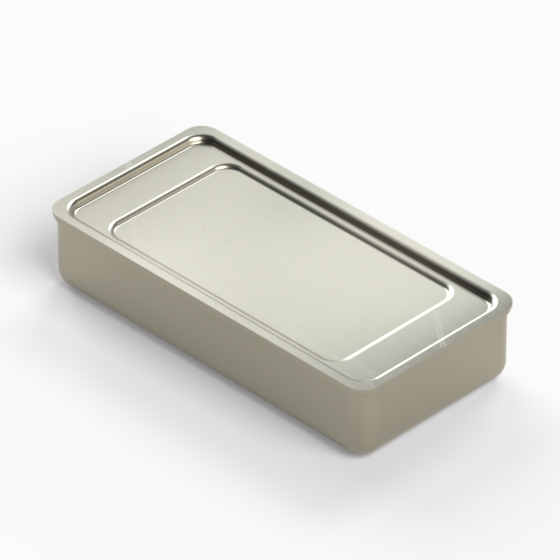

444.15 63,5 31,5 13  -
B.S.E. T.55 - - - - PDF
DWG
View

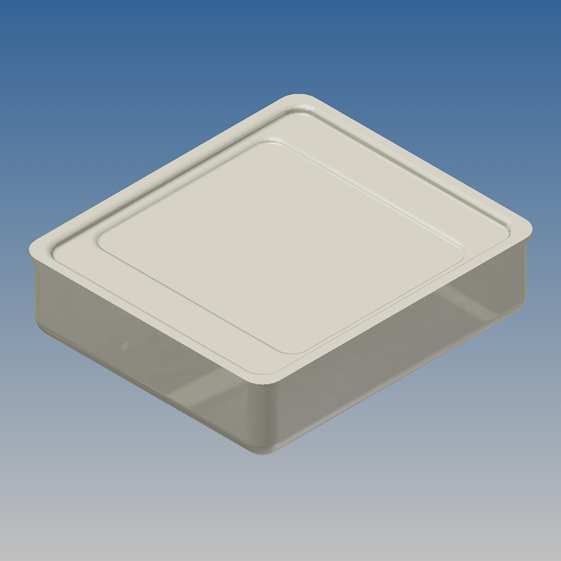

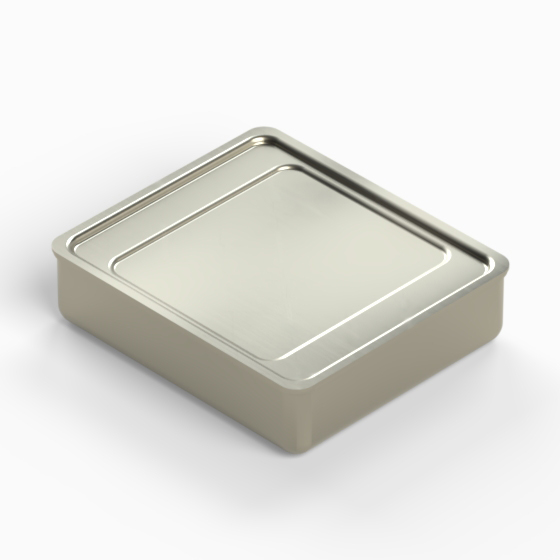

445.15 50,5 44 13  -
B.S.E. T.55 - - - - PDF
DWG
View

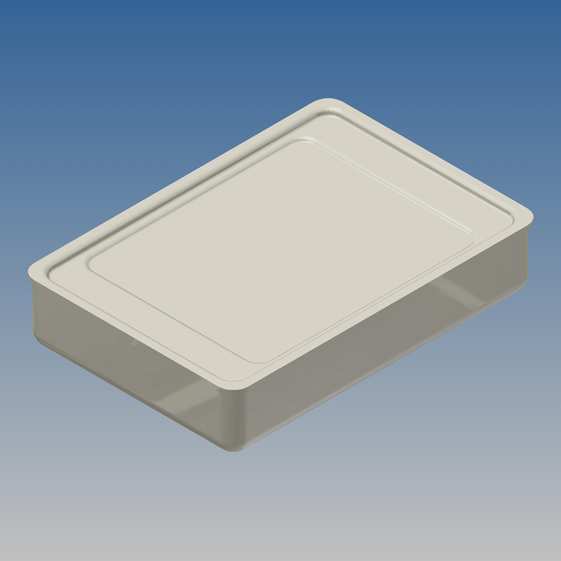

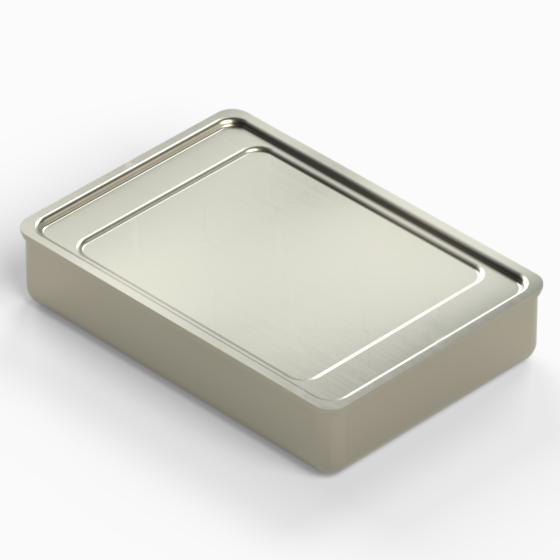

446.15 63,5 44 13  -
B.S.E. T.55 - - - - PDF
DWG
View

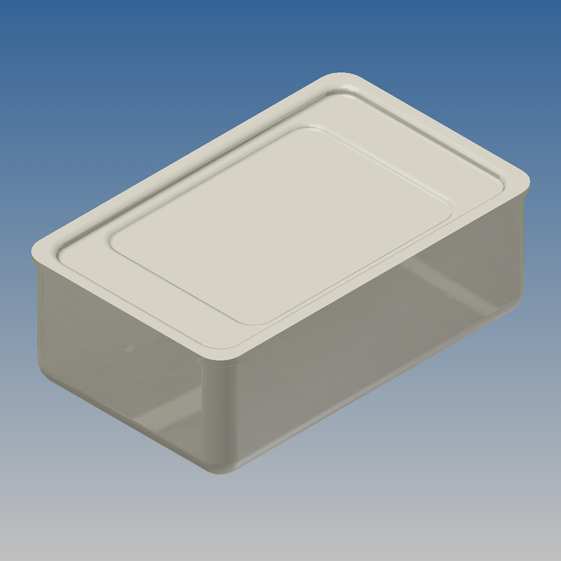

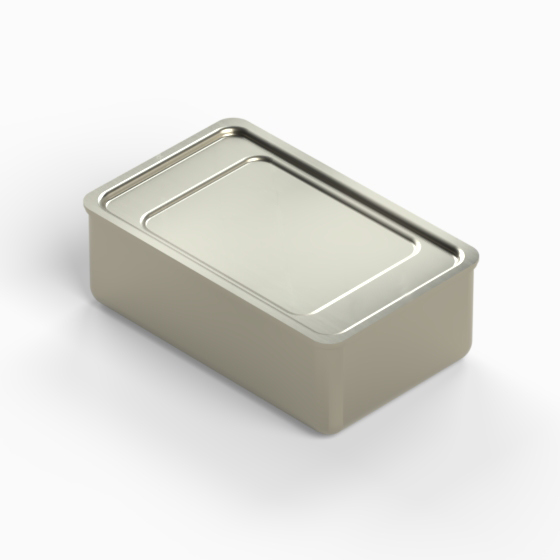

453.15 50,5 31,5 17,5  -
B.S.E. T.55 - - - - PDF
DWG
View

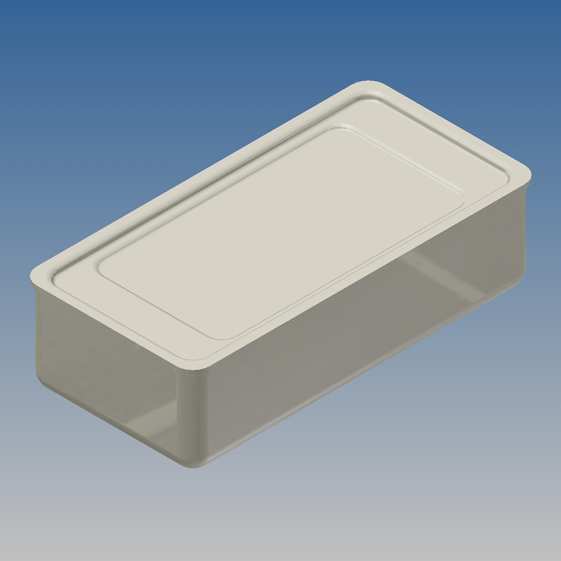

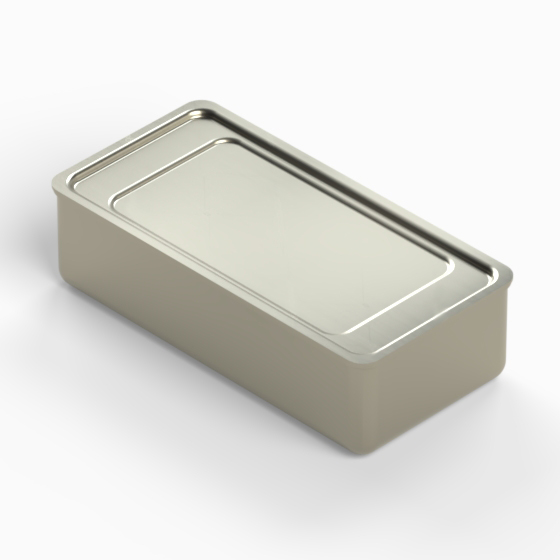

454.15 63,5 31,5 17,5  -
B.S.E. T.55 - - - - PDF
DWG
View

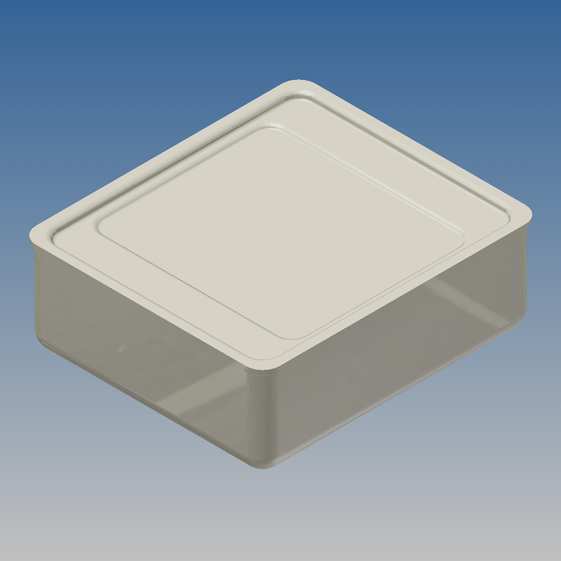

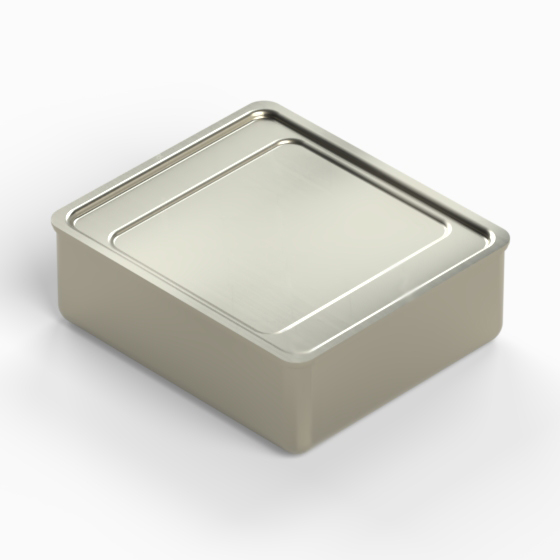

455.15 50,5 44 17,5  -
B.S.E. T.55 - - - - PDF
DWG
View

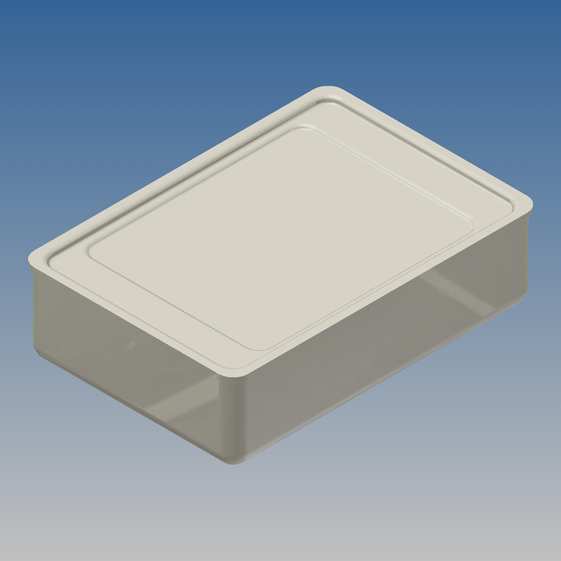

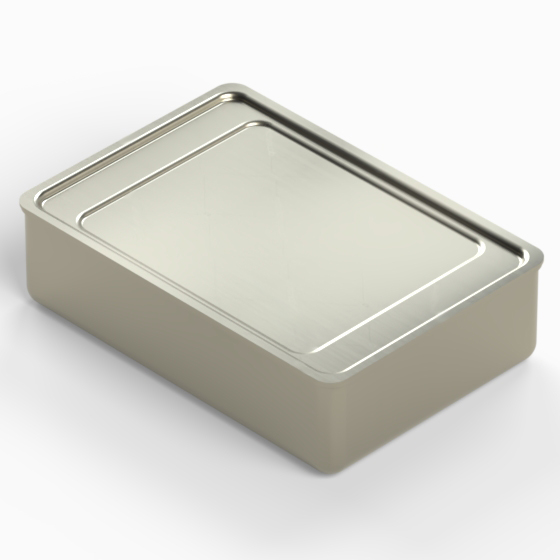

456.15 63,5 44 17,5  -
B.S.E. T.55 - - - - PDF
DWG
View
