RACK

Family Rf - Electronic enclosures - Metal

Description

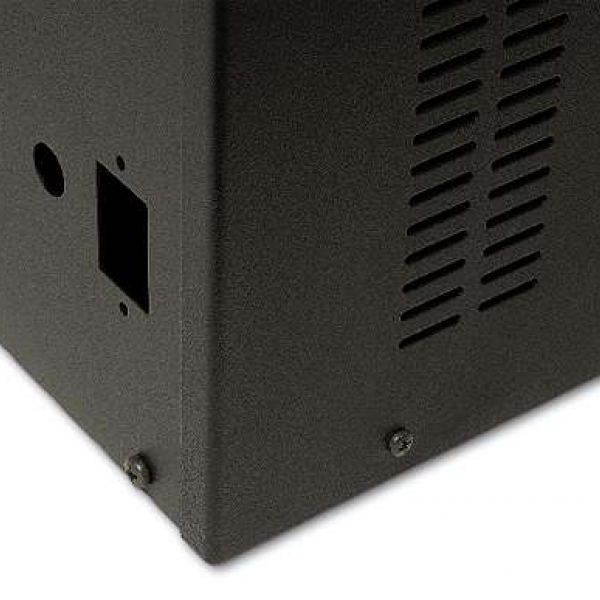

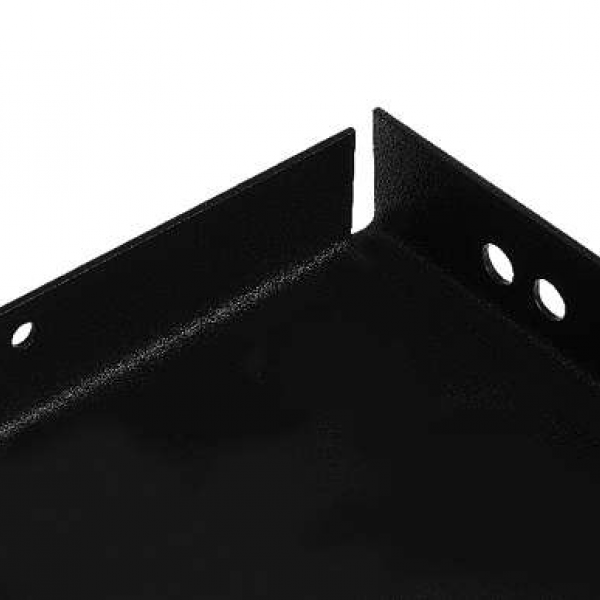

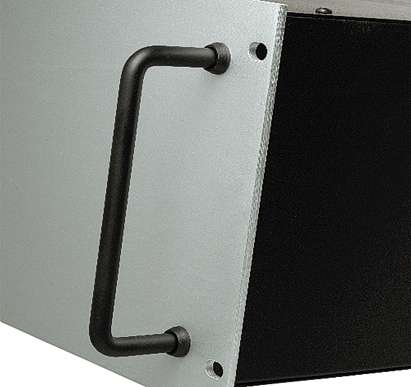

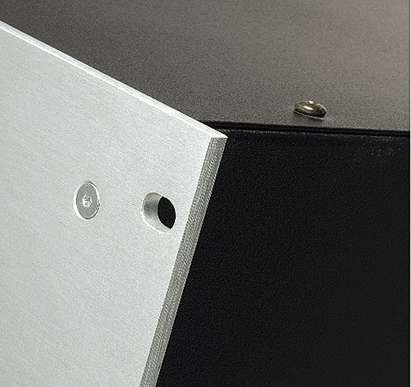

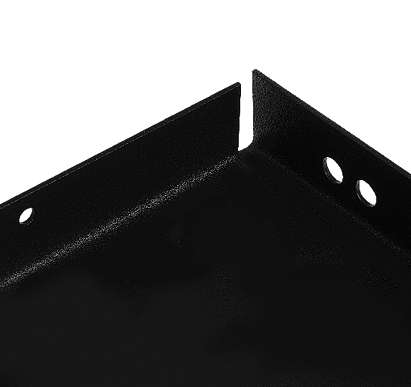

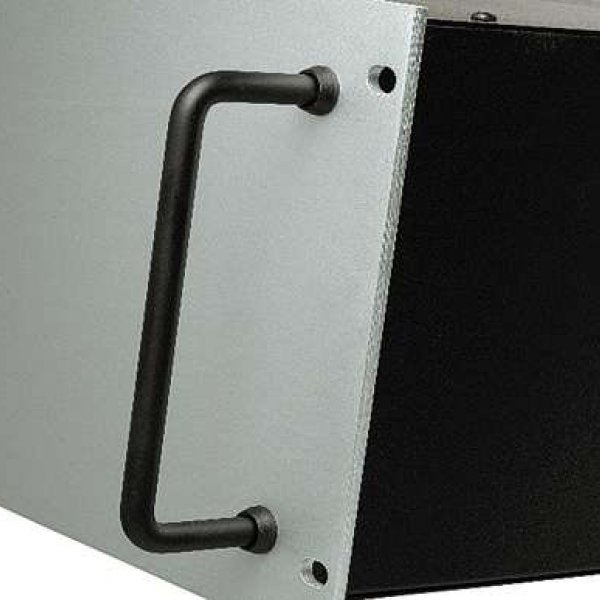

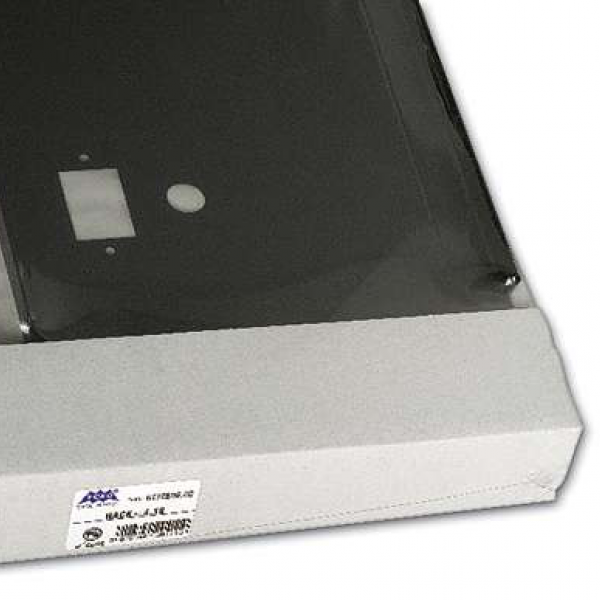

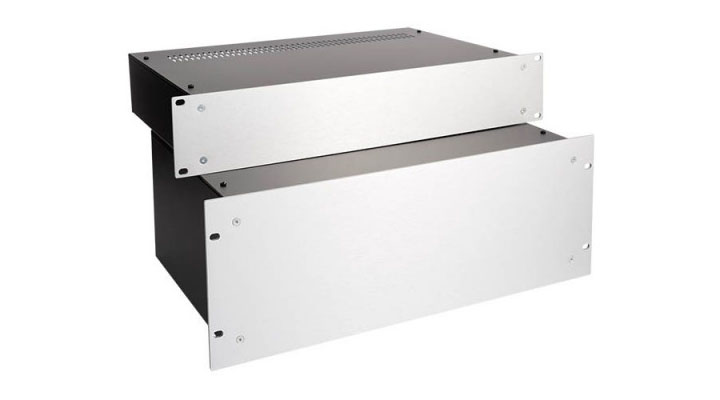

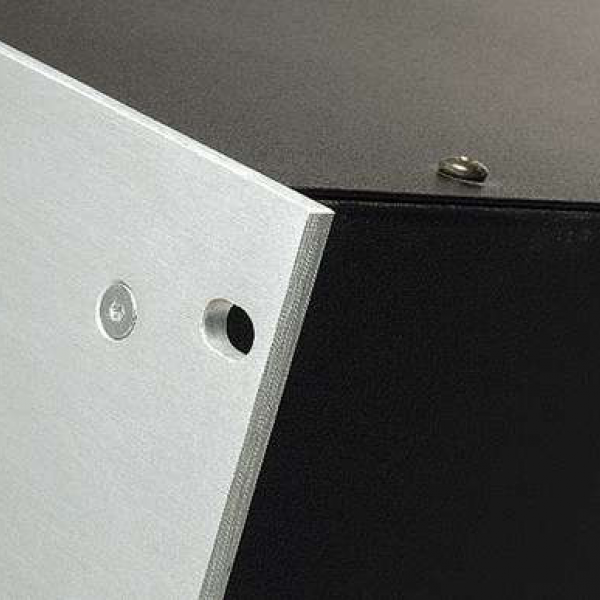

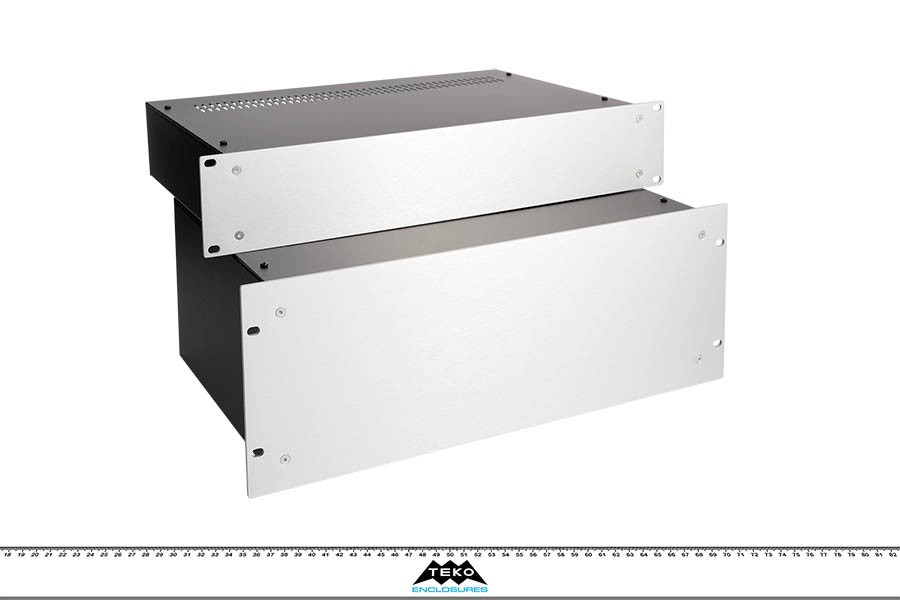

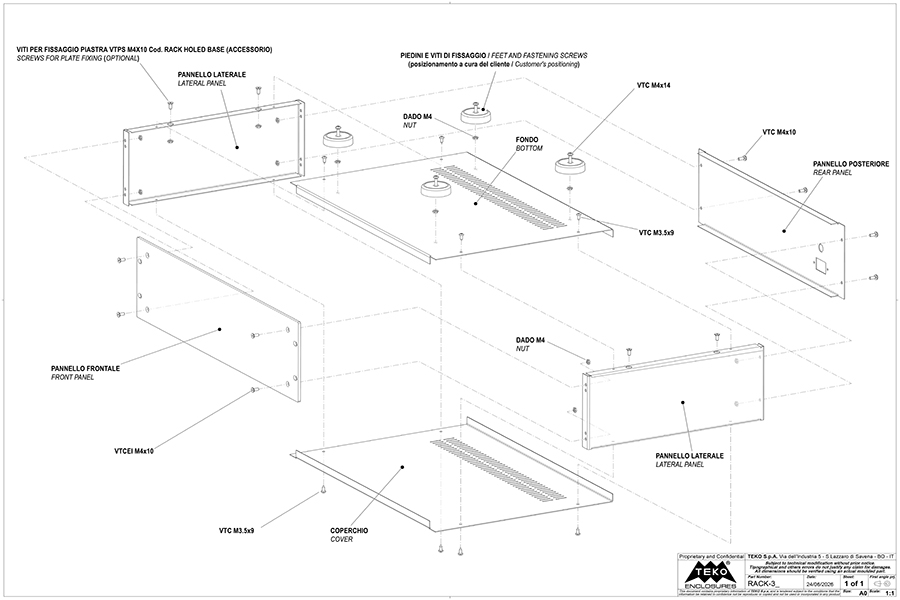

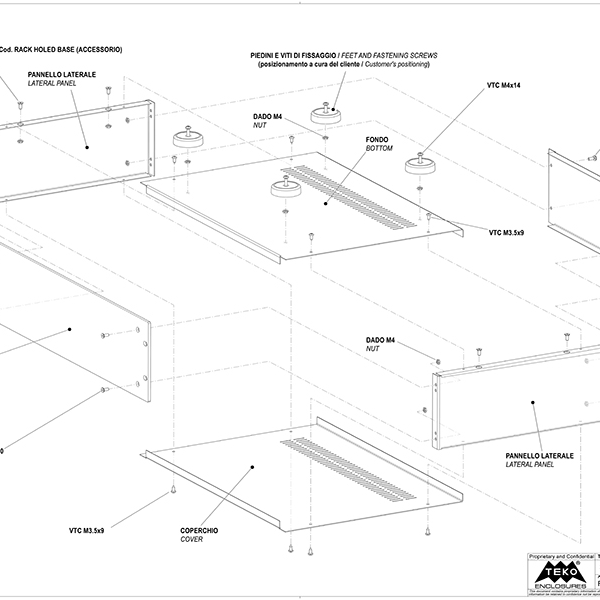

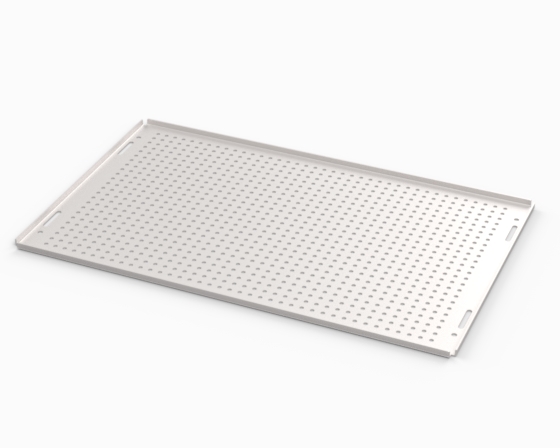

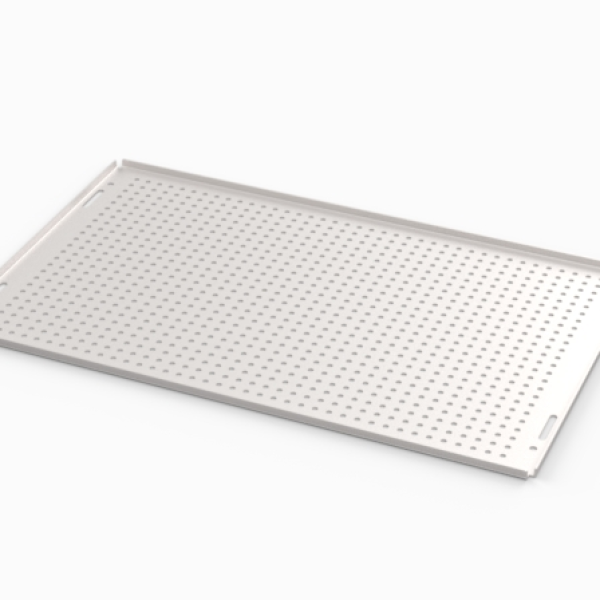

Series of modern styled enclosures with extremely accurate finish. The front panel is manufactured from silver anodised aluminium, the cover and the side panels from black steel. Ventilated covers. Panels remove easily while leaving the sub-assembly intact. ACCESSORIES: internal base mm. 175 x 435 (Mod. LEVEL) - Flat anodised aluminium handles, silver or black colour (FLAT RACK) - Round handles in black plastified steel (ROUND RACK) - Stand with four casters designed for a 1-rack unit up to 17 modules (C234).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

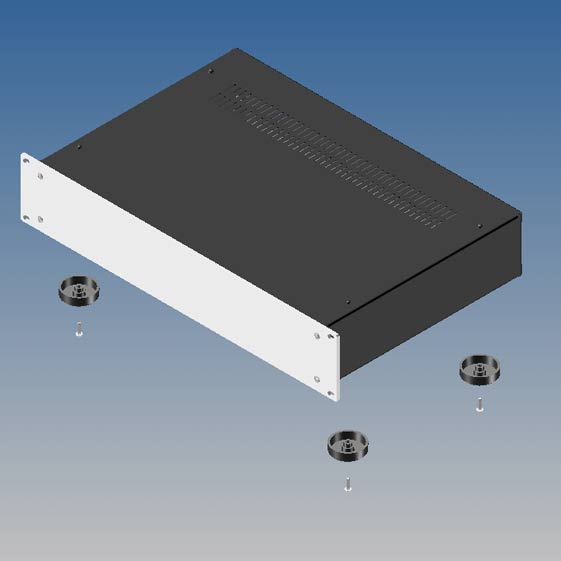

RACK2.18 307 434 83 9004 9006
- - - - RACK-C234
PDF
DWG
View

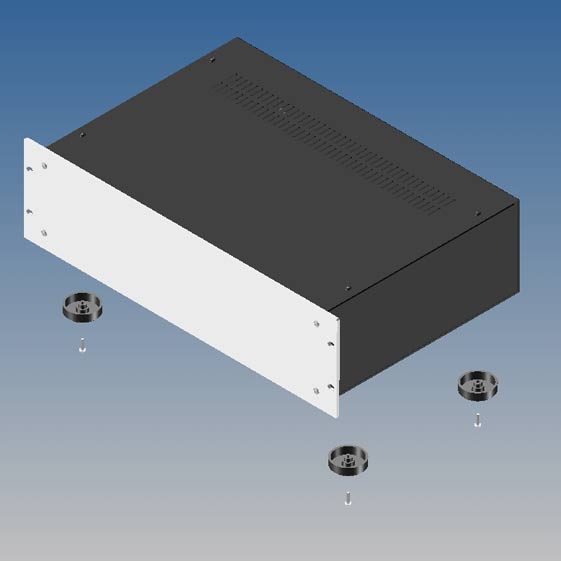

RACK3.18 307 434 123 9004 9006
- - - - RACK-C234
PDF
DWG
View

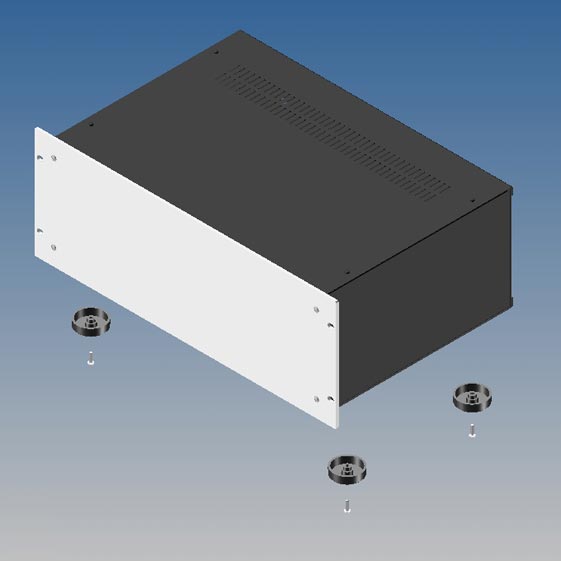

RACK4.18 307 434 166 9004 9006
- - - - RACK-C234
PDF
DWG
View
12 product families, 146 series. You can't find what you're looking for? Contact us
