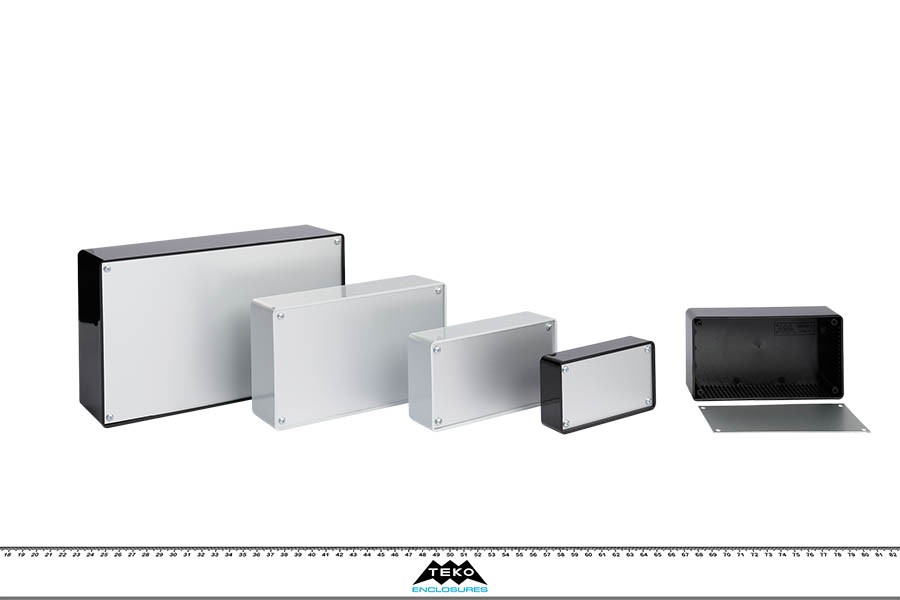

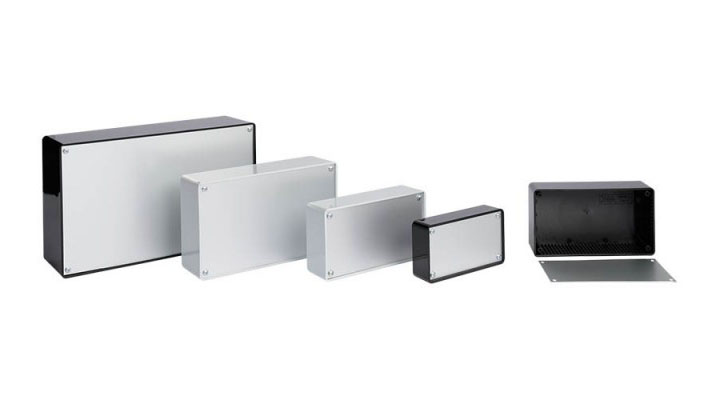

COFFER A

Family Top Cover - Electronic enclosures - Plastic

Description

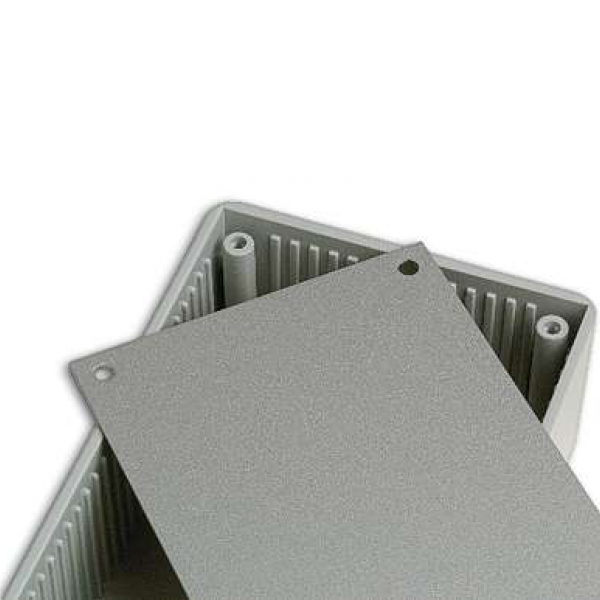

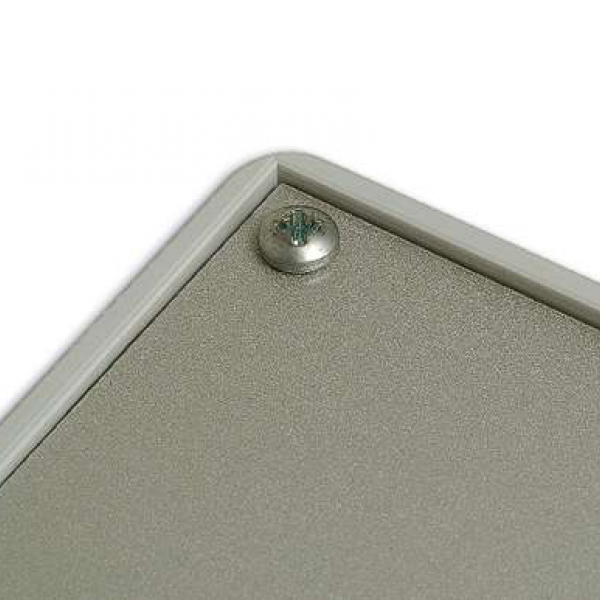

ABS enclosure with rounded corners and an 1 mm aluminium panel. The base walls have integral PCB guides in a high density configuration. Glossy surfaces finish. Closing by four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

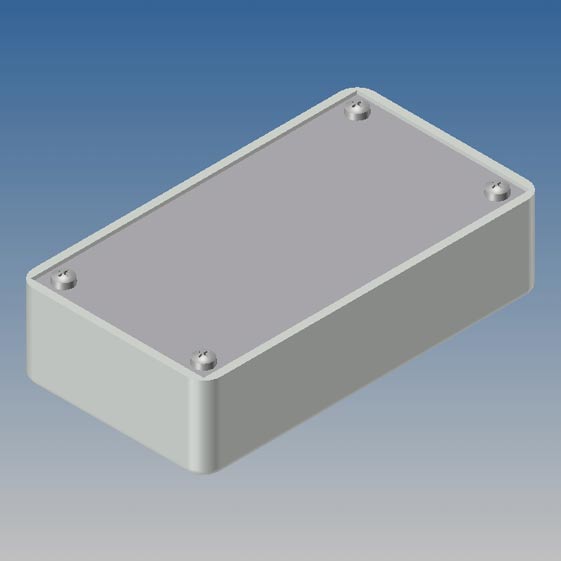

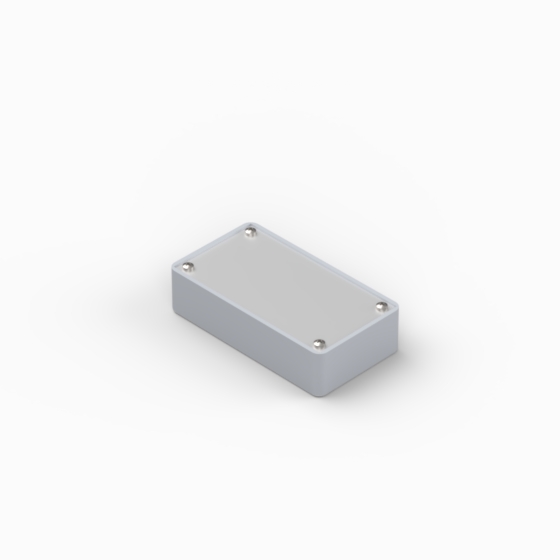

COFFER-A/5.5 100 55 25 9018
AG-ATY 95 19 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 95
  • MAX PCB W (mm): 19
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

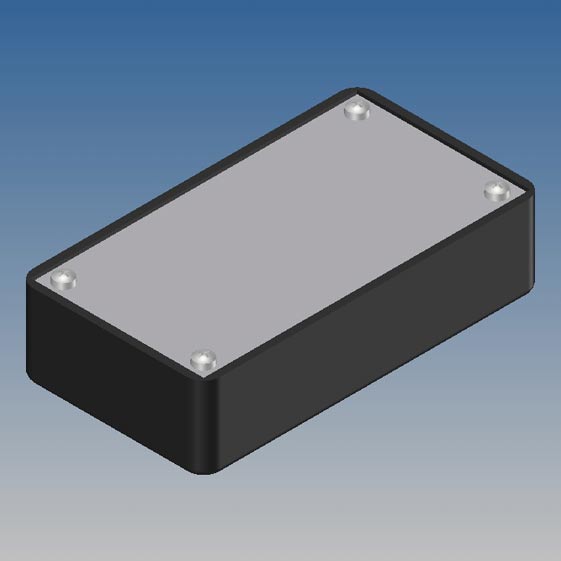

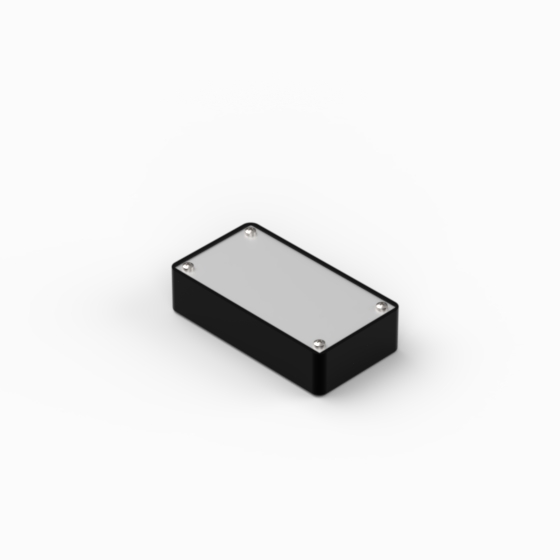

COFFER-A/5.9 100 55 25 9004
P2H-AT 95 19 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 95
  • MAX PCB W (mm): 19
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

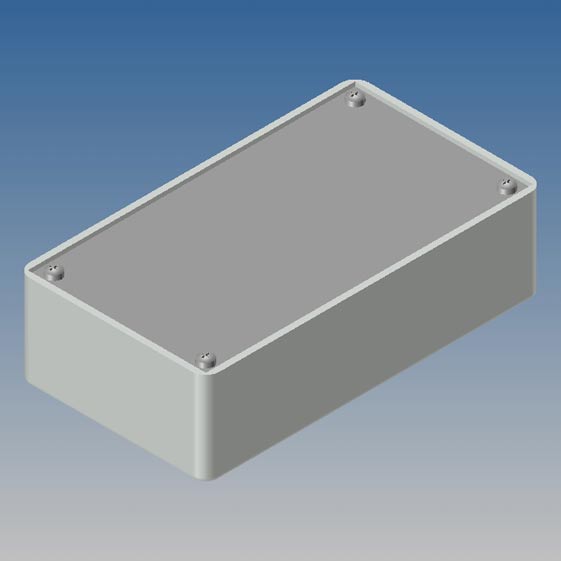

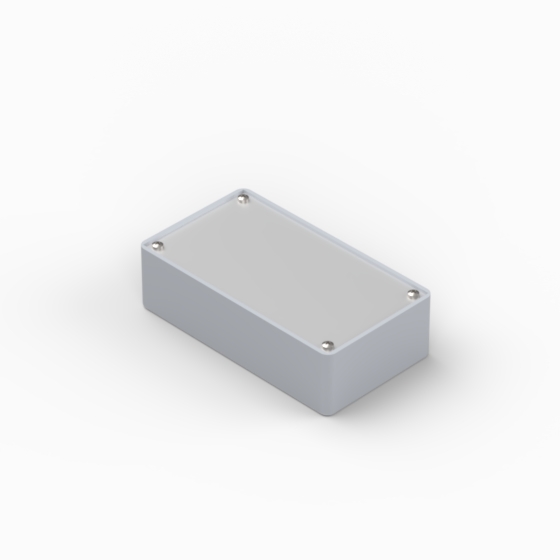

COFFER-A/6.5 125 70 35 9018
AG-ATY 120 29 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 120
  • MAX PCB W (mm): 29
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

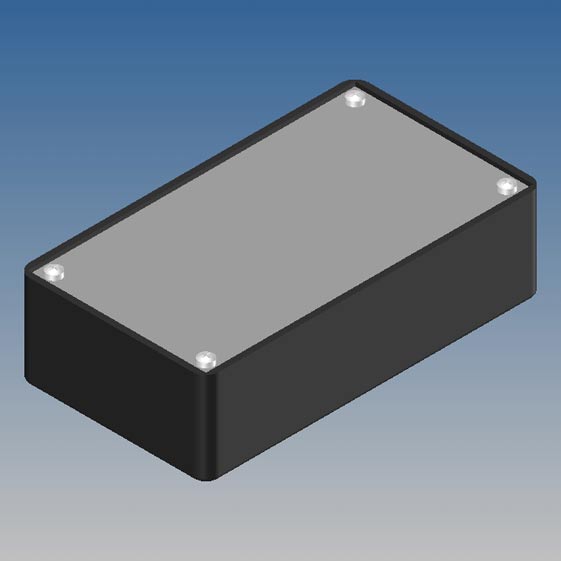

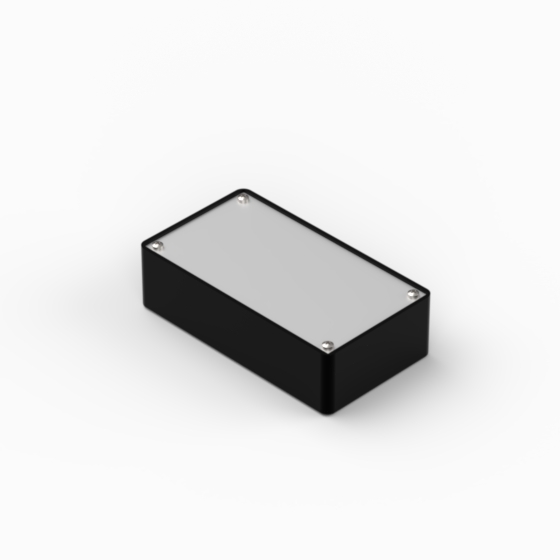

COFFER-A/6.9 125 70 35 9004
P2H-AT 120 29 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 120
  • MAX PCB W (mm): 29
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

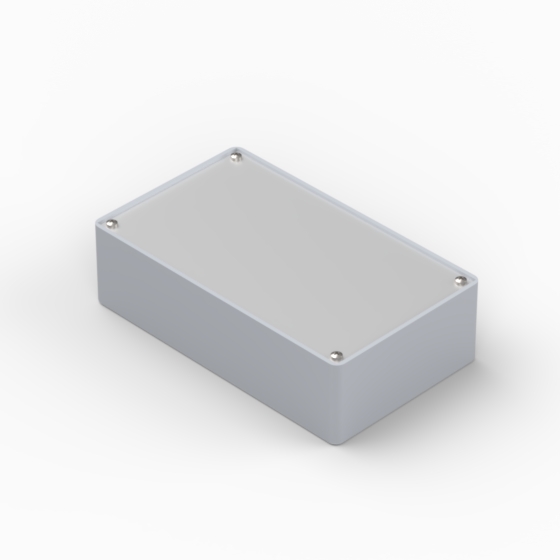

COFFER-A/7.5 160 95 45 9018
AG-ATY 155 39 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 155
  • MAX PCB W (mm): 39
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

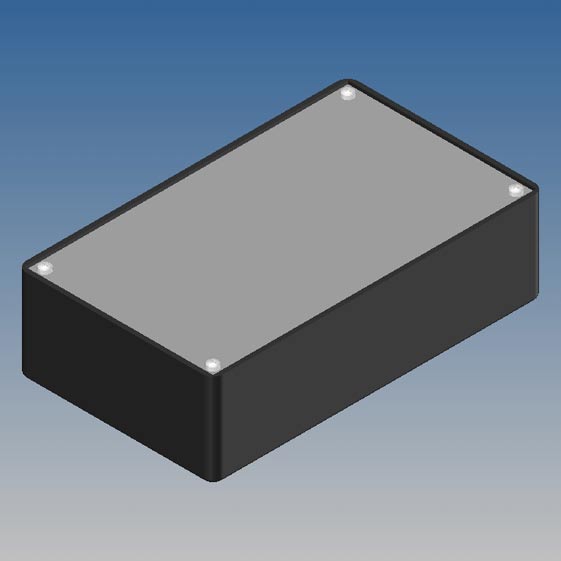

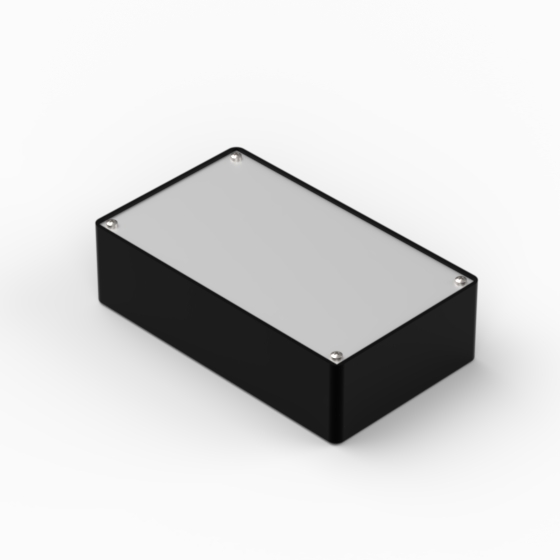

COFFER-A/7.9 160 95 45 9004
P2H-AT 155 39 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 155
  • MAX PCB W (mm): 39
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

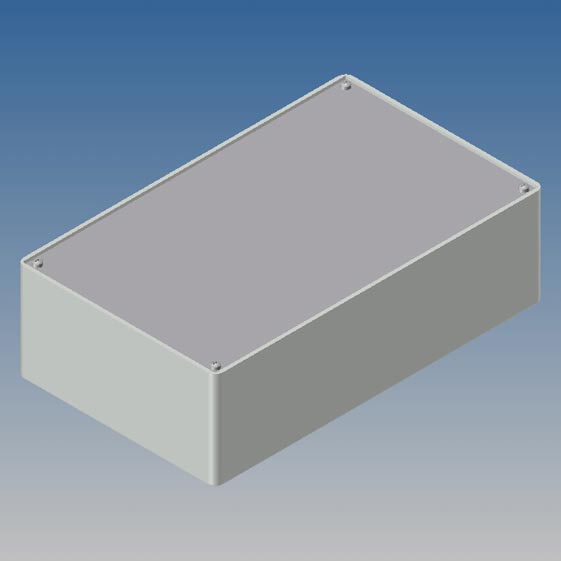

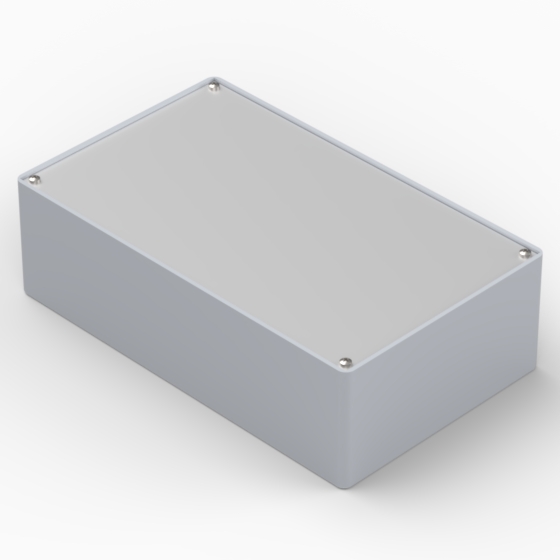

COFFER-A/8.5 215 130 64,5 9018
AG-ATY 209,5 58 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 209,5
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

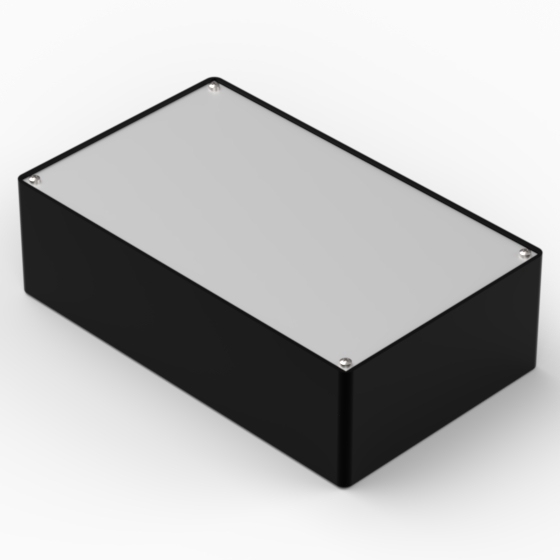

COFFER-A/8.9 215 130 64,5 9004
P2H-AT 209,5 58 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 209,5
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
