COFFER TP

Family Top Cover - Electronic enclosures - Plastic

Description

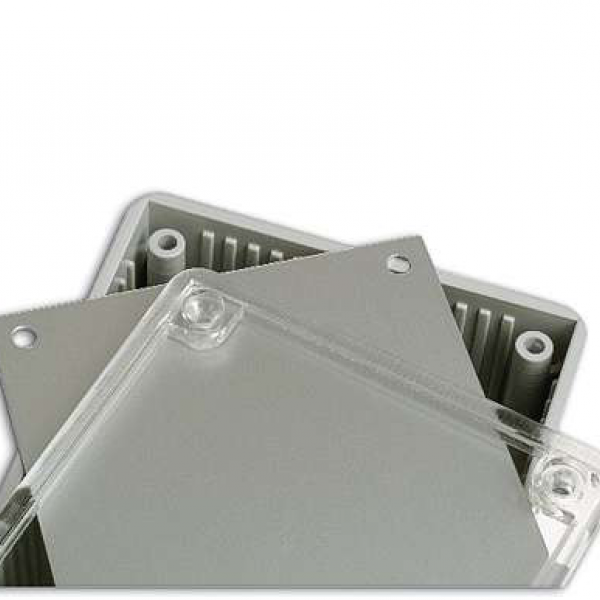

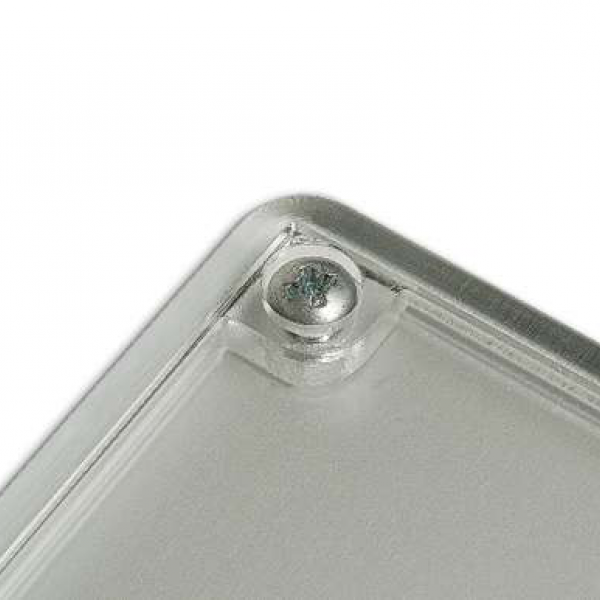

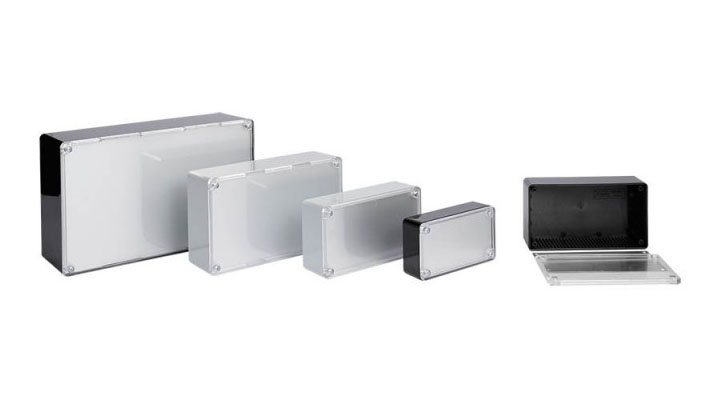

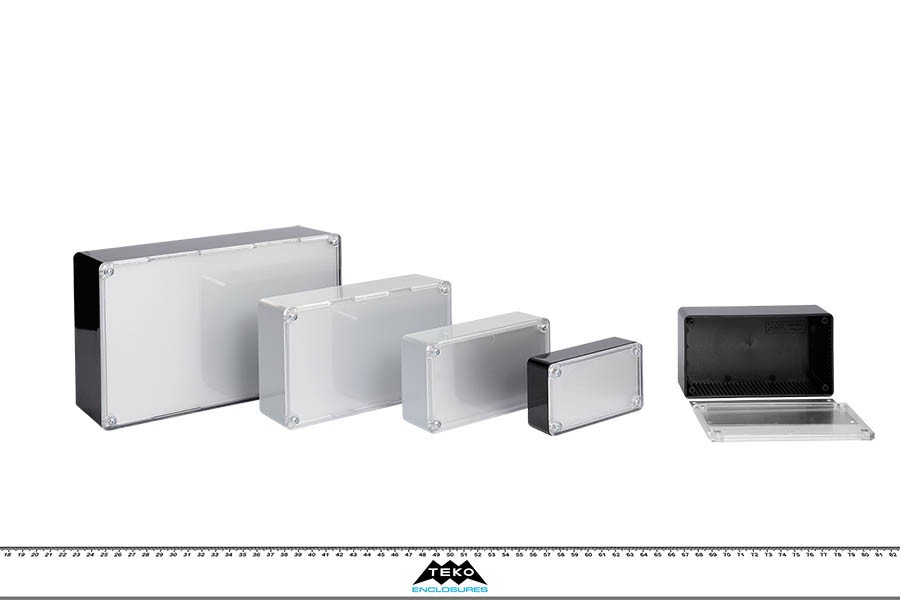

ABS enclosure with an 0.5 mm anodised aluminium panel and a transparent polycarbonate cover. The base walls have integral PCB guides in a high density configuration. Glossy surfaces finish. Closing by four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

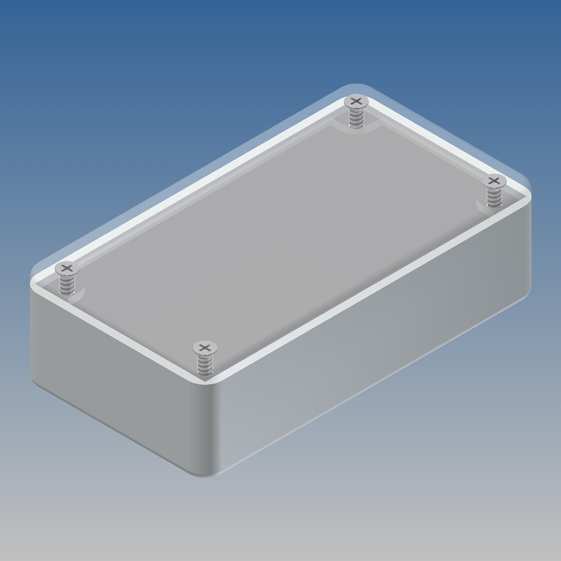

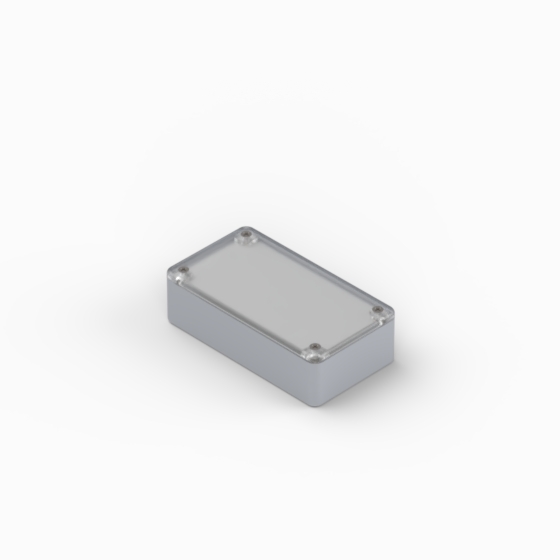

COFFER-TP1.5 100 55 29 9018
AG-ATY  -  2407 95 19 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY  -  2407
  • MAX PCB L (mm): 95
  • MAX PCB W (mm): 19
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

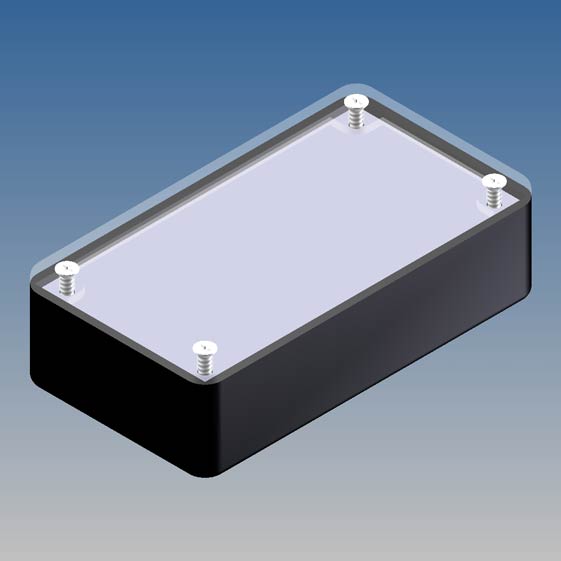

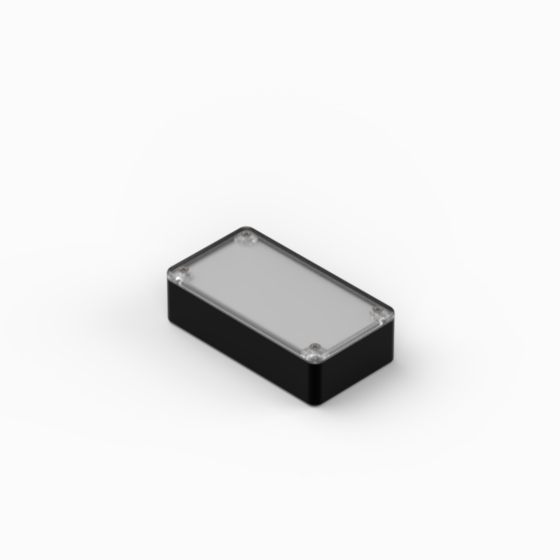

COFFER-TP1.9 100 55 29 9004
P2H-AT  -  2407 95 19 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT  -  2407
  • MAX PCB L (mm): 95
  • MAX PCB W (mm): 19
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

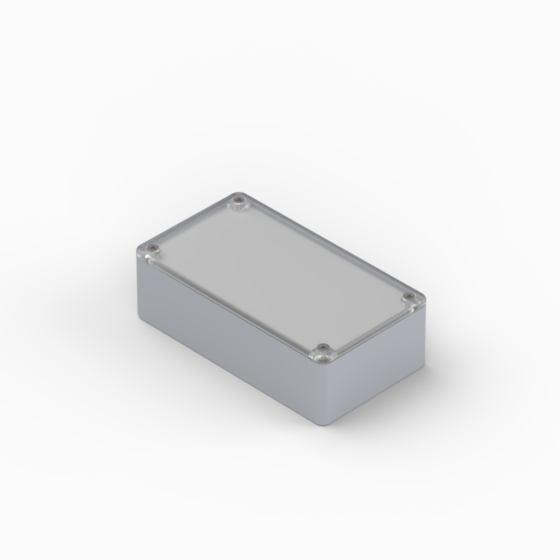

COFFER-TP2.5 125 70 39 9018
AG-ATY  -  2407 120 29 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY  -  2407
  • MAX PCB L (mm): 120
  • MAX PCB W (mm): 29
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

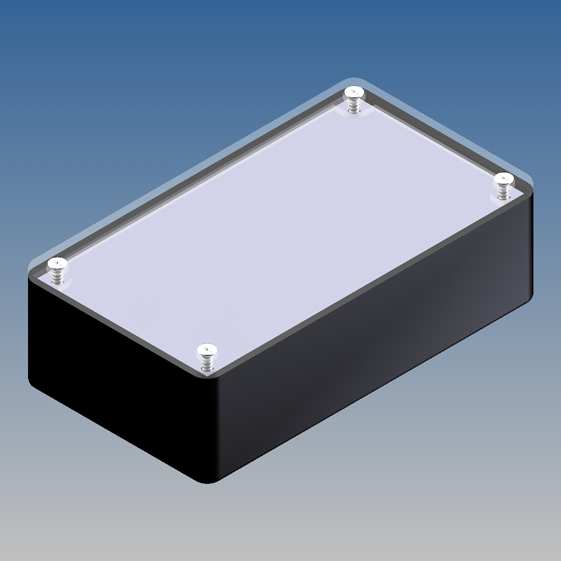

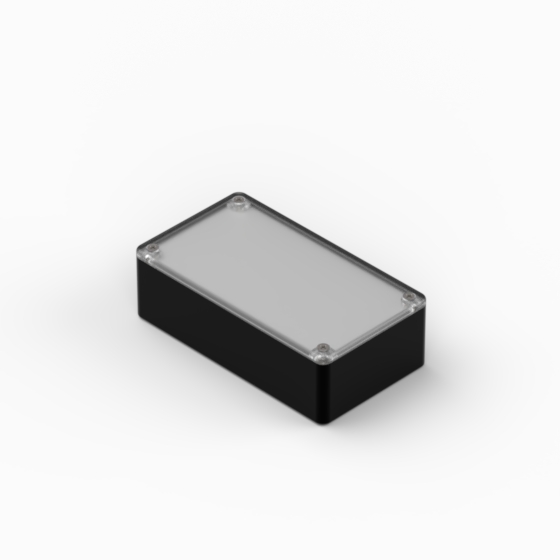

COFFER-TP2.9 125 70 39 9004
P2H-AT  -  2407 120 29 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT  -  2407
  • MAX PCB L (mm): 120
  • MAX PCB W (mm): 29
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

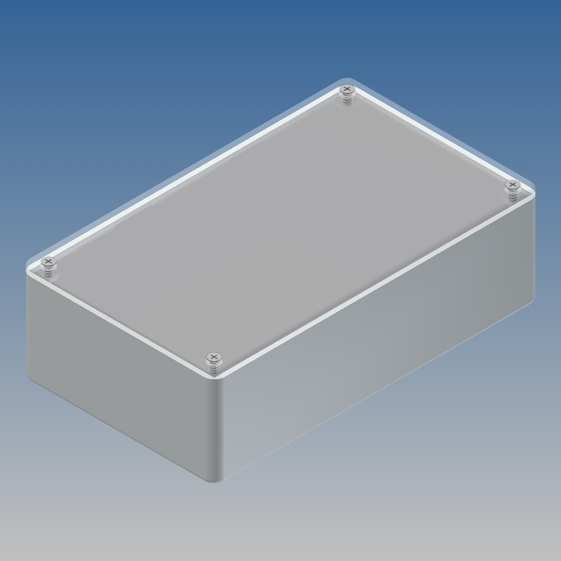

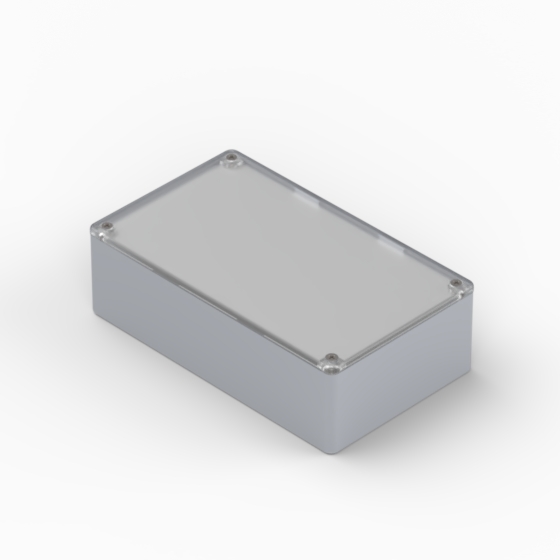

COFFER-TP3.5 160 95 49 9018
AG-ATY  -  2407 155 39 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY  -  2407
  • MAX PCB L (mm): 155
  • MAX PCB W (mm): 39
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

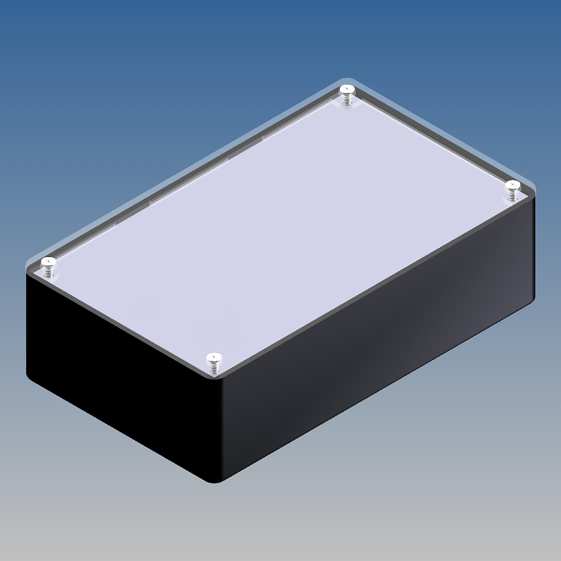

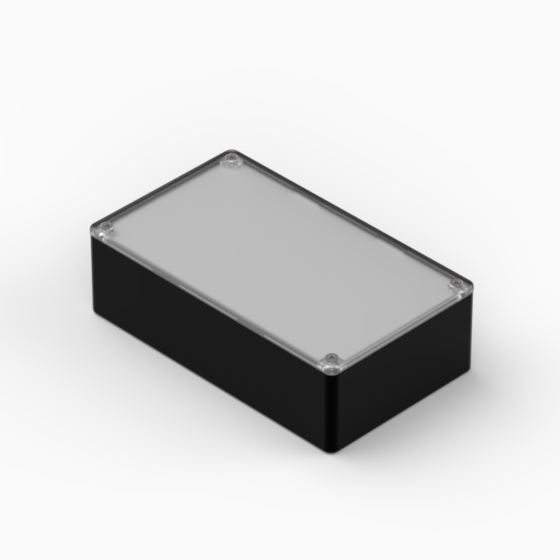

COFFER-TP3.9 160 95 49 9004
P2H-AT  -  2407 155 39 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT  -  2407
  • MAX PCB L (mm): 155
  • MAX PCB W (mm): 39
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

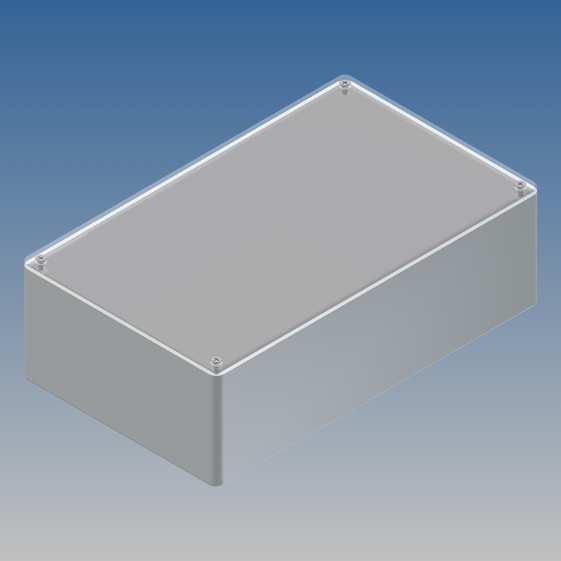

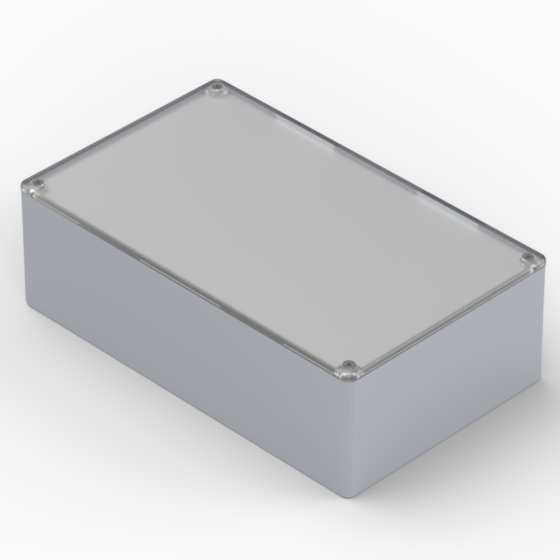

COFFER-TP4.5 215 130 68,5 9018
AG-ATY  -  2407 209,5 58 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY  -  2407
  • MAX PCB L (mm): 209,5
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

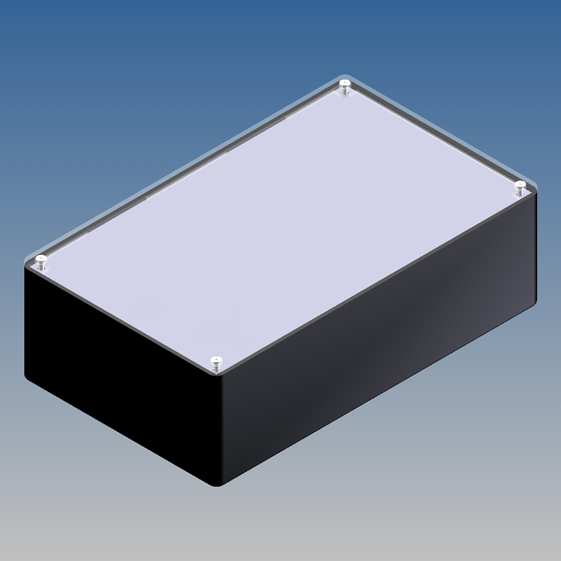

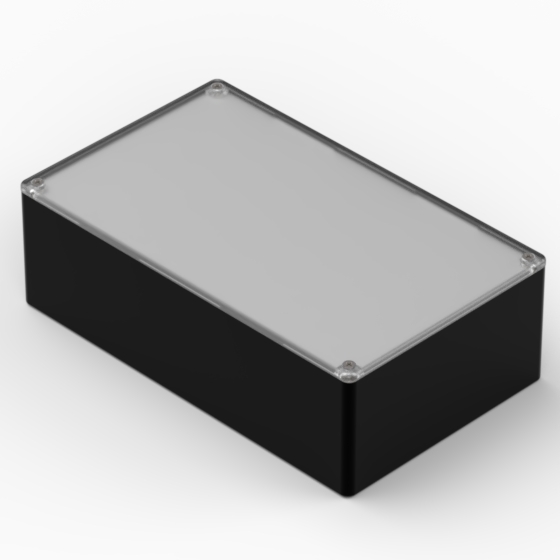

COFFER-TP4.9 215 130 68,5 9004
P2H-AT  -  2407 209,5 58 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT  -  2407
  • MAX PCB L (mm): 209,5
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
