Family Aluminium - Electronic enclosures - Metal

Description

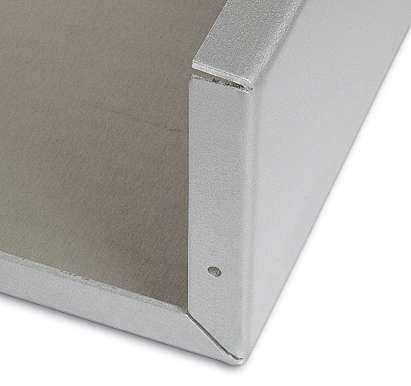

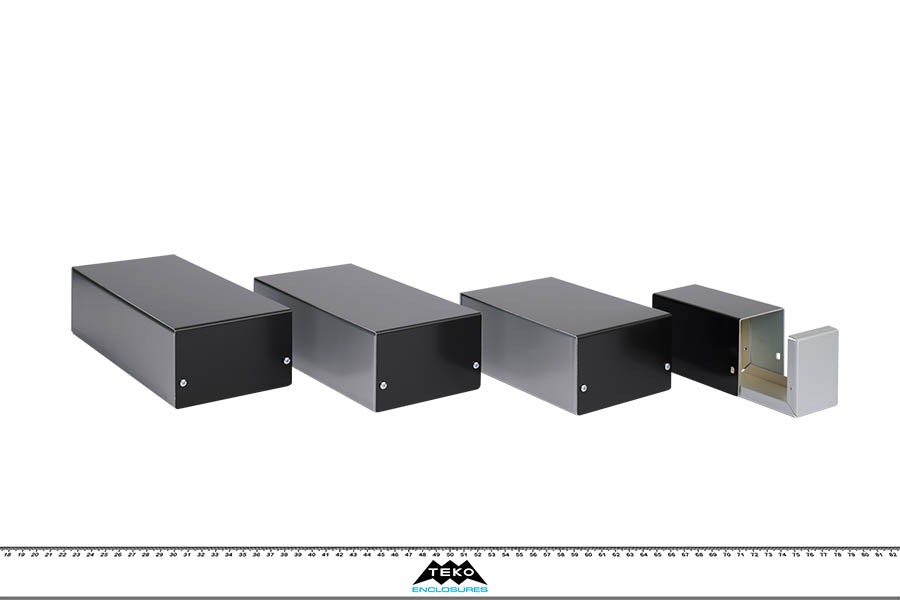

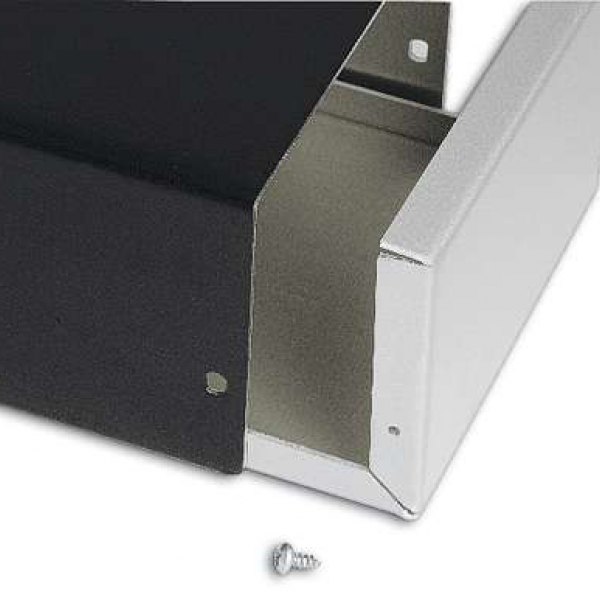

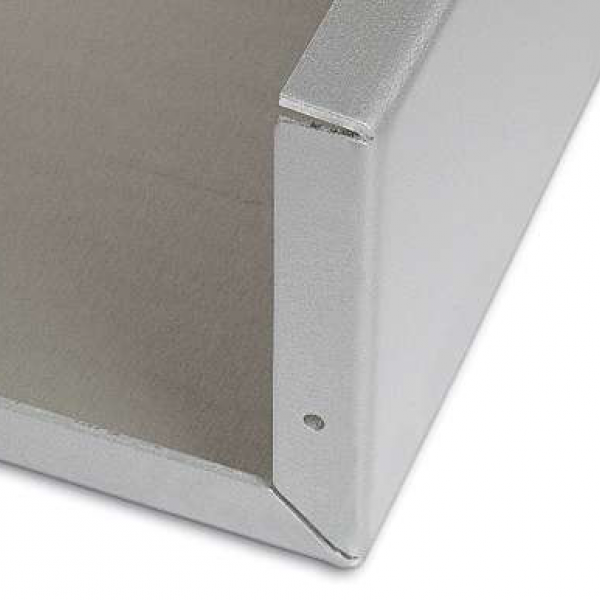

Aluminium enclosures with silver metalised base and black cover. Simple and speedy to assemble, with four screws to put in place.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

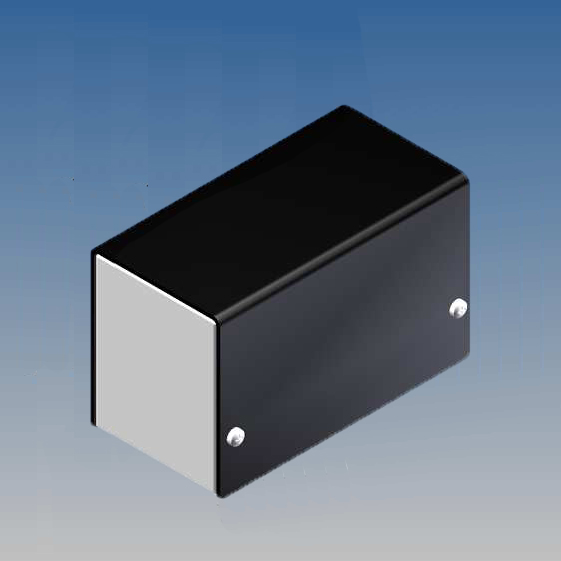

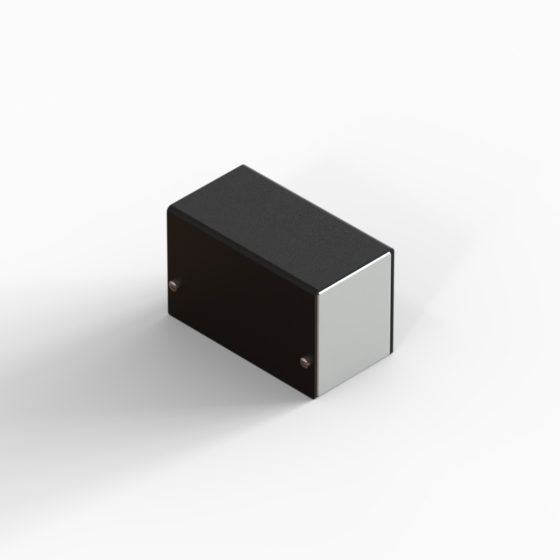

331.18 53,5 100 63 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

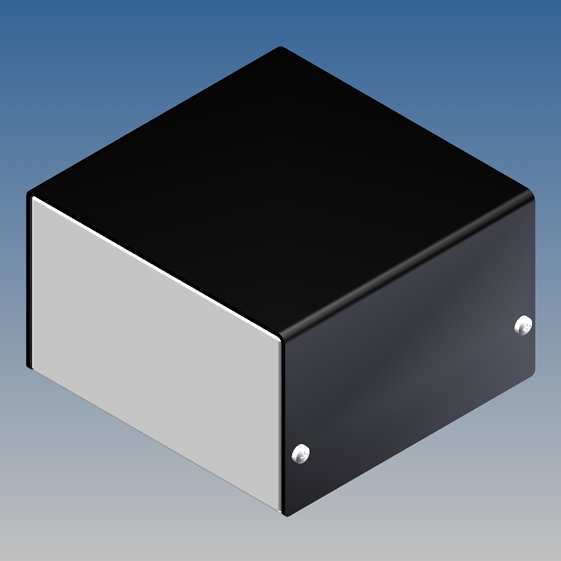

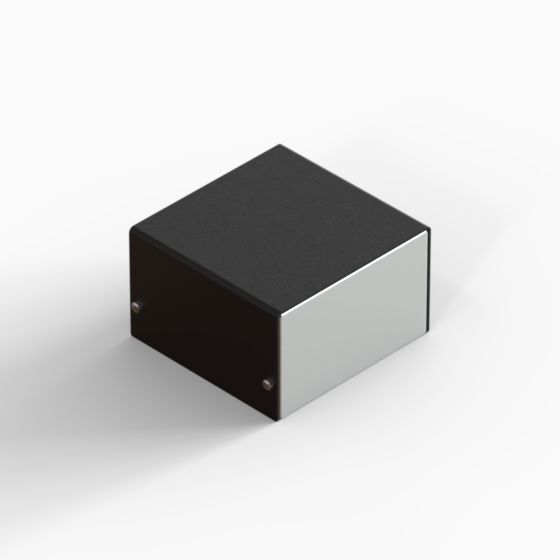

332.18 103,5 100 63 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

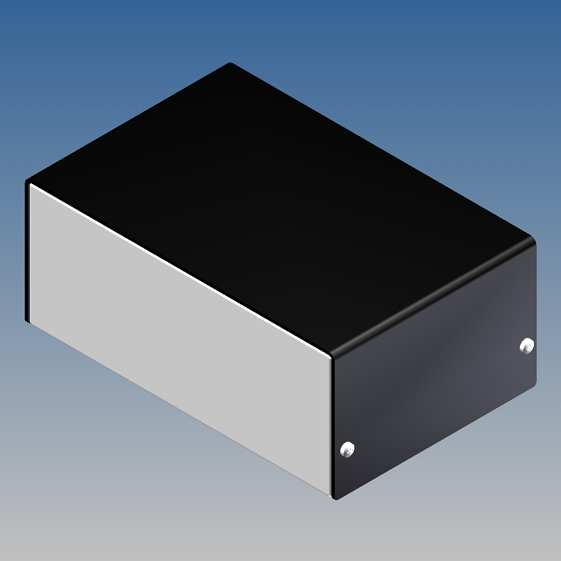

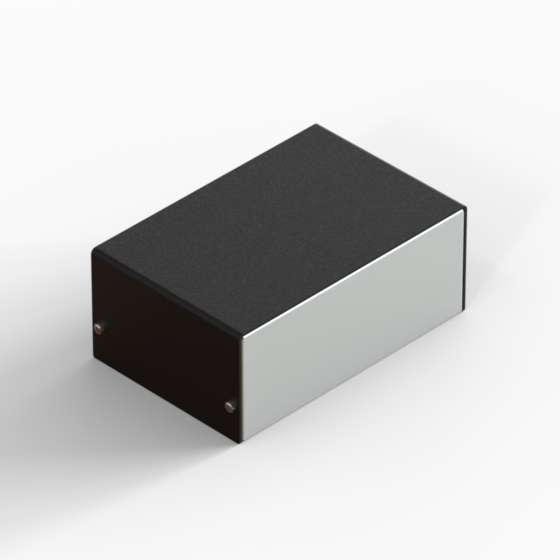

333.18 153 100 63 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

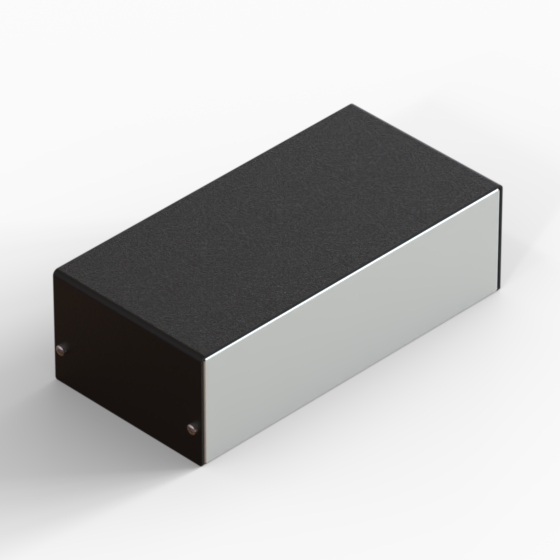

334.18 203 100 63 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

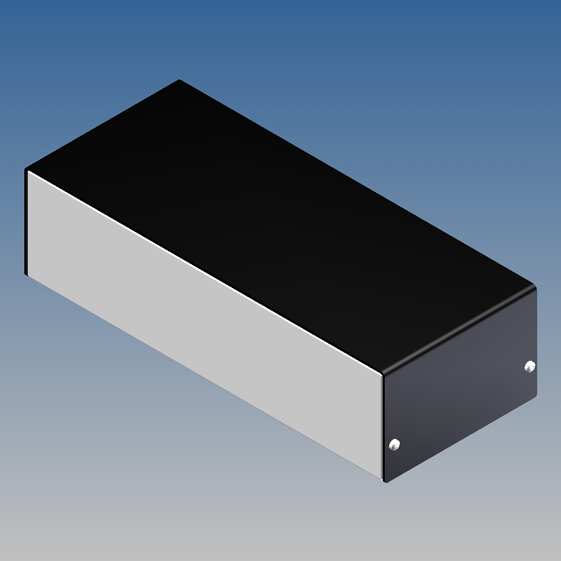

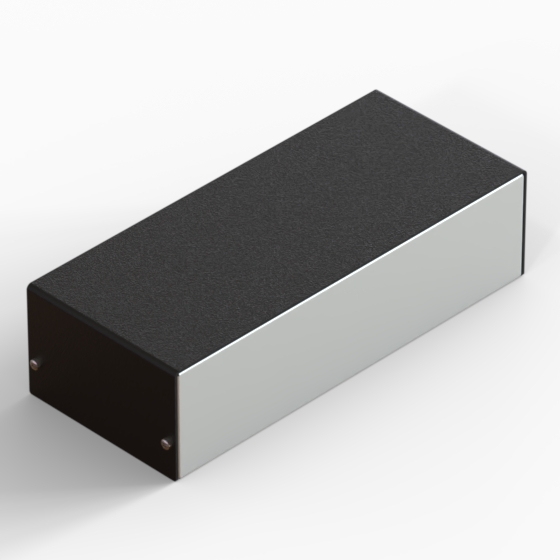

335.18 237 100 63 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View
