Description

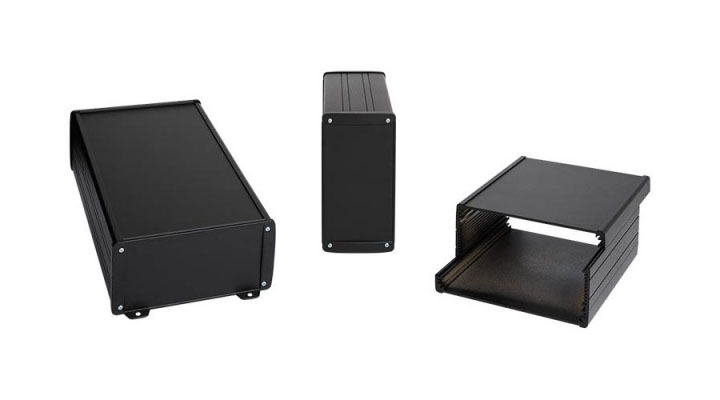

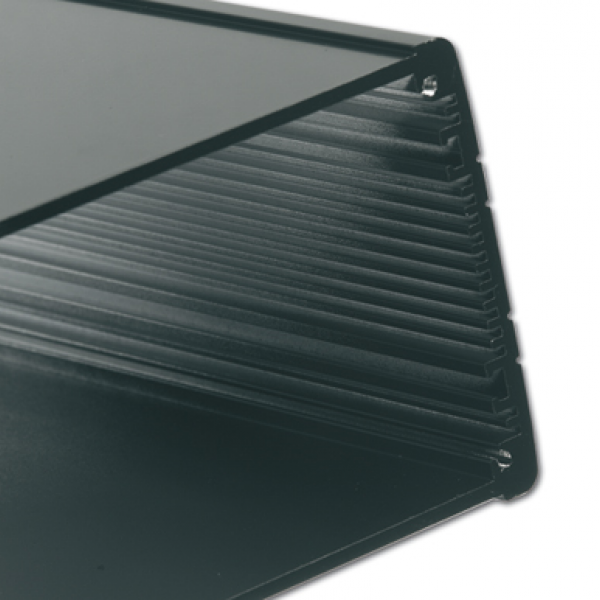

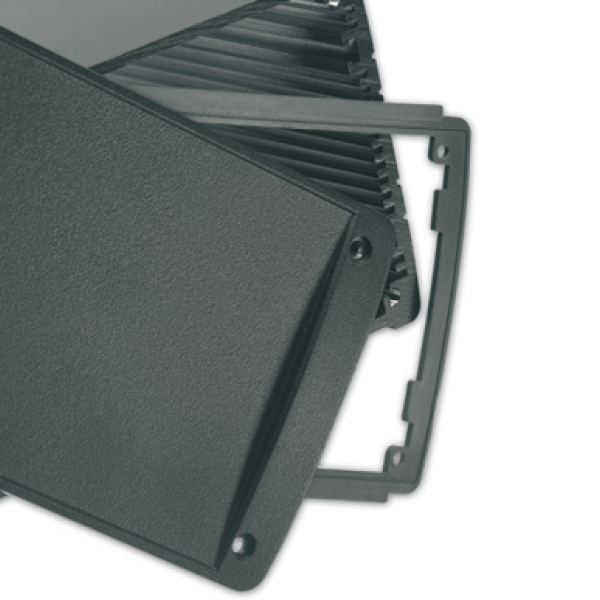

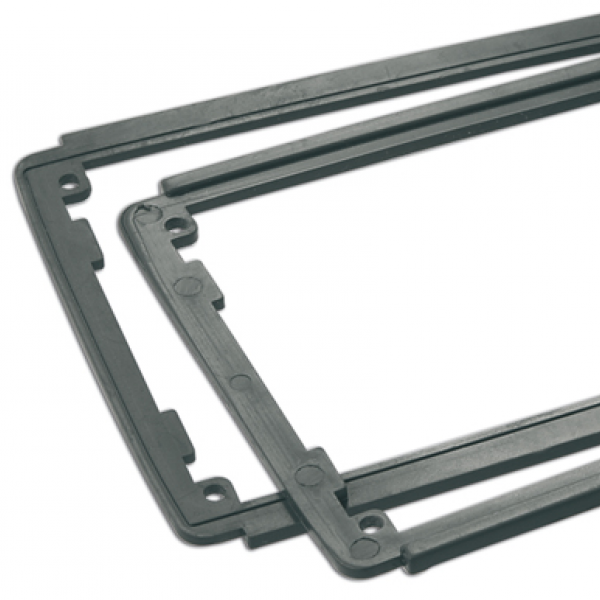

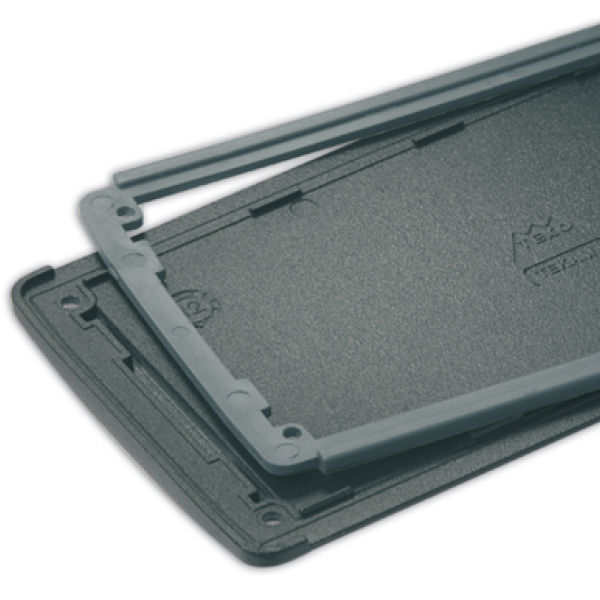

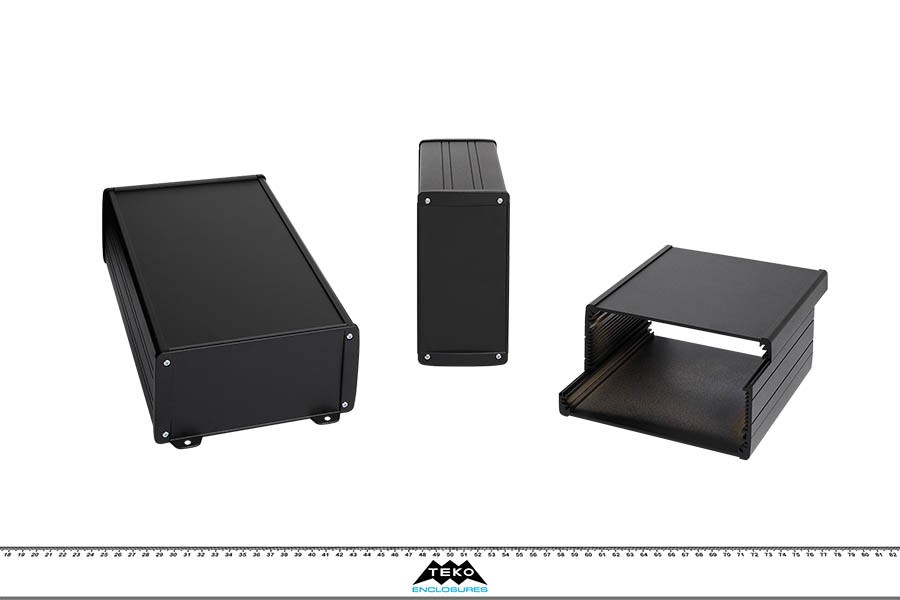

Extruded aluminum enclosure with high-quality powder coating. Two metal front panels, rubber gaskets for water and dust protection (IP65), internal PCB guides. and a recessed top section for membrane keyboard.

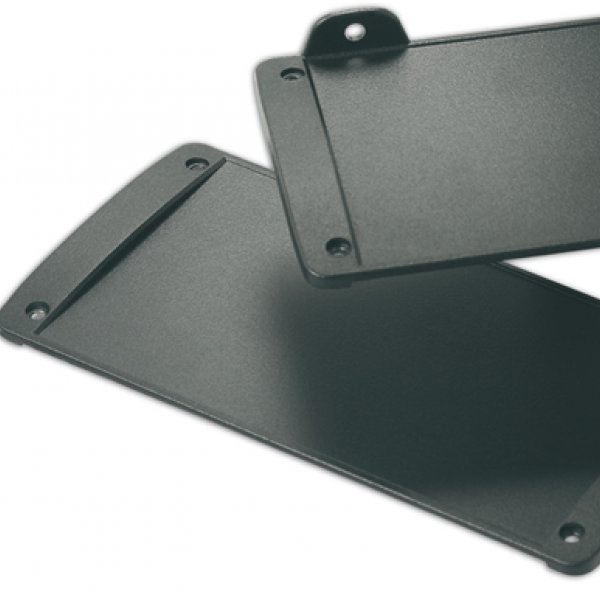

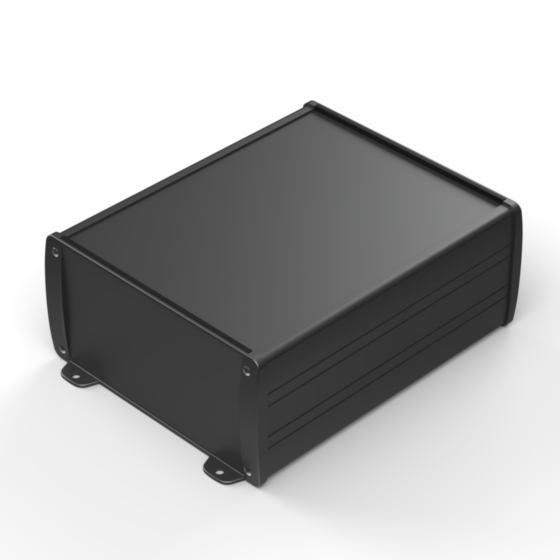

Models with "-E" feature flanged metal panels for wall mounting.

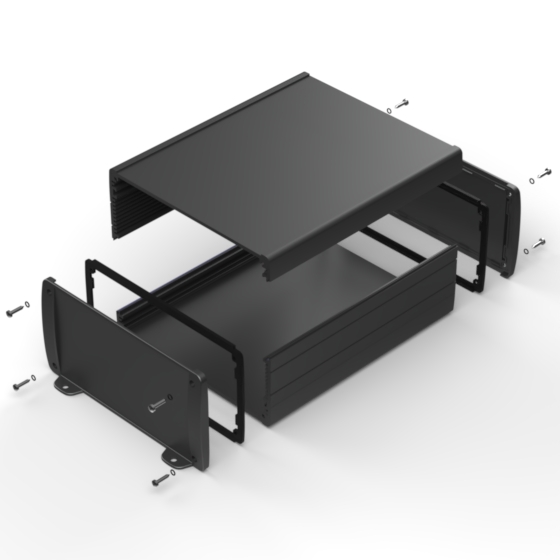

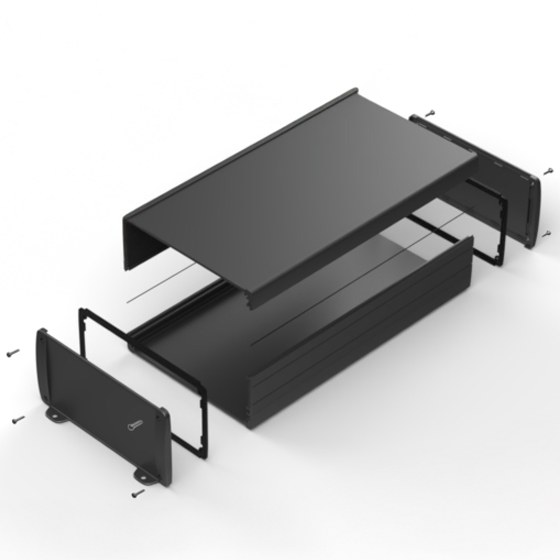

Models with "-L" feature two L-shaped profiles with interlocking locks.
The panels are secured with eight screws.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

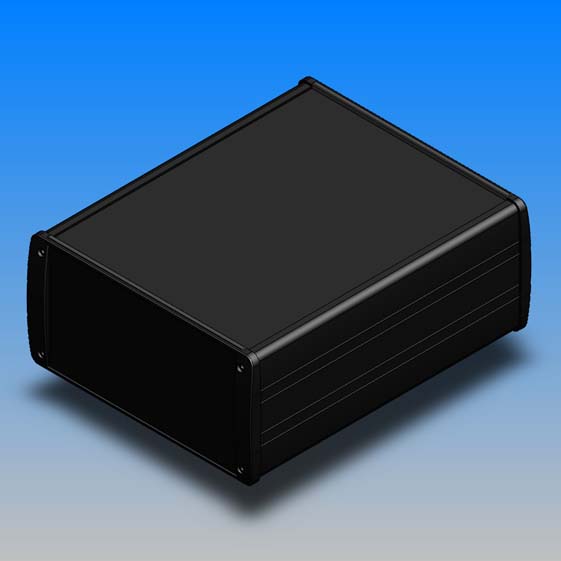

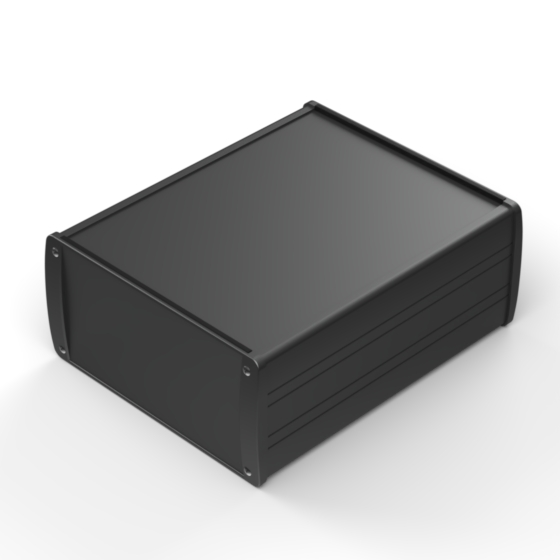

TEKAM-52.9 | 200 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 200 | 160 | 8 |
TKAMSK5 |
PDF DWG |
||
|

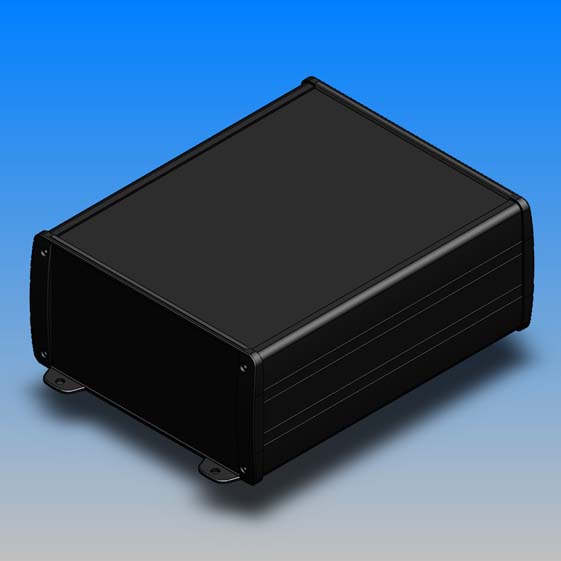

TEKAM-52/E.9 | 200 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 200 | 160 | 8 |
TKAMSK5 |
PDF DWG |
||
|

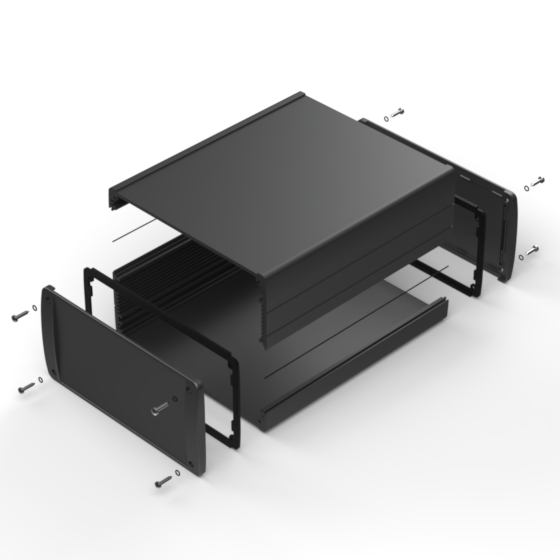

TEKAM-52L.9 | 200 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 200 | 160 | 8 |
TKAMSK5 |
PDF DWG |
||
|
TEKAM-52L/E.9 | 200 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 200 | 160 | 8 |
TKAMSK5 |
PDF DWG |
||
|

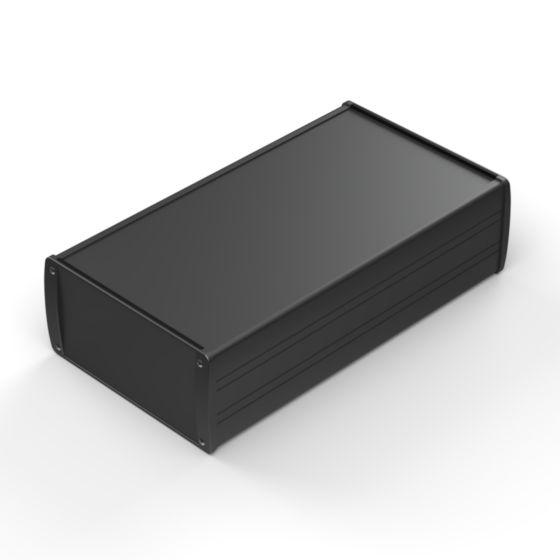

TEKAM-54.9 | 300 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 300 | 160 | 8 |
TKAMSK5 |
PDF DWG |
||
|

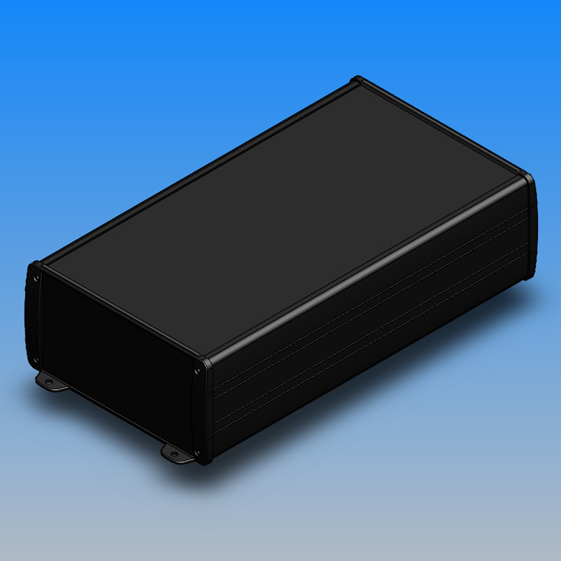

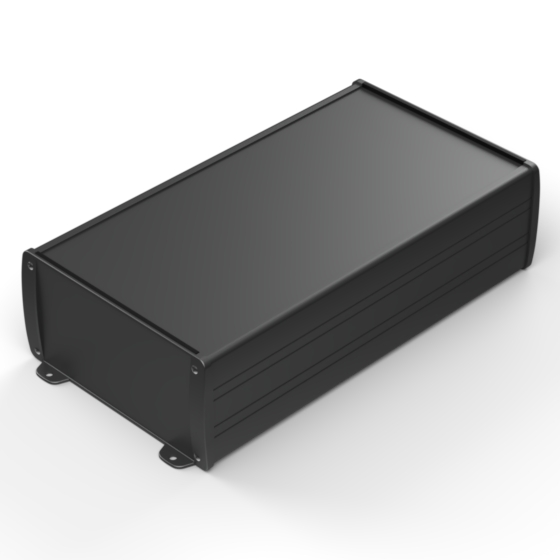

TEKAM-54/E.9 | 300 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 300 | 160 | 8 |
TKAMSK5 |
PDF DWG |
||
|

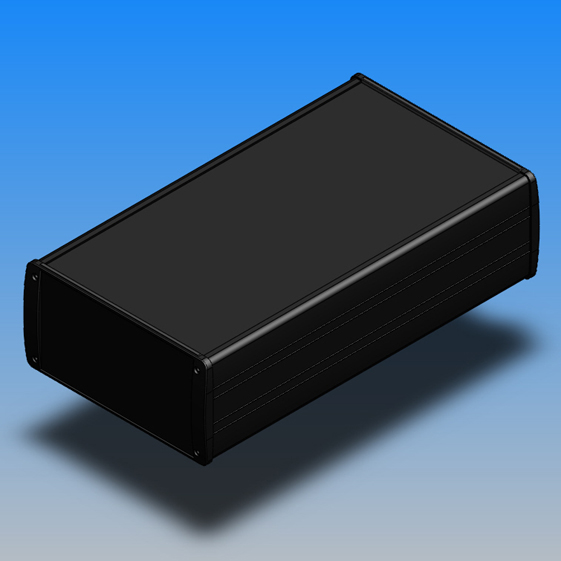

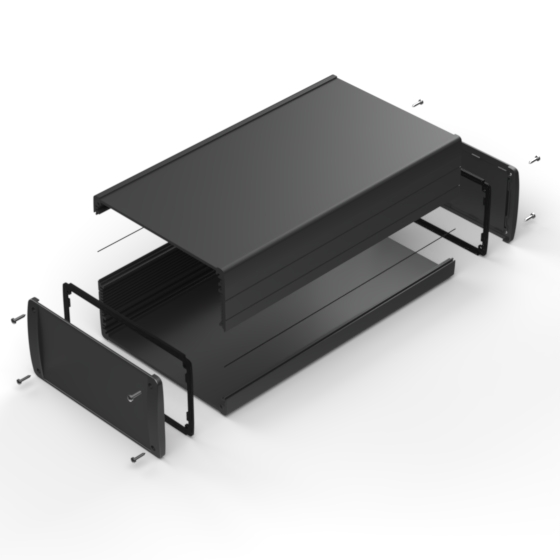

TEKAM-54L.9 | 300 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 300 | 160 | 8 |
TKAMSK5 |
PDF DWG |
||
|
TEKAM-54L/E.9 | 300 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 300 | 160 | 8 |
TKAMSK5 |
PDF DWG |
