REMO-TEK

Family Pocket - Electronic enclosures - Plastic

Description

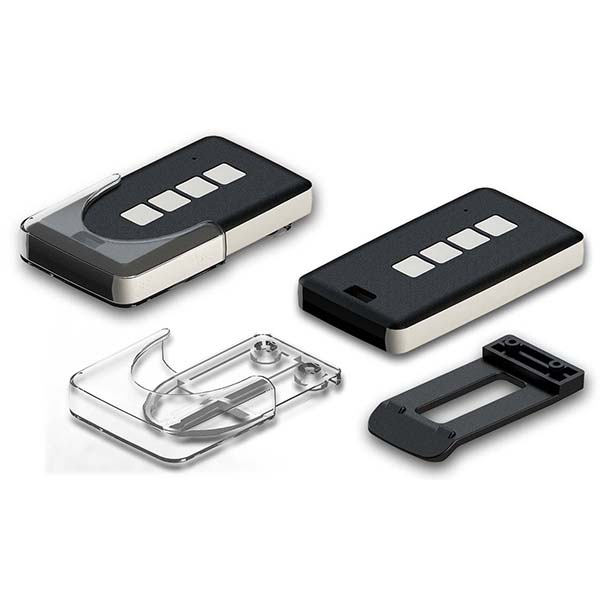

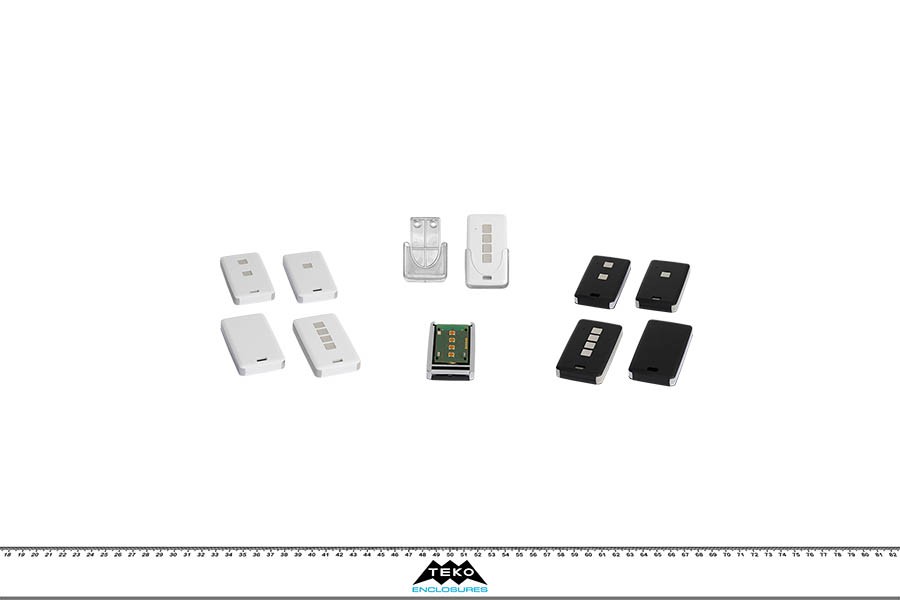

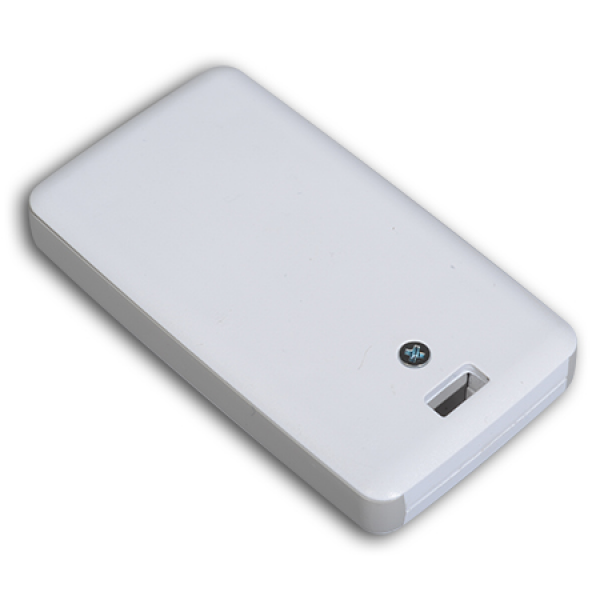

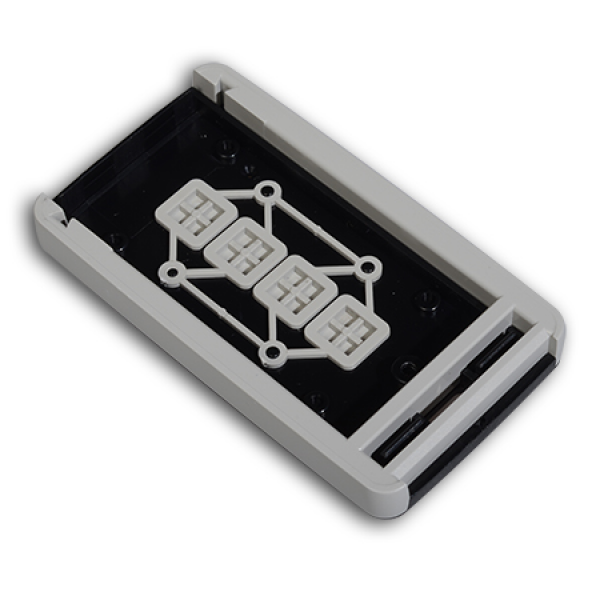

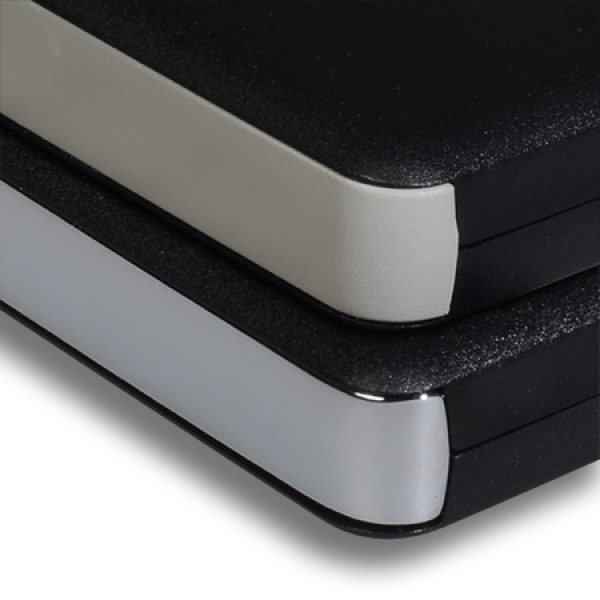

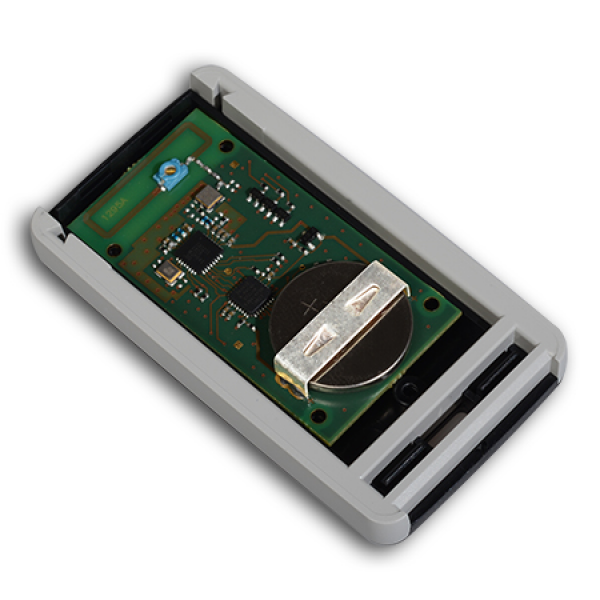

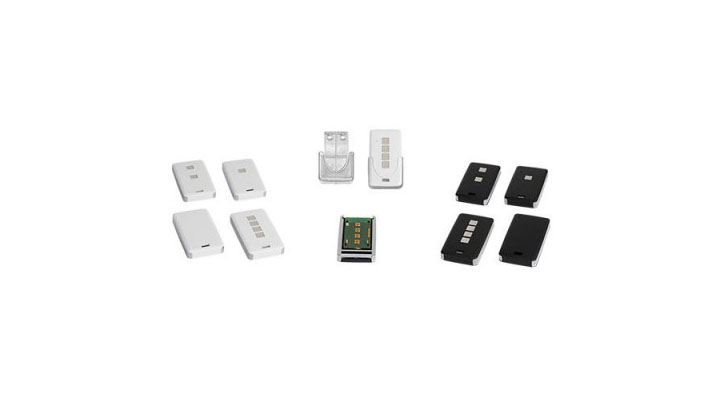

Modern design for the remote control case featuring rounded edges available both as compact unit (13120) and with push button combination from one to four (13121, 13122, 13124). Internal pillars for PCB fixing. Two colour versions: white/light gray and black/light gray. Protection bumper in plastic or polished chromed metal. LED hole on the cover. Closing by one screw. Suitable to accept button cells and battery holder AB2032.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

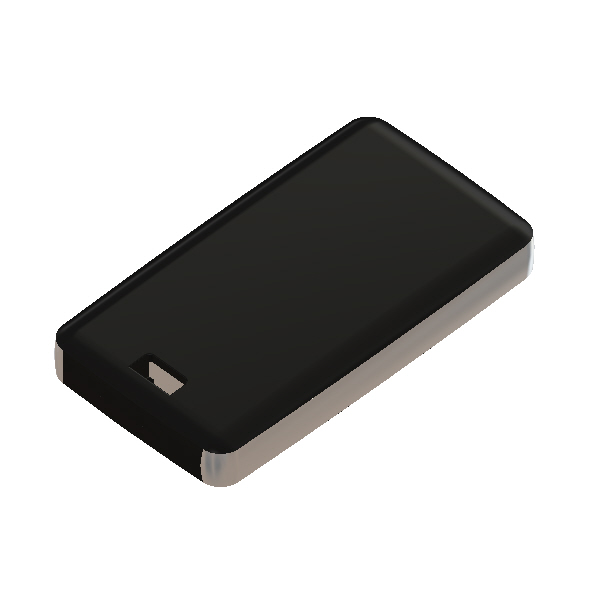

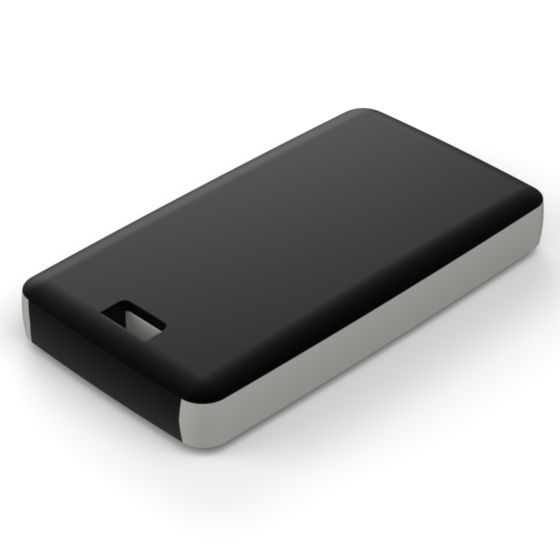

13120.23 71,5 39,3 11,5 9004 9018
P2H-AT 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View

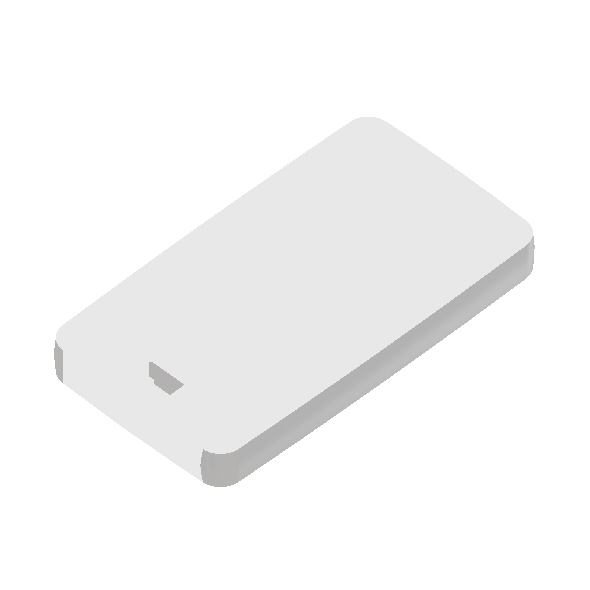

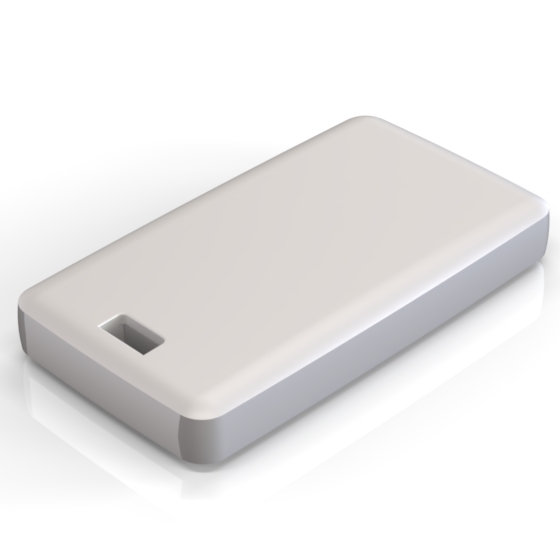

13120.30 71,5 39,3 11,5 9002 9018
P2H-AT 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View

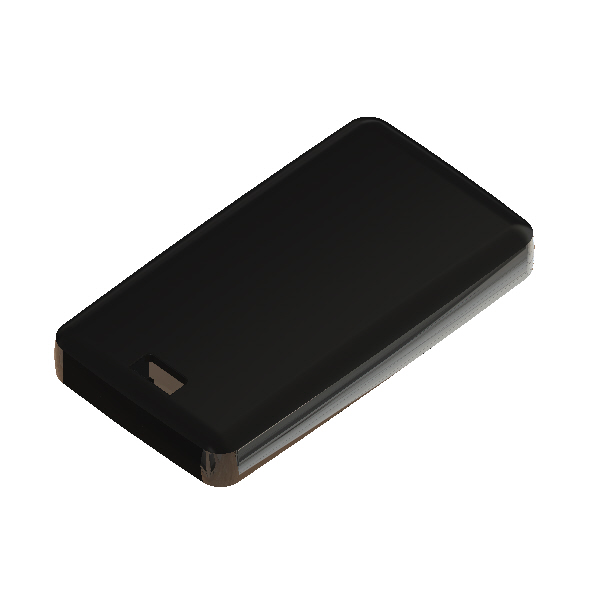

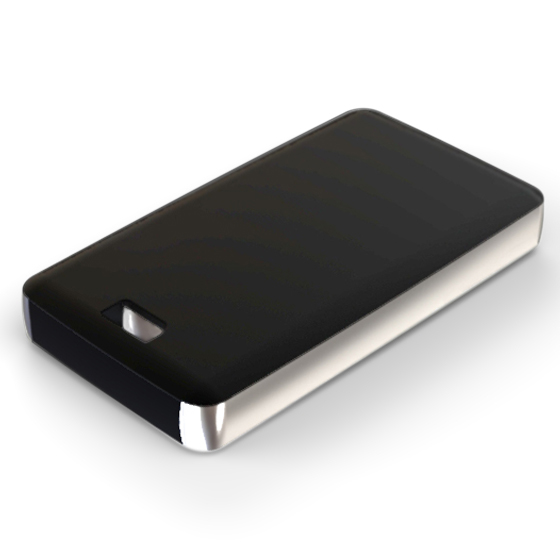

13120.44 71,5 39,3 11,5 9004
P2H-AT  -  ZA4C1 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View

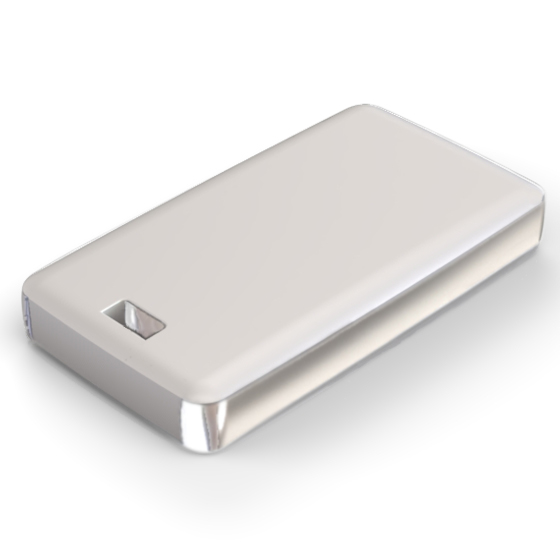

13120.47 71,5 39,3 11,5 9002
P2H-AT  -  ZA4C1 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View

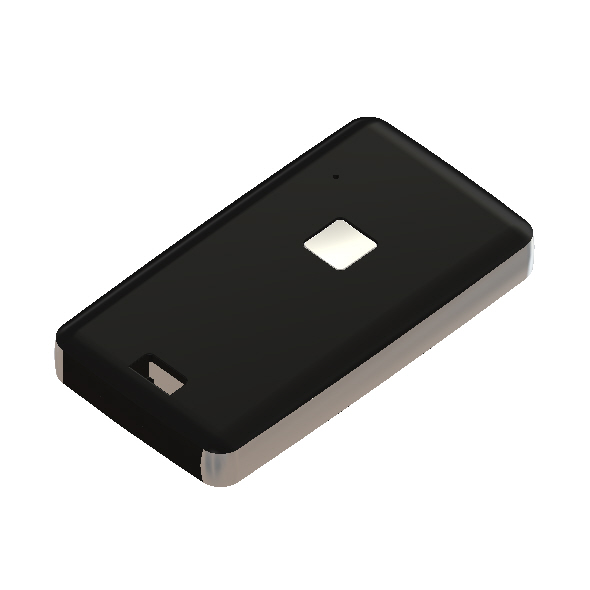

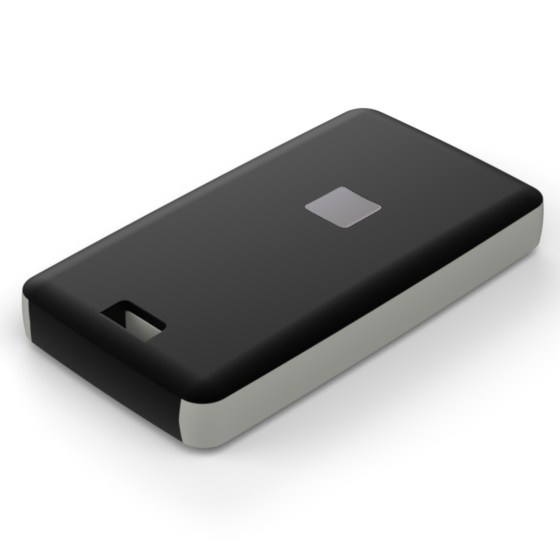

13121.23 71,5 39,3 11,5 9004 9018
P2H-AT 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View

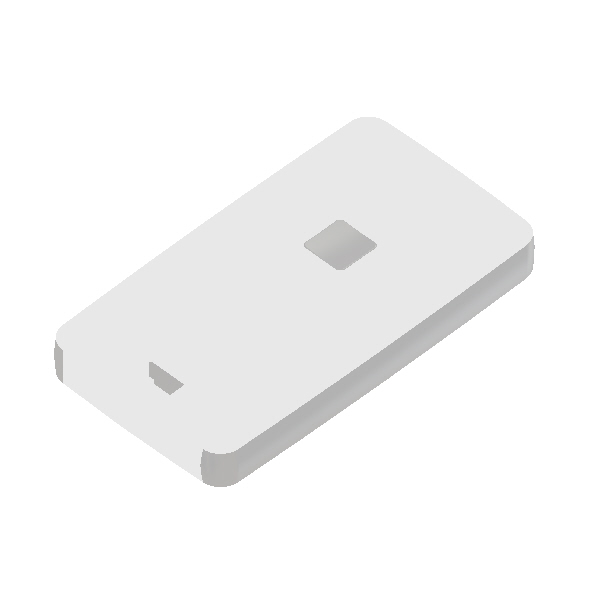

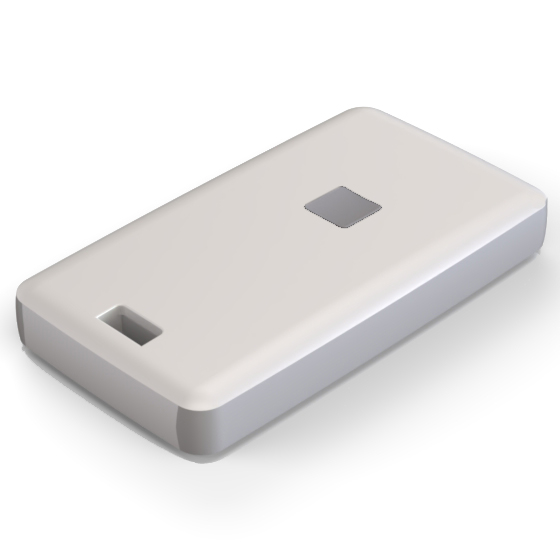

13121.30 71,5 39,3 11,5 9002 9018
P2H-AT 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View

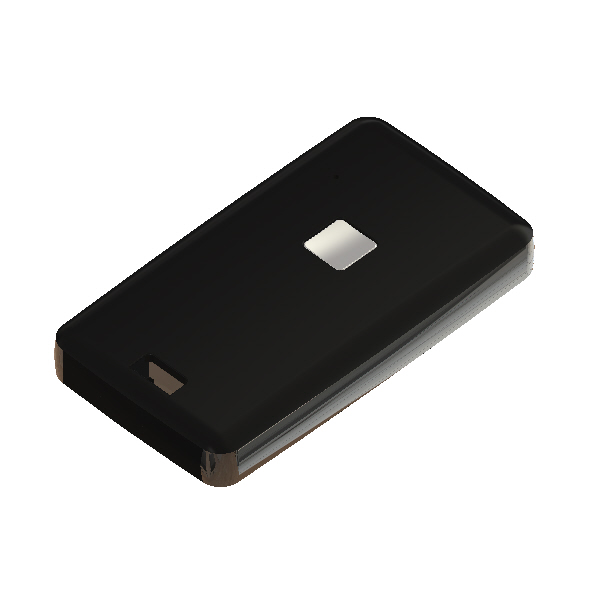

13121.44 71,5 39,3 11,5 9004
P2H-AT  -  ZA4C1 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View

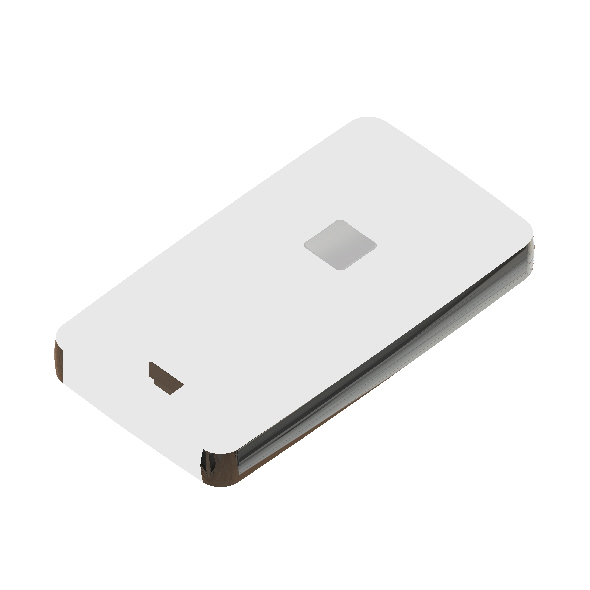

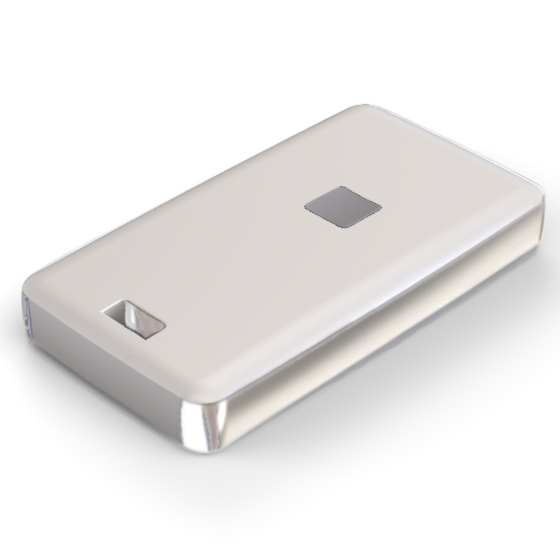

13121.47 71,5 39,3 11,5 9002
P2H-AT  -  ZA4C1 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View

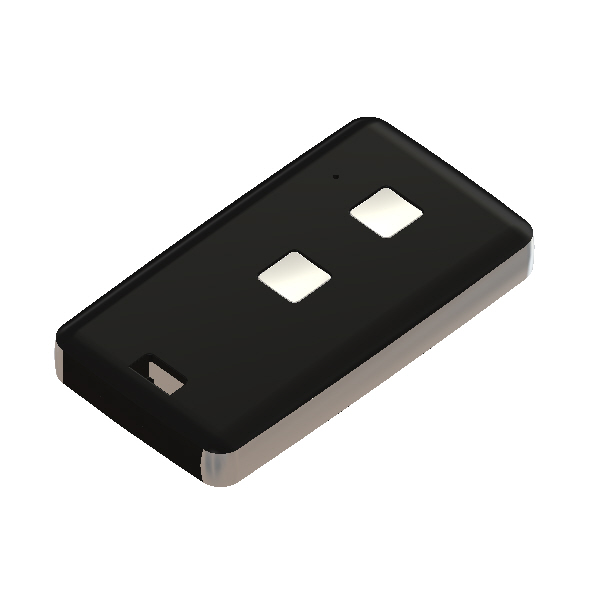

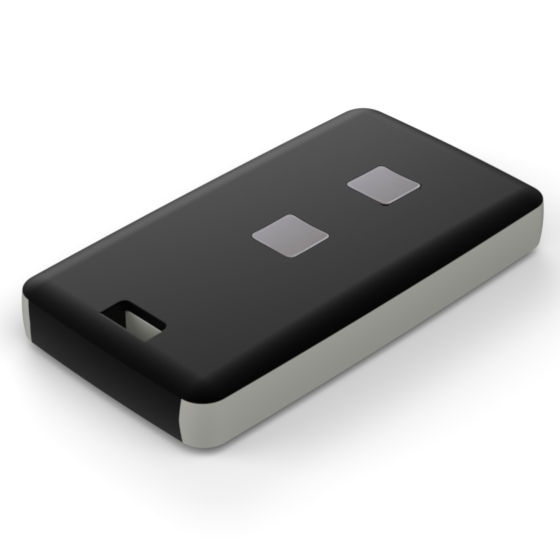

13122.23 71,5 39,3 11,5 9004 9018
P2H-AT 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View

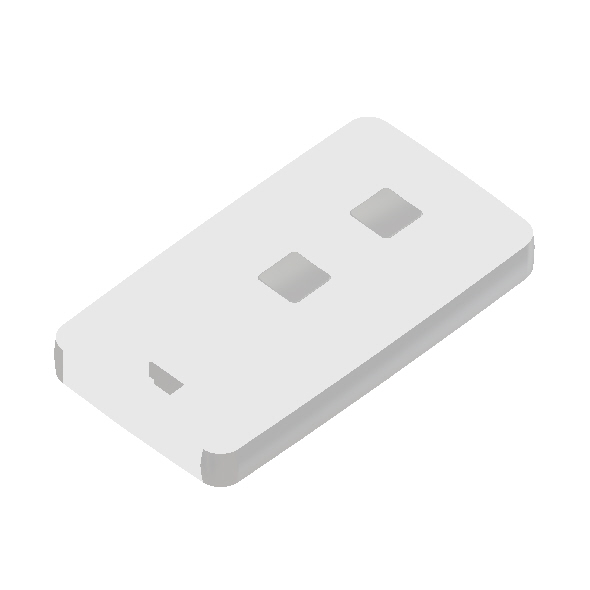

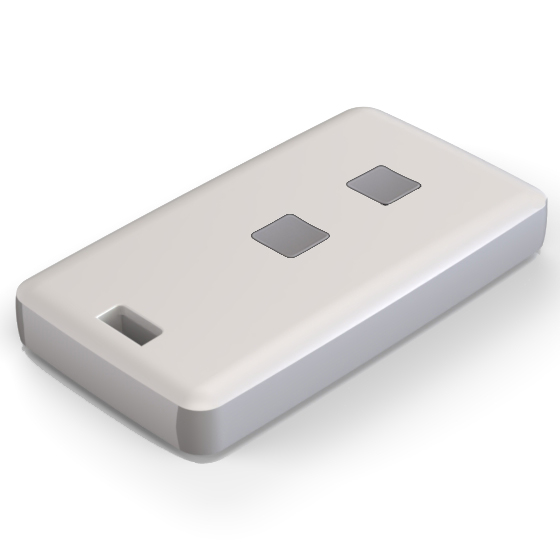

13122.30 71,5 39,3 11,5 9002 9018
P2H-AT 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View

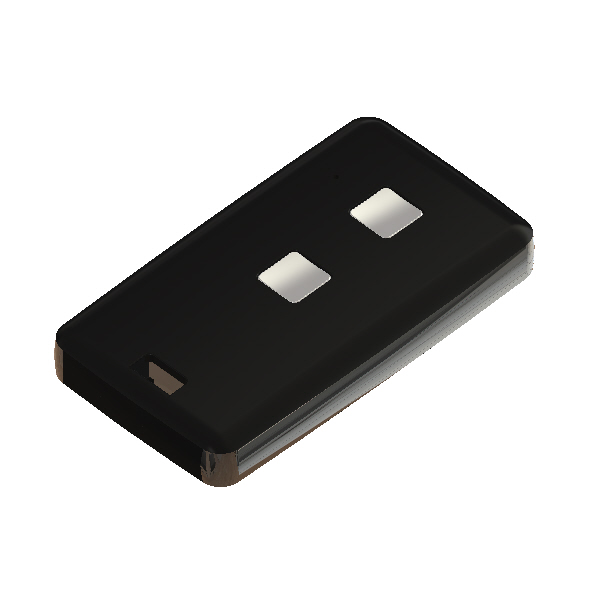

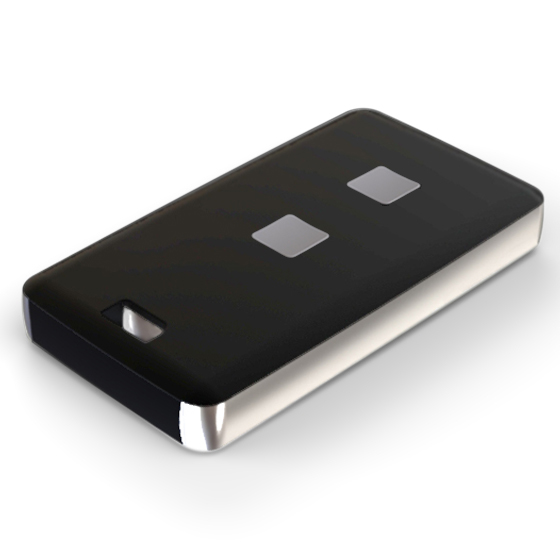

13122.44 71,5 39,3 11,5 9004
P2H-AT  -  ZA4C1 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View

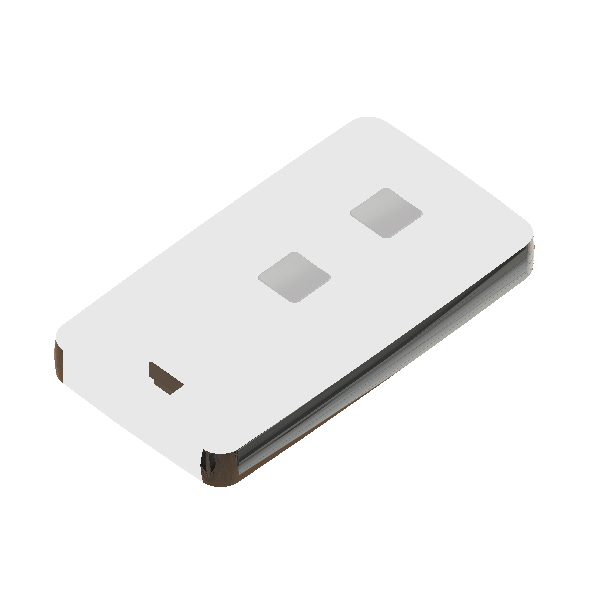

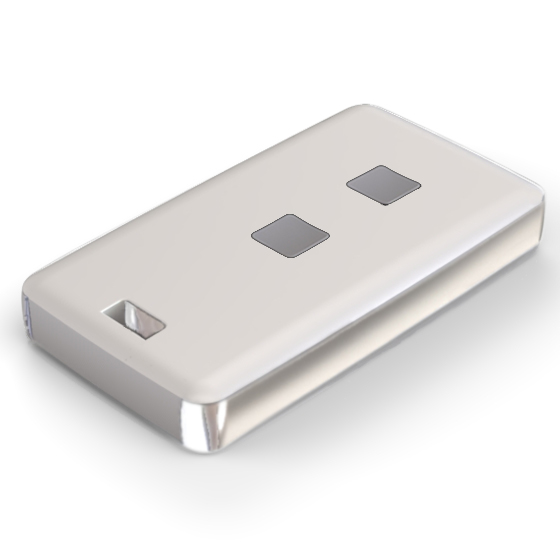

13122.47 71,5 39,3 11,5 9002
P2H-AT  -  ZA4C1 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View

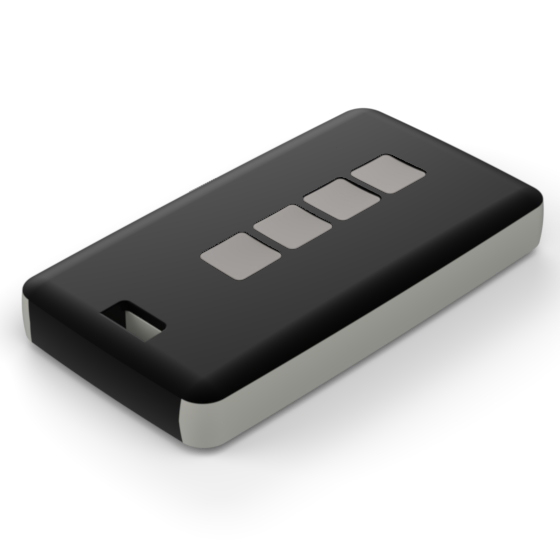

13124.23 71,5 39,3 11,5 9004 9018
P2H-AT 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View

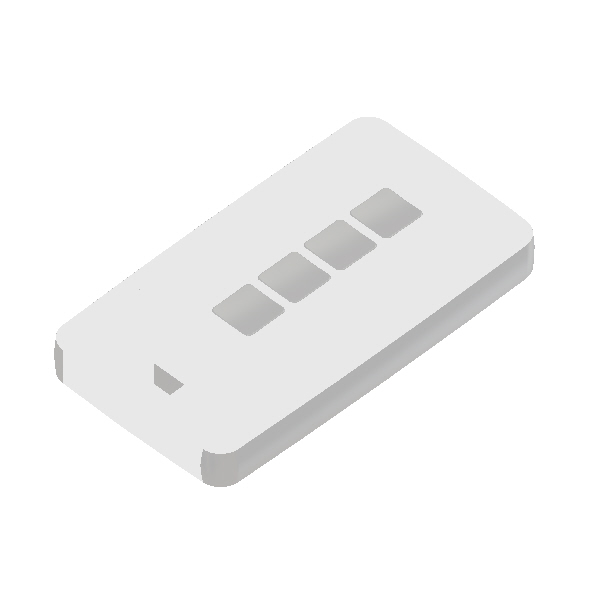

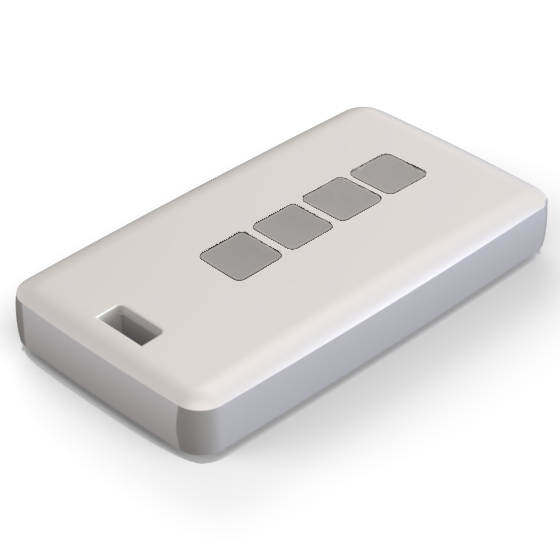

13124.30 71,5 39,3 11,5 9002 9018
P2H-AT 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View

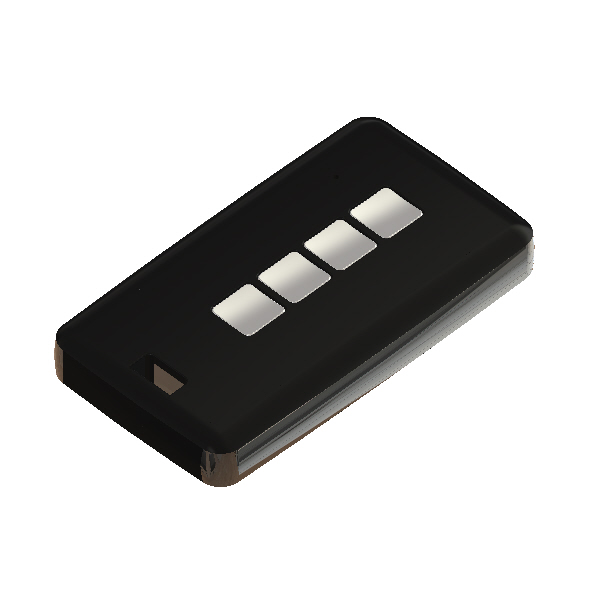

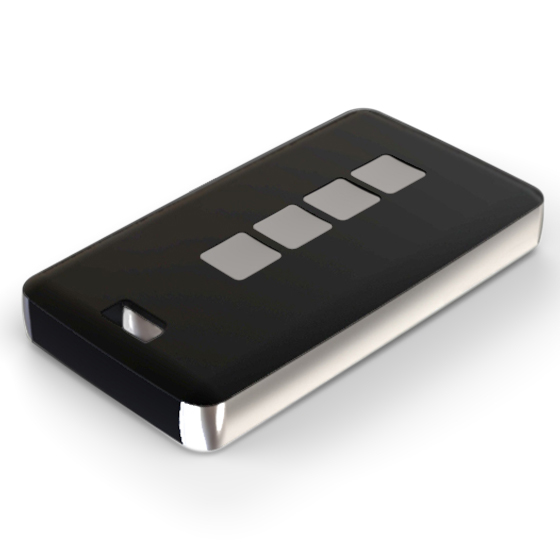

13124.44 71,5 39,3 11,5 9004
P2H-AT  -  ZA4C1 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View

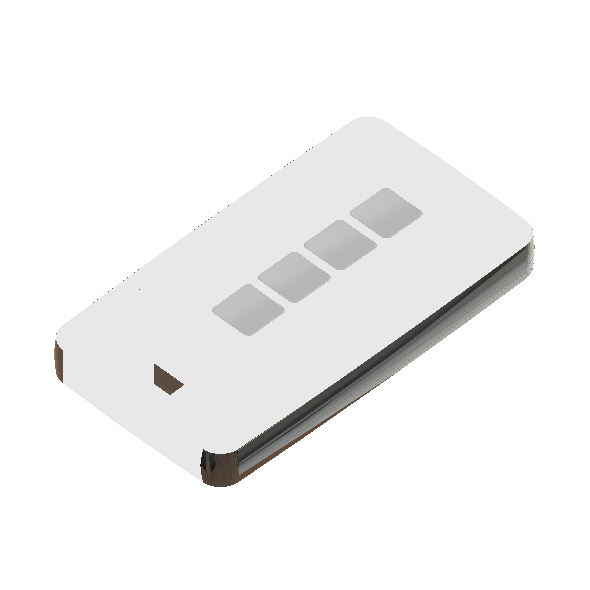

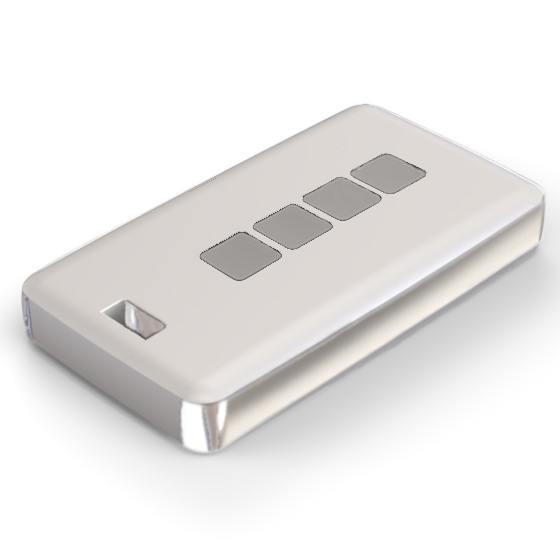

13124.47 71,5 39,3 11,5 9002
P2H-AT  -  ZA4C1 52 27 1 CR2032 AB2032
MT8
PDF
DWG
View
