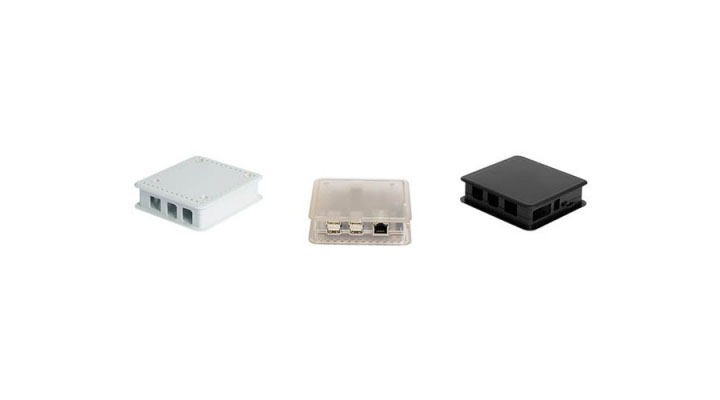

TEK-BEAGLE

Family Pocket - Electronic enclosures - Plastic

Description

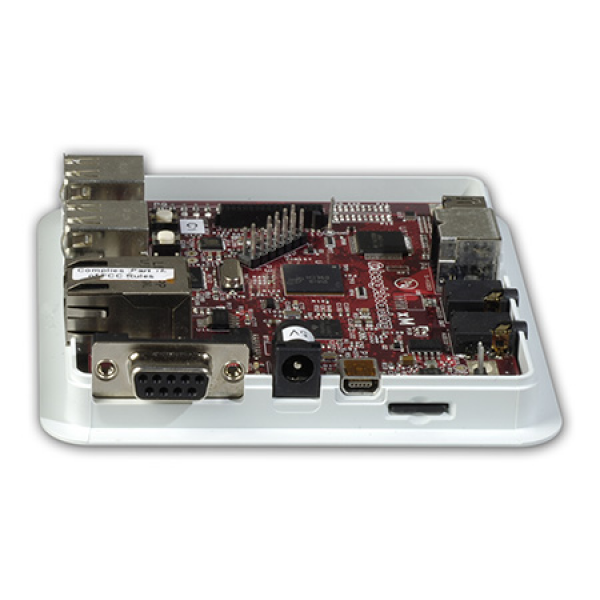

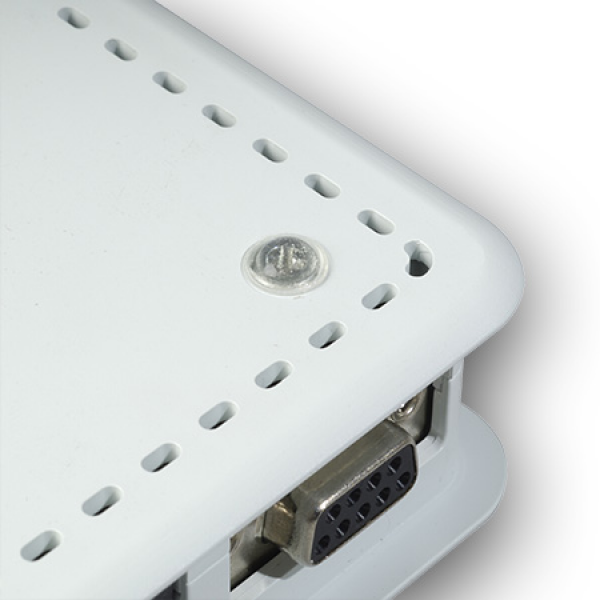

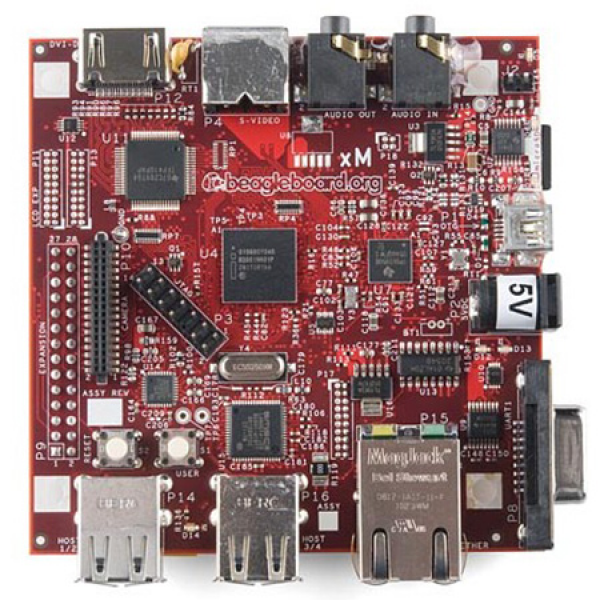

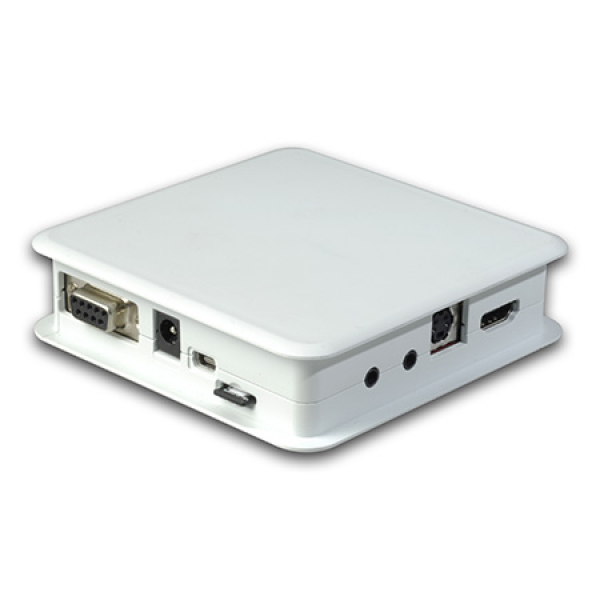

Specific case for Beagleboard-XM card (Rev C), moulded in flam retardant Bayblend (ABS+PC), UL94V0 flammability, to ensure an excellent endurance and mechanical stability, even when exposed to high temperatures. Internal fixing guides to an easy and intuitive fixing of the „Beagleboard-XM“. Aeration slots along the perimeter of the base for a proper airflow, in order to avoid the overheat of the components.  Sides stick out to protect the connectors. Fast and secure closure by 4 screws on the bottom. Supply includes 4 transparent non-slip feet that cover the screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

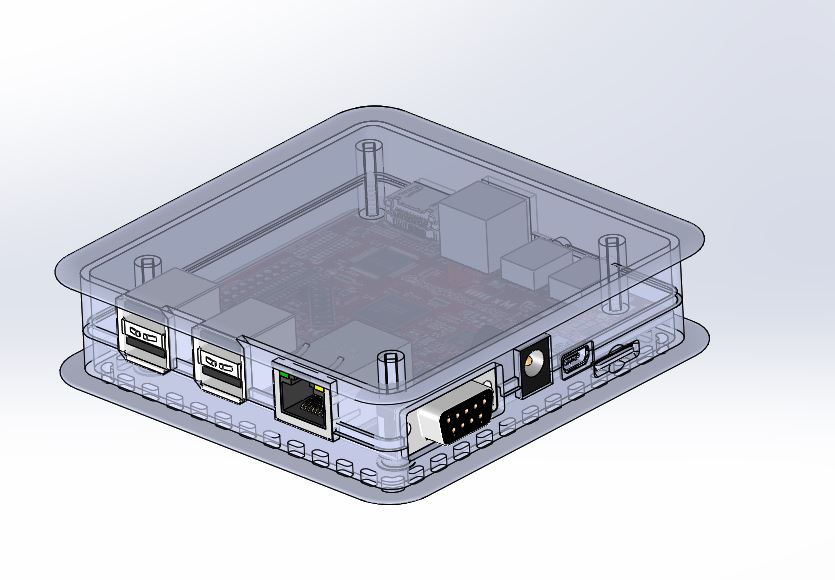

TEK-BEAGLE.0 103,36 103,36 27,80  -
ASYBLEND T65 85 85 4   PDF
View
  • Color (Ral):  -
  • Material: ASYBLEND T65
  • MAX PCB L (mm): 85
  • MAX PCB W (mm): 85
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF

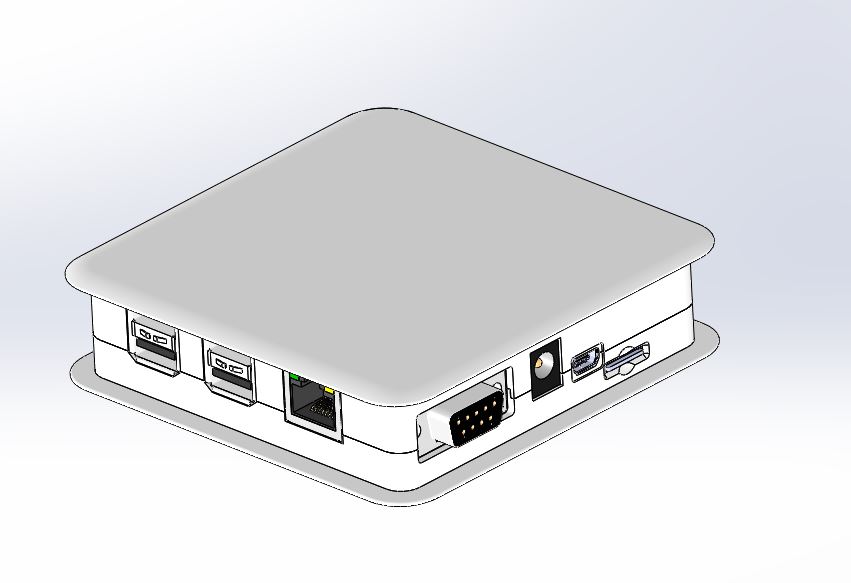

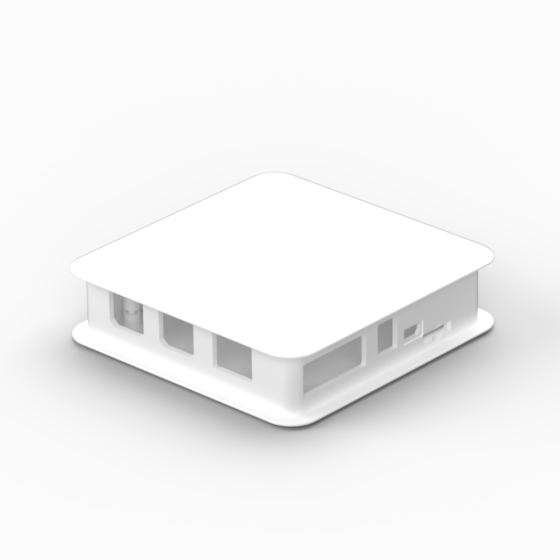

TEK-BEAGLE.40 103,36 103,36 27,80 50719
ASYBLEND T65 85 85 4   PDF
View
  • Color (Ral): 50719
  • Material: ASYBLEND T65
  • MAX PCB L (mm): 85
  • MAX PCB W (mm): 85
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF

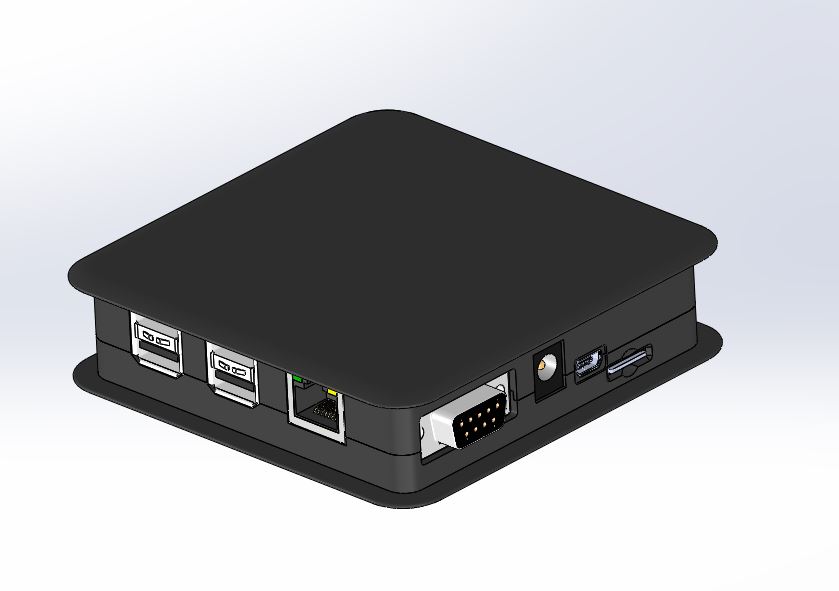

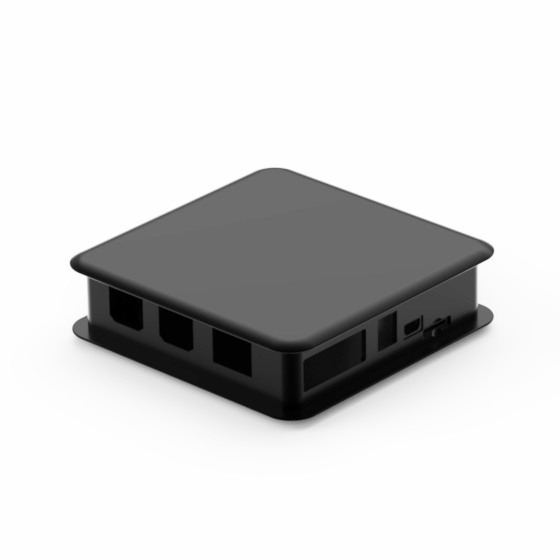

TEK-BEAGLE.9 103,36 103,36 27,80 9004
ASYBLEND T65 85 85 4   PDF
View
  • Color (Ral): 9004
  • Material: ASYBLEND T65
  • MAX PCB L (mm): 85
  • MAX PCB W (mm): 85
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF
