Family Aluminium - Electronic enclosures - Metal

Description

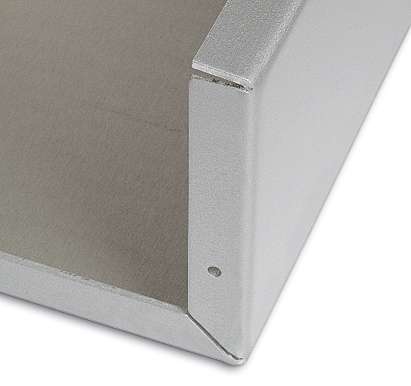

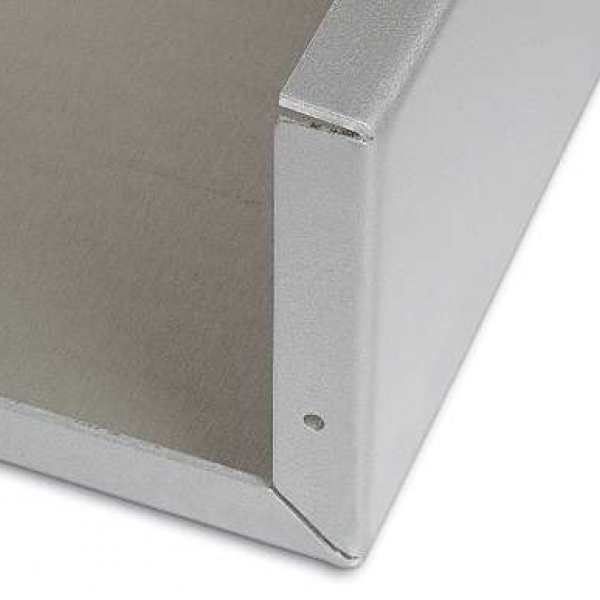

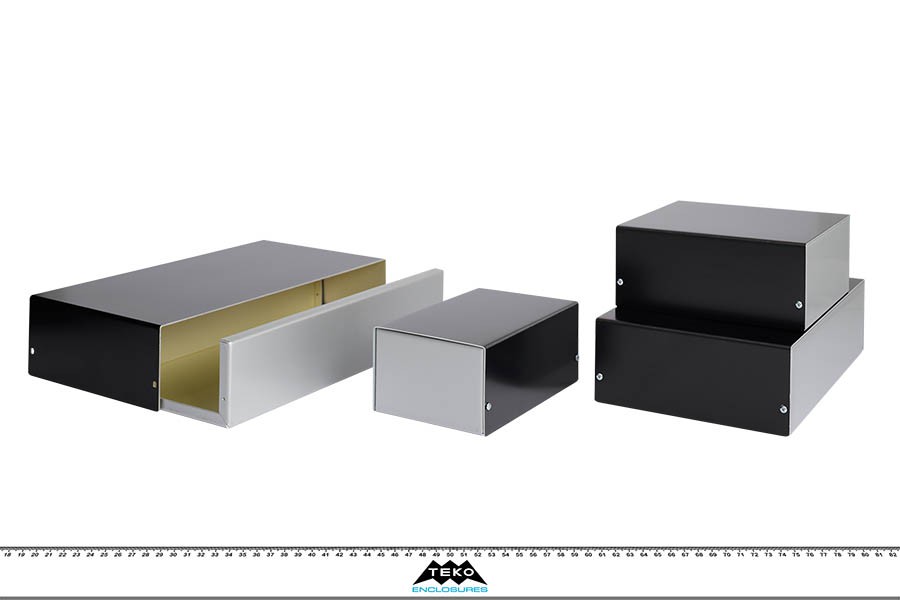

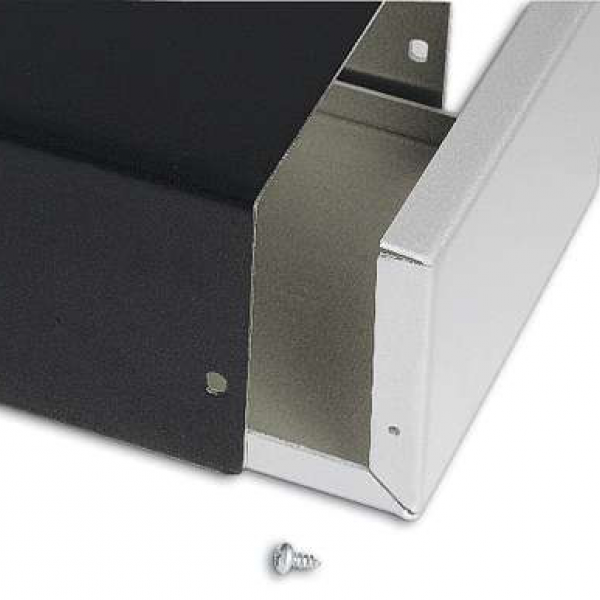

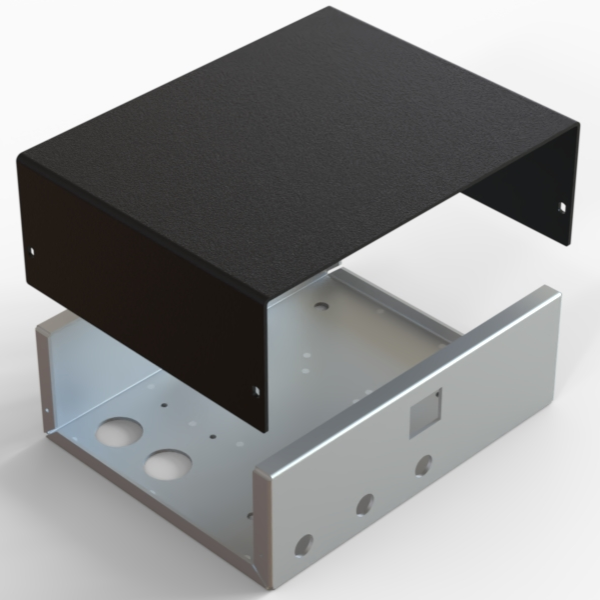

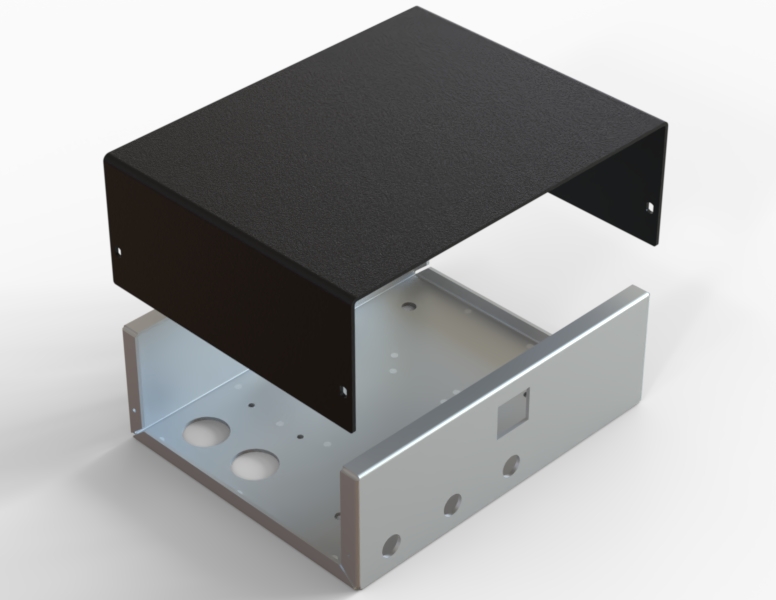

Aluminium enclosures with silver metalised base and black cover. Simple and speedy to assemble, with four screws to put in place.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

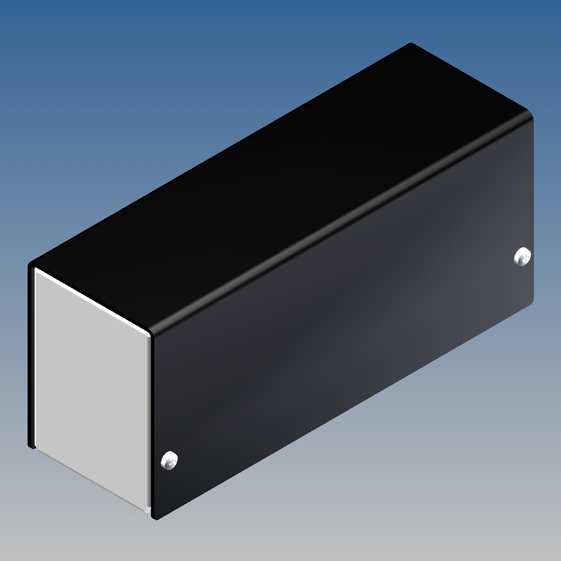

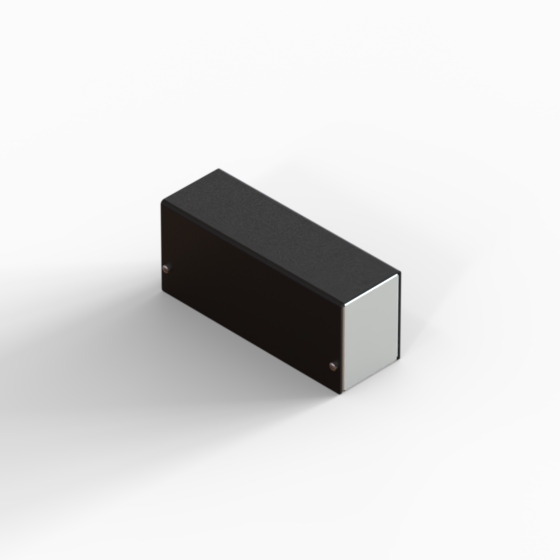

381.18 53,5 160 69,5 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

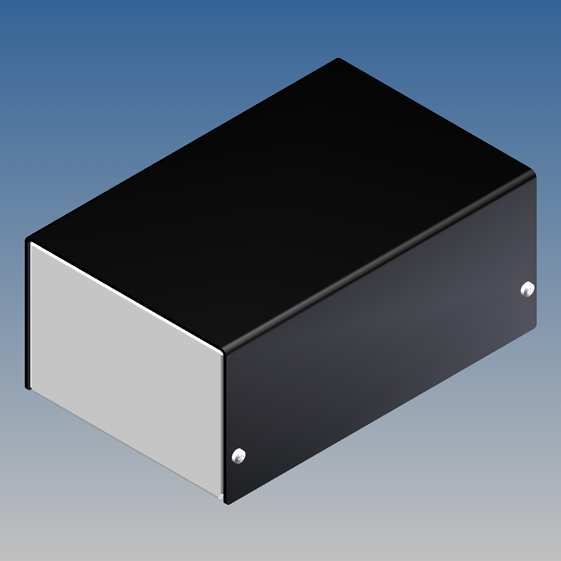

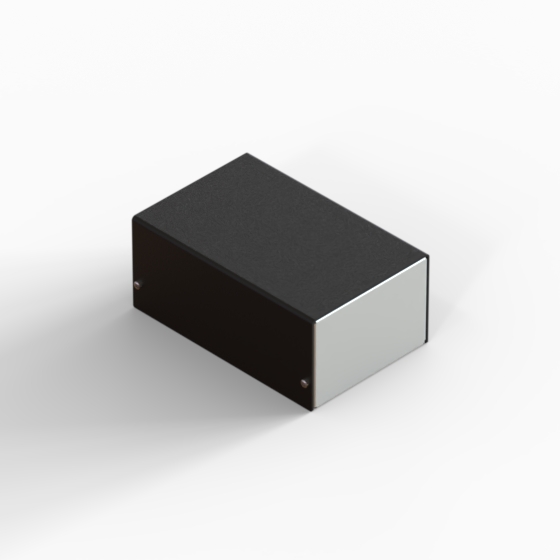

382.18 104 160 69,5 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

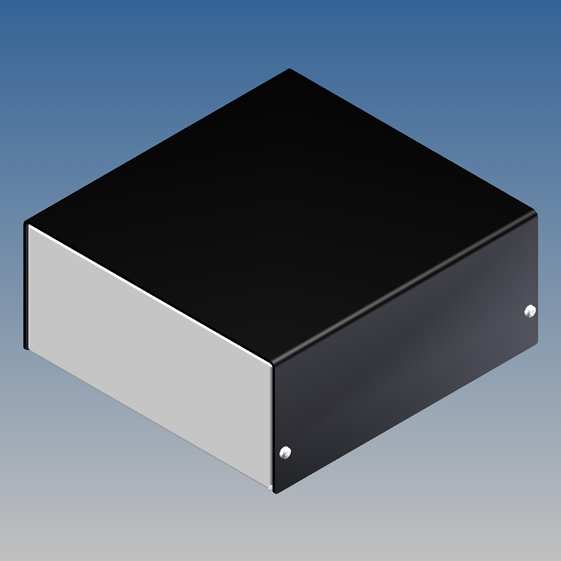

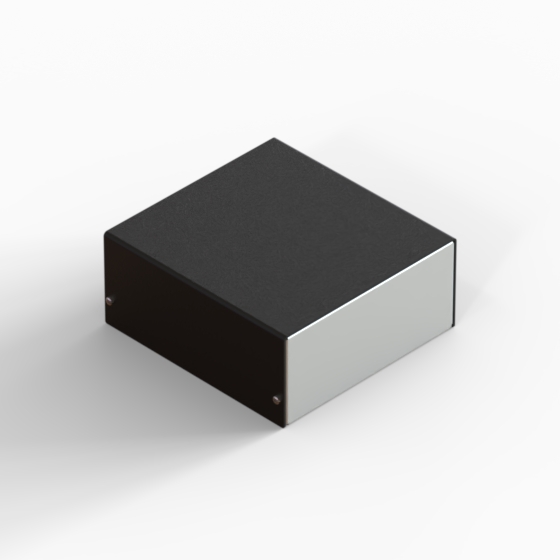

383.18 153 160 69,5 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

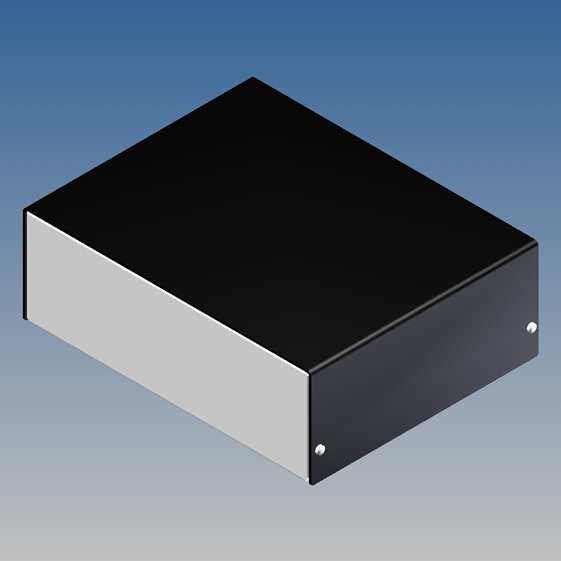

384.18 203 160 69,5 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

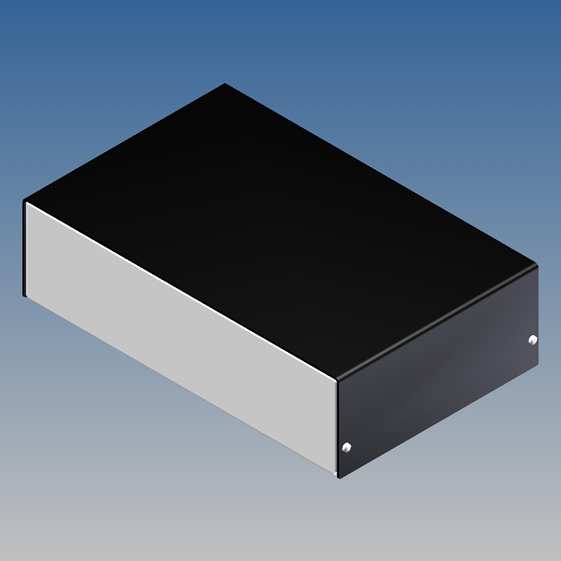

385.18 253 160 69,5 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

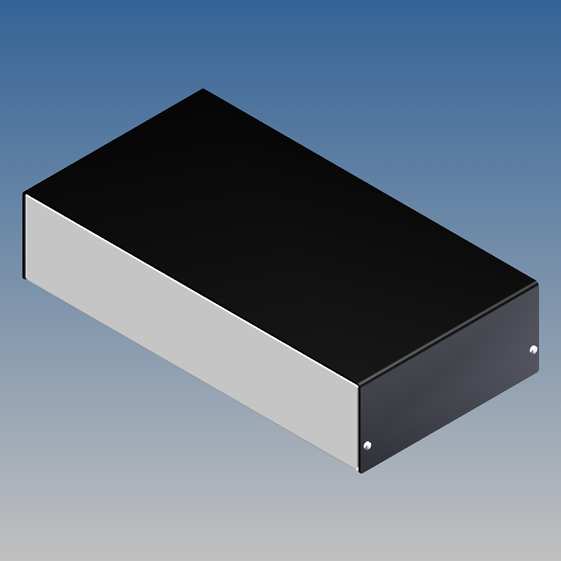

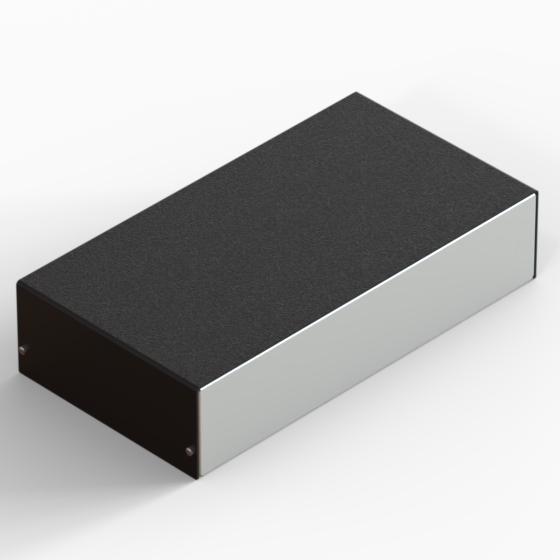

386.18 303 160 69,5 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View
