MINITEKAL SK

Family Aluminium - Electronic enclosures - Metal

Description

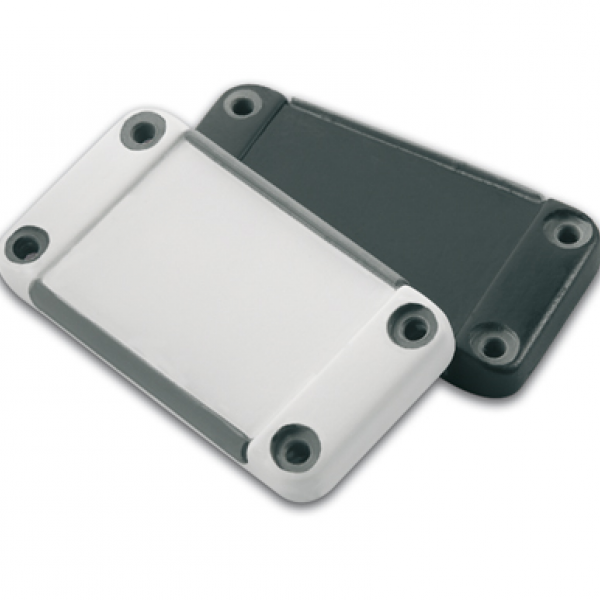

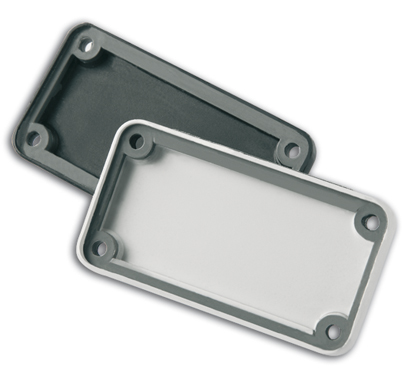

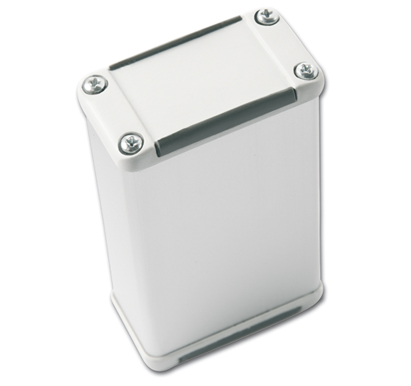

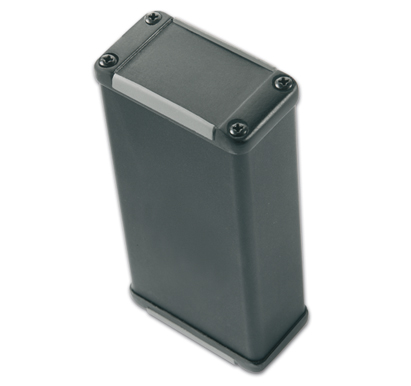

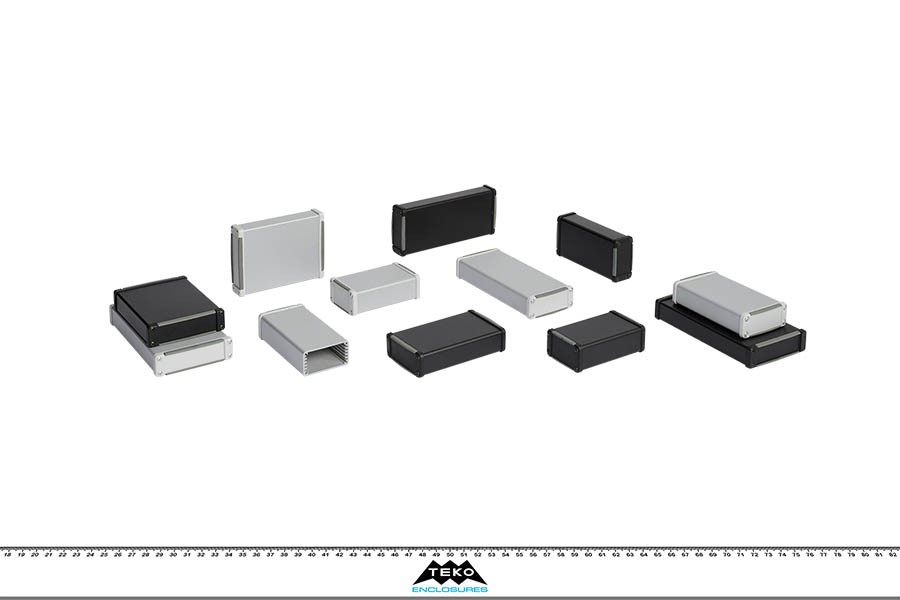

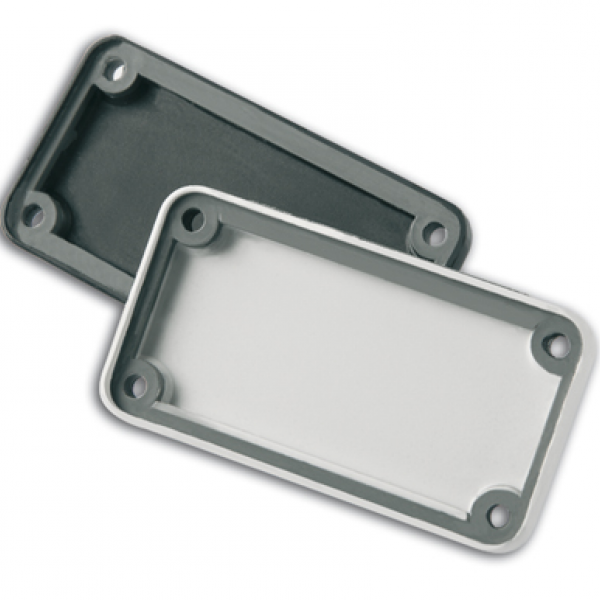

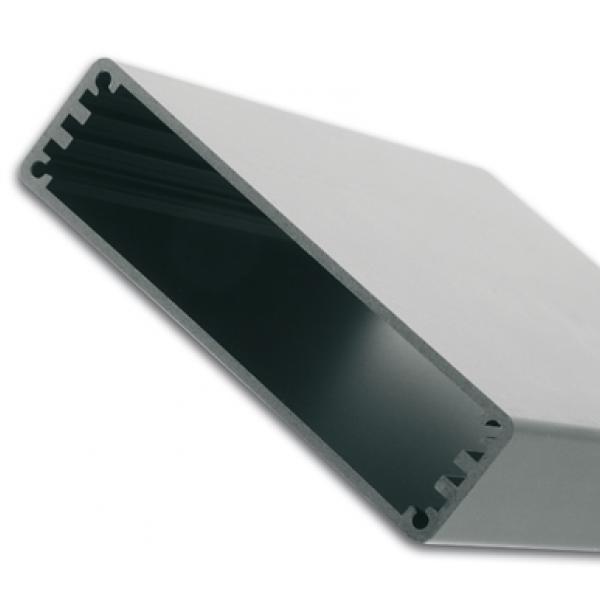

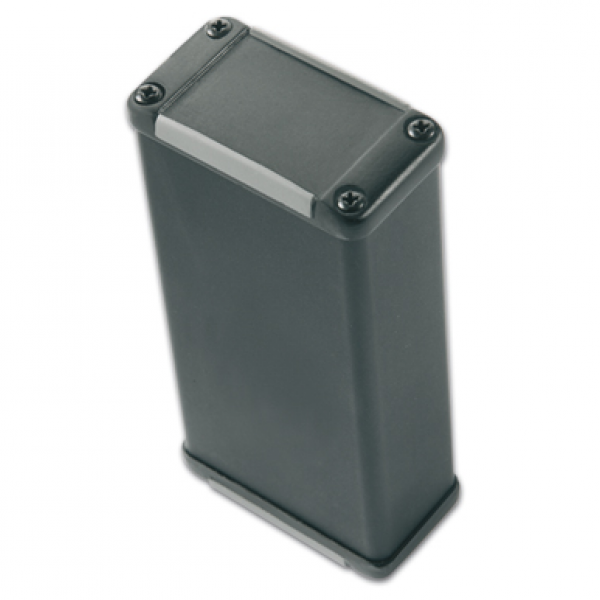

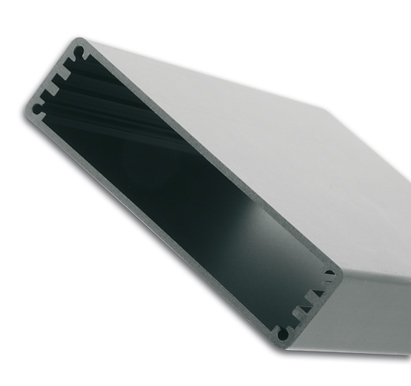

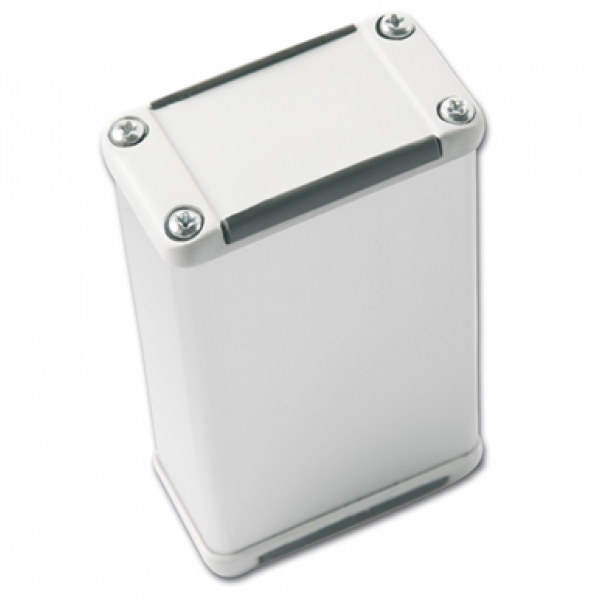

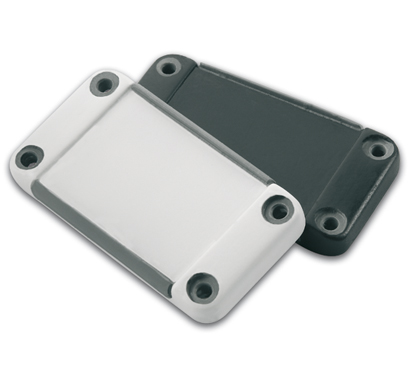

Series of small powder coating aluminium enclosures with multi-shot moulded (ABS+TPU) two-tone coloured front cover panels. They have co-moulded sealing to protect against water and from dust (IP65). The internal guides allow an easy assembly of PCB. Closing by eight screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

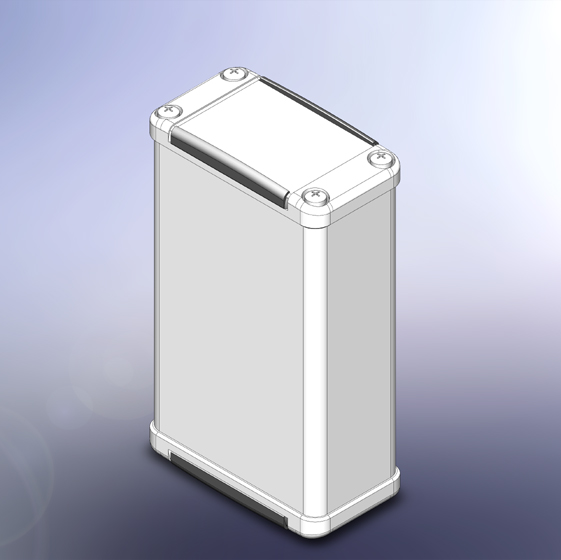

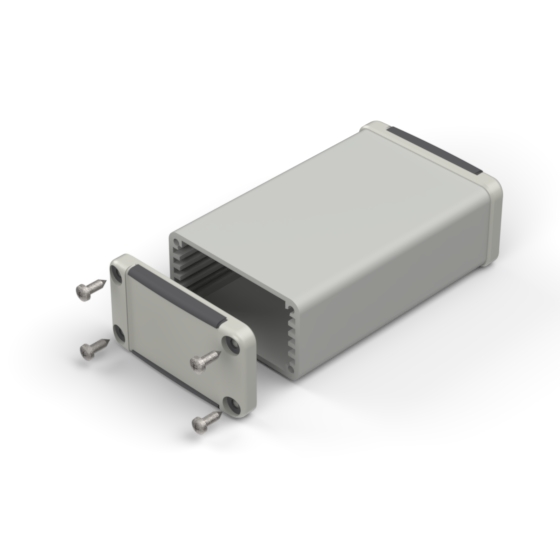

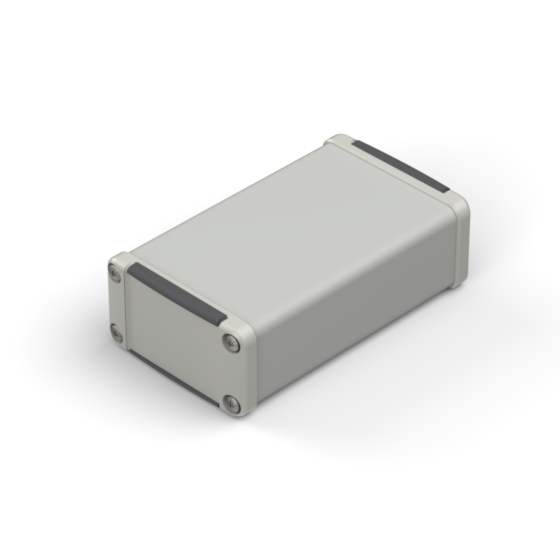

MTK465PK.1 75 44 24 9006
ALLOY 6060  -  P2H-AT + 8020 65 39,4 8   PDF
DWG
View

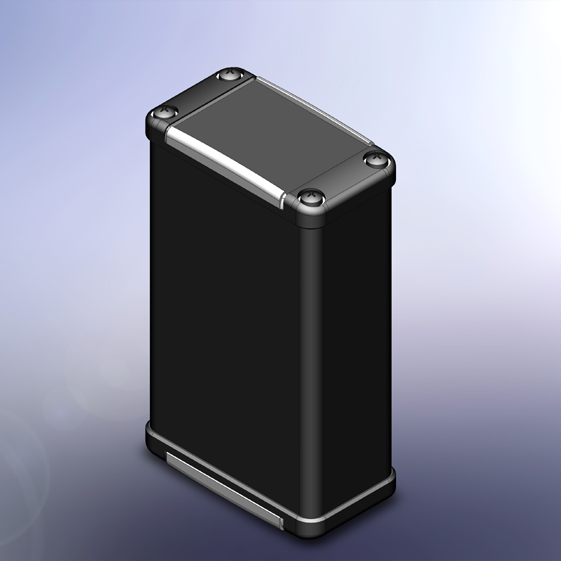

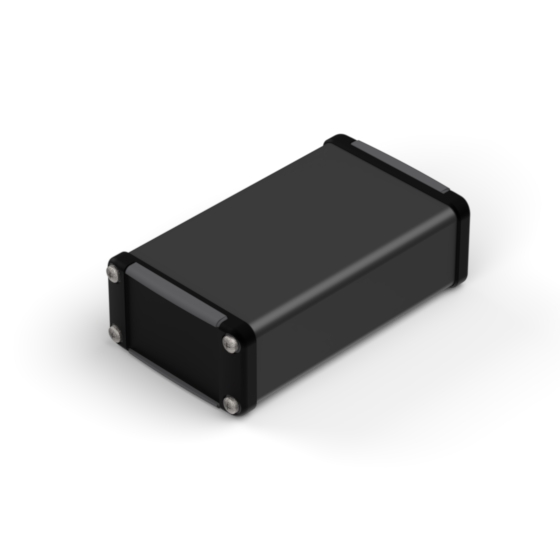

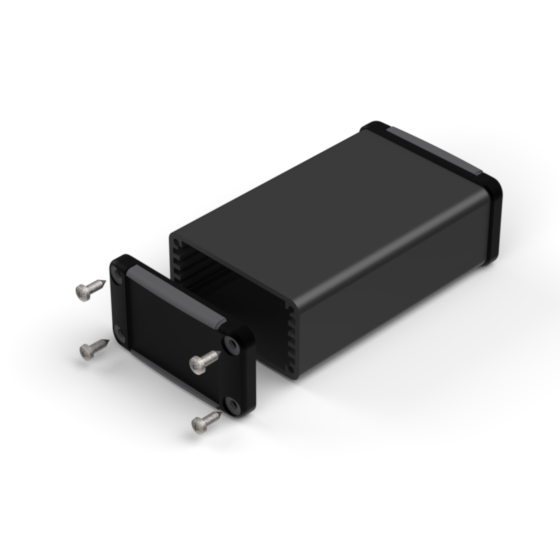

MTK465PK.9 75 44 24 9004
ALLOY 6060  -  P2H-AT + 8020 65 39,4 8   PDF
DWG
View

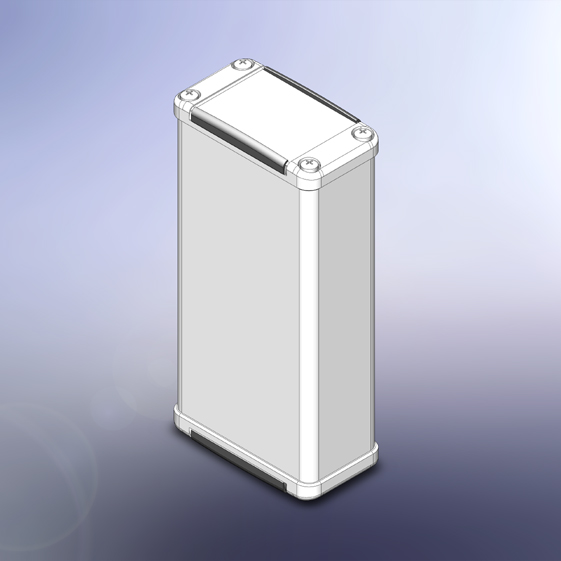

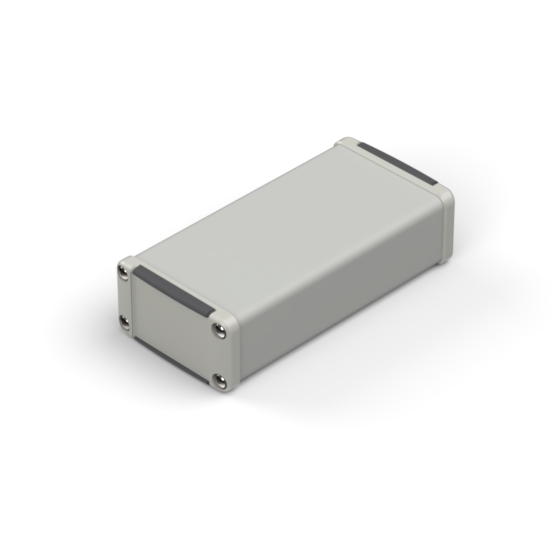

MTK480PK.1 90 44 24 9006
ALLOY 6060  -  P2H-AT + 8020 80 39,4 8   PDF
DWG
View

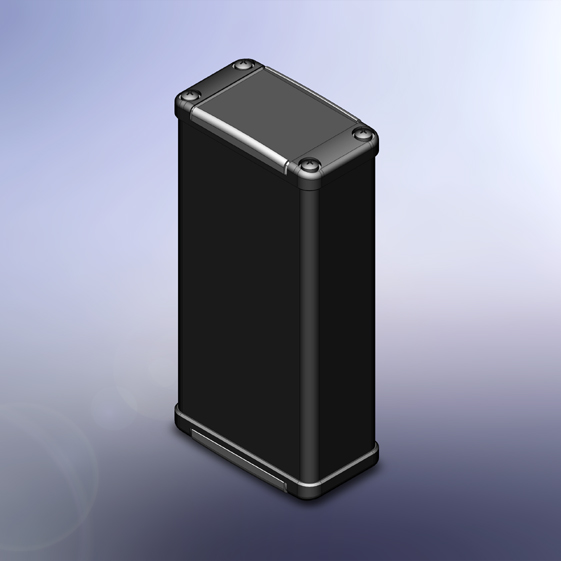

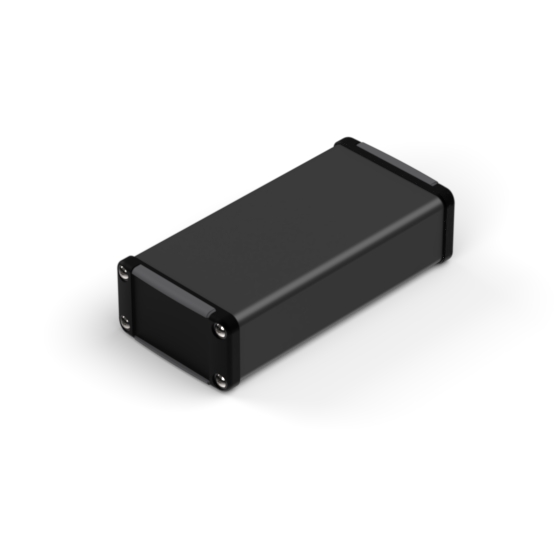

MTK480PK.9 90 44 24 9004
ALLOY 6060  -  P2H-AT + 8020 80 39,4 8   PDF
DWG
View

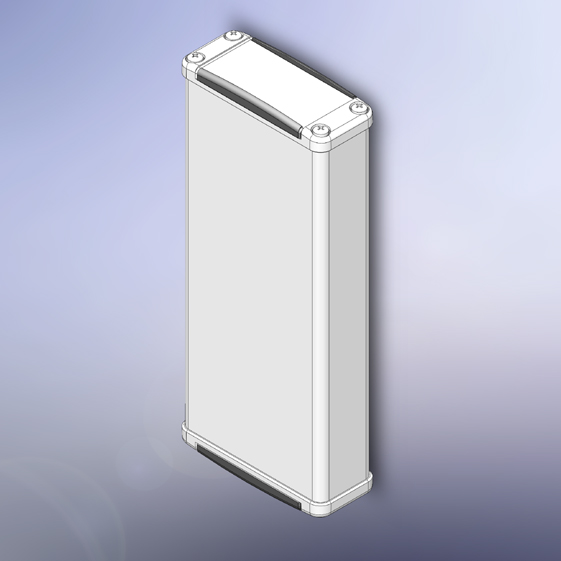

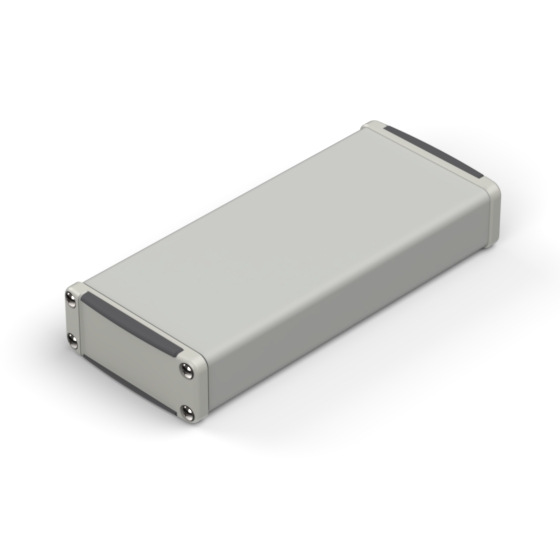

MTK5110PK.1 120 52 21 9006
ALLOY 6060  -  P2H-AT + 8020 110 47 8   PDF
DWG
View

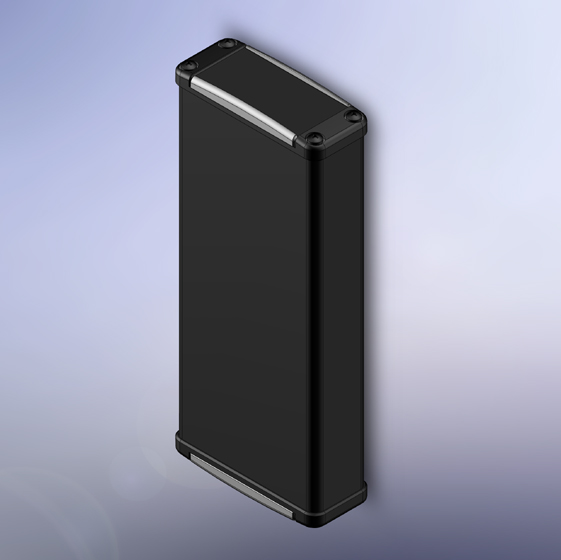

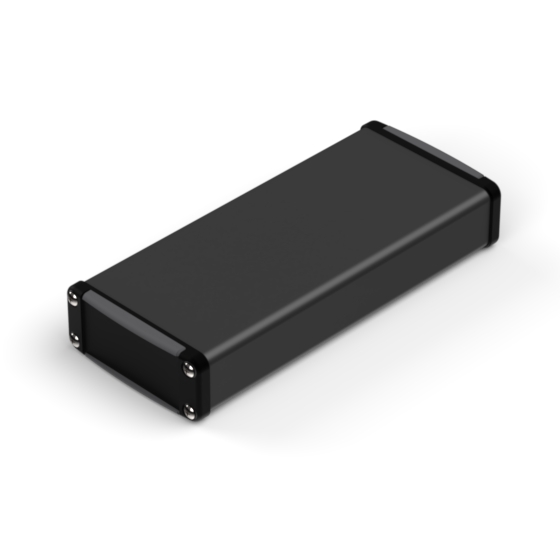

MTK5110PK.9 120 52 21 9004
ALLOY 6060  -  P2H-AT + 8020 110 47 8   PDF
DWG
View

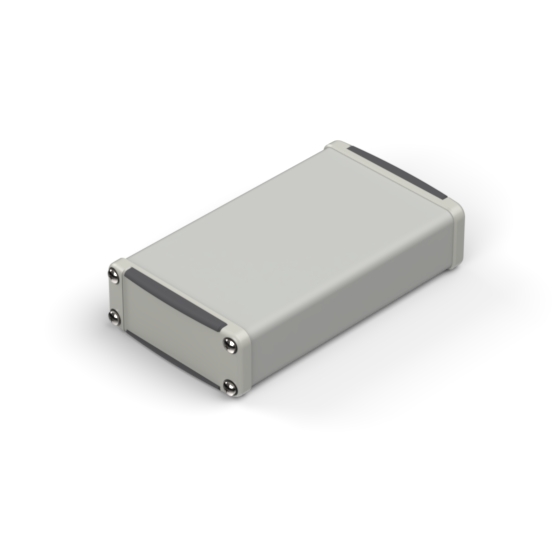

MTK580PK.1 90 52 21 9006
ALLOY 6060  -  P2H-AT + 8020 80 47 8   PDF
View

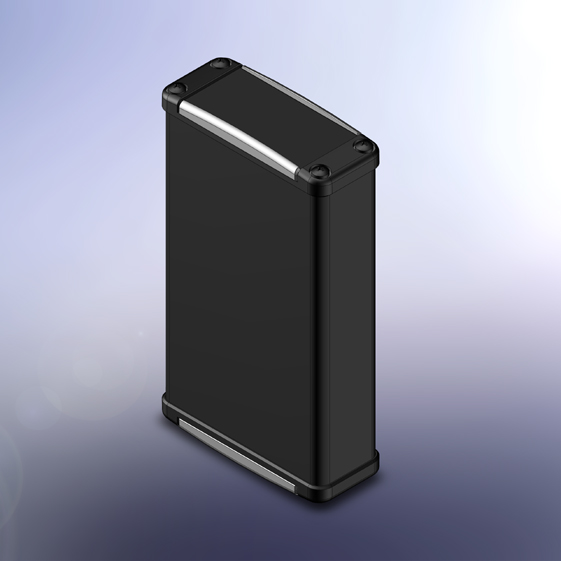

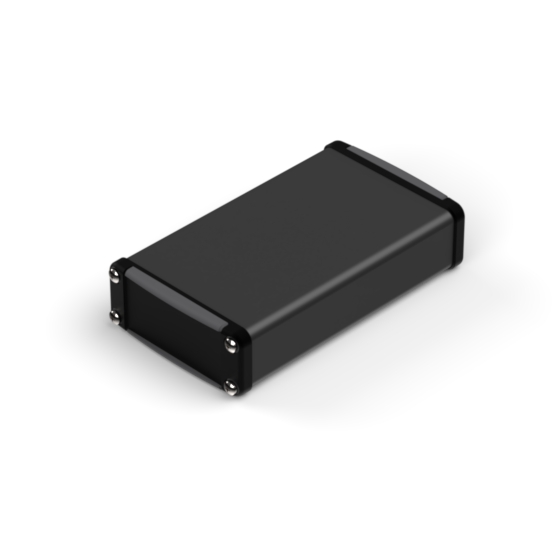

MTK580PK.9 90 52 21 9004
ALLOY 6060  -  P2H-AT + 8020 80 47 8   PDF
View

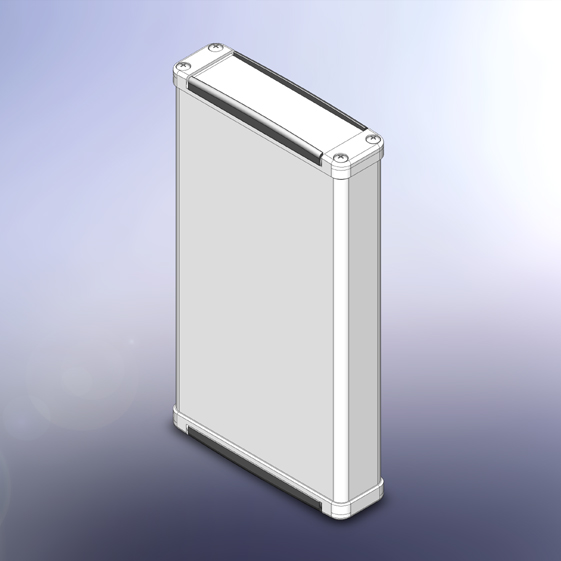

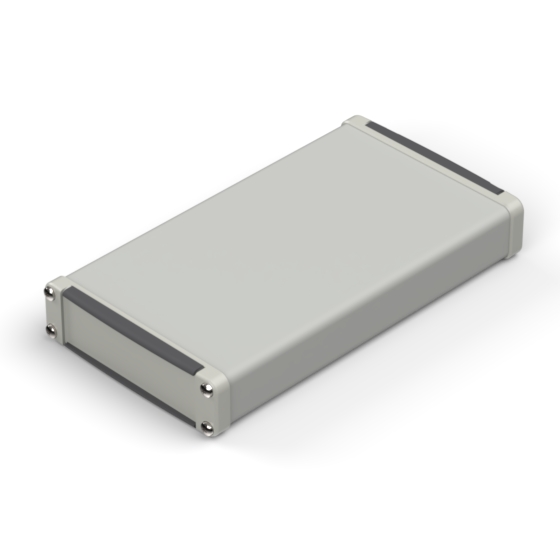

MTK6110PK.1 120 67 19 9006
ALLOY 6060  -  P2H-AT + 8020 110 62,4 8   PDF
DWG
View

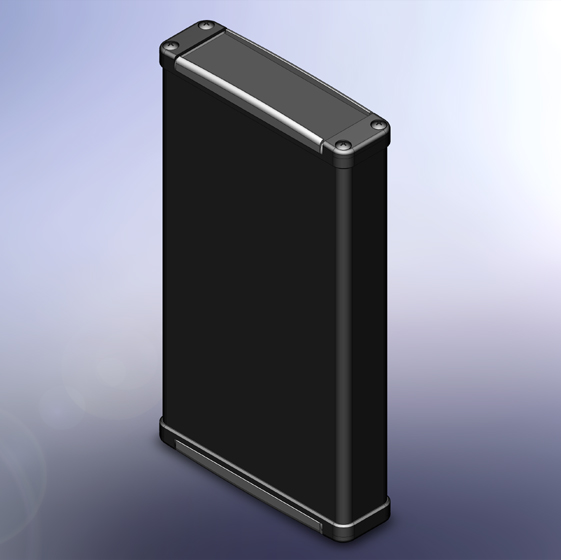

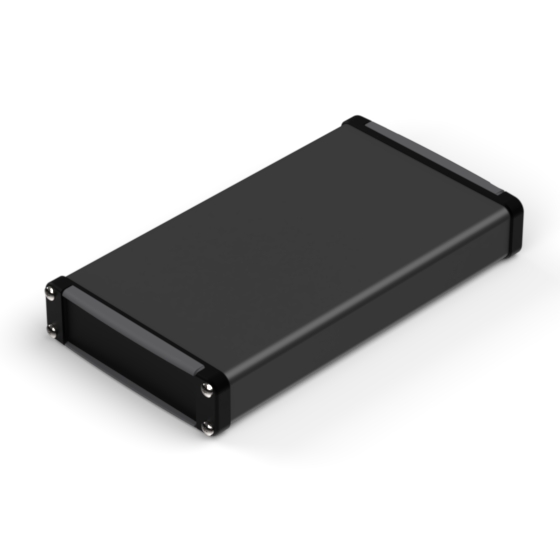

MTK6110PK.9 120 67 19 9004
ALLOY 6060  -  P2H-AT + 8020 110 62,4 8   PDF
DWG
View

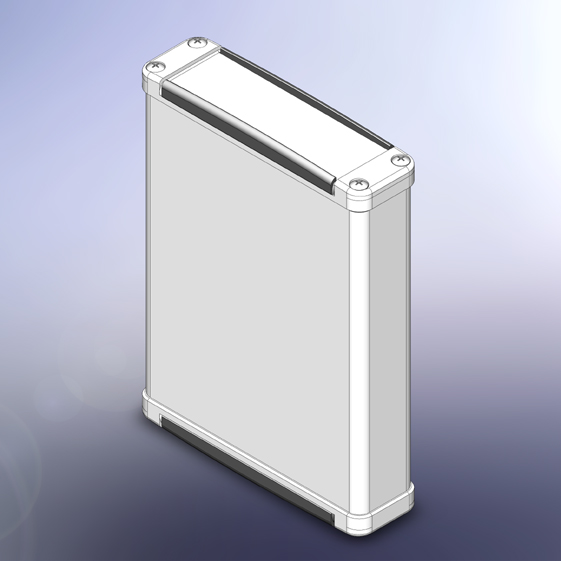

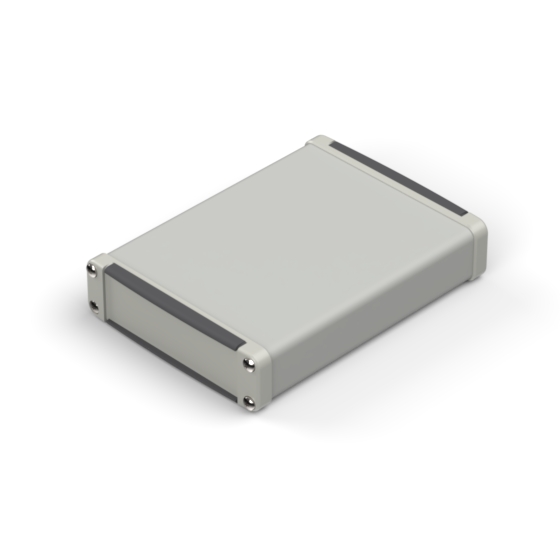

MTK680PK.1 90 67 19 9006
ALLOY 6060  -  P2H-AT + 8020 80 62,4 8   PDF
DWG
View

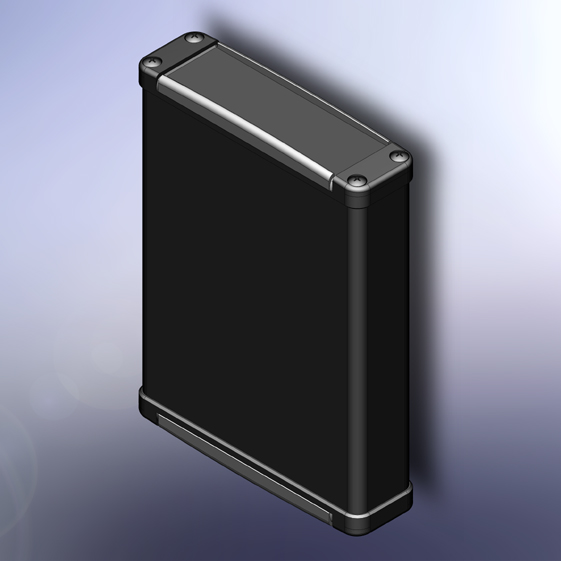

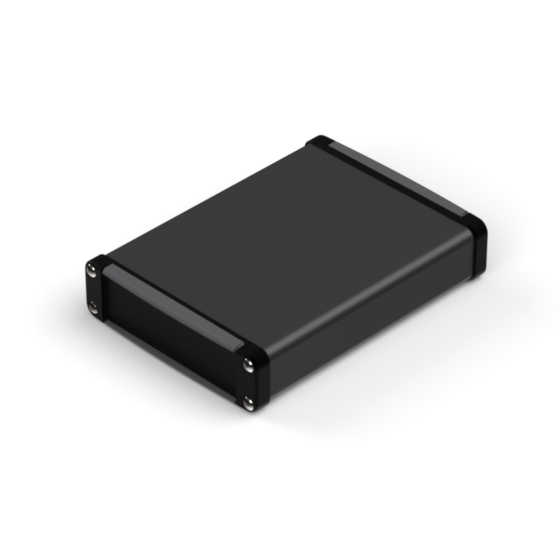

MTK680PK.9 90 67 19 9004
ALLOY 6060  -  P2H-AT + 8020 80 62,4 8   PDF
DWG
View
