CAB

Family Front Panel - Electronic enclosures - Plastic

Description

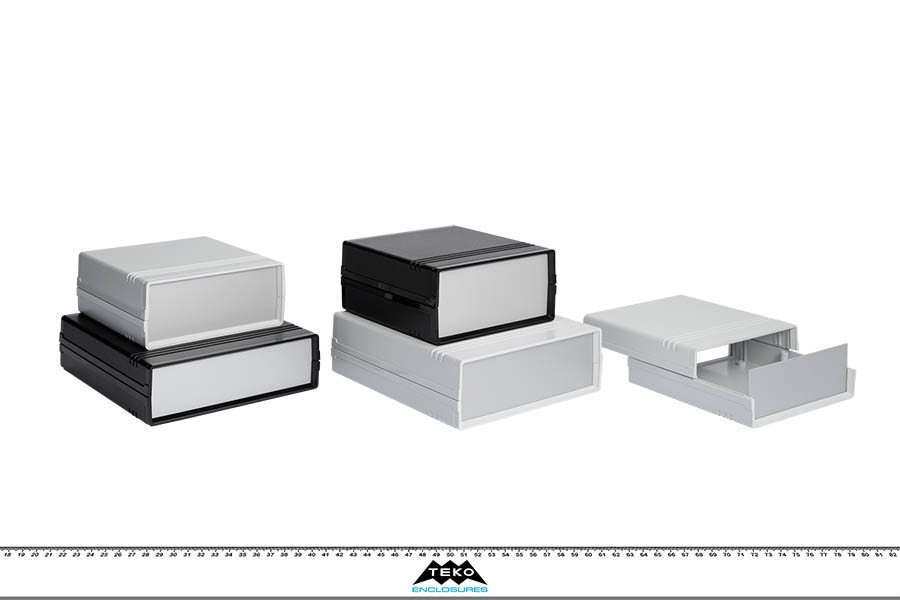

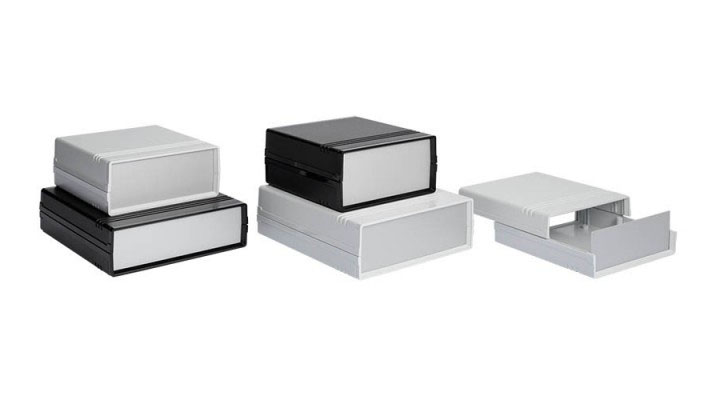

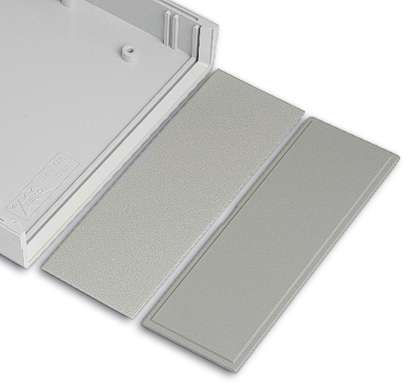

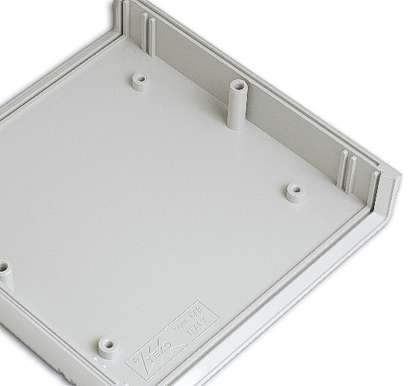

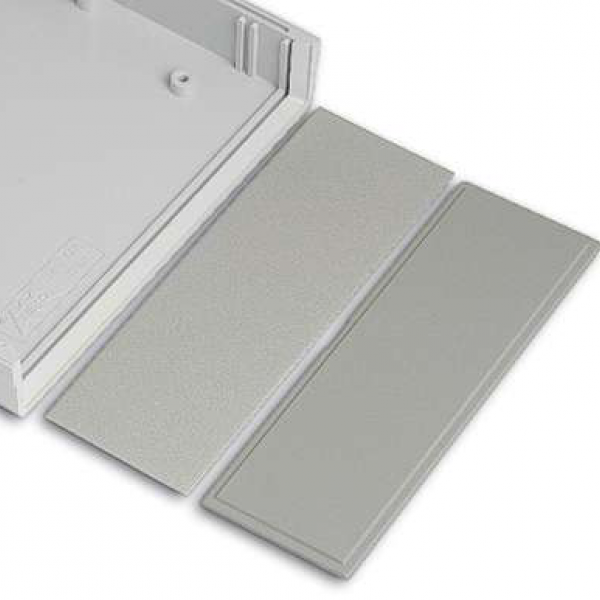

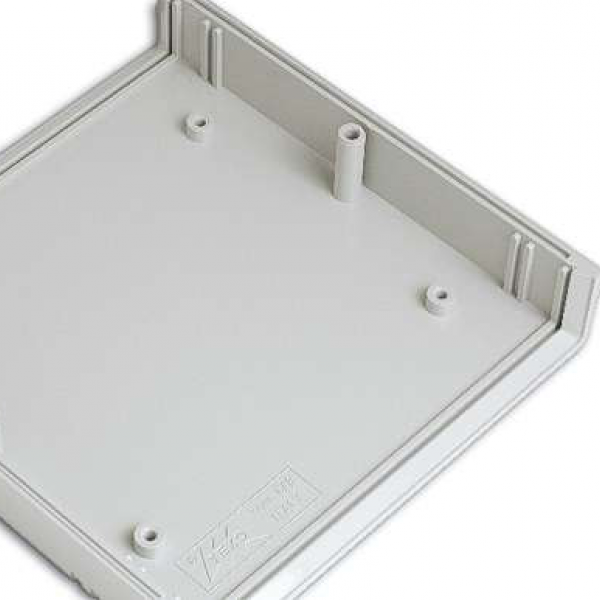

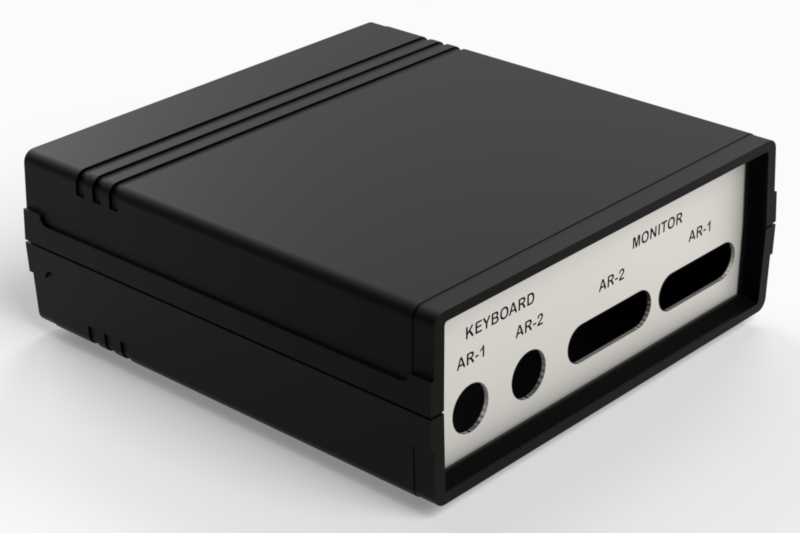

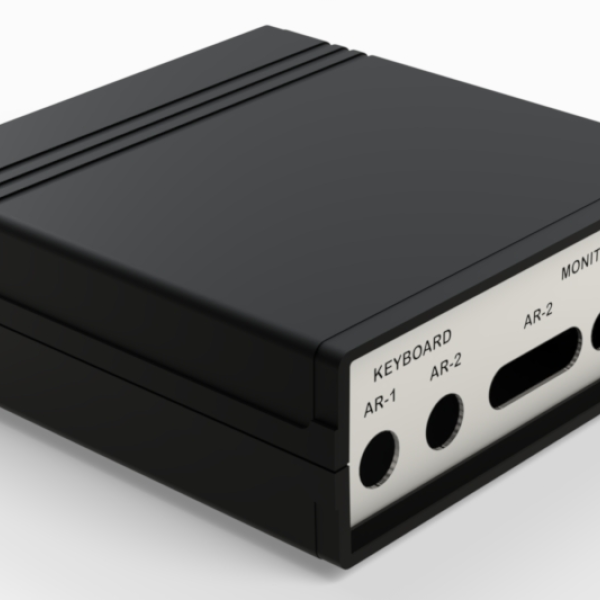

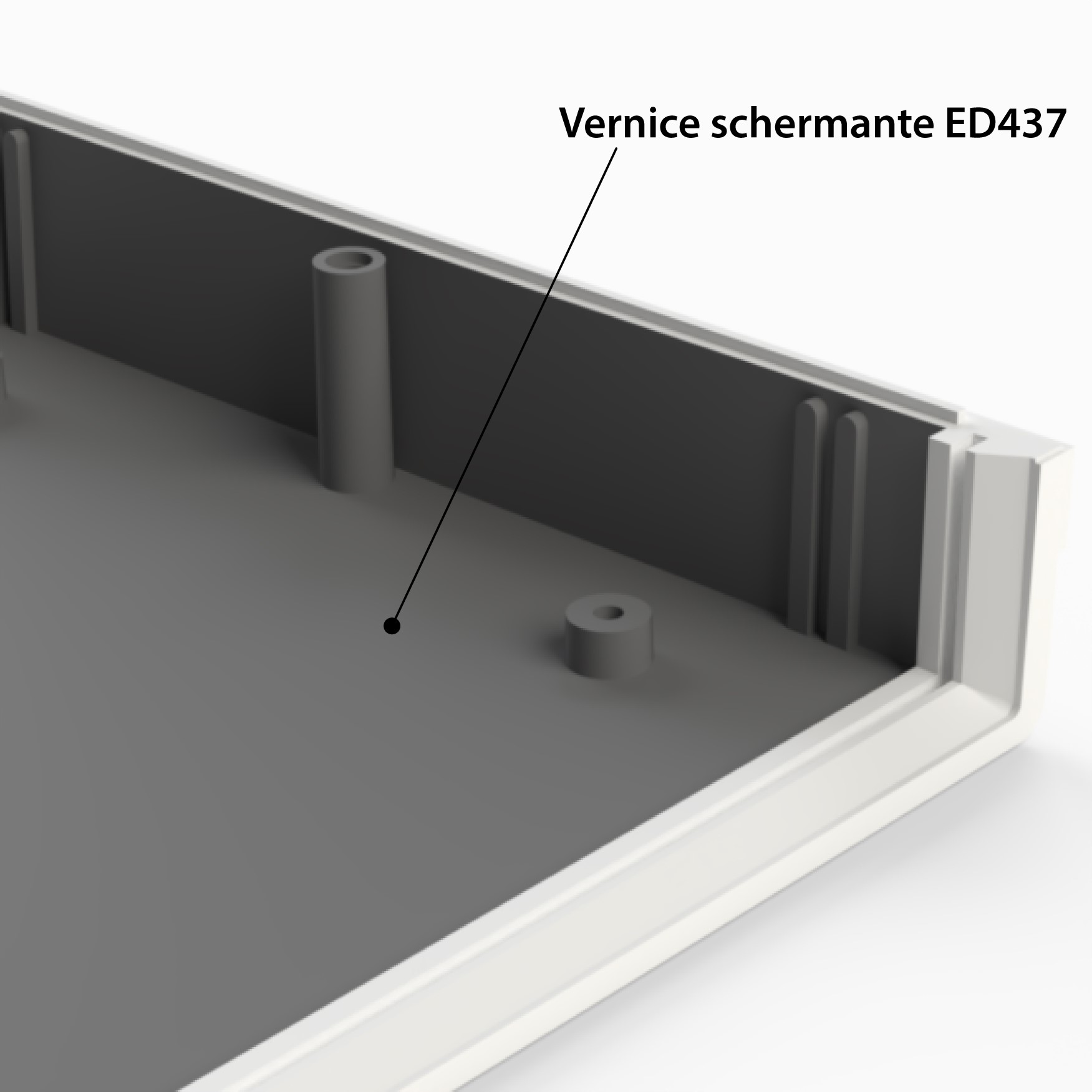

An ABS enclosure with two 1 mm aluminium panels. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by only two screws. Available also front and rear panels manufactured from ABS (.13).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

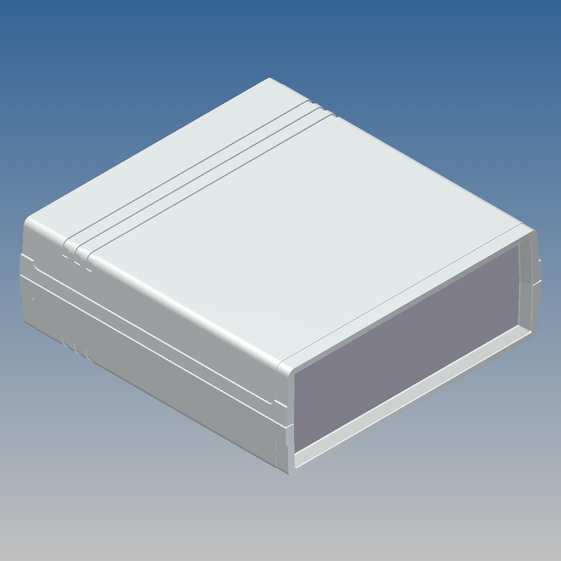

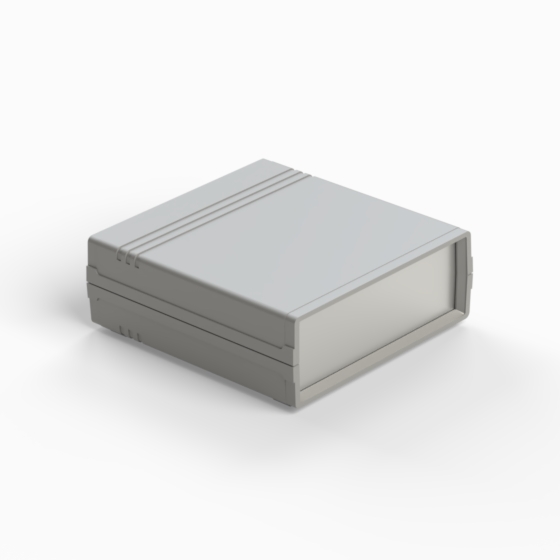

011.5 134 129 47 9018
AG-ATY 116 115 2 - PP11
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: -
  • Accessories: PP11
  • Drawings:  PDF  DWG

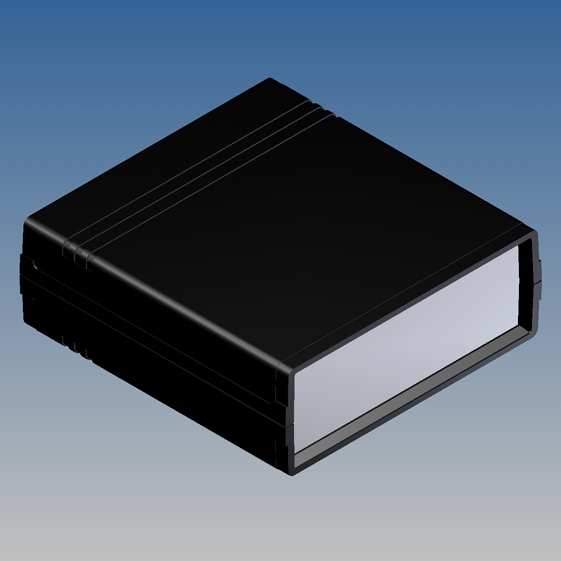

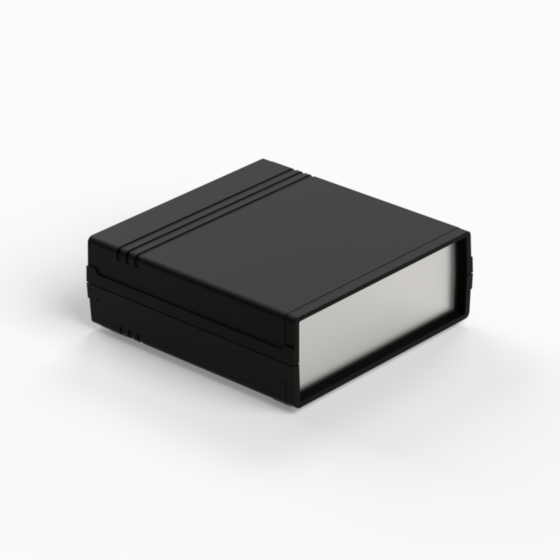

011.9 134 129 47 9004
P2H-AT 116 115 2 - PP11
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: -
  • Accessories: PP11
  • Drawings:  PDF  DWG

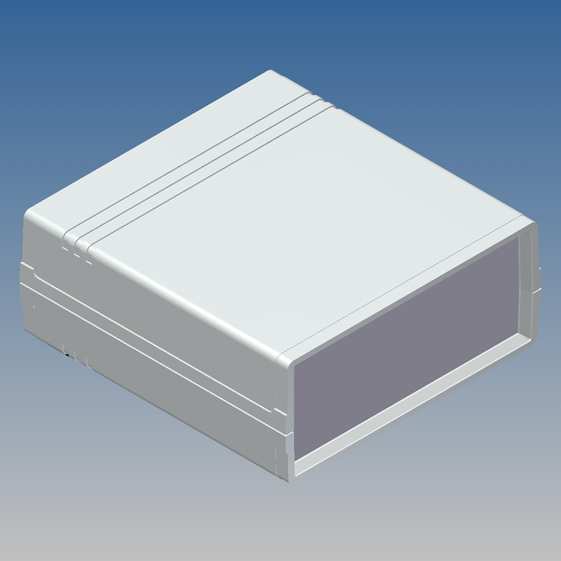

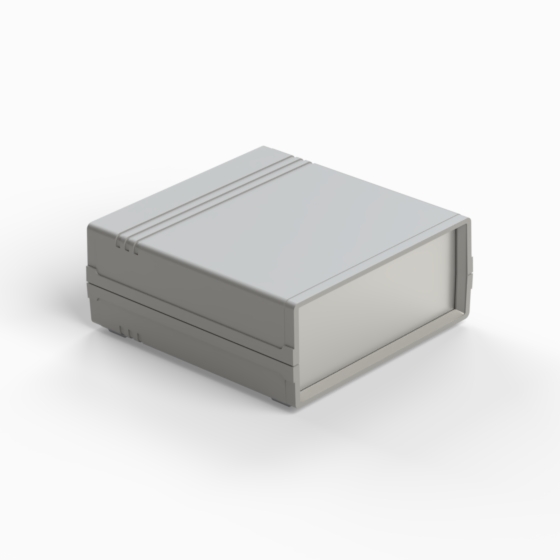

012.5 134 129 54 9018
AG-ATY 116 115 2 - PP12
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: -
  • Accessories: PP12
  • Drawings:  PDF  DWG

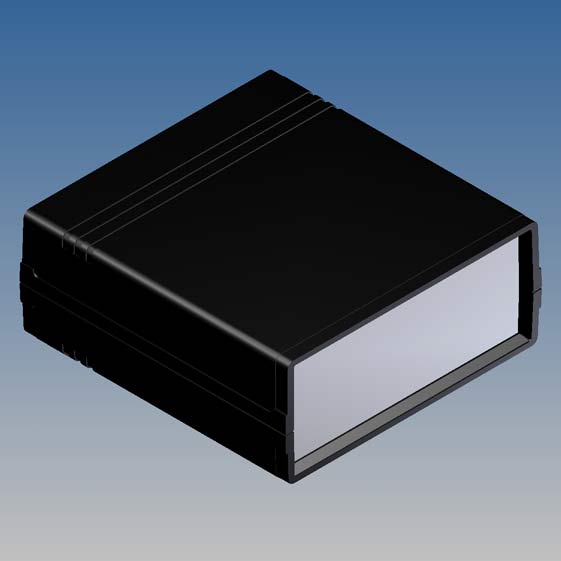

012.9 134 129 54 9004
P2H-AT 116 115 2 - PP12
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: -
  • Accessories: PP12
  • Drawings:  PDF  DWG

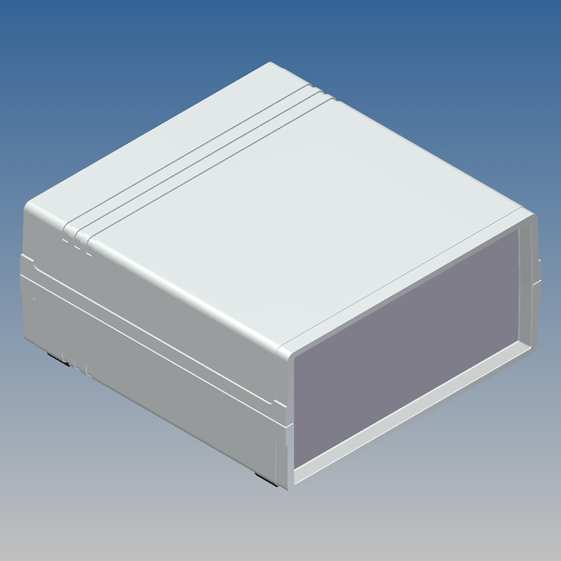

022.5 134 129 61 9018
AG-ATY 116 115 2 - PP22
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: -
  • Accessories: PP22
  • Drawings:  PDF  DWG

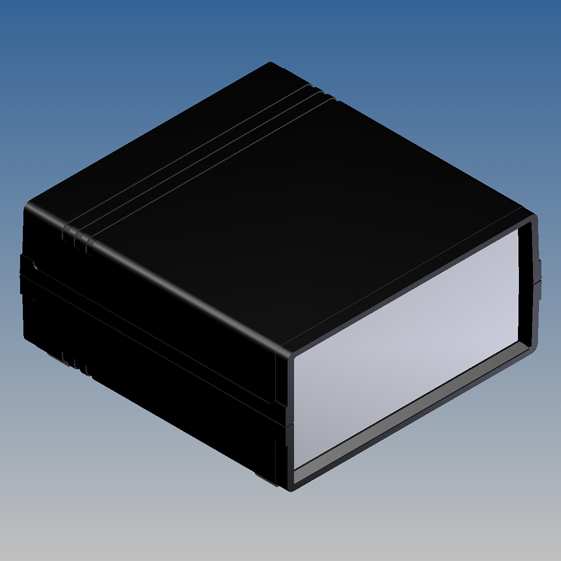

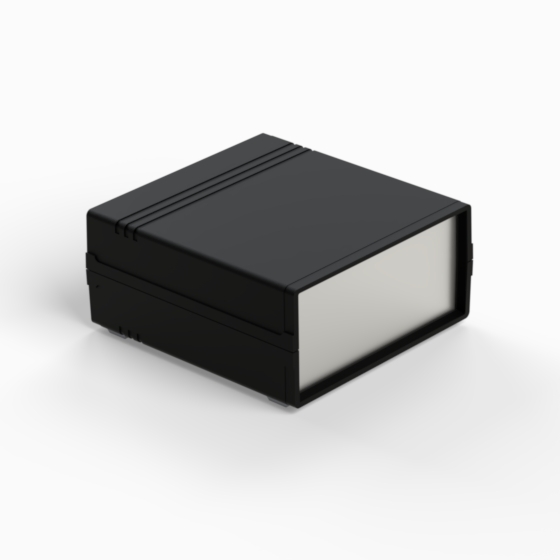

022.9 134 129 61 9004
P2H-AT 116 115 2 - PP22
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: -
  • Accessories: PP22
  • Drawings:  PDF  DWG

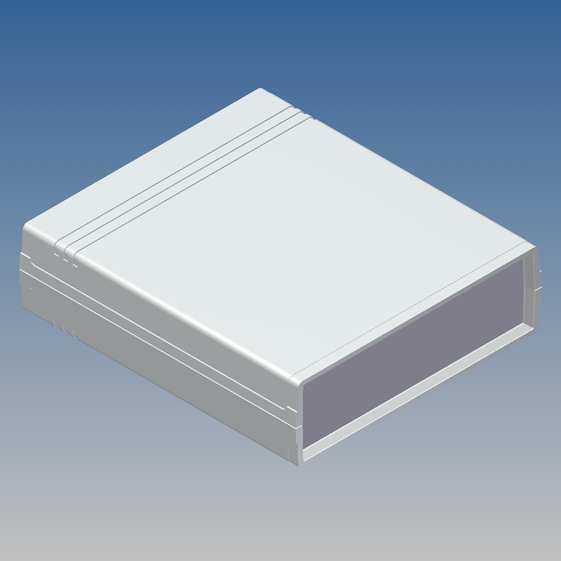

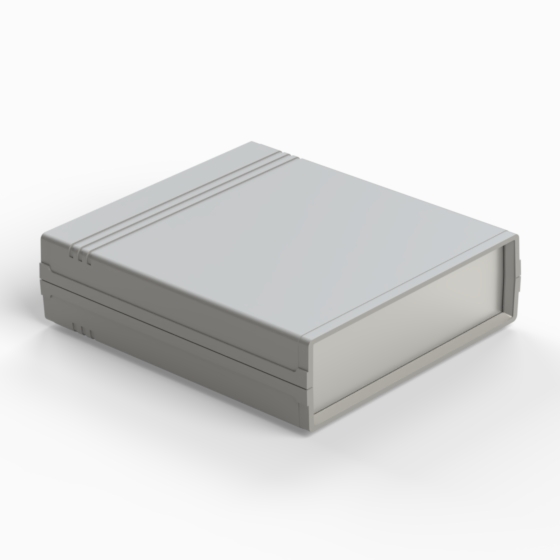

222.5 173 154 47 9018
AG-ATY 154 140 2 - PP222
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP222
  • Drawings:  PDF  DWG

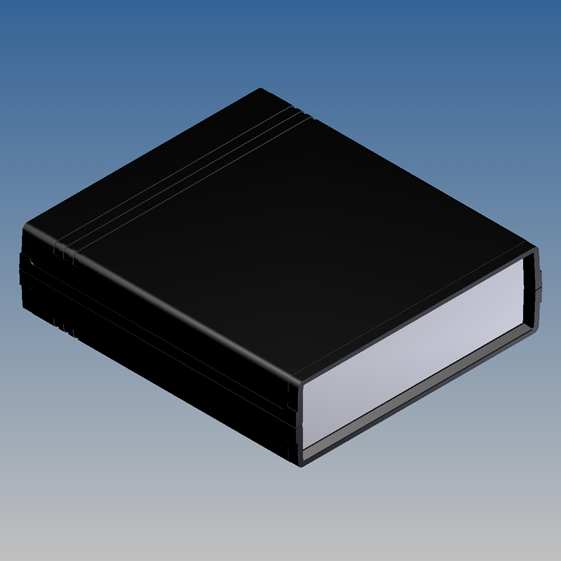

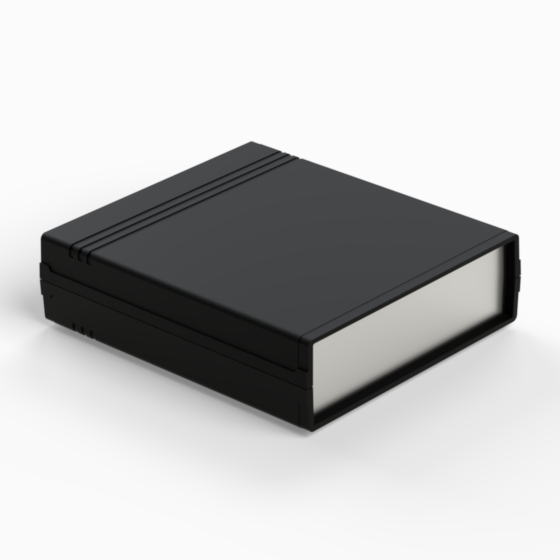

222.9 173 154 47 9004
P2H-AT 154 140 2 - PP222
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP222
  • Drawings:  PDF  DWG

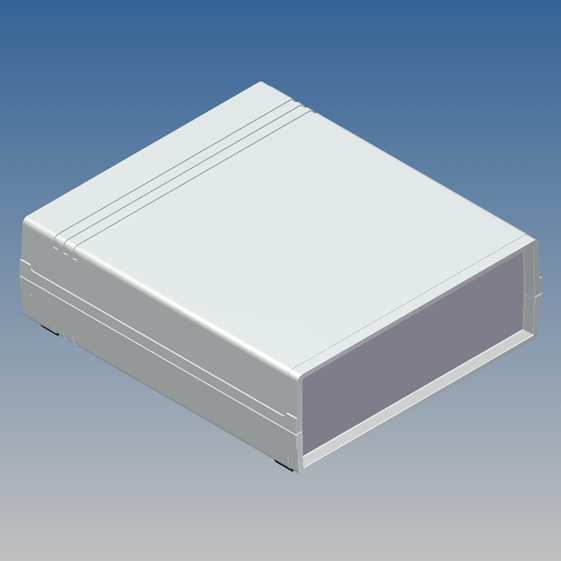

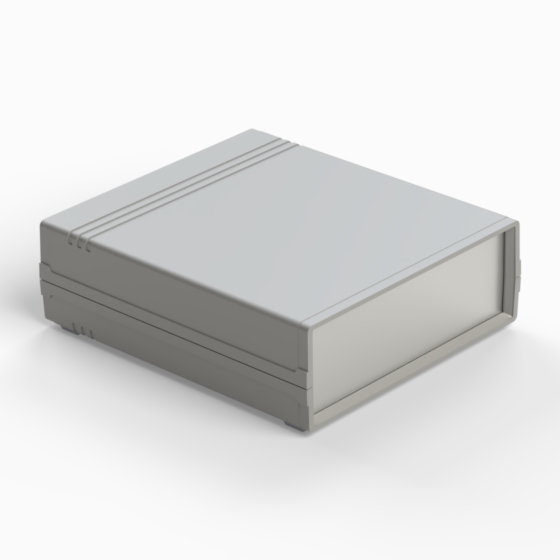

223.5 173 154 54 9018
AG-ATY 154 140 2 - PP223
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP223
  • Drawings:  PDF  DWG

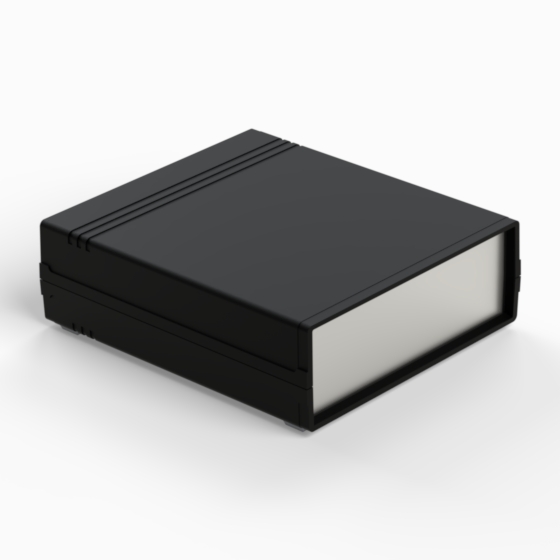

223.9 173 154 54 9004
P2H-AT 154 140 2 - PP223
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP223
  • Drawings:  PDF  DWG

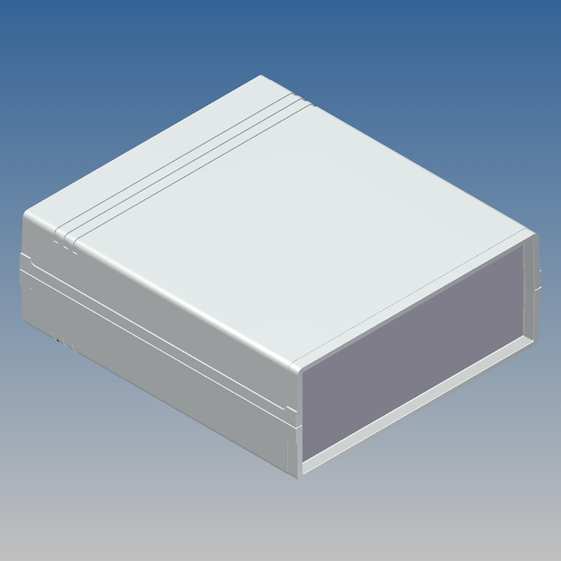

233.5 173 154 61 9018
AG-ATY 154 140 2 - PP233
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP233
  • Drawings:  PDF  DWG

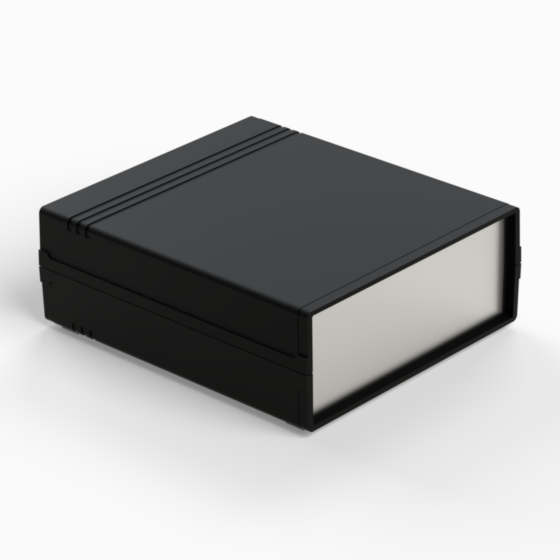

233.9 173 154 61 9004
P2H-AT 154 140 2 - PP233
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP233
  • Drawings:  PDF  DWG
