Family Handheld - Electronic enclosures - Plastic

Description

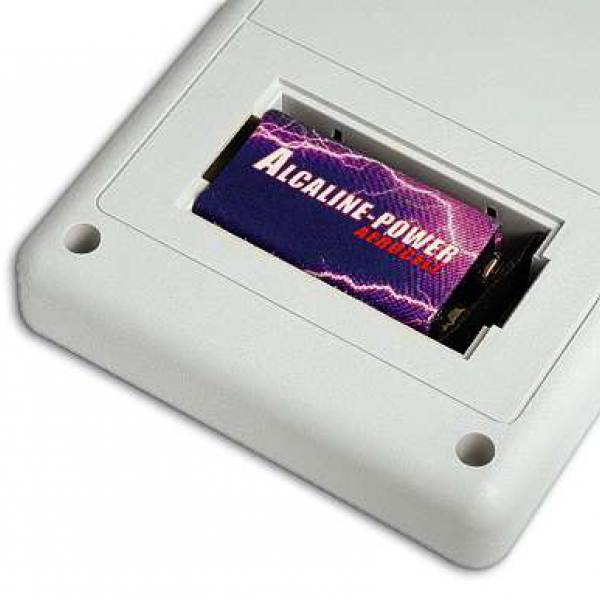

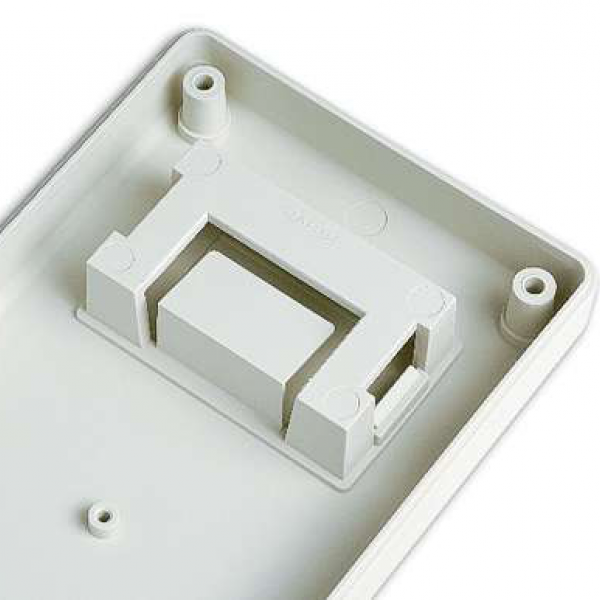

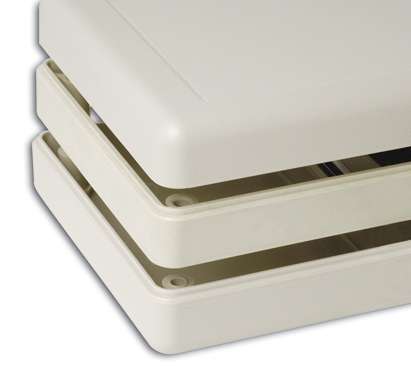

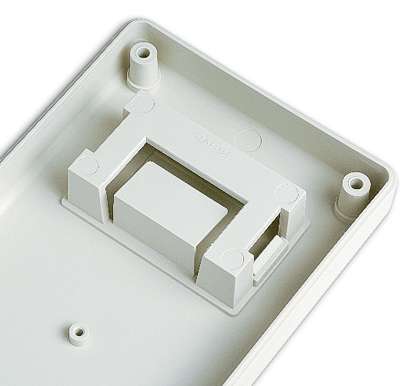

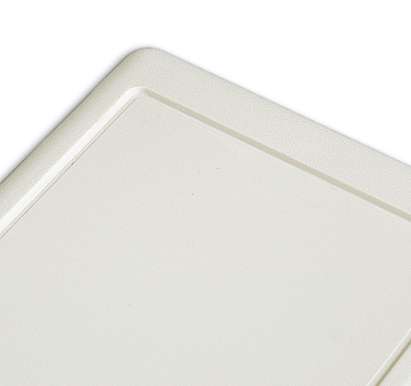

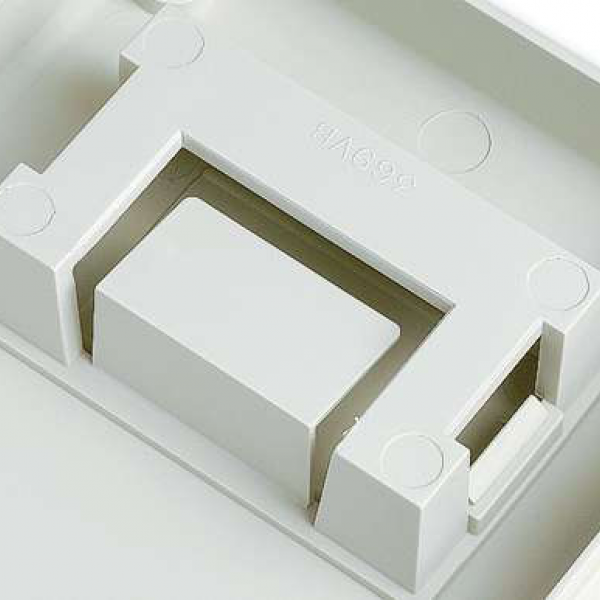

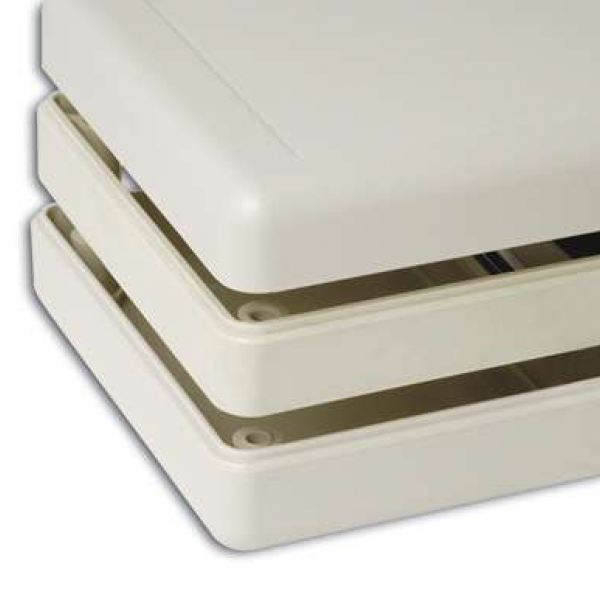

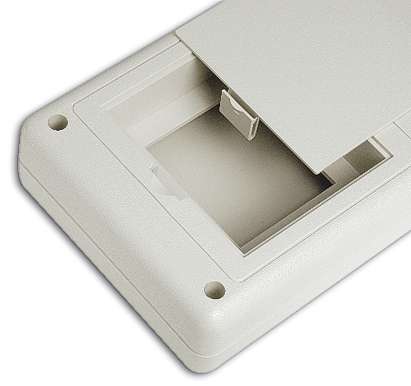

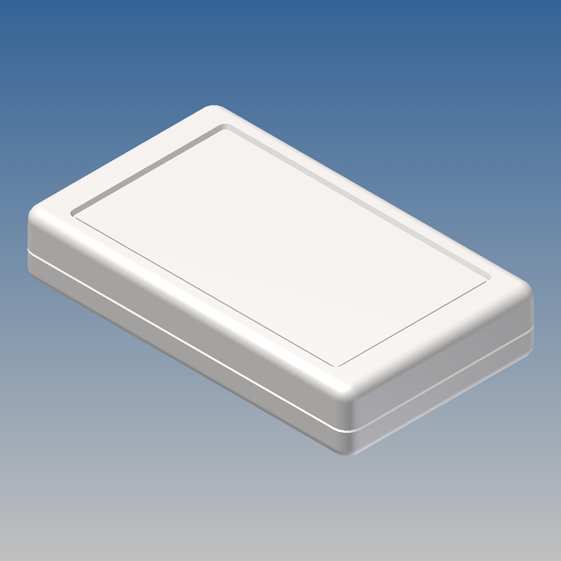

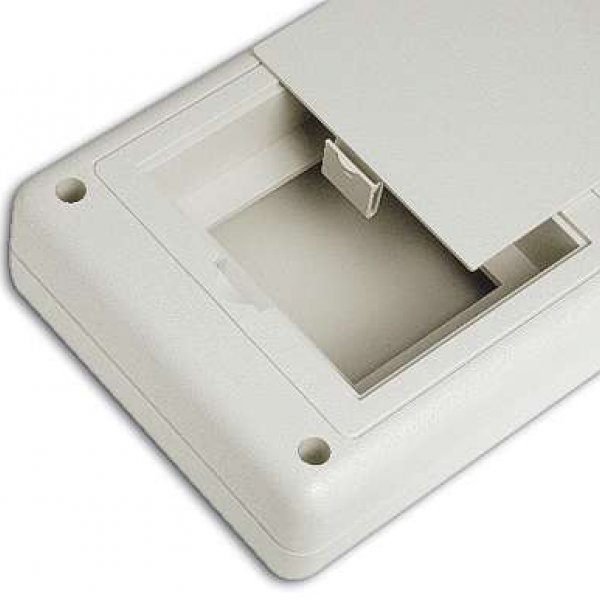

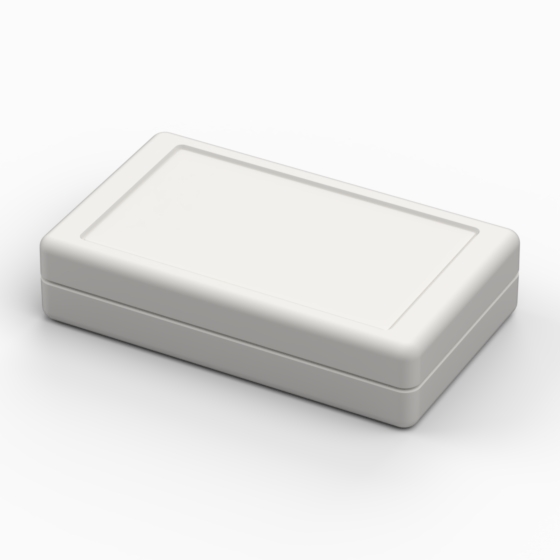

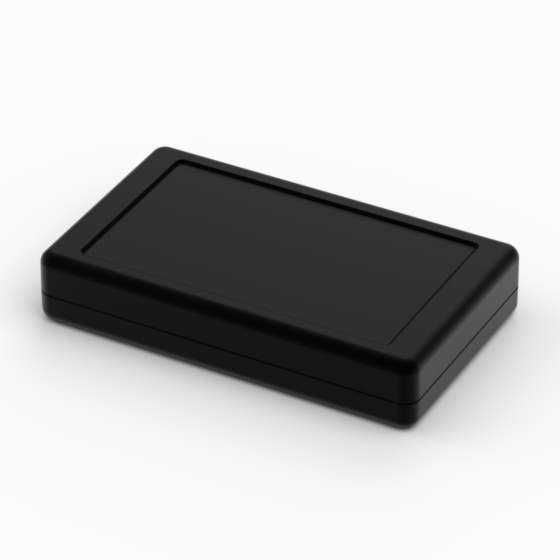

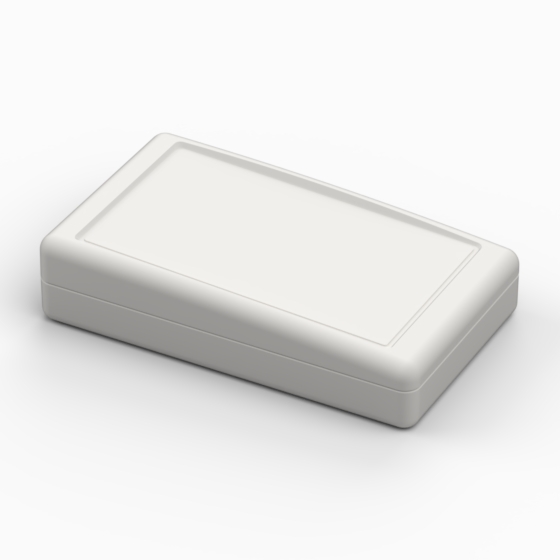

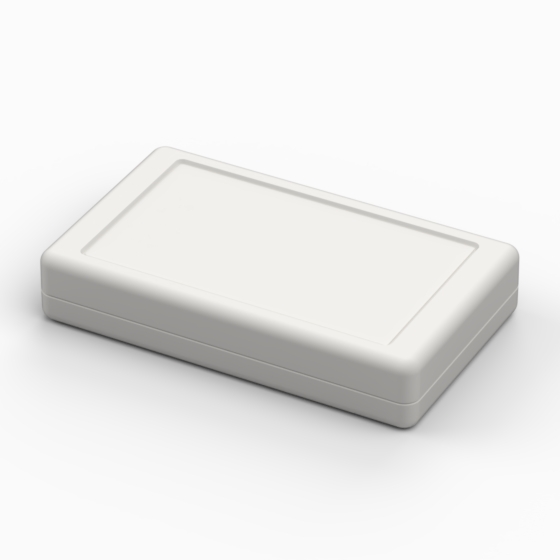

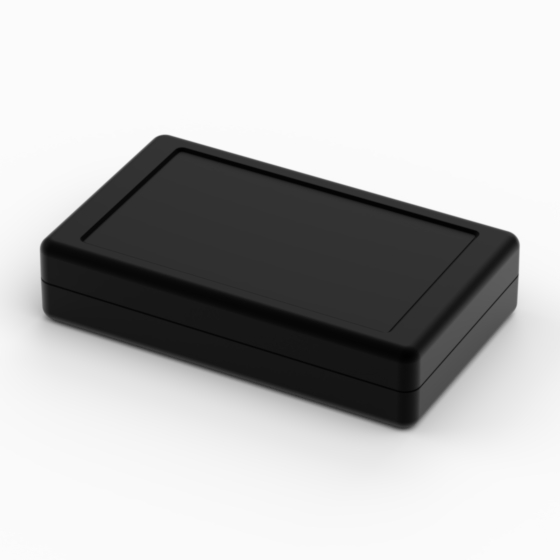

ABS enclosures with a recessed area suitable for a membrane keypad. The base has integral PCB mounting studs. The models with “-B” have a battery compartment. The “S” version has a slanted cover. Matt surface finish. Closing by four screws. Upon request a surround strip is available to increase height of 14 mm (Mod. XR13).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
SM-B.7 160 95 35,5 9002
PA-756 96,5 86 4 1 x 9V AB9
PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 96,5
  • MAX PCB W (mm): 86
  • Screws: 4
  • Battery: 1 x 9V
  • Accessories: AB9
  • Drawings:  PDF  DWG
SM-B.9 160 95 35,5 9004
GP-22 96,5 86 4 1 x 9V AB9
PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 96,5
  • MAX PCB W (mm): 86
  • Screws: 4
  • Battery: 1 x 9V
  • Accessories: AB9
  • Drawings:  PDF  DWG
SM1.7 160 95 30 9002
PA-756 151,1 86,1 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 151,1
  • MAX PCB W (mm): 86,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
SM1.9 160 95 30 9004
GP-22 151,1 86,1 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 151,1
  • MAX PCB W (mm): 86,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
SM1S.7 160 95 30 9002
PA-756 151,1 86,1 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 151,1
  • MAX PCB W (mm): 86,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
SM1S.9 160 95 30 9004
GP-22 151,1 86,1 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 151,1
  • MAX PCB W (mm): 86,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
SM2.7 160 95 35,5 9002
PA-756 151,1 86,1 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 151,1
  • MAX PCB W (mm): 86,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
SM2.9 160 95 35,5 9004
GP-22 151,1 86,1 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 151,1
  • MAX PCB W (mm): 86,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
SM2-2B.7 160 95 35,5 9002
PA-756 96,5 86 4 2 x AA PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 96,5
  • MAX PCB W (mm): 86
  • Screws: 4
  • Battery: 2 x AA
  • Accessories:
  • Drawings:  PDF  DWG
SM2-2B.9 160 95 35,5 9004
GP-22 96,5 86 4 2 x AA PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 96,5
  • MAX PCB W (mm): 86
  • Screws: 4
  • Battery: 2 x AA
  • Accessories:
  • Drawings:  PDF  DWG
SM2-4B.7 160 95 35,5 9002
PA-756 86 66,5 4 4 x AA PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 86
  • MAX PCB W (mm): 66,5
  • Screws: 4
  • Battery: 4 x AA
  • Accessories:
  • Drawings:  PDF  DWG
SM2-4B.9 160 95 35,5 9004
GP-22 86 66,5 4 4 x AA PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 86
  • MAX PCB W (mm): 66,5
  • Screws: 4
  • Battery: 4 x AA
  • Accessories:
  • Drawings:  PDF  DWG
SM2S.7 160 95 35,5 9002
PA-756 151,1 86,1 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 151,1
  • MAX PCB W (mm): 86,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
SM2S.9 160 95 35,5 9004
GP-22 151,1 86,1 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 151,1
  • MAX PCB W (mm): 86,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
SMS-2B.7 160 95 35,5 9002
PA-756 96,5 86 4 2 x AA PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 96,5
  • MAX PCB W (mm): 86
  • Screws: 4
  • Battery: 2 x AA
  • Accessories:
  • Drawings:  PDF  DWG
SMS-2B.9 160 95 35,5 9004
GP-22 96,5 86 4 2 x AA PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 96,5
  • MAX PCB W (mm): 86
  • Screws: 4
  • Battery: 2 x AA
  • Accessories:
  • Drawings:  PDF  DWG
SMS-4B.7 160 95 35,5 9002
PA-756 86 66,5 4 4 x AA PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 86
  • MAX PCB W (mm): 66,5
  • Screws: 4
  • Battery: 4 x AA
  • Accessories:
  • Drawings:  PDF  DWG
SMS-4B.9 160 95 35,5 9004
GP-22 86 66,5 4 4 x AA PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 86
  • MAX PCB W (mm): 66,5
  • Screws: 4
  • Battery: 4 x AA
  • Accessories:
  • Drawings:  PDF  DWG
SMS-B.7 160 95 35,5 9002
PA-756 96,5 86 4 1 x 9V AB9
PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 96,5
  • MAX PCB W (mm): 86
  • Screws: 4
  • Battery: 1 x 9V
  • Accessories: AB9
  • Drawings:  PDF  DWG
SMS-B.9 160 95 35,5 9004
GP-22 96,5 86 4 1 x 9V AB9
PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 96,5
  • MAX PCB W (mm): 86
  • Screws: 4
  • Battery: 1 x 9V
  • Accessories: AB9
  • Drawings:  PDF  DWG
12 product families, 146 series. You can't find what you're looking for? Contact us
