TB-1 TB-2

Family Handheld - Electronic enclosures - Plastic

Description

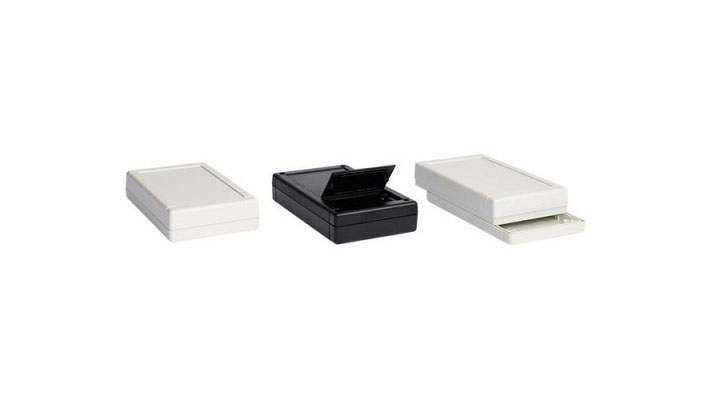

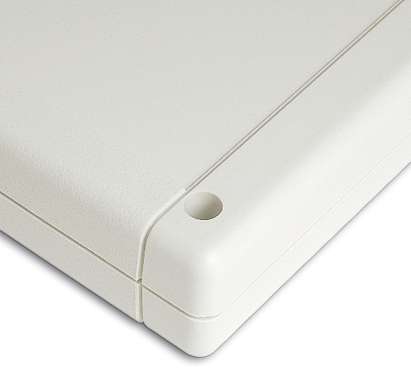

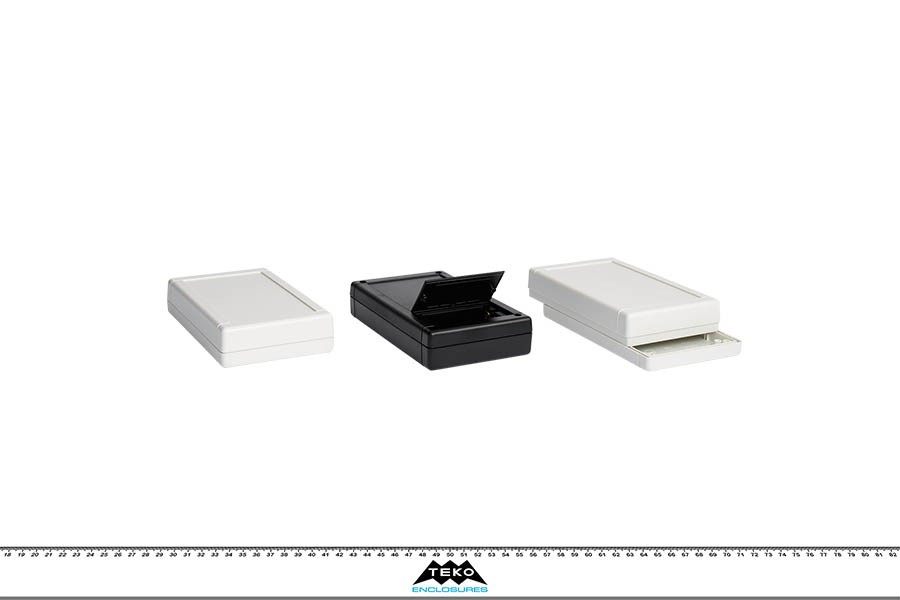

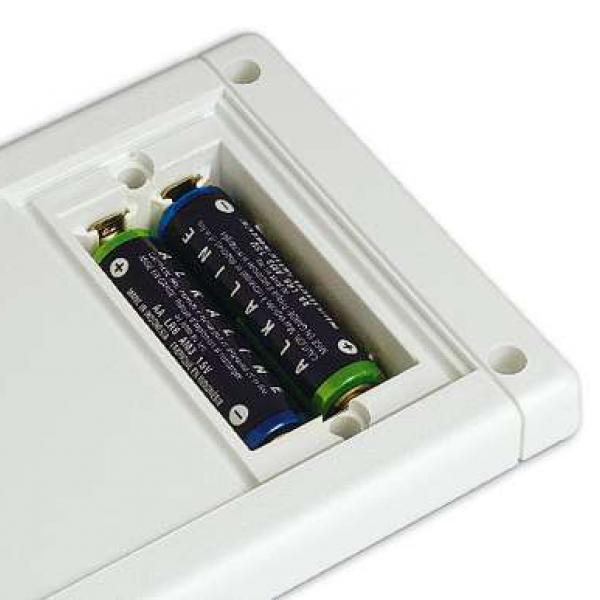

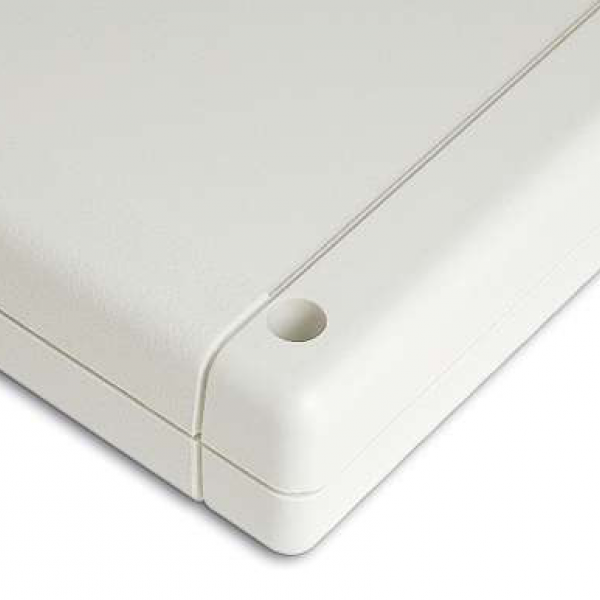

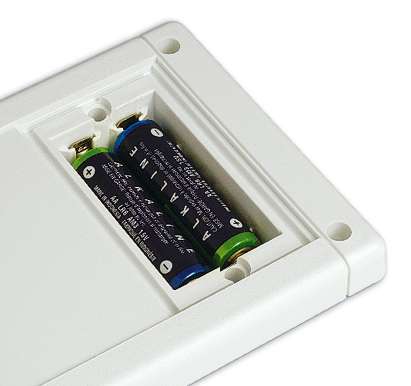

ABS enclosures with a recessed operating area for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. The models with “-B” have a battery compartment for two mignon-cells 1.5V or one flat battery 9V. The models with “K” are able to accept the IP65 sealing kit. Closing by four screws. Upon request ABS wall mounting tabs “MT1”, aluminium panels “APTB”, Keypad membrane “M” and “MW” (with transparent display area).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

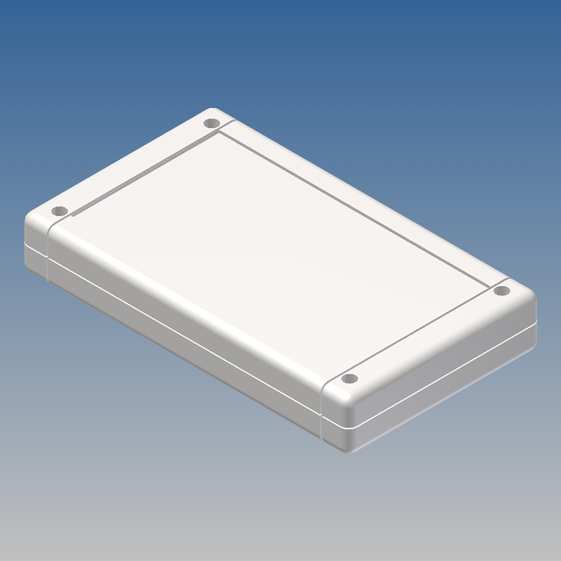

TB-1.7 160 94 25 9002
L320 149 80 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View
TB-1.9 160 94 25 9004
P2H-AT 149 80 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View
TB-1B.7 160 94 25 9002
L320 98 80 4 2 x AA / 1 x 9V AB9
APTB
M
M58
M59
MT1
MW
PDF
DWG
View

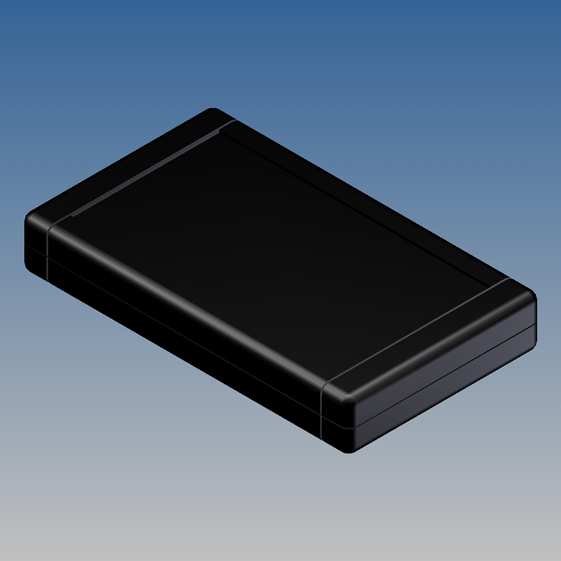

TB-1B.9 160 94 25 9004
P2H-AT 98 80 4 2 x AA / 1 x 9V AB9
APTB
M
M58
M59
MT1
MW
PDF
DWG
View
TB-1BK.7 160 94 25 9002
L320 98 80 4 2 x AA / 1 x 9V AB9
APTB
M
M58
M59
MT1
MW
PDF
DWG
View
TB-1BK.9 160 94 25 9004
P2H-AT 98 80 4 2 x AA / 1 x 9V AB9
APTB
M
M58
M59
MT1
MW
PDF
DWG
View
TB-1K.7 160 94 25 9002
L320 149 80 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View
TB-1K.9 160 94 25 9004
P2H-AT 149 80 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

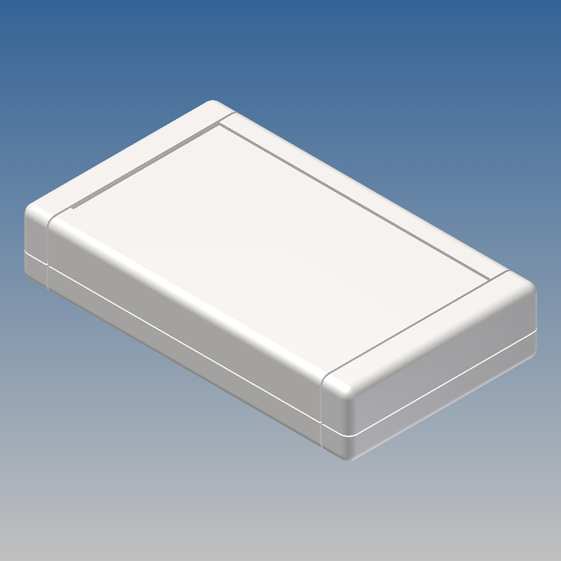

TB-2.7 160 94 31,5 9002
L320 149 80 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View
TB-2.9 160 94 31,5 9004
P2H-AT 149 80 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View
TB-2B.7 160 94 31,5 9002
L320 98 80 4 2 x AA / 1 x 9V AB9
APTB
M
M58
M59
MT1
MW
PDF
DWG
View

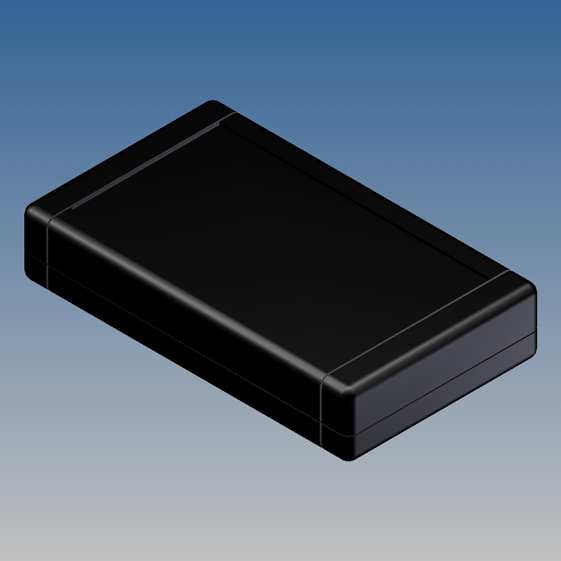

TB-2B.9 160 94 31,5 9004
P2H-AT 98 80 4 2 x AA / 1 x 9V AB9
APTB
M
M58
M59
MT1
MW
PDF
DWG
View
TB-2BK.7 160 94 31,5 9002
L320 98 80 4 2 x AA / 1 x 9V AB9
APTB
M
M58
M59
MT1
MW
PDF
DWG
View
TB-2BK.9 160 94 31,5 9004
P2H-AT 98 80 4 2 x AA / 1 x 9V AB9
APTB
M
M58
M59
MT1
MW
PDF
DWG
View
TB-2K.7 160 94 31,5 9002
L320 149 80 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View
TB-2K.9 160 94 31,5 9004
P2H-AT 149 80 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View
