TB-SP

Family Handheld - Electronic enclosures - Plastic

Description

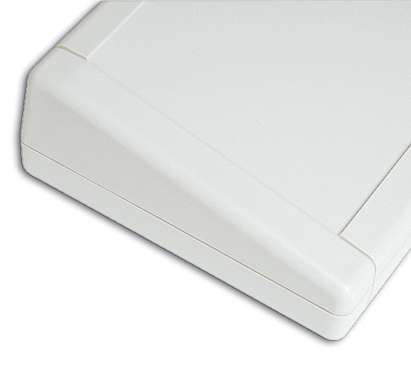

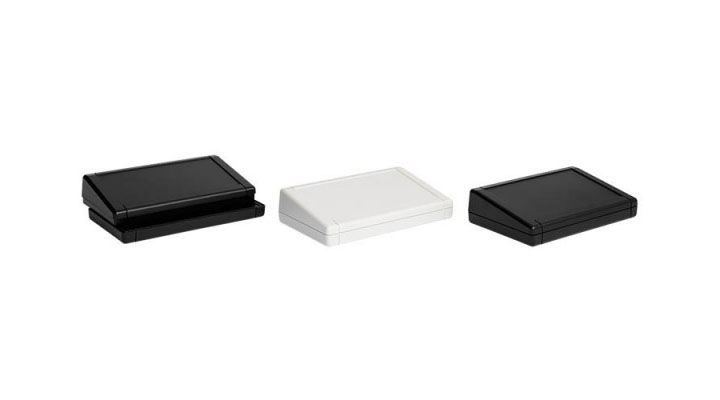

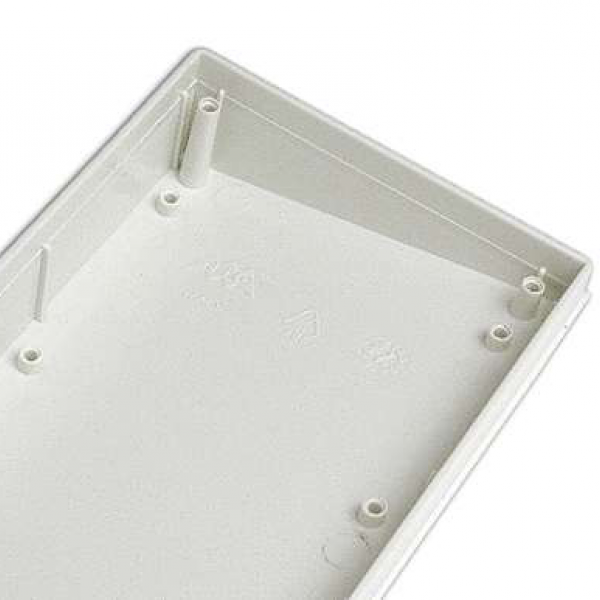

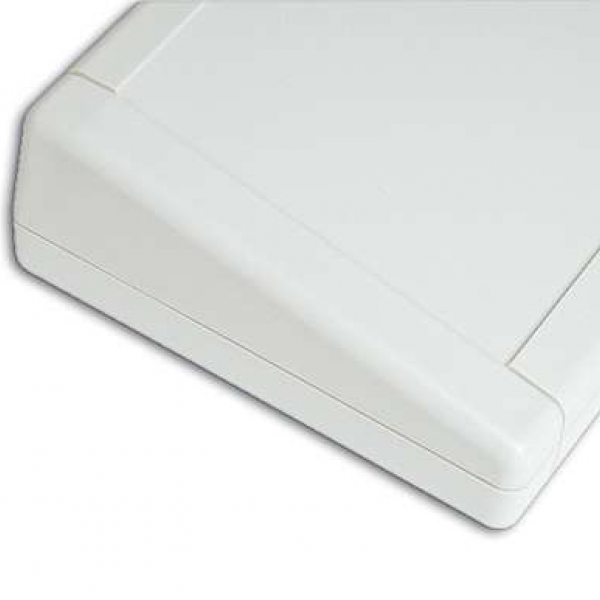

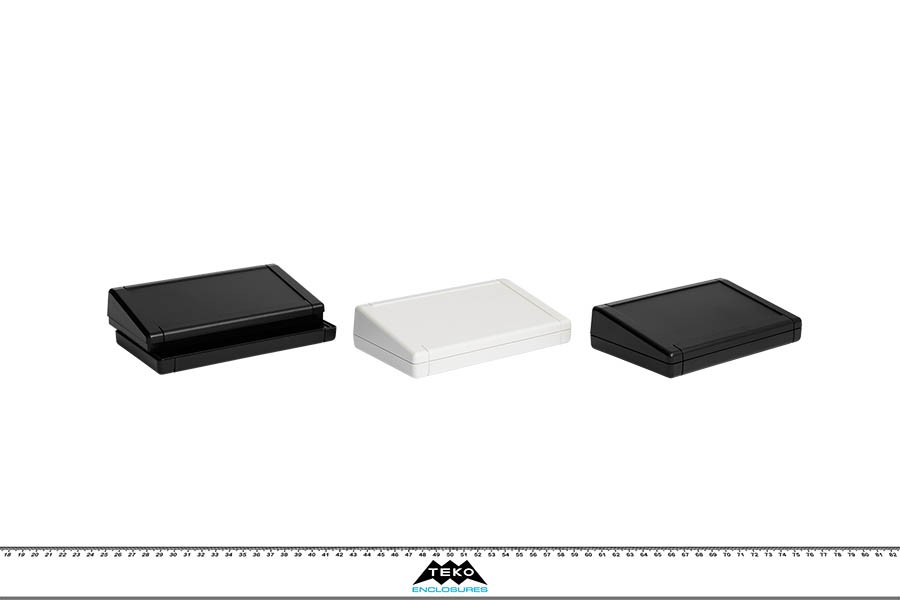

ABS enclosures with inclined cover and a recessed operating area 132 x 72 mm for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. Closing by four screws. Upon request ABS wall mounting tabs “MT1”.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

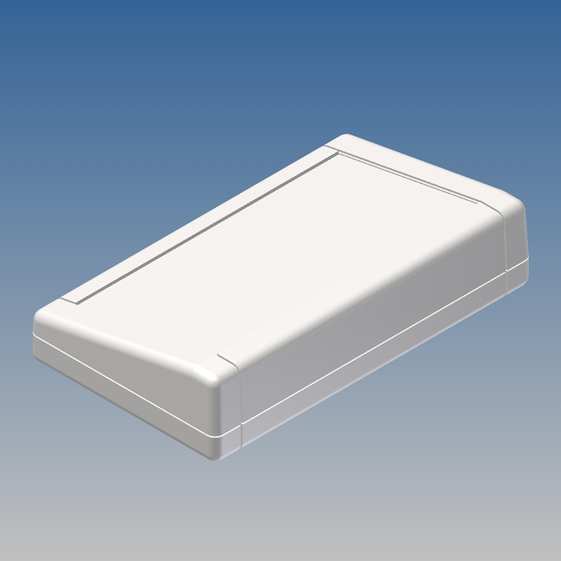

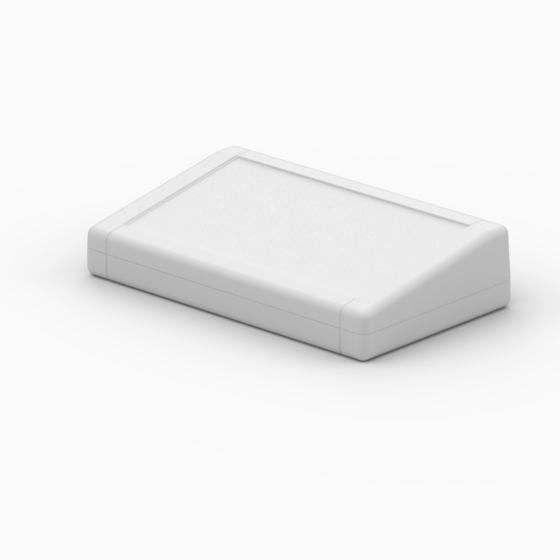

TB-1SP.7 160 94 36,5 9002
L320 149 80 4 - MT1
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 149
  • MAX PCB W (mm): 80
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG

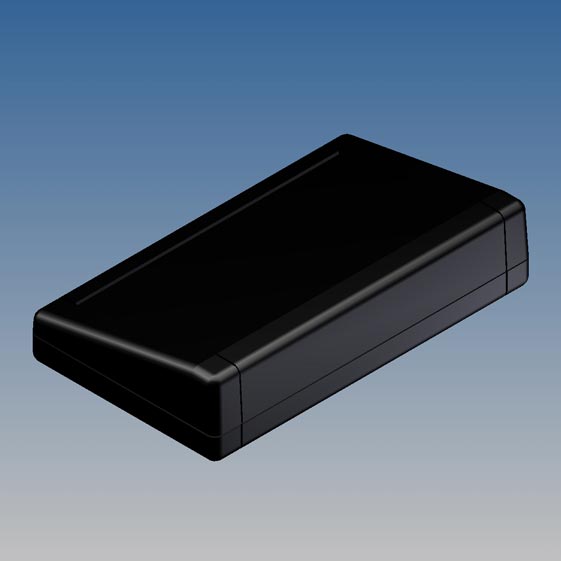

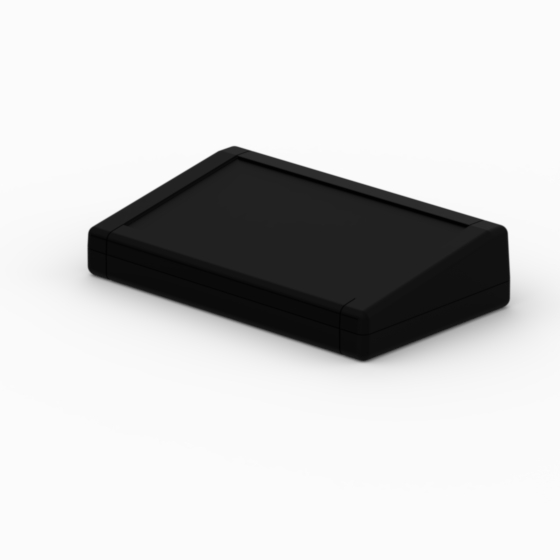

TB-1SP.9 160 94 36,5 9004
P2H-AT 149 80 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 149
  • MAX PCB W (mm): 80
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG
12 product families, 144 series. You can't find what you're looking for? Contact us
