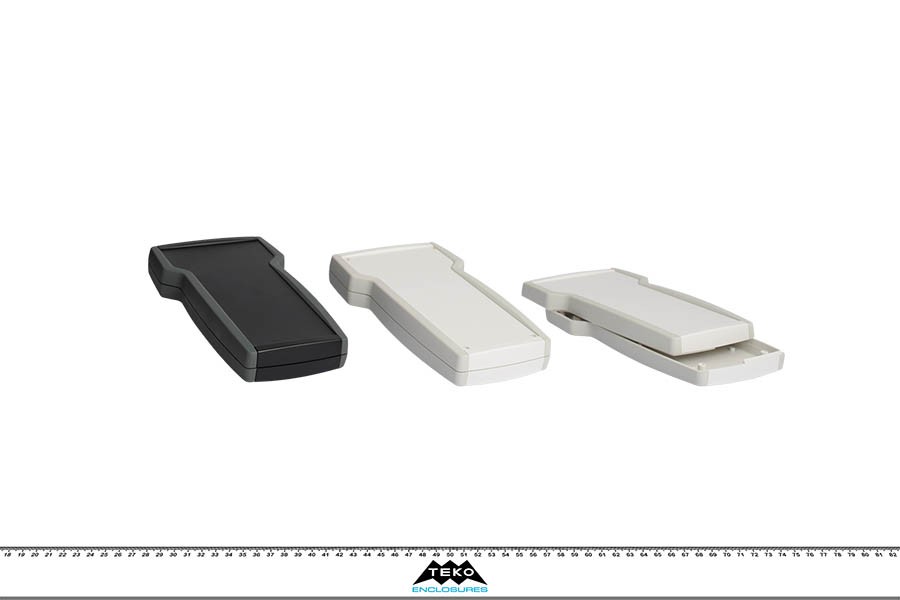

TEKNET T

Family Handheld - Electronic enclosures - Plastic

Description

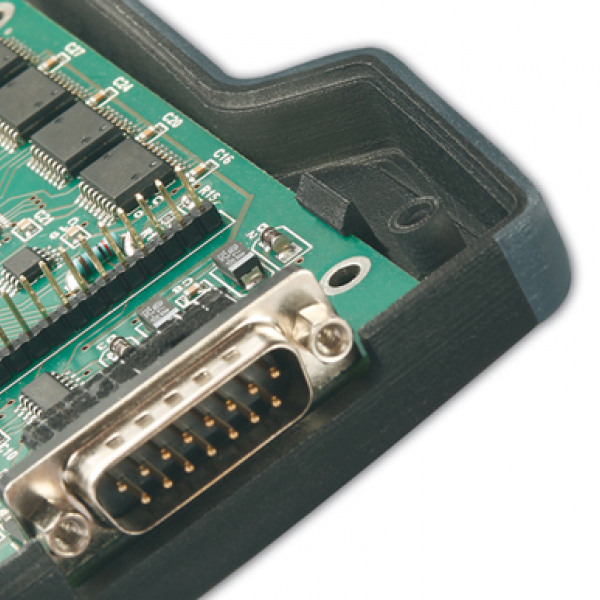

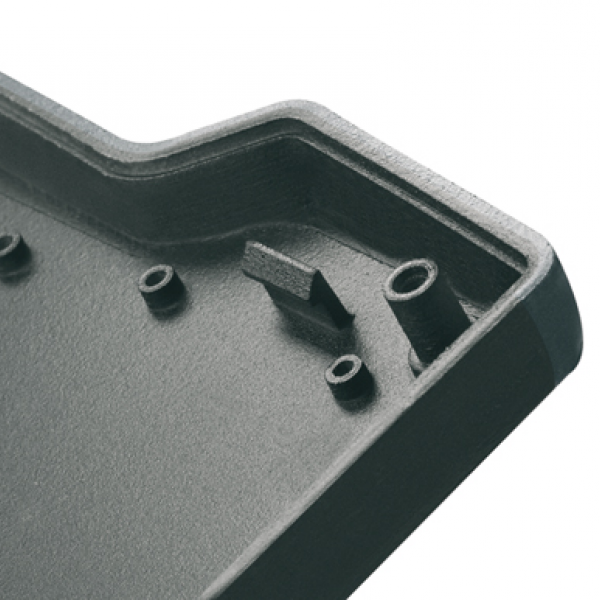

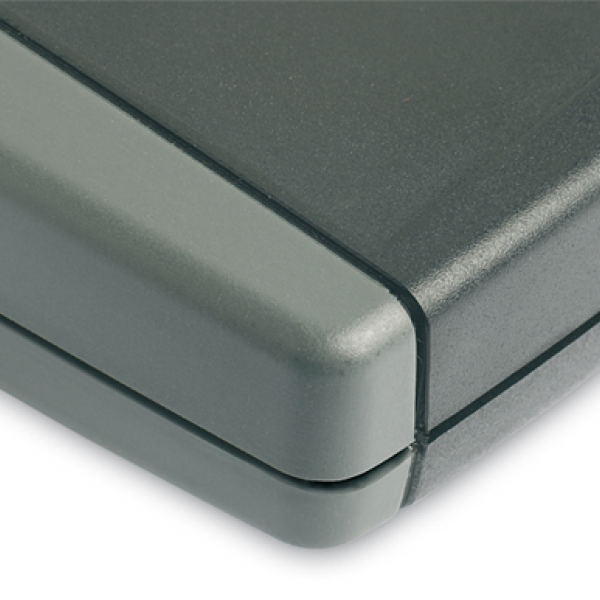

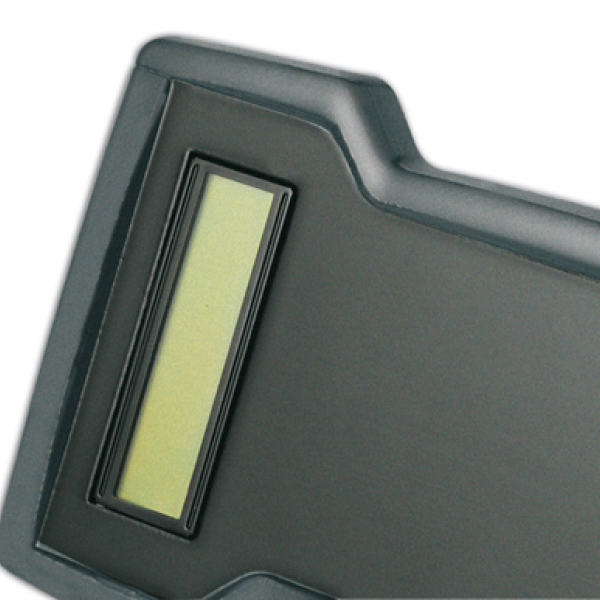

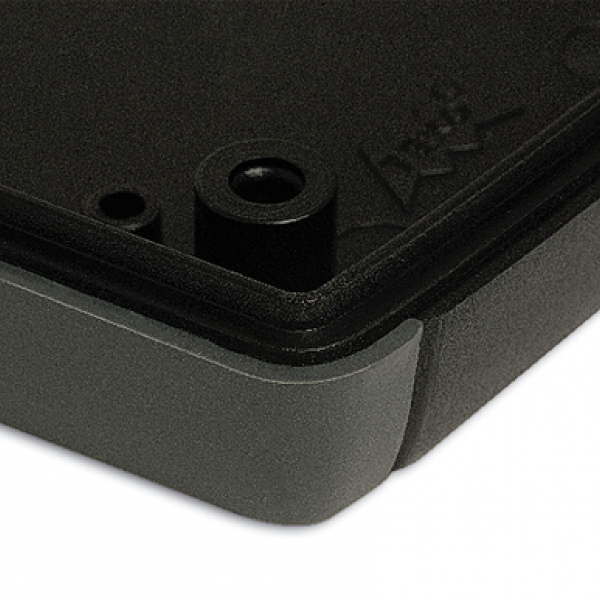

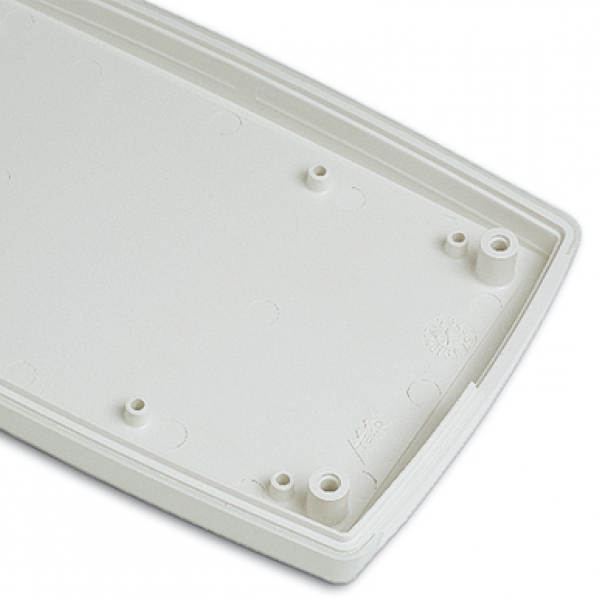

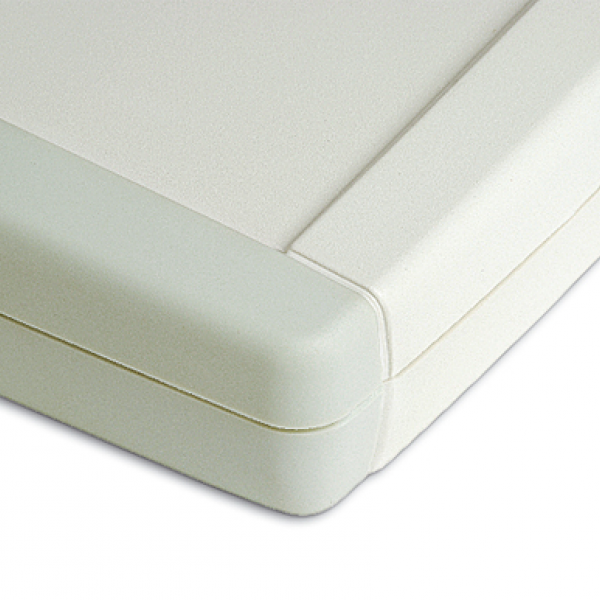

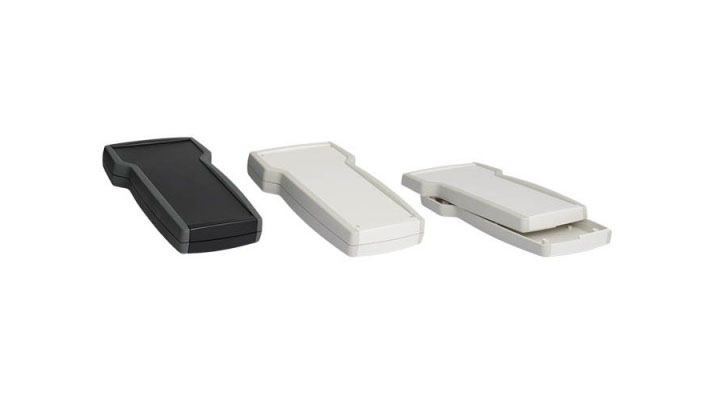

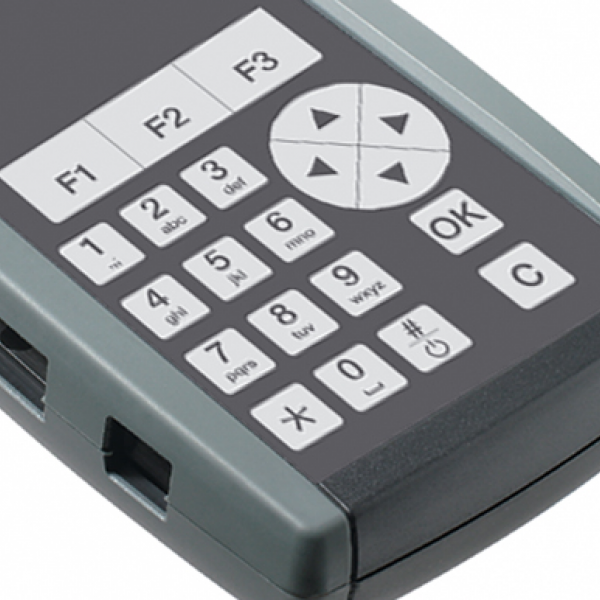

New models from TEKNET series featuring a “T-shape”. ABS hand-held enclosures with elastomer grips (TPU) on the sides. Matt surface finishing. The recessed area on the cover is suitable to accept a keypad membrane. Internal pillars on top and bottom to fix PCB. Closing by four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

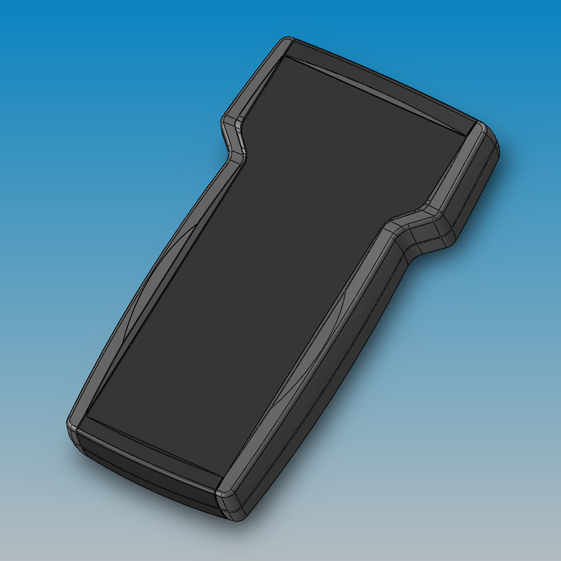

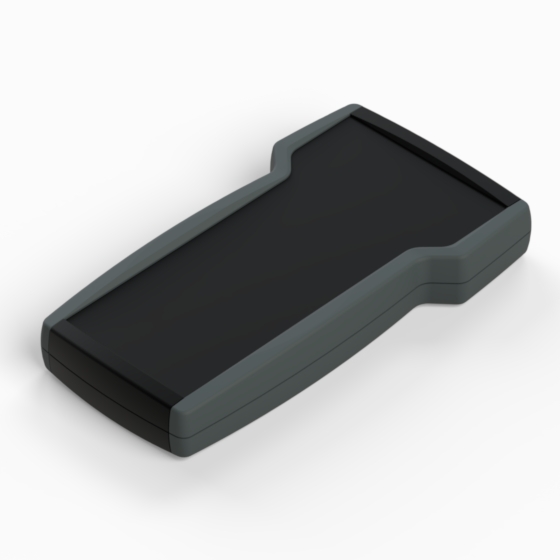

TNT22.29 208 117 30,3 9004 7012
P2H-AT  -  8020 196 102     PDF
DWG
View

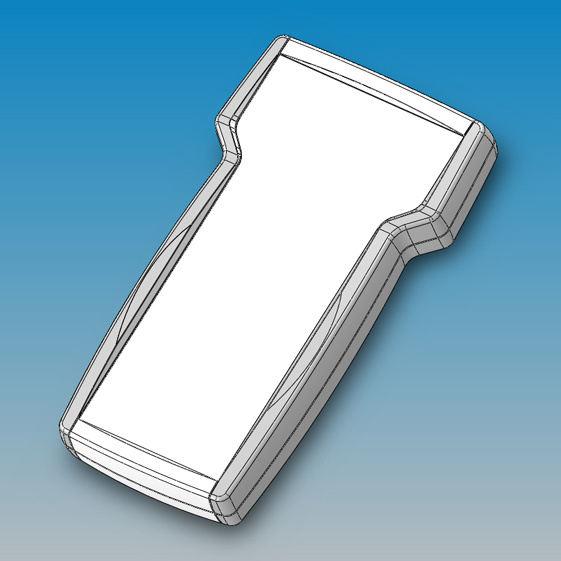

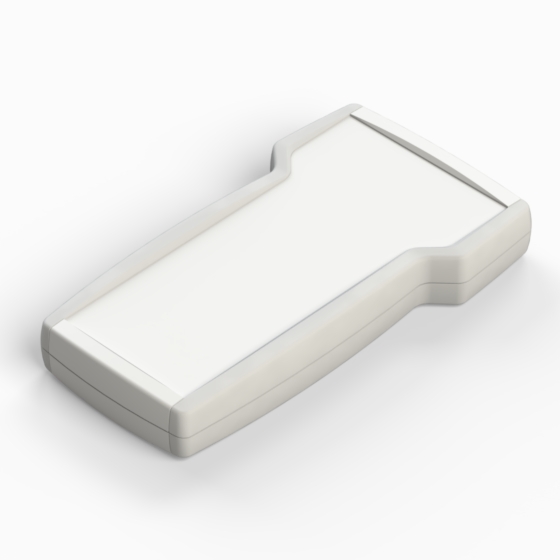

TNT22.30 208 117 30,3 9002 9018
P2H-AT  -  8020 196 102     PDF
DWG
View
