TENCLOS

Family Handheld - Electronic enclosures - Plastic

Description

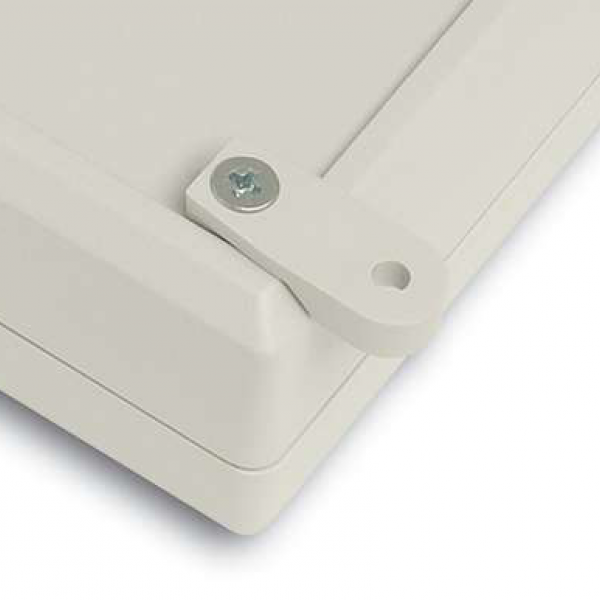

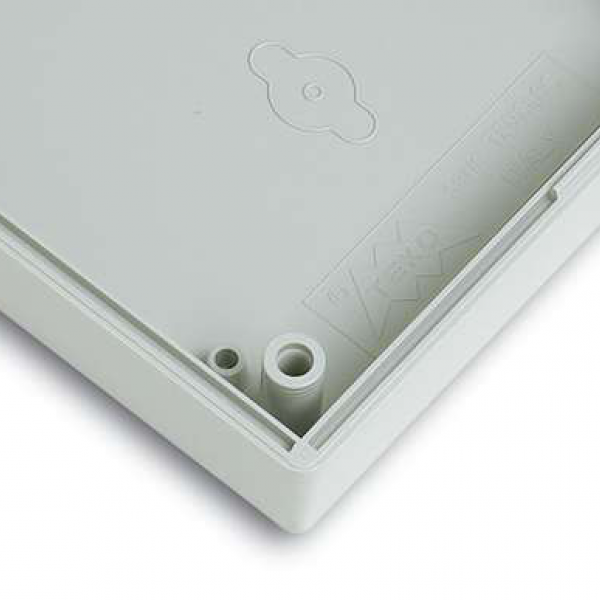

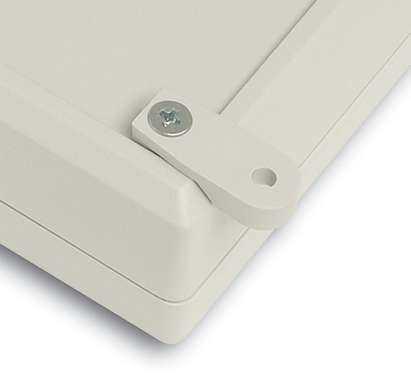

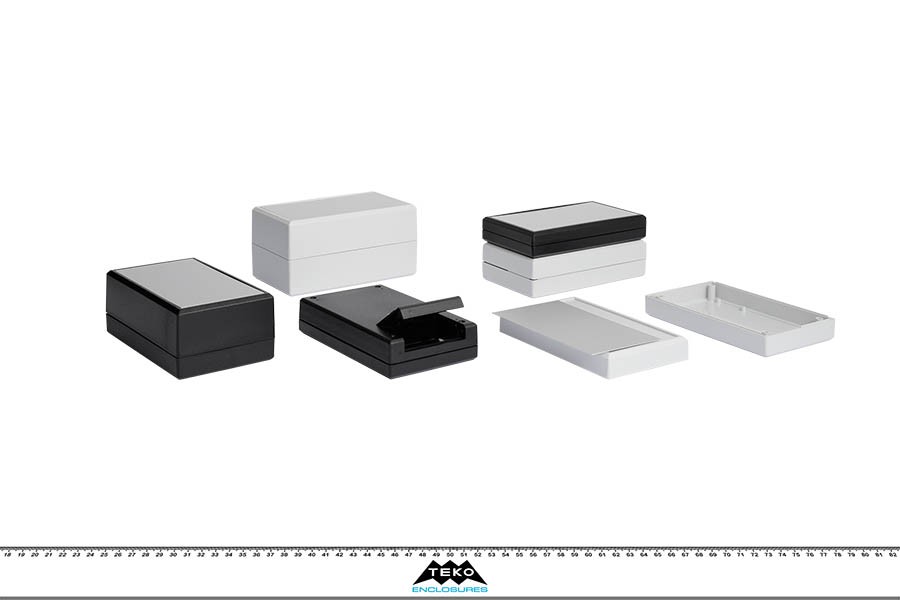

ABS enclosures with a recessed area to allow an 0.5 mm anodised aluminium panel. Base and cover have integral PCB mounting studs. The model “EXP BOX” (only black) has cutouts for three connectors DB25. Matt surface finish. Closing by four screws. Upon request ABS mounting tabs (Mod. MT1).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

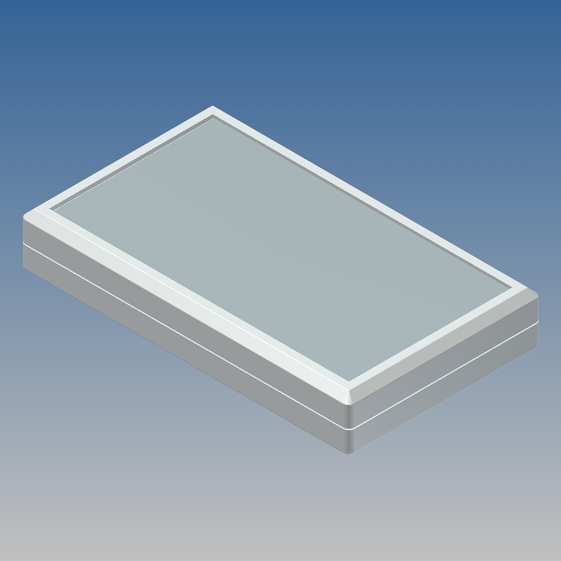

550.5 145 85 25 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

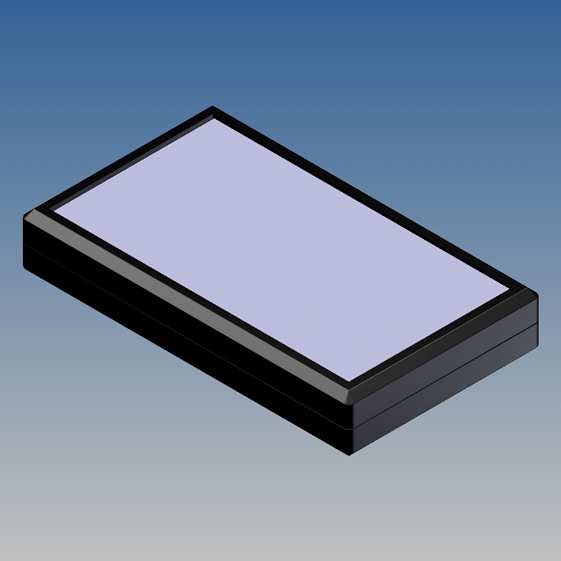

550.9 145 85 25 9004
P2H-AT 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View
560.5 145 85 31 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View
560.9 145 85 31 9004
P2H-AT 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

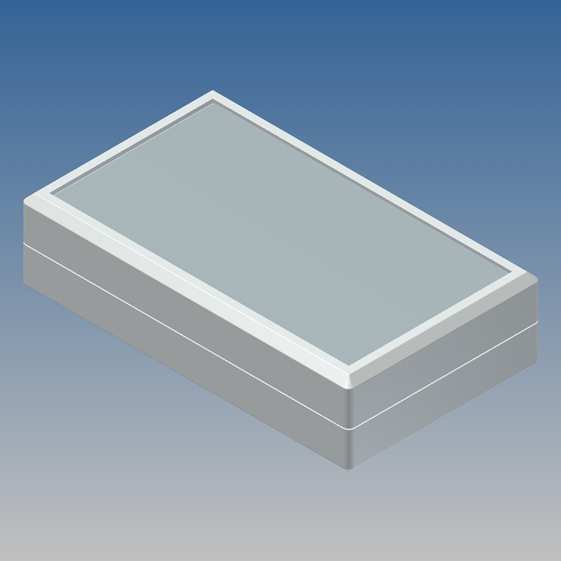

660.5 145 85 37 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

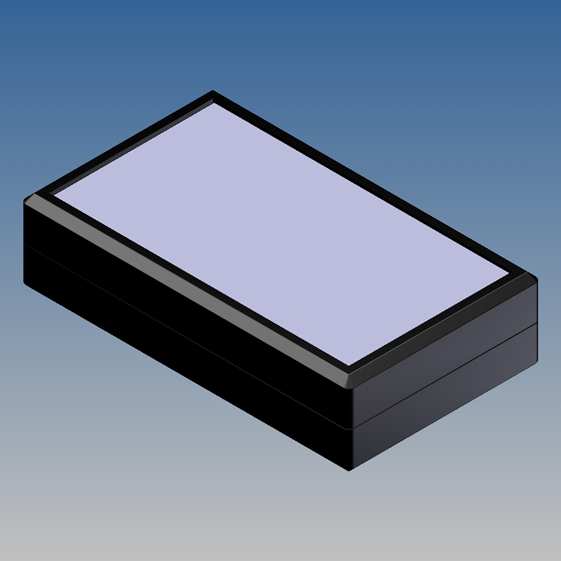

660.9 145 85 37 9004
P2H-AT 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

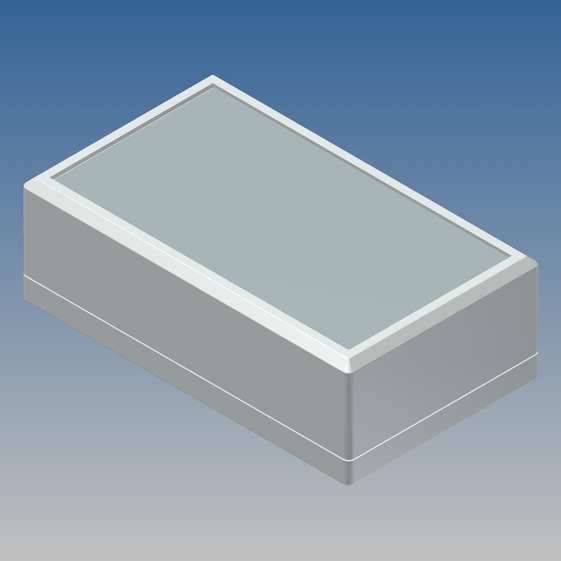

750.5 145 85 49 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

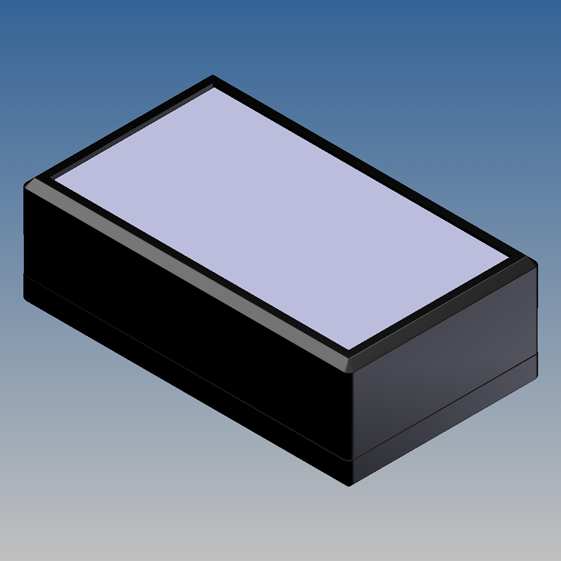

750.9 145 85 49 9004
P2H-AT 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

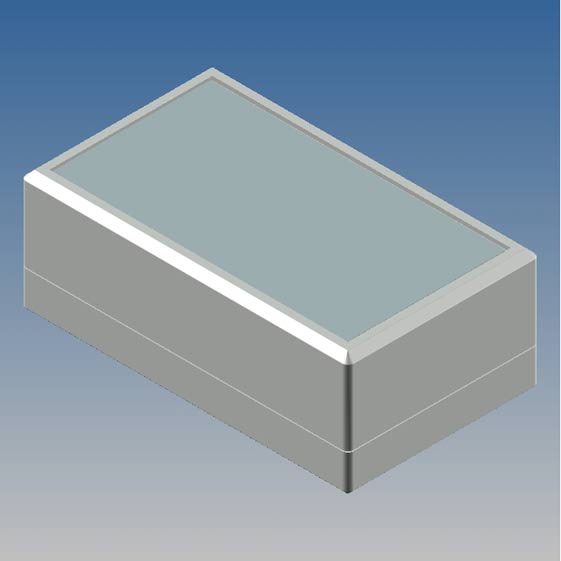

760.5 145 85 55 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

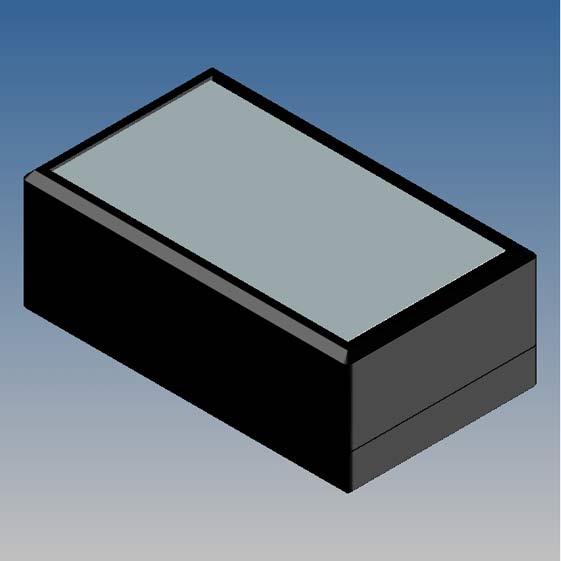

760.9 145 85 55 9004
P2H-AT 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

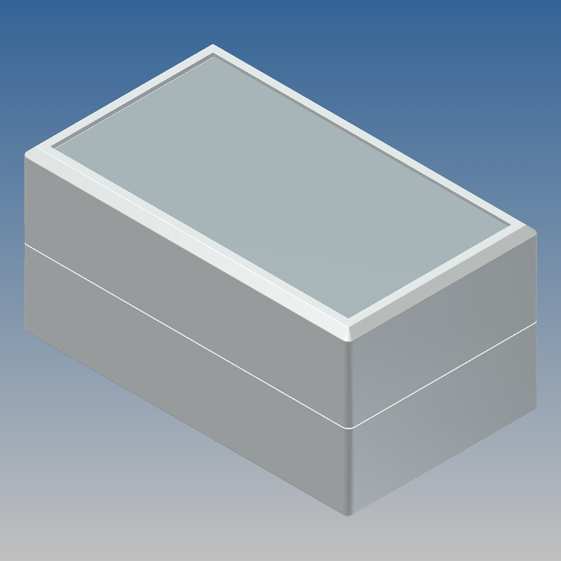

770.5 145 85 73 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View

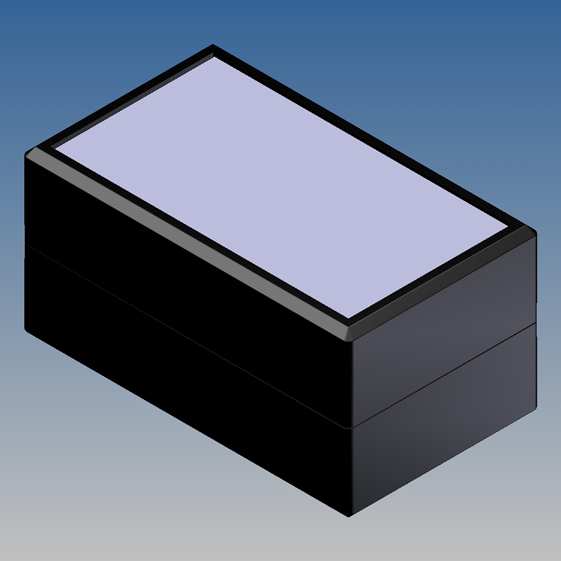

770.9 145 85 73 9004
P2H-AT 135,2 75,2 4 - APTB
M
M58
M59
MT1
MW
PDF
DWG
View
780-B.5 145 85 31 9018
AG-ATY 97,6 75,2 4 1 x 9V AB9
APTB
M
M58
M59
MW
PDF
DWG
View
780-B.9 145 85 31 9004
P2H-AT 97,6 75,2 4 1 x 9V AB9
APTB
M
M58
M59
MW
PDF
DWG
View
880-B.5 145 85 37 9018
AG-ATY 97,6 75,2 4 1 x 9V AB9
APTB
M
M58
M59
MW
PDF
DWG
View

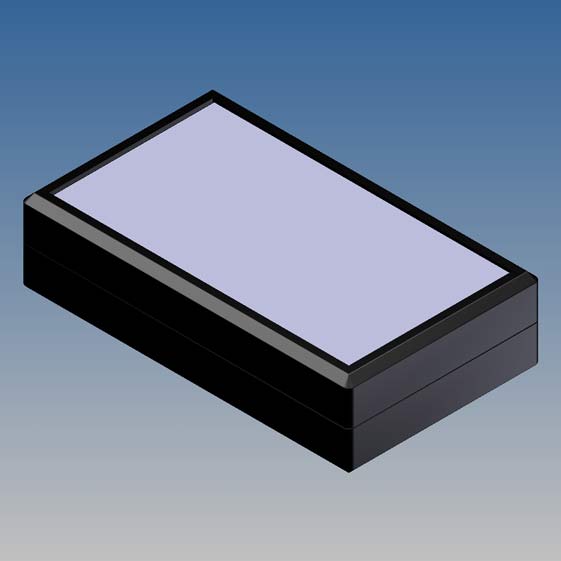

880-B.9 145 85 37 9004
P2H-AT 97,6 75,2 4 1 x 9V AB9
APTB
M
M58
M59
MW
PDF
DWG
View

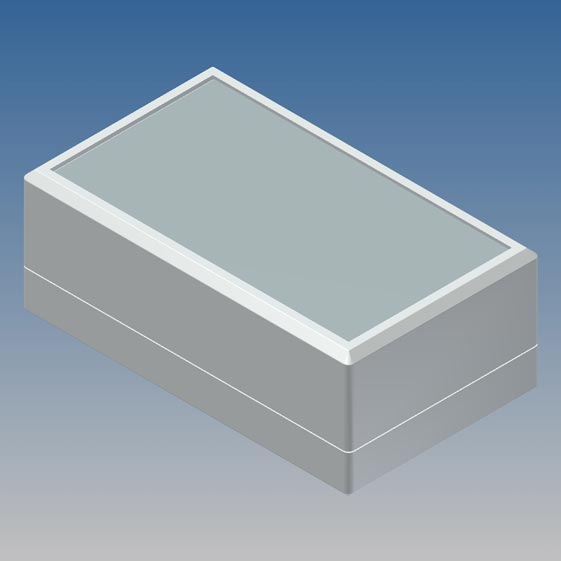

980-B.5 145 85 55 9018
AG-ATY 97,6 75,2 4 1 x 9V AB9
APTB
M
M58
M59
MW
PDF
DWG
View

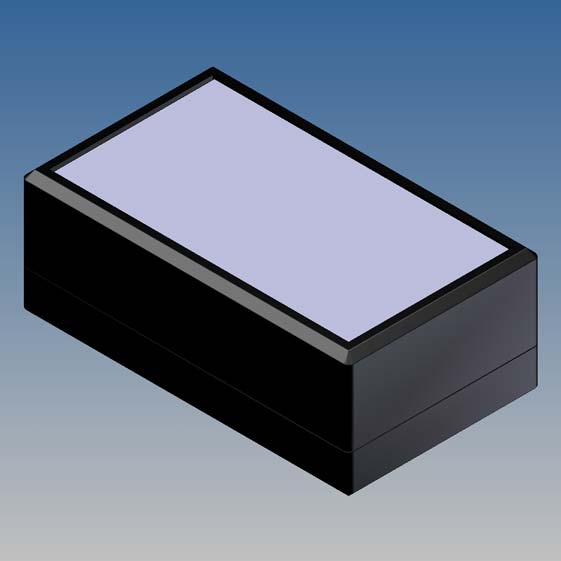

980-B.9 145 85 55 9004
P2H-AT 97,6 75,2 4 1 x 9V AB9
APTB
M
M58
M59
MW
PDF
DWG
View
