OVO-1

Family Pocket - Electronic enclosures - Plastic

Description

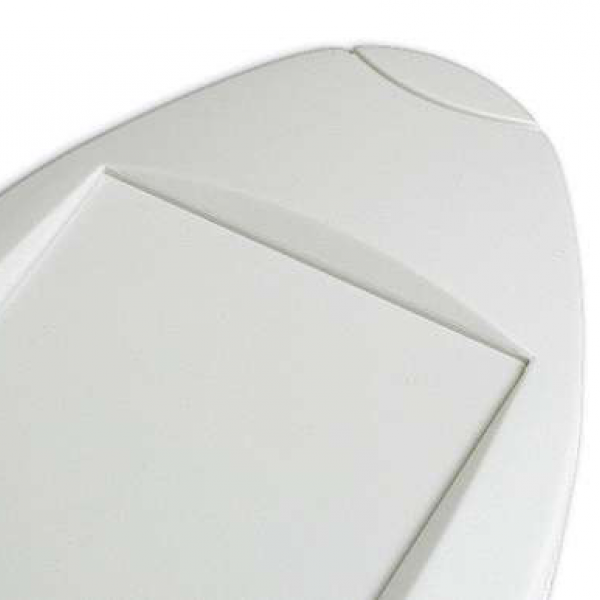

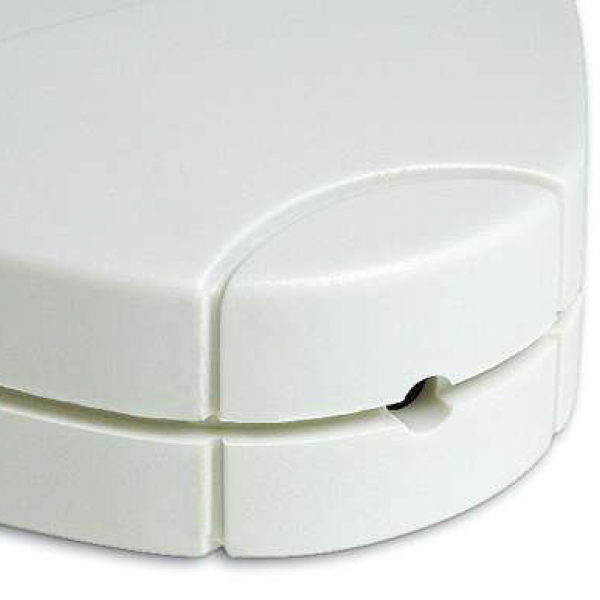

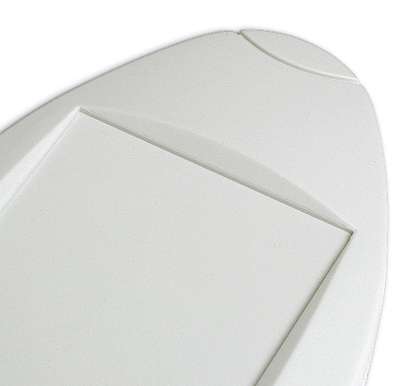

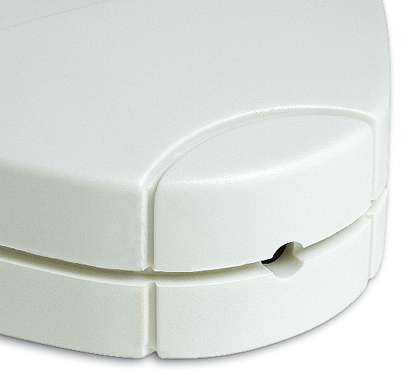

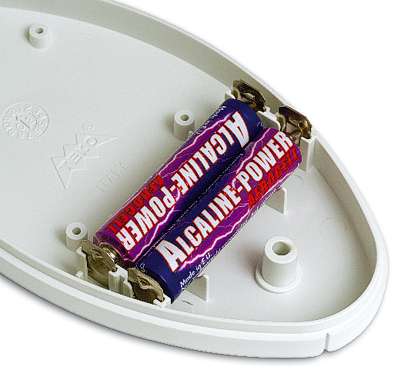

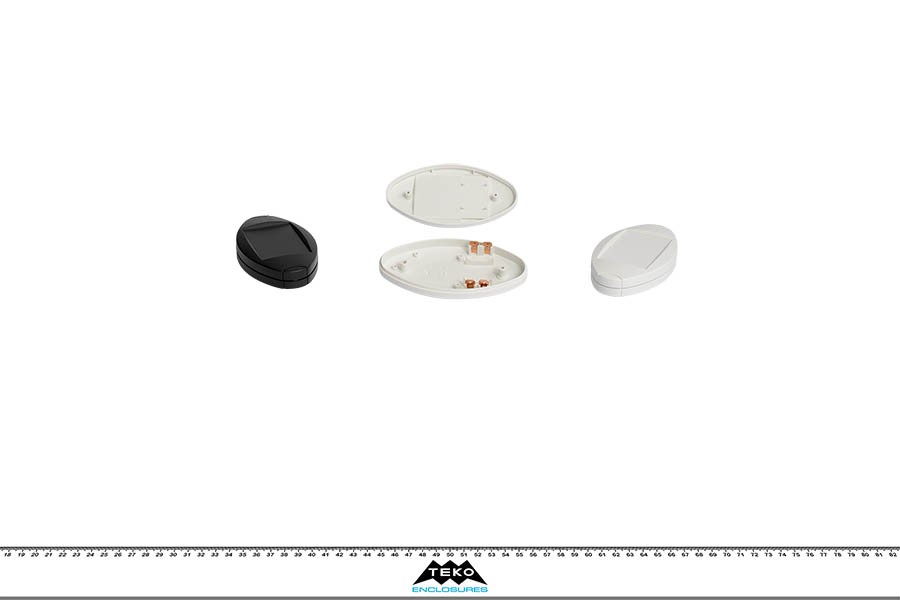

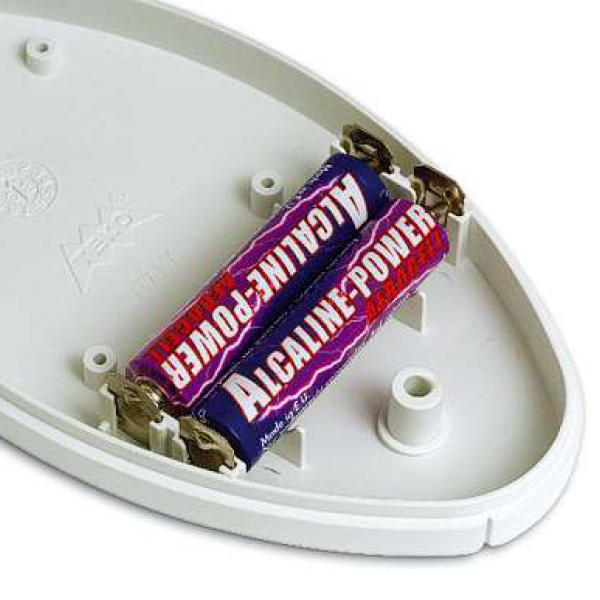

Ergonomic designed ABS enclosures with a recessed operating area for membrane keyboard. Matt surface finish. Integrated supports for two 1.5V microcells (AAA). The model “OVO-1IR” has a front opening for a LED. Closing by two screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

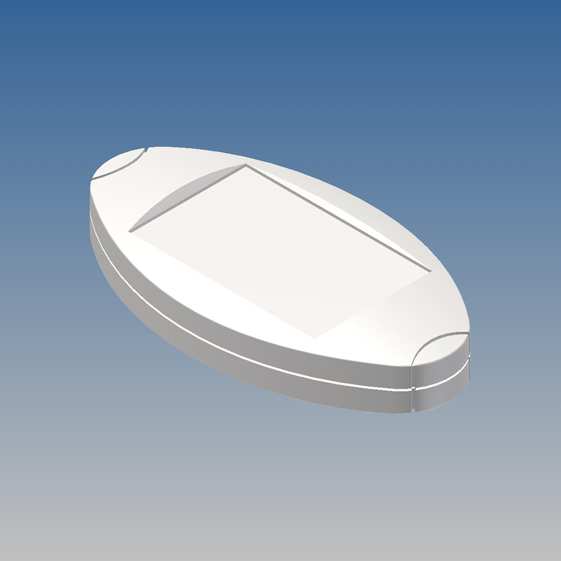

OVO-1.7 124,2 66,3 23 9002
L320 65,5 57,3 2 2 x AAA PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 65,5
  • MAX PCB W (mm): 57,3
  • Screws: 2
  • Battery: 2 x AAA
  • Accessories:
  • Drawings:  PDF  DWG

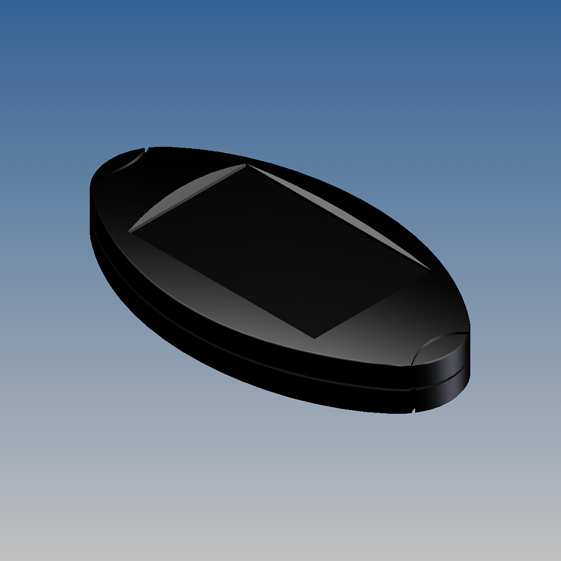

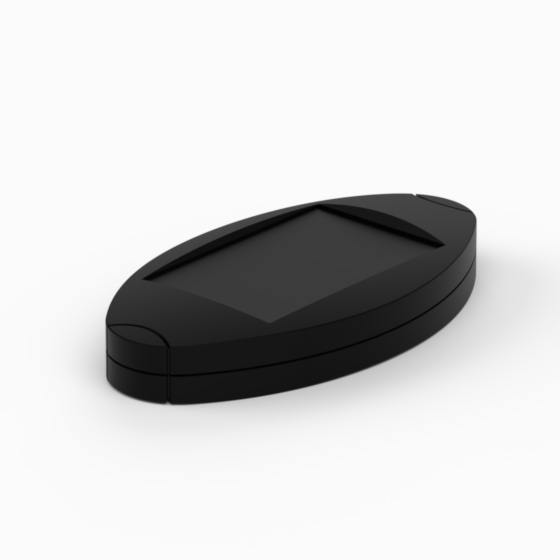

OVO-1.9 124,2 66,3 23 9004
P2H-AT 65,5 57,3 2 2 x AAA PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 65,5
  • MAX PCB W (mm): 57,3
  • Screws: 2
  • Battery: 2 x AAA
  • Accessories:
  • Drawings:  PDF  DWG

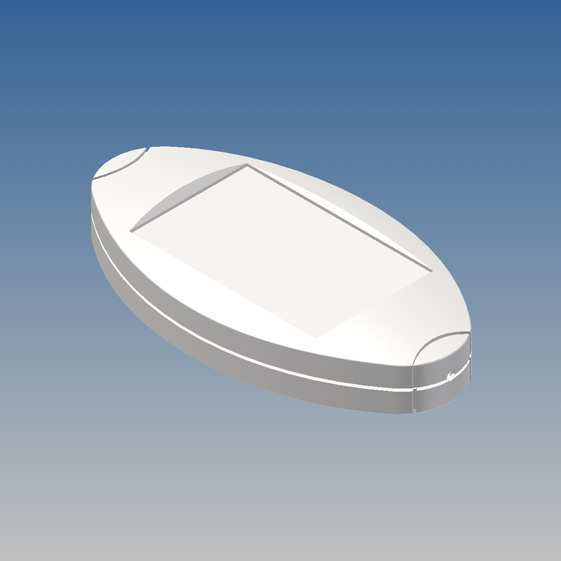

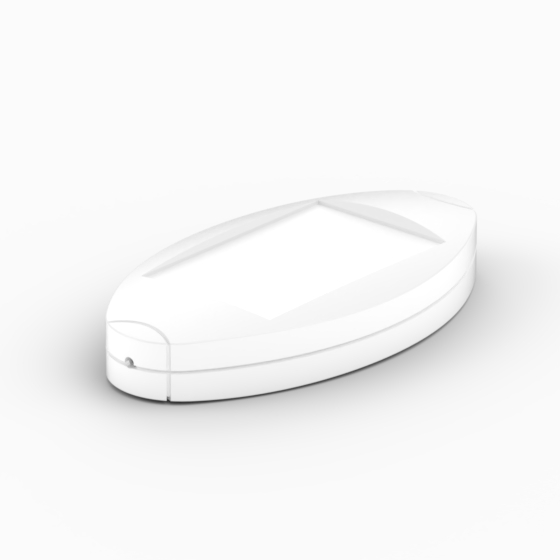

OVO-1IR.7 124,2 66,3 23 9002
L320 65,5 57,3 2 2 x AAA PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 65,5
  • MAX PCB W (mm): 57,3
  • Screws: 2
  • Battery: 2 x AAA
  • Accessories:
  • Drawings:  PDF  DWG

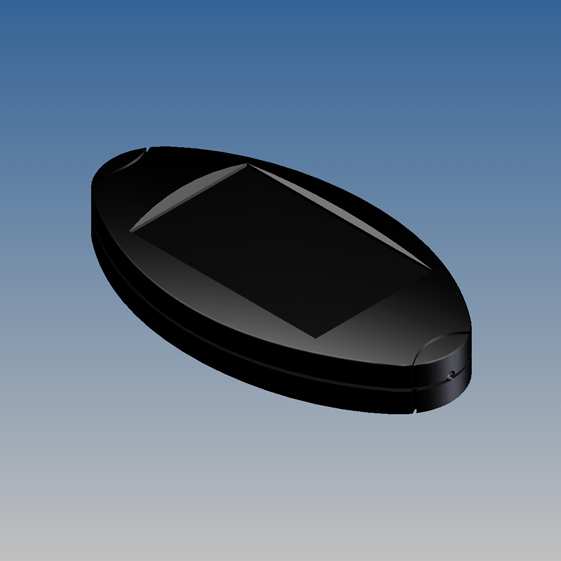

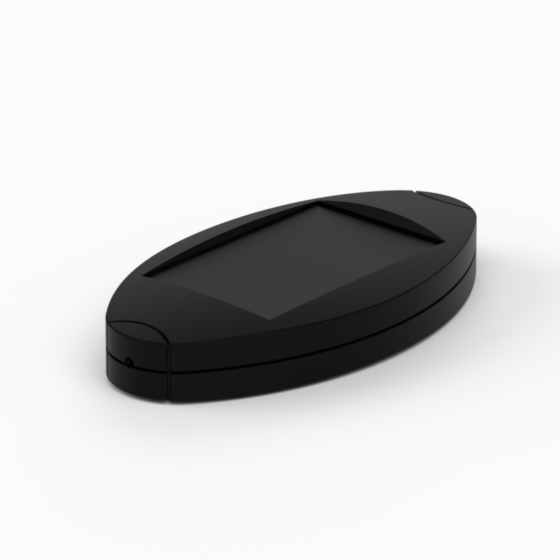

OVO-1IR.9 124,2 66,3 23 9004
P2H-AT 65,5 57,3 2 2 x AAA PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 65,5
  • MAX PCB W (mm): 57,3
  • Screws: 2
  • Battery: 2 x AAA
  • Accessories:
  • Drawings:  PDF  DWG
