EUROPULT TP

Family Pult - Electronic enclosures - Plastic

Description

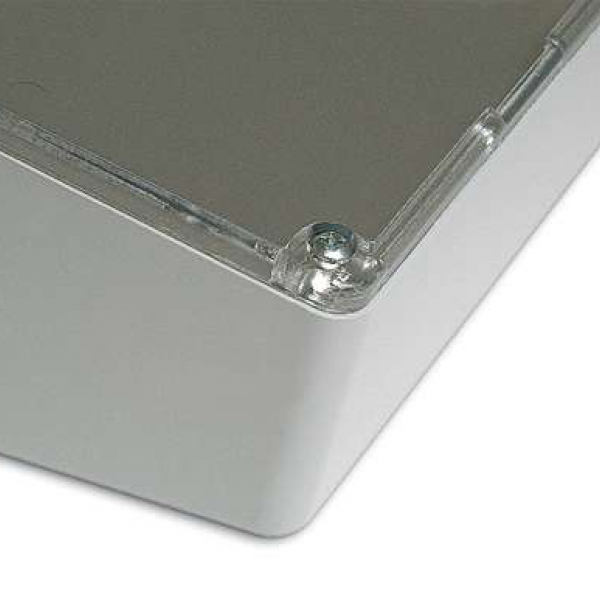

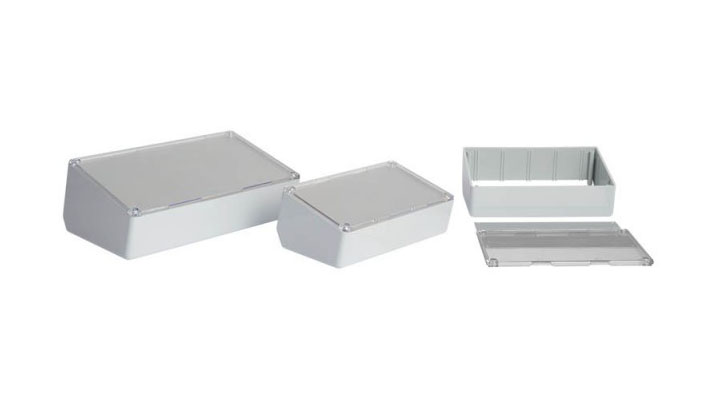

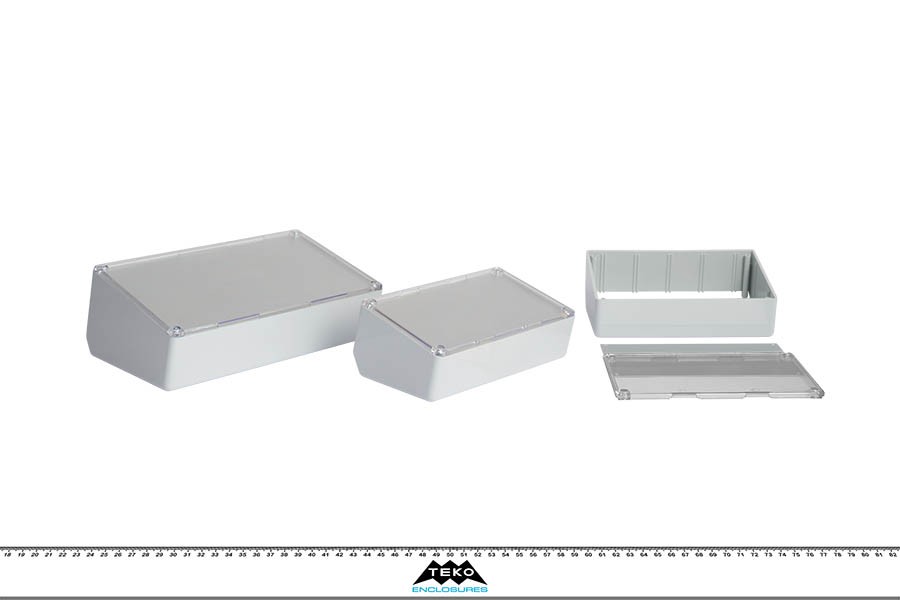

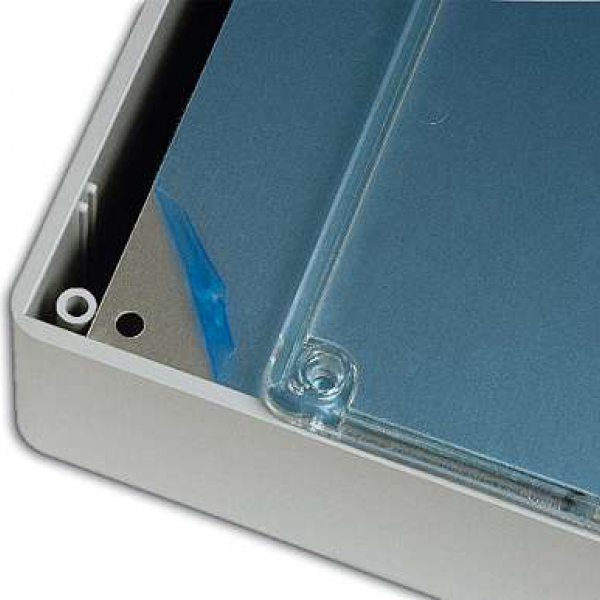

ABS enclosure with a 15° inclined transparent polycarbonate cover that protects an anodised 0.5 mm aluminium panel. The base walls have integral PCB guides and mounting studs. Rounded corners. Glossy surfaces finish. Closing by four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

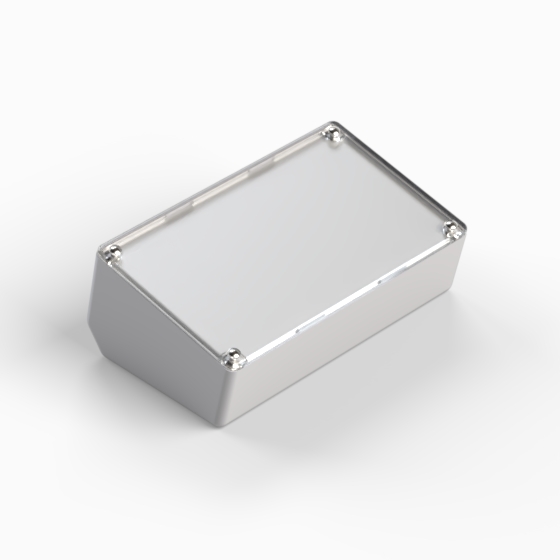

115TP.5 161 95 64 9018
AG-ATY  -  2407 153 81 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY  -  2407
  • MAX PCB L (mm): 153
  • MAX PCB W (mm): 81
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

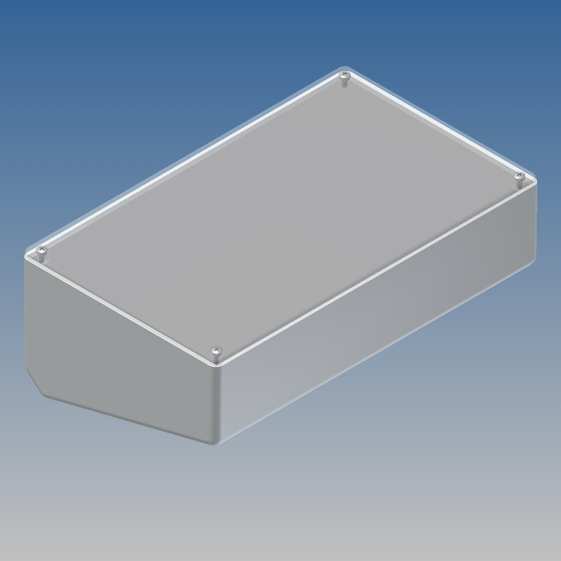

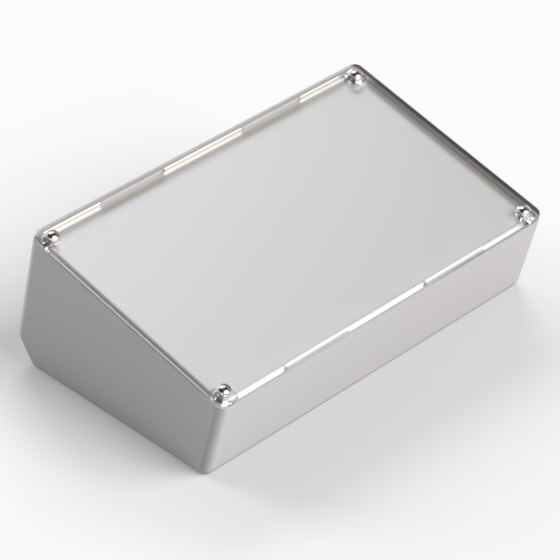

215TP.5 216 130 80,5 9018
AG-ATY  -  2407 208 118,5 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY  -  2407
  • MAX PCB L (mm): 208
  • MAX PCB W (mm): 118,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
