DISSIPATOR

Family Rf - Electronic enclosures - Metal

Description

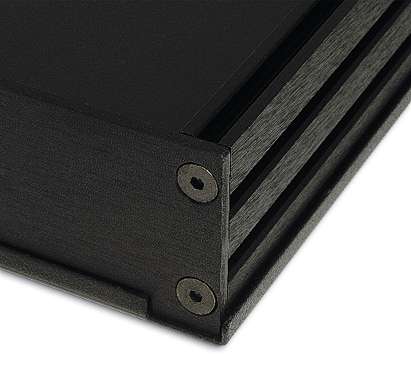

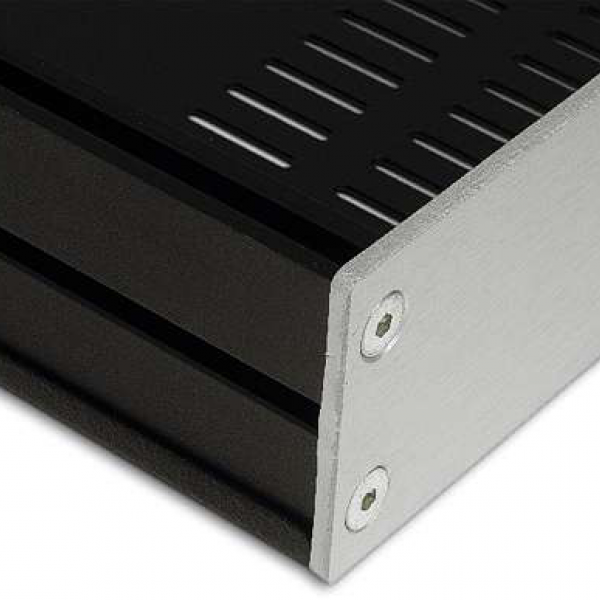

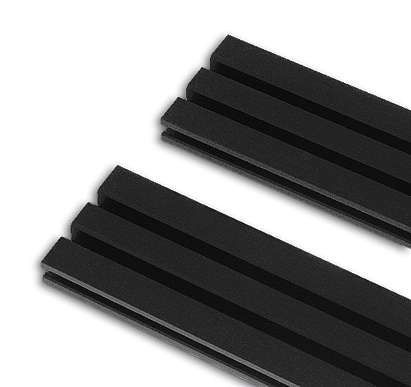

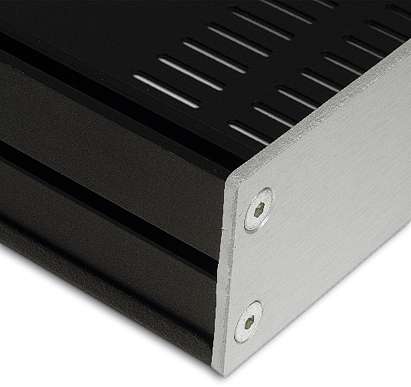

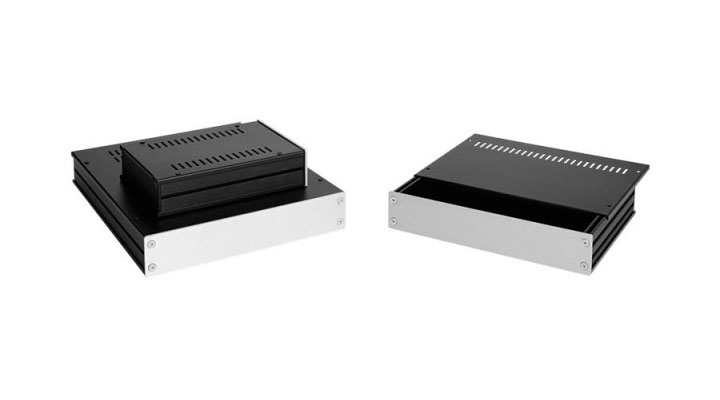

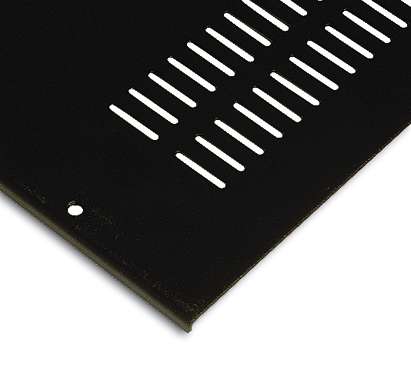

The DISSIPATOR family of modular instrument utilises a versatile selection of aluminium extrusions, together with black steel coverplates to provide a wide range of electronic equipment enclosures. All are easily assembled with just a screwdriver. The extrusions and the back panel are black anodised aluminium, the front panel is silver anodised.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

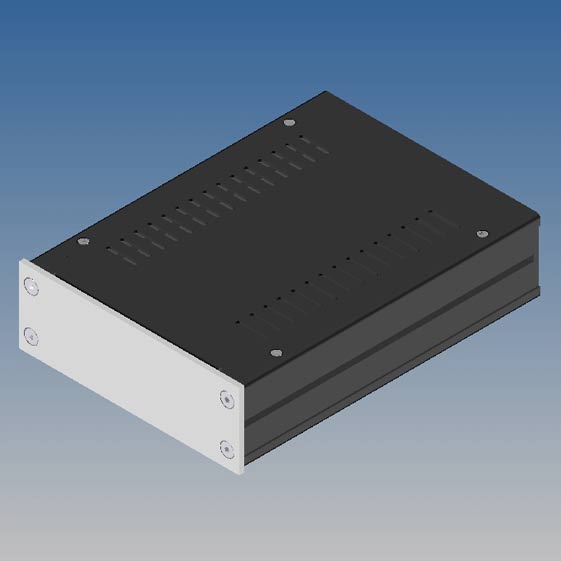

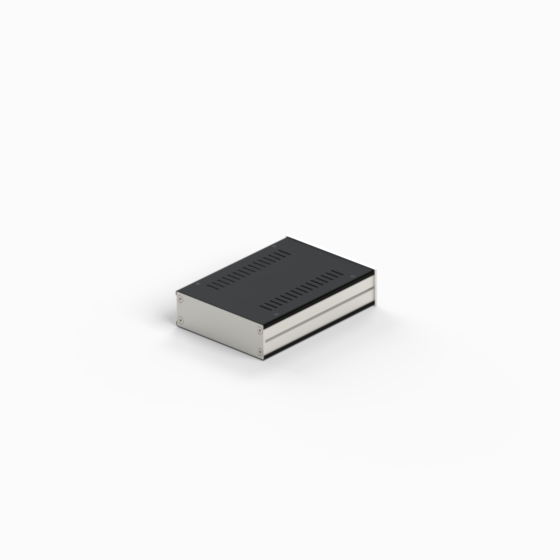

DS1470.18 176 126,3 43 9004 9006
- - - - PDF
DWG
View
  • Color (Ral): 9004 9006
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

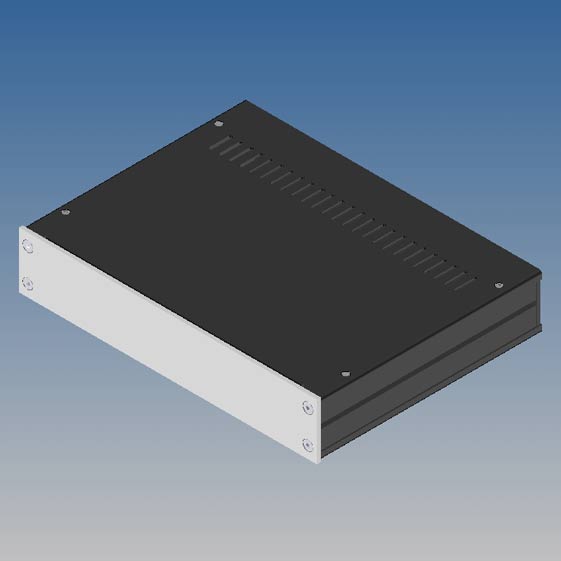

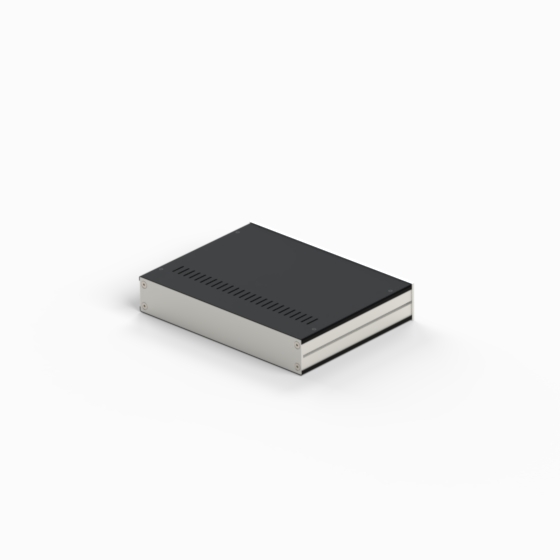

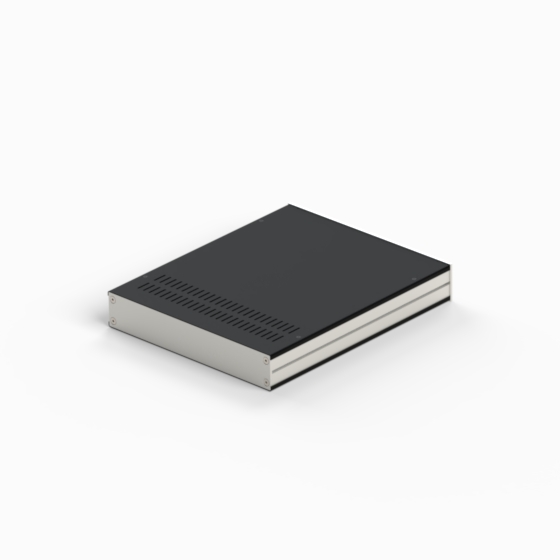

DS2470.18 176 233 43 9004 9006
- - - - PDF
DWG
View
  • Color (Ral): 9004 9006
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

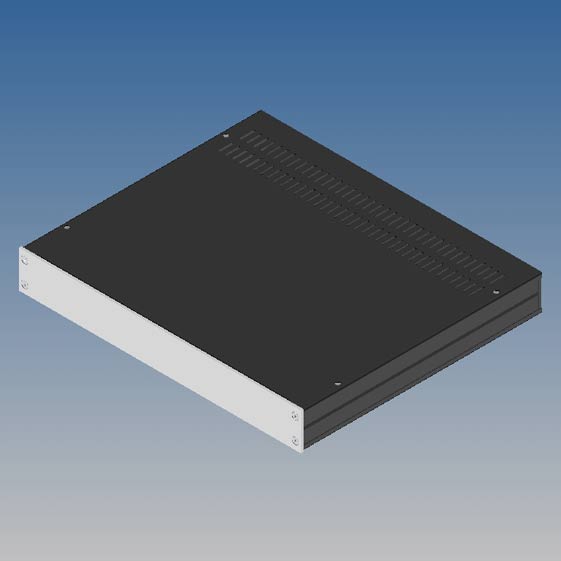

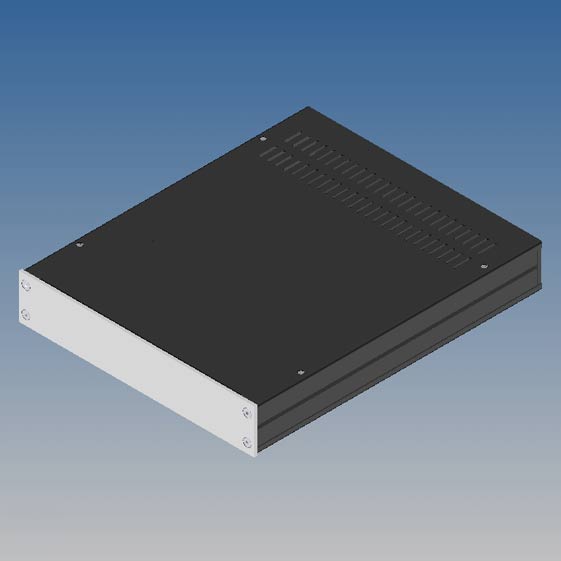

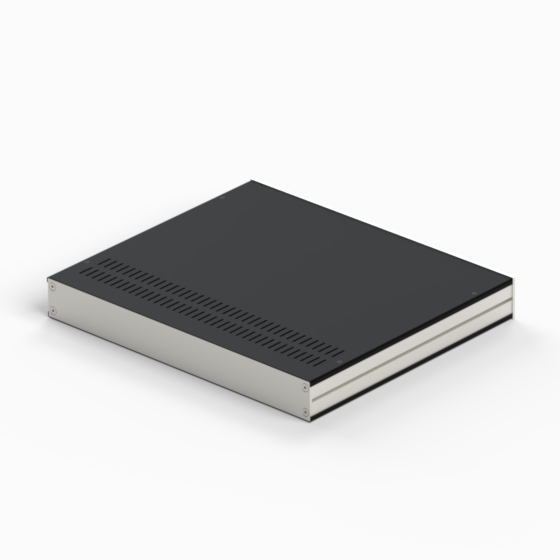

DS2480.18 286 233 43 9004 9006
- - - - PDF
DWG
View
  • Color (Ral): 9004 9006
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

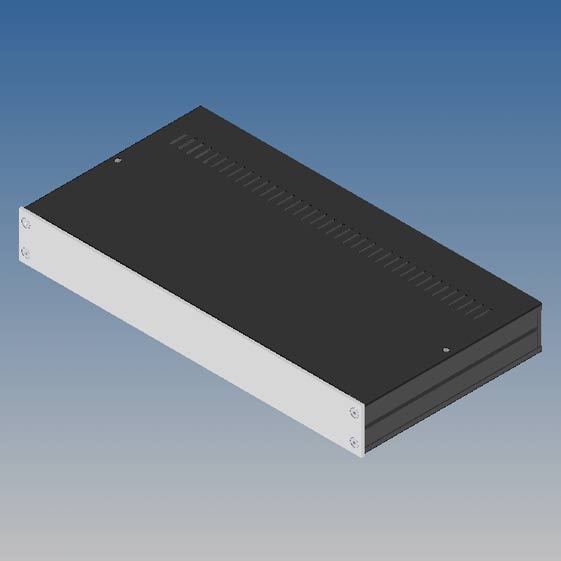

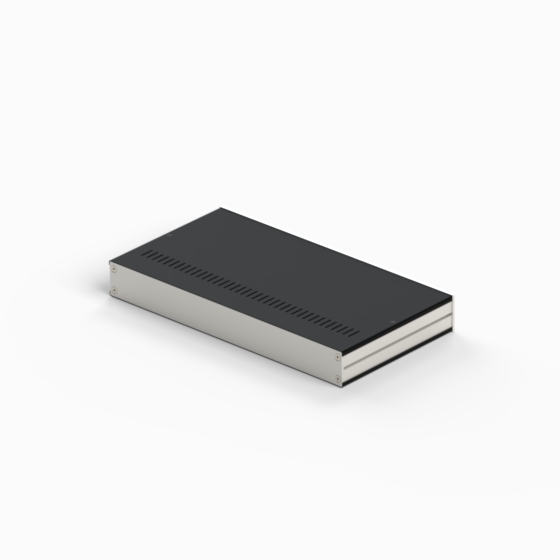

DS3470.18 176 334 43 9004 9006
- - - - PDF
DWG
View
  • Color (Ral): 9004 9006
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
DS3480.18 286 334 43 9004 9006
- - - - PDF
DWG
View
  • Color (Ral): 9004 9006
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

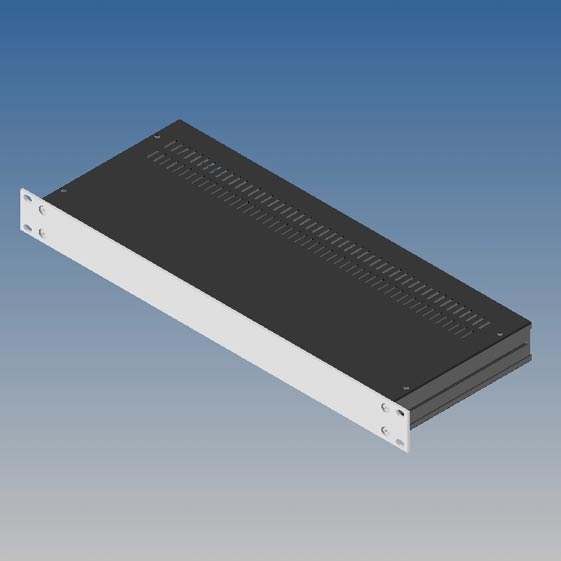

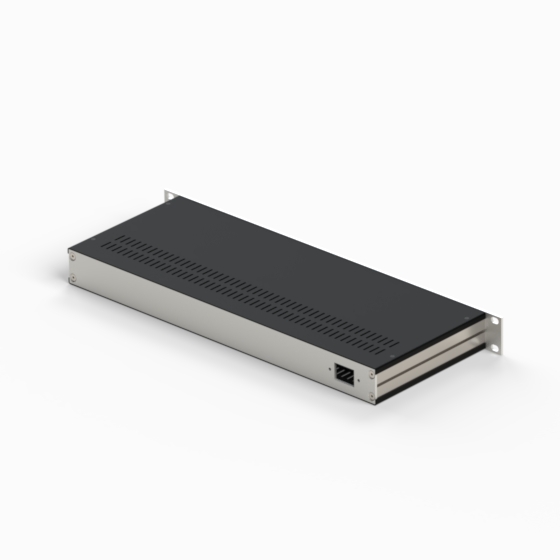

SL170.18 177 483 43 9004 9006
- - - - PDF
DWG
View
  • Color (Ral): 9004 9006
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

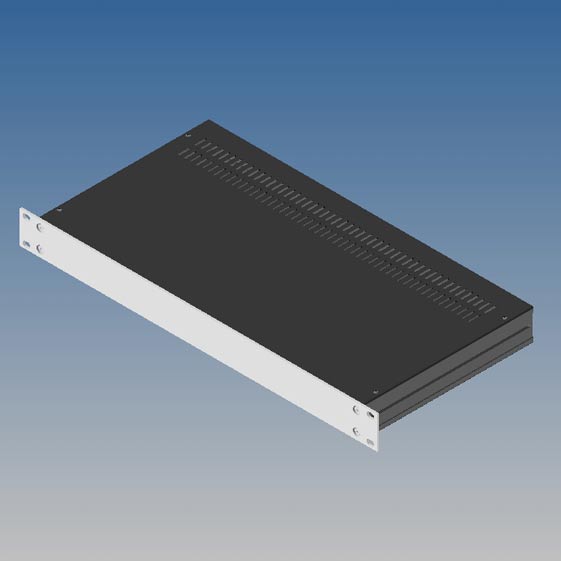

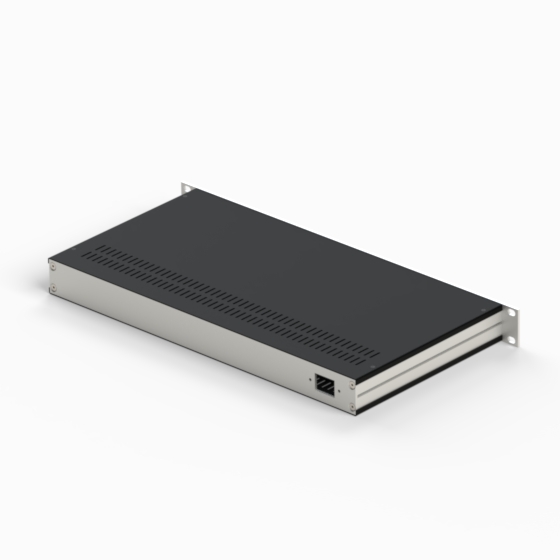

SL230.18 237 483 43 9004 9006
- - - - PDF
DWG
View
  • Color (Ral): 9004 9006
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

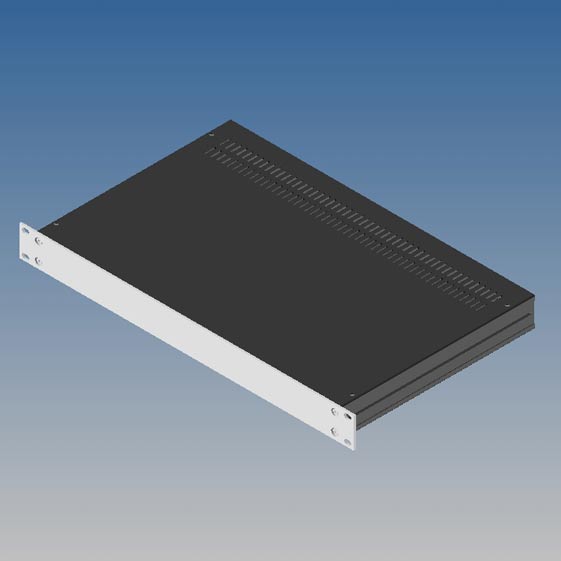

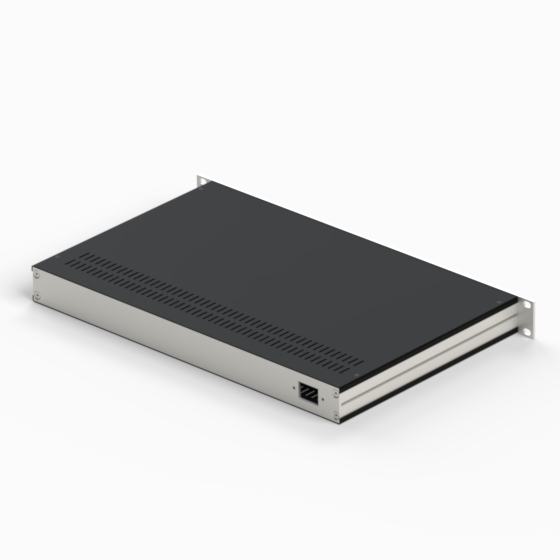

SL280.18 287 483 43 9004 9006
- - - - PDF
DWG
View
  • Color (Ral): 9004 9006
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
12 product families, 146 series. You can't find what you're looking for? Contact us
