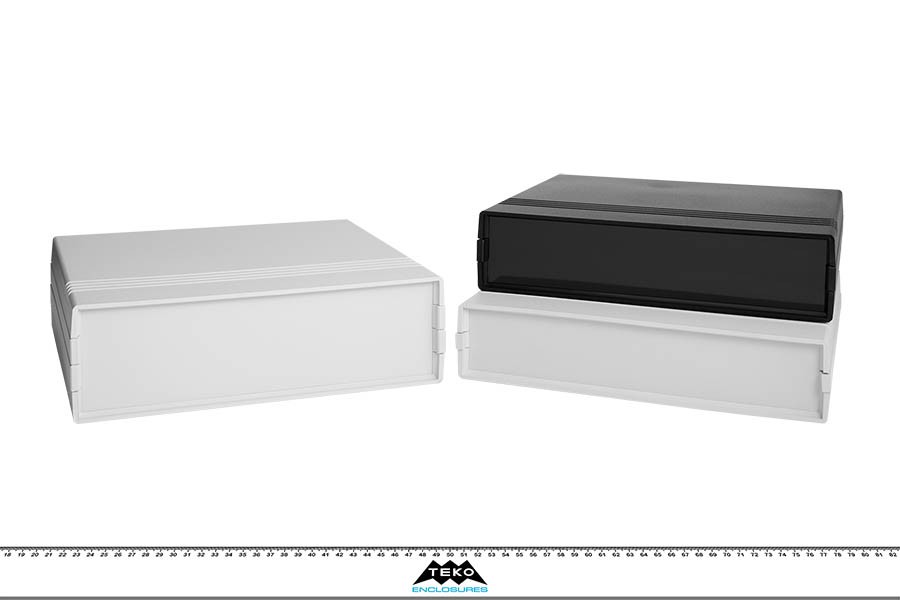

STRUMENTA SAT

Family Strumentalia - Electronic enclosures - Plastic

Description

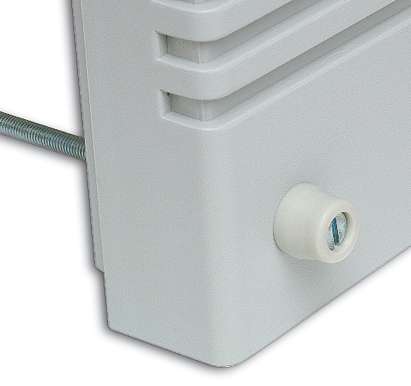

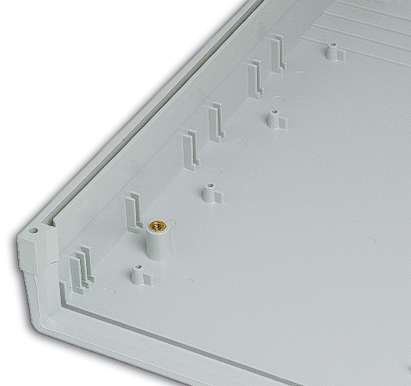

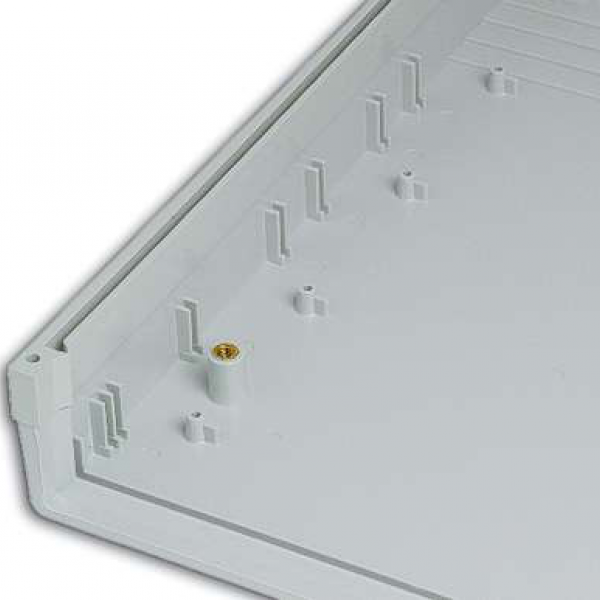

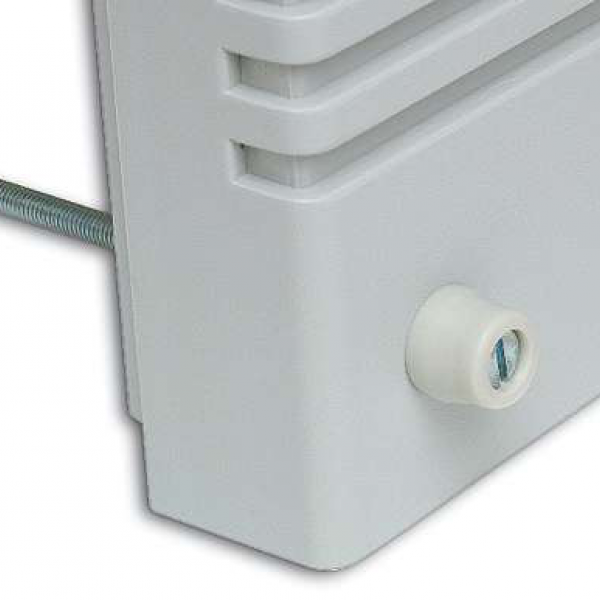

Cases with the front and rear panels moulded in ABS. The base and the cover have integral PCB guides and mounting studs. Closing by four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

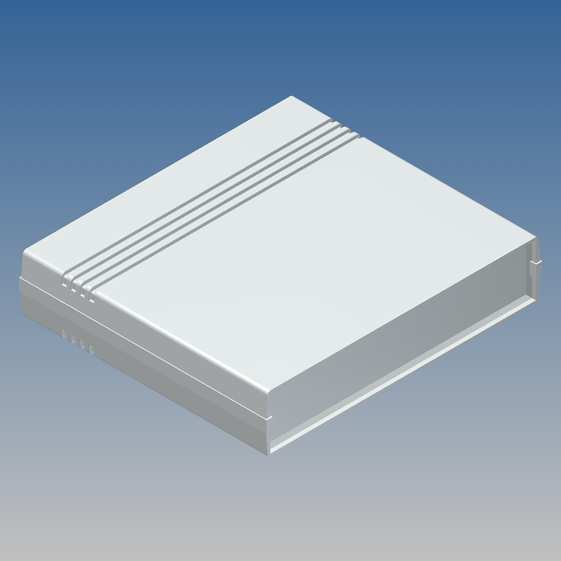

861.5 268 300 63 9018
AG-ATY 282 230 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 282
  • MAX PCB W (mm): 230
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
861.9 268 300 63 9004
P2H-AT 282 230 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 282
  • MAX PCB W (mm): 230
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

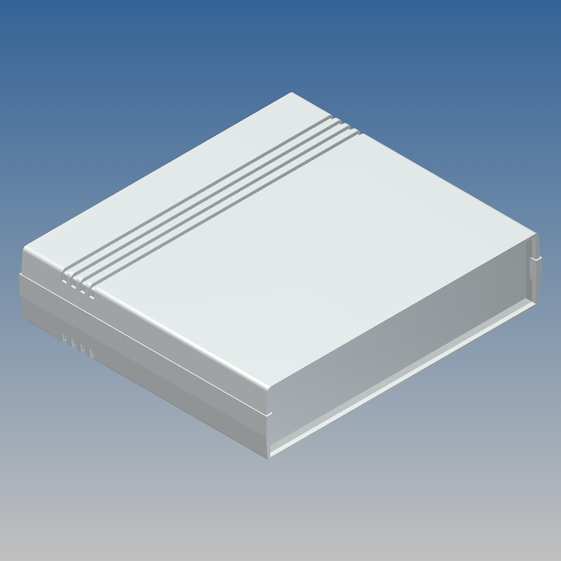

862.5 268 300 69,8 9018
AG-ATY 282 230 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 282
  • MAX PCB W (mm): 230
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

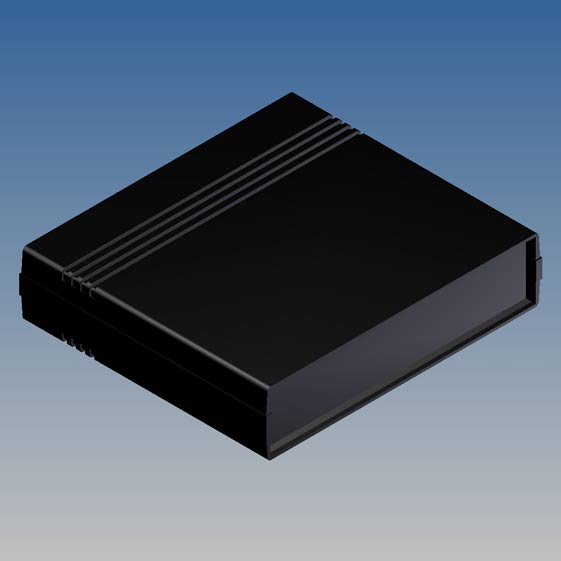

862.9 268 300 69,8 9004
P2H-AT 282 230 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 282
  • MAX PCB W (mm): 230
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

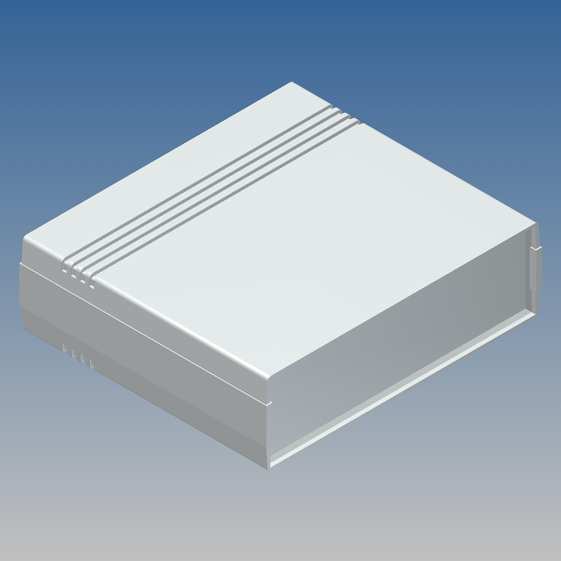

863.5 268 300 89,8 9018
AG-ATY 282 230 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 282
  • MAX PCB W (mm): 230
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

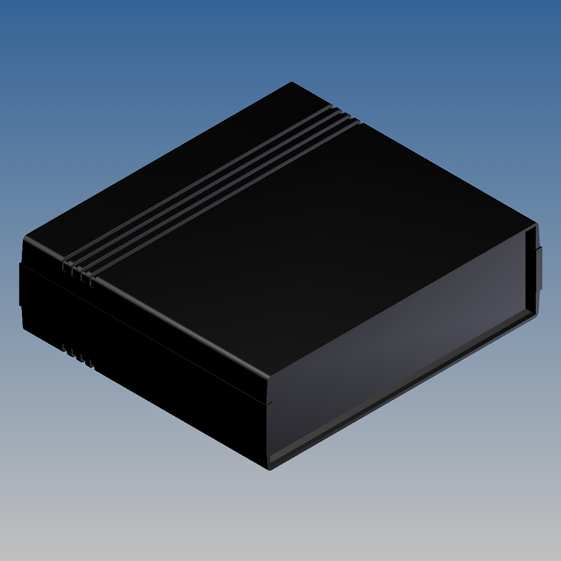

863.9 268 300 89,8 9004
P2H-AT 282 230 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 282
  • MAX PCB W (mm): 230
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
12 product families, 146 series. You can't find what you're looking for? Contact us
