STRUMENTALIA

Family Strumentalia - Electronic enclosures - Plastic

Description

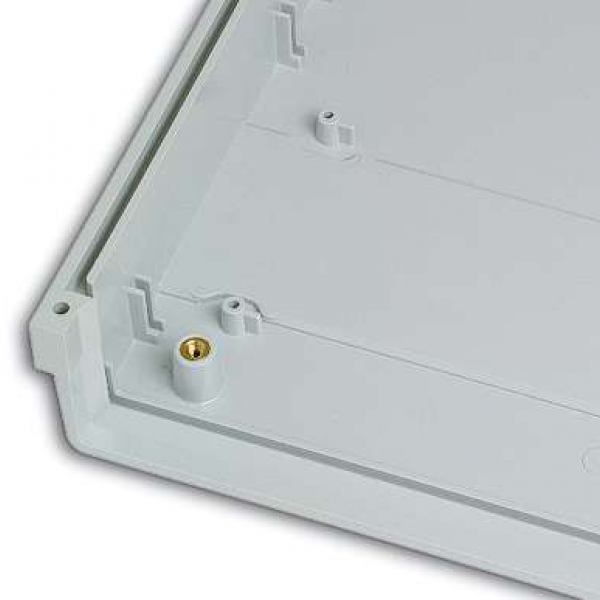

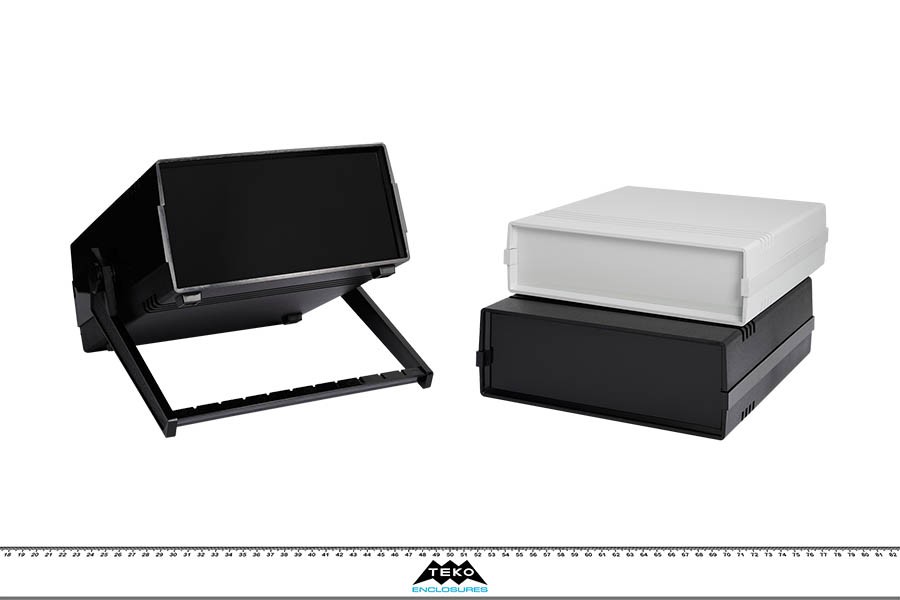

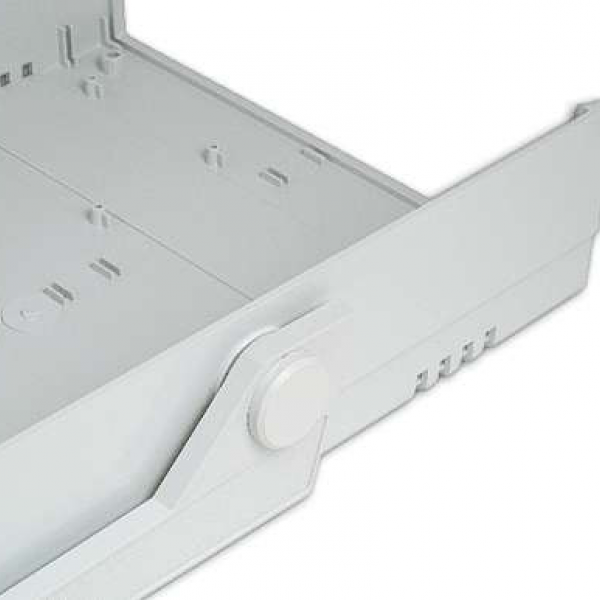

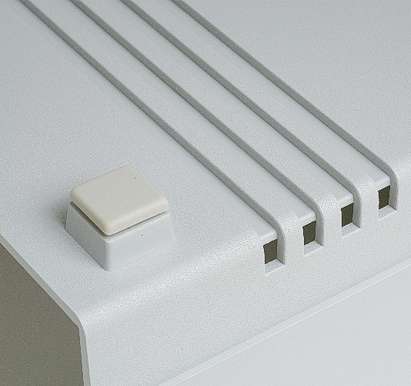

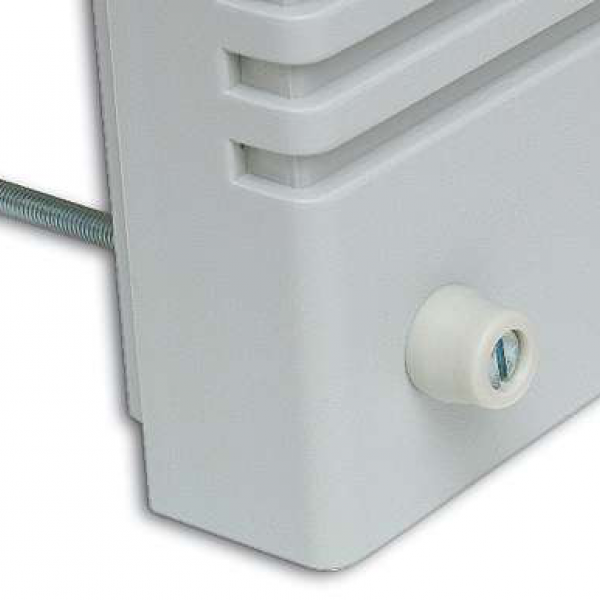

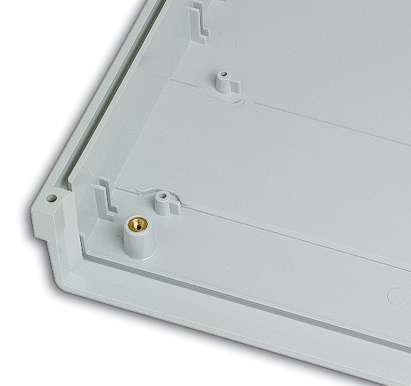

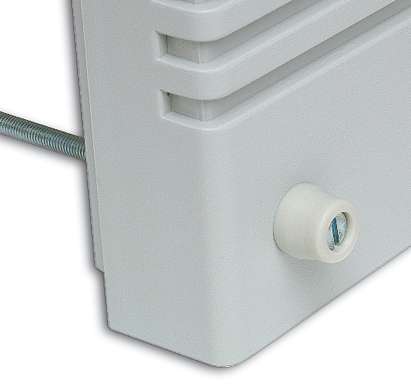

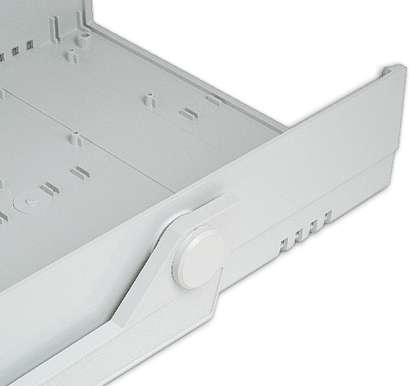

Cases with the front and rear panels moulded in ABS. The base and the cover have integral PCB guides and mounting studs. The models “761” and “762” come complete with easy-to-grip, multi-tilt support handles. Matt surface finish. Closing by four screws with plastic feet.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

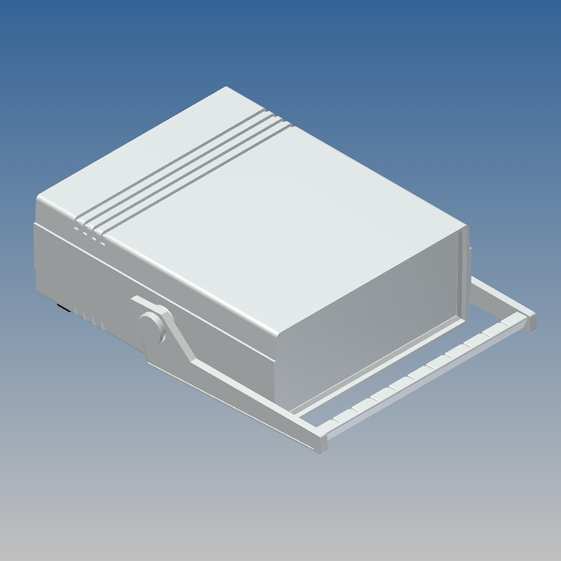

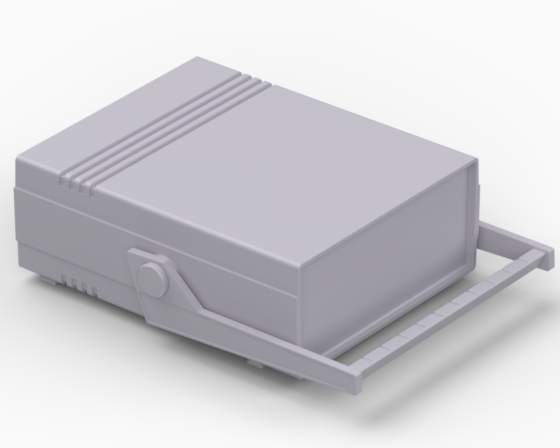

761.5 268 216 95 9018
AG-ATY 240 200 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

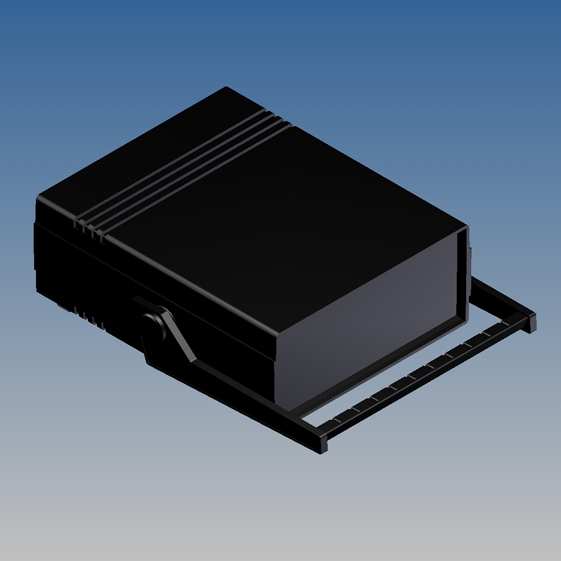

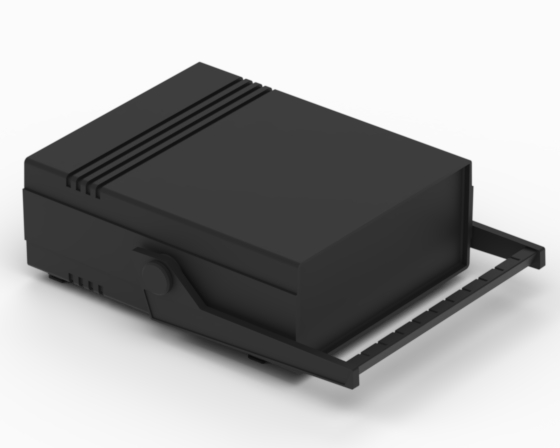

761.9 268 216 95 9004
P2H-AT 240 200 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

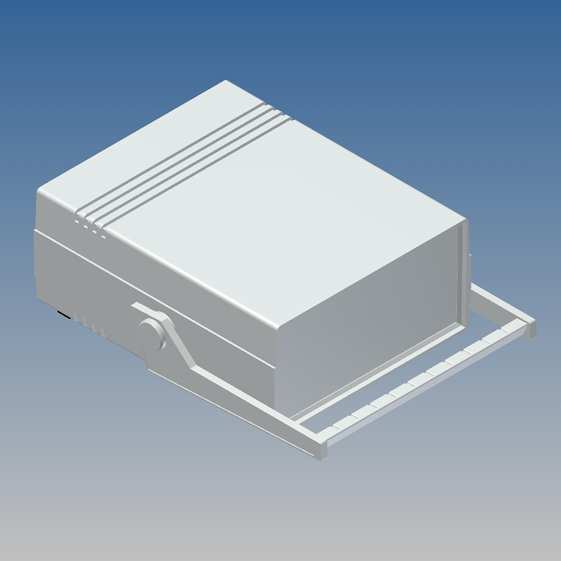

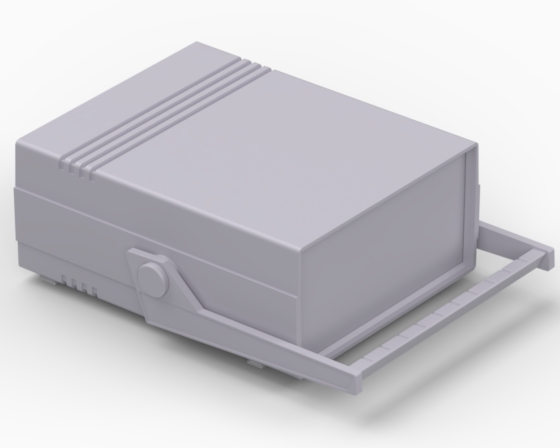

762.5 268 216 108 9018
AG-ATY 240 200 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

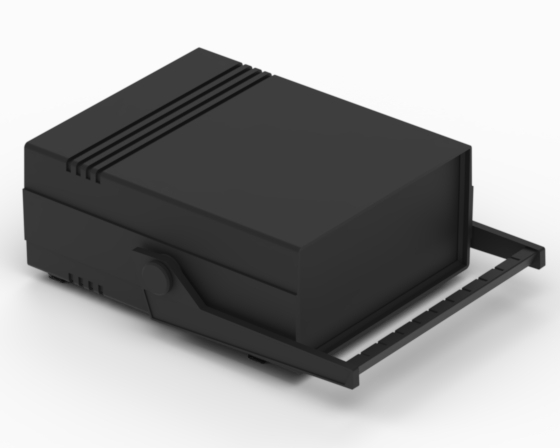

762.9 268 216 108 9004
P2H-AT 240 200 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

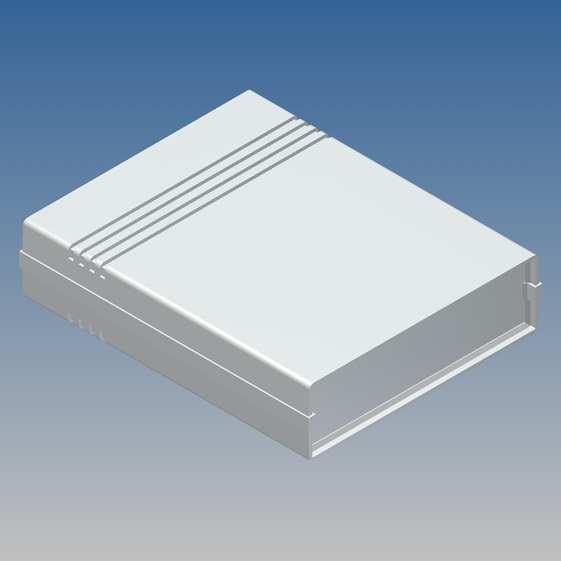

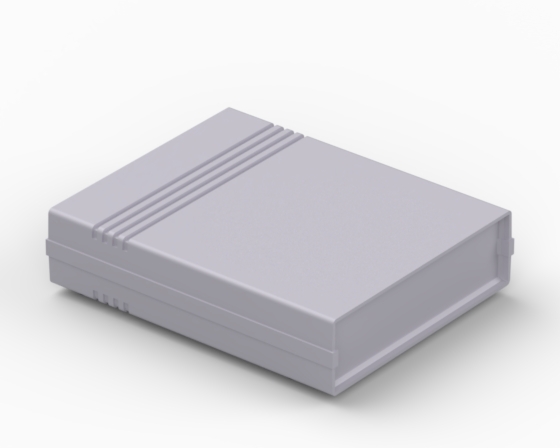

765.5 268 216 63 9018
AG-ATY 240 200 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

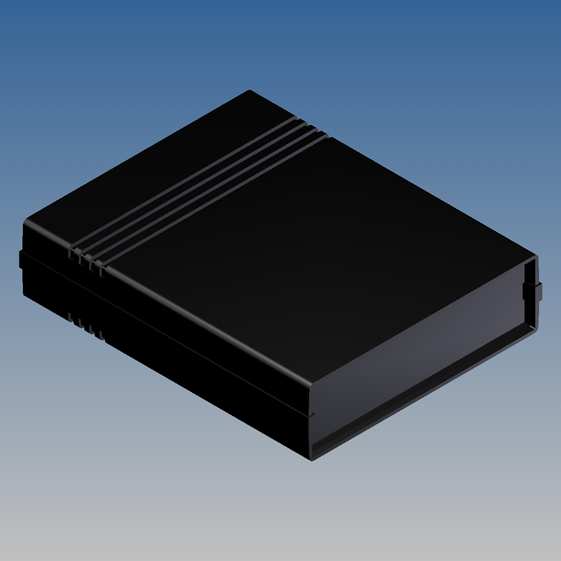

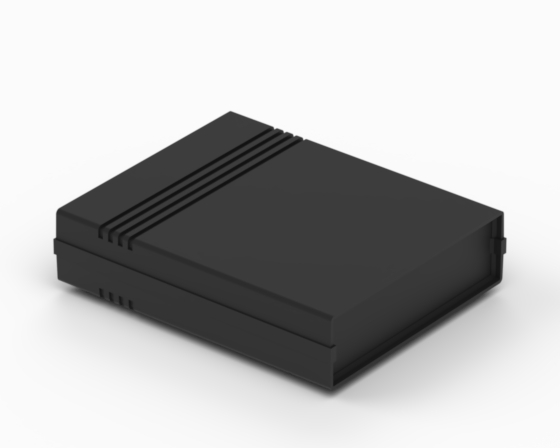

765.9 268 216 63 9004
P2H-AT 240 200 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

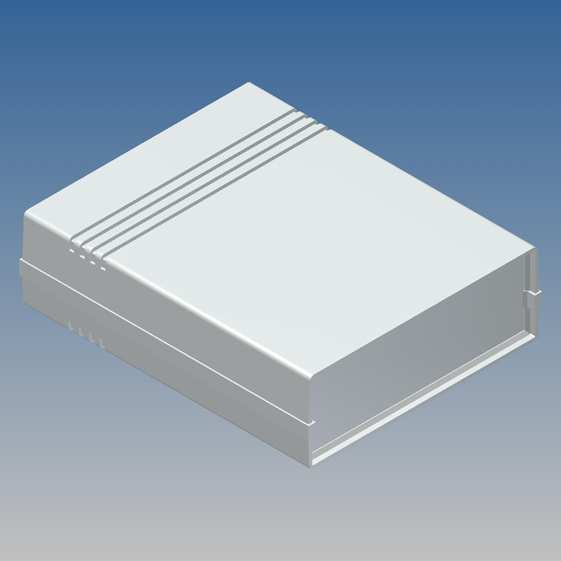

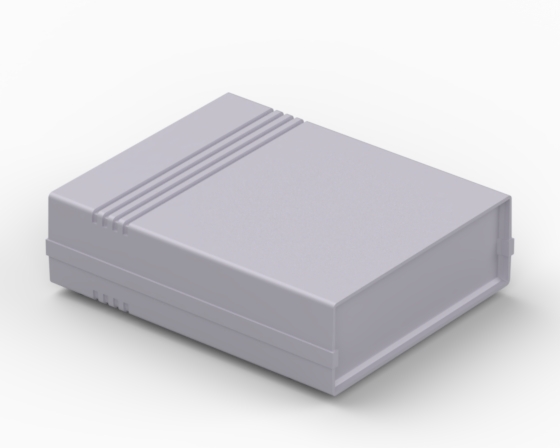

766.5 268 216 76 9018
AG-ATY 240 200 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

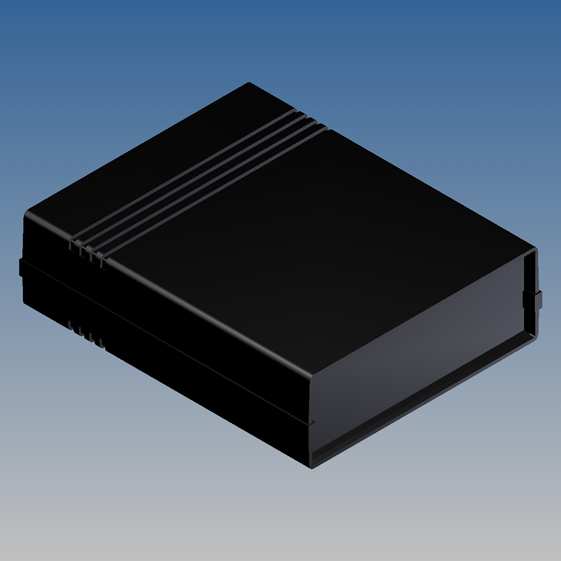

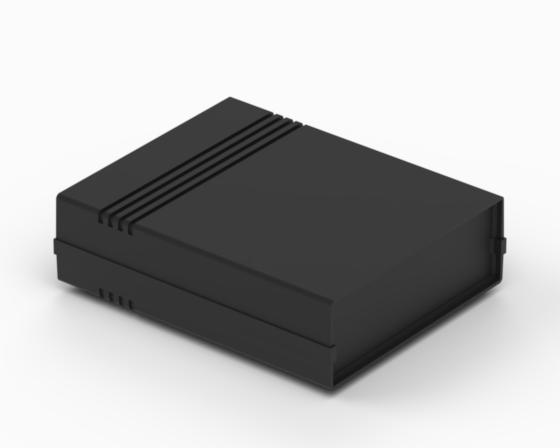

766.9 268 216 76 9004
P2H-AT 240 200 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

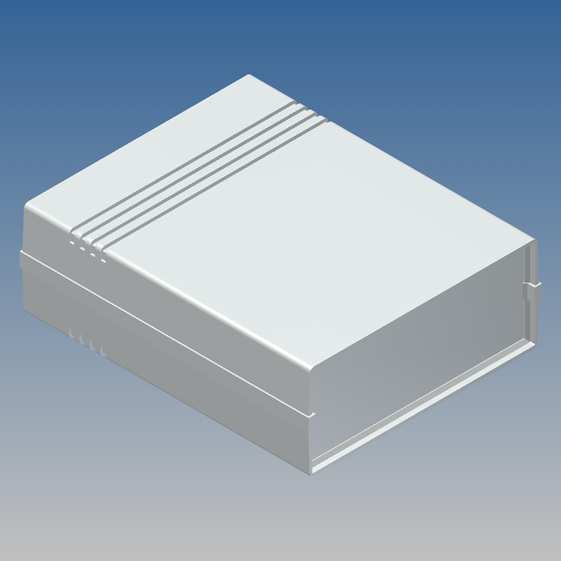

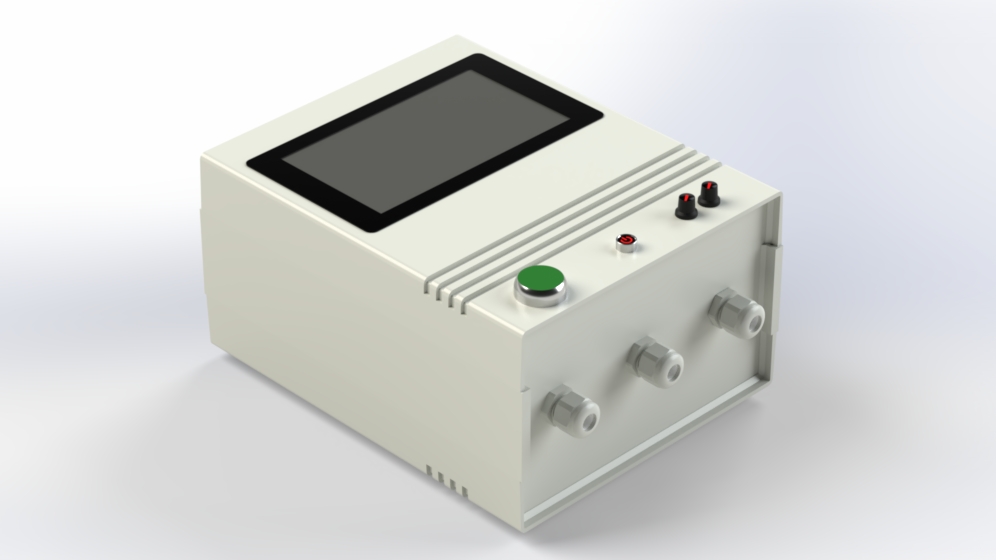

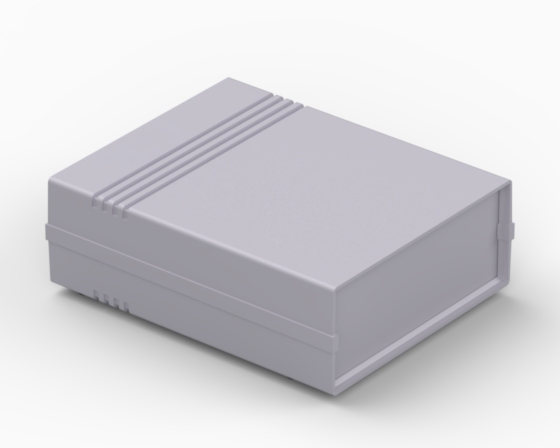

767.5 268 216 89 9018
AG-ATY 240 200 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

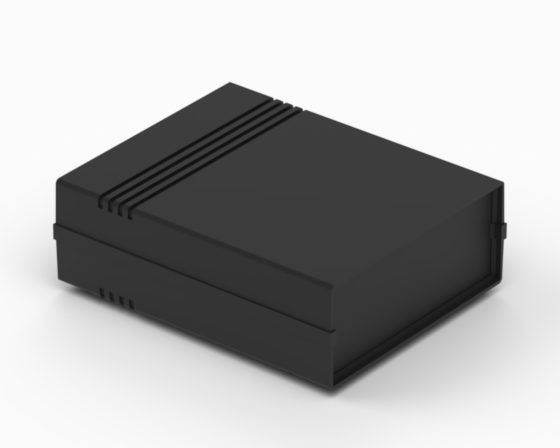

767.9 268 216 89 9004
P2H-AT 240 200 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
