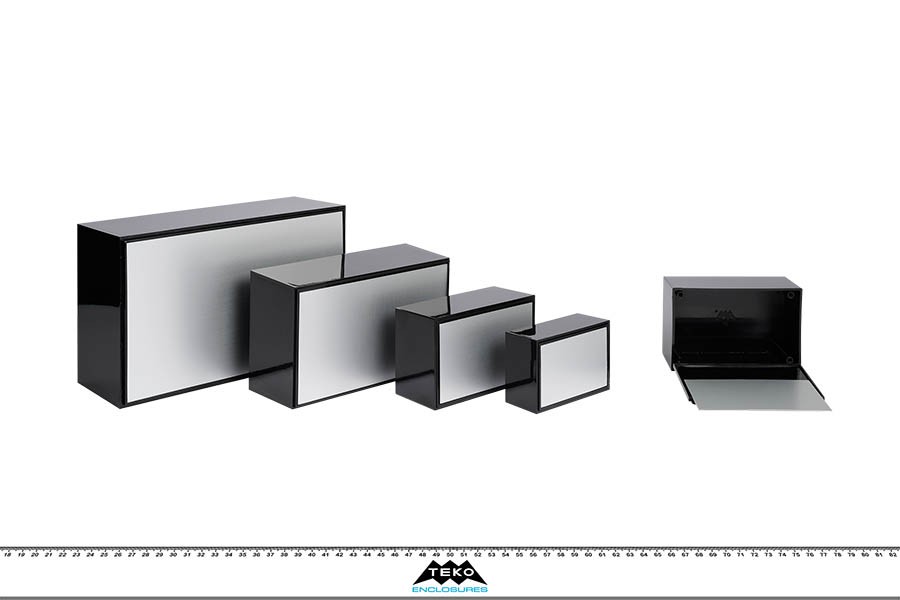

Family Top Cover - Electronic enclosures - Plastic

Description

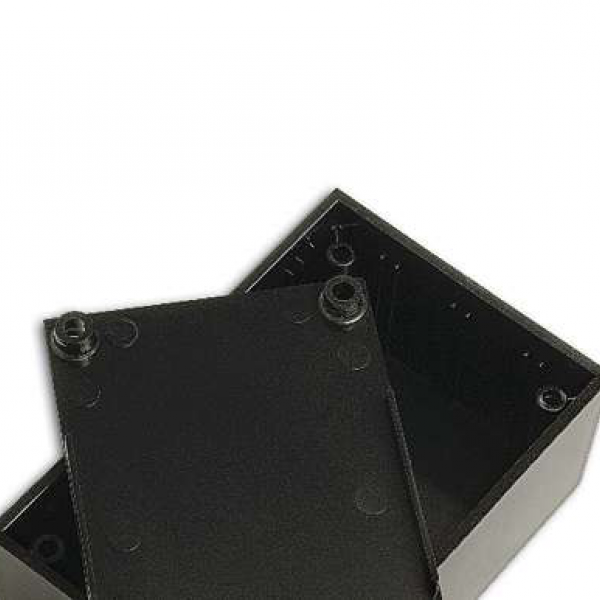

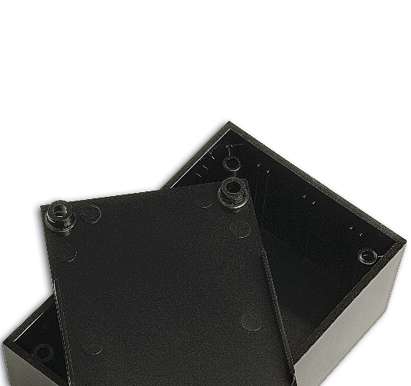

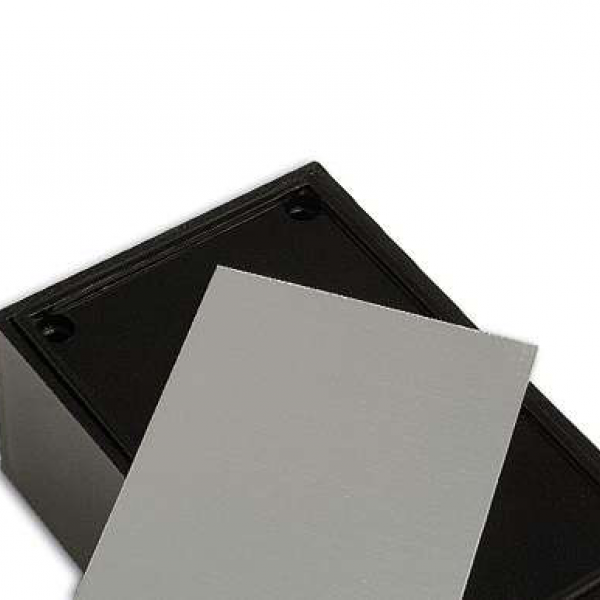

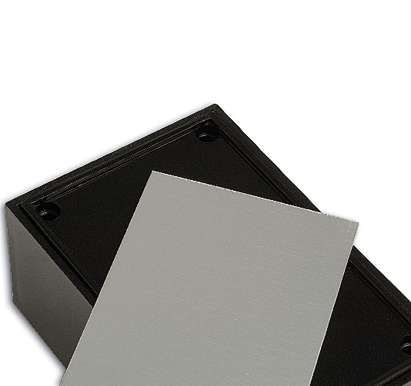

ABS enclosures with a plastic cover and an aluminium panel. Glossy surface finish. The cover has a recessed area to hold an 0.5 mm anodized aluminium panel. The base walls have integral PCB guides. Closing by four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

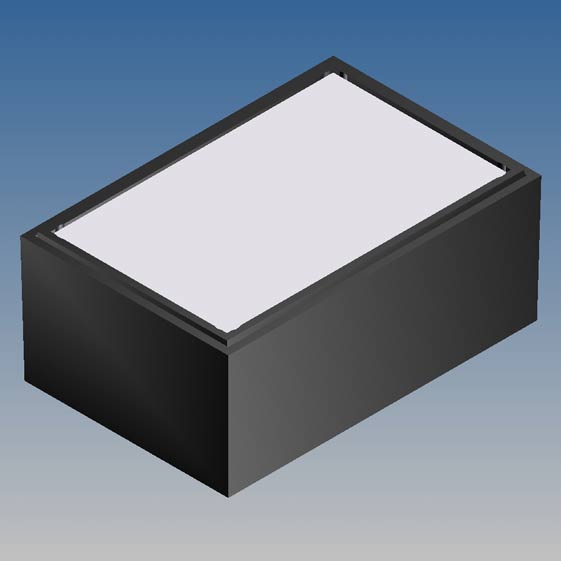

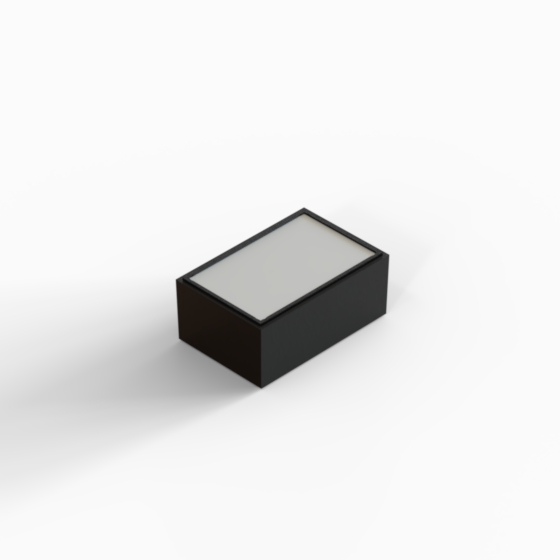

151/P.9 85 56 36,6 9004
ALLOY 6060  -  1640 AS 80 25 4 - PDF
DWG
View

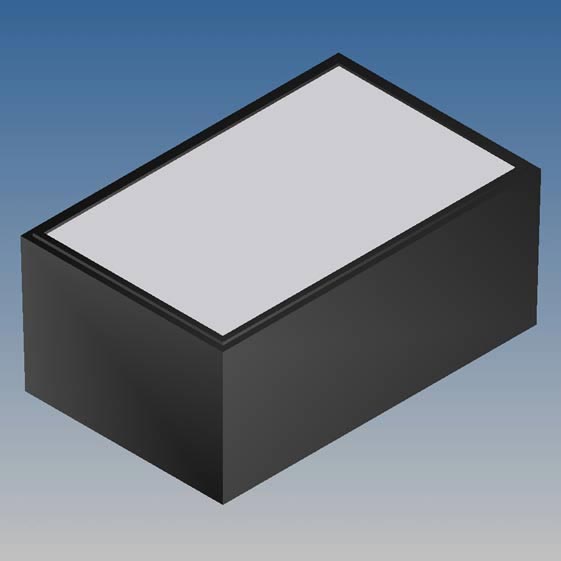

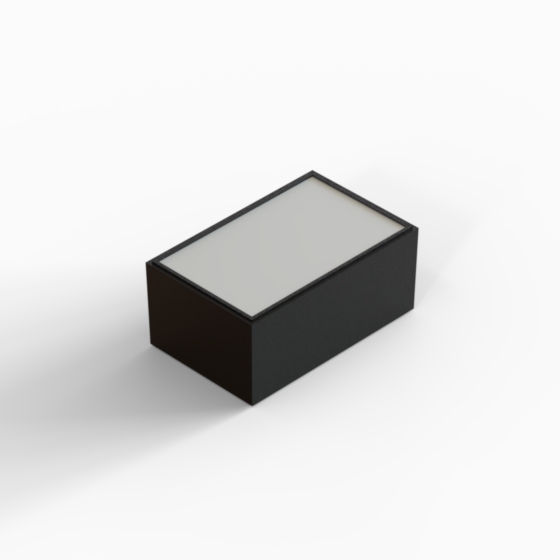

152/P.9 110 70 48,9 9004
ALLOY 6060  -  1640 AS 103,5 37 4 - PDF
DWG
View

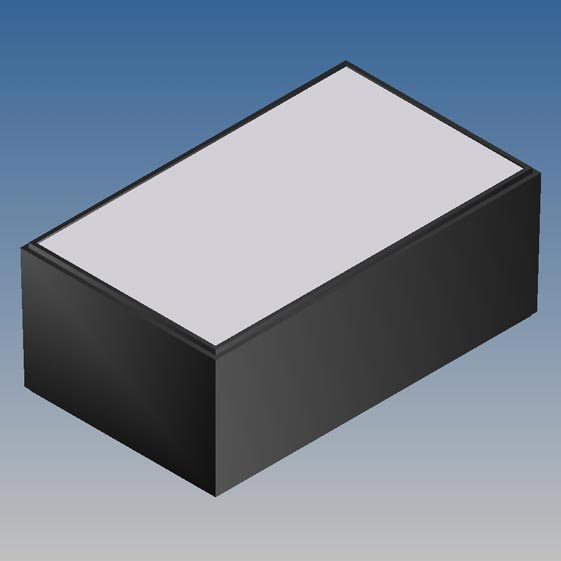

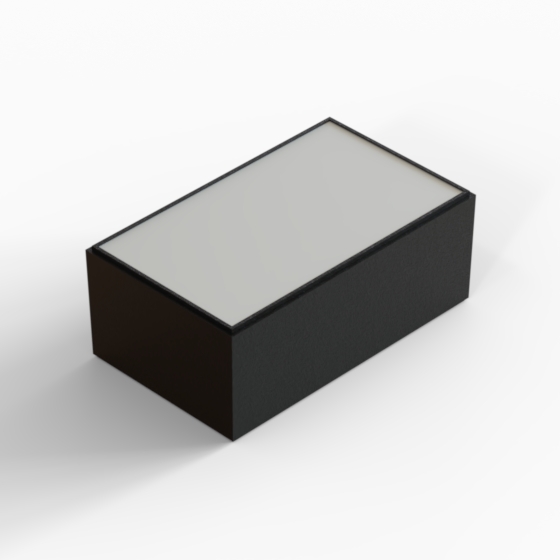

153/P.9 160 96 63,2 9004
ALLOY 6060  -  1640 AS 154 49 4 - PDF
DWG
View

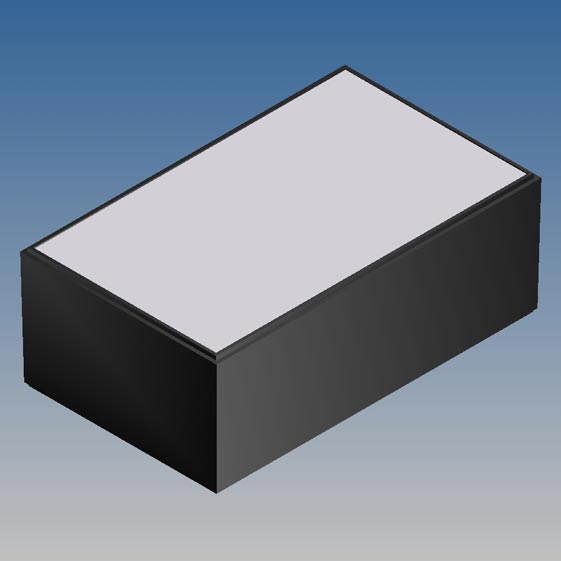

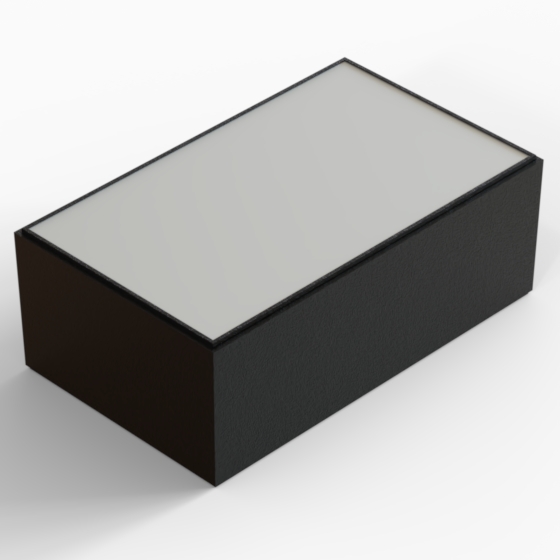

154/P.9 215 130 79,4 9004
ALLOY 6060  -  1640 AS 208 64,5 4 - PDF
DWG
View
12 product families, 146 series. You can't find what you're looking for? Contact us
